Space Radiation Effects Tutorial E De Donder BIRA
Space Radiation Effects Tutorial E. De Donder (BIRA) 23/03/2012 at ROB www. spenvis. oma. be 1

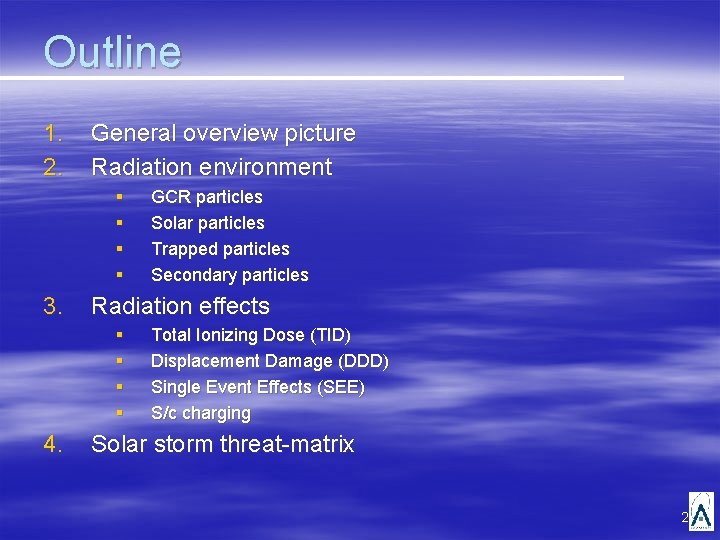

Outline 1. 2. General overview picture Radiation environment § § 3. Radiation effects § § 4. GCR particles Solar particles Trapped particles Secondary particles Total Ionizing Dose (TID) Displacement Damage (DDD) Single Event Effects (SEE) S/c charging Solar storm threat-matrix 2
Radiation environment Plasma environment Neutral environment + drag Microparticle environment 3
Radiation environment (1/4): GCR particles § § protons and heavy ions (Z>1, mostly fully ionized) E ~ 0. 01 – 103 Ge. V/n modulated by solar cycle, Forbush decrease due to CME anomalous component : 1 x ionised He, N, O, Ne, Ar with 10 < E < 100 Me. V/n → only during sol. min. Magnetic rigidity = momentum per charge Energy required to penetrate Earth’s magnetic field (Stassinopoulos et al. , 2003) SPENVIS-4. 5 4

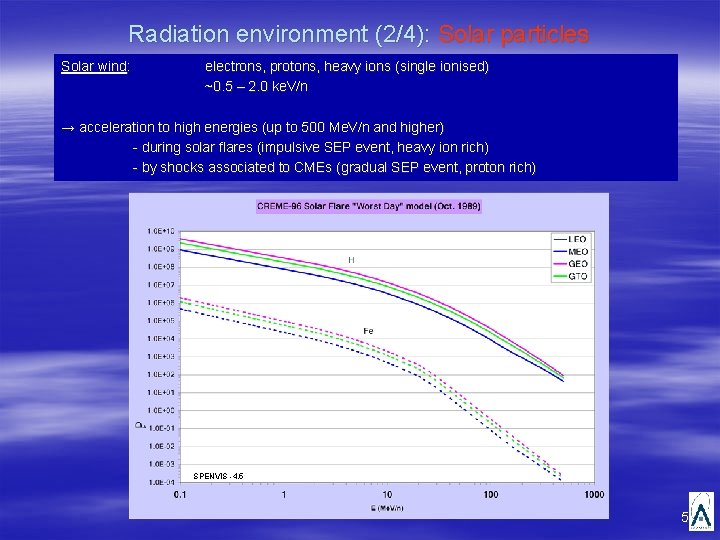

Radiation environment (2/4): Solar particles Solar wind: electrons, protons, heavy ions (single ionised) ~0. 5 – 2. 0 ke. V/n → acceleration to high energies (up to 500 Me. V/n and higher) - during solar flares (impulsive SEP event, heavy ion rich) - by shocks associated to CMEs (gradual SEP event, proton rich) SPENVIS -4. 5 5
Radiation environment (3/4): Trapped particles § § § Electrons : - 0. 04 – 7 Me. V - L = ~ 1. 5 (inner zone) and 2. 8 < L < 12 (outer zone) → highly dynamic - solar wind, ionosphere Protons : - 0. 04 – 500 Me. V - 1. 5 < L < 2. 5 - cosmic ray albedo neutron decay SAA: South Atlantic Anomaly / Southeast Asian Anomaly Polar horns SPENVIS – 4. 5 E. J. Daly, 1996 6
SPENVIS -4. 5 7
Radiation environment (4/4): Secondary particles → interaction with s/c shielding material Secondary particle fluence energy spectra after 20 -mm aluminum shield for an incident trapped proton spectrum accumulated over one year. The spectra are from a 10 incident protons simulation. 8
→ interaction with atmosphere GCR and SEP flux satellite (GOES/ACE) data, observed during Halloween event 2003) propagated (with NAIRAS model) to top level atmosphere and cruise altitude (10 -12 km). (from C. Mertens, 2010) 9
MIT Open. Course. Ware 10

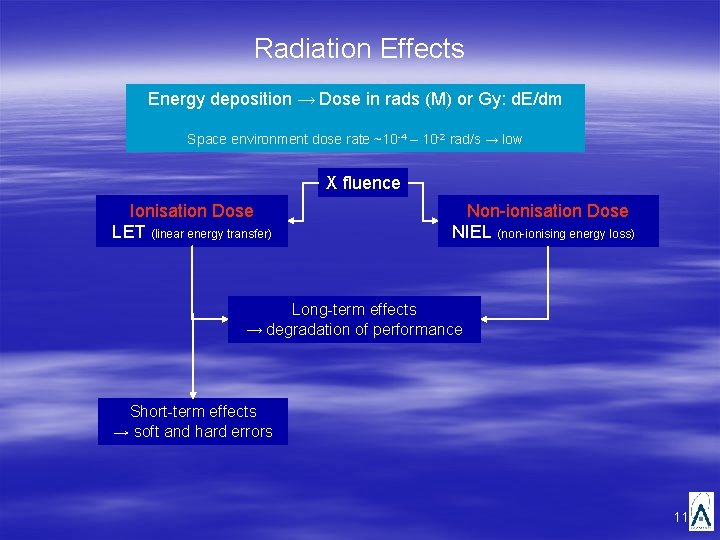

Radiation Effects Energy deposition → Dose in rads (M) or Gy: d. E/dm Space environment dose rate ~10 -4 – 10 -2 rad/s → low X fluence Ionisation Dose LET (linear energy transfer) Non-ionisation Dose NIEL (non-ionising energy loss) Long-term effects → degradation of performance Short-term effects → soft and hard errors 11
(Adams et al. , 1987) Summers, 1993. 12
Radiation Effects (1/4): Total Ionizing Dose (TID) ▪ cumulative long term ionizing damage due to the production of electron – hole pairs § effects: - build up of charges/defects → device degradation (e. g. Vth shift and increasing leakage currents) - DNA damage ▪ main source: > 0. 1 Me. V protons (trapped & solar), electrons (trapped) 13

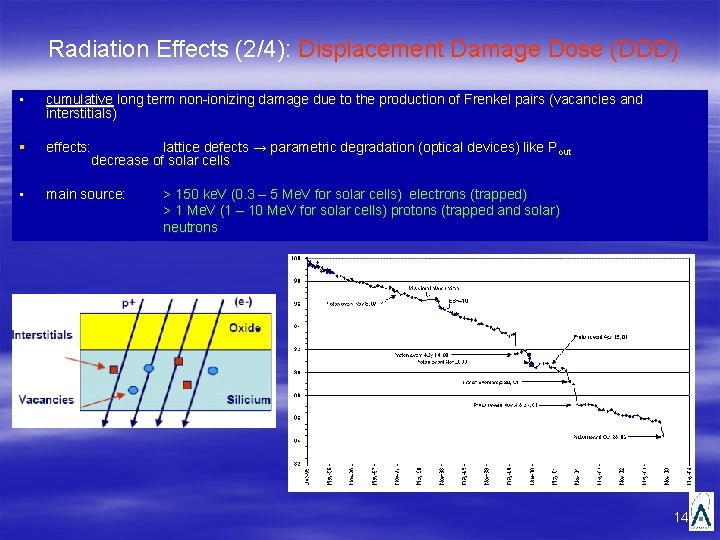

Radiation Effects (2/4): Displacement Damage Dose (DDD) ▪ cumulative long term non-ionizing damage due to the production of Frenkel pairs (vacancies and interstitials) § effects: lattice defects → parametric degradation (optical devices) like Pout decrease of solar cells ▪ main source: > 150 ke. V (0. 3 – 5 Me. V for solar cells) electrons (trapped) > 1 Me. V (1 – 10 Me. V for solar cells) protons (trapped and solar) neutrons 14
SOHO’s Solar Array Degradation History Solar array degradation: Net loss in two week period 1. 1% 15

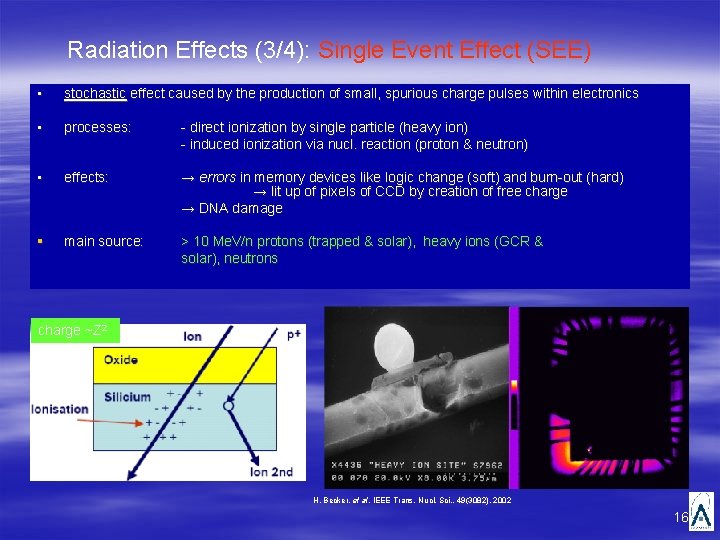

Radiation Effects (3/4): Single Event Effect (SEE) ▪ stochastic effect caused by the production of small, spurious charge pulses within electronics ▪ processes: - direct ionization by single particle (heavy ion) - induced ionization via nucl. reaction (proton & neutron) ▪ effects: → errors in memory devices like logic change (soft) and burn-out (hard) → lit up of pixels of CCD by creation of free charge → DNA damage § main source: > 10 Me. V/n protons (trapped & solar), heavy ions (GCR & solar), neutrons charge ~Z 2 H. Becker, et al, IEEE Trans. Nucl. Sci. , 49(3082), 2002 16

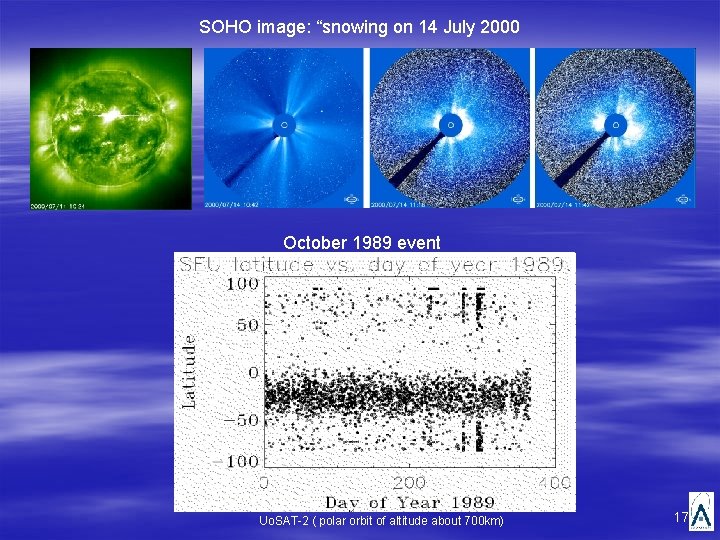

SOHO image: “snowing on 14 July 2000 October 1989 event Uo. SAT-2 ( polar orbit of altitude about 700 km) 17
Radiation Effects (4/4): S/c charging ▪ accumulation of electric charge on s/c surface from natural space plasma → surface charging – Main source : 0. 01 – 100 ke. V electrons ▪ accumulation of electric charge on internal dielectrics from penetrating high-energy electrons → internal dielectric charging – Main source: > 100 ke. V electrons (trapped) - “Killer electrons” ▪ effects: (breakdown) discharges 18
During substorms, a hot plasma is injected from the magnetotail into the nightside high-altitude equatorial regions. � The electrons gradient- curvature drift towards dawn and can dominate the charge balance on a vehicle � The hazard arises when adjacent surfaces rise to different enough potentials to drive a discharge � A discharge can introduce unintended signals of tens of volts amplitude in command power lines Surface damage in a C 2 MOS Capacitor (Image from JPL) High speed solar wind and killer electrons 19
Summary: Radiation Effects in Space Radiation Effect Impact on Mission Natural Variation in Environment Space Environment surface charging biasing of instrument readings power drain physical damage 0. 01 - 100 ke. V : electrons 0. 01 - 100 ke. V: electrons minutes surface dose changes in thermal, electrical, and optical properties UV, atomic oxygen, particle radiation minutes deep-dielectric charging electrical discharges causing physical damage >100 ke. V electrons hours total ionizing dose performance degradation loss of function loss of mission >100 ke. V : trapped protons and >100 ke. V: trapped protons and electrons, solar protons hours non-ionizing dose degradation of optical components and solar cells > 1 Me. V : trapped protons, solar > 1 Me. V: trapped protons, solar protons, neutrons days single event effects data corruption noise on images interruption of service loss of s/c > 10 Me. V/n : trapped protons, > 10 Me. V/n: trapped protons, solar protons, solar heavy ions, GCR heavy ions, neutrons days 20
http: //www. aero. org/publications/crosslink/summer 2003/02_table 1. html 21
Solar Storm: flare, SPE, CME Enhanced EM Radiation (X, EUV, radio, g) Arrival time: 8 min Effect duration: 1 -2 hrs → e- density in ionosphere → expansion atmosphere • hf radio blackout • satcom inteference • radar interference • image interference • satellite drag High Energy Charged Particles (p+: 10 Me. V – 20 Ge. V) Arrival time: 15 min – few hours Effect duration: hours - days Enhanced B Field/ Plasma Clouds Arrival time: 2 – 4 days Effect duration: days → increased radiation exposure → induced currents → geomagnetic field distortion • high-altitude hf radio blackout • high-altitude aircraft radiation • satellite desorientation • s/c electronics damage • s/c solar panel degradation • false sensor readings • launch payload failure • human cell damage • ozon layer depletion • hf radio blackout • shift of outer radiation belt • s/c charging • radar false targets • satcom interference • oil and gas pipeline corrosion • electrical power blackouts 22
Threat matrix ‘Solar storm threat analysis’ by J. A. Marusek (http: //www. breadandbutterscience. com/SSTA. pdf) 23

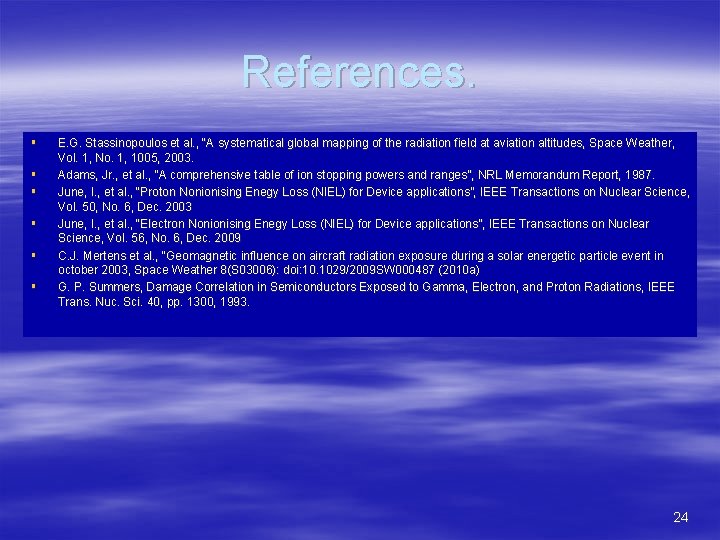

References. § § § E. G. Stassinopoulos et al. , “A systematical global mapping of the radiation field at aviation altitudes, Space Weather, E. G. Stassinopoulos et al. , “A Vol. 1, No. 1, 1005, 2003. Adams, Jr. , et al. , “A comprehensive table of ion stopping powers and ranges”, NRL Memorandum Report, 1987. June, I. , et al. , “Proton Nonionising IEEE Transactions on Nuclear Science, June, I. , et al. , “Proton Nonionising Enegy Loss (NIEL) for Device applications”, IEEE Transactions on Nuclear Science, Vol. 50, No. 6, Dec. 2003 June, I. , et al. , “Electron Nonionising IEEE Transactions on Nuclear June, I. , et al. , “Electron Nonionising Enegy Loss (NIEL) for Device applications”, IEEE Transactions on Nuclear Science, Vol. 56, No. 6, Dec. 2009 C. J. Mertens et al. , “Geomagnetic influence on aircraft radiation exposure during a solar energetic particle event in C. J. Mertens et al. , “ october 2003, Space Weather 8(S 03006): doi: 10. 1029/2009 SW 000487 (2010 a) G. P. Summers, Damage Correlation in Semiconductors Exposed to Gamma, Electron, and Proton Radiations, IEEE Trans. Nuc. Sci. 40, pp. 1300, 1993. Trans. Nuc. 24

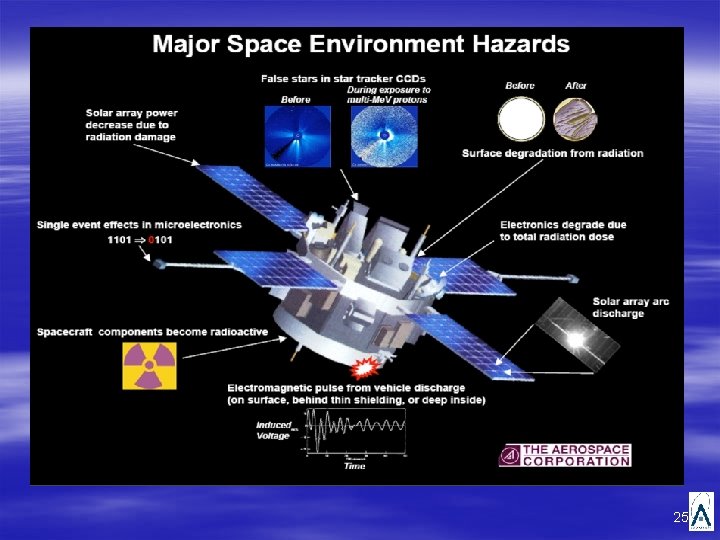

25
