SOUTH “Y” INTERSECTION IMPROVEMENT PROJECT U. S. Hwy. 50 and State Route 89 South Lake Tahoe
Project Overview The South Y Intersection Project resulted from a 1997 study initiated by the City of South Lake Tahoe and performed by Fehr & Peers Associates to address cost effective short term improvements to traffic operations, transit circulation, and pedestrian/bicycle crossings The City formed a Technical Advisory Committee (TAC) consisting of representatives from City Planning & Public Works Departments, Tahoe Regional Planning Agency (TRPA), California Department of Transportation (Caltrans), and the California Tahoe Conservancy (CTC) The TAC provided the overall direction for development of the study scope and the technical approach in order to formulate a preferred design alternative
Existing Intersection The existing lane configuration of the intersection is as follows: US 50 Eastbound (from Placerville) - One exclusive left turn lane (to Lake Tahoe Blvd), two exclusive through lanes, and one free right turn lane (to Stateline) US 50 Westbound (from Stateline) – one exclusive left turn lane (to Placerville), one shared through/left turn lane, one exclusive through lane, and one free right turn lane (towards Tahoe City) State Route 89 (Southbound) – one exclusive left turn lane (onto US Hwy 50 towards Stateline), one shared through/left turn lane, and one shared through/right turn lane (onto Lake Tahoe Blvd) Lake Tahoe Blvd – One exclusive left turn lane, one shared through/left turn lane, one exclusive through lane, and one exclusive right turn lane The intersection also includes several local roads and private driveways that intersect various approaches to the intersection

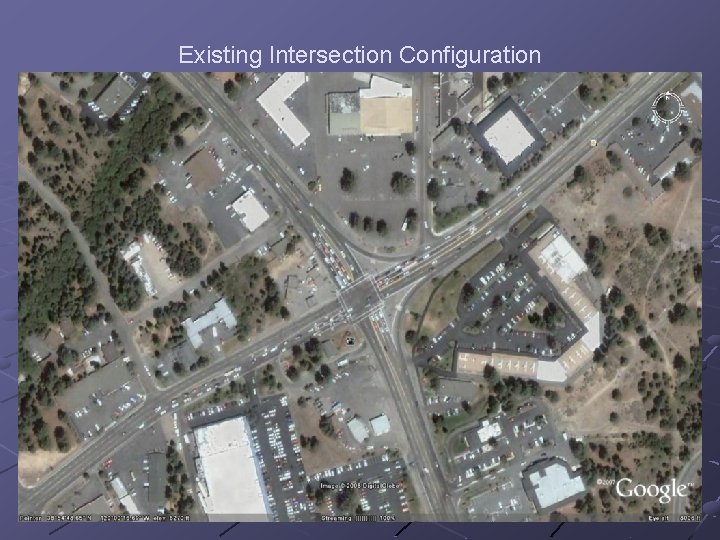

Existing Intersection Configuration
Proposed Alternative As a result of the final study report completed by Fehr & Peers Associates in April of 1997, and by approval of the Technical Advisory Committee the preferred design alternative was determined and the subsequent design comprised of the following Add dedicated additional left turn lanes to all approaches Reduce the size of the islands and widen the free right merge lanes Reduce the radius of free right merge lanes Purchase right of way to widen Lake Tahoe Blvd. for dedicated right turn lane from State Route 89 Improve access control with signage, striping, and geometric design features Modify the signal phasing Include landscaping at islands and behind curb at free right merge lanes
Proposed Lane Configuration
Design Components Additional dedicated turn lanes at all approaches New traffic signals and equipment on all approaches, featuring LED signal heads, overhead lighting, pedestrian crossing signals, pedestrian crossing timers, and finished in midnight green color New signal islands on East and Westbound approaches featuring landscaping, stamped concrete walkways, and ADA compliant curb ramps New concrete driveway approaches within construction limits New sidewalks where specified, construction of ADA ramps at existing sidewalks where required, construction of recessed thermoplastic striping and pedestrian crosswalks Landscaping behind curb line within State right of way at the free right merge lanes Configuration with Caltrans Integrated Traffic Management System project Minor storm water infrastructure upgrades.
U. S. Hwy. 50 from Placerville New island with landscaping & ADA accessible ramps New curb and gutter and sidewalk improvements Reduced radius on free right merge lane to reduce traffic speeds at merge Irrigation and landscaping behind curb at free right merge lane
Blvd. & S. R. Intersection widening at State. Lake Route. Tahoe 89 and Lake Tahoe Blvd. 89 to create dedicated right turn lane Construction of sidewalk Construction of curb and gutter New driveway approaches within construction limits Relocation of Runnel’s Automotive sign and canopy
State Route 89 Northbound New island, with landscaping and ADA accessible ramps Widen free right merge lane Reduce radius of free right merge lane to reduce speeds New sidewalks with ADA accessible ramps New curb and gutter New irrigation and landscaping within the State right of way New concrete driveway approaches within construction limits
Proposed Landscaping
Anticipated Construction Schedule Anticipated award at May 20, 2008 City Council Meeting Review of submittals and documents between May 20 and June 3 2008 Notice to Proceed the week of June 2, 2008 Mobilization of material and equipment, staging, BMPs, and site work beginning the week of June 9, 2008 Eastbound U. S. Hwy 50 – June 8 to July 10, 2008 Westbound U. S. Hwy 50 – July 10 to August 15, 2008 State Route 89 & Lake Tahoe Boulevard including Runnels – August 17 to September 24, 2008 Traffic Loops and finish paving – September 29 to October 9, 2008 Landscaping and final clean up – October 9 through October 15, 2008 Estimated completion – October 31, 2008 Note: The schedule is subject to change depending on accelerated or delayed construction.
