South Delta Gates and Barriers Some Slides borrowed
South Delta Gates and Barriers Some Slides borrowed from Mark Holderman
Temporary Barriers Rock Barriers are installed seasonally on as needed basis Combination of weir/culverts (with flap gates) Objective: To protect water levels in South Delta and offset the effects of pumps
History of Barrier Installations

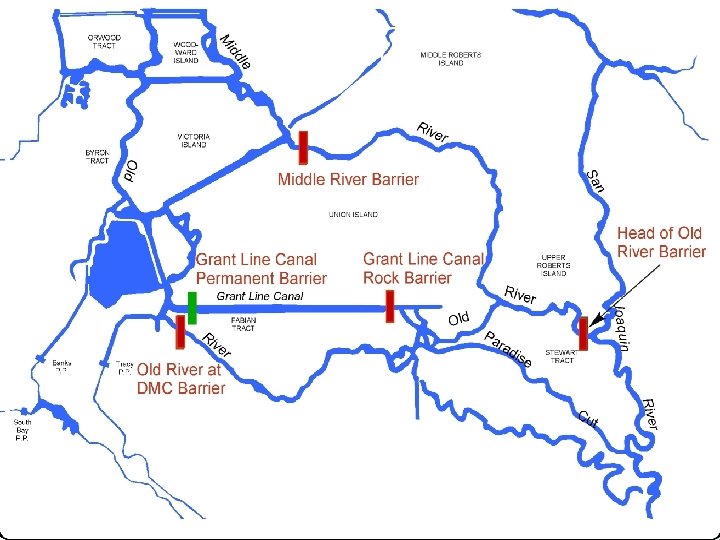

Grant Line Canal Barrier
Head of Old River Barrier
SDIP Permanent Gates n n n Bottom Hinged Provide more flexibility than temp. barriers Objective: To protect water levels and water quality by creating better circulation in South Delta
Modified Plan C Basic Concept Operate Ag Barriers to Protect Water Levels and Improve Water Quality (on a as needed basis) n n The number of barriers operated depends on the hydrology All ag barriers fully open during flood tide Middle River and Old River Barriers are fully closed during ebb tide (When they are operated) Grant Line Canal Barrier only partially open during ebbtide to prevent water level problems
Plan C Barrier Operation Low SJR Flows (<2500 cfs) or HOR Operating n n Middle and Old River barriers closed during ebb tide GLC Barrier partially open during ebb tide
Plan C Barrier Operation Intermediate SJR Flows (2500<SJR<4000 cfs) & HOR Open n n Old River barrier closed during ebb tide GLC Barrier partially open during ebb tide
Plan C Barrier Operation High SJR Flows (4000<SJR<8000 cfs) and HOR Open n GLC Barrier partially open during ebb tide
Plan C Barrier Operation Very High SJR Flows (>8000 cfs) and HOR Open n No need to operate any Ag barriers
- Slides: 12
