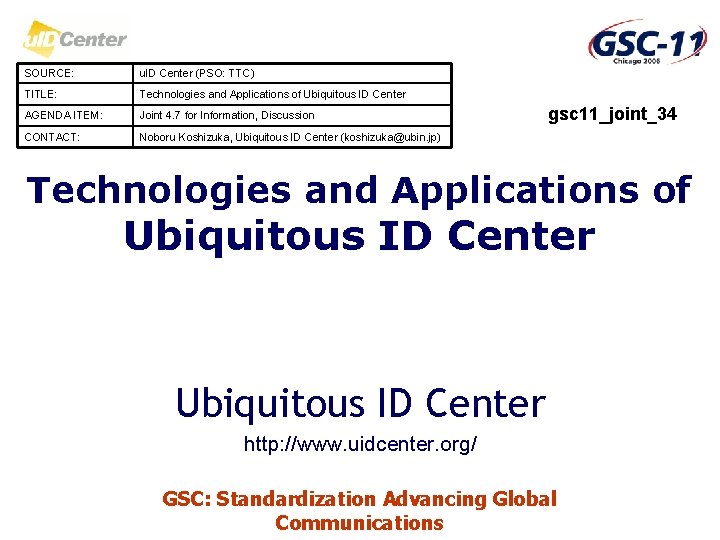

SOURCE: u. ID Center (PSO: TTC) TITLE: Technologies and Applications of Ubiquitous ID Center AGENDA ITEM: Joint 4. 7 for Information, Discussion CONTACT: Noboru Koshizuka, Ubiquitous ID Center (koshizuka@ubin. jp) gsc 11_joint_34 Technologies and Applications of Ubiquitous ID Center http: //www. uidcenter. org/ GSC: Standardization Advancing Global Communications

Ubiquitous ID Center Organization GSC: Standardization Advancing Global Communications

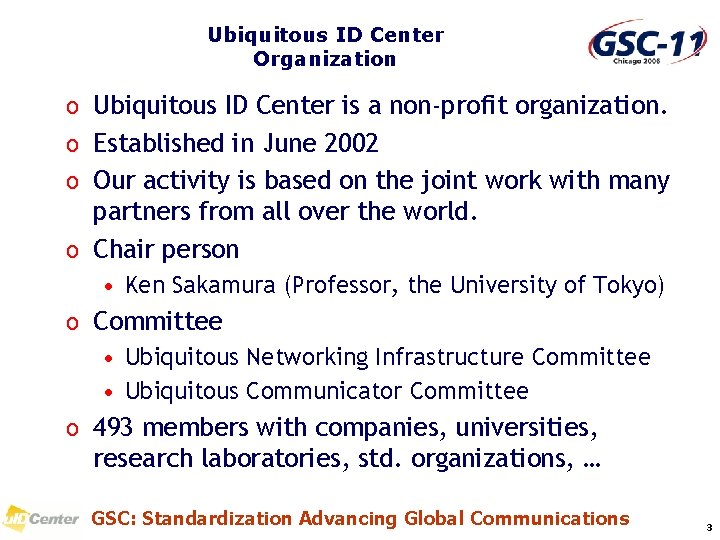

Ubiquitous ID Center Organization o Ubiquitous ID Center is a non-profit organization. o Established in June 2002 o Our activity is based on the joint work with many partners from all over the world. o Chair person • Ken Sakamura (Professor, the University of Tokyo) o Committee • Ubiquitous Networking Infrastructure Committee • Ubiquitous Communicator Committee o 493 members with companies, universities, research laboratories, std. organizations, … GSC: Standardization Advancing Global Communications 3

Board members of Ubiquitous ID Center GSC: Standardization Advancing Global Communications 4

Ubiquitous ID Center Technology GSC: Standardization Advancing Global Communications

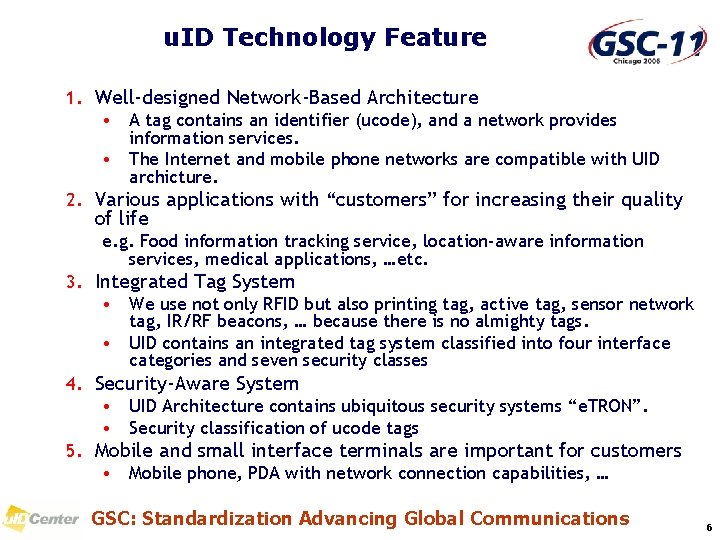

u. ID Technology Feature 1. Well-designed Network-Based Architecture • A tag contains an identifier (ucode), and a network provides information services. • The Internet and mobile phone networks are compatible with UID archicture. 2. Various applications with “customers” for increasing their quality of life e. g. Food information tracking service, location-aware information services, medical applications, …etc. 3. Integrated Tag System • We use not only RFID but also printing tag, active tag, sensor network tag, IR/RF beacons, … because there is no almighty tags. • UID contains an integrated tag system classified into four interface categories and seven security classes 4. Security-Aware System • UID Architecture contains ubiquitous security systems “e. TRON”. • Security classification of ucode tags 5. Mobile and small interface terminals are important for customers • Mobile phone, PDA with network connection capabilities, … GSC: Standardization Advancing Global Communications 6

Ubiquitous ID Architecture (Getting information from Objects) Referring CA Servers ucode, context CA Servers ucode server addresses Resolution ucode, context Servers ucode Product service Ubiquitous information Communicator Information Servers GSC: Standardization Advancing Global Communications 7

Ubiquitous ID Architecture (Getting information from Places) ucode, context RF/IR Beacon server addresses ucode, context ucode RFID embedded into environments Ubiquitous Communicator ucode Resolution Servers service information Information Servers GSC: Standardization Advancing Global Communications 8

ucode: Ubiquitous Code o ucode is a 128 bits number used for identification of objects. o We embed these numbers in ucode tags for identification purposes. o Resolution: Retrieving information about an object using the u. ID in the tag attached to the object. GSC: Standardization Advancing Global Communications 9

Structure of ucode version TLD (4 bit) (16 bit) ver. TLD version: TLD: CC: DC: IC: CC (4 bit) cc DC dc (variable) IC ic (variable) Indicating the version of ucode The first level domain code Specifying the boundary of DC and IC Domain Code Identification Code GSC: Standardization Advancing Global Communications 10

ucode map (Basic length, 128 bit) version TLD CC (4 bit) (16 bit) (4 bit) ver. TLD 1 001 ver. TLD 1 010 ver. TLD 1 011 ver. TLD 1 100 ver. TLD 1 101 ver. TLD 1 110 ver. 0 xfffe e. TRONID DC IC dc (8 bit) ic (96 bit) dc (24 bit) ic (80 bit) dc (40 bit) dc (56 bit) dc (72 bit) dc (88 bit) Time-space ID（76 bit） ic (64 bit) ic (48 bit) ic (32 bit) ic (16 bit) ic (32 bit) ver. 0 xffff GSC: Standardization Advancing Global Communications 11

ucode and u. Contents Attributes of the product u. Contents (Ubiquitous Contents) <rdf: RDF xmlns: rdf="http: //www. w 3. org/1999/02/22 -rdf-syntax-ns#" xmlns: rdfs="http: //www. w 3. org/2000/01/rdf-schema#" xmlns: utad="urn: utad: schema: utad: base: 0. 0. 0#" xmlns: pc="urn: utad: schema: pc: example: 0. 0. 0#"> <rdf: Description rdf: about="ucode: 0123…. cdef"> <rdf: type rdf: resource="urn: utad: schema: pc: example. 0. 0. 0#pc"/> <utad: version>0. 0. 0</utad: version> GSC: Standardization Advancing Global Communications 12

Various tags for ucode Passive RFID Tags Smart Tags For Human Printing Tags For Objects Active RFID Tags Active IR Tags For Environments integrated ucode tag system GSC: Standardization Advancing Global Communications 13

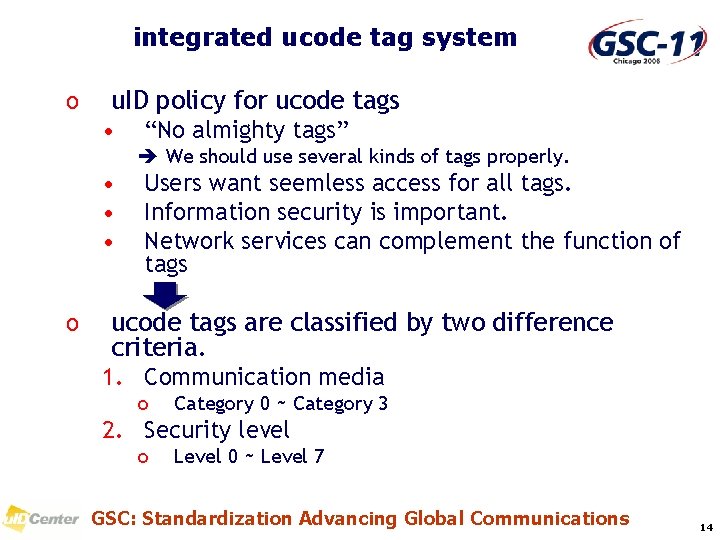

integrated ucode tag system o u. ID policy for ucode tags • “No almighty tags” We should use several kinds of tags properly. • • • o Users want seemless access for all tags. Information security is important. Network services can complement the function of tags ucode tags are classified by two difference criteria. 1. Communication media o Category 0 ~ Category 3 2. Security level o Level 0 ~ Level 7 GSC: Standardization Advancing Global Communications 14

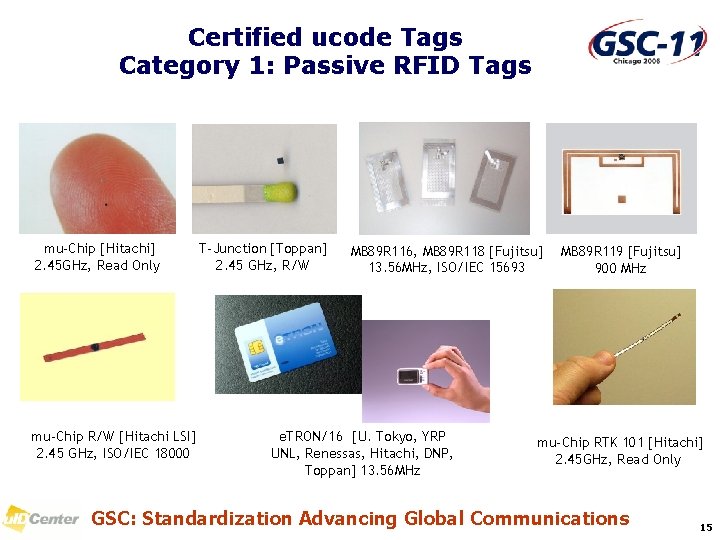

Certified ucode Tags Category 1: Passive RFID Tags mu-Chip [Hitachi] 2. 45 GHz, Read Only mu-Chip R/W [Hitachi LSI] 2. 45 GHz, ISO/IEC 18000 T-Junction [Toppan] 2. 45 GHz, R/W MB 89 R 116, MB 89 R 118 [Fujitsu] 13. 56 MHz, ISO/IEC 15693 e. TRON/16　[U. Tokyo, YRP UNL, Renessas, Hitachi, DNP, Toppan] 13. 56 MHz MB 89 R 119 [Fujitsu] 900 MHz mu-Chip RTK 101 [Hitachi] 2. 45 GHz, Read Only GSC: Standardization Advancing Global Communications 15

New Applications and Services Based on Ubiquitous ID Technology GSC: Standardization Advancing Global Communications

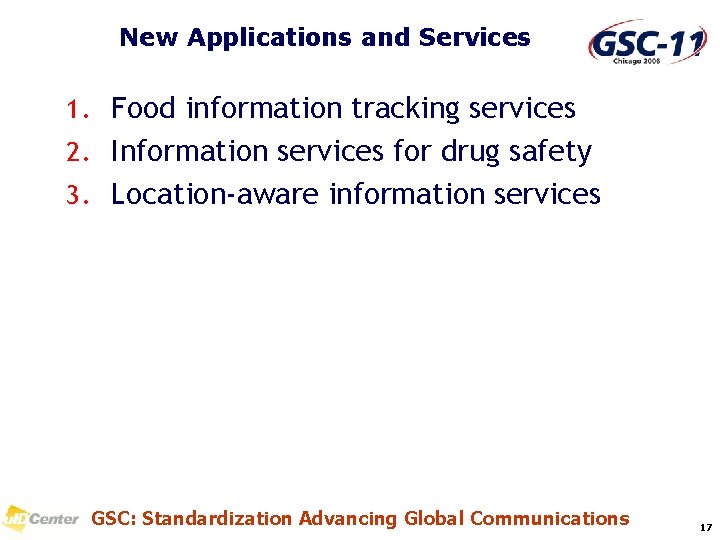

New Applications and Services 1. Food information tracking services 2. Information services for drug safety 3. Location-aware information services GSC: Standardization Advancing Global Communications 17

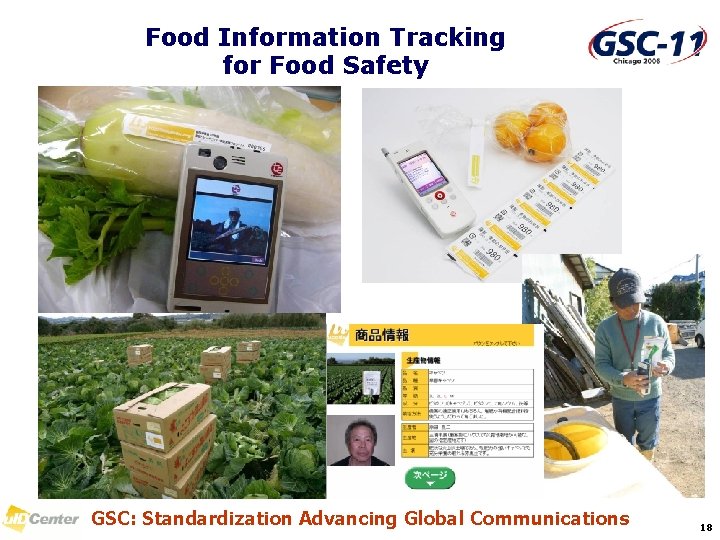

Food Information Tracking for Food Safety GSC: Standardization Advancing Global Communications 18

Food information tracking services (1) o “Food communication” services • We bring the information of food production and food distribution to consumers. The consumer refers the information, and confirms the safety of the food by themselves. o For example, … • We have applied the RFID for the distribution of fresh vegetables and fruits (about 200 items). • We also put the active sensor tags with temperature sensor into the container box and pallets. • The consumers can confirm every information about the food. GSC: Standardization Advancing Global Communications 19

Food information tracking services (2) o Quality management system • When food accidents occurs, we can minimize the amount of trashed foods by the strictly food safety checking. trouble Food chain is unclear. All of these might be dangerous!? ? ? cause of trouble Dangerous!! Safe!! GSC: Standardization Advancing Global Communications 20

Result of experimental project o Most Japanese consumers expressed their good impression for this information services. • Recently, Japanese consumers are very nervous for the quality and safety of food. o Half of Japanese consumers will buy even expensive foods if their quality is certified. • They will pay more 10% cost for food safety. o There is a potential market for food safety information in Japan. GSC: Standardization Advancing Global Communications 21

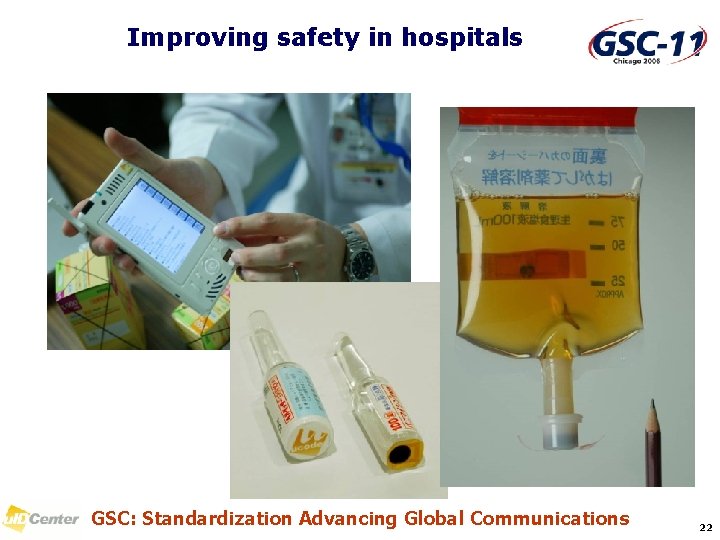

Improving safety in hospitals GSC: Standardization Advancing Global Communications 22

Medical Applications o Ubiquitous ID technology is effective to prevent accidents or mistakes in hospitals. o For example, • We put ucode tags on drug packages. • ucode tags notify doctors or nurses which kinds of drugs are conveyed in the patient room. • If the drug is not correct, the base station makes warning for the doctor or nurse automatically. GSC: Standardization Advancing Global Communications 23

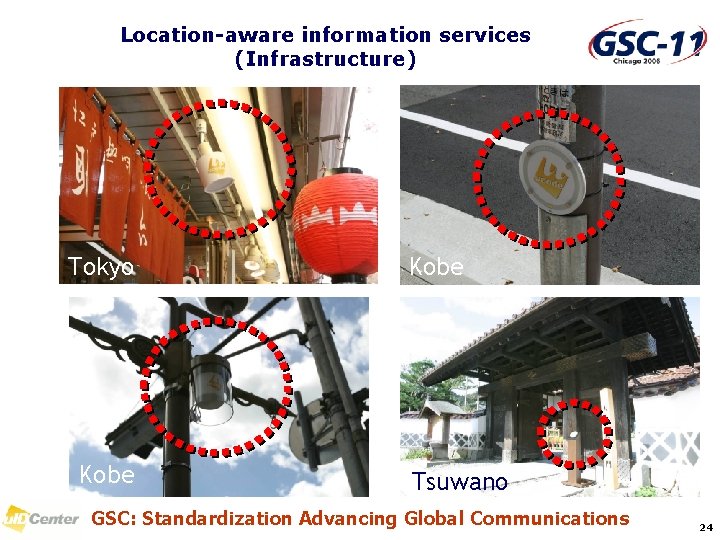

Location-aware information services (Infrastructure) Tokyo Kobe Tsuwano GSC: Standardization Advancing Global Communications 24

Location-aware information services (Services) GSC: Standardization Advancing Global Communications 25

Location-aware Information Services o We are embedding huge number of active tags, sensor networks, and RFIDs all over the Japan land. o They support human navigation especially for handicapped people and foreign people. o They are also used for supporting sightseeing, shopping, supply chain management, and so on. o It’s a kind of ITS: Intelligent Transport System for HUMAN. GSC: Standardization Advancing Global Communications 26

Standardization and Social Infrastructure GSC: Standardization Advancing Global Communications

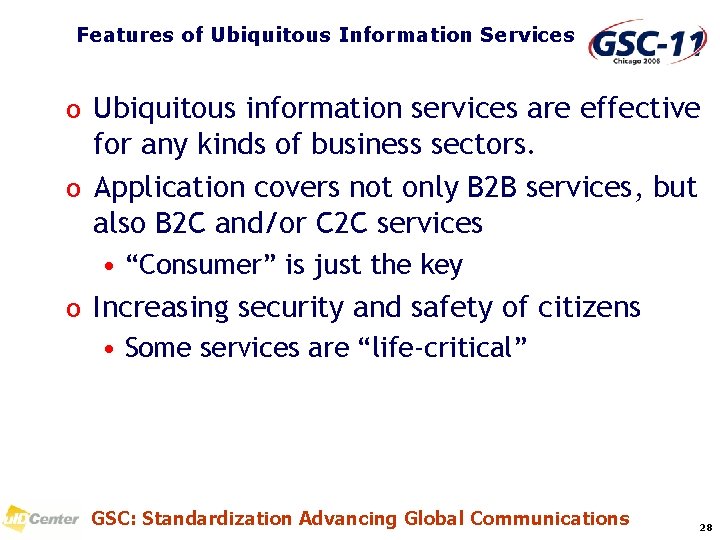

Features of Ubiquitous Information Services o Ubiquitous information services are effective for any kinds of business sectors. o Application covers not only B 2 B services, but also B 2 C and/or C 2 C services • “Consumer” is just the key o Increasing security and safety of citizens • Some services are “life-critical” GSC: Standardization Advancing Global Communications 28

New “consumer” services make new market o B 2 B services do not make a new market because they are effective only for cutting cost. • e. g. —Supply chain management o New consumer services make a new market because they directly generates new values. • e. g. —food safety information market —drug safety information market —tourist information service market GSC: Standardization Advancing Global Communications 29

“Consumer” require international standardization Various consumer services Sight-seeing support Environmental Context information Food information tracking Handicapped SCM support Food DB ucode Geographical DB Personal Profiles Drug DB Food id tag Position tag Beacons Tactile block for blind persons RFID Infrastructure GSC: Standardization Advancing Global Communications 30

Conclusion -Requirements for International Standardization- GSC: Standardization Advancing Global Communications

Standardization Areas o To realize the various applications and information services, a lot of standardizations are necessary as follows: 1. Identification number for objects and places stored in ID tags 2. Service finding protocols for ubiquitous information services using RFID identification numbers 3. Ubiquitous information service protocols 4. Data exchange format for ubiquitous information services using ID tags 5. ID tags (including contactless communication protocols) more … GSC: Standardization Advancing Global Communications 32

For More Information. . . Ubiquitous ID Center http: //www. uidcenter. org/ uid-office@uidcenter. org GSC: Standardization Advancing Global Communications 33
