SOURCE PLATFORMS Large sector 60 mm separation platforms

Large sector. 60 mm separation platforms only for both , s. TGC and MM.

Small sector. 60 mm separation platforms only on MM. 60 mm and 30 mm

30 MM SEPARATION LEFT HANDED 30 MM SEPARATION RIGHT HANDED 60 MM SEPARATION LEFT

View from IP Different type platforms on either IP or HO sides. This is

View from IP Same type platforms on either IP or HO sides. LH on

View from IP Same type platforms (LH shown). We might save on tooling with

Source setting plate with kinematic triplet Platform kinematically set on three spheres and held

Source plate installation jig (SMM 2 shown) Installation jig set on a quadruplet and

Same type chambers build the same way e. g. there will be 32 Ls.

Slides: 10

Download presentation

SOURCE PLATFORMS

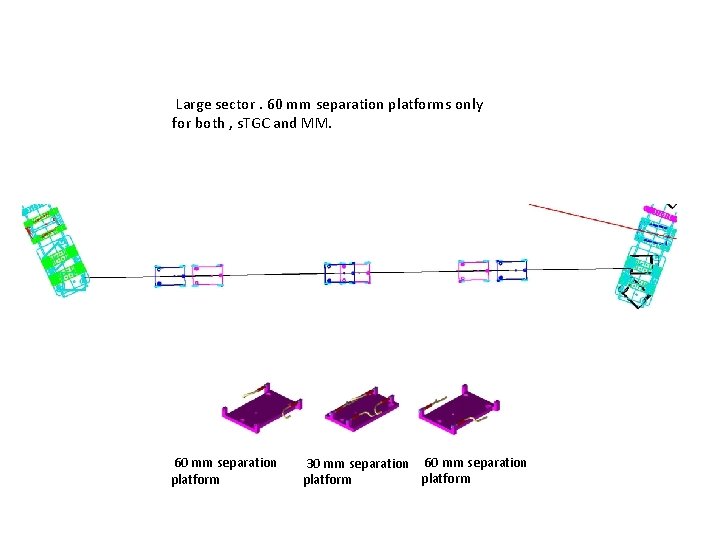

Large sector. 60 mm separation platforms only for both , s. TGC and MM. 60 mm separation platform 30 mm separation 60 mm separation platform

Small sector. 60 mm separation platforms only on MM. 60 mm and 30 mm separation platforms on s. TGC. 60 mm separation platform 30 mm separation 60 mm separation platform

30 MM SEPARATION LEFT HANDED 30 MM SEPARATION RIGHT HANDED 60 MM SEPARATION LEFT HANDED 60 MM SEPARATION RIGHT HANDED

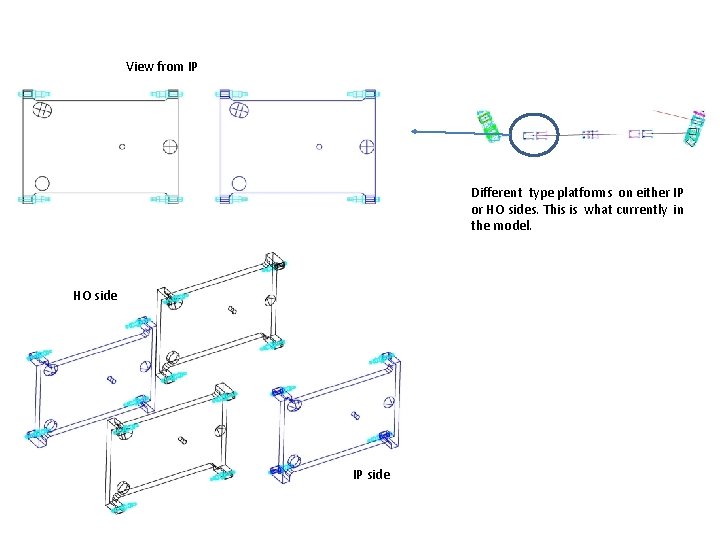

View from IP Different type platforms on either IP or HO sides. This is what currently in the model. HO side IP side

View from IP Same type platforms on either IP or HO sides. LH on HO and RH on IP shown HO side IP side

View from IP Same type platforms (LH shown). We might save on tooling with such an arrangement. HO side IP side

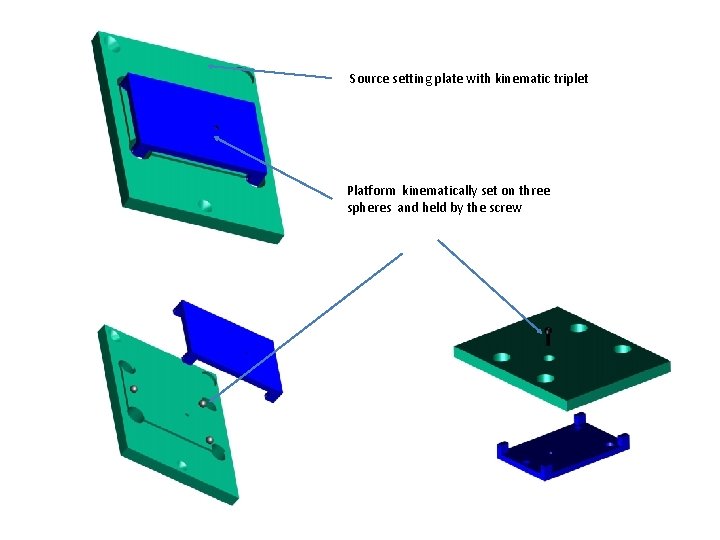

Source setting plate with kinematic triplet Platform kinematically set on three spheres and held by the screw

Source plate installation jig (SMM 2 shown) Installation jig set on a quadruplet and pushed against pins Platform kinematically set on t

Same type chambers build the same way e. g. there will be 32 Ls. TGC 1, 32 Ls. TGC 2… (? ) On this drawing the pivot plane is up (? ) Chambers always facing IP with pivot plane (? ) If all above correct side A and C services routing should different.
