Sound As we know sound waves are formed

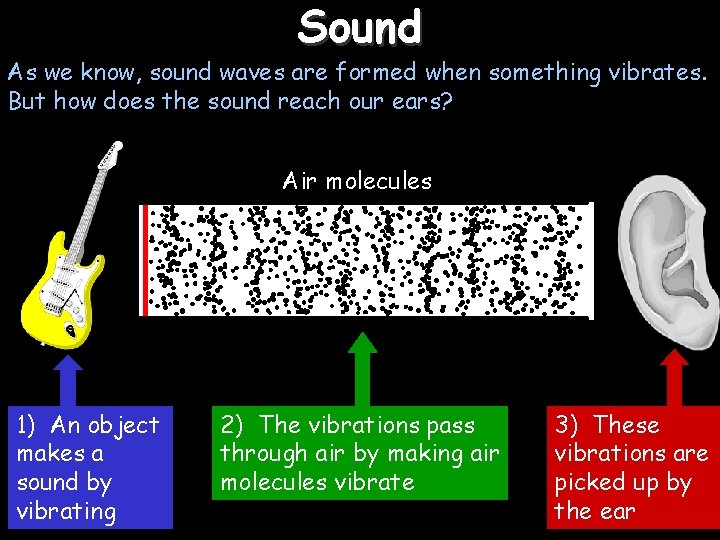

Sound As we know, sound waves are formed when something vibrates. But how does the sound reach our ears? Air molecules 1) An object makes a sound by vibrating 2) The vibrations pass through air by making air molecules vibrate 3) These vibrations are picked up by the ear

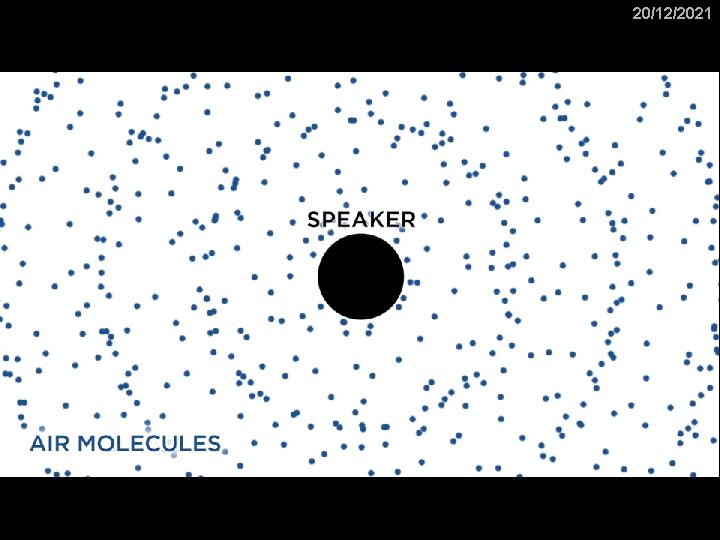

20/12/2021

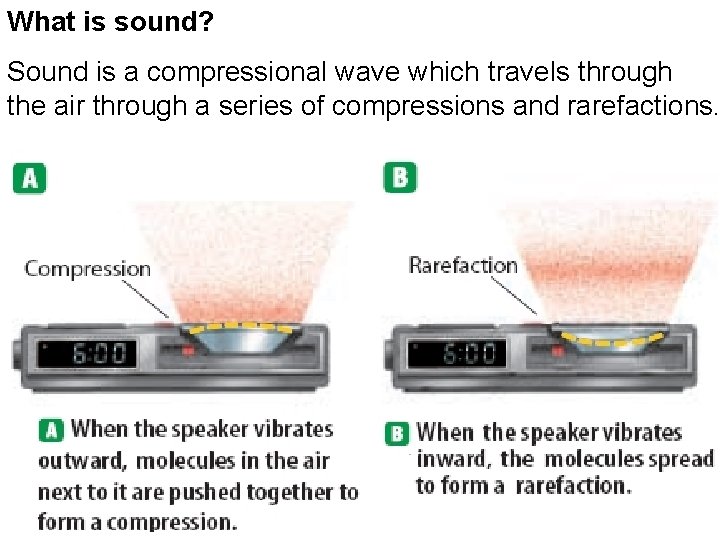

What is sound? Sound is a compressional wave which travels through the air through a series of compressions and rarefactions.

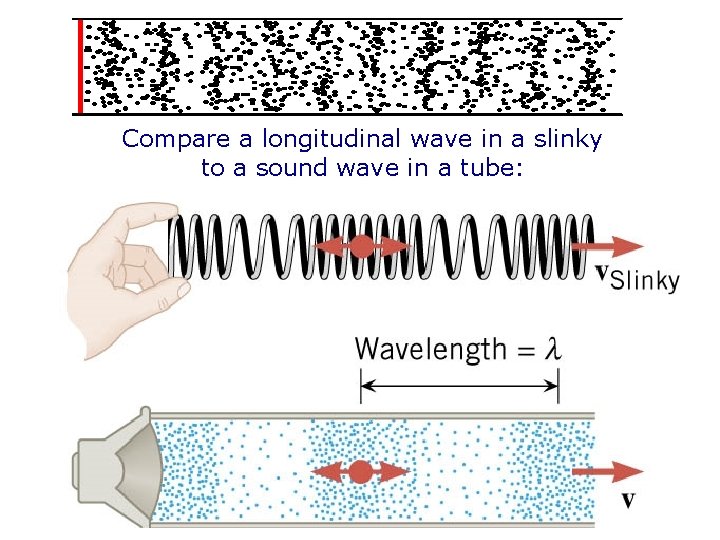

Compare a longitudinal wave in a slinky to a sound wave in a tube:

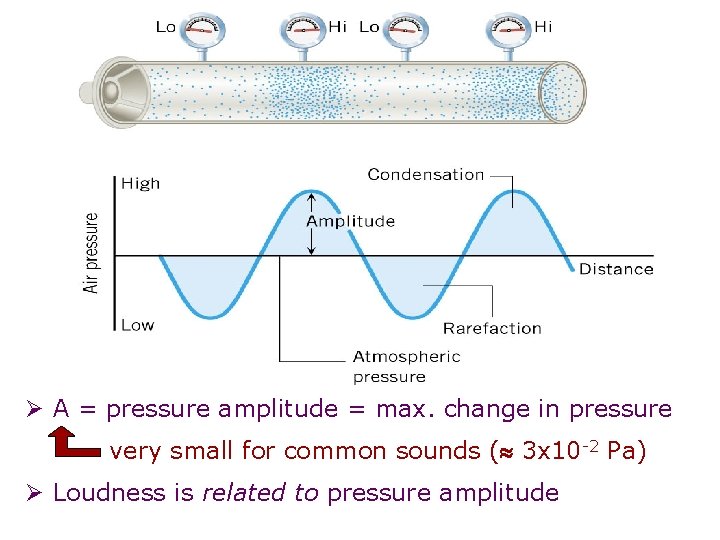

Ø A = pressure amplitude = max. change in pressure very small for common sounds ( 3 x 10 -2 Pa) Ø Loudness is related to pressure amplitude

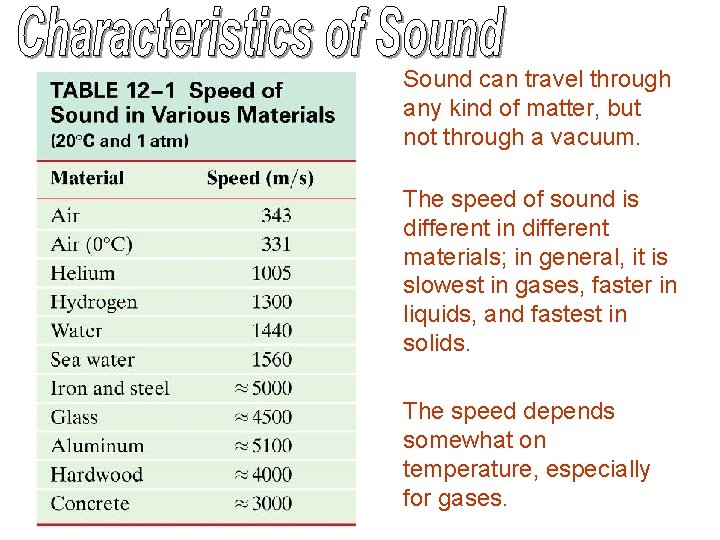

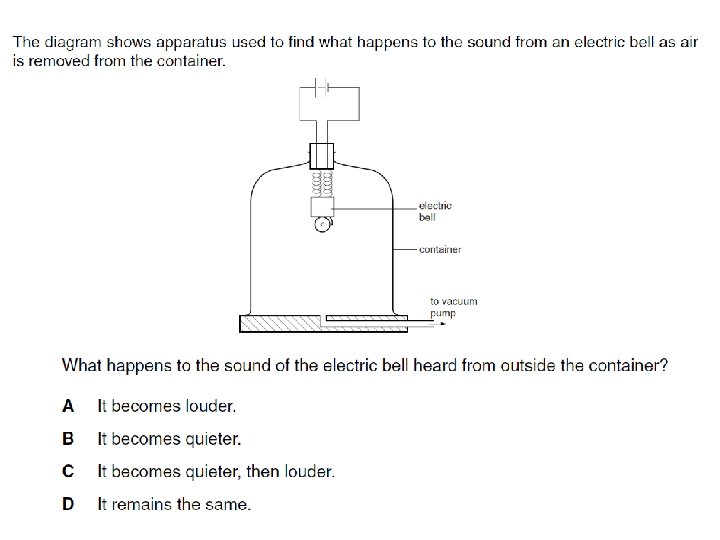

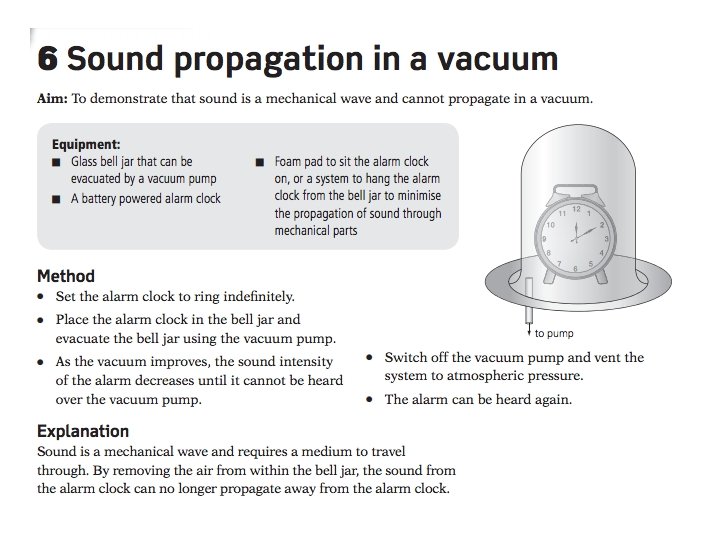

Sound can travel through any kind of matter, but not through a vacuum. The speed of sound is different in different materials; in general, it is slowest in gases, faster in liquids, and fastest in solids. The speed depends somewhat on temperature, especially for gases.

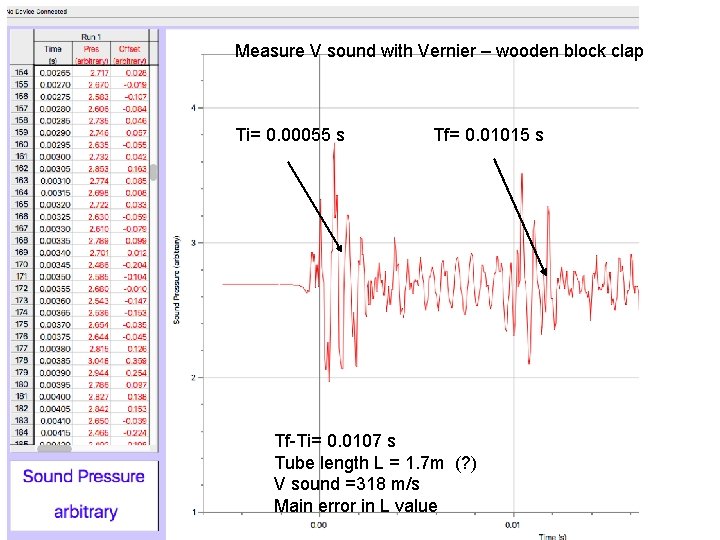

Measure V sound with Vernier – wooden block clap Ti= 0. 00055 s Tf= 0. 01015 s Tf-Ti= 0. 0107 s Tube length L = 1. 7 m (? ) V sound =318 m/s Main error in L value

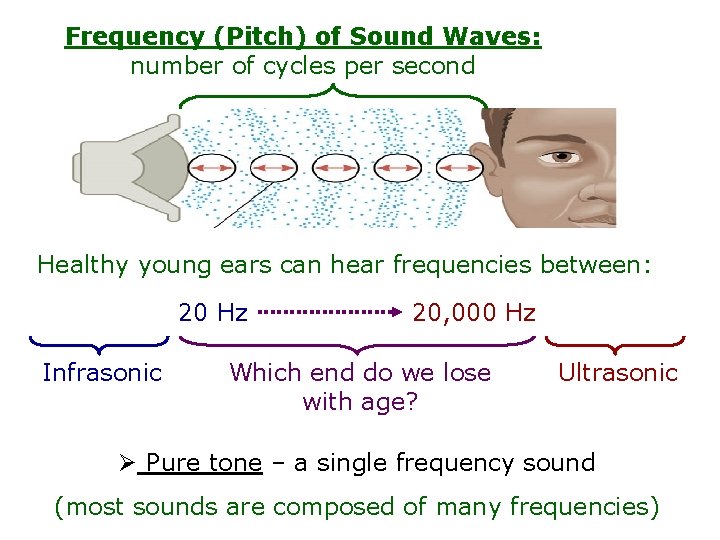

Frequency (Pitch) of Sound Waves: number of cycles per second Healthy young ears can hear frequencies between: 20 Hz Infrasonic 20, 000 Hz Which end do we lose with age? Ultrasonic Ø Pure tone – a single frequency sound (most sounds are composed of many frequencies)

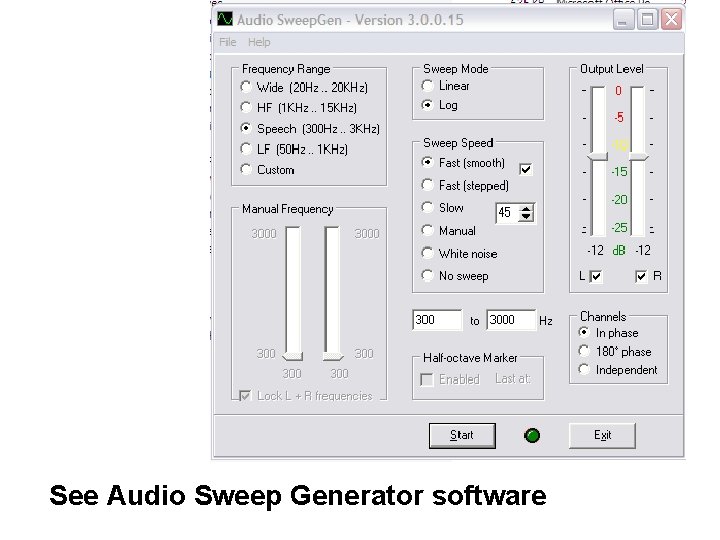

See Audio Sweep Generator software

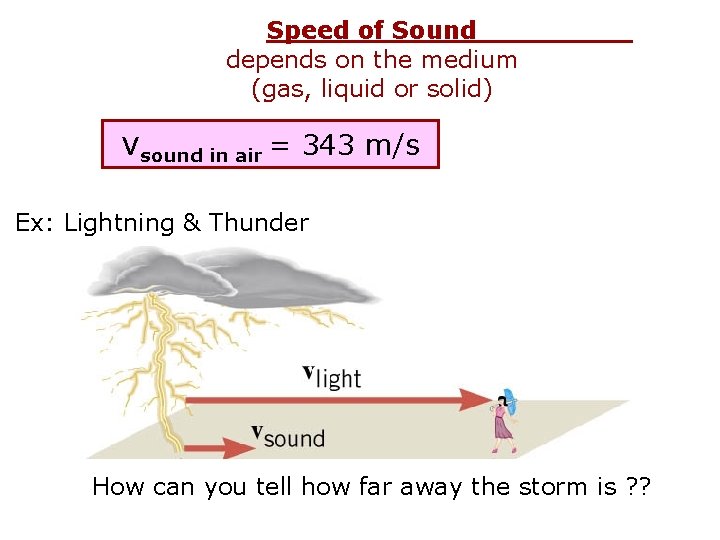

Speed of Sound depends on the medium (gas, liquid or solid) vsound in air = 343 m/s Ex: Lightning & Thunder How can you tell how far away the storm is ? ?

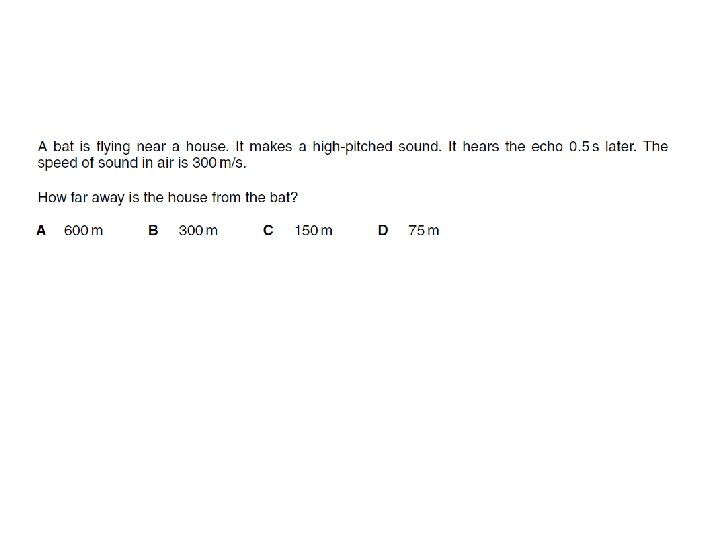

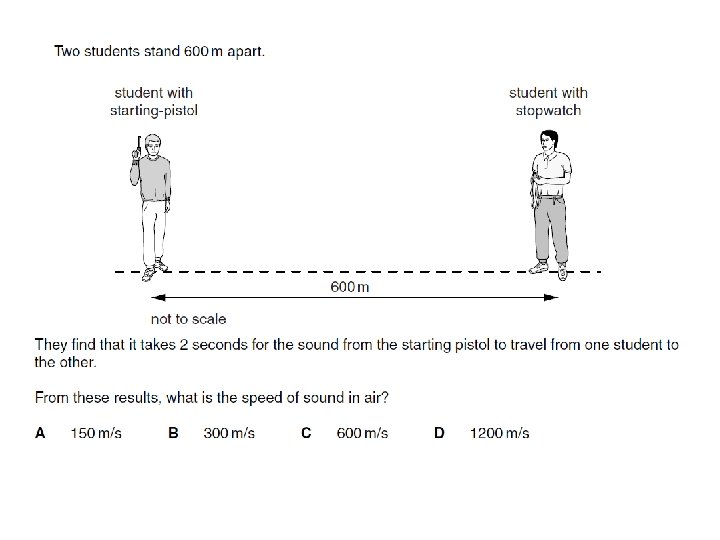

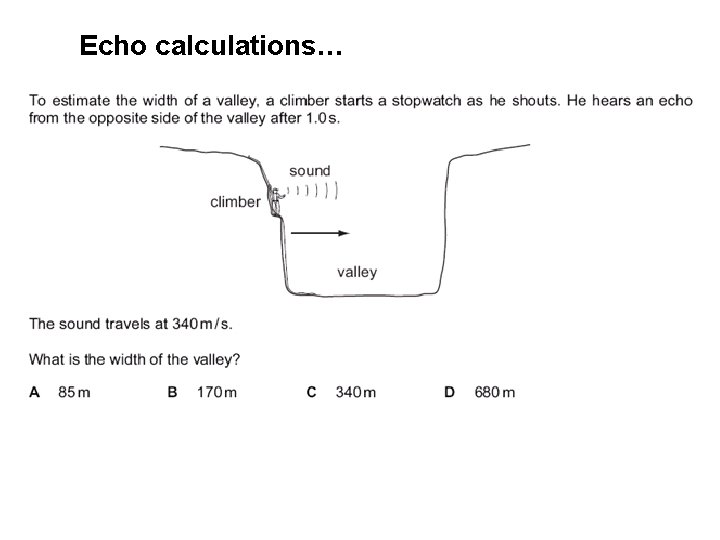

Echo calculations…

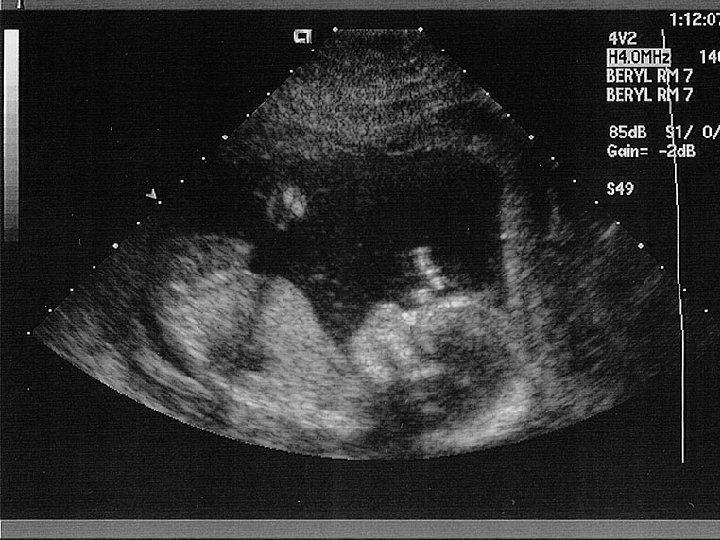

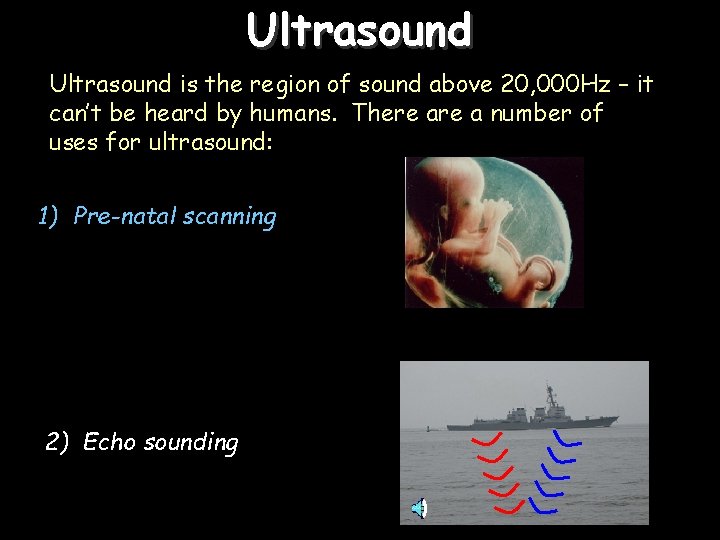

Ultrasound is the region of sound above 20, 000 Hz – it can’t be heard by humans. There a number of uses for ultrasound: 1) Pre-natal scanning 2) Echo sounding

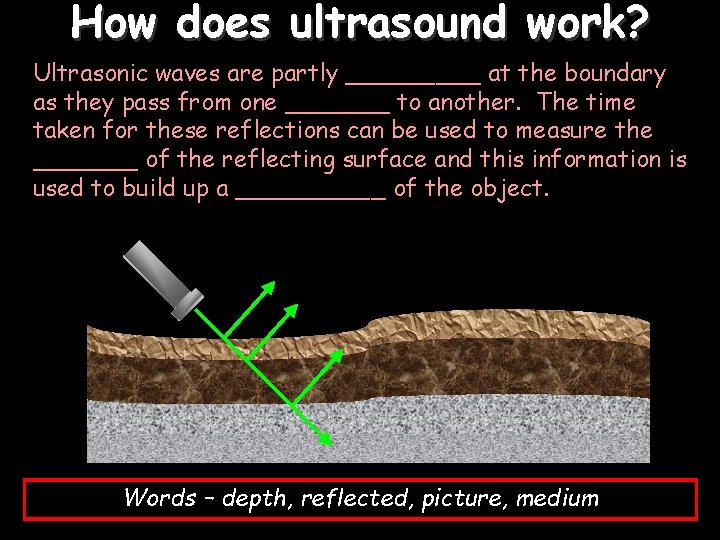

How does ultrasound work? Ultrasonic waves are partly _____ at the boundary as they pass from one _______ to another. The time taken for these reflections can be used to measure the _______ of the reflecting surface and this information is used to build up a _____ of the object. Words – depth, reflected, picture, medium

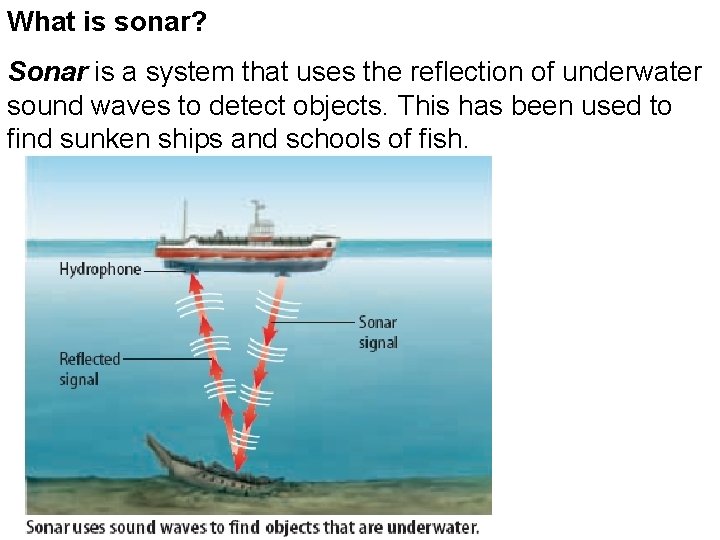

What is sonar? Sonar is a system that uses the reflection of underwater sound waves to detect objects. This has been used to find sunken ships and schools of fish.

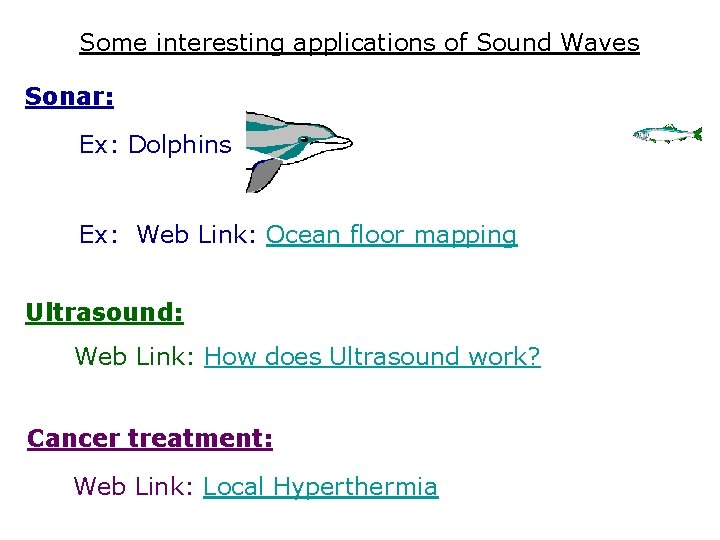

Some interesting applications of Sound Waves Sonar: Ex: Dolphins Ex: Web Link: Ocean floor mapping Ultrasound: Web Link: How does Ultrasound work? Cancer treatment: Web Link: Local Hyperthermia
