SORTING AND MERGING Structured COBOL Programming Stern Stern

SORTING AND MERGING Structured COBOL Programming, Stern & Stern, 9 th Edition

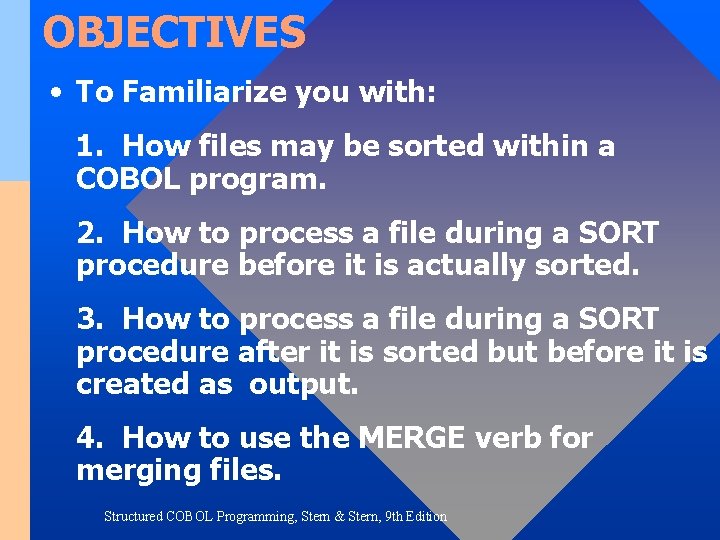

OBJECTIVES • To Familiarize you with: 1. How files may be sorted within a COBOL program. 2. How to process a file during a SORT procedure before it is actually sorted. 3. How to process a file during a SORT procedure after it is sorted but before it is created as output. 4. How to use the MERGE verb for merging files. Structured COBOL Programming, Stern & Stern, 9 th Edition

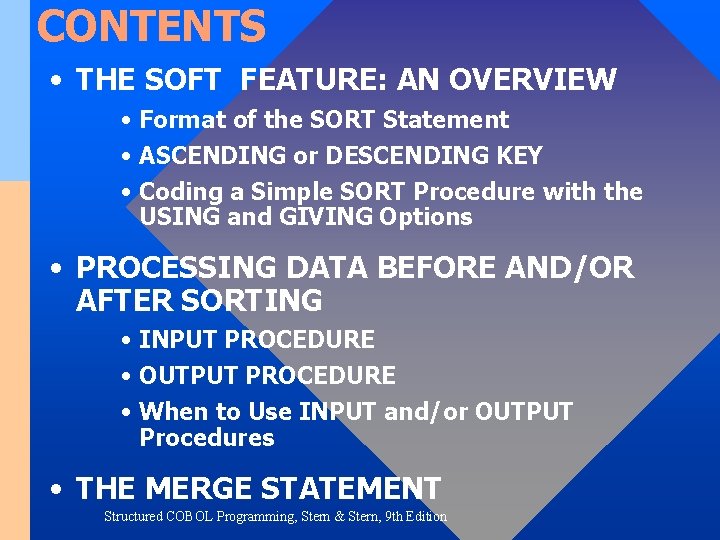

CONTENTS • THE SOFT FEATURE: AN OVERVIEW • Format of the SORT Statement • ASCENDING or DESCENDING KEY • Coding a Simple SORT Procedure with the USING and GIVING Options • PROCESSING DATA BEFORE AND/OR AFTER SORTING • INPUT PROCEDURE • OUTPUT PROCEDURE • When to Use INPUT and/or OUTPUT Procedures • THE MERGE STATEMENT Structured COBOL Programming, Stern & Stern, 9 th Edition

THE SORT STATEMENT • Records in files frequently must be sorted into specific sequences for updating, answering inquiries, or generating reports. – Sorting is a common procedure used for arranging records into a specific order so that sequential processing can be performed. • There are two techniques used for sorting files processed by COBOL programs. – One is to use either a utility or a database management system's sort program. • This sort program is completely separate from the COBOL program. Structured COBOL Programming, Stern & Stern, 9 th Edition

FORMAT OF THE SORT STATEMENT • The second alternative is COBOL's SORT verb, which can make it very useful as part of a COBOL program. – Often, a COBOL program will SORT a file prior to processing it. A simplified format follows: SORT file-name-1 {ON {DESCENDING}{ASCENDING} KEY data-name-1. . } USING file-name-2 GIVING file-name-3 Structured COBOL Programming, Stern & Stern, 9 th Edition

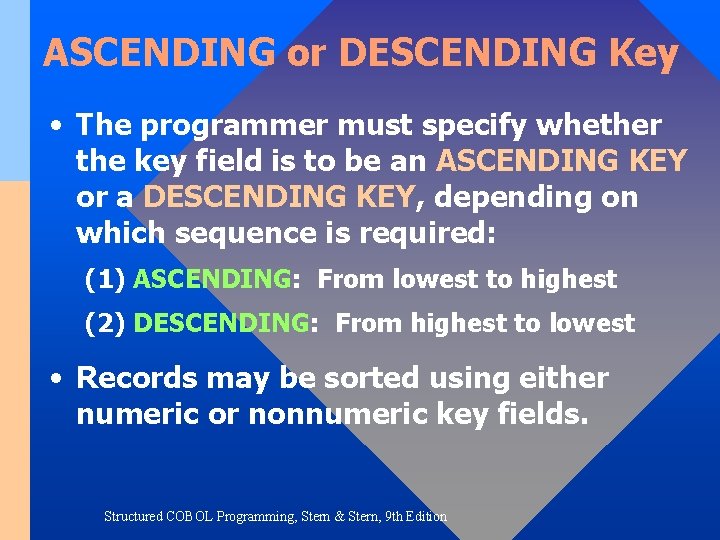

ASCENDING or DESCENDING Key • The programmer must specify whether the key field is to be an ASCENDING KEY or a DESCENDING KEY, depending on which sequence is required: (1) ASCENDING: From lowest to highest (2) DESCENDING: From highest to lowest • Records may be sorted using either numeric or nonnumeric key fields. Structured COBOL Programming, Stern & Stern, 9 th Edition

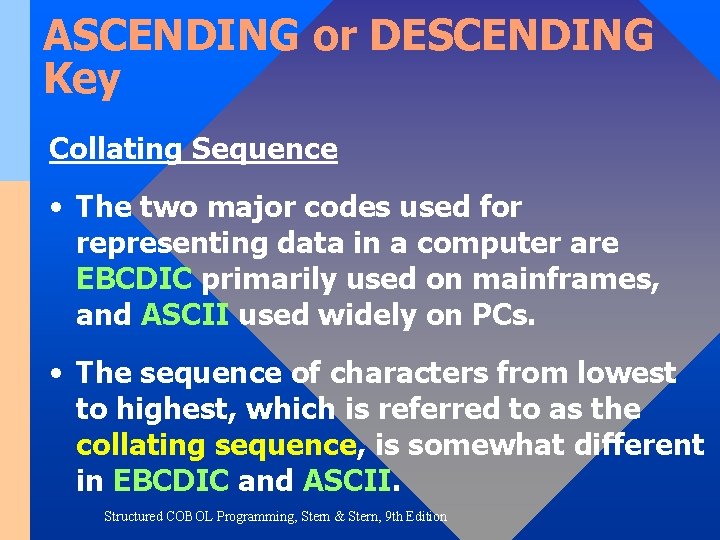

ASCENDING or DESCENDING Key Collating Sequence • The two major codes used for representing data in a computer are EBCDIC primarily used on mainframes, and ASCII used widely on PCs. • The sequence of characters from lowest to highest, which is referred to as the collating sequence, is somewhat different in EBCDIC and ASCII. Structured COBOL Programming, Stern & Stern, 9 th Edition

Collating Sequence EBCDIC Low Blank Special Characters Lowercase letters a-z Integers 0 -9 Uppercase letters A-Z Special Characters Integers 0 -9 High ASCII Uppercase letters A-Z Lowercase letters a-z Structured COBOL Programming, Stern & Stern, 9 th Edition

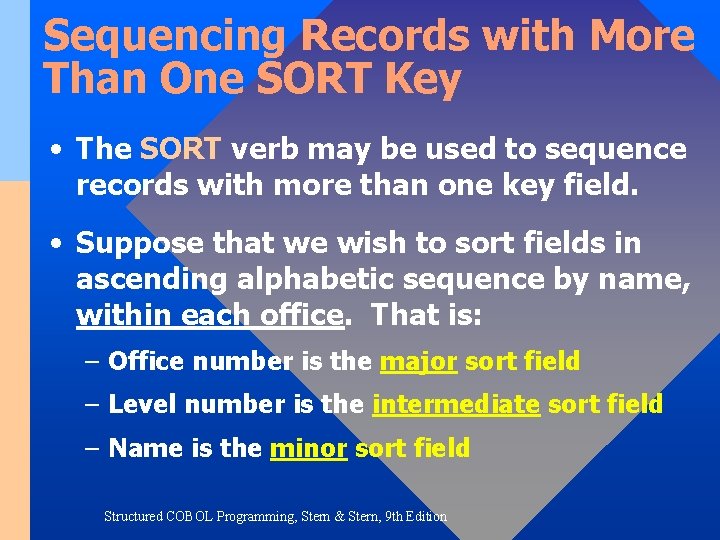

Sequencing Records with More Than One SORT Key • The SORT verb may be used to sequence records with more than one key field. • Suppose that we wish to sort fields in ascending alphabetic sequence by name, within each office. That is: – Office number is the major sort field – Level number is the intermediate sort field – Name is the minor sort field Structured COBOL Programming, Stern & Stern, 9 th Edition

Sequencing Records with More Than One SORT Key • The following is a SORT statement that sorts records into ascending alphabetic NAME sequence within LEVEL-NO within OFFICE-NO: SORT-FILE ON ASCENDING KEY OFFICE-NO ON ASCENDING KEY LEVEL-NO ON ASCENDING KEY NAME USING PAYROLL-FILE-IN GIVING SORTED-PAYROLL-FILE-OUT Structured COBOL Programming, Stern & Stern, 9 th Edition

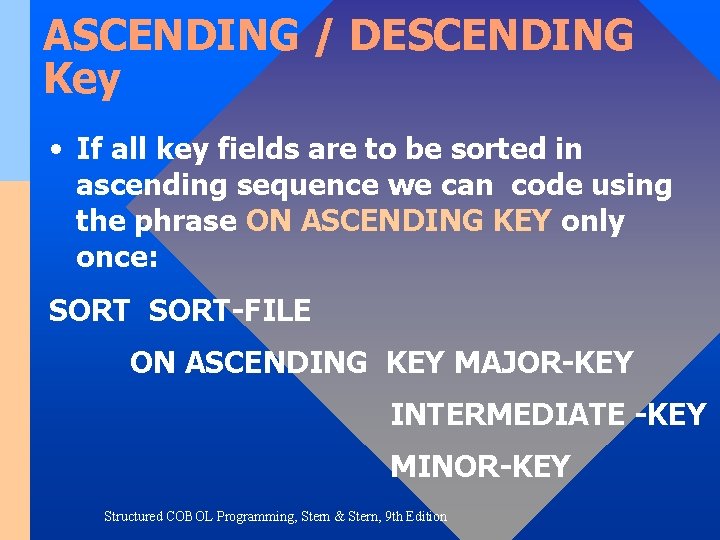

ASCENDING / DESCENDING Key • If all key fields are to be sorted in ascending sequence we can code using the phrase ON ASCENDING KEY only once: SORT-FILE ON ASCENDING KEY MAJOR-KEY INTERMEDIATE -KEY MINOR-KEY Structured COBOL Programming, Stern & Stern, 9 th Edition

Coding a Simple SORT Procedure with the USING and GIVING Options • There are three major files used in a sort: 1. Input file: File of unsorted input records. 2. Work or sort file: File used to store records temporarily during the sorting process. 3. Output file: File of sorted output records. Structured COBOL Programming, Stern & Stern, 9 th Edition

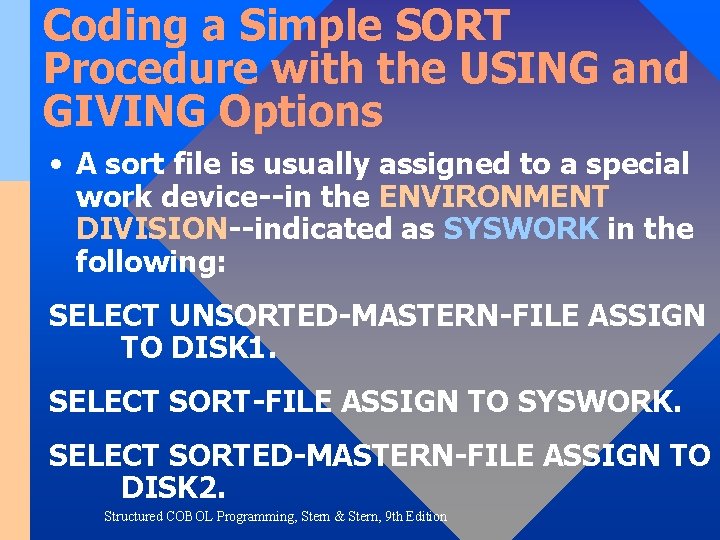

Coding a Simple SORT Procedure with the USING and GIVING Options • A sort file is usually assigned to a special work device--in the ENVIRONMENT DIVISION--indicated as SYSWORK in the following: SELECT UNSORTED-MASTERN-FILE ASSIGN TO DISK 1. SELECT SORT-FILE ASSIGN TO SYSWORK. SELECT SORTED-MASTERN-FILE ASSIGN TO DISK 2. Structured COBOL Programming, Stern & Stern, 9 th Edition

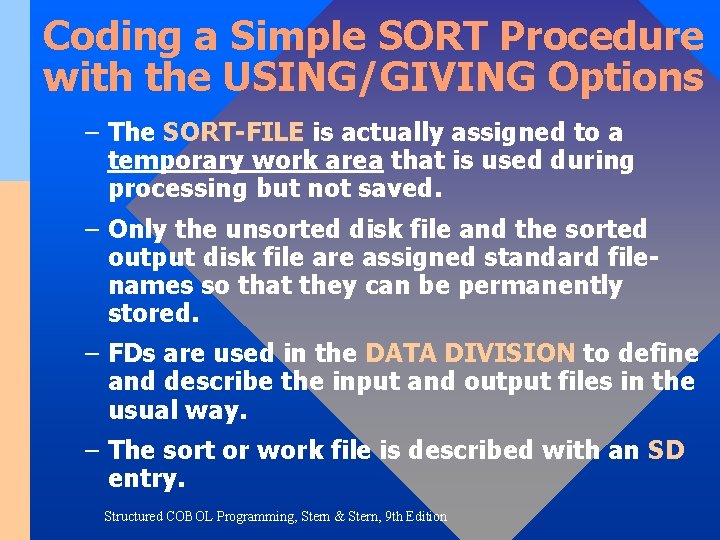

Coding a Simple SORT Procedure with the USING/GIVING Options – The SORT-FILE is actually assigned to a temporary work area that is used during processing but not saved. – Only the unsorted disk file and the sorted output disk file are assigned standard filenames so that they can be permanently stored. – FDs are used in the DATA DIVISION to define and describe the input and output files in the usual way. – The sort or work file is described with an SD entry. Structured COBOL Programming, Stern & Stern, 9 th Edition

THE MERGE STATEMENT • COBOL has a MERGE statement that will combine two or more files into a single file. Its format is similar to that of the SORT: MERGE file-name-1 {ON {ASCENDING} {DESCENDING} KEY data-name-1. . } USING file-name-2 {file-name-3}. . . {OUTPUT PROCEDURE IS procedure-name-1 GIVING {file-name-4 [{THROUGH}{THRU} procedure-name-2]} Structured COBOL Programming, Stern & Stern, 9 th Edition

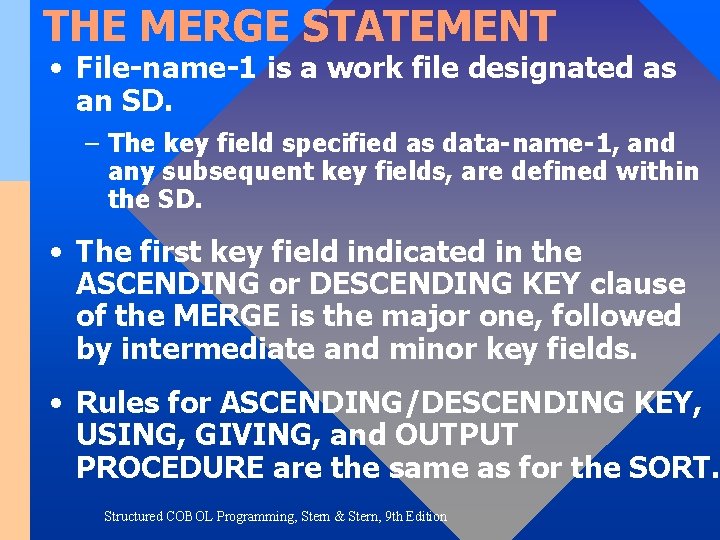

THE MERGE STATEMENT • File-name-1 is a work file designated as an SD. – The key field specified as data-name-1, and any subsequent key fields, are defined within the SD. • The first key field indicated in the ASCENDING or DESCENDING KEY clause of the MERGE is the major one, followed by intermediate and minor key fields. • Rules for ASCENDING/DESCENDING KEY, USING, GIVING, and OUTPUT PROCEDURE are the same as for the SORT. Structured COBOL Programming, Stern & Stern, 9 th Edition

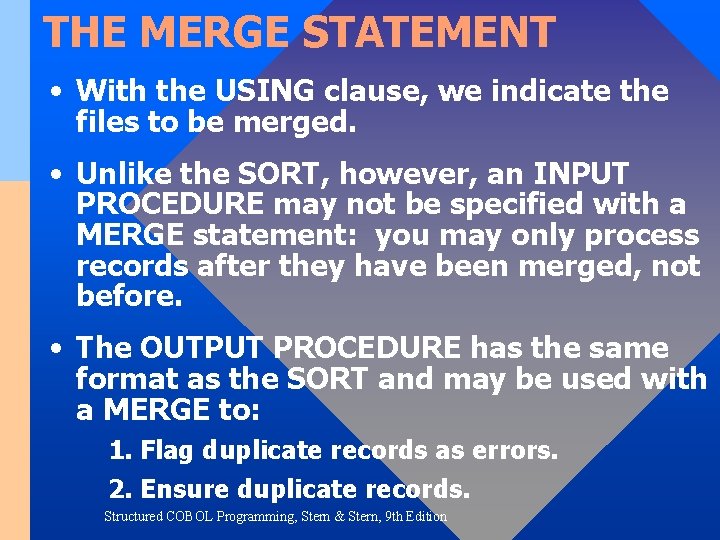

THE MERGE STATEMENT • With the USING clause, we indicate the files to be merged. • Unlike the SORT, however, an INPUT PROCEDURE may not be specified with a MERGE statement: you may only process records after they have been merged, not before. • The OUTPUT PROCEDURE has the same format as the SORT and may be used with a MERGE to: 1. Flag duplicate records as errors. 2. Ensure duplicate records. Structured COBOL Programming, Stern & Stern, 9 th Edition

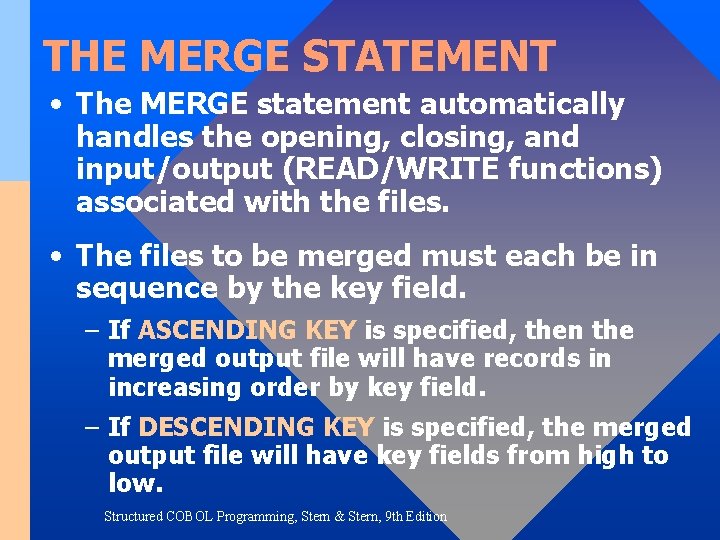

THE MERGE STATEMENT • The MERGE statement automatically handles the opening, closing, and input/output (READ/WRITE functions) associated with the files. • The files to be merged must each be in sequence by the key field. – If ASCENDING KEY is specified, then the merged output file will have records in increasing order by key field. – If DESCENDING KEY is specified, the merged output file will have key fields from high to low. Structured COBOL Programming, Stern & Stern, 9 th Edition

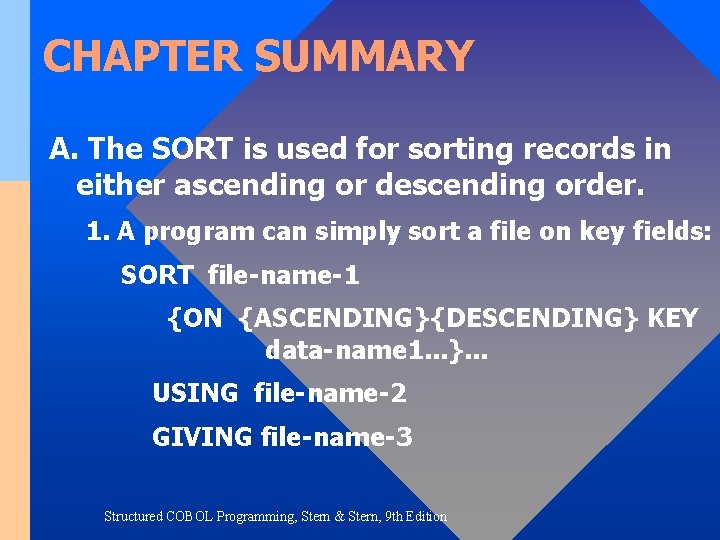

CHAPTER SUMMARY A. The SORT is used for sorting records in either ascending or descending order. 1. A program can simply sort a file on key fields: SORT file-name-1 {ON {ASCENDING}{DESCENDING} KEY data-name 1. . . }. . . USING file-name-2 GIVING file-name-3 Structured COBOL Programming, Stern & Stern, 9 th Edition

CHAPTER SUMMARY a. File-name-1 is a work or sort file that is described with an SD (sort file description) in the FILE SECTION. b. The KEY field(s) to be sorted are datanames defined within the SD or sort file. c. Files can be sorted into ascending or descending sequence. d. Files can be sorted using more than one key field. The first field specified is the main sort field followed by intermediate and/or minor ones. Structured COBOL Programming, Stern & Stern, 9 th Edition

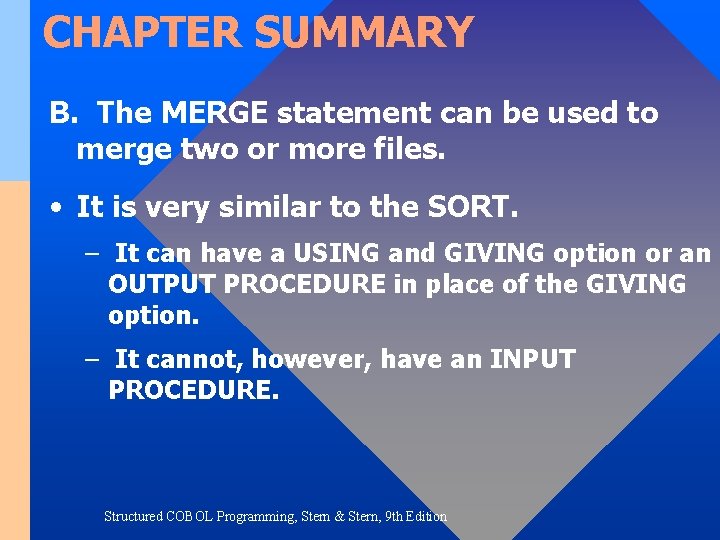

CHAPTER SUMMARY B. The MERGE statement can be used to merge two or more files. • It is very similar to the SORT. – It can have a USING and GIVING option or an OUTPUT PROCEDURE in place of the GIVING option. – It cannot, however, have an INPUT PROCEDURE. Structured COBOL Programming, Stern & Stern, 9 th Edition
