Sorting Algorithms Motivation n Example Phone Book Searching

Sorting Algorithms

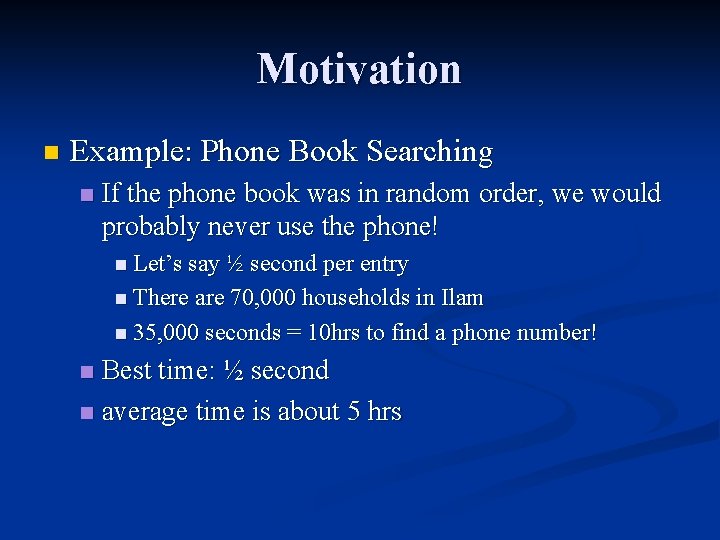

Motivation n Example: Phone Book Searching n If the phone book was in random order, we would probably never use the phone! n Let’s say ½ second per entry n There are 70, 000 households in Ilam n 35, 000 seconds = 10 hrs to find a phone number! Best time: ½ second n average time is about 5 hrs n

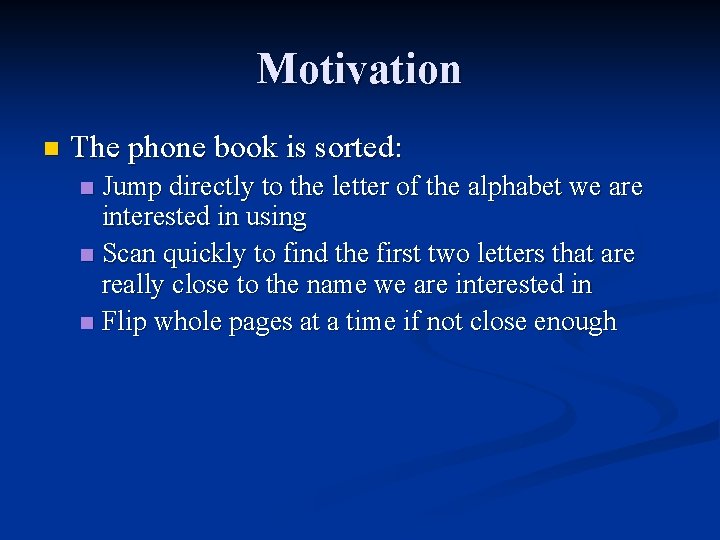

Motivation n The phone book is sorted: Jump directly to the letter of the alphabet we are interested in using n Scan quickly to find the first two letters that are really close to the name we are interested in n Flip whole pages at a time if not close enough n

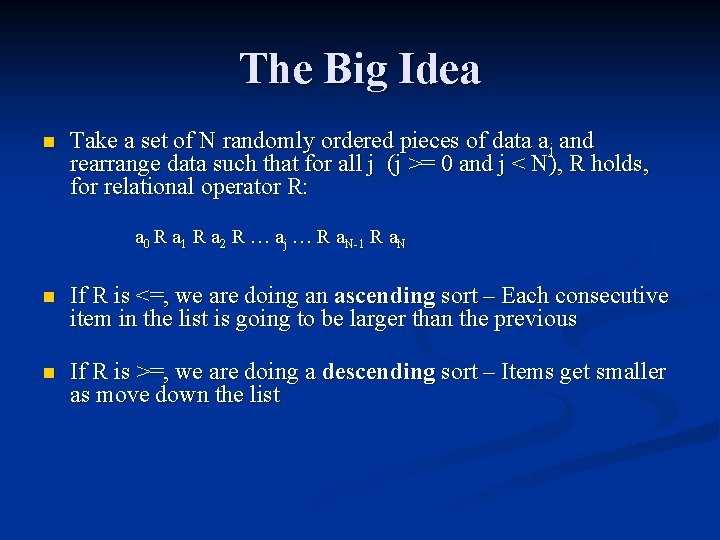

The Big Idea n Take a set of N randomly ordered pieces of data aj and rearrange data such that for all j (j >= 0 and j < N), R holds, for relational operator R: a 0 R a 1 R a 2 R … aj … R a. N-1 R a. N n If R is <=, we are doing an ascending sort – Each consecutive item in the list is going to be larger than the previous n If R is >=, we are doing a descending sort – Items get smaller as move down the list

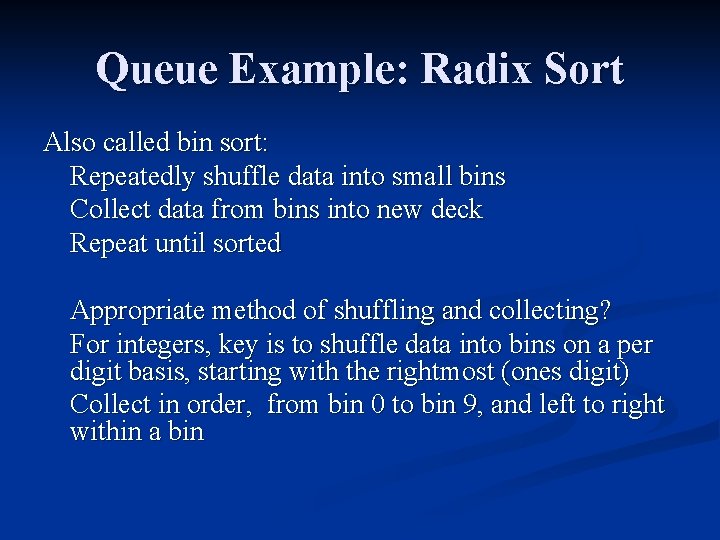

Queue Example: Radix Sort Also called bin sort: Repeatedly shuffle data into small bins Collect data from bins into new deck Repeat until sorted Appropriate method of shuffling and collecting? For integers, key is to shuffle data into bins on a per digit basis, starting with the rightmost (ones digit) Collect in order, from bin 0 to bin 9, and left to right within a bin

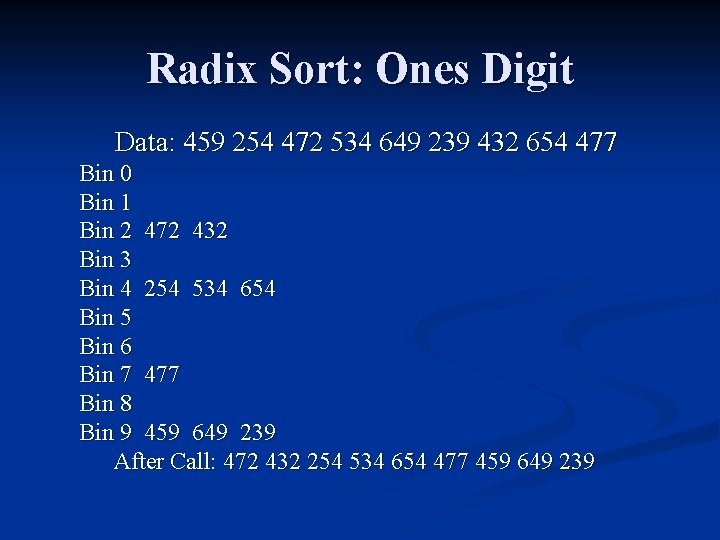

Radix Sort: Ones Digit Data: 459 254 472 534 649 239 432 654 477 Bin 0 Bin 1 Bin 2 472 432 Bin 3 Bin 4 254 534 654 Bin 5 Bin 6 Bin 7 477 Bin 8 Bin 9 459 649 239 After Call: 472 432 254 534 654 477 459 649 239

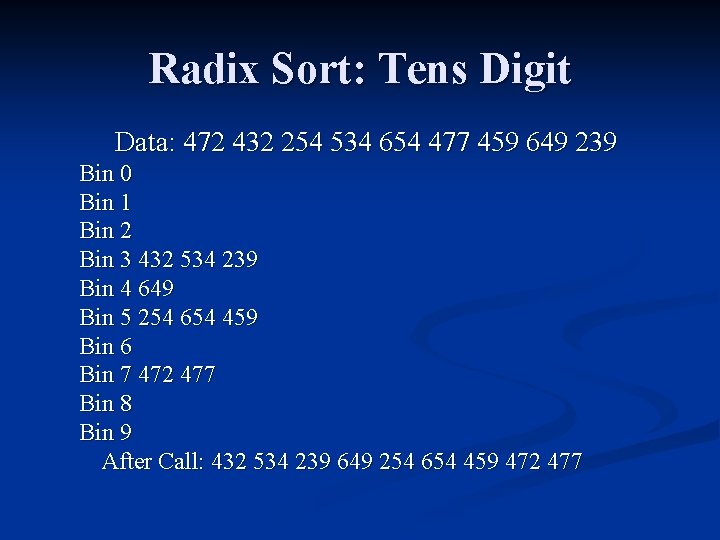

Radix Sort: Tens Digit Data: 472 432 254 534 654 477 459 649 239 Bin 0 Bin 1 Bin 2 Bin 3 432 534 239 Bin 4 649 Bin 5 254 654 459 Bin 6 Bin 7 472 477 Bin 8 Bin 9 After Call: 432 534 239 649 254 654 459 472 477

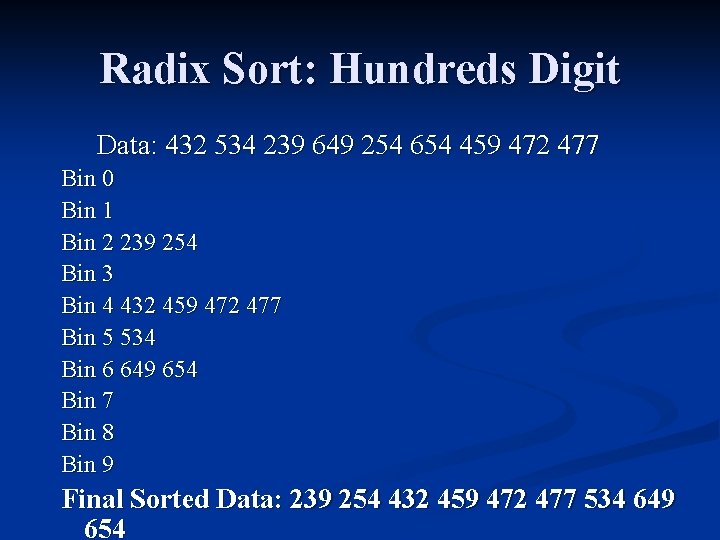

Radix Sort: Hundreds Digit Data: 432 534 239 649 254 654 459 472 477 Bin 0 Bin 1 Bin 2 239 254 Bin 3 Bin 4 432 459 472 477 Bin 5 534 Bin 6 649 654 Bin 7 Bin 8 Bin 9 Final Sorted Data: 239 254 432 459 472 477 534 649 654

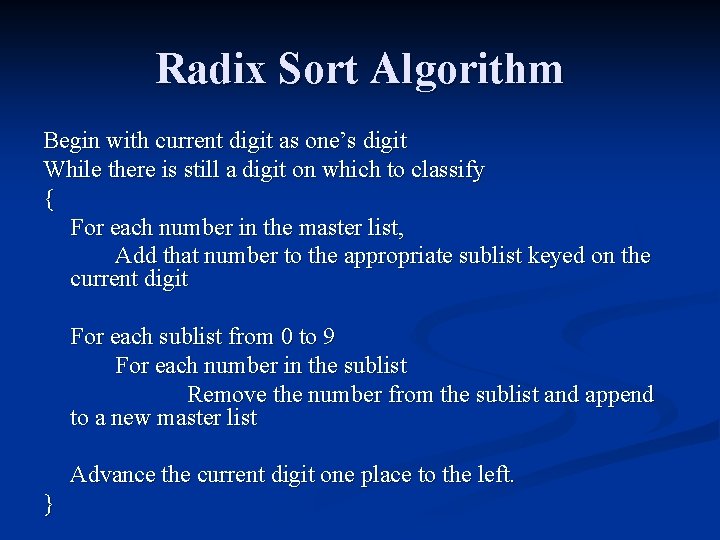

Radix Sort Algorithm Begin with current digit as one’s digit While there is still a digit on which to classify { For each number in the master list, Add that number to the appropriate sublist keyed on the current digit For each sublist from 0 to 9 For each number in the sublist Remove the number from the sublist and append to a new master list Advance the current digit one place to the left. }

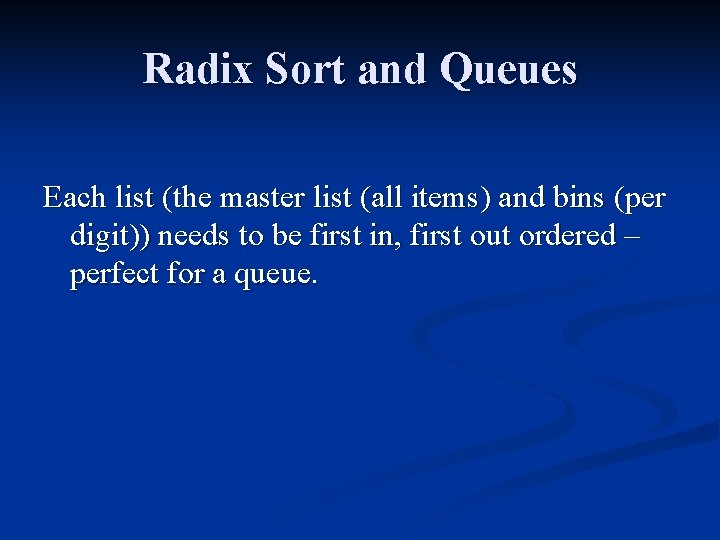

Radix Sort and Queues Each list (the master list (all items) and bins (per digit)) needs to be first in, first out ordered – perfect for a queue.

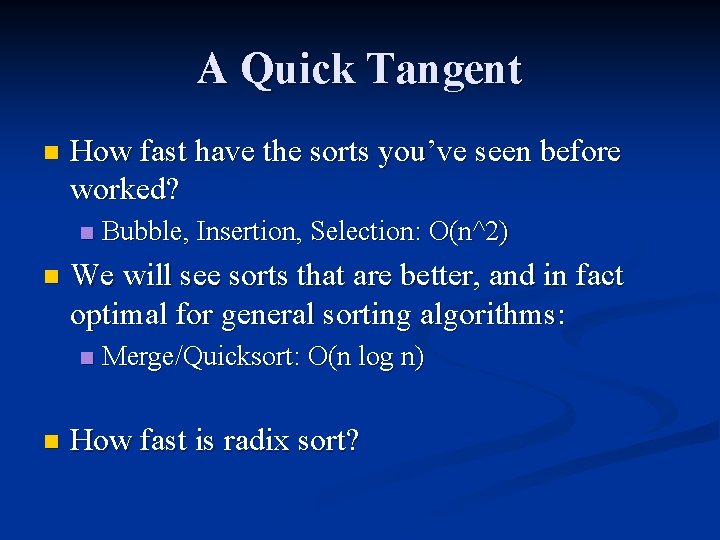

A Quick Tangent n How fast have the sorts you’ve seen before worked? n n We will see sorts that are better, and in fact optimal for general sorting algorithms: n n Bubble, Insertion, Selection: O(n^2) Merge/Quicksort: O(n log n) How fast is radix sort?

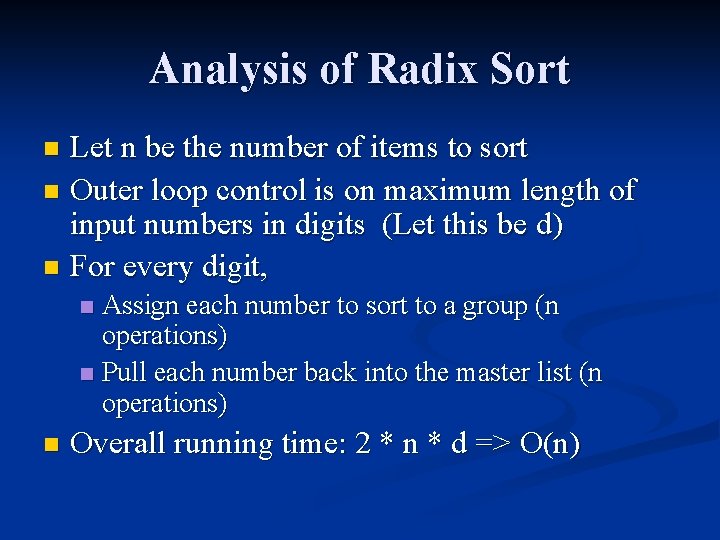

Analysis of Radix Sort Let n be the number of items to sort n Outer loop control is on maximum length of input numbers in digits (Let this be d) n For every digit, n Assign each number to sort to a group (n operations) n Pull each number back into the master list (n operations) n n Overall running time: 2 * n * d => O(n)

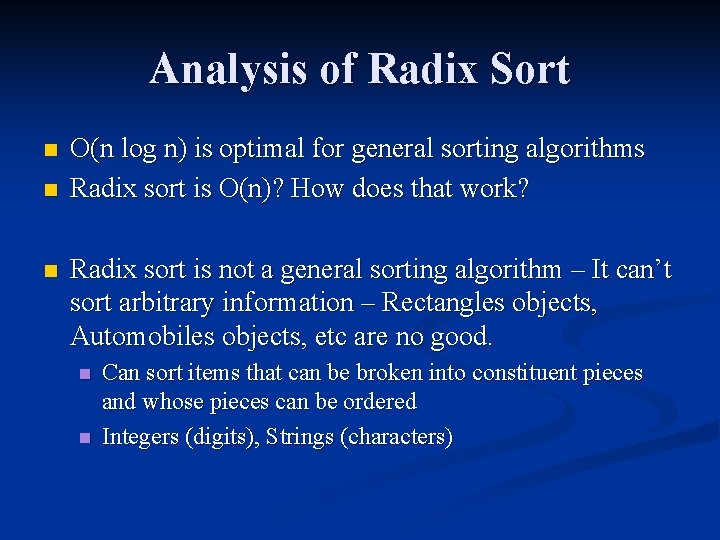

Analysis of Radix Sort n n n O(n log n) is optimal for general sorting algorithms Radix sort is O(n)? How does that work? Radix sort is not a general sorting algorithm – It can’t sort arbitrary information – Rectangles objects, Automobiles objects, etc are no good. n n Can sort items that can be broken into constituent pieces and whose pieces can be ordered Integers (digits), Strings (characters)

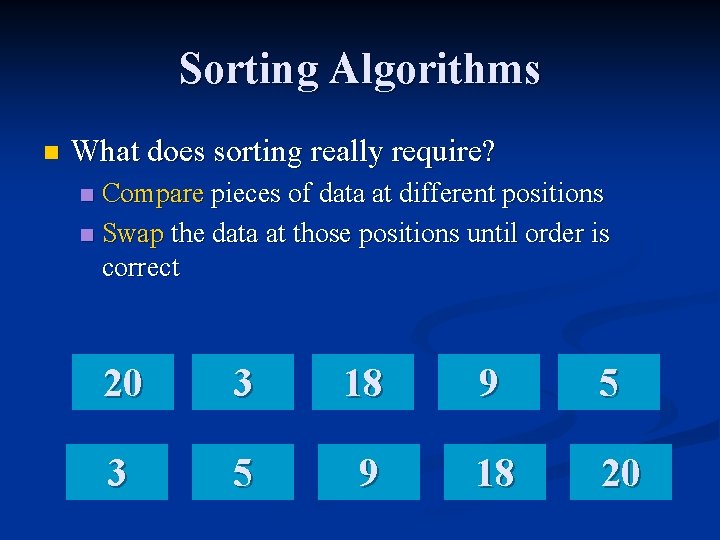

Sorting Algorithms n What does sorting really require? Compare pieces of data at different positions n Swap the data at those positions until order is correct n 20 3 18 9 5 3 5 9 18 20

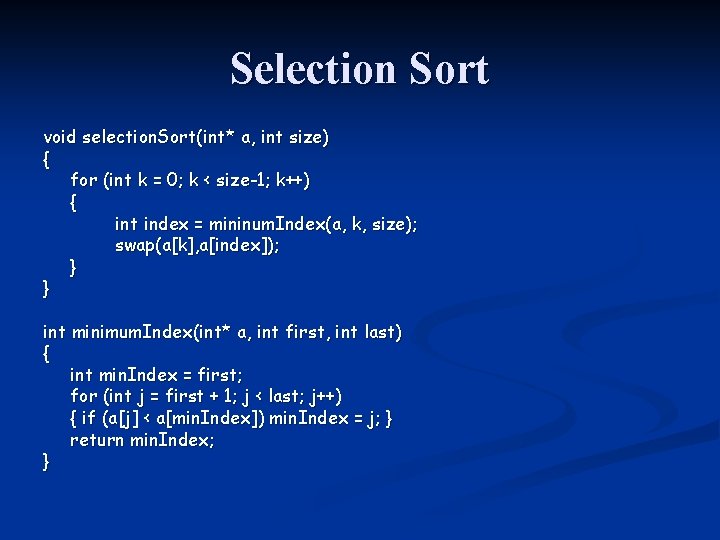

Selection Sort void selection. Sort(int* a, int size) { for (int k = 0; k < size-1; k++) { int index = mininum. Index(a, k, size); swap(a[k], a[index]); } } int minimum. Index(int* a, int first, int last) { int min. Index = first; for (int j = first + 1; j < last; j++) { if (a[j] < a[min. Index]) min. Index = j; } return min. Index; }

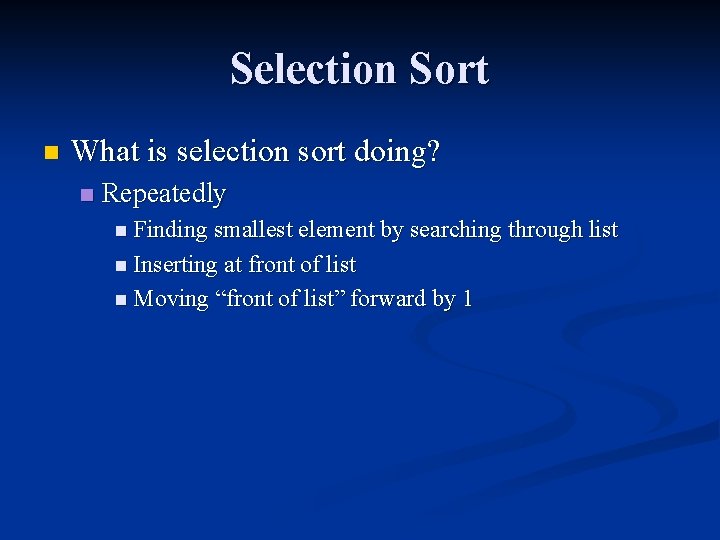

Selection Sort n What is selection sort doing? n Repeatedly n Finding smallest element by searching through list n Inserting at front of list n Moving “front of list” forward by 1

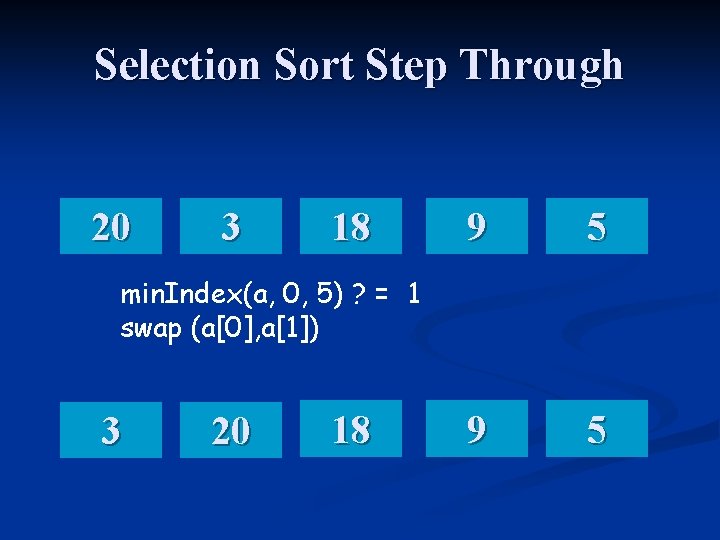

Selection Sort Step Through 20 3 18 9 5 min. Index(a, 0, 5) ? = 1 swap (a[0], a[1]) 3 20 18

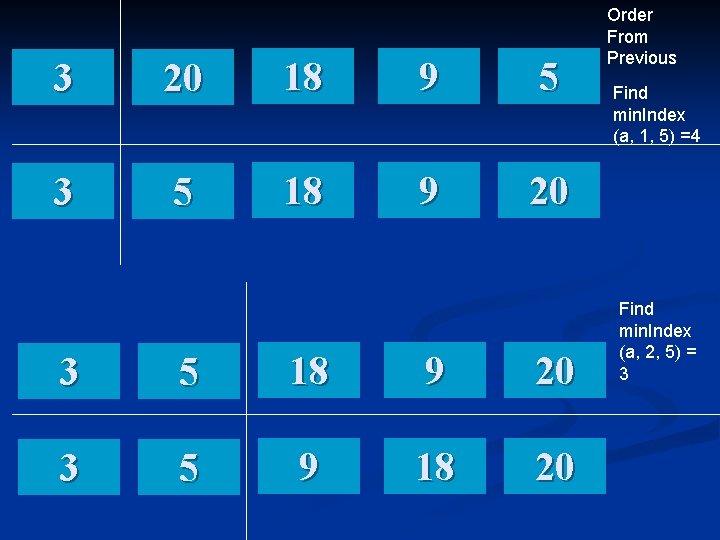

3 20 18 9 5 3 5 18 9 20 3 5 9 18 20 Order From Previous Find min. Index (a, 1, 5) =4 Find min. Index (a, 2, 5) = 3

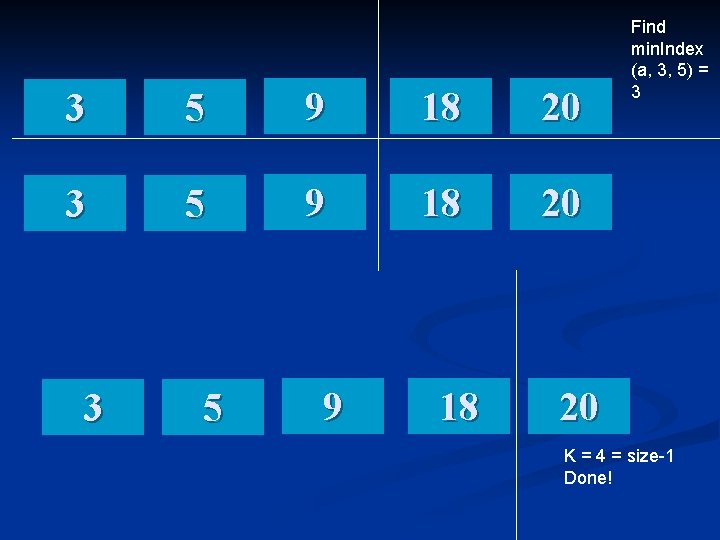

3 5 9 18 20 3 5 9 18 Find min. Index (a, 3, 5) = 3 20 K = 4 = size-1 Done!

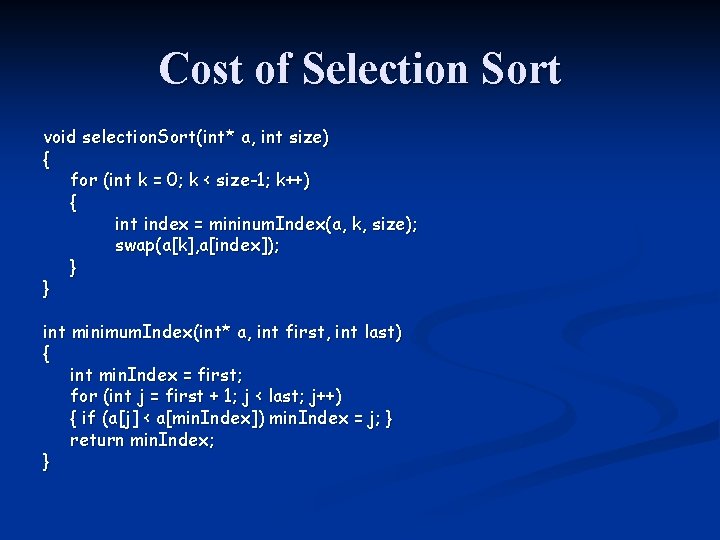

Cost of Selection Sort void selection. Sort(int* a, int size) { for (int k = 0; k < size-1; k++) { int index = mininum. Index(a, k, size); swap(a[k], a[index]); } } int minimum. Index(int* a, int first, int last) { int min. Index = first; for (int j = first + 1; j < last; j++) { if (a[j] < a[min. Index]) min. Index = j; } return min. Index; }

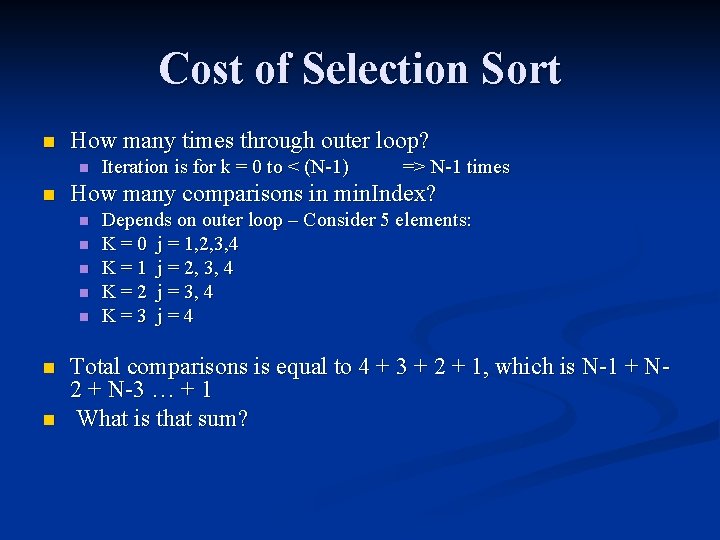

Cost of Selection Sort n How many times through outer loop? n n n n => N-1 times How many comparisons in min. Index? n n Iteration is for k = 0 to < (N-1) Depends on outer loop – Consider 5 elements: K = 0 j = 1, 2, 3, 4 K = 1 j = 2, 3, 4 K = 2 j = 3, 4 K=3 j=4 Total comparisons is equal to 4 + 3 + 2 + 1, which is N-1 + N 2 + N-3 … + 1 What is that sum?

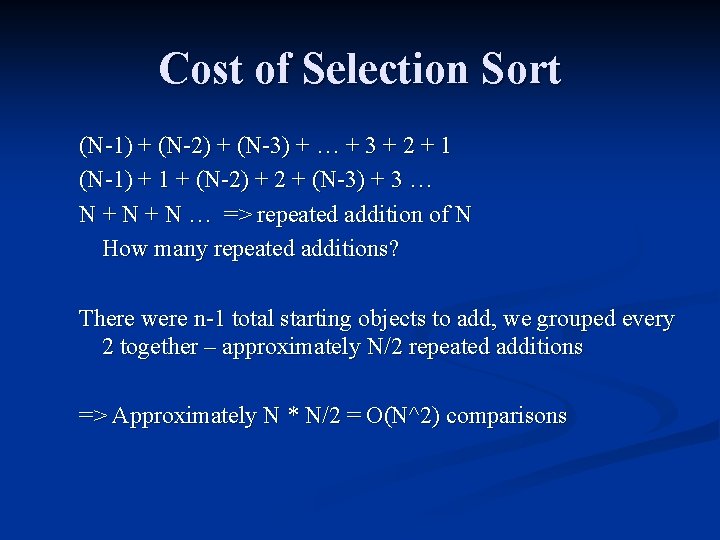

Cost of Selection Sort (N-1) + (N-2) + (N-3) + … + 3 + 2 + 1 (N-1) + 1 + (N-2) + 2 + (N-3) + 3 … N + N … => repeated addition of N How many repeated additions? There were n-1 total starting objects to add, we grouped every 2 together – approximately N/2 repeated additions => Approximately N * N/2 = O(N^2) comparisons

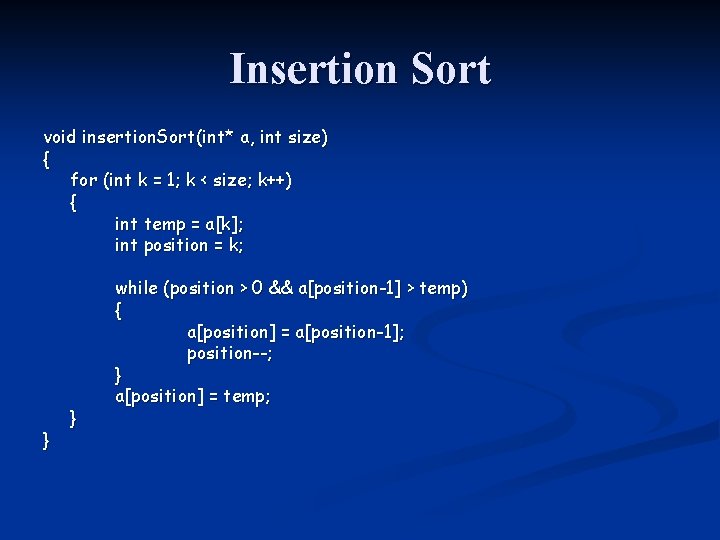

Insertion Sort void insertion. Sort(int* a, int size) { for (int k = 1; k < size; k++) { int temp = a[k]; int position = k; } } while (position > 0 && a[position-1] > temp) { a[position] = a[position-1]; position--; } a[position] = temp;

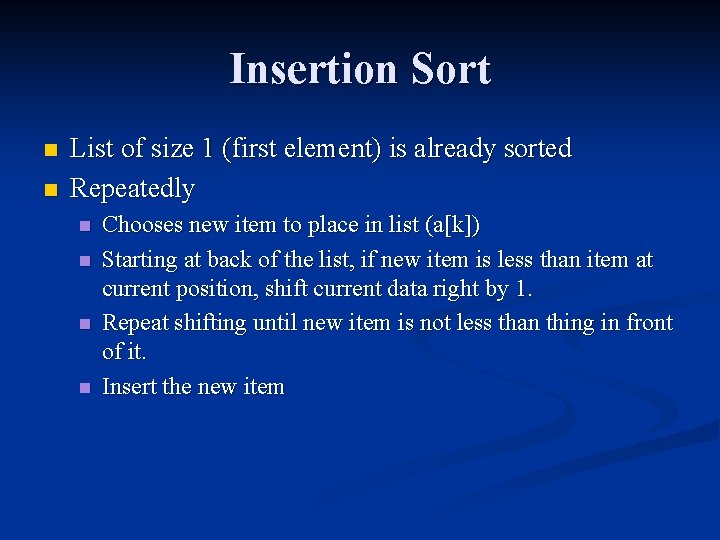

Insertion Sort n n List of size 1 (first element) is already sorted Repeatedly n n Chooses new item to place in list (a[k]) Starting at back of the list, if new item is less than item at current position, shift current data right by 1. Repeat shifting until new item is not less than thing in front of it. Insert the new item

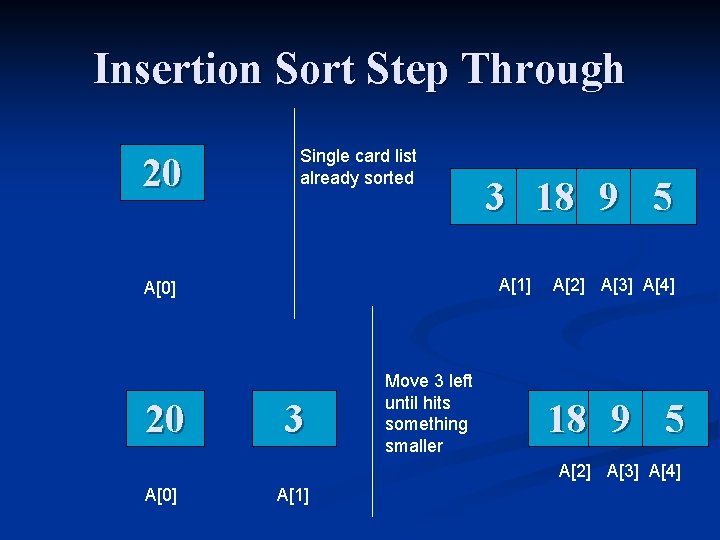

Insertion Sort Step Through 20 Single card list already sorted A[1] A[0] 20 3 18 9 5 3 Move 3 left until hits something smaller A[2] A[3] A[4] 18 9 5 A[2] A[3] A[4] A[0] A[1]

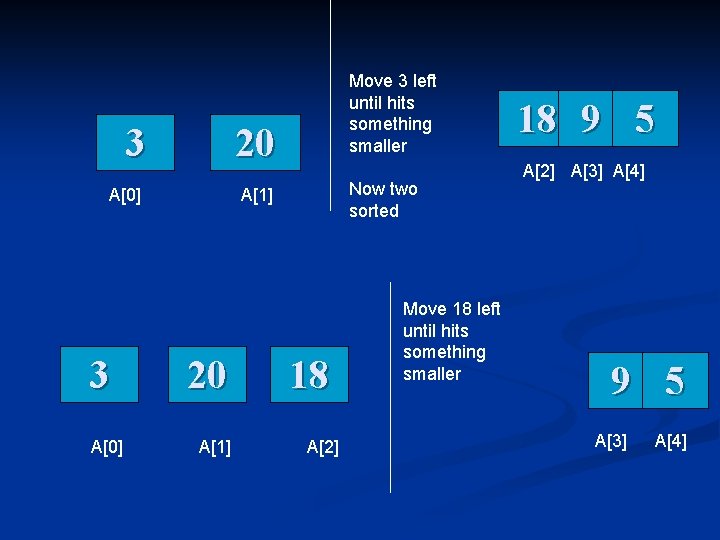

3 20 A[0] 3 A[0] Move 3 left until hits something smaller Now two sorted A[1] 20 A[1] 18 A[2] Move 18 left until hits something smaller 18 9 5 A[2] A[3] A[4] 9 5 A[3] A[4]

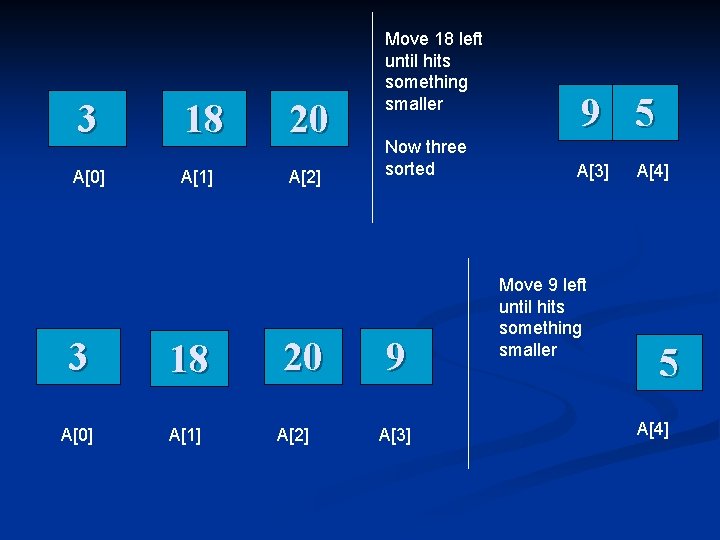

3 18 20 A[0] A[1] A[2] 3 18 A[0] A[1] 20 A[2] Move 18 left until hits something smaller Now three sorted 9 A[3] 9 5 A[3] Move 9 left until hits something smaller A[4] 5 A[4]

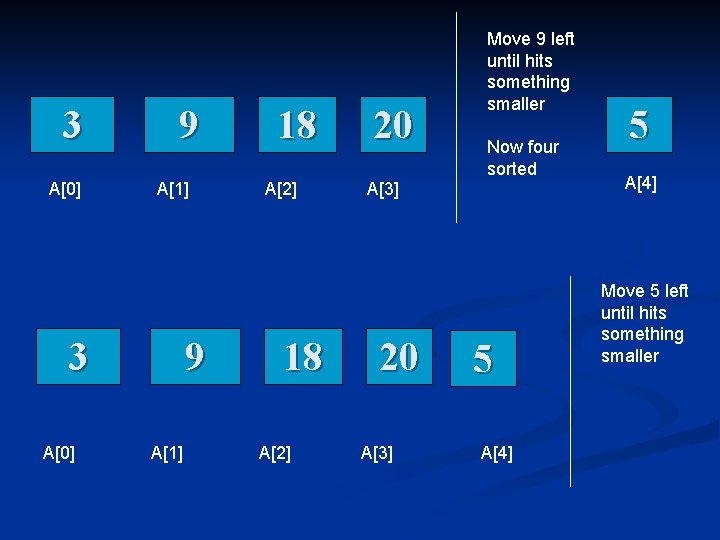

3 A[0] 9 A[1] 18 A[2] 20 Move 9 left until hits something smaller Now four sorted A[3] 20 A[3] 5 A[4] Move 5 left until hits something smaller

3 5 9 A[0] A[1] A[2] 18 A[3] 20 A[4] Move 5 left until hits something smaller Now all five sorted Done

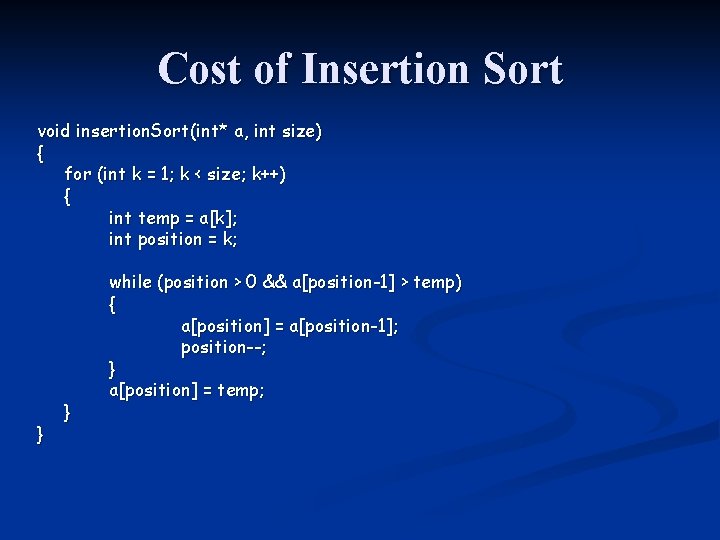

Cost of Insertion Sort void insertion. Sort(int* a, int size) { for (int k = 1; k < size; k++) { int temp = a[k]; int position = k; } } while (position > 0 && a[position-1] > temp) { a[position] = a[position-1]; position--; } a[position] = temp;

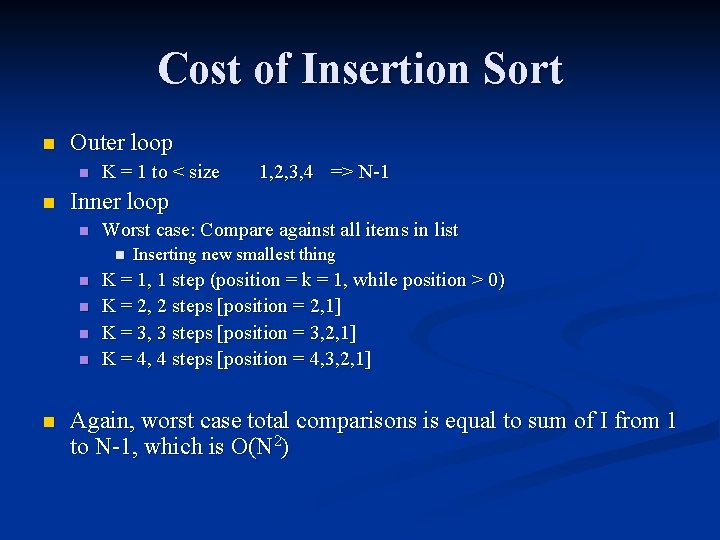

Cost of Insertion Sort n Outer loop n n K = 1 to < size Inner loop n Worst case: Compare against all items in list n n n 1, 2, 3, 4 => N-1 Inserting new smallest thing K = 1, 1 step (position = k = 1, while position > 0) K = 2, 2 steps [position = 2, 1] K = 3, 3 steps [position = 3, 2, 1] K = 4, 4 steps [position = 4, 3, 2, 1] Again, worst case total comparisons is equal to sum of I from 1 to N-1, which is O(N 2)

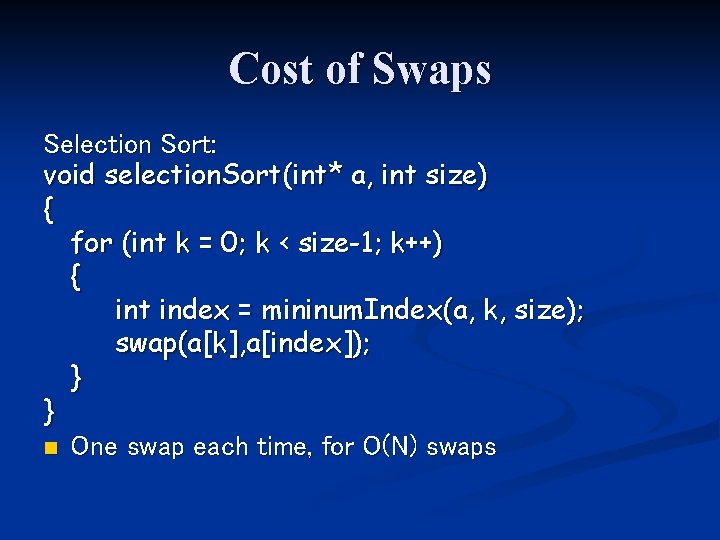

Cost of Swaps Selection Sort: void selection. Sort(int* a, int size) { for (int k = 0; k < size-1; k++) { int index = mininum. Index(a, k, size); swap(a[k], a[index]); } } n One swap each time, for O(N) swaps

Cost of Swaps Insertion Sort void insertion. Sort(int* a, int size) { for (int k = 1; k < size; k++) { int temp = a[k]; int position = k; } n n n } while (position > 0 && a[position-1] > temp) { a[position] = a[position-1]; position--; } a[position] = temp; Do a shift almost every time do compare, so O(n 2) shifts Shifts are faster than swaps (1 step vs 3 steps) Are we doing few enough of them to make up the difference?

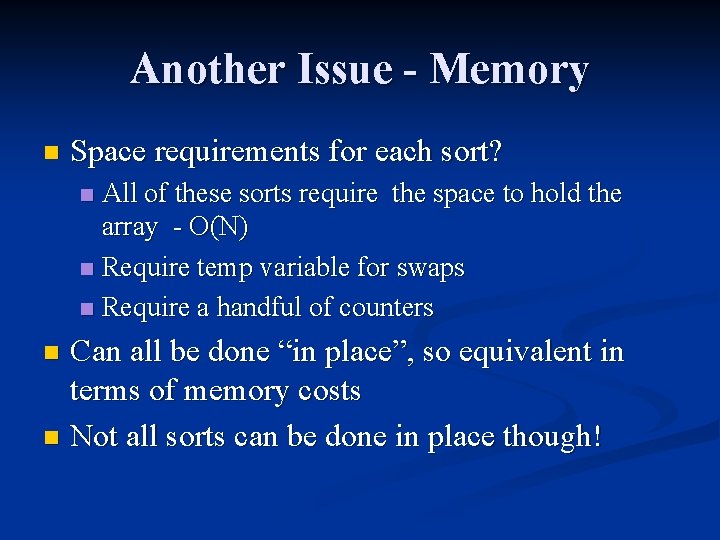

Another Issue - Memory n Space requirements for each sort? All of these sorts require the space to hold the array - O(N) n Require temp variable for swaps n Require a handful of counters n Can all be done “in place”, so equivalent in terms of memory costs n Not all sorts can be done in place though! n

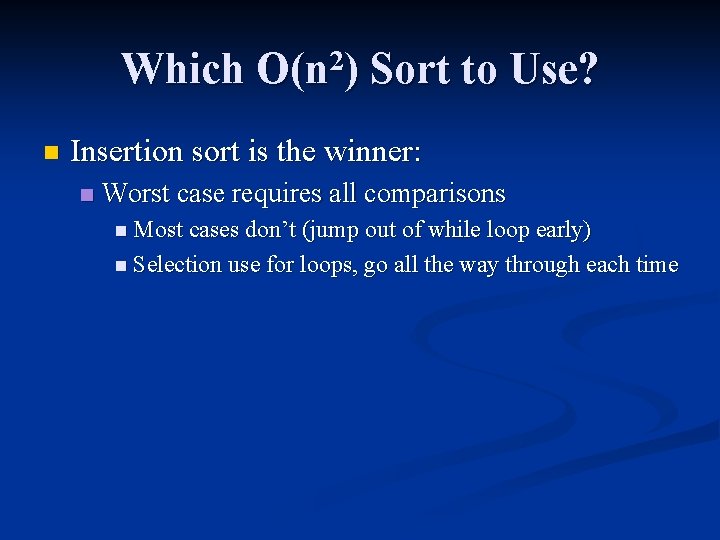

Which O(n 2) Sort to Use? n Insertion sort is the winner: n Worst case requires all comparisons n Most cases don’t (jump out of while loop early) n Selection use for loops, go all the way through each time

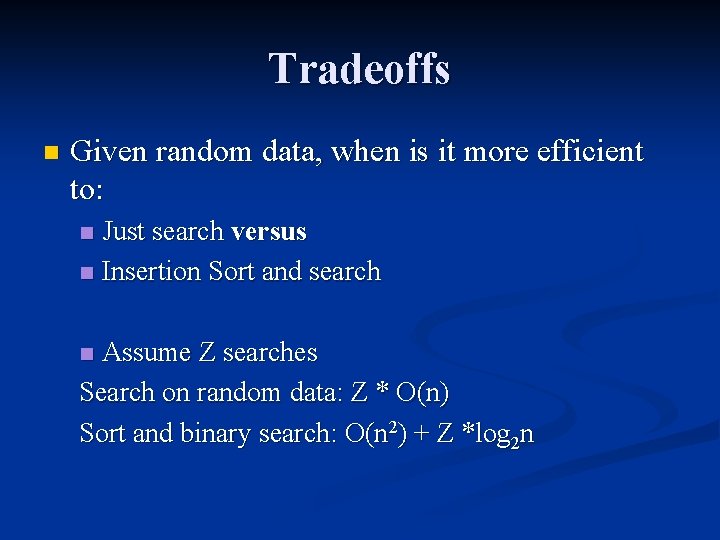

Tradeoffs n Given random data, when is it more efficient to: Just search versus n Insertion Sort and search n Assume Z searches Search on random data: Z * O(n) Sort and binary search: O(n 2) + Z *log 2 n n

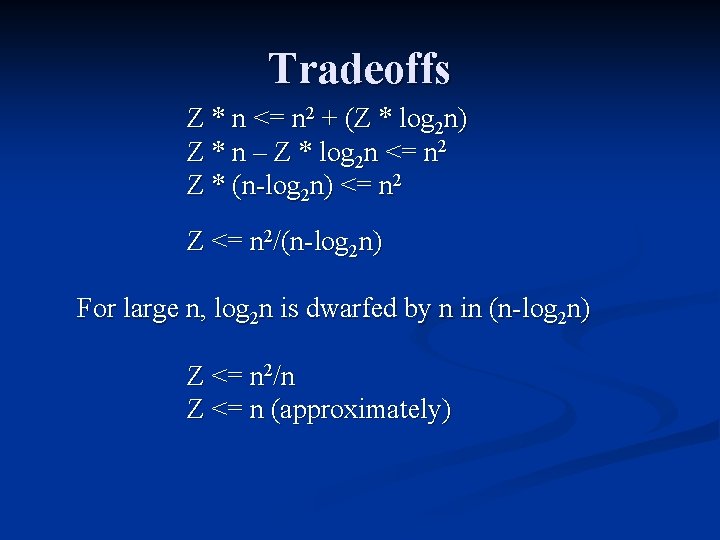

Tradeoffs Z * n <= n 2 + (Z * log 2 n) Z * n – Z * log 2 n <= n 2 Z * (n-log 2 n) <= n 2 Z <= n 2/(n-log 2 n) For large n, log 2 n is dwarfed by n in (n-log 2 n) Z <= n 2/n Z <= n (approximately)

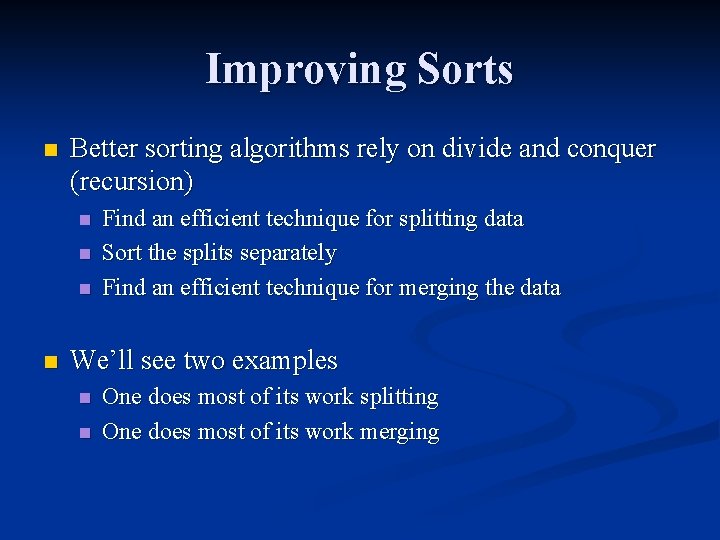

Improving Sorts n Better sorting algorithms rely on divide and conquer (recursion) n n Find an efficient technique for splitting data Sort the splits separately Find an efficient technique for merging the data We’ll see two examples n n One does most of its work splitting One does most of its work merging
