SONGS Used Fuel Storage Southern California Edison San
- Slides: 17
SONGS Used Fuel Storage Southern California Edison, San Diego Gas & Electric, City of Anaheim, and City of Riverside October 11, 2017

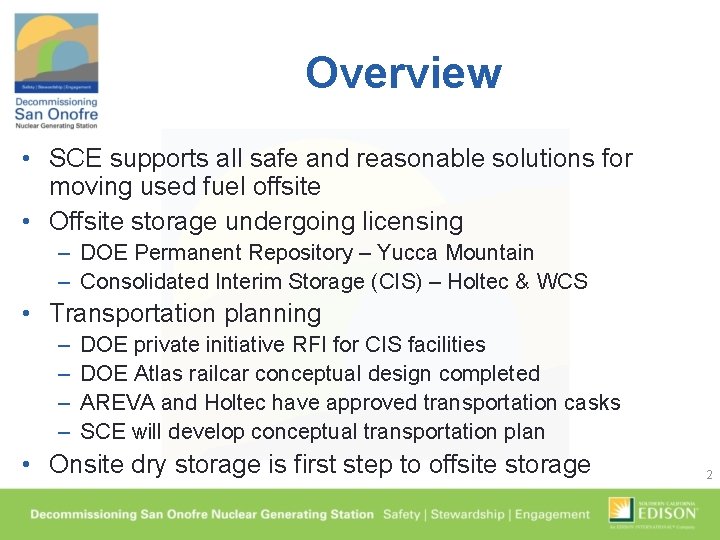

Overview • SCE supports all safe and reasonable solutions for moving used fuel offsite • Offsite storage undergoing licensing – DOE Permanent Repository – Yucca Mountain – Consolidated Interim Storage (CIS) – Holtec & WCS • Transportation planning – – DOE private initiative RFI for CIS facilities DOE Atlas railcar conceptual design completed AREVA and Holtec have approved transportation casks SCE will develop conceptual transportation plan • Onsite dry storage is first step to offsite storage 2
Used Fuel Eligibility for Transportation • 102 canisters ready for transport by 2020 • Remaining fuel qualifies over time NOW Units 2/3 AREVA Unit 1 AREVA Units 2/3 Holtec 21 ‘ 18 ‘ 19 6 6 ‘ 20 ‘ 21 ‘ 22 ‘ 23 ‘ 24 ‘ 25 ‘ 26 ‘ 27 ‘ 28 ‘ 29 ‘ 30 TOTAL 33 1 2 67 2 2 5 1 1 9 17 73 3 3
SCE Efforts to Advance Offsite Storage • Building federal-level support – Ongoing legislative efforts with Senate and House leaders – SONGS briefings/tours for Congressional leaders/staff • Building state-level support – Joint Senate/Assembly resolutions supporting federal legislation • Community engagement – Several public meetings with thought leaders focused on making offsite storage a reality • Settlement agreement regarding offsite storage 4
Summary • SCE will continue to safely store SONGS fuel onsite until offsite storage is available • SCE supports all safe and reasonable solutions for moving used fuel offsite 5

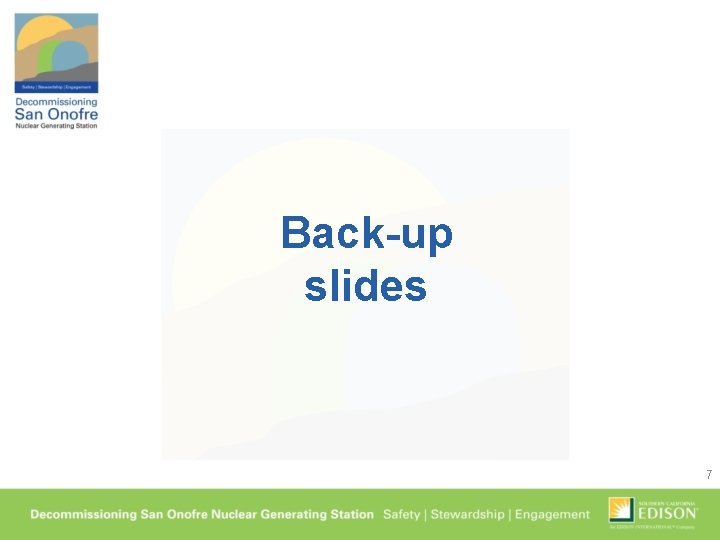

Back-up slides 7
Background • SONGS decommissioning core principles safety, stewardship, and engagement • Holtec ISFSI CDP unanimously approved by CCC in October 2015: – Existing AREVA ISFSI lacked capacity for all fuel – Expansion allows for continued safe storage of all spent fuel onsite in passively cooled dry casks – Placement in canisters is a precursor to offsite storage • Dry cask storage is proven, safe technology 8
SONGS Spent Fuel CURRENT STATE Spent Fuel Pools 2668 fuel assemblies Existing ISFSI 50 canisters (1187 fuel assemblies) EXPANDED ISFSI 73 canisters (2668 fuel assemblies) + existing 50 canisters (1187 fuel assemblies) By mid-2019 9 FUTURE STATE 3855 fuel assemblies in 123 canisters offsite
34 States with at Least One ISFSI 10
ISFSI License Renewals ISFSI licenses extended an additional 40 years 1. 2. 3. 4. 5. Calvert Cliffs NPP – South of Baltimore, MD Oconee Nuclear Station – WSW of Spartanburg, SC Prairie Island NGS – Southeast of Minneapolis, MN Surry NGS – NW of Norfolk, VA HB Robinson NPP – West of Wilmington, NC ISFSI licenses in review for extension 1. 2. 3. 4. North Anna NGS – NW of Richmond, VA Trojan NPP – Oregon AREVA License 72 -1004 – General license, many users Energy Solutions 72 -1007 – General license Approved Undergoing Review
Pad Construction Complete 12
Holtec UMAX System 13
AREVA Storage Module and Canister Outlet Vent Concrete Canister Inlet Vent
DOE Concept Rail Car • Awarded $8. 63 million contract to AREVA Federal Services on August 2015 • For development of cask and buffer railcars • Design specifications will accommodate fully loaded SONGS transportation casks
Lawsuit Settlement & SCE Commitments • Lawsuit filed in November 2015 • Settlement Agreement was signed in August 2017 • SCE to use “commercially reasonable efforts” to relocate SONGS fuel to offsite storage facility • SCE’s commitments: – – – Retain experts team to advise SCE Prepare transportation plan and strategic plan Submit request to Palo Verde to store SONGS fuel Develop inspection/maintenance plan and contingency plan Provide progress reports 16
Inspection & Maintenance • NRC Aging Management Program (AMP) will be required for both ISFSI Systems – AREVA AMP will be part of license renewal in 2022 – Holtec AMP will be part of license renewal in 2035 • Holtec Inspection and Maintenance Program required per CDP Special Condition 7 by 10/6/2022 – Will include maintenance and monitoring techniques – SCE committed to earlier development of plan as part of Settlement 17
