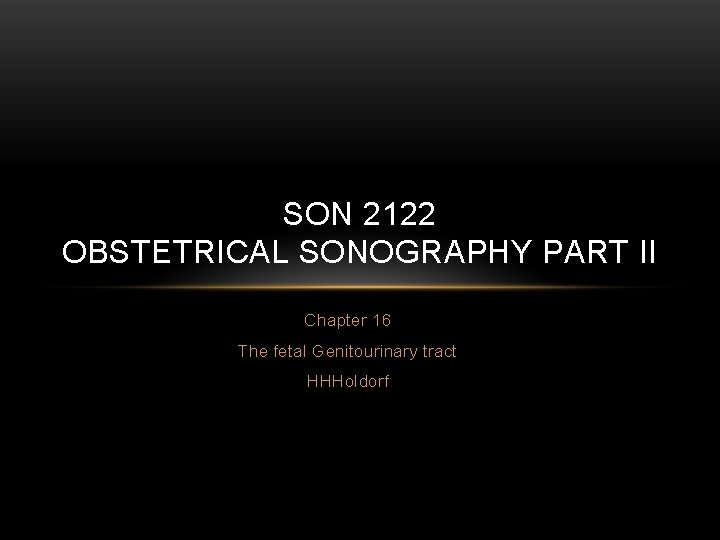

SON 2122 OBSTETRICAL SONOGRAPHY PART II Chapter 16 The fetal Genitourinary tract HHHoldorf

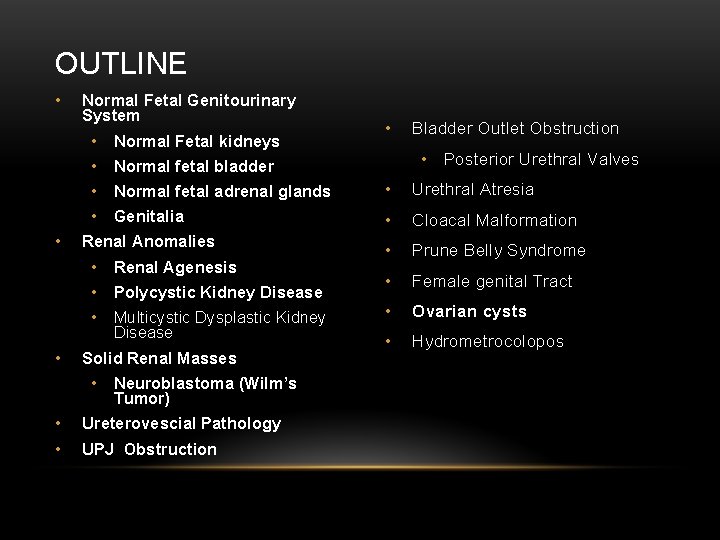

OUTLINE • • • Normal Fetal Genitourinary System • Bladder Outlet Obstruction • Normal Fetal kidneys • Normal fetal bladder • Normal fetal adrenal glands • Urethral Atresia • Genitalia • Cloacal Malformation Renal Anomalies • Prune Belly Syndrome • Female genital Tract • Ovarian cysts • Hydrometrocolopos • Renal Agenesis • Polycystic Kidney Disease • Multicystic Dysplastic Kidney Disease Solid Renal Masses • Neuroblastoma (Wilm’s Tumor) • Ureterovescial Pathology • UPJ Obstruction • Posterior Urethral Valves

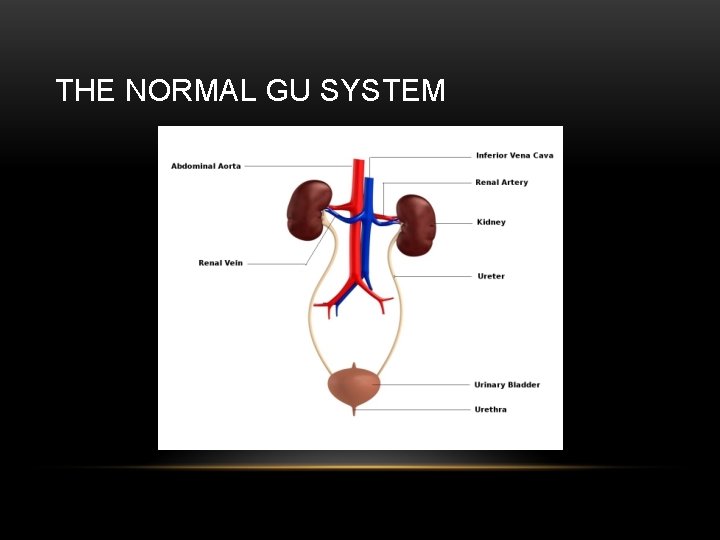

THE NORMAL GU SYSTEM

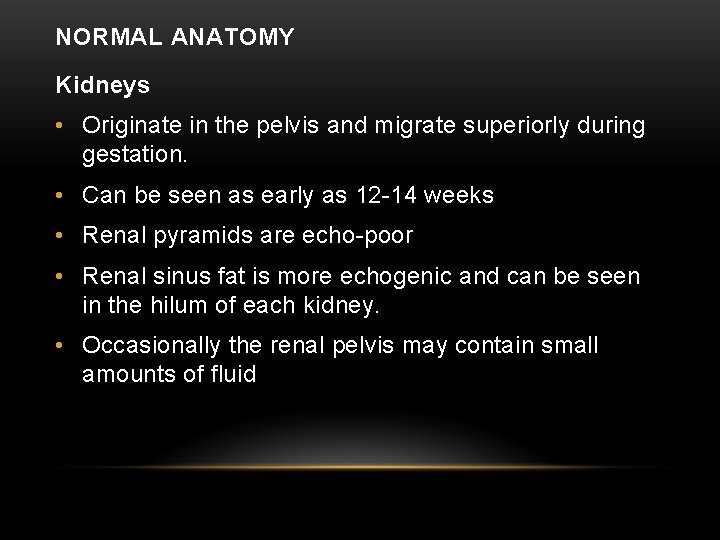

NORMAL ANATOMY Kidneys • Originate in the pelvis and migrate superiorly during gestation. • Can be seen as early as 12 -14 weeks • Renal pyramids are echo-poor • Renal sinus fat is more echogenic and can be seen in the hilum of each kidney. • Occasionally the renal pelvis may contain small amounts of fluid

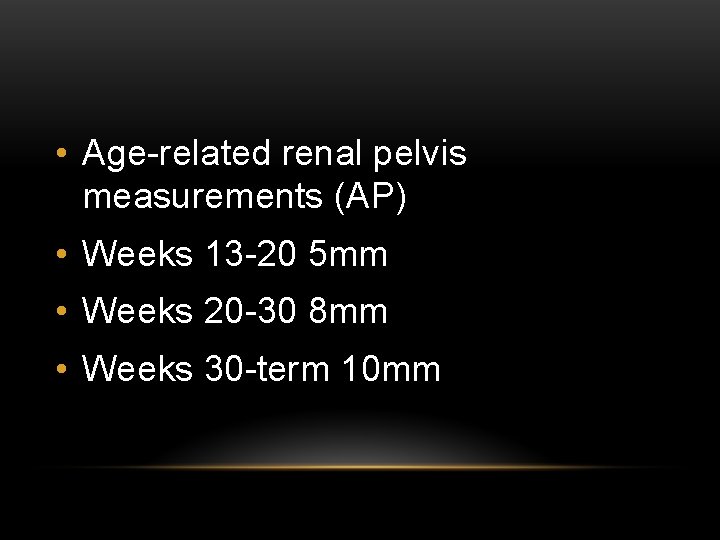

• Age-related renal pelvis measurements (AP) • Weeks 13 -20 5 mm • Weeks 20 -30 8 mm • Weeks 30 -term 10 mm

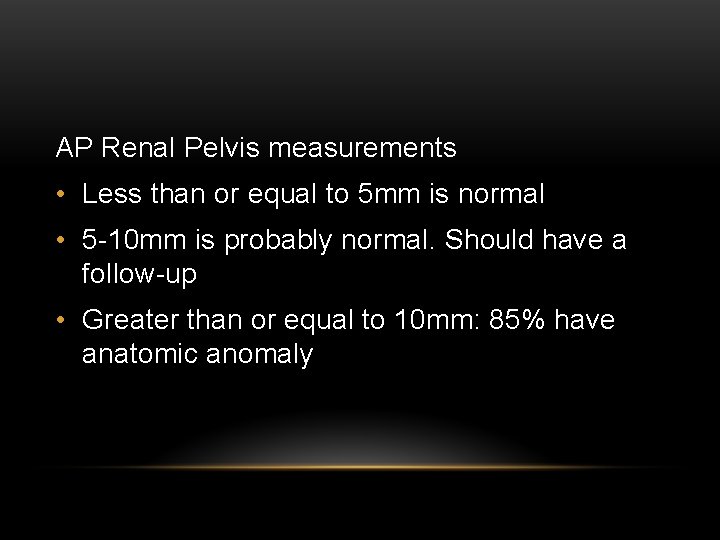

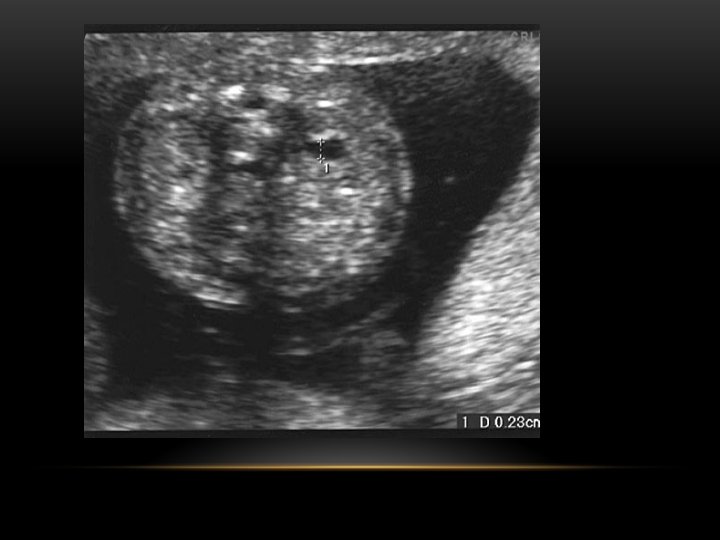

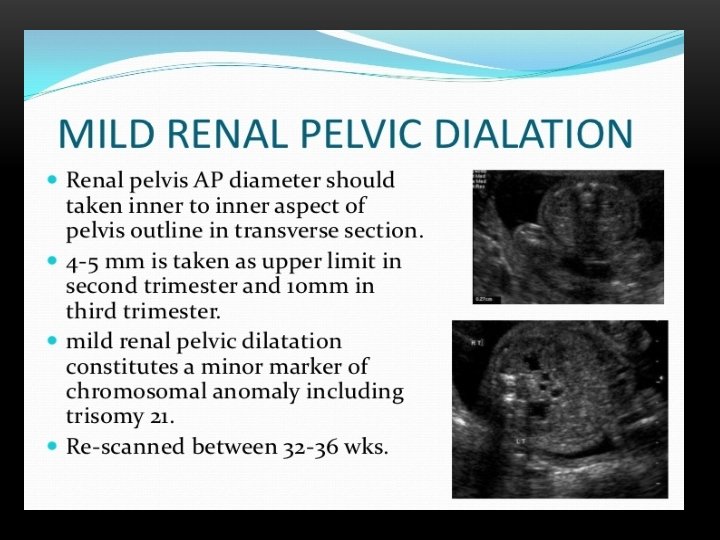

AP Renal Pelvis measurements • Less than or equal to 5 mm is normal • 5 -10 mm is probably normal. Should have a follow-up • Greater than or equal to 10 mm: 85% have anatomic anomaly

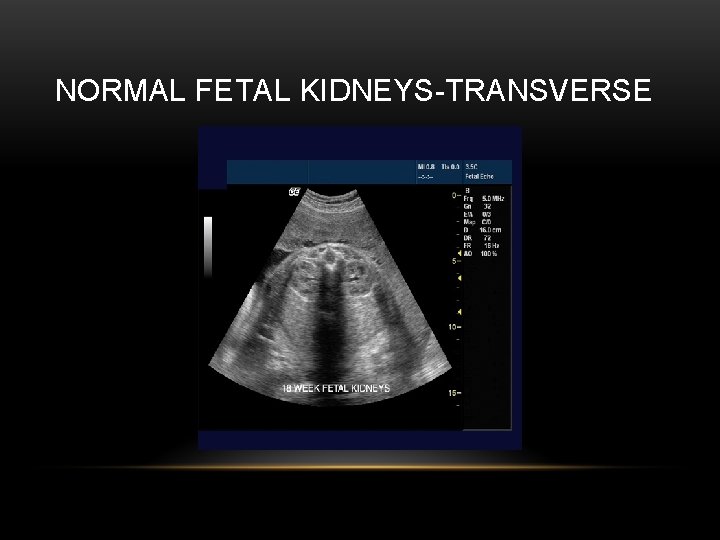

NORMAL FETAL KIDNEYS-TRANSVERSE

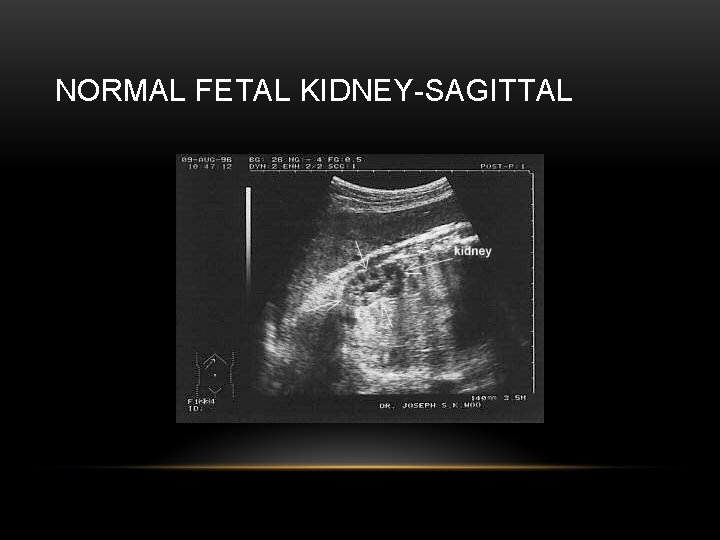

NORMAL FETAL KIDNEY-SAGITTAL

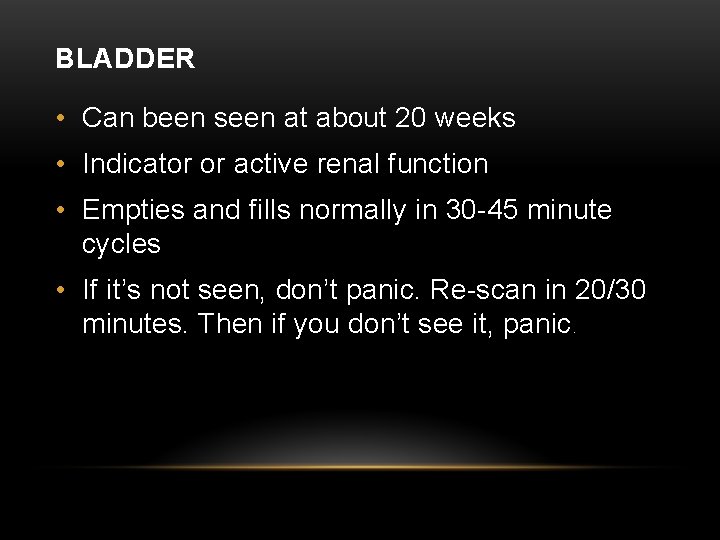

BLADDER • Can been seen at about 20 weeks • Indicator or active renal function • Empties and fills normally in 30 -45 minute cycles • If it’s not seen, don’t panic. Re-scan in 20/30 minutes. Then if you don’t see it, panic.

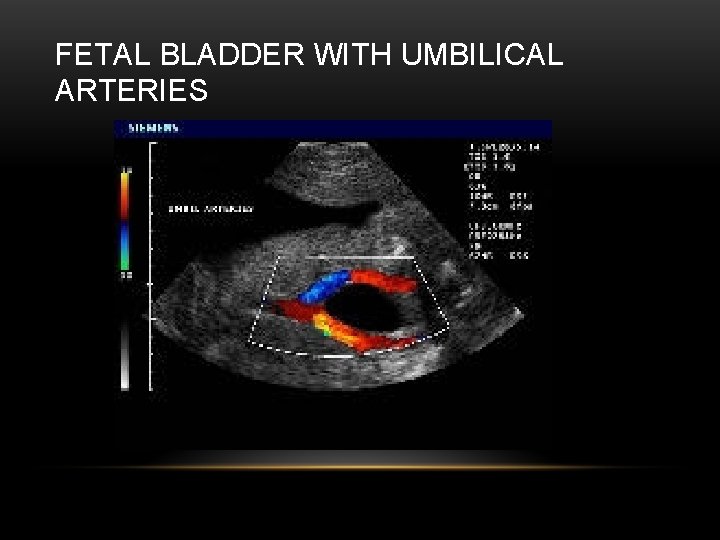

FETAL BLADDER WITH UMBILICAL ARTERIES

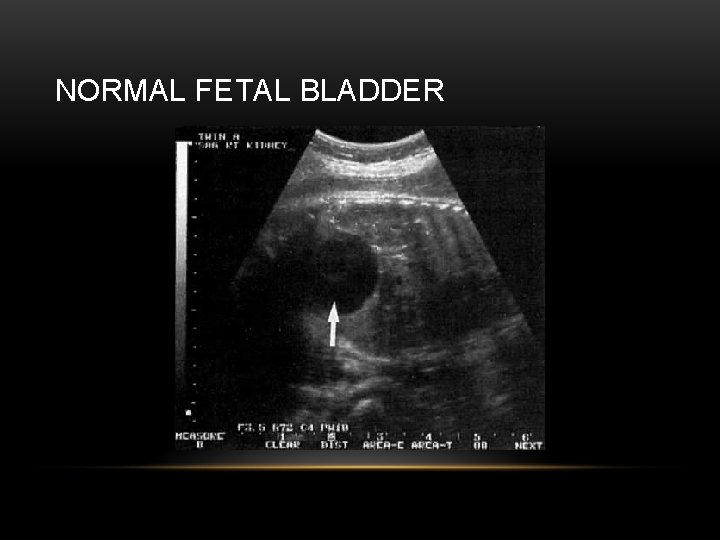

NORMAL FETAL BLADDER

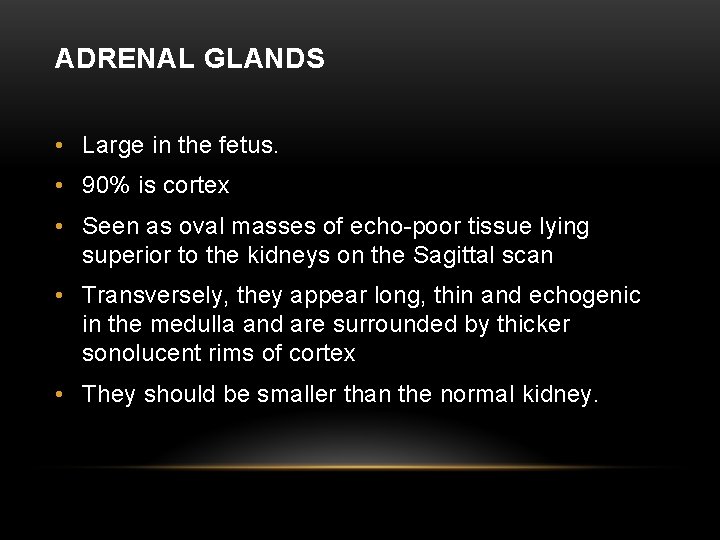

ADRENAL GLANDS • Large in the fetus. • 90% is cortex • Seen as oval masses of echo-poor tissue lying superior to the kidneys on the Sagittal scan • Transversely, they appear long, thin and echogenic in the medulla and are surrounded by thicker sonolucent rims of cortex • They should be smaller than the normal kidney.

TRANSVERSE NORMAL ADRENAL GLAND

SAGITTAL NORMAL ADRENAL GLAND

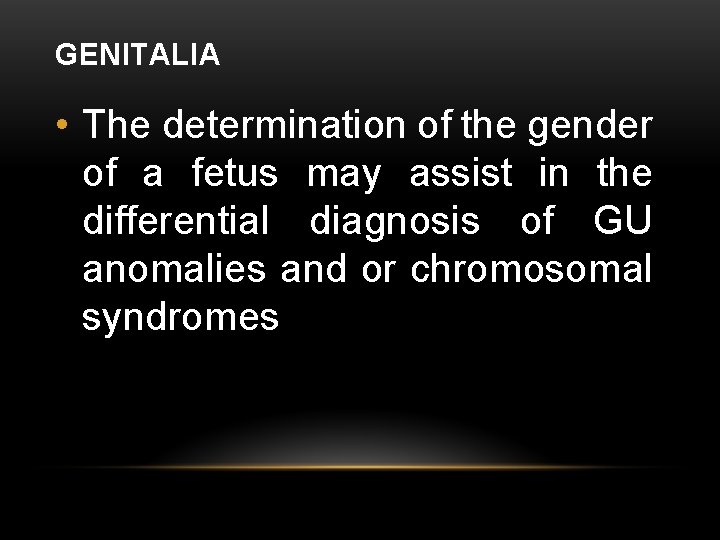

GENITALIA • The determination of the gender of a fetus may assist in the differential diagnosis of GU anomalies and or chromosomal syndromes

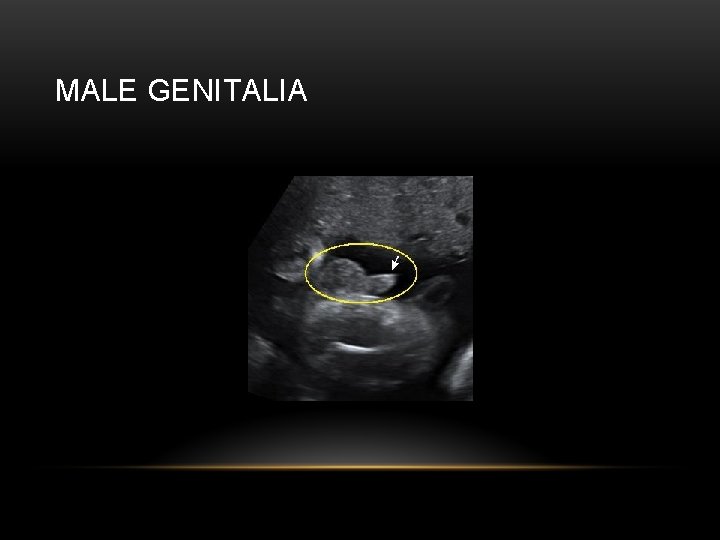

MALE GENITALIA

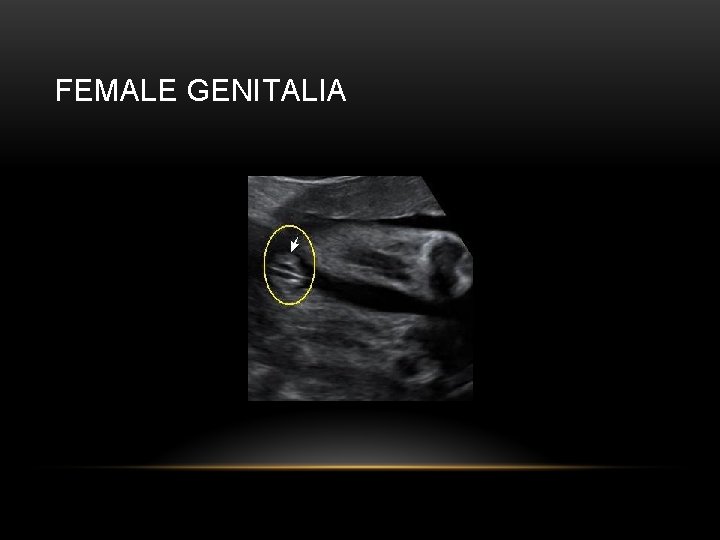

FEMALE GENITALIA

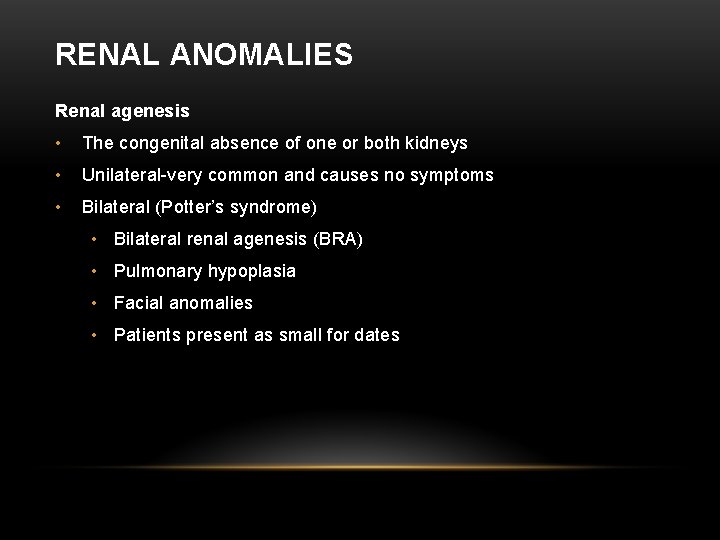

RENAL ANOMALIES Renal agenesis • The congenital absence of one or both kidneys • Unilateral-very common and causes no symptoms • Bilateral (Potter’s syndrome) • Bilateral renal agenesis (BRA) • Pulmonary hypoplasia • Facial anomalies • Patients present as small for dates

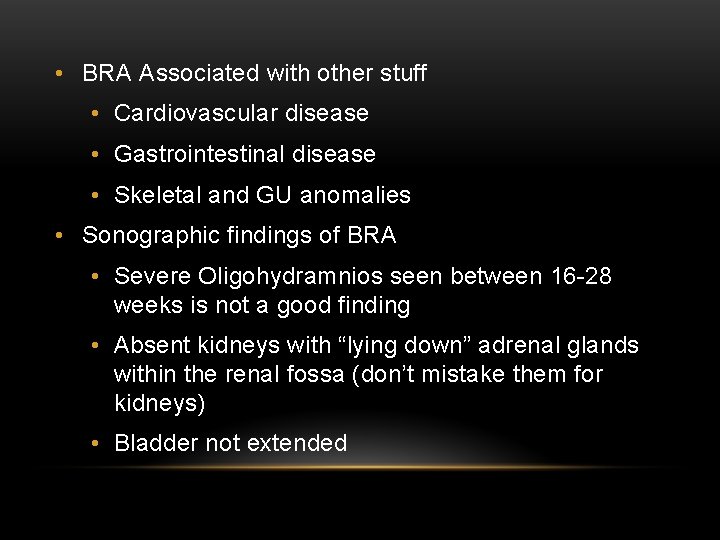

• BRA Associated with other stuff • Cardiovascular disease • Gastrointestinal disease • Skeletal and GU anomalies • Sonographic findings of BRA • Severe Oligohydramnios seen between 16 -28 weeks is not a good finding • Absent kidneys with “lying down” adrenal glands within the renal fossa (don’t mistake them for kidneys) • Bladder not extended

BILATERAL RENAL AGENESIS

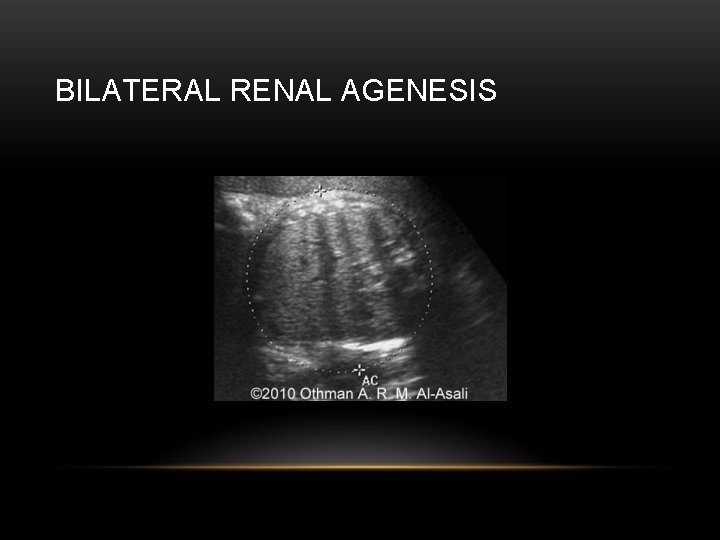

BILATERAL RENAL AGENESIS

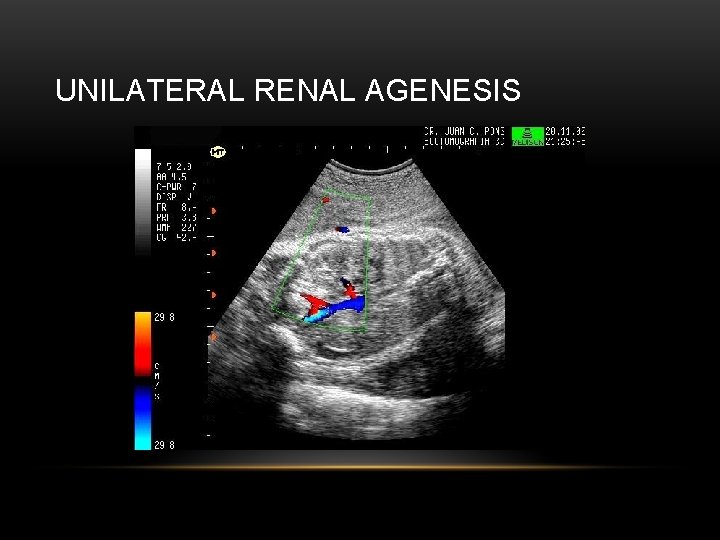

UNILATERAL RENAL AGENESIS

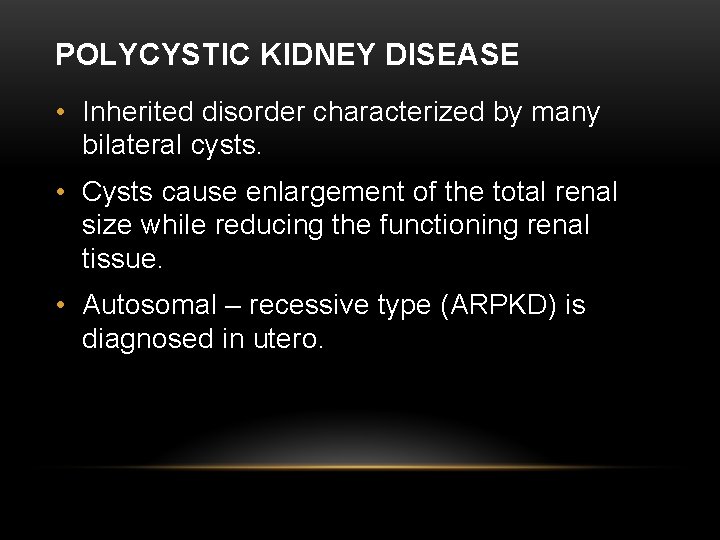

POLYCYSTIC KIDNEY DISEASE • Inherited disorder characterized by many bilateral cysts. • Cysts cause enlargement of the total renal size while reducing the functioning renal tissue. • Autosomal – recessive type (ARPKD) is diagnosed in utero.

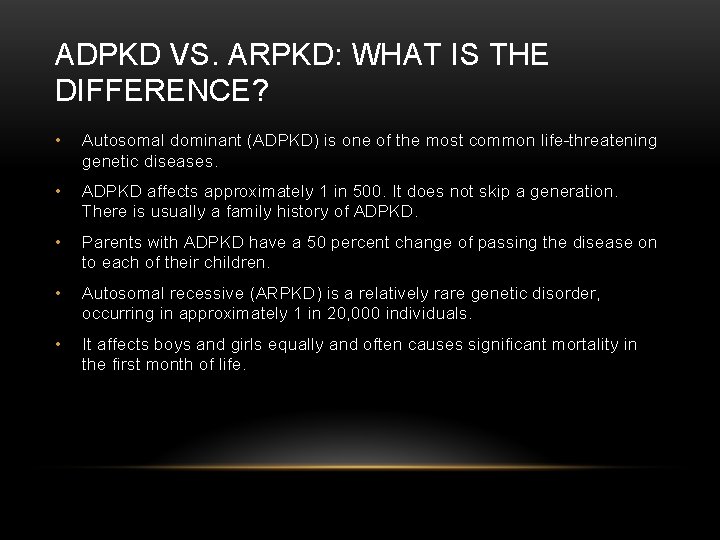

ADPKD VS. ARPKD: WHAT IS THE DIFFERENCE? • Autosomal dominant (ADPKD) is one of the most common life-threatening genetic diseases. • ADPKD affects approximately 1 in 500. It does not skip a generation. There is usually a family history of ADPKD. • Parents with ADPKD have a 50 percent change of passing the disease on to each of their children. • Autosomal recessive (ARPKD) is a relatively rare genetic disorder, occurring in approximately 1 in 20, 000 individuals. • It affects boys and girls equally and often causes significant mortality in the first month of life.

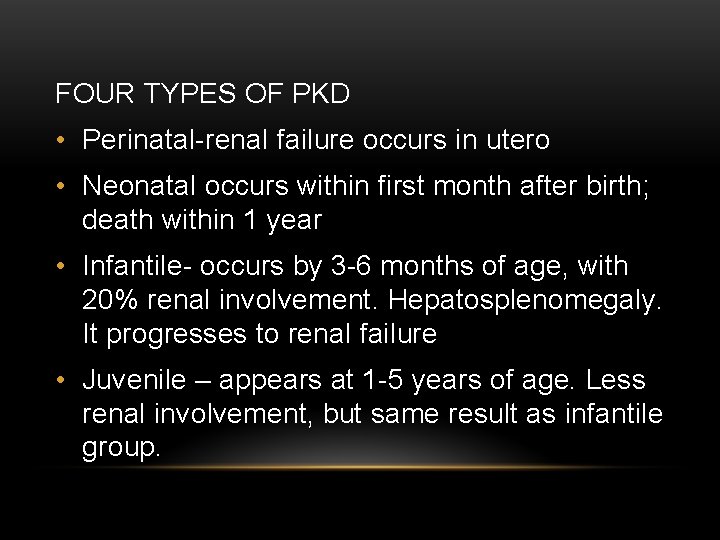

FOUR TYPES OF PKD • Perinatal-renal failure occurs in utero • Neonatal occurs within first month after birth; death within 1 year • Infantile- occurs by 3 -6 months of age, with 20% renal involvement. Hepatosplenomegaly. It progresses to renal failure • Juvenile – appears at 1 -5 years of age. Less renal involvement, but same result as infantile group.

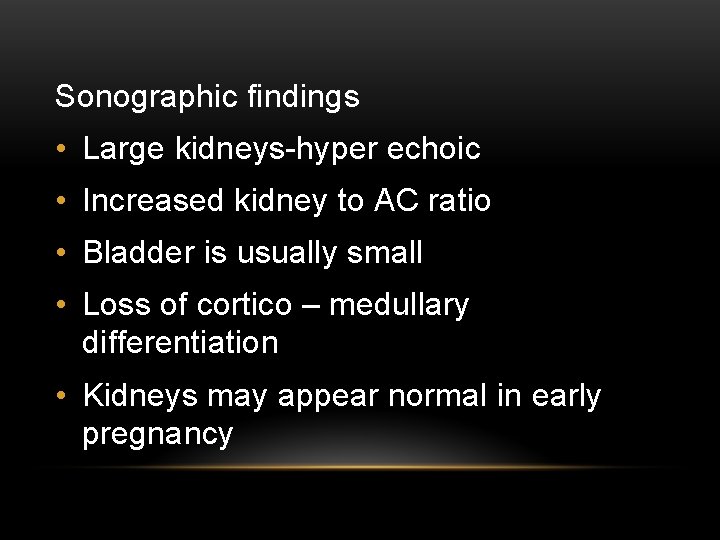

Sonographic findings • Large kidneys-hyper echoic • Increased kidney to AC ratio • Bladder is usually small • Loss of cortico – medullary differentiation • Kidneys may appear normal in early pregnancy

POLYCYSTIC KIDNEY DISEASE 31 ST WEEK OF PREGNANCY; PARASAGITTAL SCAN AT THE LEVEL OF THE FETAL KIDNEYS SHOW THEIR HYPERECHOIC APPEARANCE. OLIGOHYDRAMNIOS WAS ALSO PRESENT.

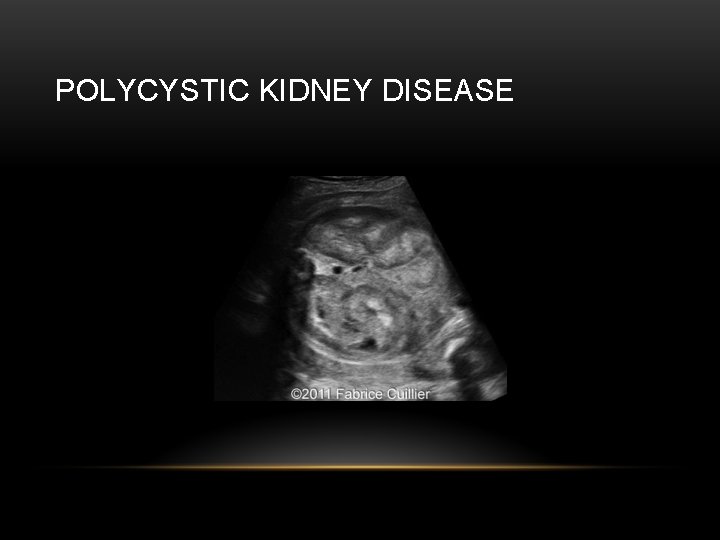

POLYCYSTIC KIDNEY DISEASE

MULTICYSTIC DYSPLASTIC KIDNEY • Obstruction of the kidney during its development leads to formation of cysts which replace renal parenchyma. • MCDK is non-functioning • Cysts can be large, up to 6 cm • Cysts may be unilateral. • Cannot be detected EARLY in gestation…cysts are too small

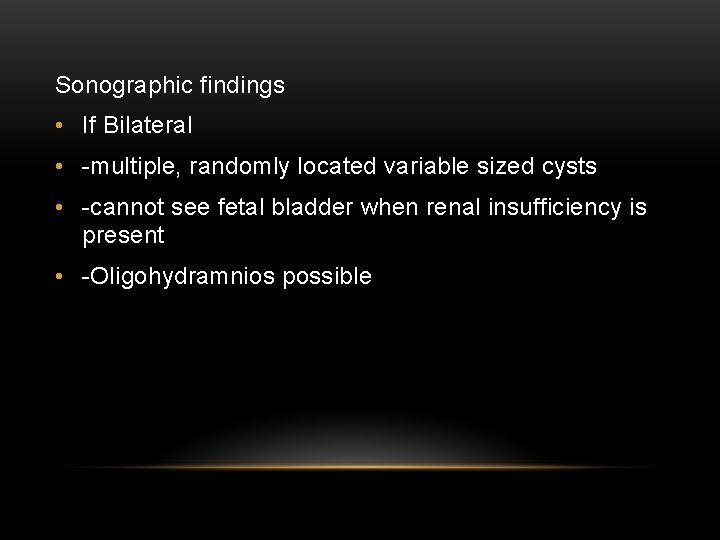

Sonographic findings • If Bilateral • -multiple, randomly located variable sized cysts • -cannot see fetal bladder when renal insufficiency is present • -Oligohydramnios possible

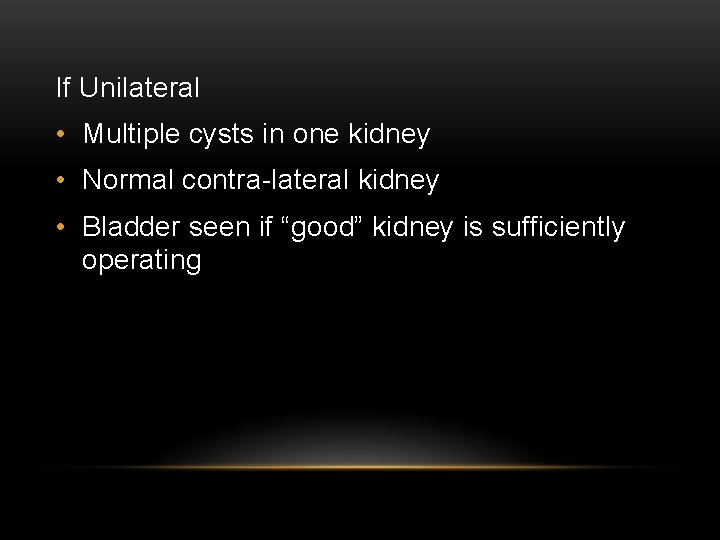

If Unilateral • Multiple cysts in one kidney • Normal contra-lateral kidney • Bladder seen if “good” kidney is sufficiently operating

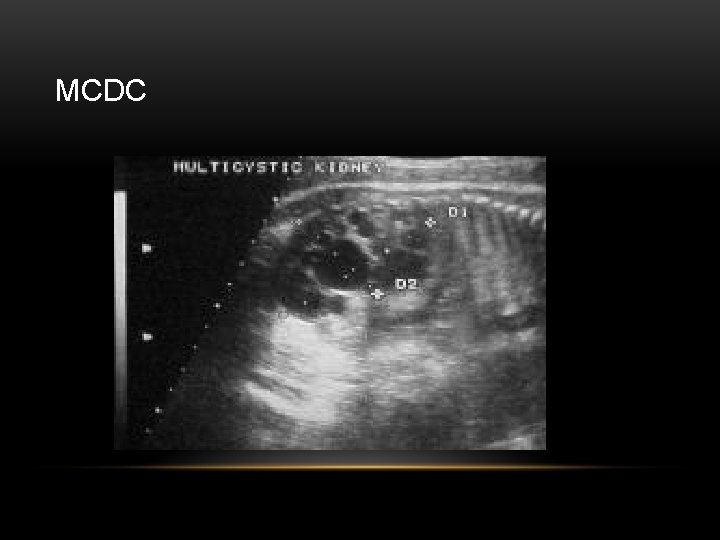

MCDC

MCDK-BILATERAL

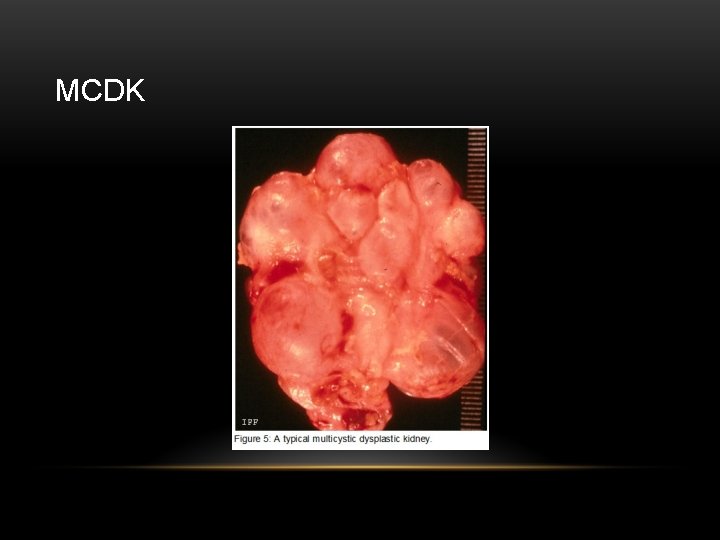

MCDK

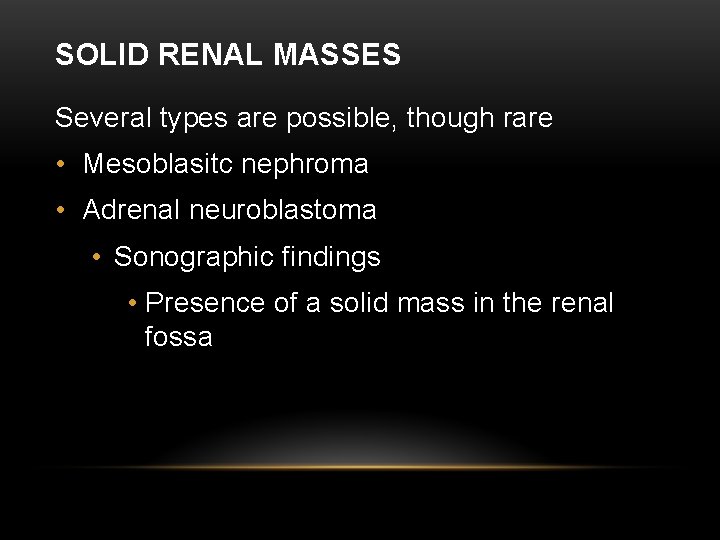

SOLID RENAL MASSES Several types are possible, though rare • Mesoblasitc nephroma • Adrenal neuroblastoma • Sonographic findings • Presence of a solid mass in the renal fossa

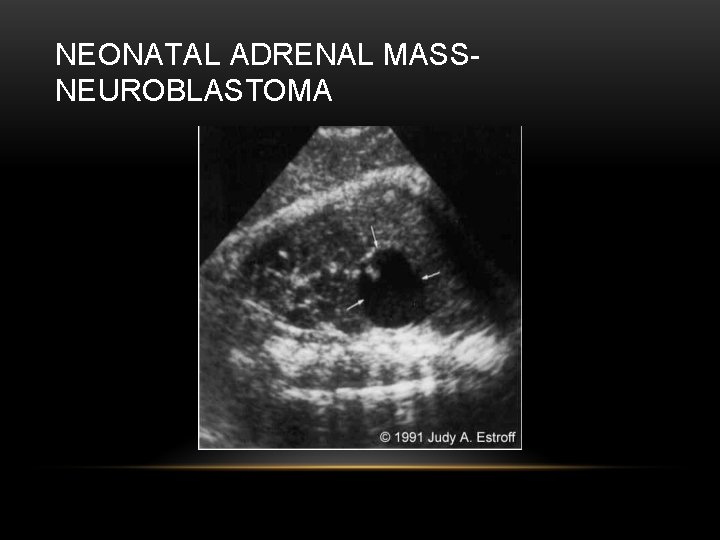

NEONATAL ADRENAL MASSNEUROBLASTOMA

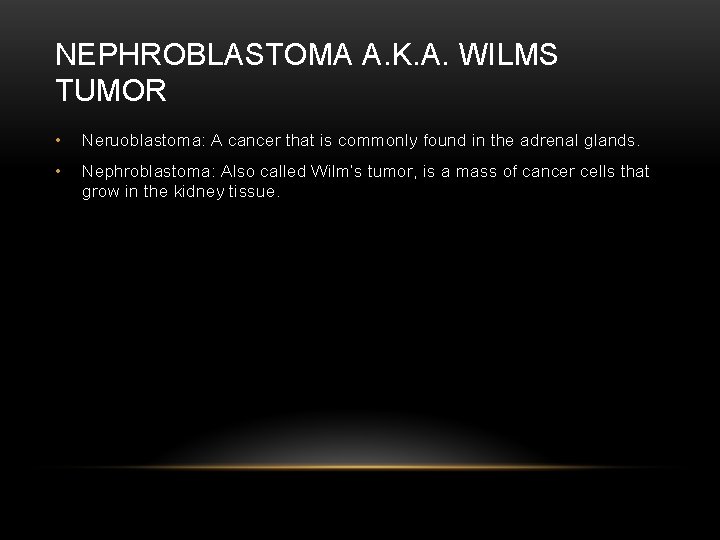

NEPHROBLASTOMA A. K. A. WILMS TUMOR • Neruoblastoma: A cancer that is commonly found in the adrenal glands. • Nephroblastoma: Also called Wilm’s tumor, is a mass of cancer cells that grow in the kidney tissue.

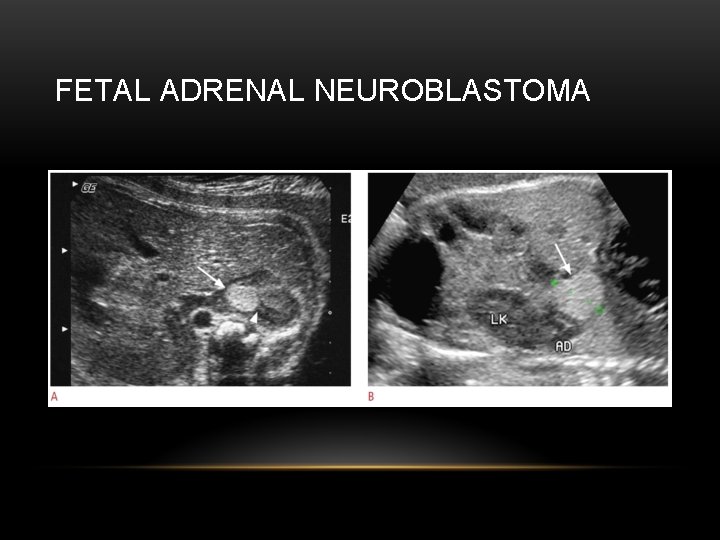

FETAL ADRENAL NEUROBLASTOMA

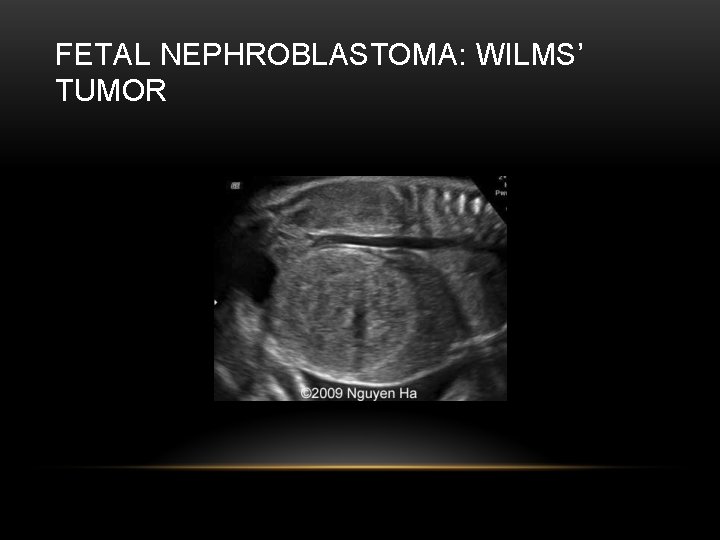

FETAL NEPHROBLASTOMA: WILMS’ TUMOR

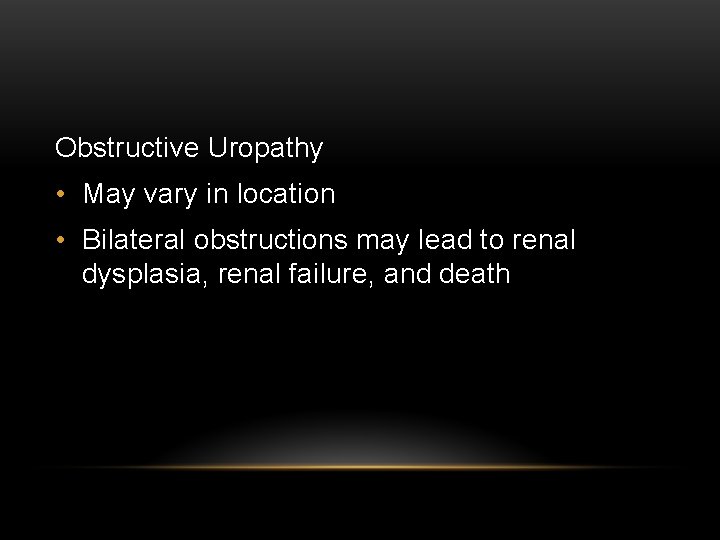

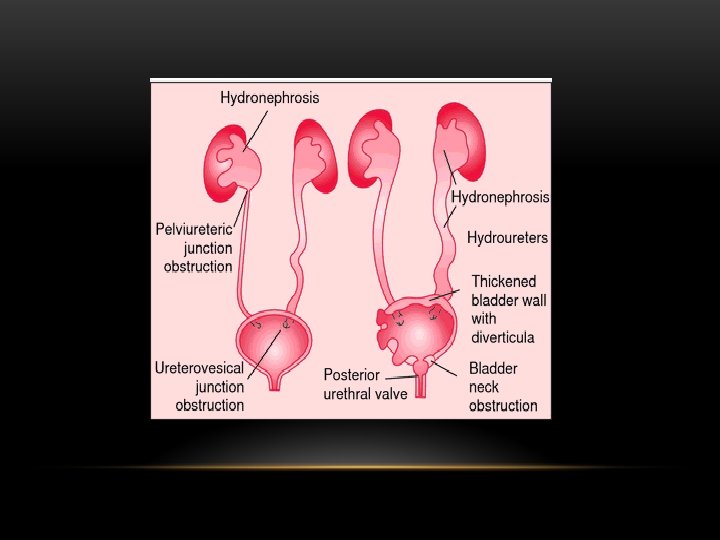

Obstructive Uropathy • May vary in location • Bilateral obstructions may lead to renal dysplasia, renal failure, and death

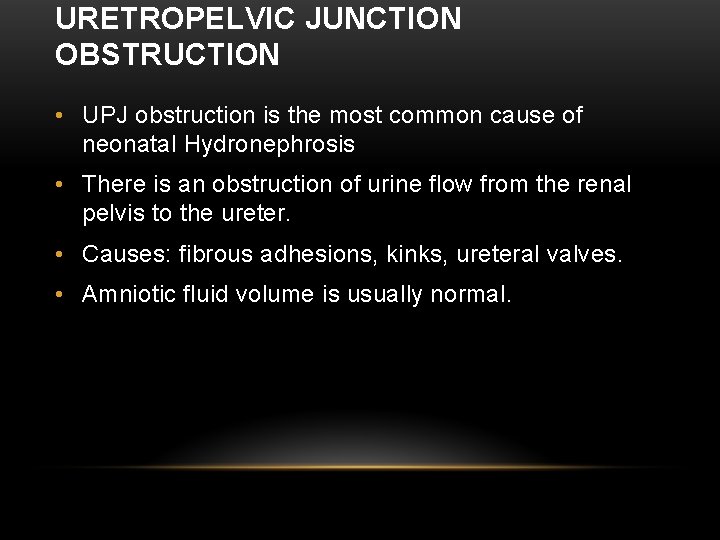

URETROPELVIC JUNCTION OBSTRUCTION • UPJ obstruction is the most common cause of neonatal Hydronephrosis • There is an obstruction of urine flow from the renal pelvis to the ureter. • Causes: fibrous adhesions, kinks, ureteral valves. • Amniotic fluid volume is usually normal.

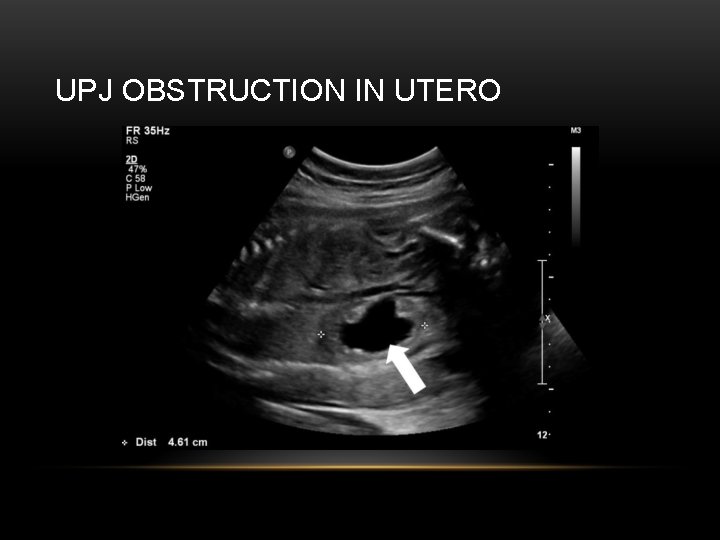

UPJ OBSTRUCTION IN UTERO

Sonographic findings of a UPJ • Demonstration of a dilated renal pelvis • Thinning of the renal cortex in chronic states

UPJ OBSTRUCTION

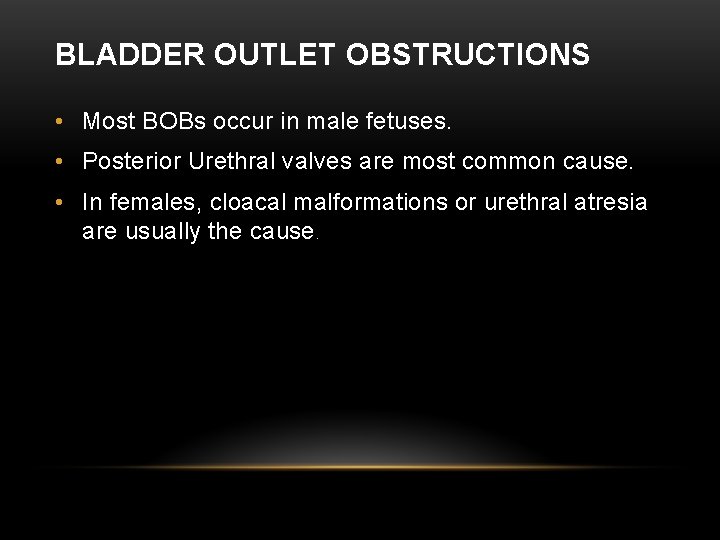

BLADDER OUTLET OBSTRUCTIONS • Most BOBs occur in male fetuses. • Posterior Urethral valves are most common cause. • In females, cloacal malformations or urethral atresia are usually the cause.

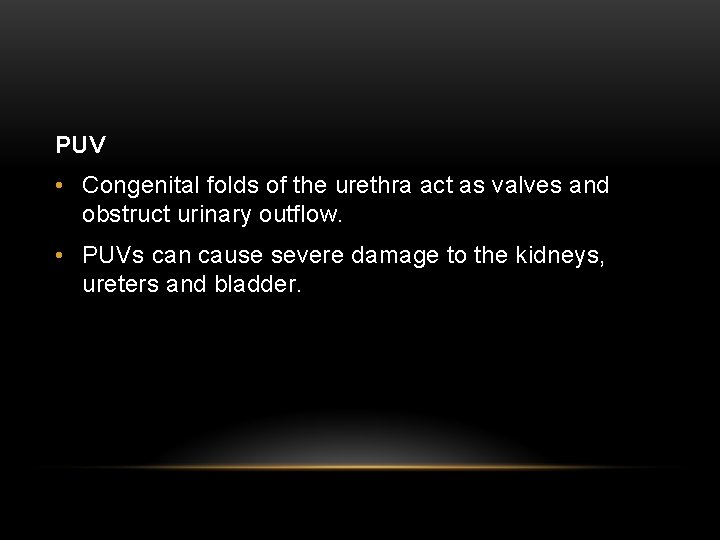

PUV • Congenital folds of the urethra act as valves and obstruct urinary outflow. • PUVs can cause severe damage to the kidneys, ureters and bladder.

Sonographic findings • Marked bilateral Hydronephrosis and dilated, tortuous ureters • Bladder wall thickening • “keyhole” appearance of bladder-referring to dilated bladder and prostatic urethra • Moderate to profound Oligohydramnios • Male genitalia identified

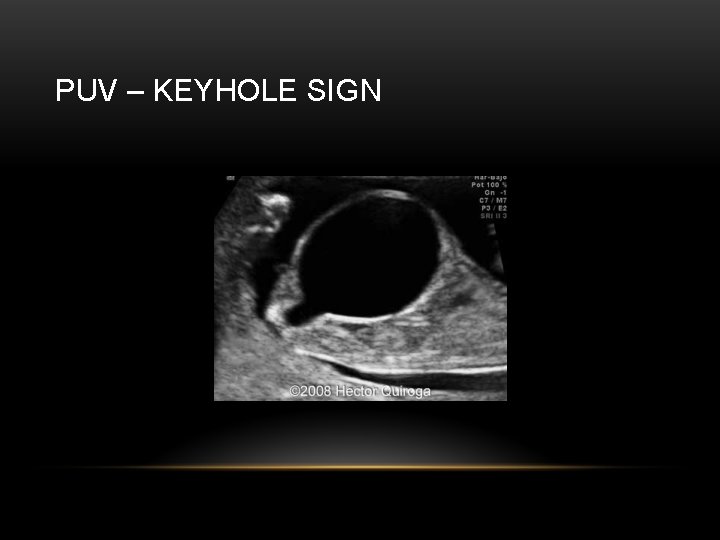

PUV – KEYHOLE SIGN

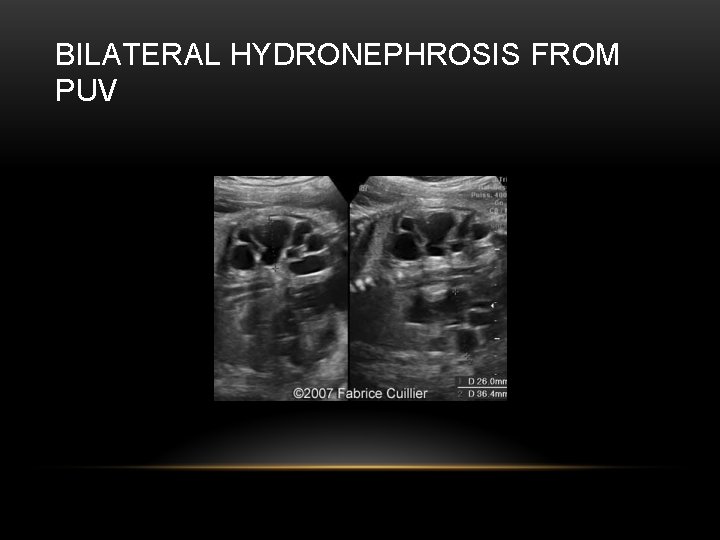

BILATERAL HYDRONEPHROSIS FROM PUV

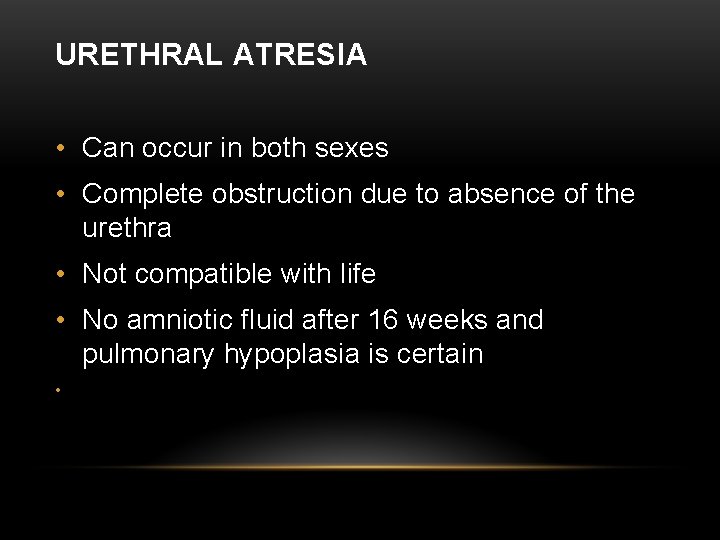

URETHRAL ATRESIA • Can occur in both sexes • Complete obstruction due to absence of the urethra • Not compatible with life • No amniotic fluid after 16 weeks and pulmonary hypoplasia is certain •

CLOACAL MALFORMATION • Rare • Convergence of the GI and GU tracts • Single opening in the perineum, which empties in both systems • Severe obstruction with Oligohydramnios. • Poor prognosis

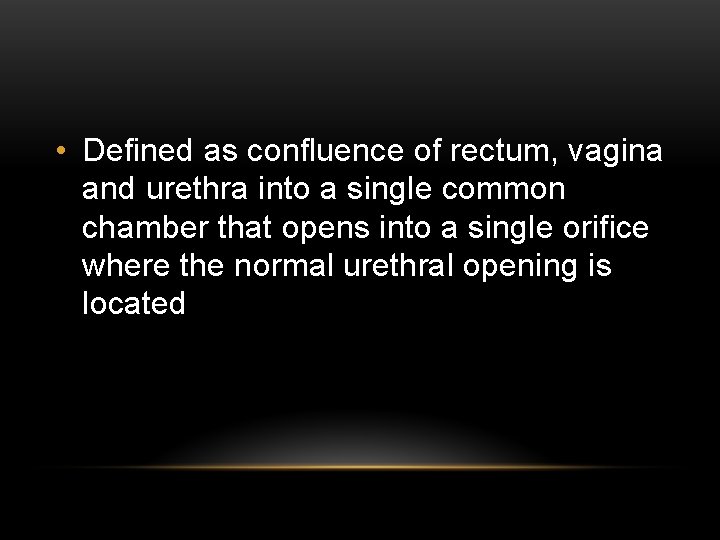

• Defined as confluence of rectum, vagina and urethra into a single common chamber that opens into a single orifice where the normal urethral opening is located

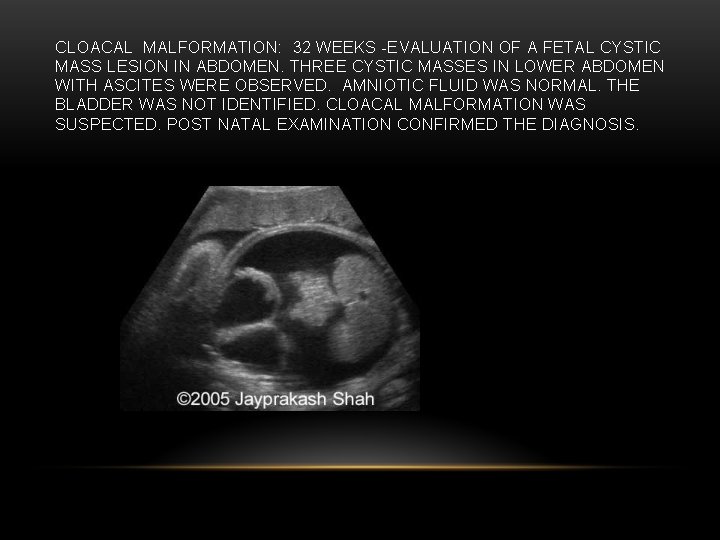

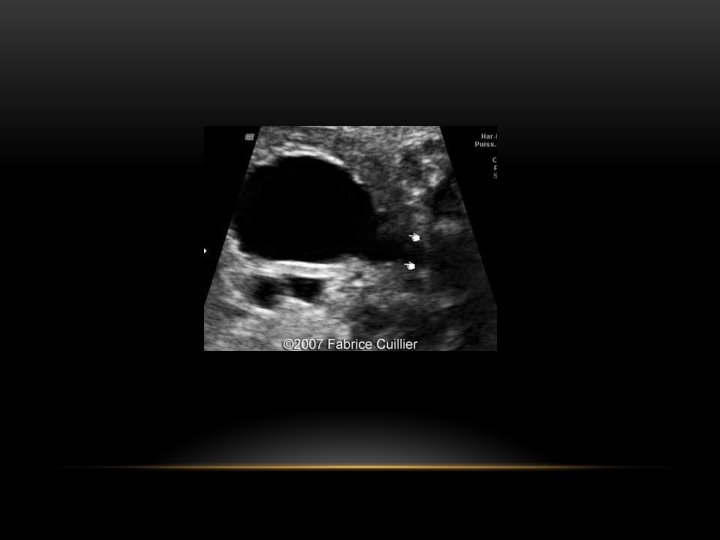

CLOACAL MALFORMATION: 32 WEEKS -EVALUATION OF A FETAL CYSTIC MASS LESION IN ABDOMEN. THREE CYSTIC MASSES IN LOWER ABDOMEN WITH ASCITES WERE OBSERVED. AMNIOTIC FLUID WAS NORMAL. THE BLADDER WAS NOT IDENTIFIED. CLOACAL MALFORMATION WAS SUSPECTED. POST NATAL EXAMINATION CONFIRMED THE DIAGNOSIS.

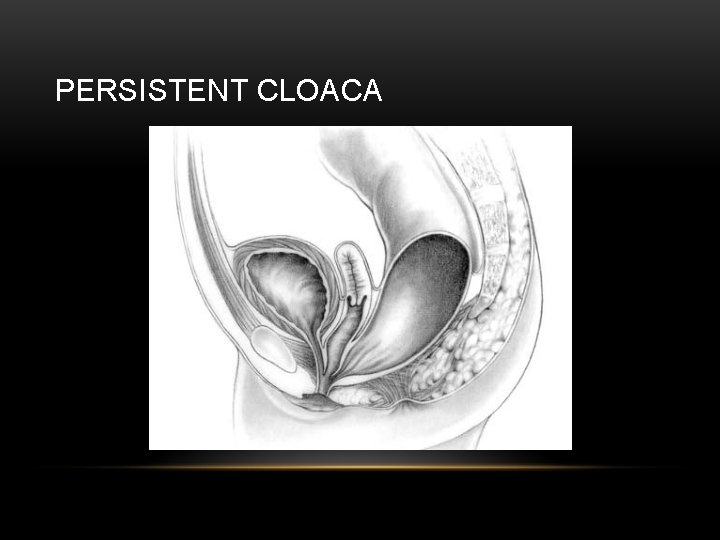

PERSISTENT CLOACA

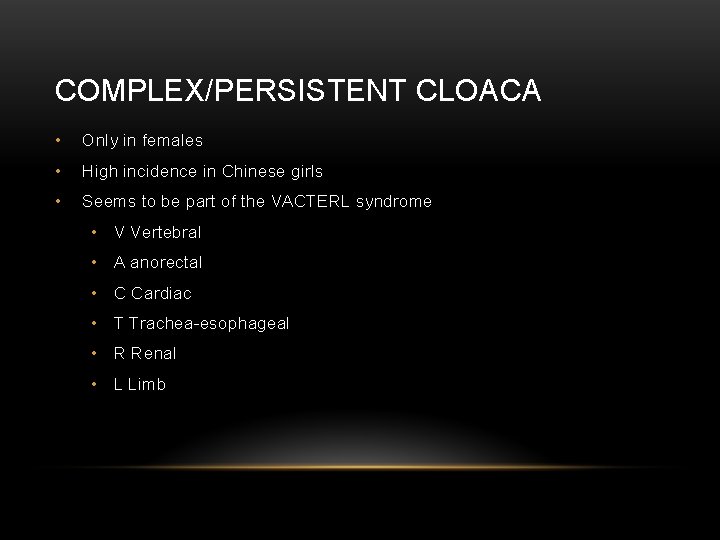

COMPLEX/PERSISTENT CLOACA • Only in females • High incidence in Chinese girls • Seems to be part of the VACTERL syndrome • V Vertebral • A anorectal • C Cardiac • T Trachea-esophageal • R Renal • L Limb

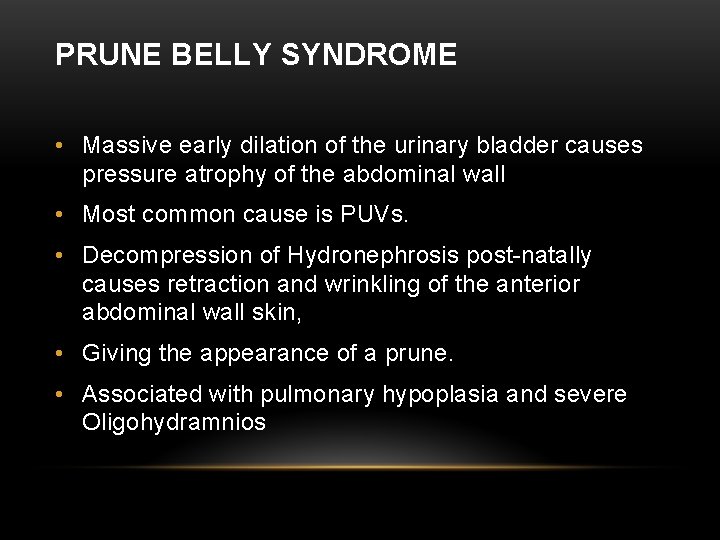

PRUNE BELLY SYNDROME • Massive early dilation of the urinary bladder causes pressure atrophy of the abdominal wall • Most common cause is PUVs. • Decompression of Hydronephrosis post-natally causes retraction and wrinkling of the anterior abdominal wall skin, • Giving the appearance of a prune. • Associated with pulmonary hypoplasia and severe Oligohydramnios

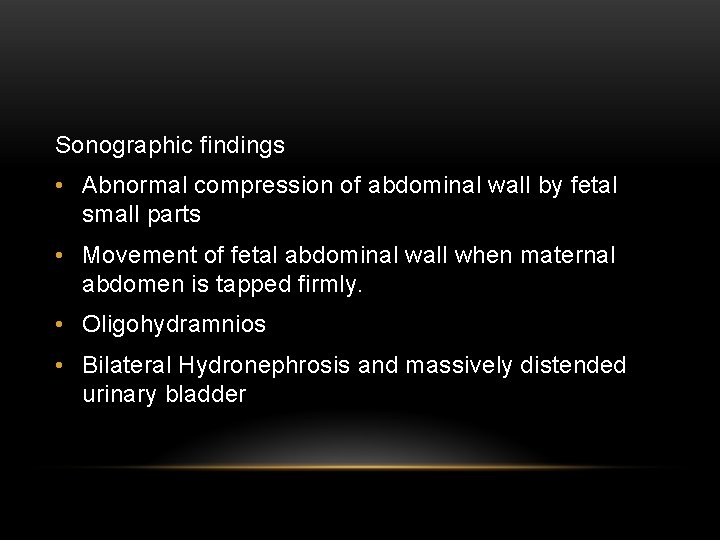

Sonographic findings • Abnormal compression of abdominal wall by fetal small parts • Movement of fetal abdominal wall when maternal abdomen is tapped firmly. • Oligohydramnios • Bilateral Hydronephrosis and massively distended urinary bladder

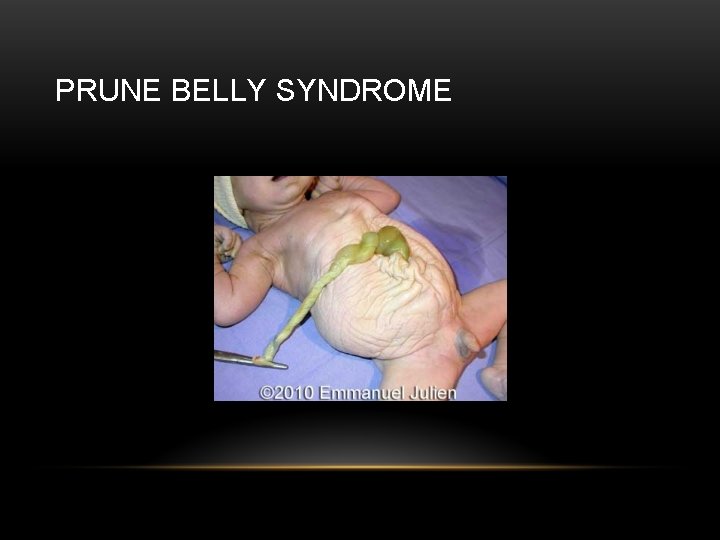

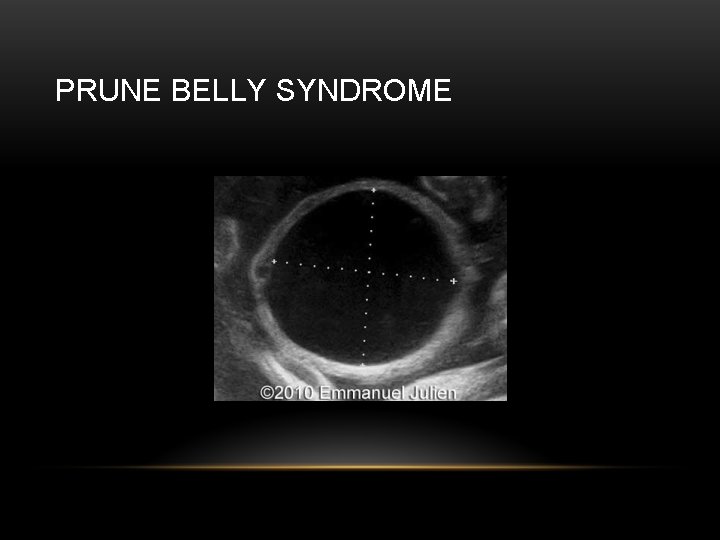

PRUNE BELLY SYNDROME

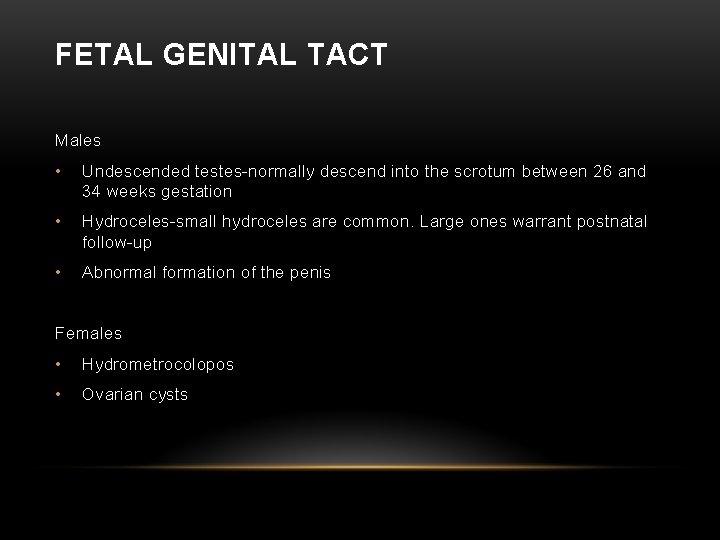

FETAL GENITAL TACT Males • Undescended testes-normally descend into the scrotum between 26 and 34 weeks gestation • Hydroceles-small hydroceles are common. Large ones warrant postnatal follow-up • Abnormal formation of the penis Females • Hydrometrocolopos • Ovarian cysts

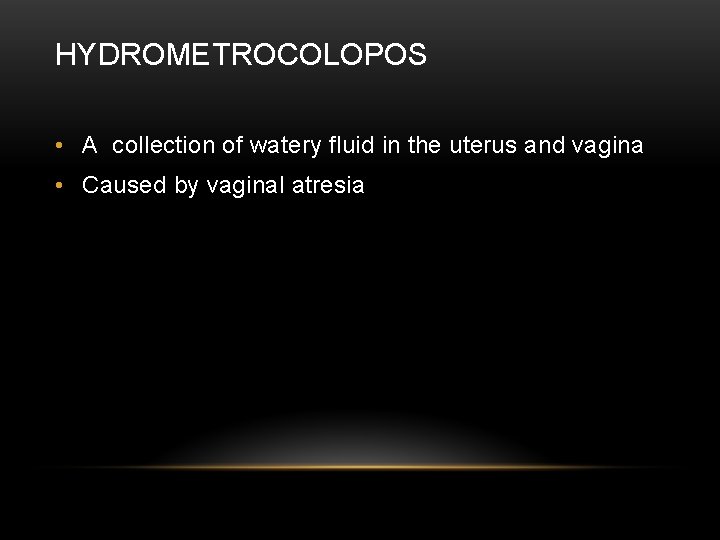

HYDROMETROCOLOPOS • A collection of watery fluid in the uterus and vagina • Caused by vaginal atresia

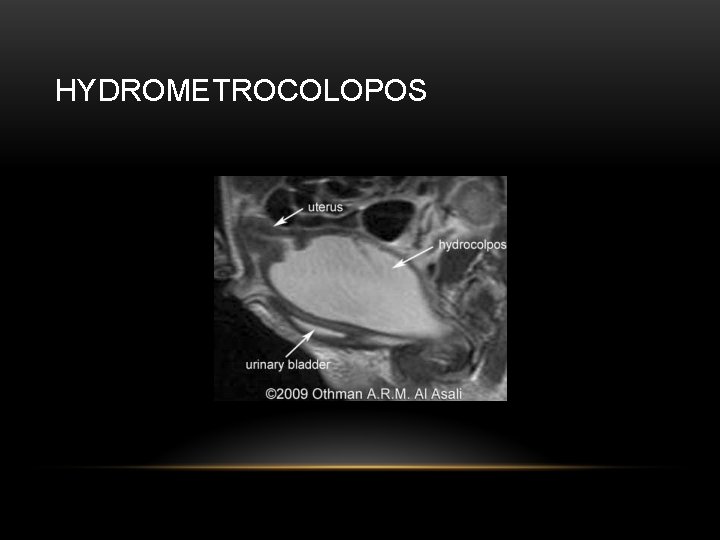

HYDROMETROCOLOPOS

OVARIAN CYST-IN UTERO
