Some integral properties of Rijndael Marine Minier CITI

Some integral properties of Rijndael Marine Minier CITI Laboratory INSA de Lyon Workshop MITACS - June 2009 1

Guideline n n Description of the AES and of its little brothers Integral properties of the AES Integral properties of the different Rijndael versions Deduced distinguishers ¨ With n n unknown keys LANE Conclusion Workshop MITACS - June 2009 2

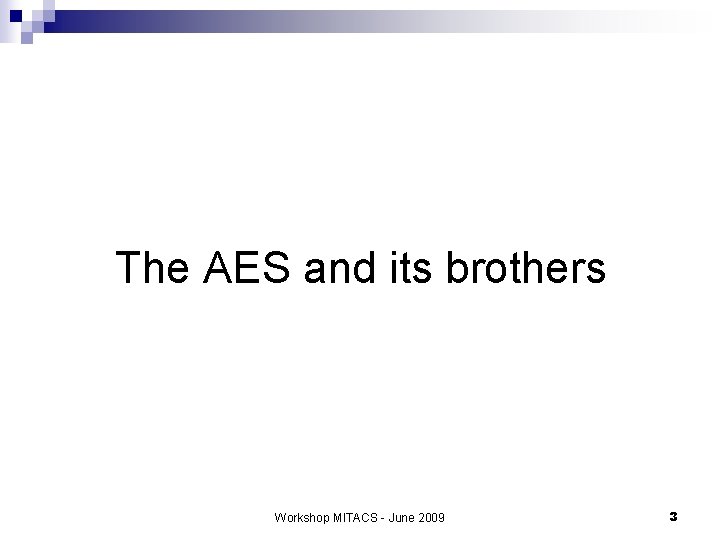

The AES and its brothers Workshop MITACS - June 2009 3

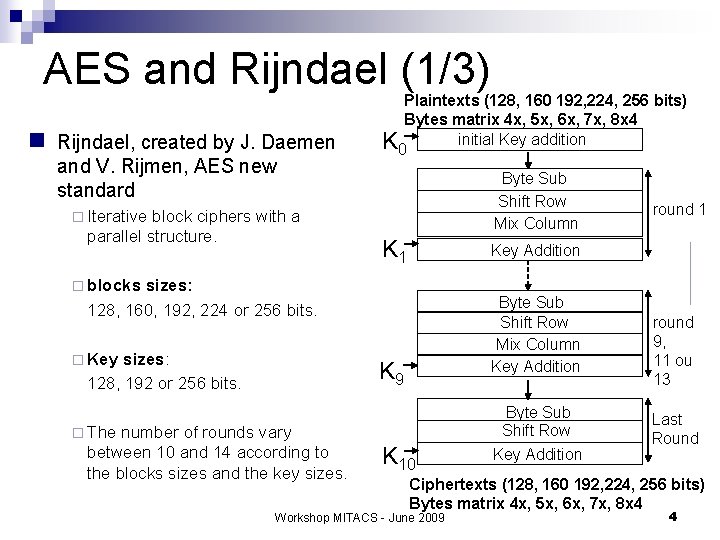

AES and Rijndael (1/3) n Rijndael, created by J. Daemen and V. Rijmen, AES new standard block ciphers with a parallel structure. Plaintexts (128, 160 192, 224, 256 bits) Bytes matrix 4 x, 5 x, 6 x, 7 x, 8 x 4 initial Key addition K 0 Byte Sub Shift Row Mix Column ¨ Iterative K 1 Key Addition ¨ blocks sizes: 128, 160, 192, 224 or 256 bits. ¨ Key sizes: 128, 192 or 256 bits. Byte Sub Shift Row Mix Column Key Addition K 9 number of rounds vary between 10 and 14 according to the blocks sizes and the key sizes. round 1 ¨ The K 10 Byte Sub Shift Row Key Addition round 9, 11 ou 13 Last Round Ciphertexts (128, 160 192, 224, 256 bits) Bytes matrix 4 x, 5 x, 6 x, 7 x, 8 x 4 Workshop MITACS - June 2009 4

The AES (2/3): Round function (1/2) ¬ Byte Substitution Shift Row a 00 a 01 a 02 a 03 a 10 a 11 a 12 a 13 1 a 20 a 21 a 22 a 23 2 a 30 a 31 a 32 a 33 3 S(a 00) S(a 01) S(a 00) a 00 a 01 a 02 a 03 S(a 13) S(a 12) S(a 11) S(a 10) a 11 a 12 a 13 a 10 S(a 23) S(a 22) S(a 21) S(a 20) a 22 a 23 a 20 a 21 S(a 33) S(a 32) S(a 31) S(a 30) a 32 a 30 a 33 a 31 (8 x 8 S-box S) Workshop MITACS - June 2009 5

The AES (3/3): Round function (2/2) ¯ Key Addition ® Mix Column a 00 a 10 a 20 a 30 a 01 a 11 a 21 a 31 a 02 a 12 a 22 a 32 a 03 a 13 a 23 a 33 a 00 a 01 a 02 a 03 a 10 a 11 a 12 a 13 a 20 a 21 a 22 a 23 a 30 a 31 a 32 a 33 Ki (128 bits) b 00 b 10 b 20 b 30 b 01 b 11 b 21 b 31 b 02 b 12 b 22 b 32 b 03 b 13 b 23 b 33 b 00 b 01 b 02 b 03 b 10 b 11 b 12 b 13 b 20 b 21 b 22 b 23 b 30 b 31 b 32 b 33 Workshop MITACS - June 2009 6

Rijndael: main differences n Change: ¨ nb of rounds ¨ Shift. Rows AES (4 col. ) Rijndael-160 (5 col. ) Rijndael-192 (6 col. ) Rijndael-224 (7 col. ) Rijndael-256 (8 col. ) Workshop MITACS - June 2009 7

General principle of cryptanalysis [n bits] f n KX x’ = (X, KX) f . . . x’ [ n bits] f . . . rounds Final rounds Intermediate Initial rounds X R(x’, y’) Distinguisher A: To find a relation R(x’, y’) on intermediate states which has a probability p of happening as far as possible from the uniform probability p*: f . . . Kr y’ f Pr[A]=Adv(A)=|p-p*| [ n bits] KY y’ = (Y, KY) Y n Test over the keys sur (KX, KY) Workshop MITACS - June 2009 8

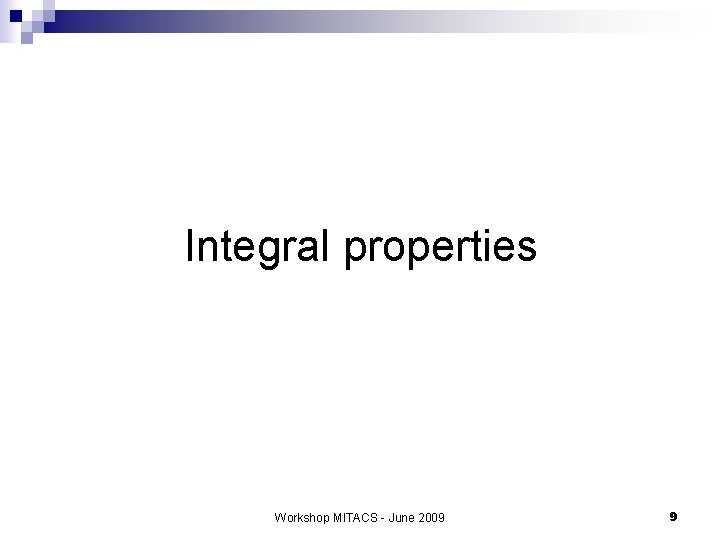

Integral properties Workshop MITACS - June 2009 9

Integral property of the AES (1/2) y Sub B Shif ytes t. Ro ws Y • byte y = 0… 255 • other bytes = constants Z z 0 z 1 z 2 z 3 R s S(y) s umn ey l o C Mix ound. K R Add Sub B Shif ytes t. Ro ws s umn ey l o C Mix ound. K R Add S(z 1) S(z 3) S(z 0) S(z 2) S Workshop MITACS - June 2009 10

Integral property of the AES (2/2) 232 textes clairs • On 6 rounds: 4 key bytes • For each 9 bytes of keys: • Test if: Good keys pass the test. • Take care of false alarms. Y 3 rounds Trois rounds As before S( y ) Lasr round without Mix. Column 4 key bytes 32 textes chiffrés 2 Workshop MITACS - June 2009 11

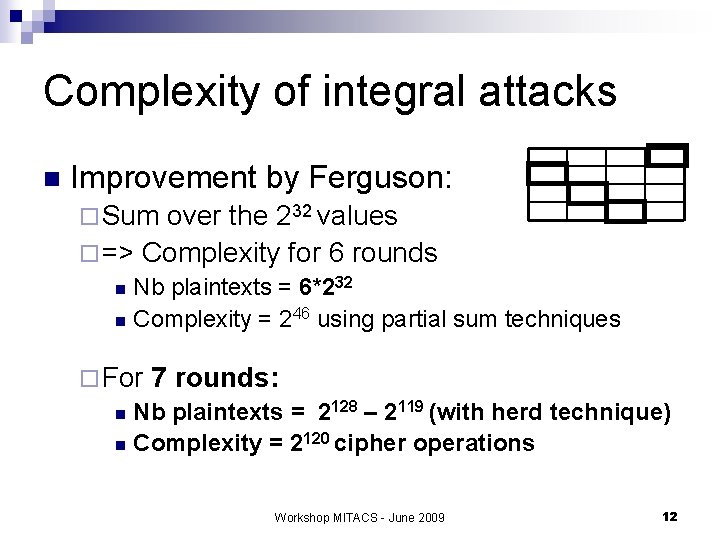

Complexity of integral attacks n Improvement by Ferguson: ¨ Sum over the 232 values ¨ => Complexity for 6 rounds Nb plaintexts = 6*232 n Complexity = 246 using partial sum techniques n ¨ For 7 rounds: n Nb plaintexts = 2128 – 2119 (with herd technique) n Complexity = 2120 cipher operations Workshop MITACS - June 2009 12

For Rijndael The same kind of properties n But, due to the slower diffusion, => more rounds and better extensions n Workshop MITACS - June 2009 13

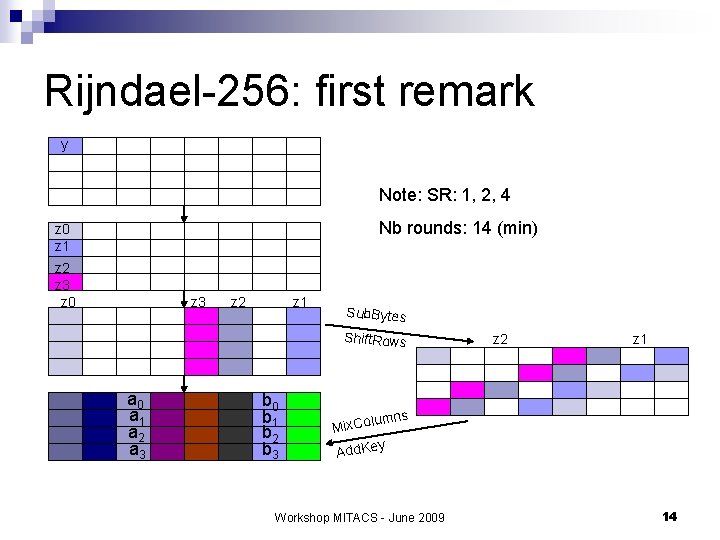

Rijndael-256: first remark y Note: SR: 1, 2, 4 Nb rounds: 14 (min) z 0 z 1 z 2 z 3 z 0 z 3 z 2 z 1 Sub. Bytes Shift. Rows a 0 a 1 a 2 a 3 b 0 b 1 b 2 b 3 z 2 z 1 umns Mix. Col y Add. Ke Workshop MITACS - June 2009 14

Rijndael 256 Integral property y n p First round z 0 z 1 z 2 z 3 Second round Distinguisher on 4 rounds: • Saturation on 3 bytes Third round • => Complexity: 224 ciphers 0 0 Workshop MITACS - June 2009 0 0 Fourth round 15

Rijndael 224 Integral property y p z 0 z 1 z 2 z 3 First round Second round Distinguisher on 4 rounds: • Saturation on 2 bytes Third round • => Complexity: 216 ciphers Fourth round 0 0 Workshop MITACS - June 2009 16

Rijndael 192 Integral property (1) y p z 0 z 1 z 2 z 3 Distinguisher on 4 rounds: • Saturation of 2 bytes • => Complexity: 216 ciphers =1 =2 Workshop MITACS - June 2009 17

Rijndael 192 Integral property y p n z 0 z 1 z 2 z 3 Distinguisher on 4 rounds: • Saturation on 3 bytes • => Complexity: 224 ciphers =1 =1 Workshop MITACS - June 2009 =2 =2 0 0 0 0 18

Rijndael 160 Integral property y p n z 0 z 1 z 2 z 3 Distinguisher on 4 rounds: • Saturation de 3 bytes • => Complexity: 224 ciphers =2 =2 Workshop MITACS - June 2009 0 0 =1 =1 19

Unknown keys Distinguishers Workshop MITACS - June 2009 20

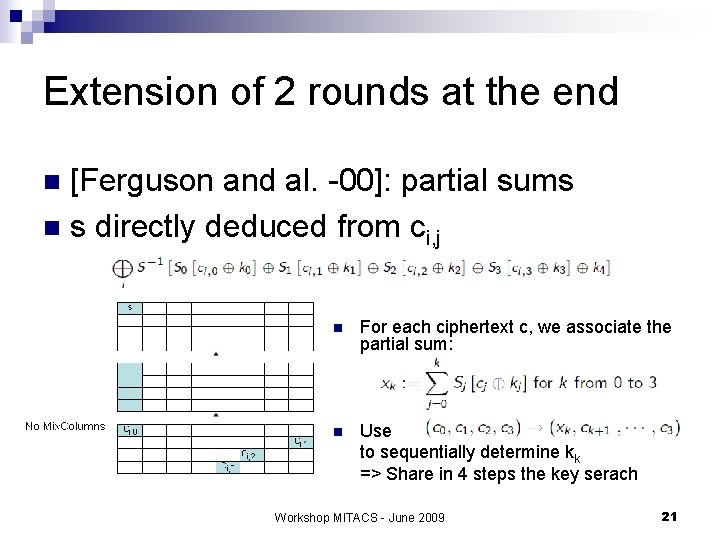

Extension of 2 rounds at the end [Ferguson and al. -00]: partial sums n s directly deduced from ci, j n n For each ciphertext c, we associate the partial sum: n Use to sequentially determine kk => Share in 4 steps the key serach Workshop MITACS - June 2009 21

Extension at the beginning: 2 methods n [Ferguson and al. - 00]: one initial round n => attack on 5 rounds with 232 plaintexts Workshop MITACS - June 2009 22

The herd technique n One more round at the beginning: Naively 2128 plaintexts (work, cf Nakhara and al. ) ¨ Fix a particular byte x => a herd: set of 2120 ciphertexts of 288 structures ¨ Test on a single herd. ¨ X depends on (p 4, …, p 7) and on 4 bytes of K 0 n 1. 2. 3. Using 264 counters my 232 counters nz Filter information on the key guess Workshop MITACS - June 2009 23

Combine those extensions n attack over 2+4+2=8 rounds (for Rijndael-256) 1. 2. 3. 4. 5. n n Increment the 64 bits (c 0, …, c 3, p 4, …, p 7) Guess the 4 bytes of K 0, compute x, separate counters into herds. Choose a single herd, nz en ajoutant (c 0, …, c 3) pour chaque y correct Guess the 5 bytes of K 7 and of K 6 of the two last rounds to decipher each z on one byte. Sum this value over the 232 values of z and look at the 0 s. Repeat this point for each value of the. K 0 bytes. => The 4 bytes (p 4, …, p 7) and the 4 bytes of K 0 give 4 bytes => 224 smaller herds => reduce the exhaustive search to 2128 -2119 plaintexts. Workshop MITACS - June 2009 24

Complexity and attacks on 9 rounds n Total cost: ¨ 2128 -2119 plaintexts ¨ 2120 cipher operations n => Add one round at the end using a complete exhaustive search on the subkey K 9 Workshop MITACS - June 2009 25

Summary of the attacks Workshop MITACS - June 2009 26

Known Keys Distinguishers Workshop MITACS - June 2009 27

[Knudsen – Rijmen 07] n Notion of Known Key Distinguisher ¨ Principle: create a distinguisher beginning at the middle of the cipher ¨ Then, determine a particular property linking plaintexts and ciphertexts ¨ Comparison withe complexity required to find such a structure for a random permutation n Interest: create distinguishers when block ciphers are used as hash functions Workshop MITACS - June 2009 28

Theoritical model [Africacrypt 09] n Advantage of Distinguishers [Vaudenay 97]: Adv. E(A) n Two more cases: non-adaptative, adaptative Workshop MITACS - June 2009 29

Case of an adaptative SPRP Distinguisher Workshop MITACS - June 2009 30

Case of a non-adaptative Known Key Distinguisher Workshop MITACS - June 2009 31

Case of study: the AES [Knu-Rij 07] n Forward sense =0 =0 =0 n Backward sense =0 =0 =0 =0 =0 Workshop MITACS - June 2009 32

KK distinguisher for the AES n KK distinguisher on 7 rounds ¨ 3 in backward, 4 in forward =0 =0 3 =0 =0 rounds =0 =0 4 =0 =0 rounds =0 =0 ¨ Requires 256 middletexts and 256 cipher operations ¨ For a random permutation => k-sum problem, Complexity: 258 operations n => KK distinguisher for the AES Workshop MITACS - June 2009 33

KK distinguisher for Rijndael n n Same kind of properties in the backward sense Summary of the KK distinguishers for Rijndael [Africacrypt 2009]: Workshop MITACS - June 2009 34

A last idea… Workshop MITACS - June 2009 35

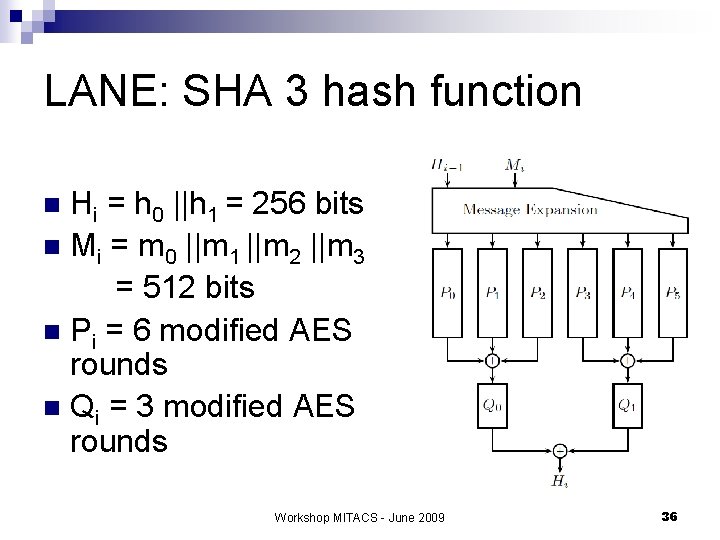

LANE: SHA 3 hash function Hi = h 0 ||h 1 = 256 bits n Mi = m 0 ||m 1 ||m 2 ||m 3 = 512 bits n Pi = 6 modified AES rounds n Qi = 3 modified AES rounds n Workshop MITACS - June 2009 36

the Pi inputs Workshop MITACS - June 2009 37

Pis and Qis (LANE 256) n The same operations than the ones of the AES ¨ Sub. Bytes, Shift. Rows, Mix. Columns, Key. Add (with constants) ¨ Two more: Add. Constants and Swap. Columns Workshop MITACS - June 2009 38

Integral properties of LANE-256 n y p 4 rounds + extension at the beginning: y p 0 0 0 0 Workshop MITACS - June 2009 0 0 0 0 39

Integral property of LANE-256 backward sense 0 0 0 n Integral property on 3 rounds + extension at the beginning: 0 0 0 0 0 0 0 y p Workshop MITACS - June 2009 40

Combine the two properties n Distinguisher in 2112 on the right part of LANE-256 0 0 0 0 0 3 rounds 0 0 0 4 rounds: seen as 2^16 sets of 2^96 values as we want 5 rounds: 0 0 0 0 5 rounds 0 0 0 Workshop MITACS - June 2009 0 0 0 seen as 2^48 sets of 2^64 as we want 41

Why only one half ? n If h 0=h 1=m 2=m 3 = cte: ¨ W 0 ¨ W 1 ¨ W 2 ¨ W 3 ¨ W 4 ¨ W 5 n = m 0 + m 1 || m 0 = m 0 || m 1 = m 0 + m 1 || m 0 = 0 || 0 = m 0 || m 1 = 0 || 0 sum = 0 sum = 0 Then: ¨ over 2112 messages, a certain number of sums is equal to 0 Workshop MITACS - June 2009 sum = 0 42

Conclusion n Integral properties of Rijndael were not well studied ¨ Unknown Keys Distinguishers ¨ Known Keys Distinguishers n The last model is really useful to create distinguishers for the SHA-3 competition (cf: LANE) Workshop MITACS - June 2009 43
