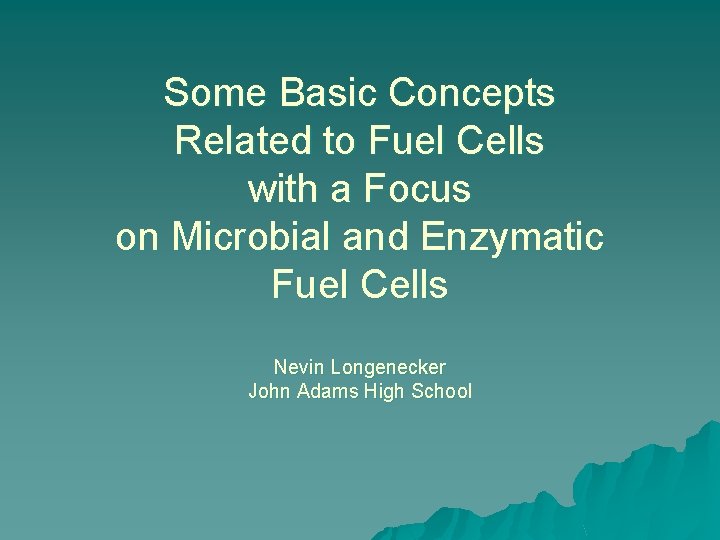

Some Basic Concepts Related to Fuel Cells with a Focus on Microbial and Enzymatic Fuel Cells Nevin Longenecker John Adams High School

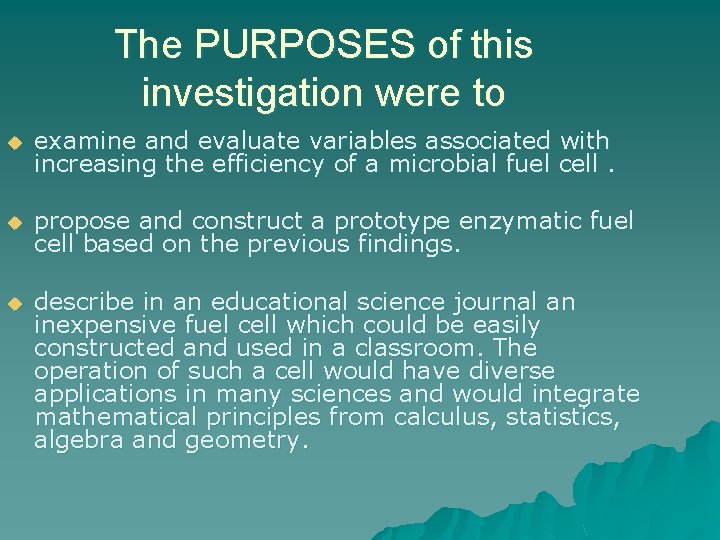

The PURPOSES of this investigation were to u examine and evaluate variables associated with increasing the efficiency of a microbial fuel cell. u propose and construct a prototype enzymatic fuel cell based on the previous findings. u describe in an educational science journal an inexpensive fuel cell which could be easily constructed and used in a classroom. The operation of such a cell would have diverse applications in many sciences and would integrate mathematical principles from calculus, statistics, algebra and geometry.

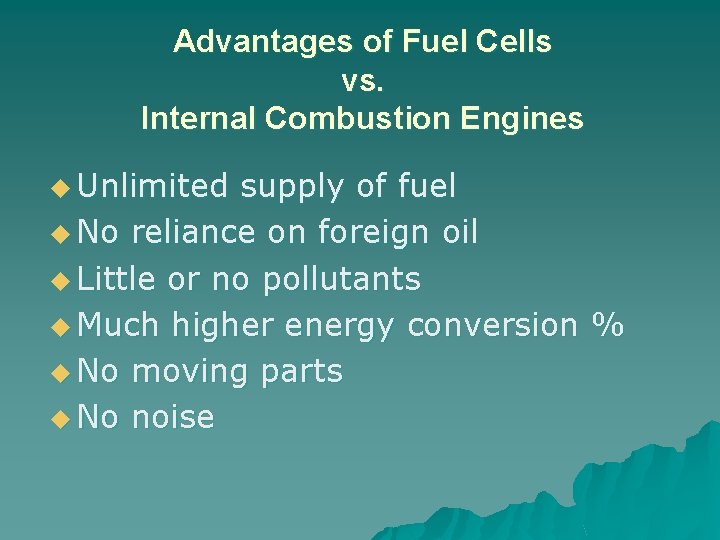

Advantages of Fuel Cells vs. Internal Combustion Engines u Unlimited supply of fuel u No reliance on foreign oil u Little or no pollutants u Much higher energy conversion % u No moving parts u No noise

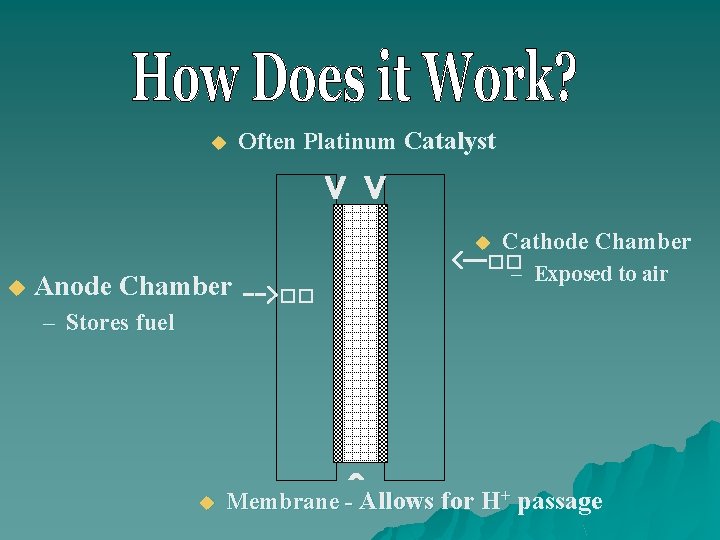

u Often Platinum Catalyst V V u Anode Chamber -->�� u Cathode Chamber <--�� – Exposed to air – Stores fuel u Membrane -^Allows for H+ passage

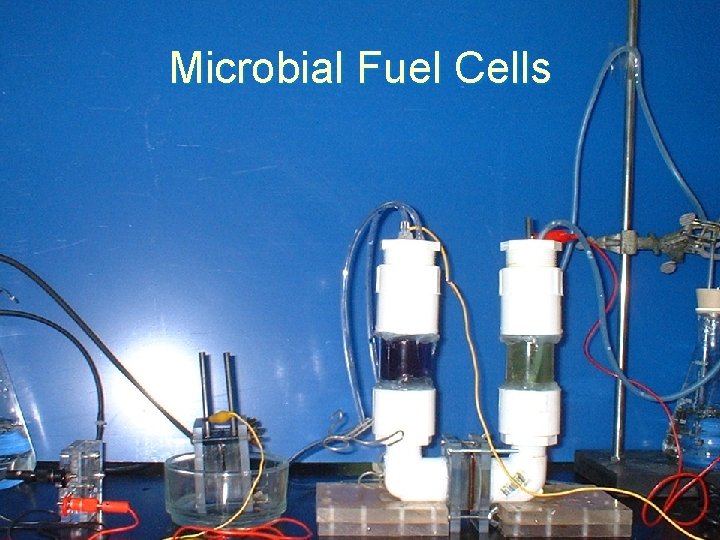

Microbial Fuel Cells

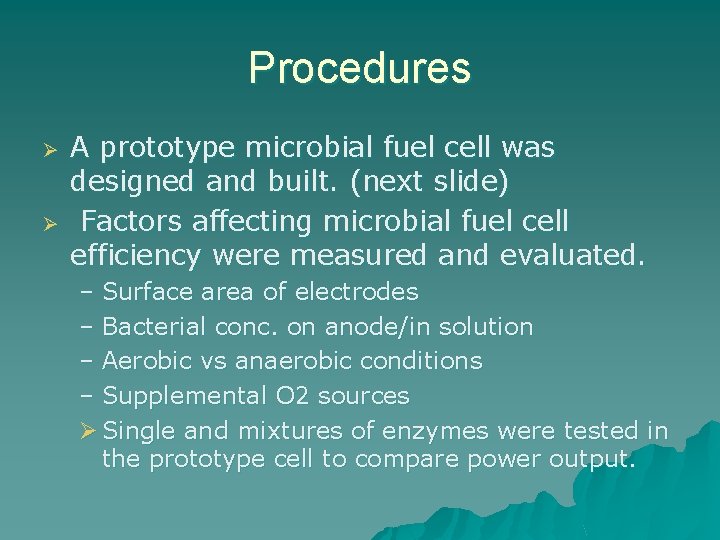

Procedures Ø Ø A prototype microbial fuel cell was designed and built. (next slide) Factors affecting microbial fuel cell efficiency were measured and evaluated. – Surface area of electrodes – Bacterial conc. on anode/in solution – Aerobic vs anaerobic conditions – Supplemental O 2 sources Ø Single and mixtures of enzymes were tested in the prototype cell to compare power output.

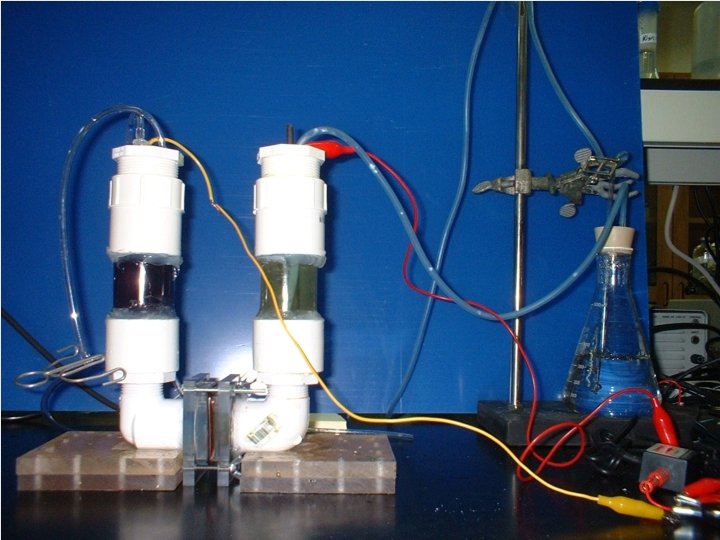

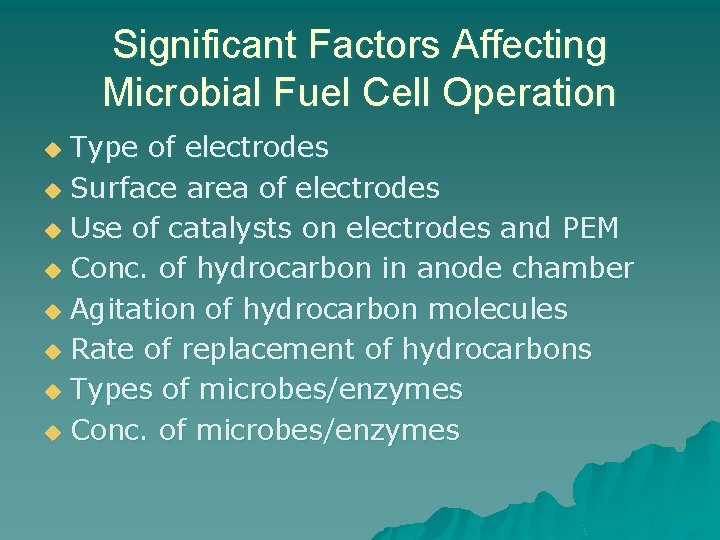

Significant Factors Affecting Microbial Fuel Cell Operation Type of electrodes u Surface area of electrodes u Use of catalysts on electrodes and PEM u Conc. of hydrocarbon in anode chamber u Agitation of hydrocarbon molecules u Rate of replacement of hydrocarbons u Types of microbes/enzymes u Conc. of microbes/enzymes u

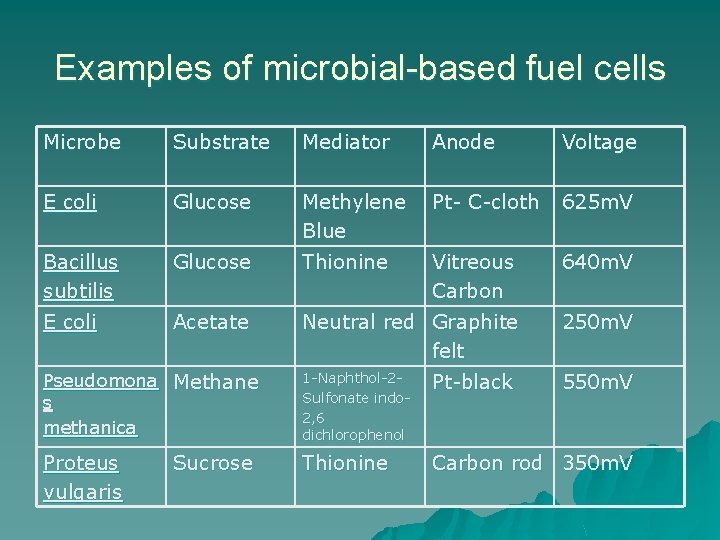

Examples of microbial-based fuel cells Microbe Substrate Mediator Anode Voltage E coli Glucose Methylene Blue Pt- C-cloth 625 m. V Bacillus subtilis Glucose Thionine Vitreous Carbon 640 m. V E coli Acetate Neutral red Graphite felt 250 m. V 550 m. V Pseudomona Methane s methanica 1 -Naphthol-2 Sulfonate indo 2, 6 dichlorophenol Pt-black Proteus vulgaris Thionine Carbon rod 350 m. V Sucrose

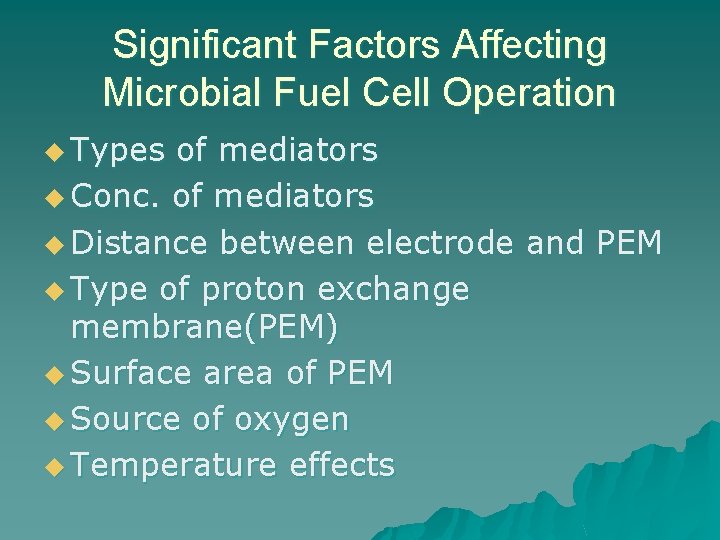

Significant Factors Affecting Microbial Fuel Cell Operation u Types of mediators u Conc. of mediators u Distance between electrode and PEM u Type of proton exchange membrane(PEM) u Surface area of PEM u Source of oxygen u Temperature effects

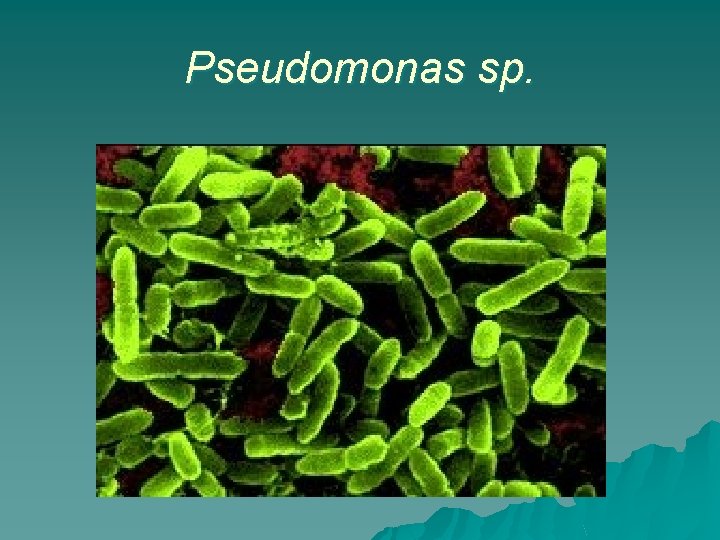

Pseudomonas sp.

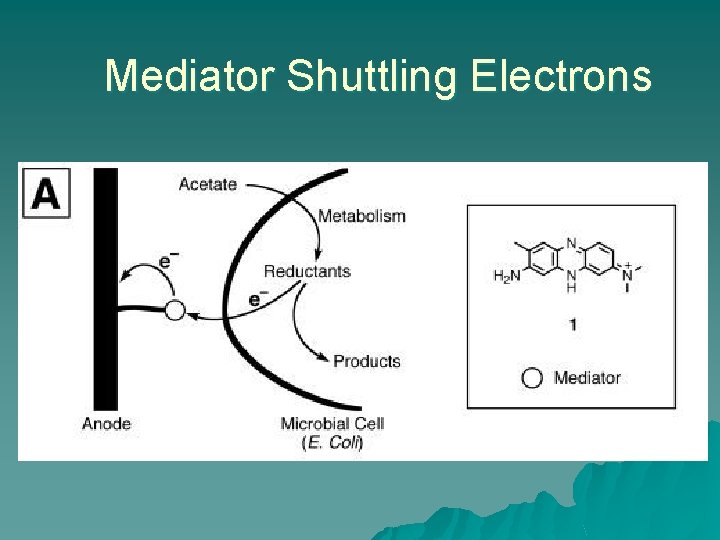

Mediator Shuttling Electrons

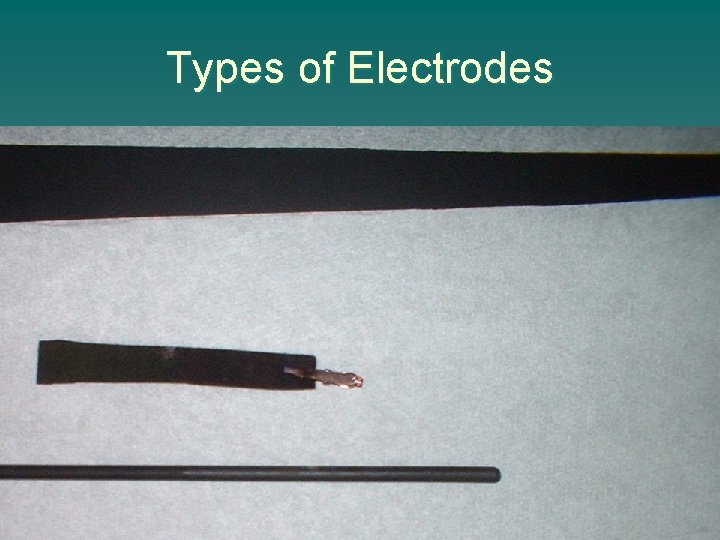

Types of Electrodes

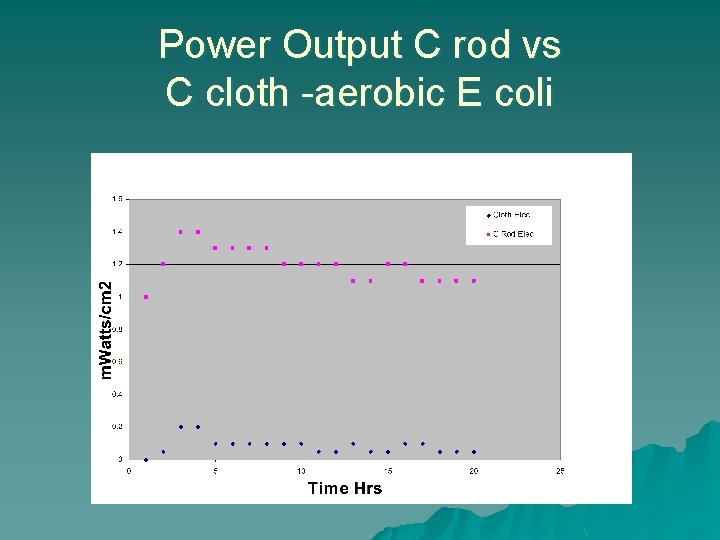

Power Output C rod vs C cloth -aerobic E coli

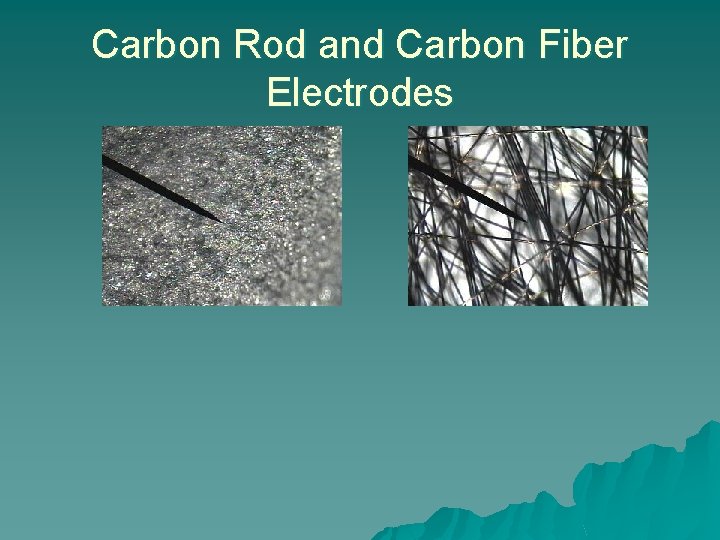

Carbon Rod and Carbon Fiber Electrodes

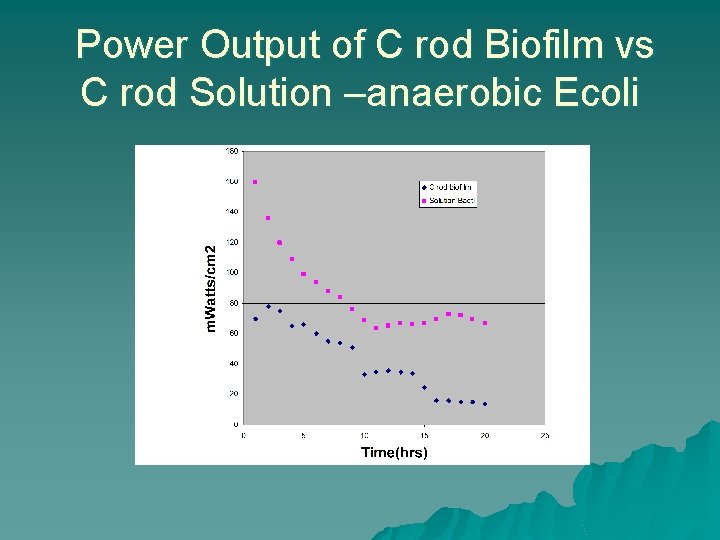

Power Output of C rod Biofilm vs C rod Solution –anaerobic Ecoli

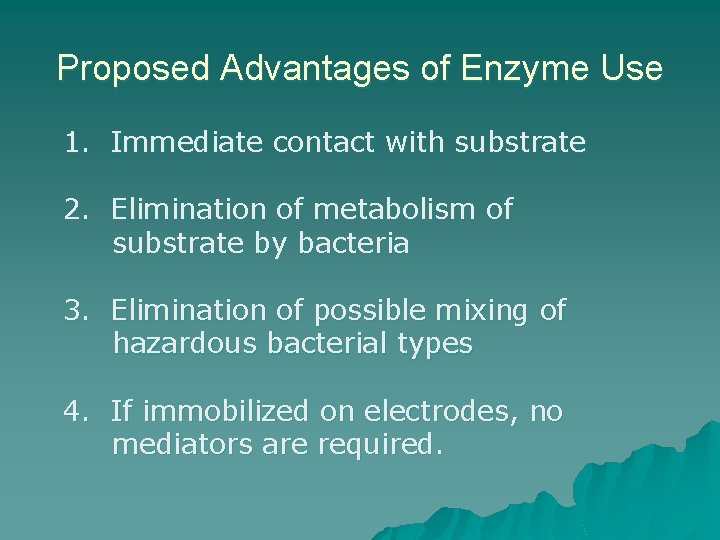

Proposed Advantages of Enzyme Use 1. Immediate contact with substrate 2. Elimination of metabolism of substrate by bacteria 3. Elimination of possible mixing of hazardous bacterial types 4. If immobilized on electrodes, no mediators are required.

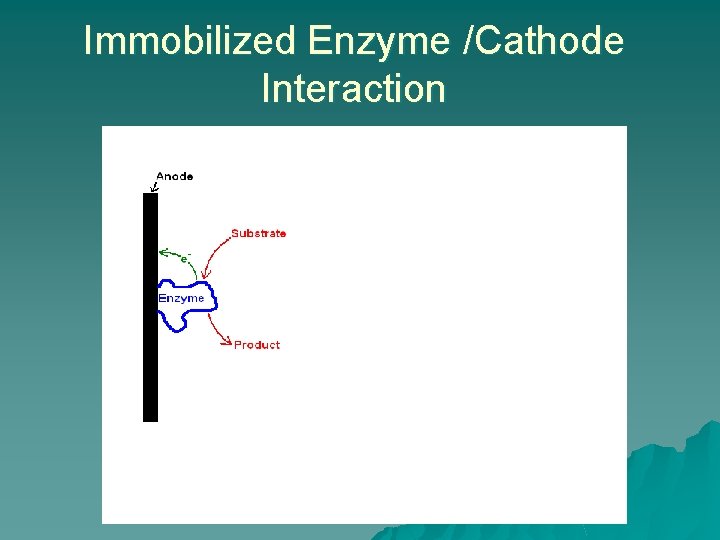

Immobilized Enzyme /Cathode Interaction

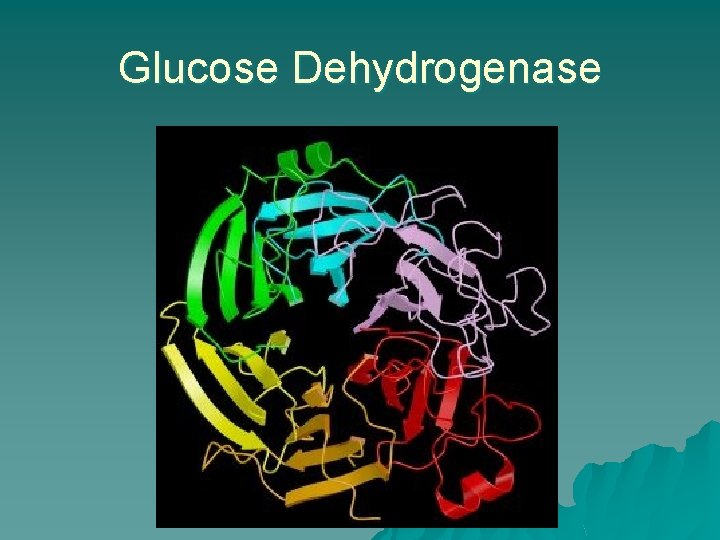

Glucose Dehydrogenase

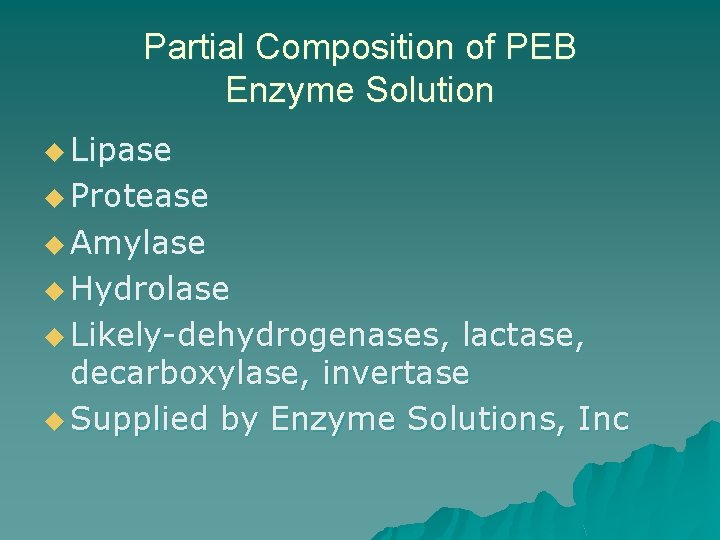

Partial Composition of PEB Enzyme Solution u Lipase u Protease u Amylase u Hydrolase u Likely-dehydrogenases, lactase, decarboxylase, invertase u Supplied by Enzyme Solutions, Inc

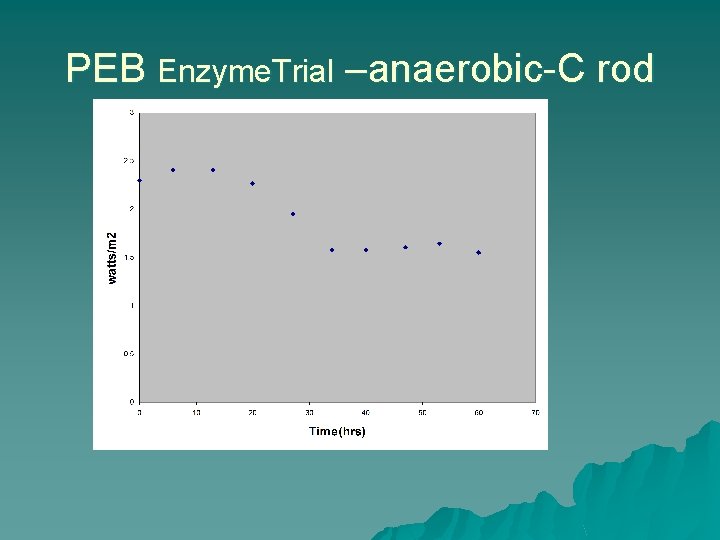

PEB Enzyme. Trial –anaerobic-C rod

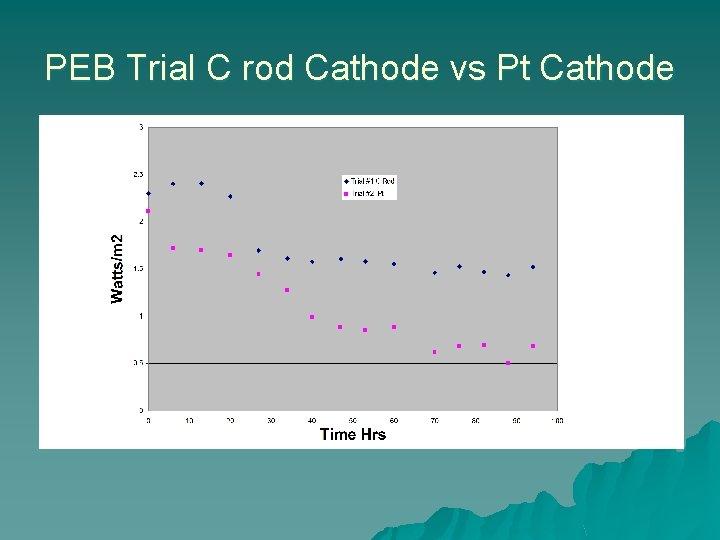

PEB Trial C rod Cathode vs Pt Cathode

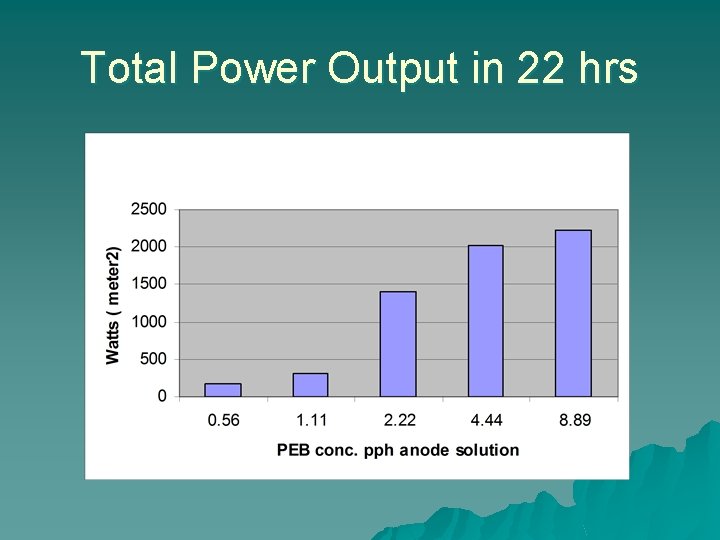

Total Power Output in 22 hrs

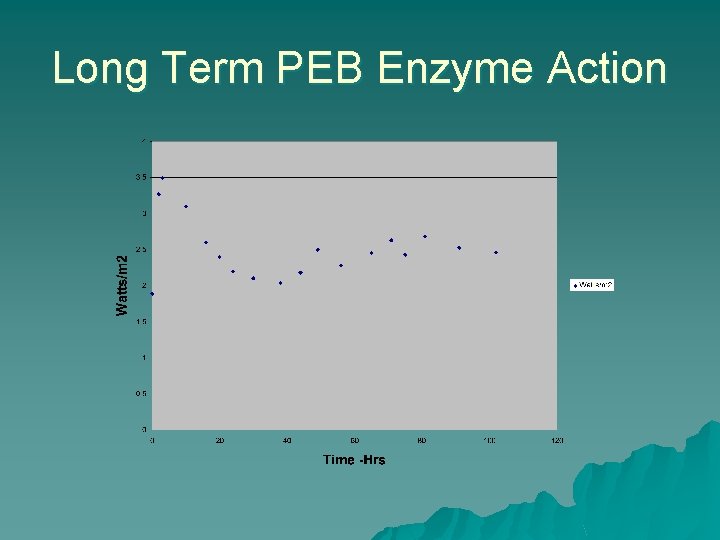

Long Term PEB Enzyme Action

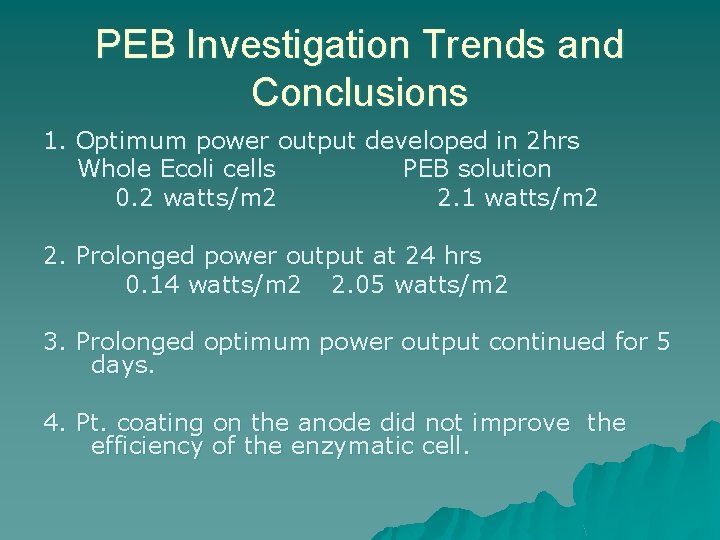

PEB Investigation Trends and Conclusions 1. Optimum power output developed in 2 hrs Whole Ecoli cells PEB solution 0. 2 watts/m 2 2. 1 watts/m 2 2. Prolonged power output at 24 hrs 0. 14 watts/m 2 2. 05 watts/m 2 3. Prolonged optimum power output continued for 5 days. 4. Pt. coating on the anode did not improve the efficiency of the enzymatic cell.

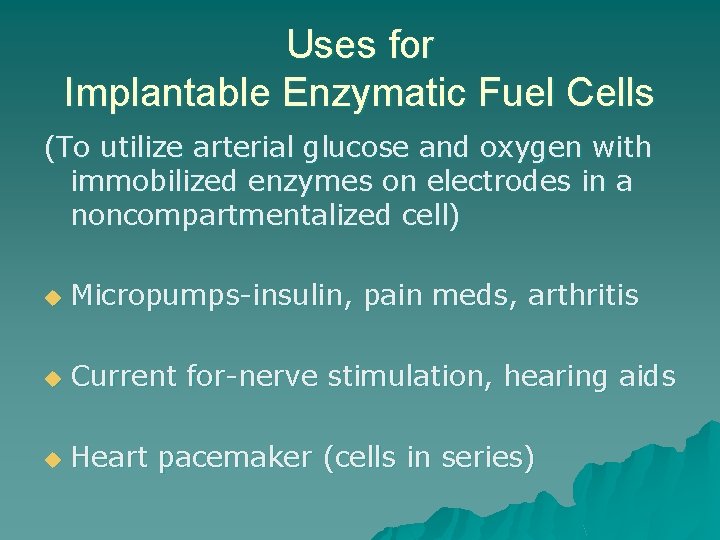

Uses for Implantable Enzymatic Fuel Cells (To utilize arterial glucose and oxygen with immobilized enzymes on electrodes in a noncompartmentalized cell) u Micropumps-insulin, pain meds, arthritis u Current for-nerve stimulation, hearing aids u Heart pacemaker (cells in series)

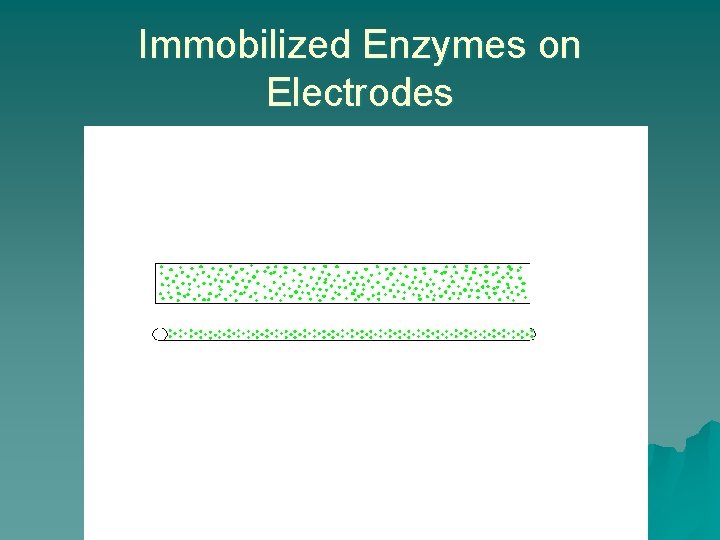

Immobilized Enzymes on Electrodes

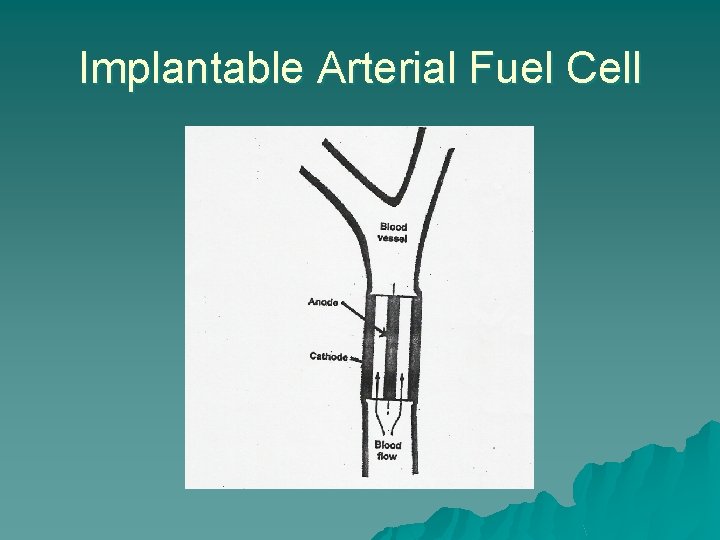

Implantable Arterial Fuel Cell

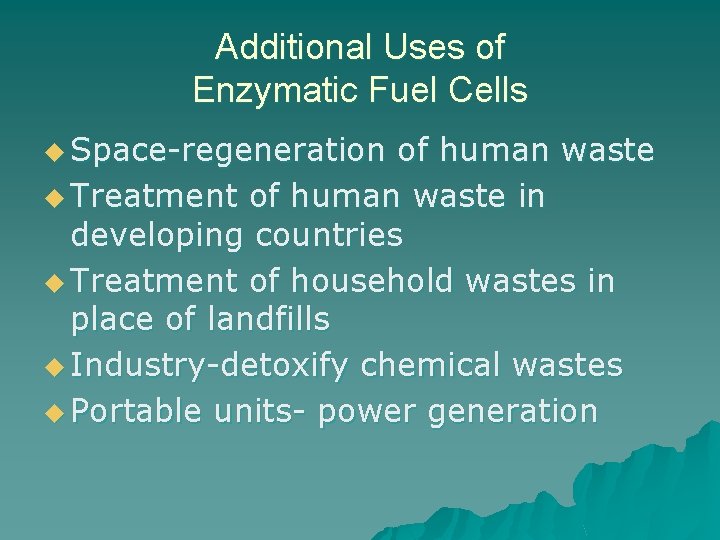

Additional Uses of Enzymatic Fuel Cells u Space-regeneration of human waste u Treatment of human waste in developing countries u Treatment of household wastes in place of landfills u Industry-detoxify chemical wastes u Portable units- power generation

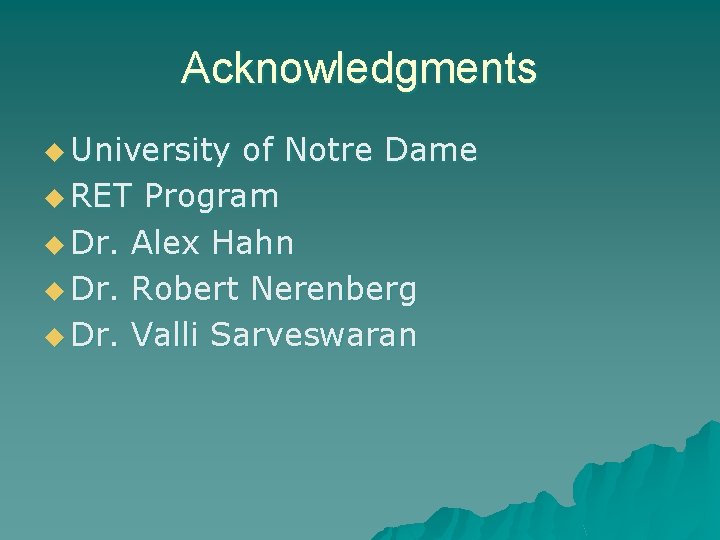

Acknowledgments u University of Notre Dame u RET Program u Dr. Alex Hahn u Dr. Robert Nerenberg u Dr. Valli Sarveswaran
