Solving Systems of Graphs and Tables Solving Systems

Solving Systems of Graphs and Tables

Solving Systems of Linear Equations by Graphing Learning Objective(s) · · Describe the creation and use of systems of equations. Graph a system of linear equations on the coordinate plane and identify its solution.

Introduction Ø Sometimes graphing a single linear equation is all it takes to solve a mathematical problem. Other times, one line just doesn’t do it, and a second equation is needed to model the situation. This is often the case when a problem involves two variables. Solving these kinds of problems requires working with a system of equations , which is a set of two or more equations containing the same unknowns. Ø Let’s take a look at systems of equations, and see what the graphs of individual equations within a system reveal about the mathematical relationship of the variables.

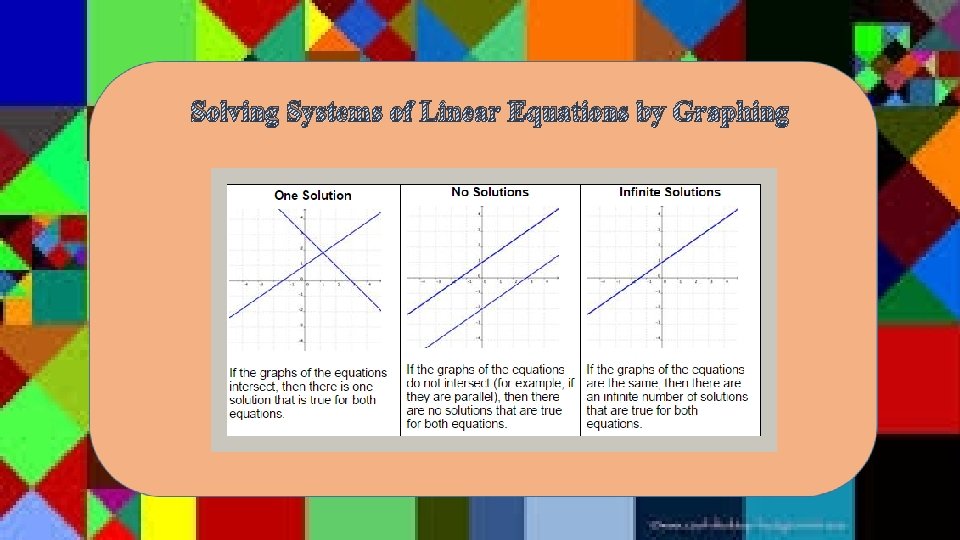

Solving Systems of Linear Equations by Graphing A system of equations contains two or more linear equations that share two or more unknowns. To find a solution for a system of equations, we must find a value (or range of values) that is true for all equations in the system. Remember, the graph of a line represents every point that is a possible solution for the equation of that line. So when the graphs of two equations cross, the point of intersection lies on both lines, meaning that it is a possible solution for both equations. When the graphs of two equations never touch, there are no shared points and there are no possible solutions for the system. When the graphs of two equations lie on top of one another, they share all their points and every one is a possible solution.

Solving Systems of Linear Equations by Graphing Plot 1 on the y-axis, then go up 1 right 1 on the x axis for X Plot a negative 7 on the yaxis, then go up 3 then right 1 for X Then where the points intersect (4, 5) is the solution

Solving Systems of Linear Equations by Graphing

Solving Systems of Linear Equations by Graphing Summary Systems of equations are comprised of two or more equations that share two or more unknowns. We can graph the equations within a system to find out whether the system has zero solutions (represented by parallel lines), one solution (represented by intersecting lines), or an infinite number of solutions (represented by two superimposed lines). While graphing systems of equations is a useful technique, relying on graphs to identify a specific point of intersection is not always an accurate way to find a precise solution for a system of equations.

Solving Systems of Linear Equations by Using Tables Learning Objective(s) · Describe the creation and use of systems of equations. · Using tables with a system of linear equations on the coordinate plane and identify its solution.

Solving Systems of Linear Equations by Using Tables The solutions to a two- variable equation are the pairs of values that make the equation true

Solving Systems of Linear Equations by Using Tables Find three solution to y= -x+7

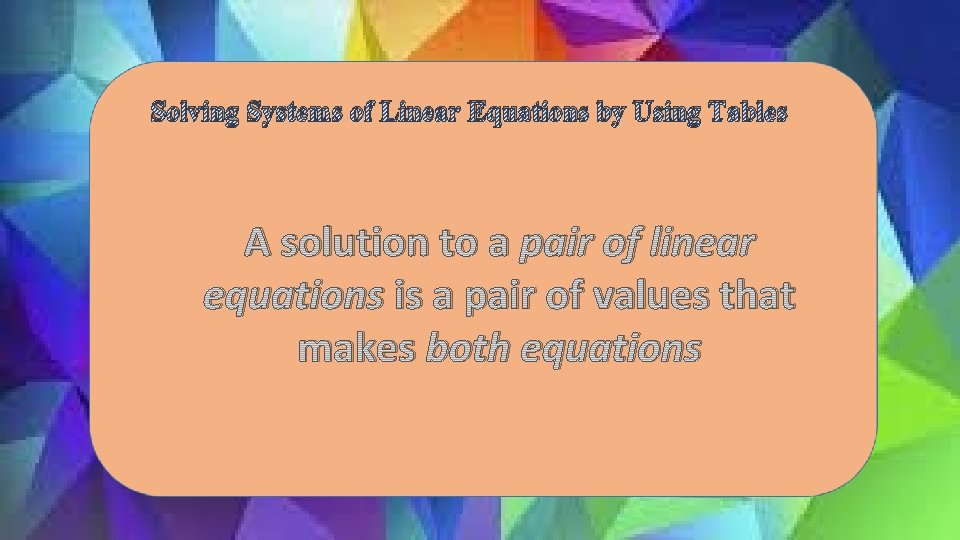

Solving Systems of Linear Equations by Using Tables A solution to a pair of linear equations is a pair of values that makes both equations

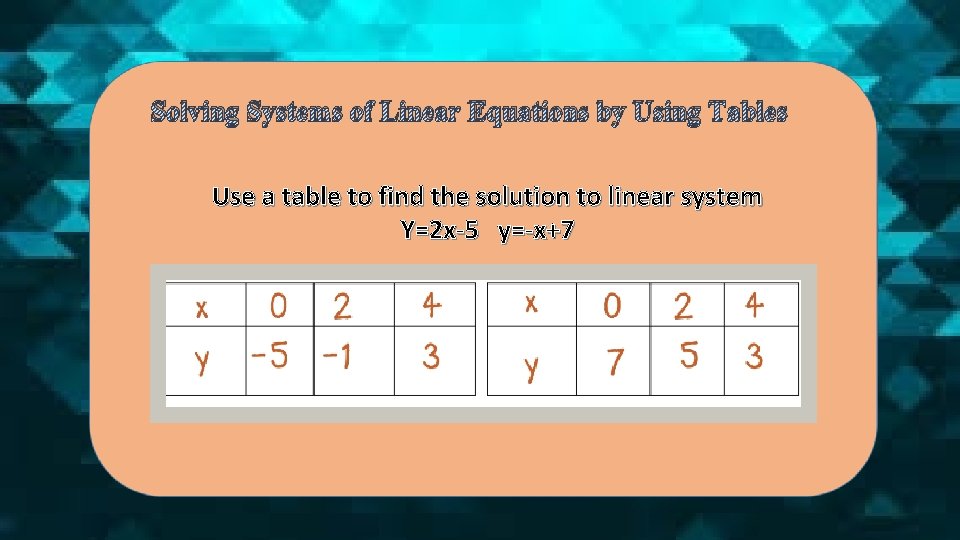

Solving Systems of Linear Equations by Using Tables Use a table to find the solution to linear system Y=2 x-5 y=-x+7

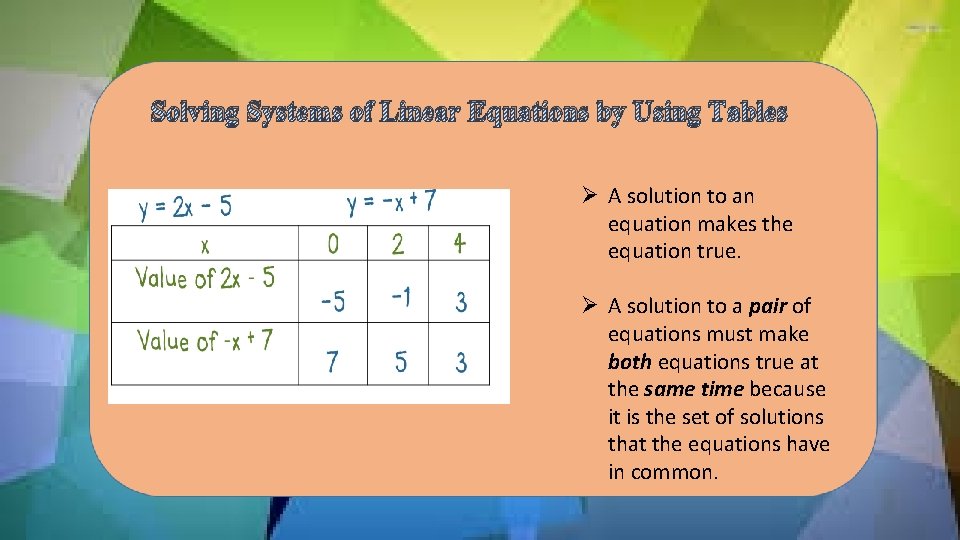

Solving Systems of Linear Equations by Using Tables Ø A solution to an equation makes the equation true. Ø A solution to a pair of equations must make both equations true at the same time because it is the set of solutions that the equations have in common.

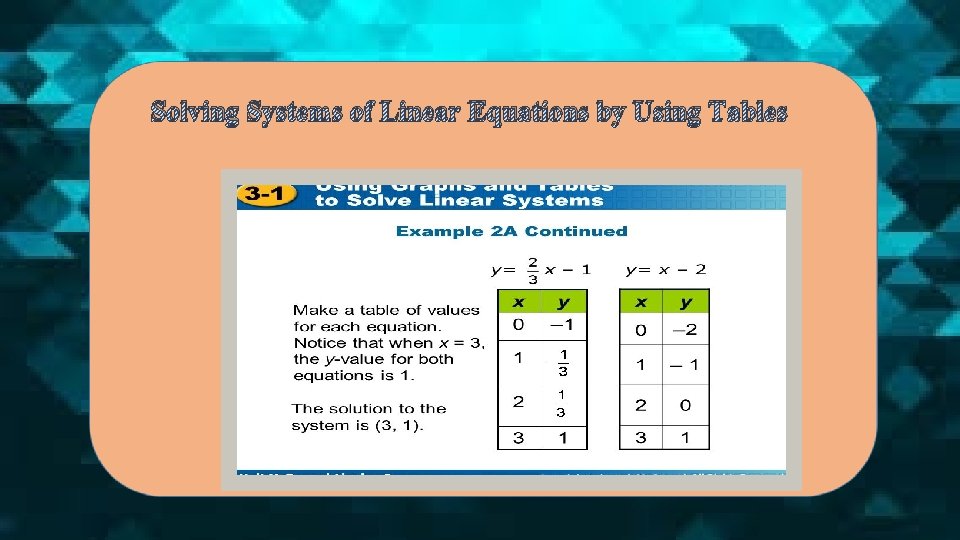

Solving Systems of Linear Equations by Using Tables

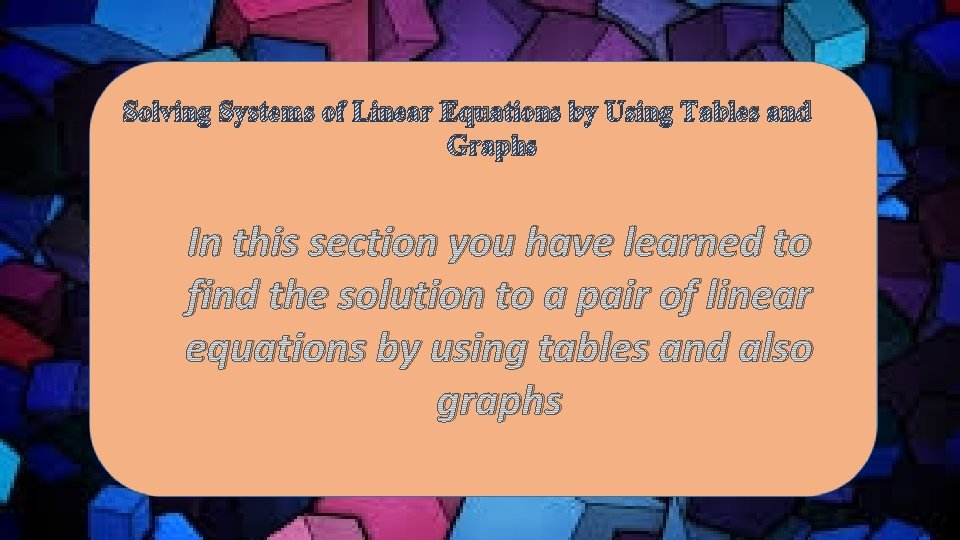

Solving Systems of Linear Equations by Using Tables and Graphs In this section you have learned to find the solution to a pair of linear equations by using tables and also graphs

Solving Systems of Linear Equations by Using Tables and Graphs For more information go to https: //learnzillion. com/lesson_plans/7689 -find-the-solution-to -a-pair-of-linear-equations-by-using-tables Or http: //www. regentsprep. org/regents/math/algebra/ae 3/grsys. htm
