SOLVING SYSTEMS OF EQUATIONS USING MATRICES Coach Morris

SOLVING SYSTEMS OF EQUATIONS USING MATRICES Coach Morris Fall, 2017

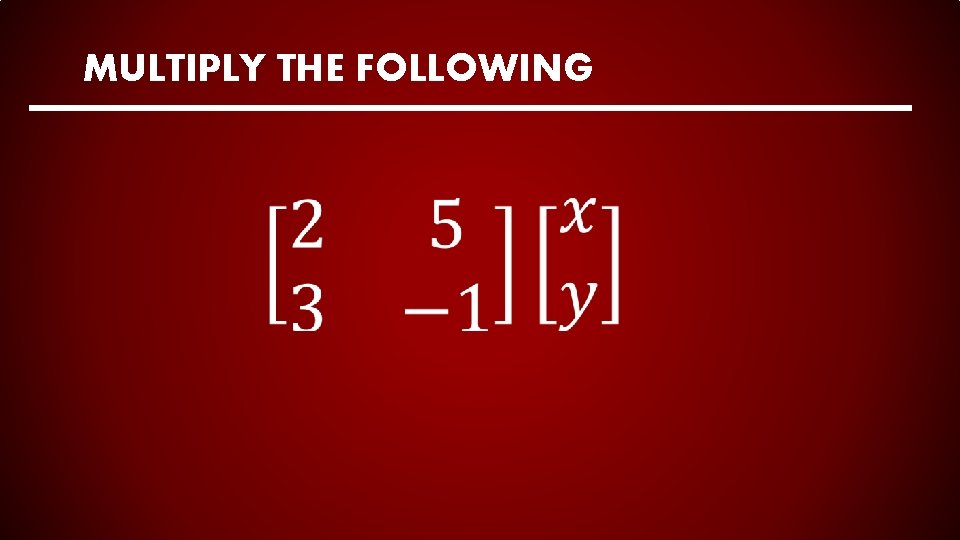

MULTIPLY THE FOLLOWING

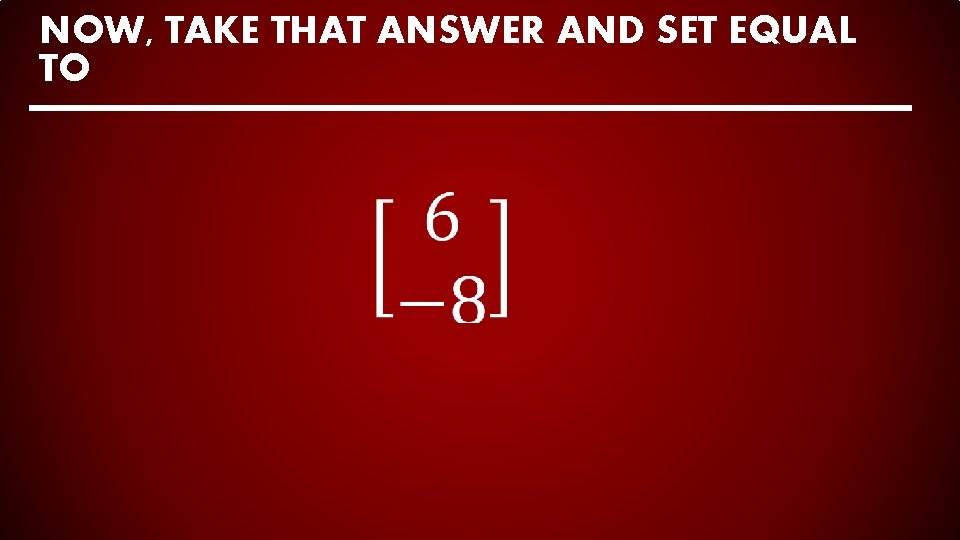

NOW, TAKE THAT ANSWER AND SET EQUAL TO

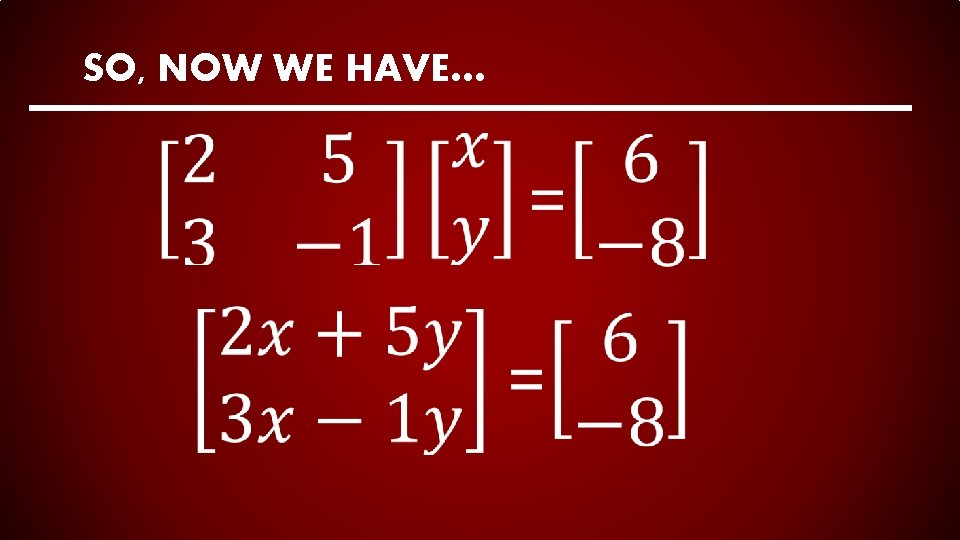

SO, NOW WE HAVE…

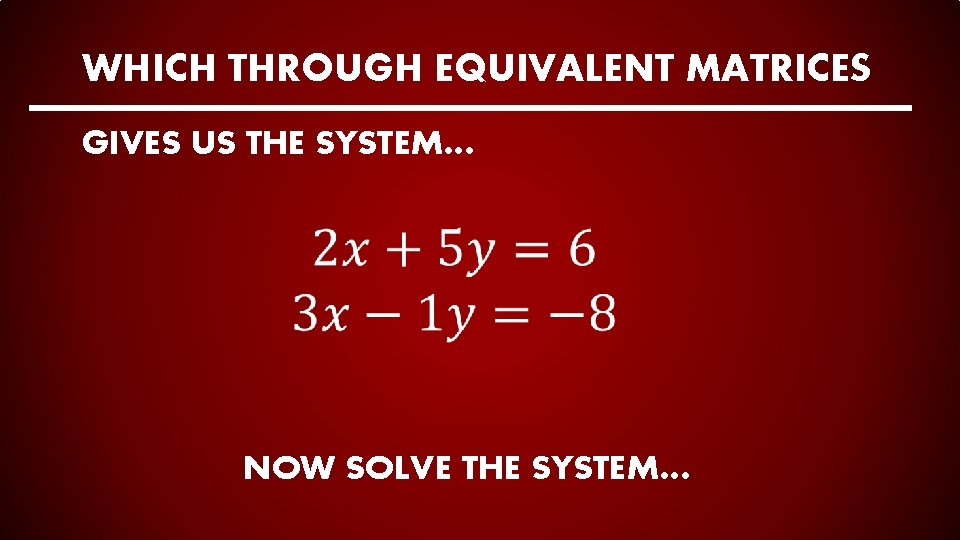

WHICH THROUGH EQUIVALENT MATRICES GIVES US THE SYSTEM… NOW SOLVE THE SYSTEM…

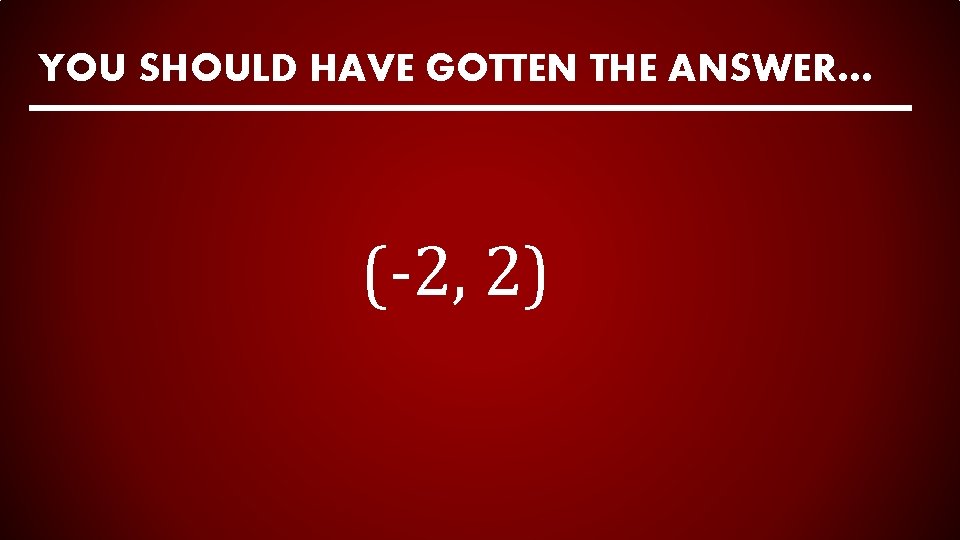

YOU SHOULD HAVE GOTTEN THE ANSWER… (-2, 2)

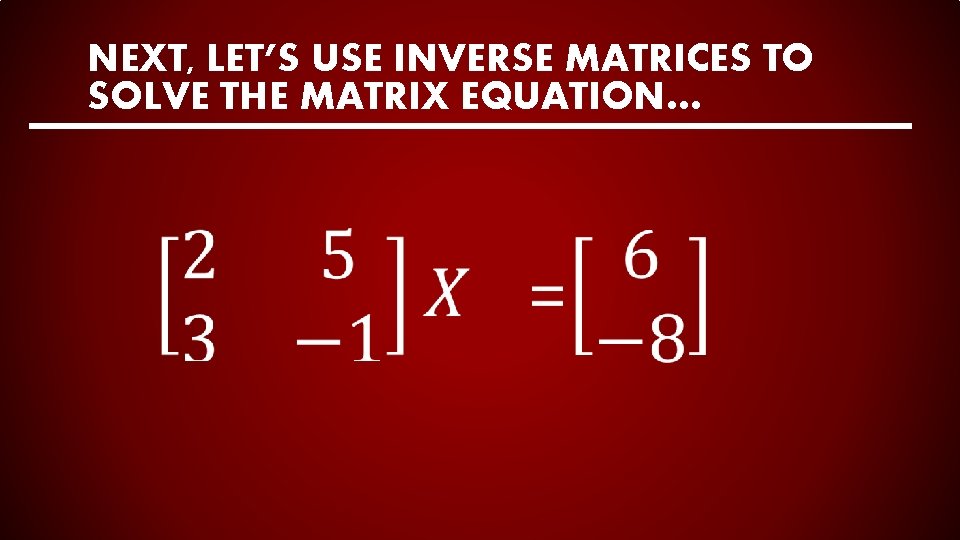

NEXT, LET’S USE INVERSE MATRICES TO SOLVE THE MATRIX EQUATION…

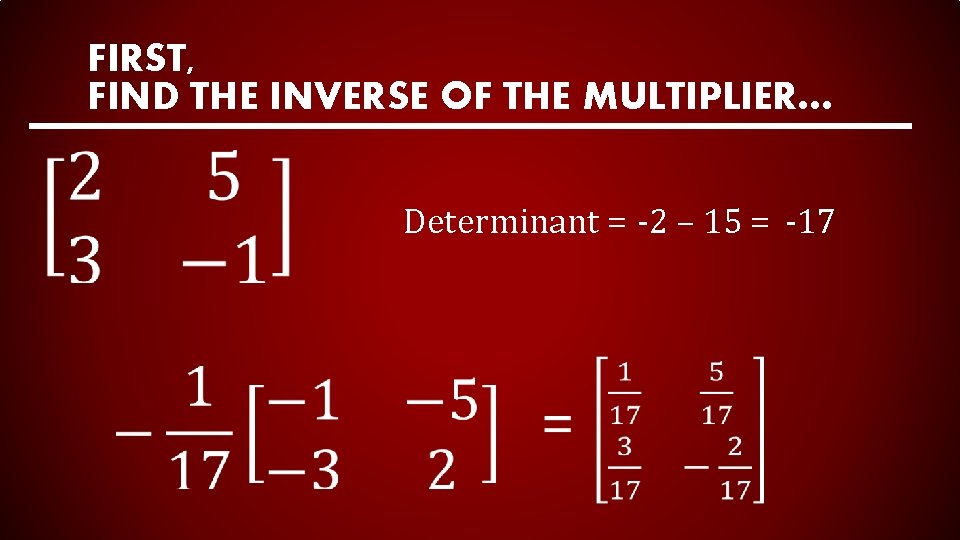

FIRST, FIND THE INVERSE OF THE MULTIPLIER… Determinant = -2 – 15 = -17

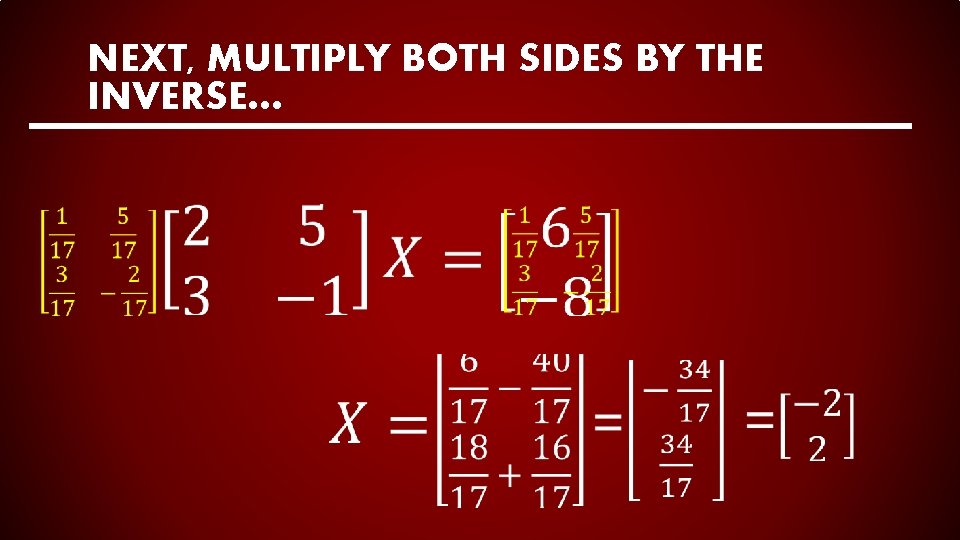

NEXT, MULTIPLY BOTH SIDES BY THE INVERSE…

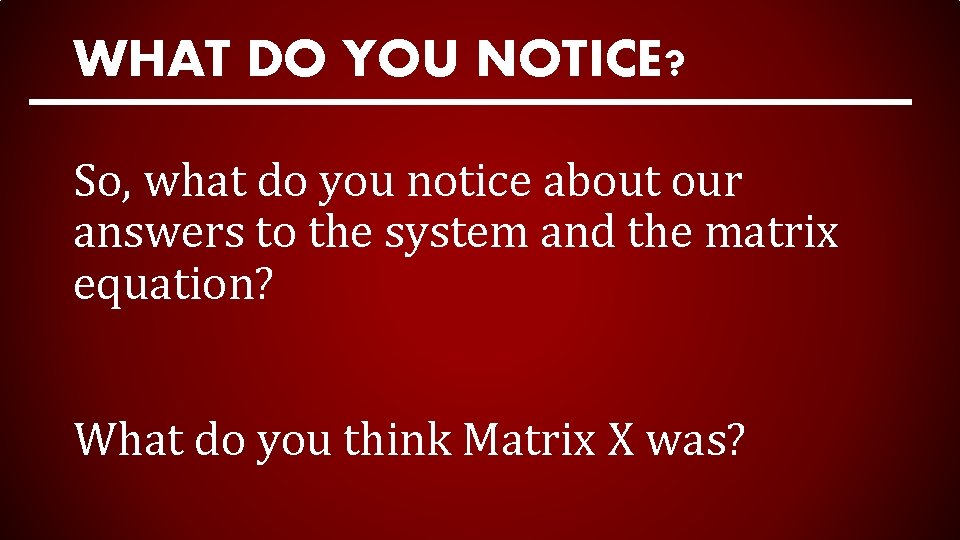

WHAT DO YOU NOTICE? So, what do you notice about our answers to the system and the matrix equation? What do you think Matrix X was?

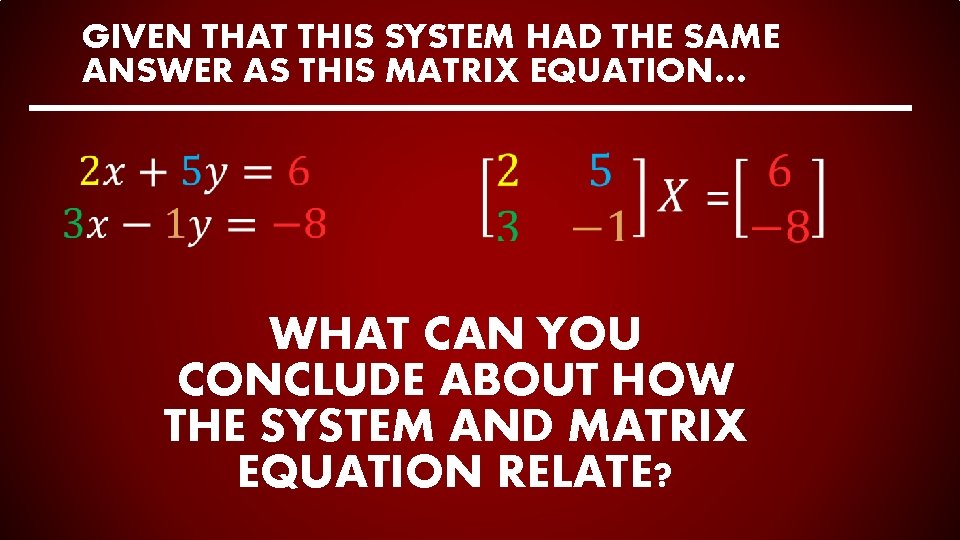

GIVEN THAT THIS SYSTEM HAD THE SAME ANSWER AS THIS MATRIX EQUATION… WHAT CAN YOU CONCLUDE ABOUT HOW THE SYSTEM AND MATRIX EQUATION RELATE?

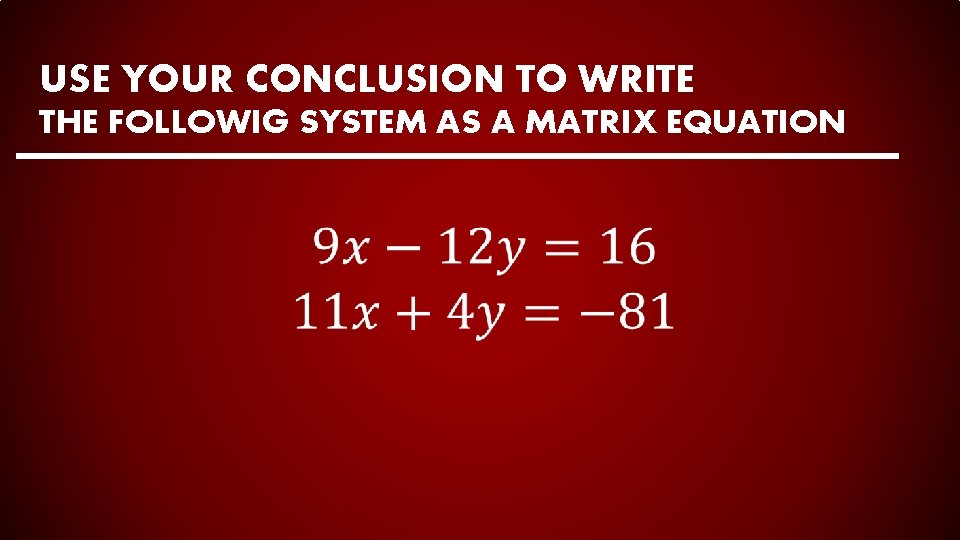

USE YOUR CONCLUSION TO WRITE THE FOLLOWIG SYSTEM AS A MATRIX EQUATION

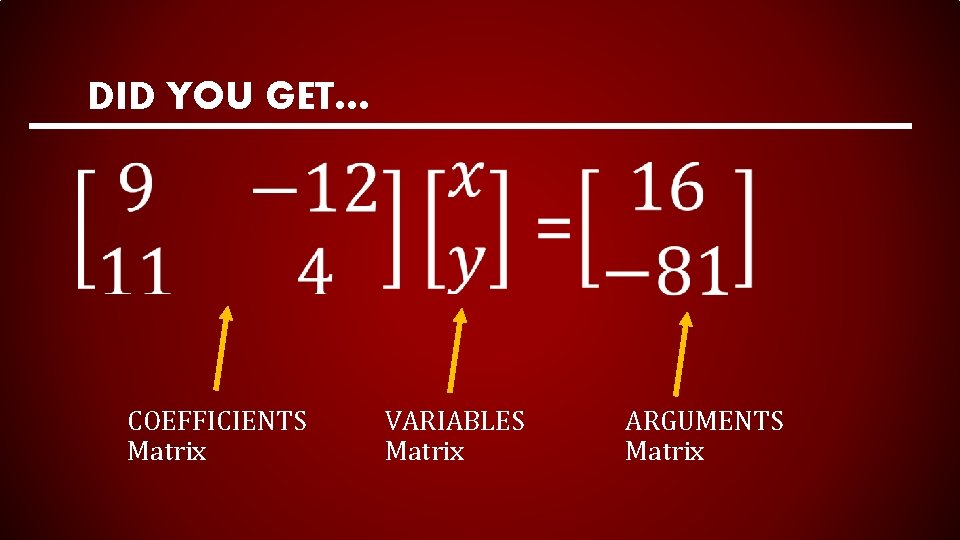

DID YOU GET… COEFFICIENTS Matrix VARIABLES Matrix ARGUMENTS Matrix

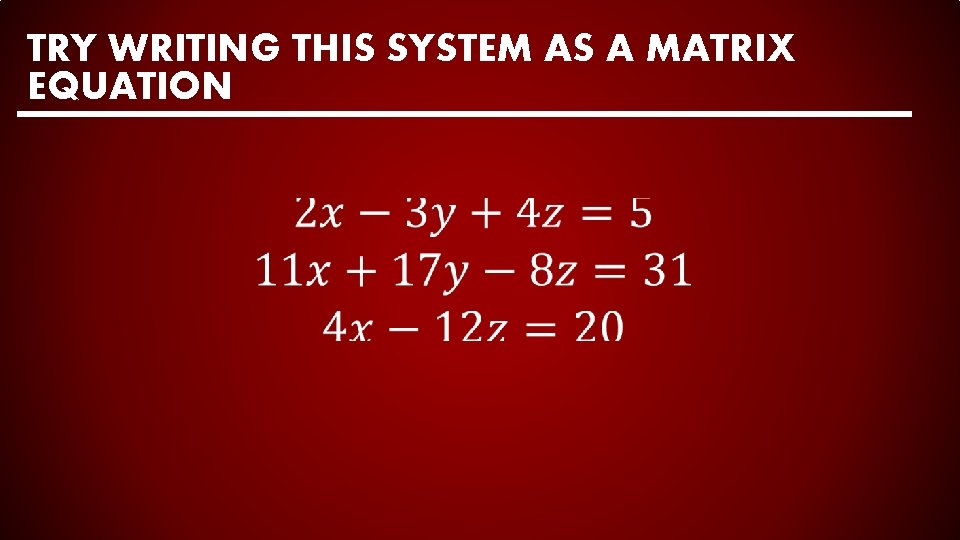

TRY WRITING THIS SYSTEM AS A MATRIX EQUATION

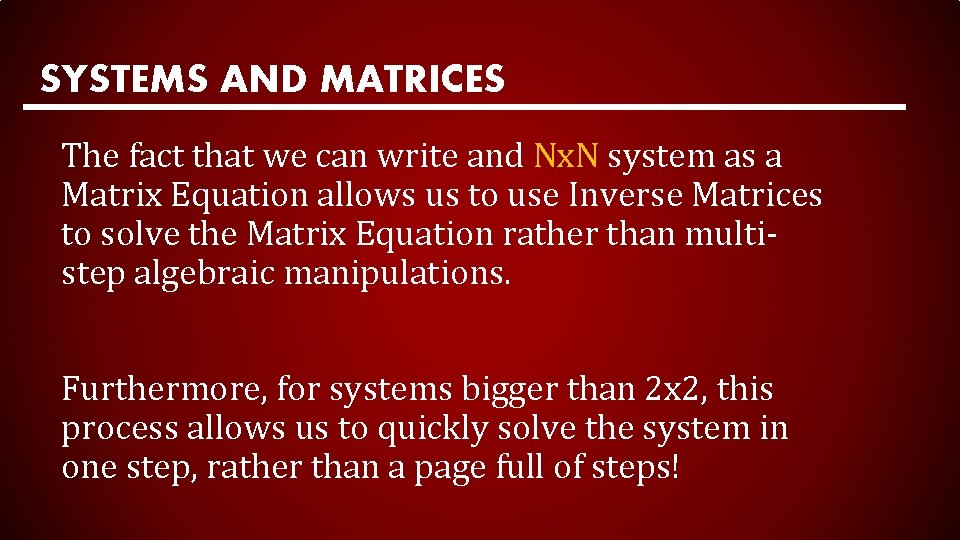

SYSTEMS AND MATRICES The fact that we can write and Nx. N system as a Matrix Equation allows us to use Inverse Matrices to solve the Matrix Equation rather than multistep algebraic manipulations. Furthermore, for systems bigger than 2 x 2, this process allows us to quickly solve the system in one step, rather than a page full of steps!

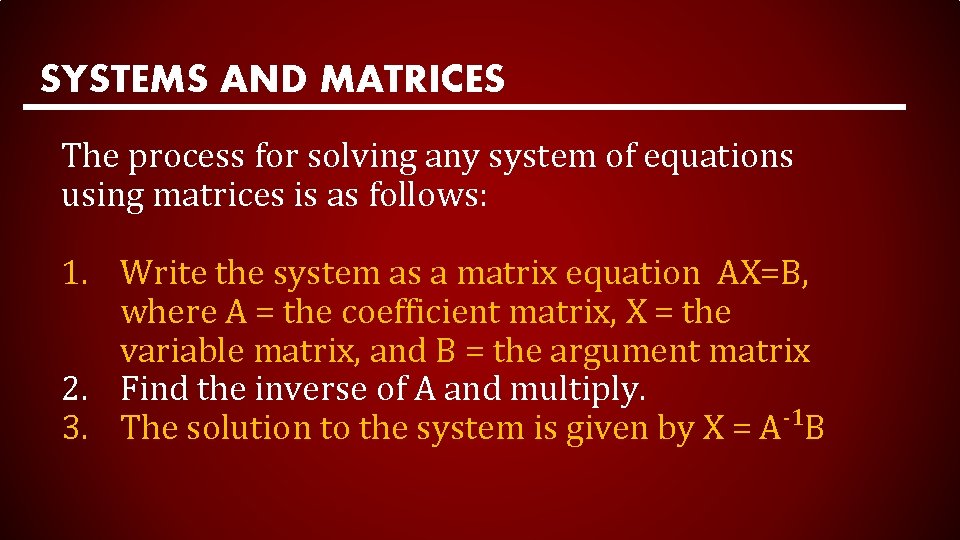

SYSTEMS AND MATRICES The process for solving any system of equations using matrices is as follows: 1. Write the system as a matrix equation AX=B, where A = the coefficient matrix, X = the variable matrix, and B = the argument matrix 2. Find the inverse of A and multiply. 3. The solution to the system is given by X = A-1 B

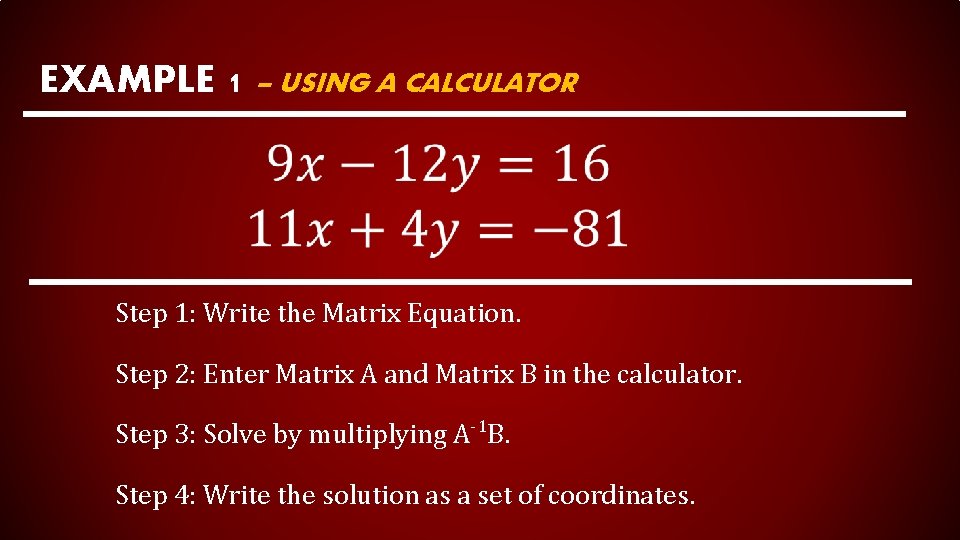

EXAMPLE 1 – USING A CALCULATOR Step 1: Write the Matrix Equation. Step 2: Enter Matrix A and Matrix B in the calculator. Step 3: Solve by multiplying A-1 B. Step 4: Write the solution as a set of coordinates.

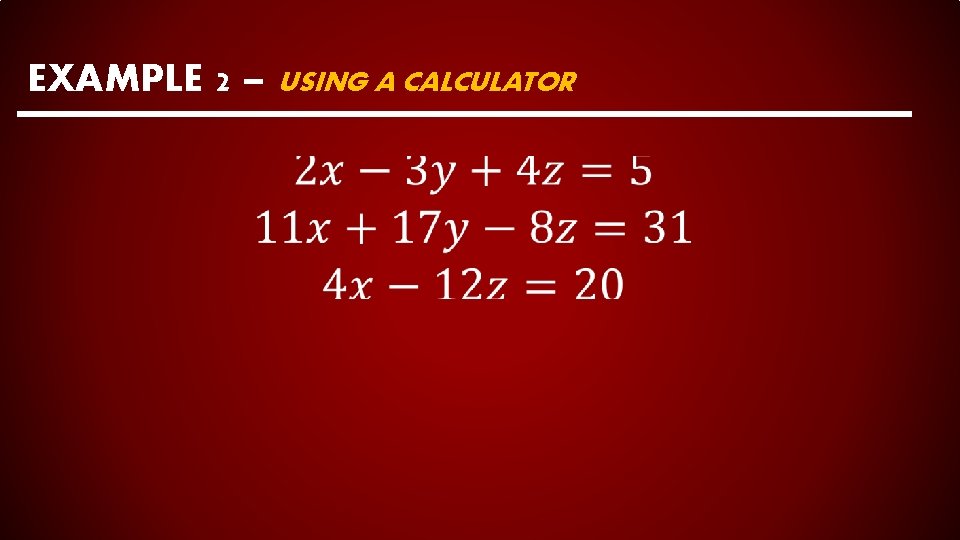

EXAMPLE 2 – USING A CALCULATOR

ASSIGNMENT #8 – Solving Systems of Equations with Matrices
