Solving problems by searching Chapter 3 in AIMA

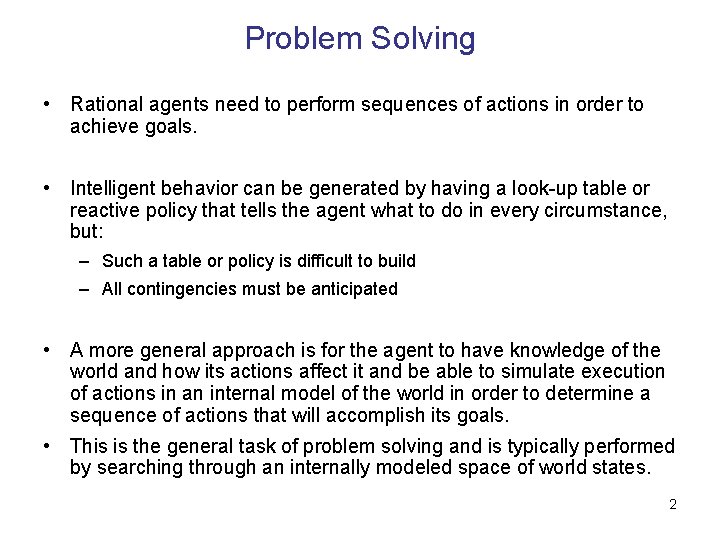

Problem Solving • Rational agents need to perform sequences of actions in order to achieve goals. • Intelligent behavior can be generated by having a look-up table or reactive policy that tells the agent what to do in every circumstance, but: – Such a table or policy is difficult to build – All contingencies must be anticipated • A more general approach is for the agent to have knowledge of the world and how its actions affect it and be able to simulate execution of actions in an internal model of the world in order to determine a sequence of actions that will accomplish its goals. • This is the general task of problem solving and is typically performed by searching through an internally modeled space of world states. 2

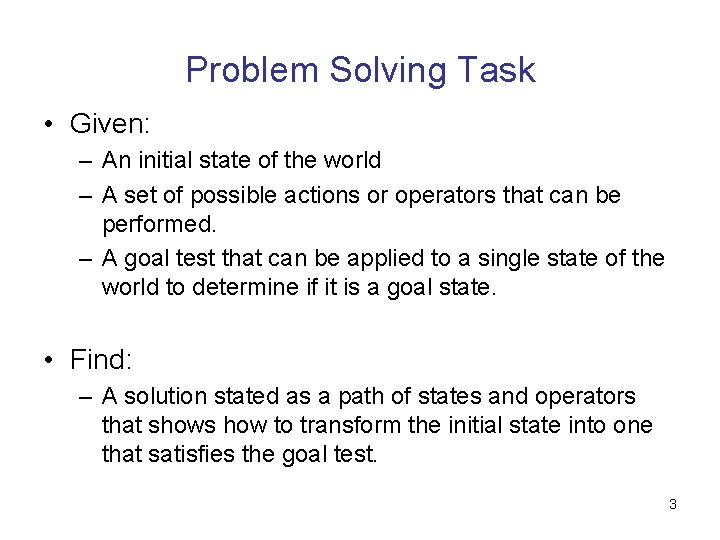

Problem Solving Task • Given: – An initial state of the world – A set of possible actions or operators that can be performed. – A goal test that can be applied to a single state of the world to determine if it is a goal state. • Find: – A solution stated as a path of states and operators that shows how to transform the initial state into one that satisfies the goal test. 3

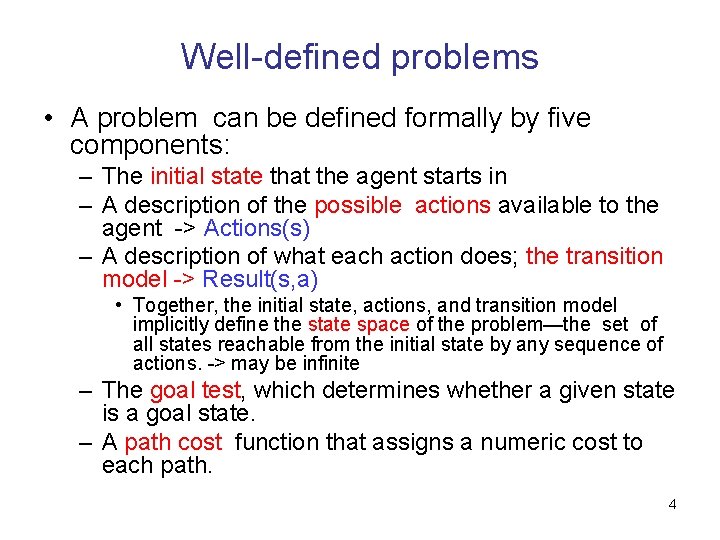

Well-defined problems • A problem can be defined formally by five components: – The initial state that the agent starts in – A description of the possible actions available to the agent -> Actions(s) – A description of what each action does; the transition model -> Result(s, a) • Together, the initial state, actions, and transition model implicitly define the state space of the problem—the set of all states reachable from the initial state by any sequence of actions. -> may be infinite – The goal test, which determines whether a given state is a goal state. – A path cost function that assigns a numeric cost to each path. 4

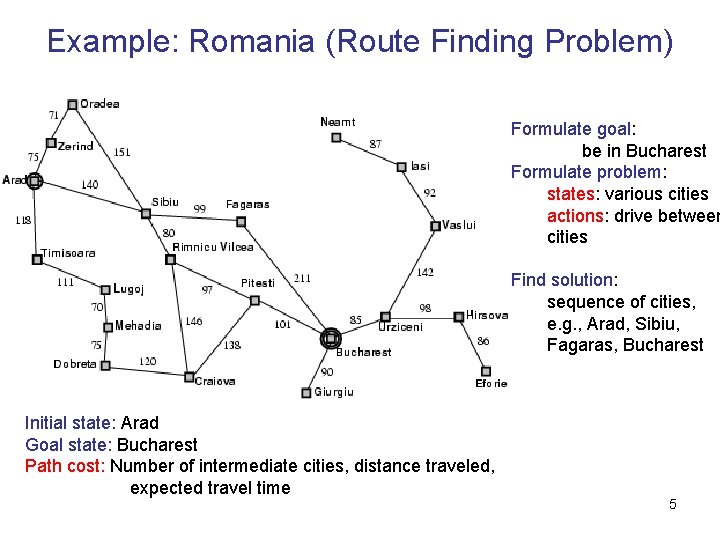

Example: Romania (Route Finding Problem) Formulate goal: be in Bucharest Formulate problem: states: various cities actions: drive between cities Find solution: sequence of cities, e. g. , Arad, Sibiu, Fagaras, Bucharest Initial state: Arad Goal state: Bucharest Path cost: Number of intermediate cities, distance traveled, expected travel time 5

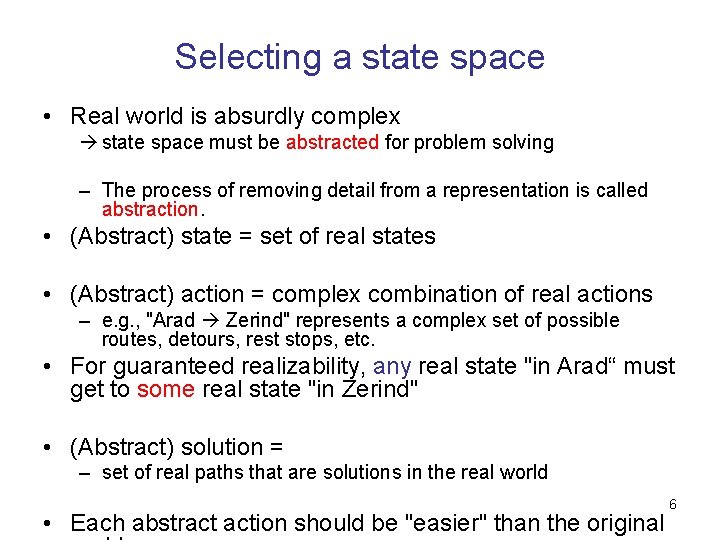

Selecting a state space • Real world is absurdly complex state space must be abstracted for problem solving – The process of removing detail from a representation is called abstraction. • (Abstract) state = set of real states • (Abstract) action = complex combination of real actions – e. g. , "Arad Zerind" represents a complex set of possible routes, detours, rest stops, etc. • For guaranteed realizability, any real state "in Arad“ must get to some real state "in Zerind" • (Abstract) solution = – set of real paths that are solutions in the real world • Each abstract action should be "easier" than the original 6

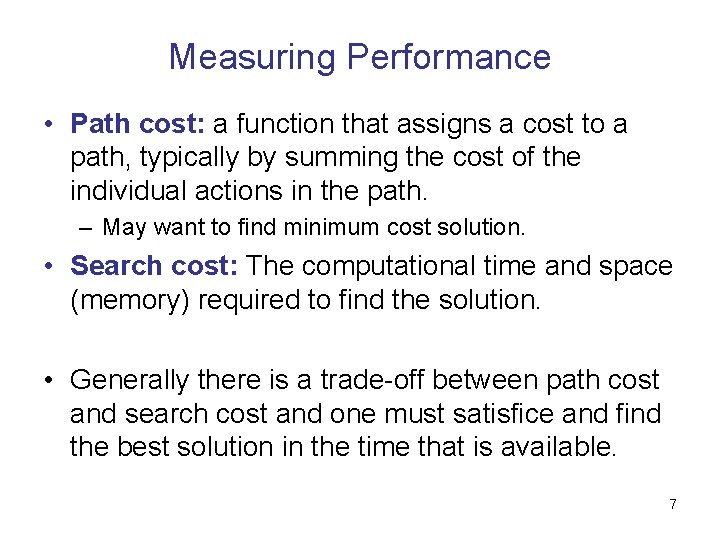

Measuring Performance • Path cost: a function that assigns a cost to a path, typically by summing the cost of the individual actions in the path. – May want to find minimum cost solution. • Search cost: The computational time and space (memory) required to find the solution. • Generally there is a trade-off between path cost and search cost and one must satisfice and find the best solution in the time that is available. 7

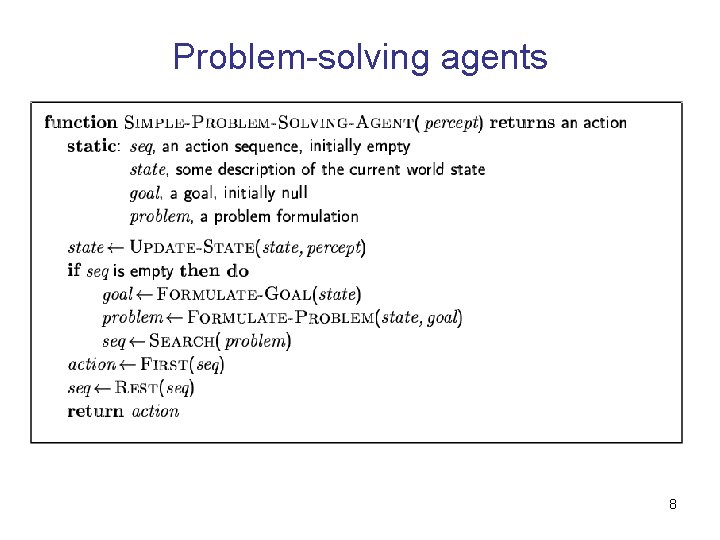

Problem-solving agents 8

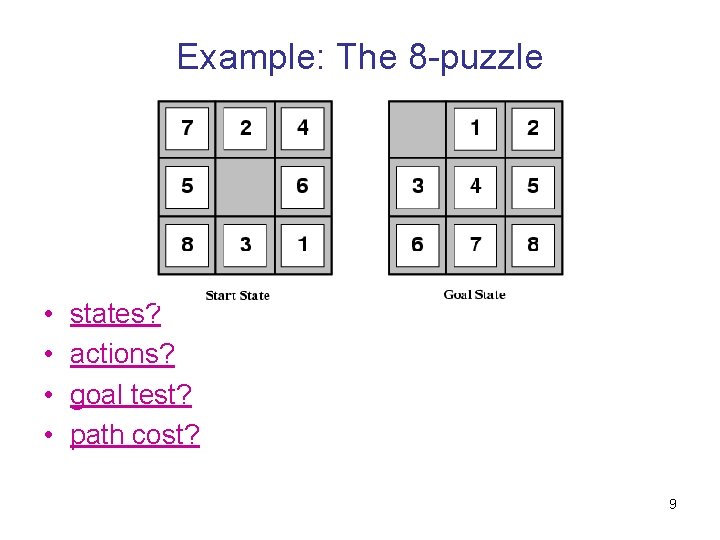

Example: The 8 -puzzle • • states? actions? goal test? path cost? 9

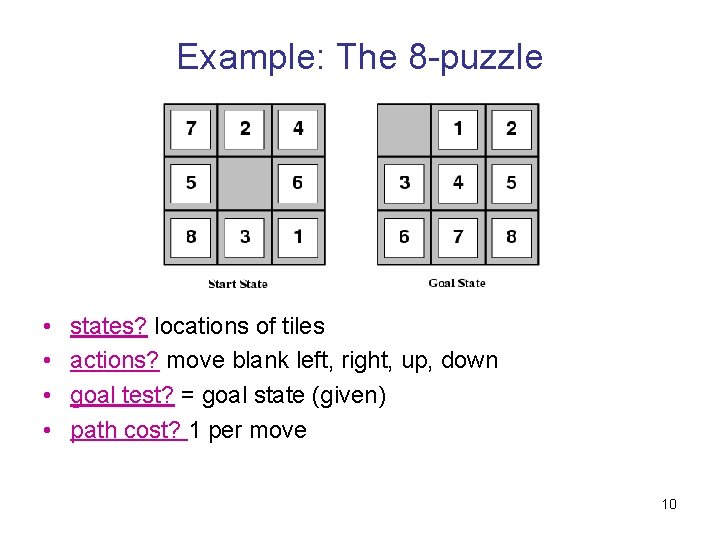

Example: The 8 -puzzle • • states? locations of tiles actions? move blank left, right, up, down goal test? = goal state (given) path cost? 1 per move 10

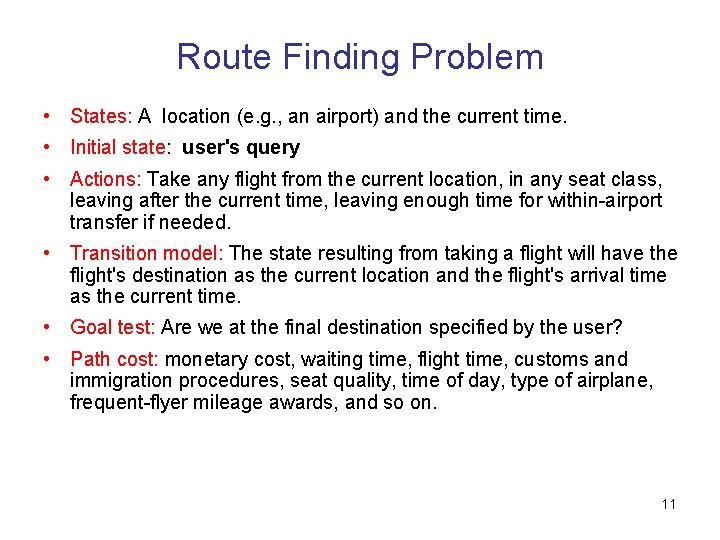

Route Finding Problem • States: A location (e. g. , an airport) and the current time. • Initial state: user's query • Actions: Take any flight from the current location, in any seat class, leaving after the current time, leaving enough time for within-airport transfer if needed. • Transition model: The state resulting from taking a flight will have the flight's destination as the current location and the flight's arrival time as the current time. • Goal test: Are we at the final destination specified by the user? • Path cost: monetary cost, waiting time, flight time, customs and immigration procedures, seat quality, time of day, type of airplane, frequent-flyer mileage awards, and so on. 11

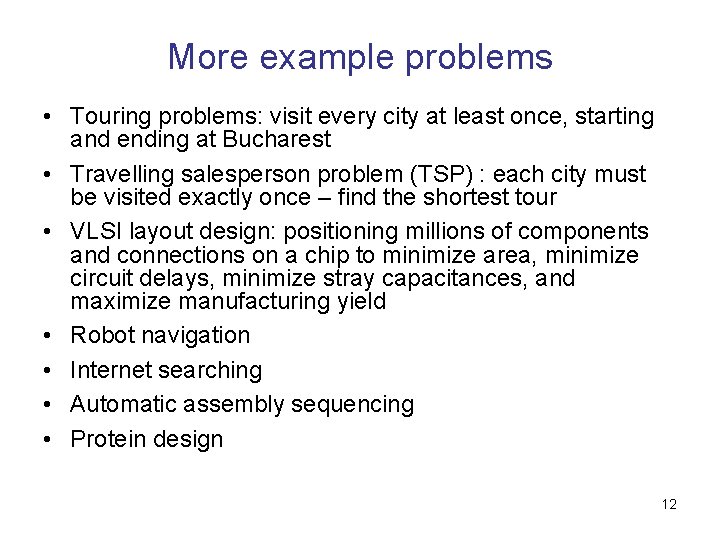

More example problems • Touring problems: visit every city at least once, starting and ending at Bucharest • Travelling salesperson problem (TSP) : each city must be visited exactly once – find the shortest tour • VLSI layout design: positioning millions of components and connections on a chip to minimize area, minimize circuit delays, minimize stray capacitances, and maximize manufacturing yield • Robot navigation • Internet searching • Automatic assembly sequencing • Protein design 12

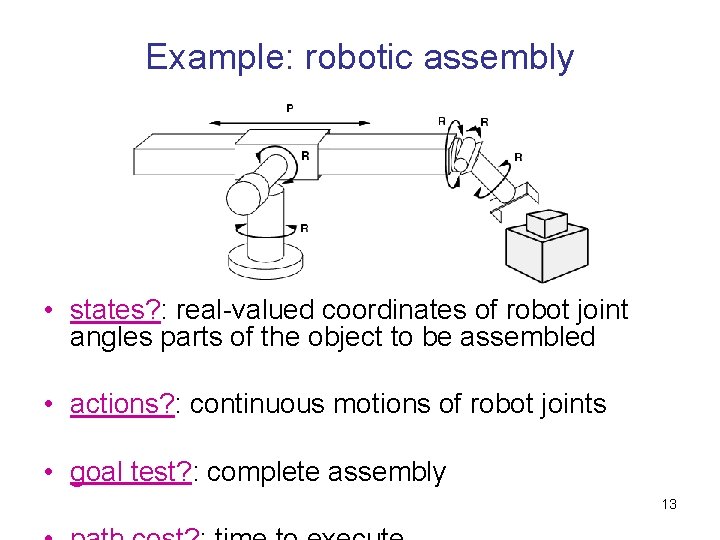

Example: robotic assembly • states? : real-valued coordinates of robot joint angles parts of the object to be assembled • actions? : continuous motions of robot joints • goal test? : complete assembly 13

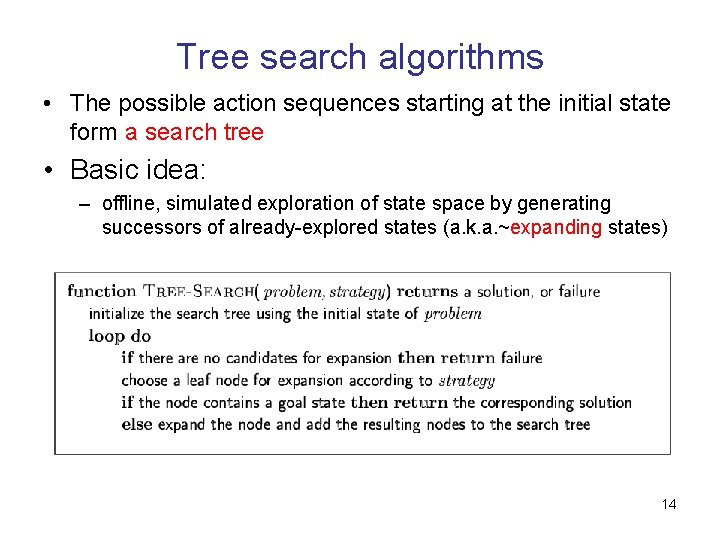

Tree search algorithms • The possible action sequences starting at the initial state form a search tree • Basic idea: – offline, simulated exploration of state space by generating successors of already-explored states (a. k. a. ~expanding states) 14

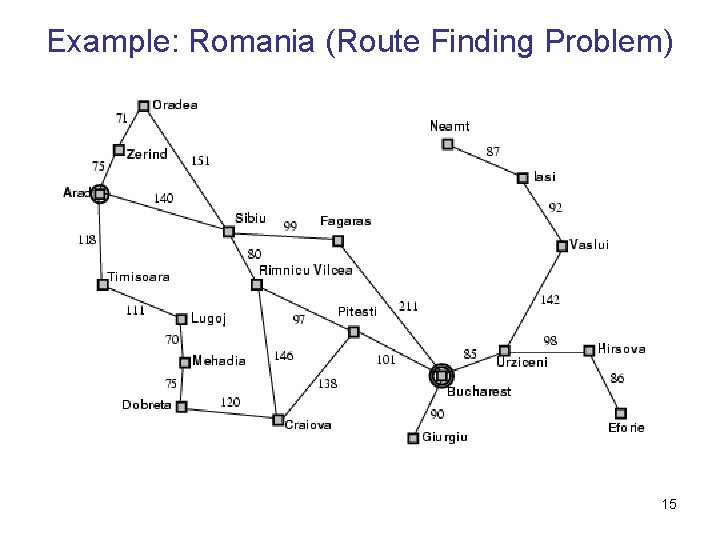

Example: Romania (Route Finding Problem) 15

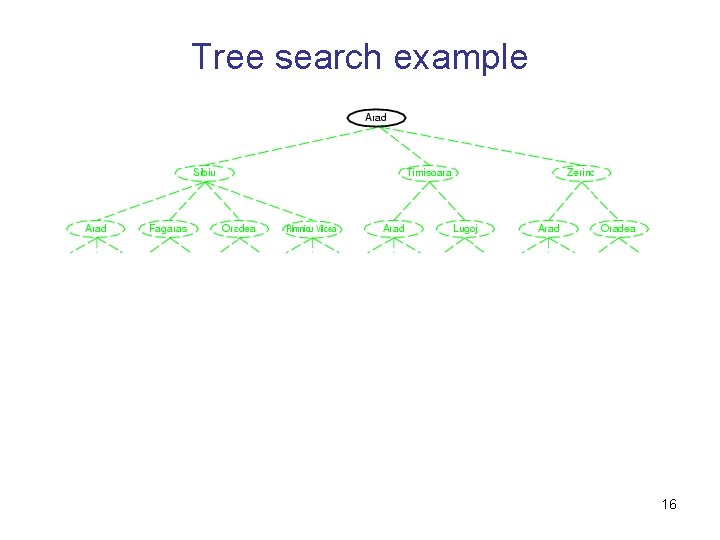

Tree search example 16

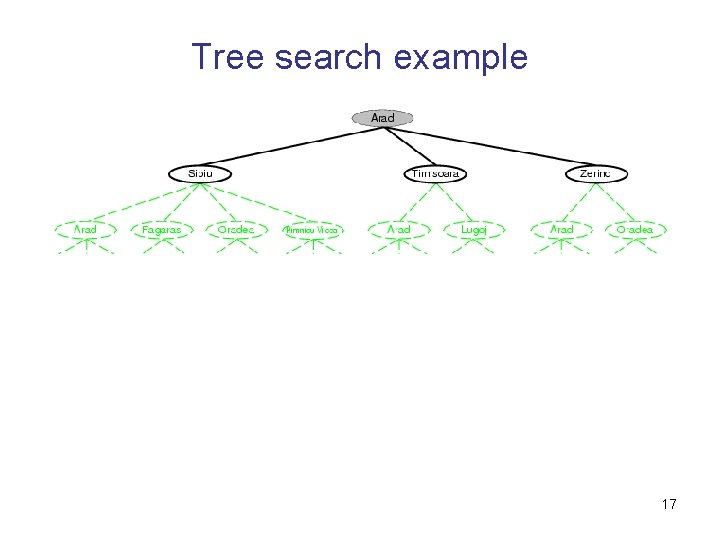

Tree search example 17

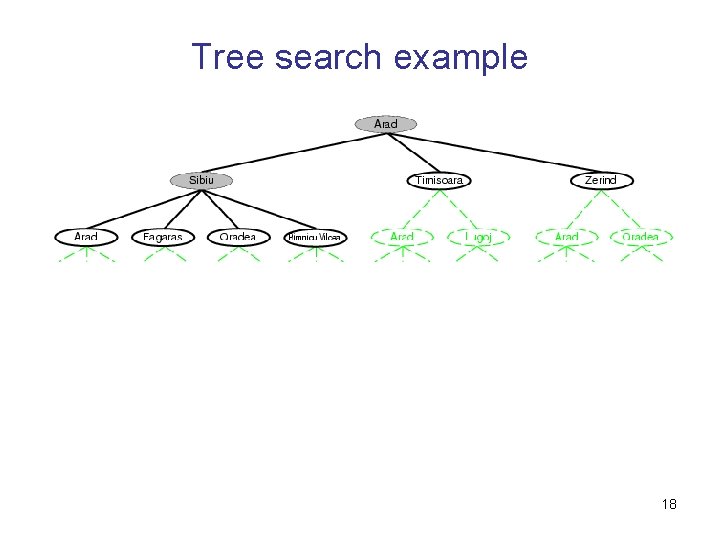

Tree search example 18

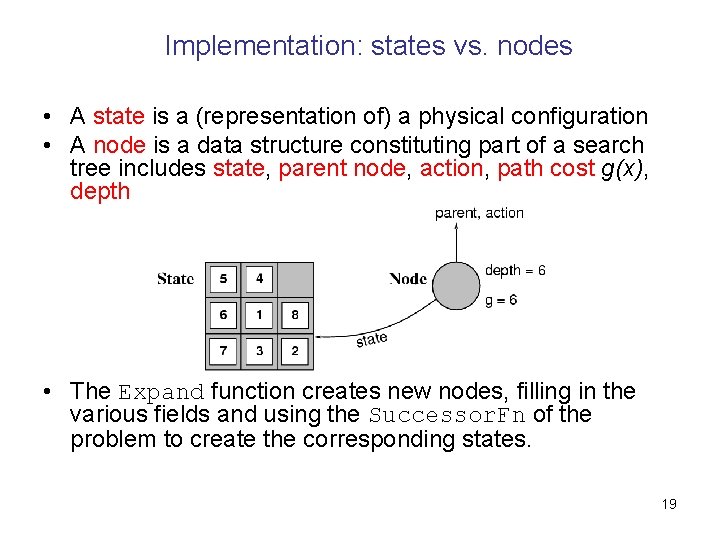

Implementation: states vs. nodes • A state is a (representation of) a physical configuration • A node is a data structure constituting part of a search tree includes state, parent node, action, path cost g(x), depth • The Expand function creates new nodes, filling in the various fields and using the Successor. Fn of the problem to create the corresponding states. 19

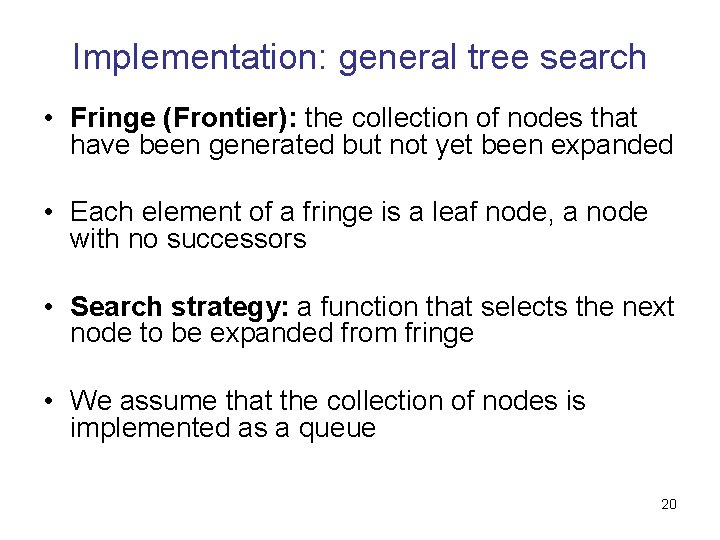

Implementation: general tree search • Fringe (Frontier): the collection of nodes that have been generated but not yet been expanded • Each element of a fringe is a leaf node, a node with no successors • Search strategy: a function that selects the next node to be expanded from fringe • We assume that the collection of nodes is implemented as a queue 20

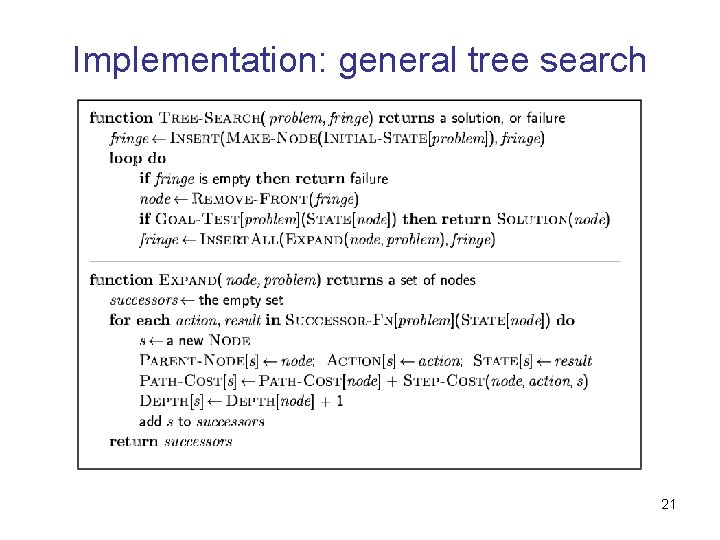

Implementation: general tree search 21

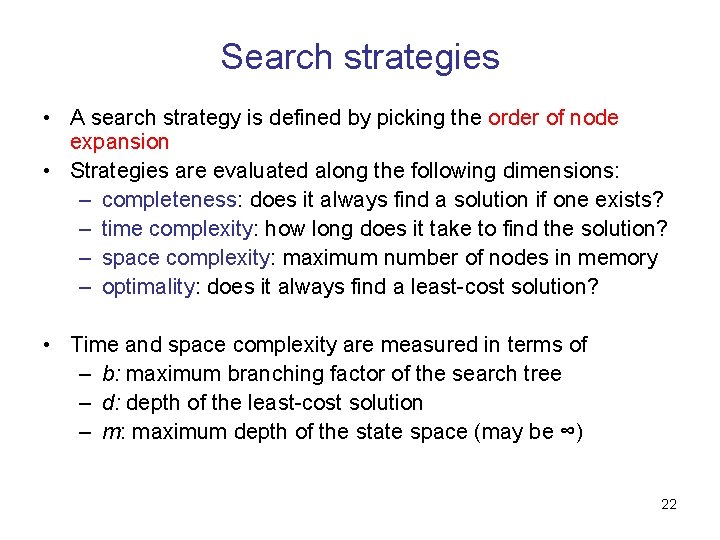

Search strategies • A search strategy is defined by picking the order of node expansion • Strategies are evaluated along the following dimensions: – completeness: does it always find a solution if one exists? – time complexity: how long does it take to find the solution? – space complexity: maximum number of nodes in memory – optimality: does it always find a least-cost solution? • Time and space complexity are measured in terms of – b: maximum branching factor of the search tree – d: depth of the least-cost solution – m: maximum depth of the state space (may be ∞) 22

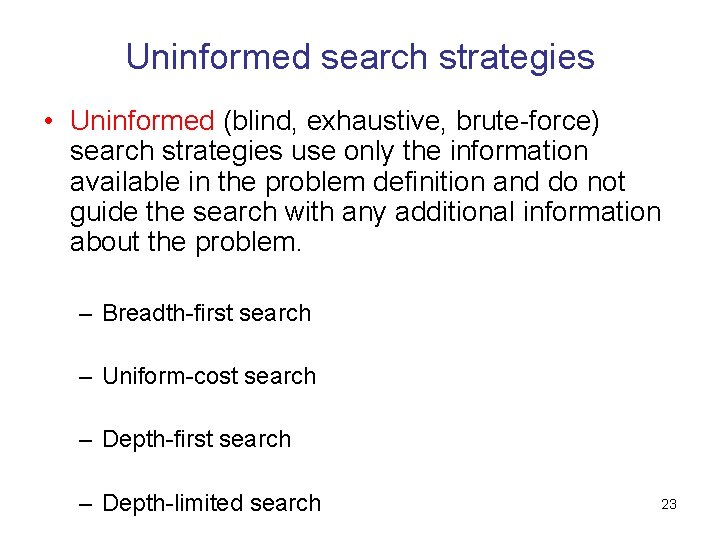

Uninformed search strategies • Uninformed (blind, exhaustive, brute-force) search strategies use only the information available in the problem definition and do not guide the search with any additional information about the problem. – Breadth-first search – Uniform-cost search – Depth-first search – Depth-limited search 23

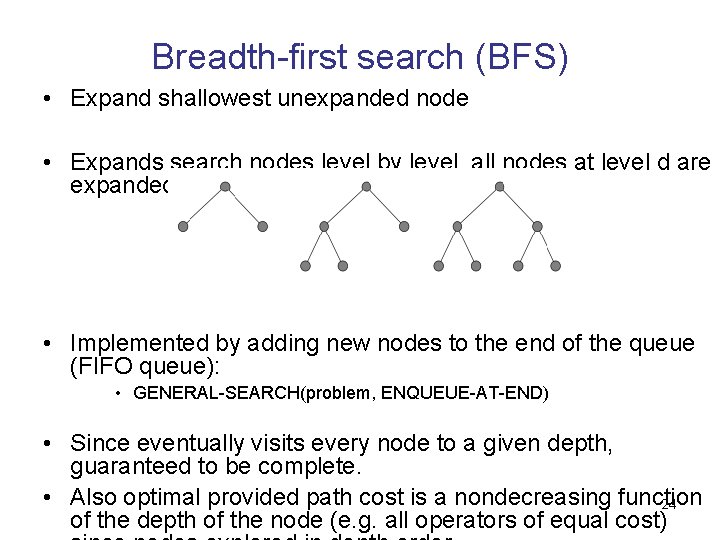

Breadth-first search (BFS) • Expand shallowest unexpanded node • Expands search nodes level by level, all nodes at level d are expanded before expanding nodes at level d+1 • Implemented by adding new nodes to the end of the queue (FIFO queue): • GENERAL-SEARCH(problem, ENQUEUE-AT-END) • Since eventually visits every node to a given depth, guaranteed to be complete. • Also optimal provided path cost is a nondecreasing function 24 of the depth of the node (e. g. all operators of equal cost)

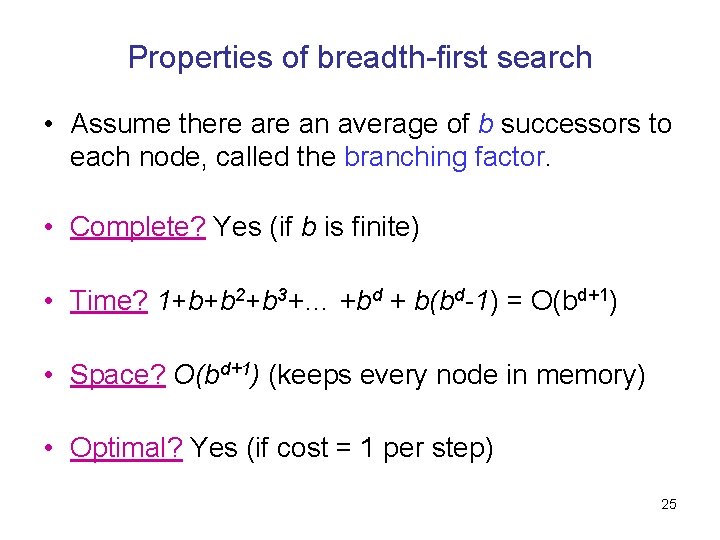

Properties of breadth-first search • Assume there an average of b successors to each node, called the branching factor. • Complete? Yes (if b is finite) • Time? 1+b+b 2+b 3+… +bd + b(bd-1) = O(bd+1) • Space? O(bd+1) (keeps every node in memory) • Optimal? Yes (if cost = 1 per step) 25

Uniform-cost search • Expand least-cost unexpanded node • Like breadth-ﬁrst except always expand node of least cost instead of least depth (i. e. sort new queue by path cost). • Equivalent to breadth-first if step costs all equal • Do not recognize goal until it is the least cost node on the queue and 26 removed for goal testing.

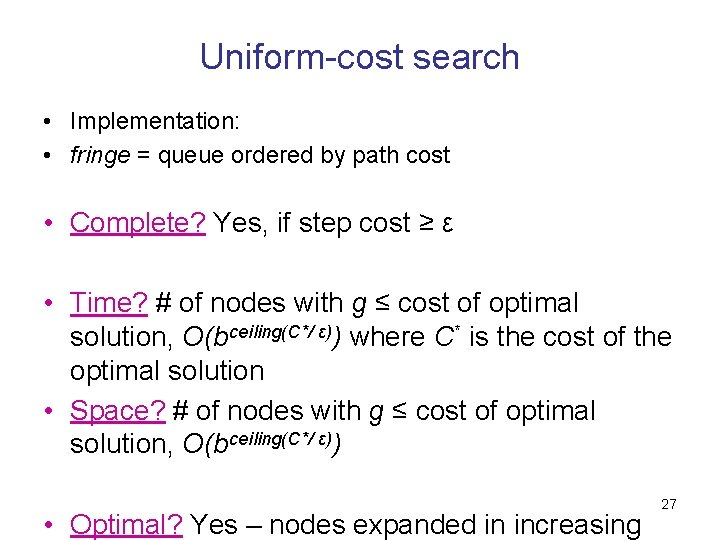

Uniform-cost search • Implementation: • fringe = queue ordered by path cost • Complete? Yes, if step cost ≥ ε • Time? # of nodes with g ≤ cost of optimal solution, O(bceiling(C*/ ε)) where C* is the cost of the optimal solution • Space? # of nodes with g ≤ cost of optimal solution, O(bceiling(C*/ ε)) • Optimal? Yes – nodes expanded in increasing 27

Depth-first search (DFS) • Expand deepest unexpanded node • Always expand node at deepest level of the tree, i. e. one of the most recently generated nodes. When hit a dead-end, backtrack to last choice. • Implementation: LIFO queue, i. e. , put new nodes to front of the queue 28

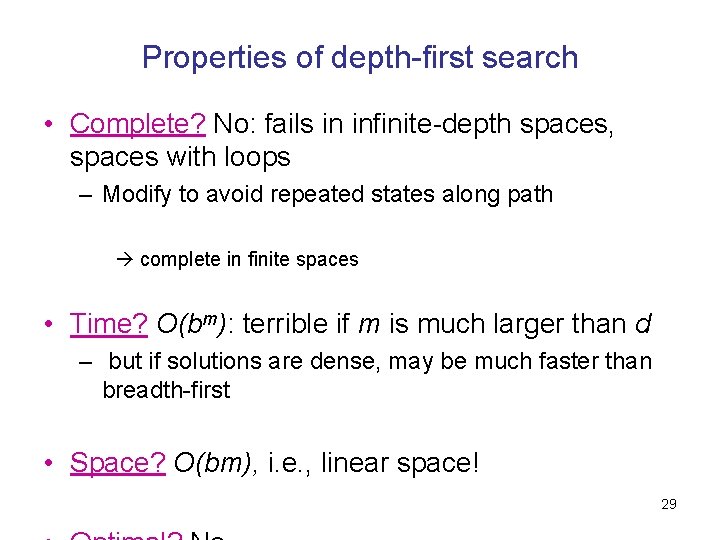

Properties of depth-first search • Complete? No: fails in infinite-depth spaces, spaces with loops – Modify to avoid repeated states along path complete in finite spaces • Time? O(bm): terrible if m is much larger than d – but if solutions are dense, may be much faster than breadth-first • Space? O(bm), i. e. , linear space! 29

Depth-limited search (DLS) = depth-first search with depth limit l, i. e. , nodes at depth l have no successors • Recursive implementation: Problem if l<d is chosen 30

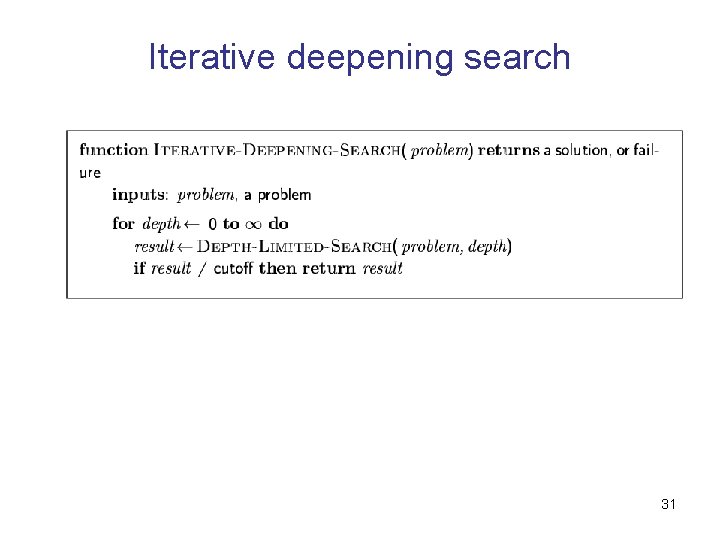

Iterative deepening search 31

Iterative deepening search l =0 32

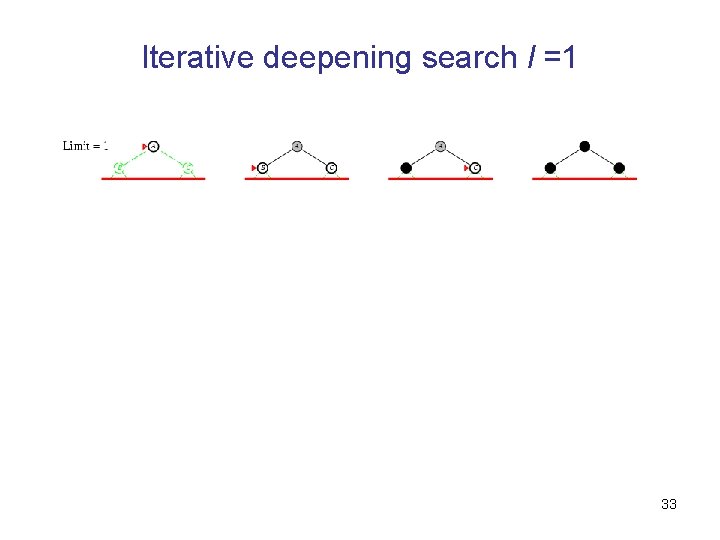

Iterative deepening search l =1 33

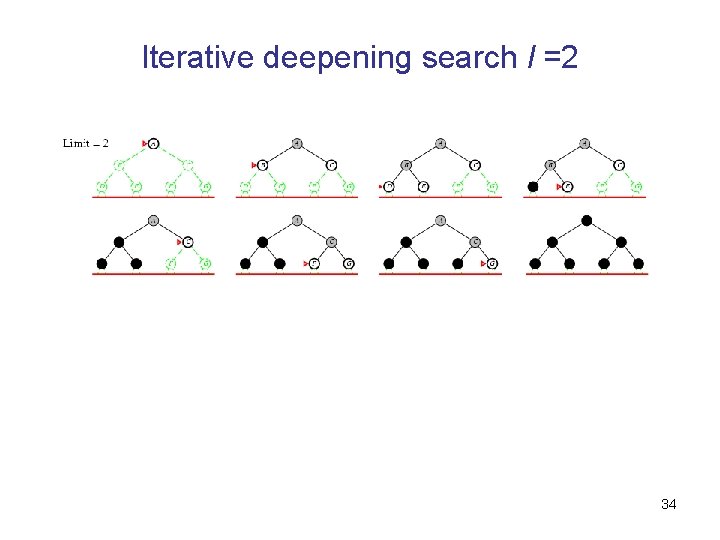

Iterative deepening search l =2 34

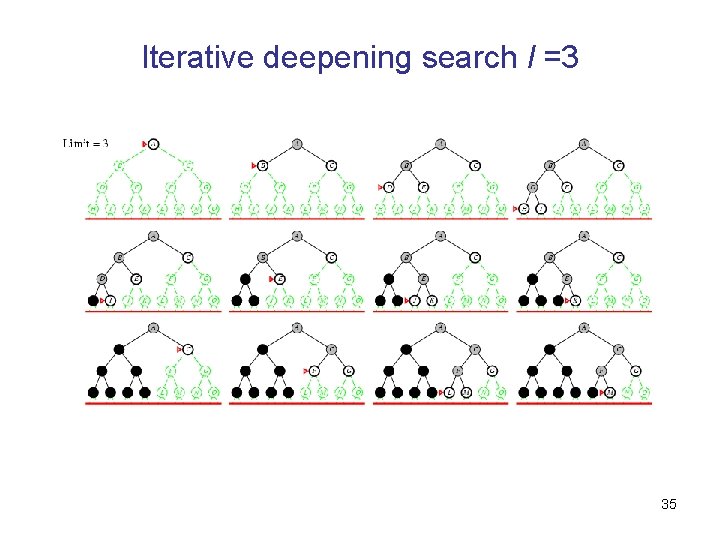

Iterative deepening search l =3 35

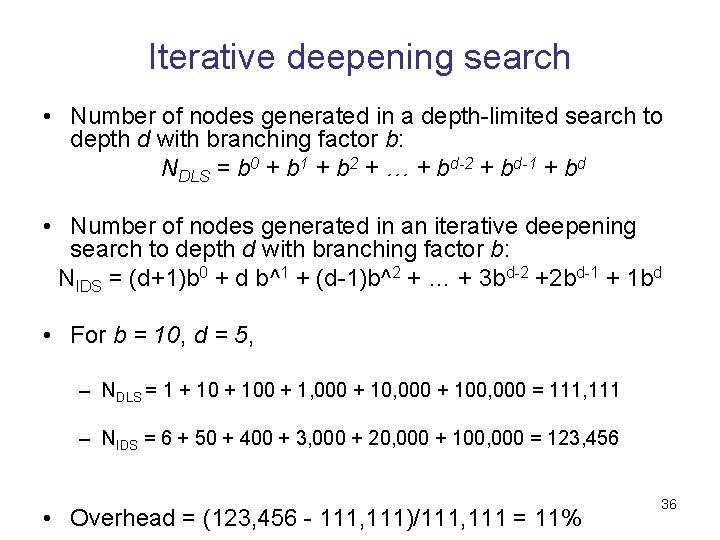

Iterative deepening search • Number of nodes generated in a depth-limited search to depth d with branching factor b: NDLS = b 0 + b 1 + b 2 + … + bd-2 + bd-1 + bd • Number of nodes generated in an iterative deepening search to depth d with branching factor b: NIDS = (d+1)b 0 + d b^1 + (d-1)b^2 + … + 3 bd-2 +2 bd-1 + 1 bd • For b = 10, d = 5, – NDLS = 1 + 100 + 1, 000 + 100, 000 = 111, 111 – NIDS = 6 + 50 + 400 + 3, 000 + 20, 000 + 100, 000 = 123, 456 • Overhead = (123, 456 - 111, 111)/111, 111 = 11% 36

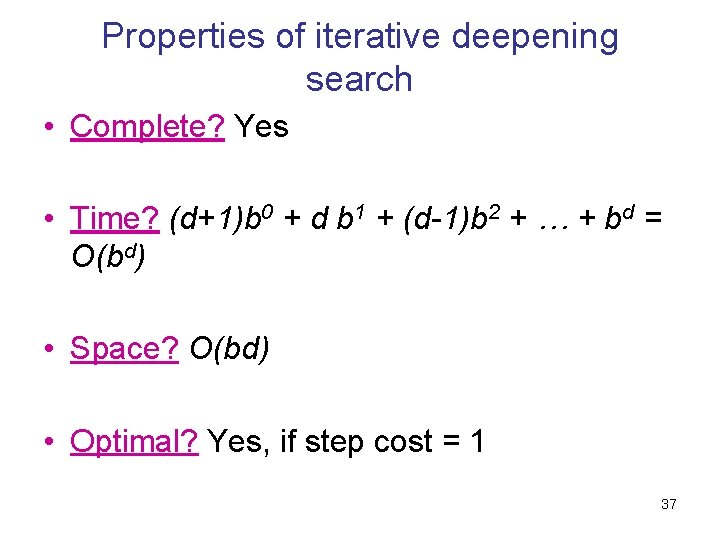

Properties of iterative deepening search • Complete? Yes • Time? (d+1)b 0 + d b 1 + (d-1)b 2 + … + bd = O(bd) • Space? O(bd) • Optimal? Yes, if step cost = 1 37

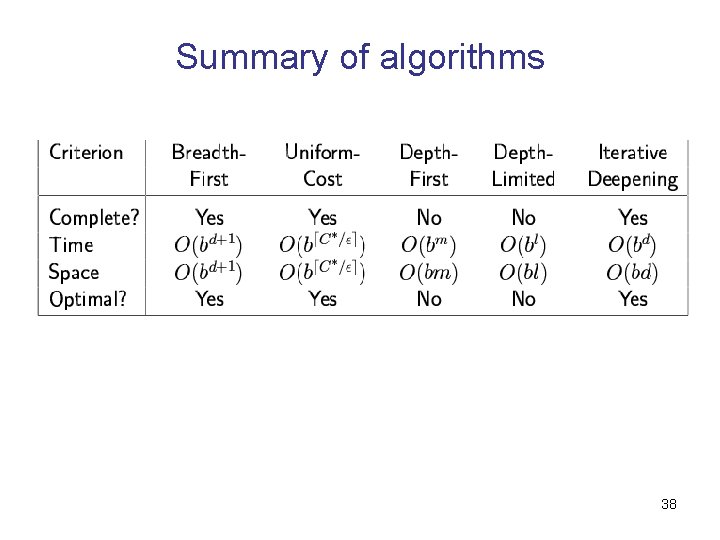

Summary of algorithms 38

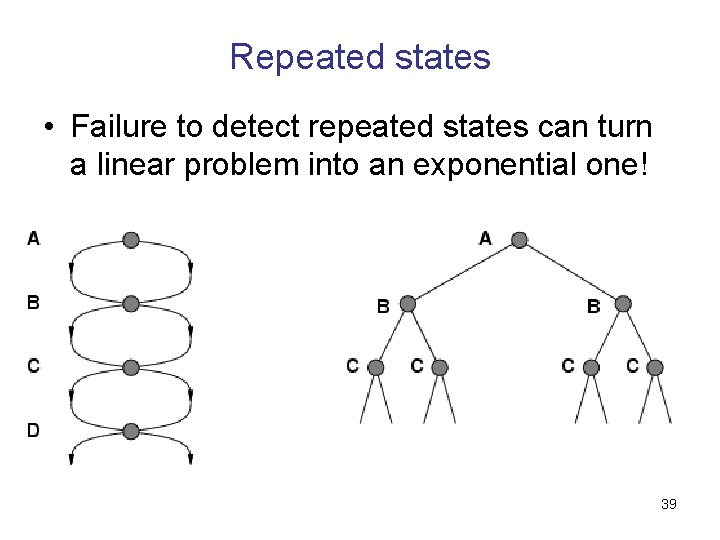

Repeated states • Failure to detect repeated states can turn a linear problem into an exponential one! 39

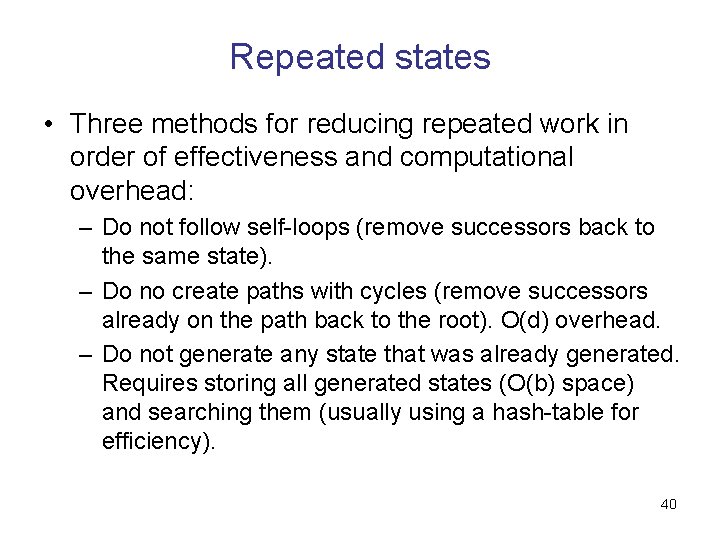

Repeated states • Three methods for reducing repeated work in order of effectiveness and computational overhead: – Do not follow self-loops (remove successors back to the same state). – Do no create paths with cycles (remove successors already on the path back to the root). O(d) overhead. – Do not generate any state that was already generated. Requires storing all generated states (O(b) space) and searching them (usually using a hash-table for efficiency). 40

Informed (Heuristic) Search

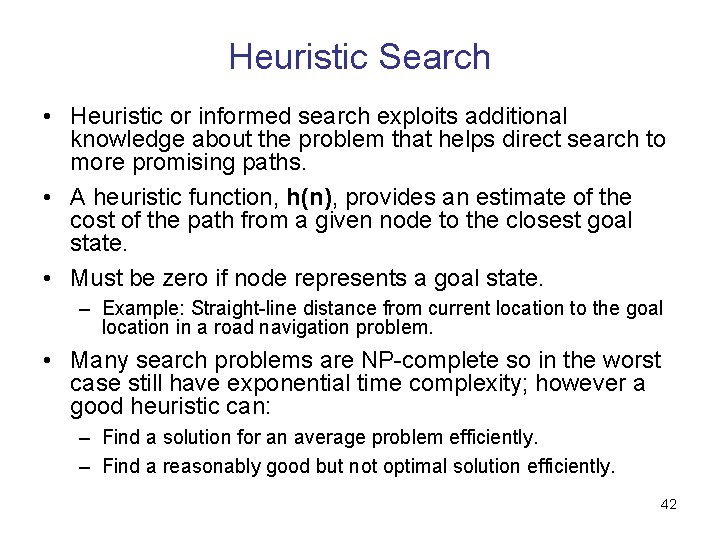

Heuristic Search • Heuristic or informed search exploits additional knowledge about the problem that helps direct search to more promising paths. • A heuristic function, h(n), provides an estimate of the cost of the path from a given node to the closest goal state. • Must be zero if node represents a goal state. – Example: Straight-line distance from current location to the goal location in a road navigation problem. • Many search problems are NP-complete so in the worst case still have exponential time complexity; however a good heuristic can: – Find a solution for an average problem efficiently. – Find a reasonably good but not optimal solution efficiently. 42

Best-first search • Idea: use an evaluation function f(n) for each node – estimate of "desirability" Expand most desirable unexpanded node Order the nodes in decreasing order of desirability • Special cases: – greedy best-first search – A* search 43

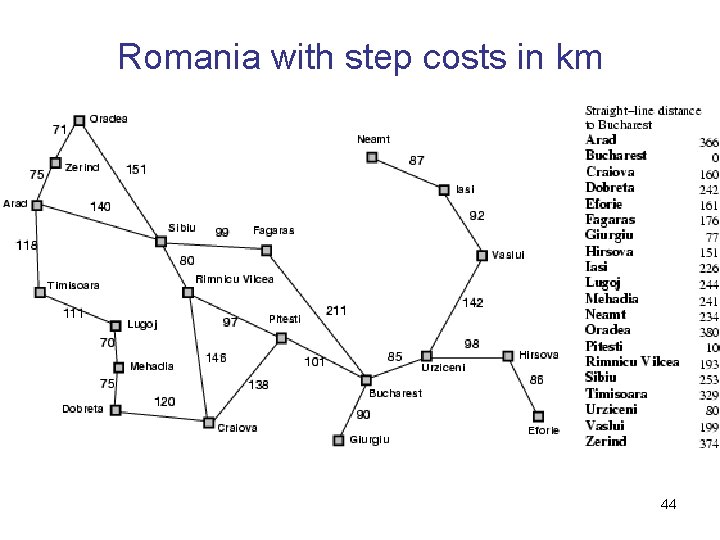

Romania with step costs in km 44

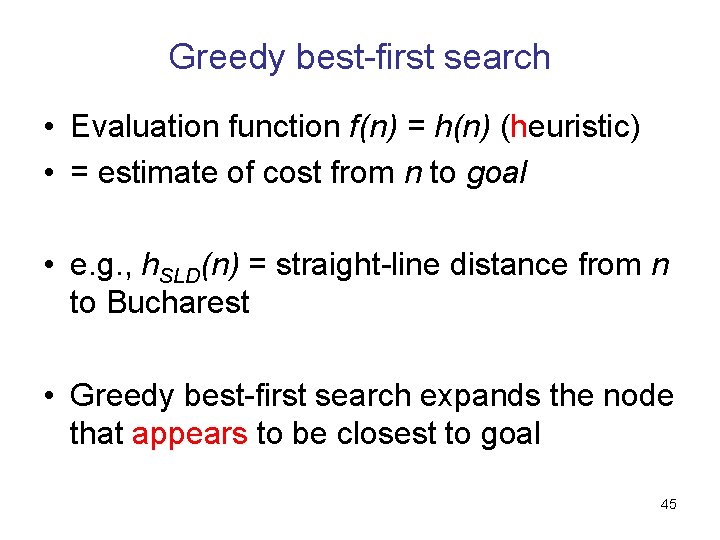

Greedy best-first search • Evaluation function f(n) = h(n) (heuristic) • = estimate of cost from n to goal • e. g. , h. SLD(n) = straight-line distance from n to Bucharest • Greedy best-first search expands the node that appears to be closest to goal 45

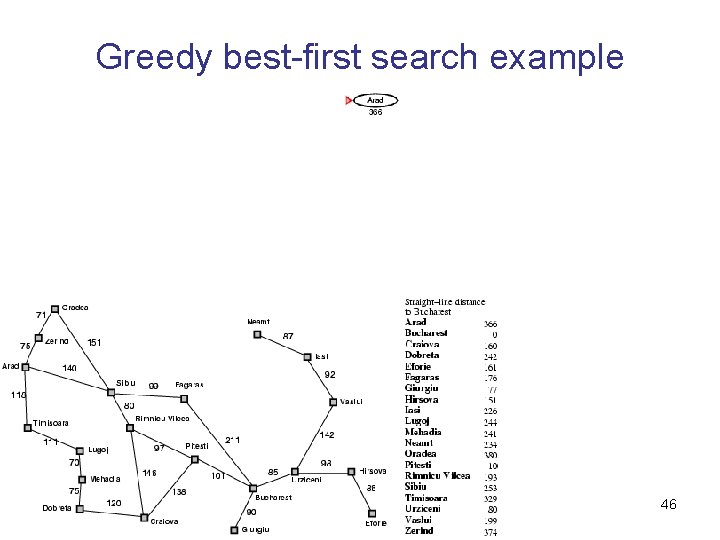

Greedy best-first search example 46

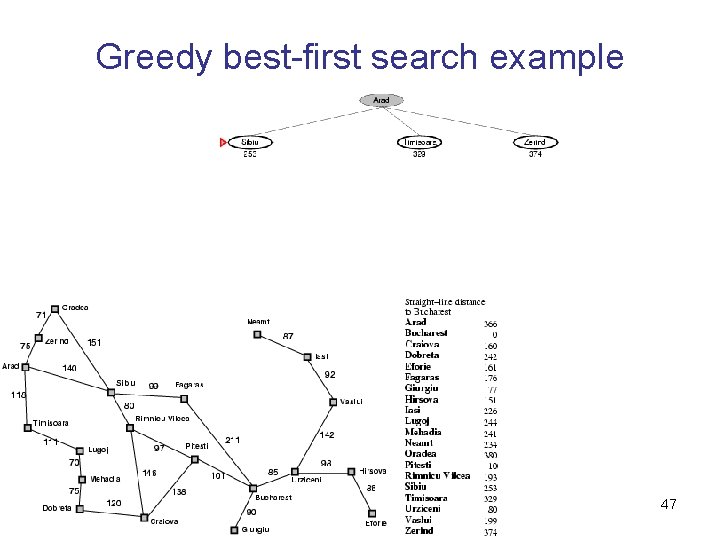

Greedy best-first search example 47

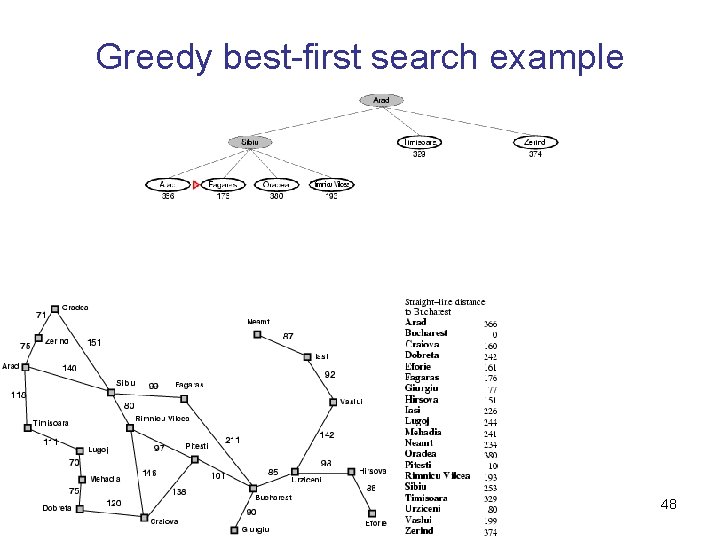

Greedy best-first search example 48

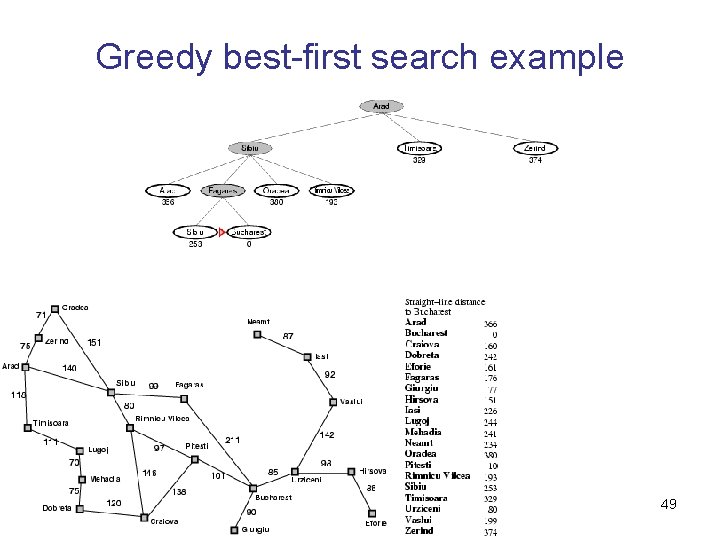

Greedy best-first search example 49

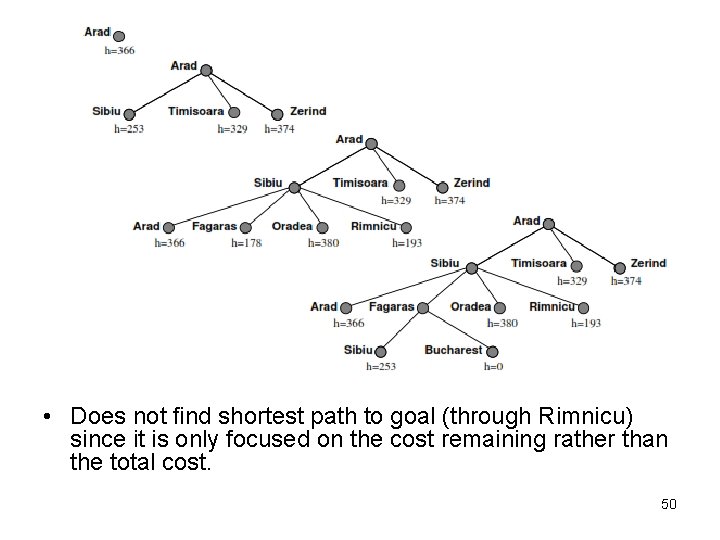

• Does not ﬁnd shortest path to goal (through Rimnicu) since it is only focused on the cost remaining rather than the total cost. 50

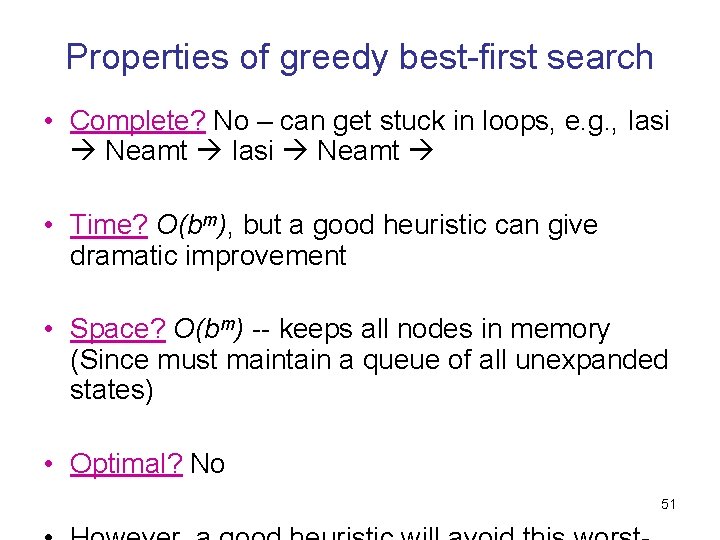

Properties of greedy best-first search • Complete? No – can get stuck in loops, e. g. , Iasi Neamt • Time? O(bm), but a good heuristic can give dramatic improvement • Space? O(bm) -- keeps all nodes in memory (Since must maintain a queue of all unexpanded states) • Optimal? No 51

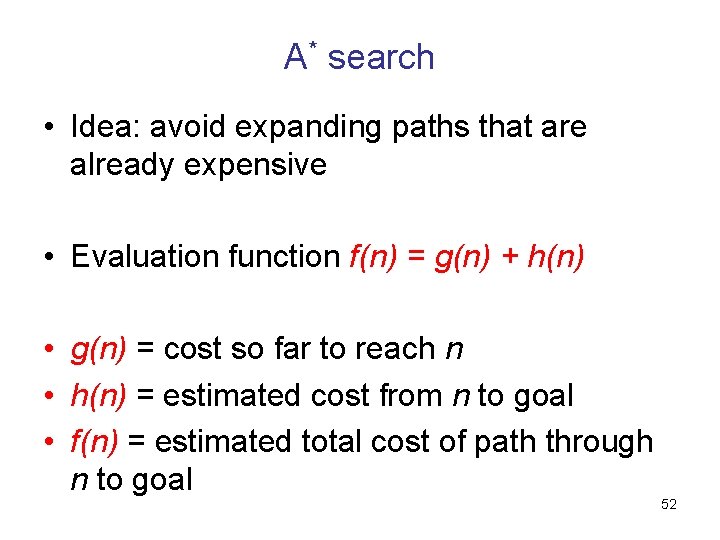

A* search • Idea: avoid expanding paths that are already expensive • Evaluation function f(n) = g(n) + h(n) • g(n) = cost so far to reach n • h(n) = estimated cost from n to goal • f(n) = estimated total cost of path through n to goal 52

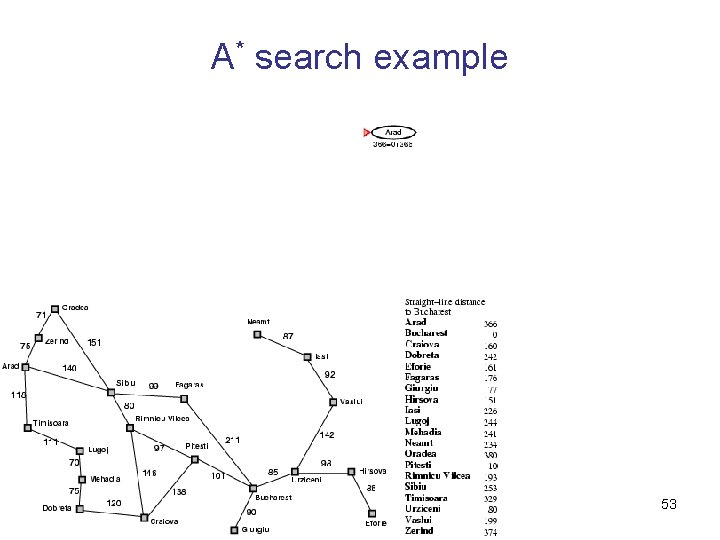

A* search example 53

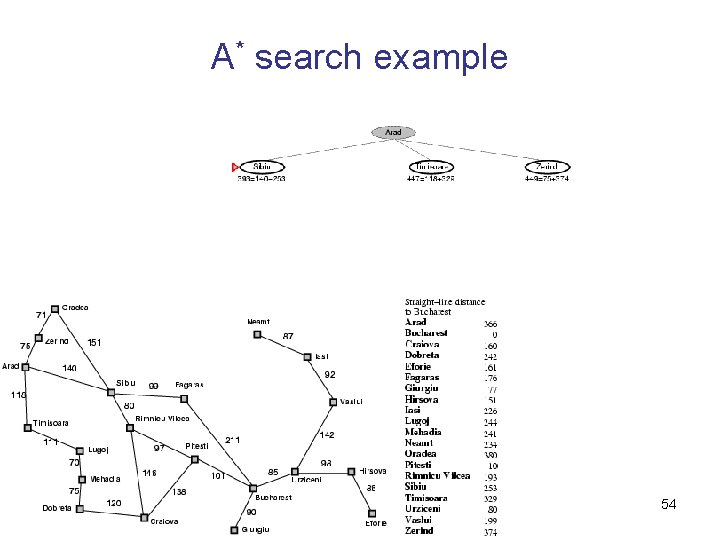

A* search example 54

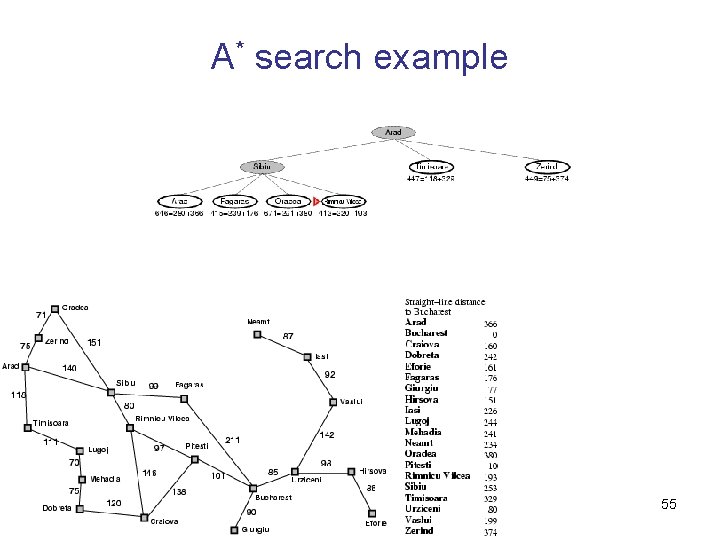

A* search example 55

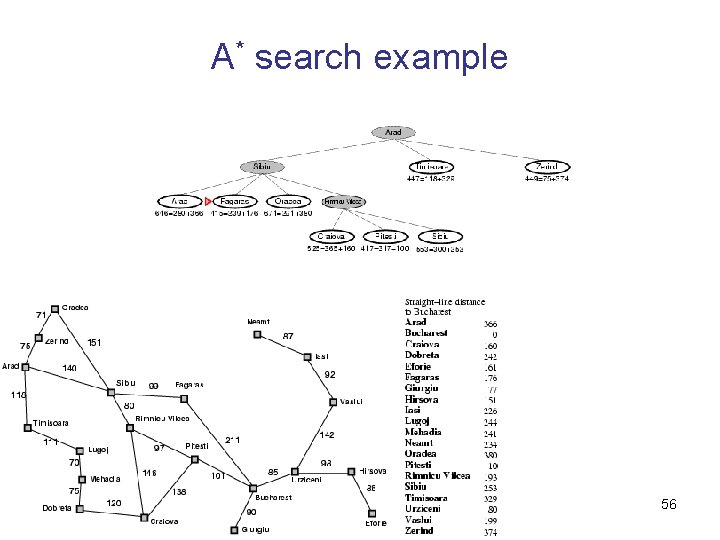

A* search example 56

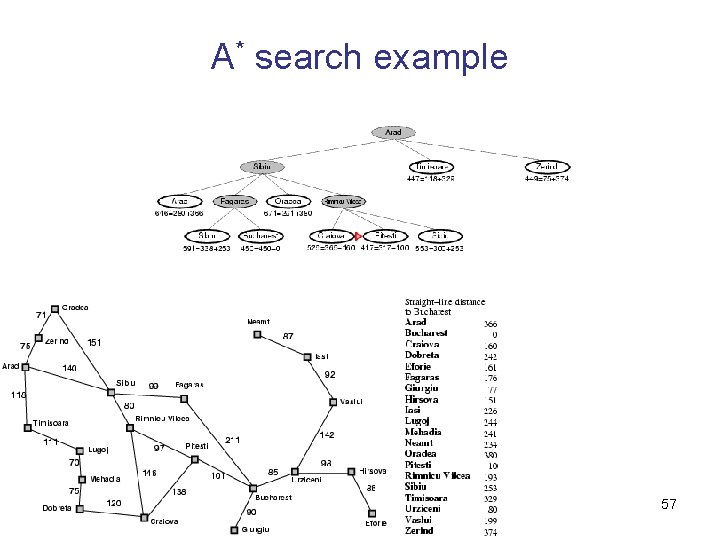

A* search example 57

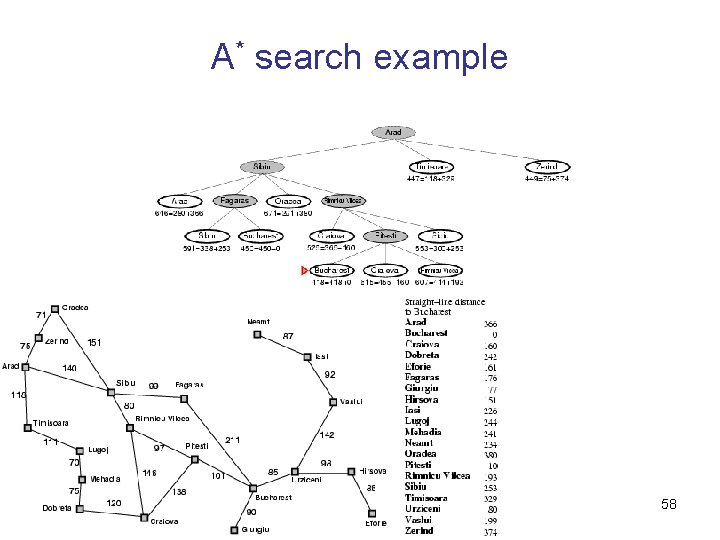

A* search example 58

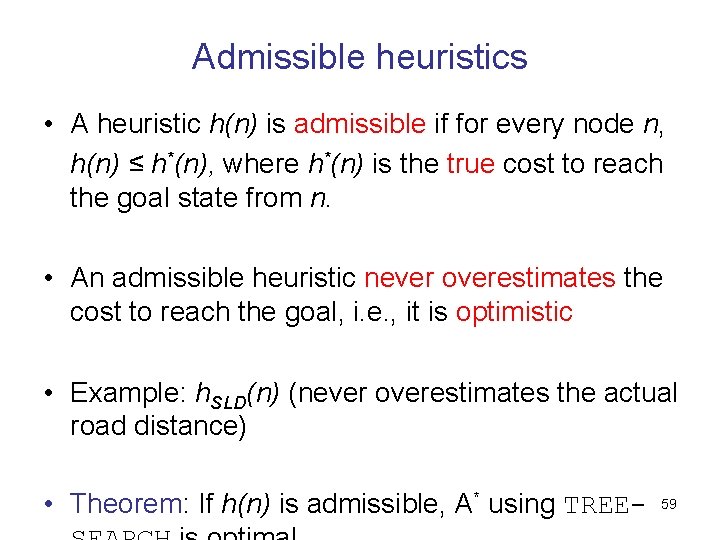

Admissible heuristics • A heuristic h(n) is admissible if for every node n, h(n) ≤ h*(n), where h*(n) is the true cost to reach the goal state from n. • An admissible heuristic never overestimates the cost to reach the goal, i. e. , it is optimistic • Example: h. SLD(n) (never overestimates the actual road distance) • Theorem: If h(n) is admissible, A* using TREE- 59

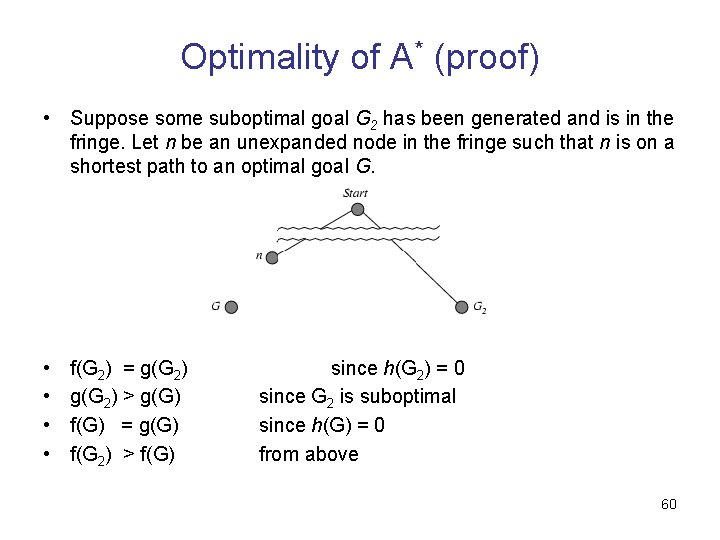

Optimality of A* (proof) • Suppose some suboptimal goal G 2 has been generated and is in the fringe. Let n be an unexpanded node in the fringe such that n is on a shortest path to an optimal goal G. • • f(G 2) = g(G 2) > g(G) f(G) = g(G) f(G 2) > f(G) since h(G 2) = 0 since G 2 is suboptimal since h(G) = 0 from above 60

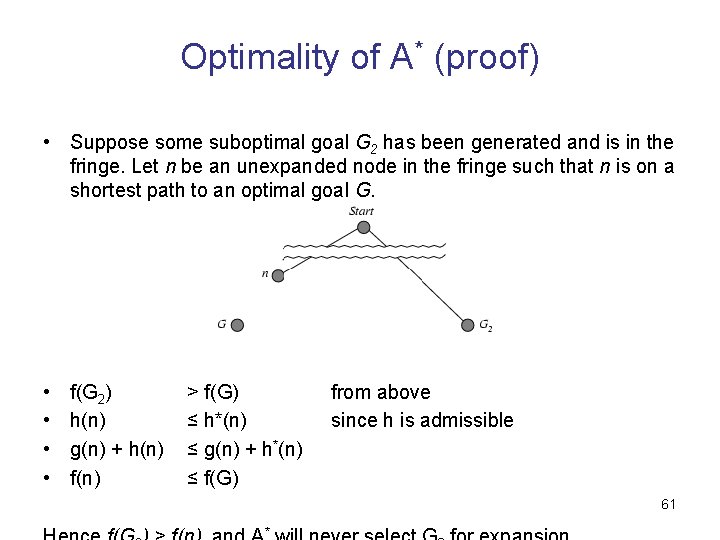

Optimality of A* (proof) • Suppose some suboptimal goal G 2 has been generated and is in the fringe. Let n be an unexpanded node in the fringe such that n is on a shortest path to an optimal goal G. • • f(G 2) h(n) g(n) + h(n) f(n) > f(G) ≤ h*(n) ≤ g(n) + h*(n) ≤ f(G) from above since h is admissible 61 *

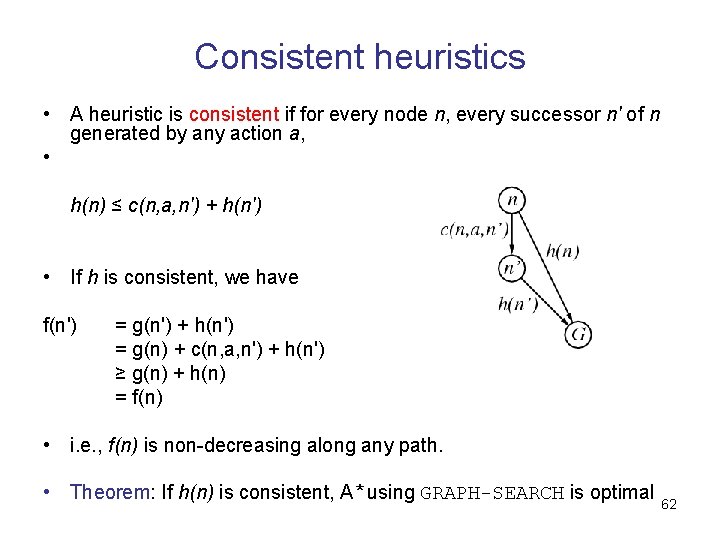

Consistent heuristics • A heuristic is consistent if for every node n, every successor n' of n generated by any action a, • h(n) ≤ c(n, a, n') + h(n') • If h is consistent, we have f(n') = g(n') + h(n') = g(n) + c(n, a, n') + h(n') ≥ g(n) + h(n) = f(n) • i. e. , f(n) is non-decreasing along any path. • Theorem: If h(n) is consistent, A* using GRAPH-SEARCH is optimal 62

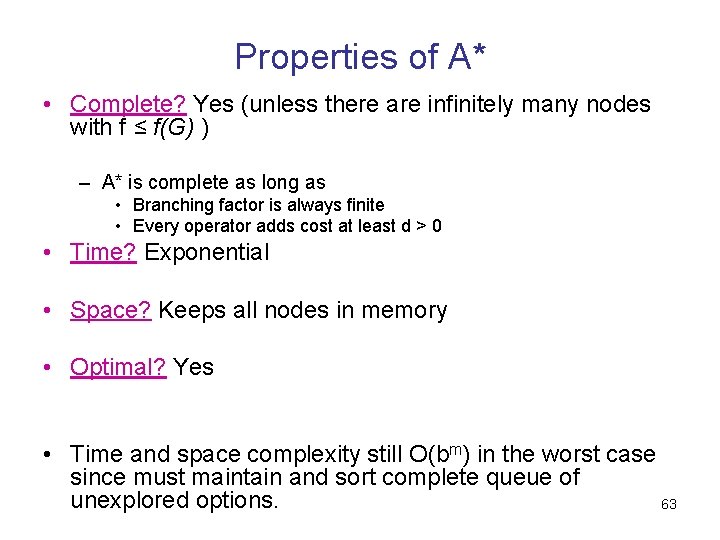

Properties of A* • Complete? Yes (unless there are infinitely many nodes with f ≤ f(G) ) – A* is complete as long as • Branching factor is always ﬁnite • Every operator adds cost at least d > 0 • Time? Exponential • Space? Keeps all nodes in memory • Optimal? Yes • Time and space complexity still O(bm) in the worst case since must maintain and sort complete queue of unexplored options. 63

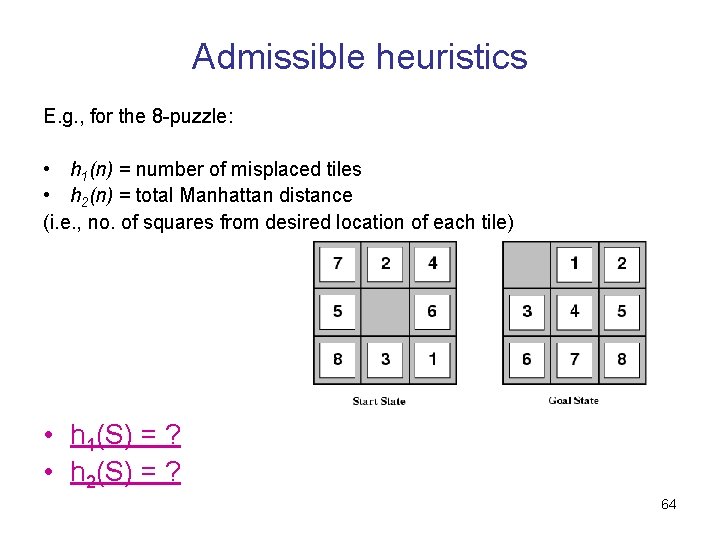

Admissible heuristics E. g. , for the 8 -puzzle: • h 1(n) = number of misplaced tiles • h 2(n) = total Manhattan distance (i. e. , no. of squares from desired location of each tile) • h 1(S) = ? • h 2(S) = ? 64

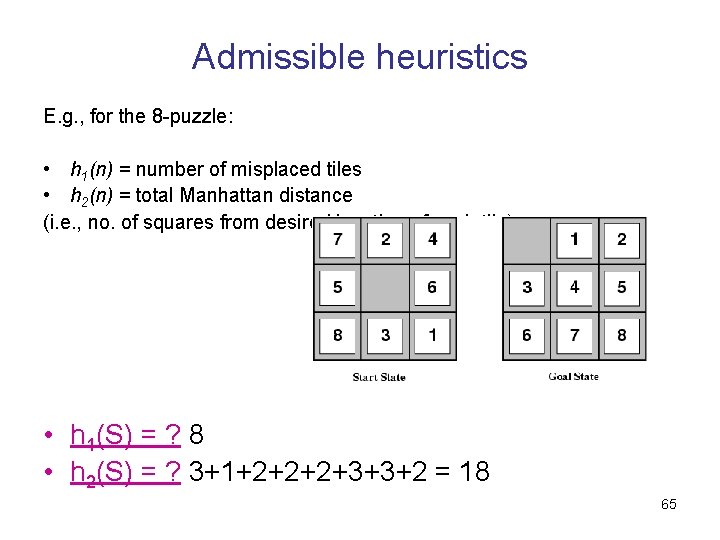

Admissible heuristics E. g. , for the 8 -puzzle: • h 1(n) = number of misplaced tiles • h 2(n) = total Manhattan distance (i. e. , no. of squares from desired location of each tile) • h 1(S) = ? 8 • h 2(S) = ? 3+1+2+2+2+3+3+2 = 18 65

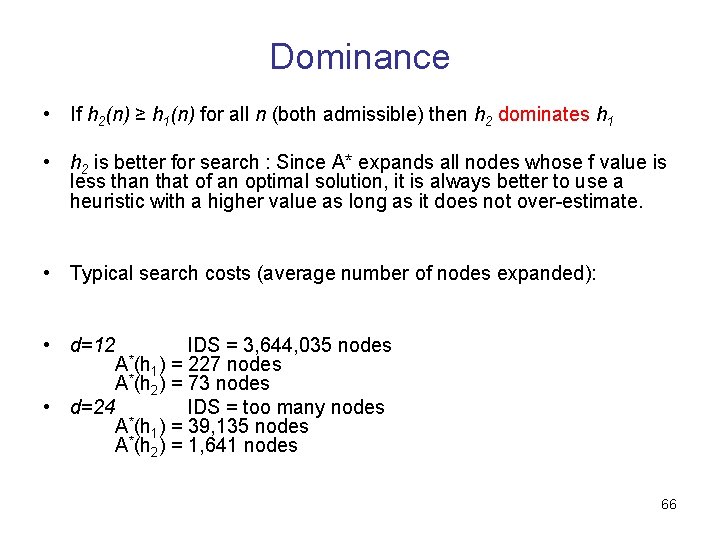

Dominance • If h 2(n) ≥ h 1(n) for all n (both admissible) then h 2 dominates h 1 • h 2 is better for search : Since A* expands all nodes whose f value is less than that of an optimal solution, it is always better to use a heuristic with a higher value as long as it does not over-estimate. • Typical search costs (average number of nodes expanded): • d=12 IDS = 3, 644, 035 nodes A*(h 1) = 227 nodes A*(h 2) = 73 nodes • d=24 IDS = too many nodes * A (h 1) = 39, 135 nodes A*(h 2) = 1, 641 nodes 66

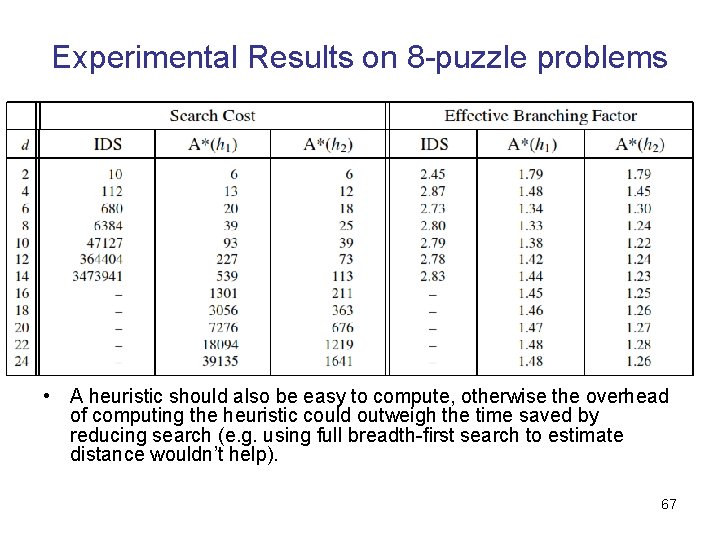

Experimental Results on 8 -puzzle problems • A heuristic should also be easy to compute, otherwise the overhead of computing the heuristic could outweigh the time saved by reducing search (e. g. using full breadth-ﬁrst search to estimate distance wouldn’t help). 67

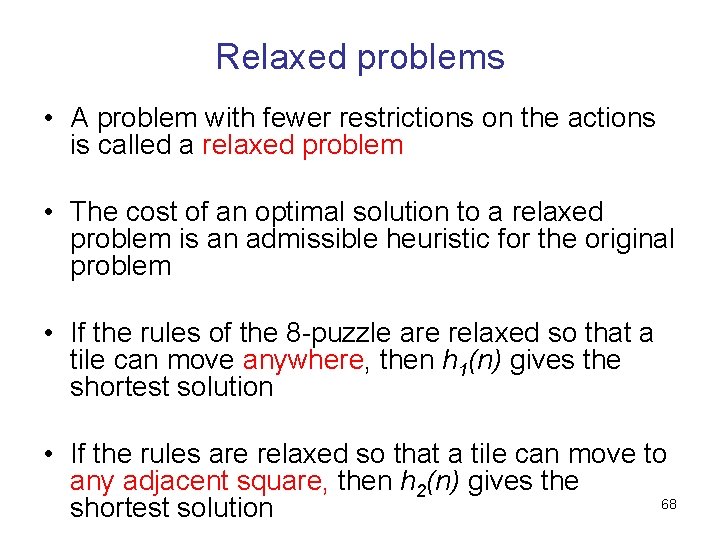

Relaxed problems • A problem with fewer restrictions on the actions is called a relaxed problem • The cost of an optimal solution to a relaxed problem is an admissible heuristic for the original problem • If the rules of the 8 -puzzle are relaxed so that a tile can move anywhere, then h 1(n) gives the shortest solution • If the rules are relaxed so that a tile can move to any adjacent square, then h 2(n) gives the 68 shortest solution

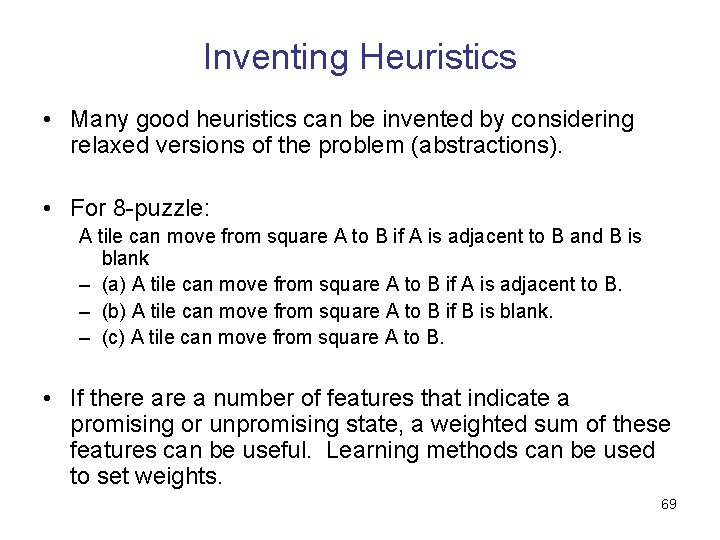

Inventing Heuristics • Many good heuristics can be invented by considering relaxed versions of the problem (abstractions). • For 8 -puzzle: A tile can move from square A to B if A is adjacent to B and B is blank – (a) A tile can move from square A to B if A is adjacent to B. – (b) A tile can move from square A to B if B is blank. – (c) A tile can move from square A to B. • If there a number of features that indicate a promising or unpromising state, a weighted sum of these features can be useful. Learning methods can be used to set weights. 69

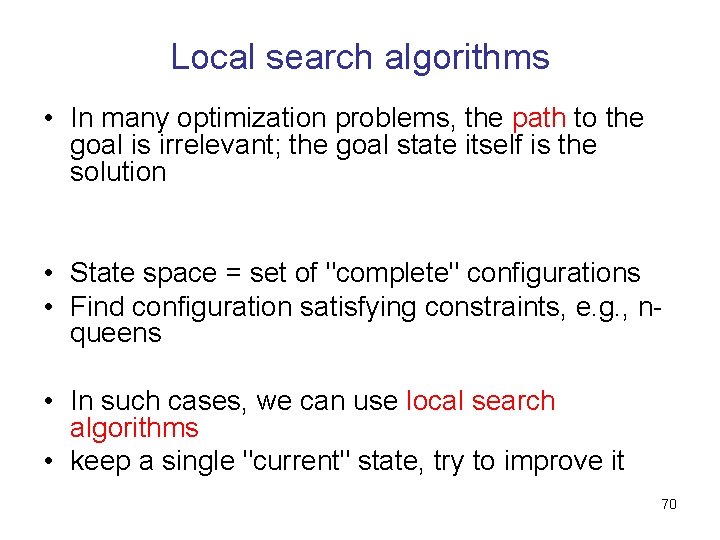

Local search algorithms • In many optimization problems, the path to the goal is irrelevant; the goal state itself is the solution • State space = set of "complete" configurations • Find configuration satisfying constraints, e. g. , nqueens • In such cases, we can use local search algorithms • keep a single "current" state, try to improve it 70

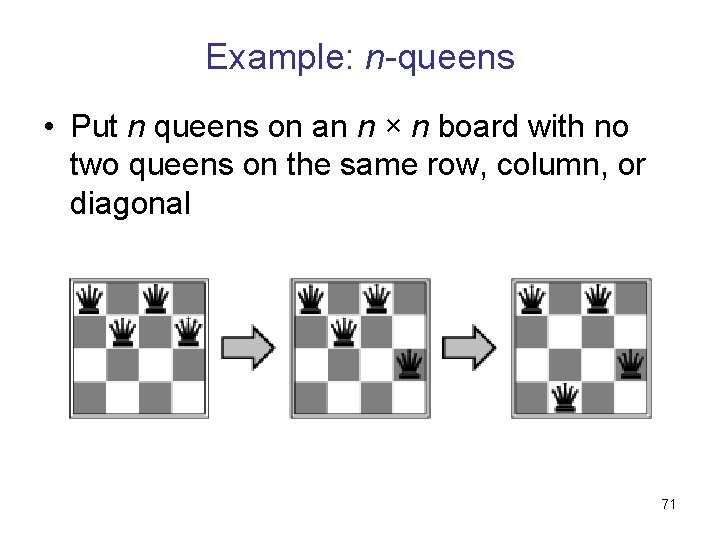

Example: n-queens • Put n queens on an n × n board with no two queens on the same row, column, or diagonal 71

Extra slides

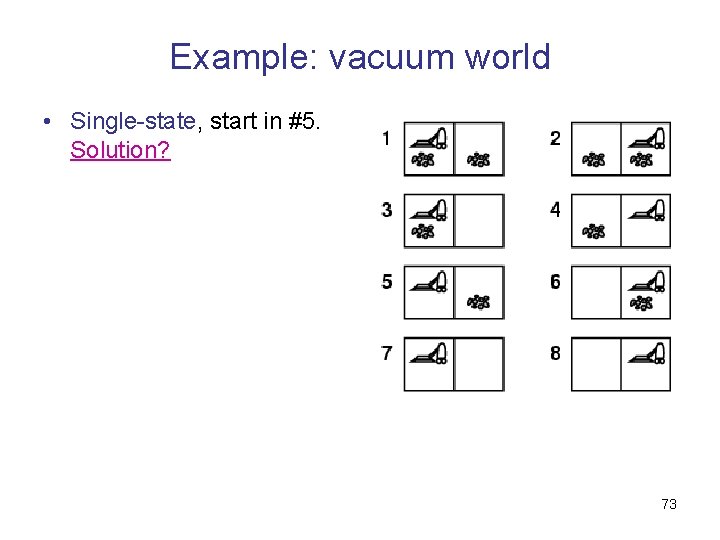

Example: vacuum world • Single-state, start in #5. Solution? 73

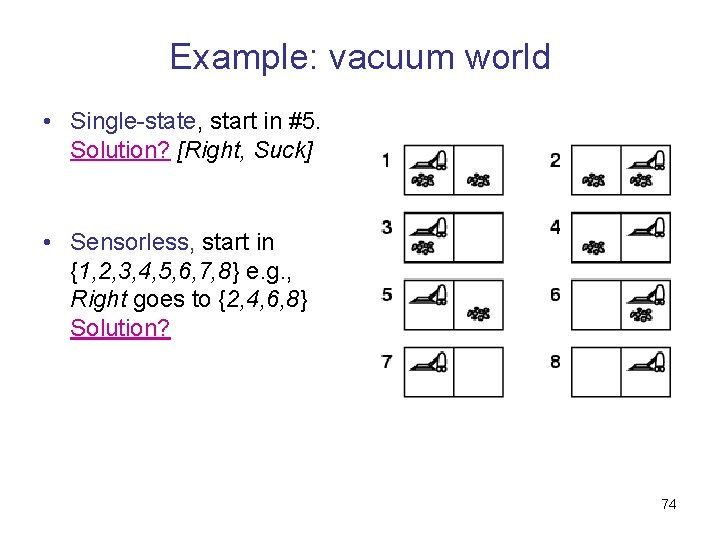

Example: vacuum world • Single-state, start in #5. Solution? [Right, Suck] • Sensorless, start in {1, 2, 3, 4, 5, 6, 7, 8} e. g. , Right goes to {2, 4, 6, 8} Solution? 74

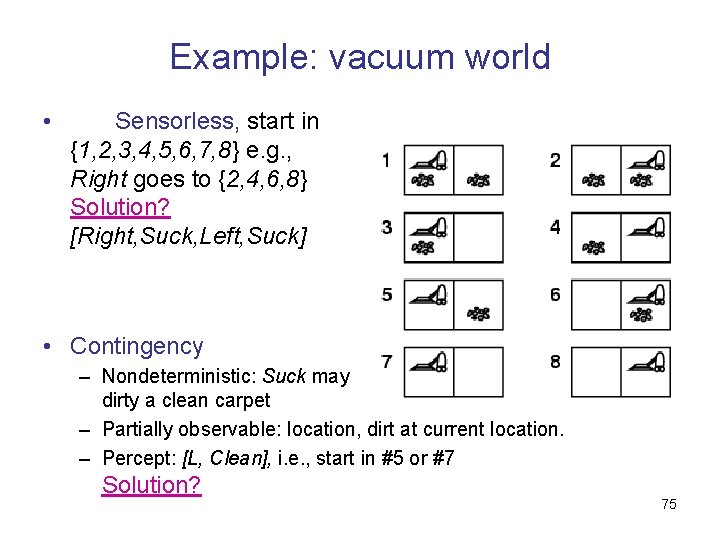

Example: vacuum world • Sensorless, start in {1, 2, 3, 4, 5, 6, 7, 8} e. g. , Right goes to {2, 4, 6, 8} Solution? [Right, Suck, Left, Suck] • Contingency – Nondeterministic: Suck may dirty a clean carpet – Partially observable: location, dirt at current location. – Percept: [L, Clean], i. e. , start in #5 or #7 Solution? 75

Example: vacuum world • Sensorless, start in {1, 2, 3, 4, 5, 6, 7, 8} e. g. , Right goes to {2, 4, 6, 8} Solution? [Right, Suck, Left, Suck] • Contingency – Nondeterministic: Suck may dirty a clean carpet – Partially observable: location, dirt at current location. – Percept: [L, Clean], i. e. , start in #5 or #7 Solution? [Right, if dirt then Suck] 76

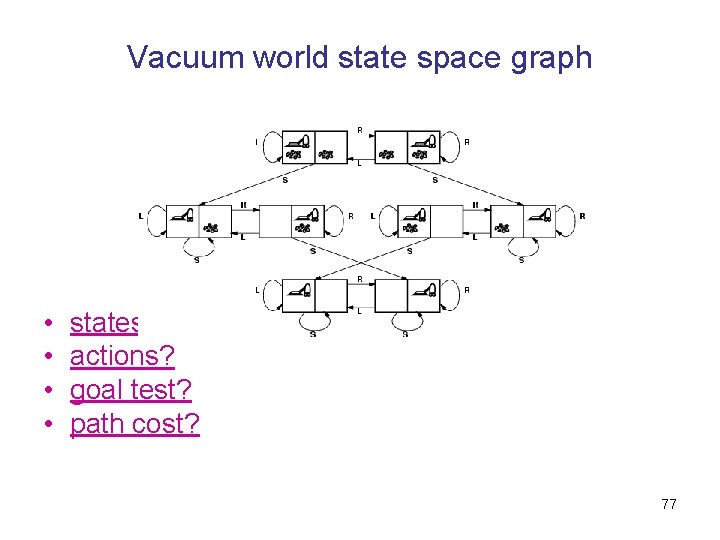

Vacuum world state space graph • • states? actions? goal test? path cost? 77

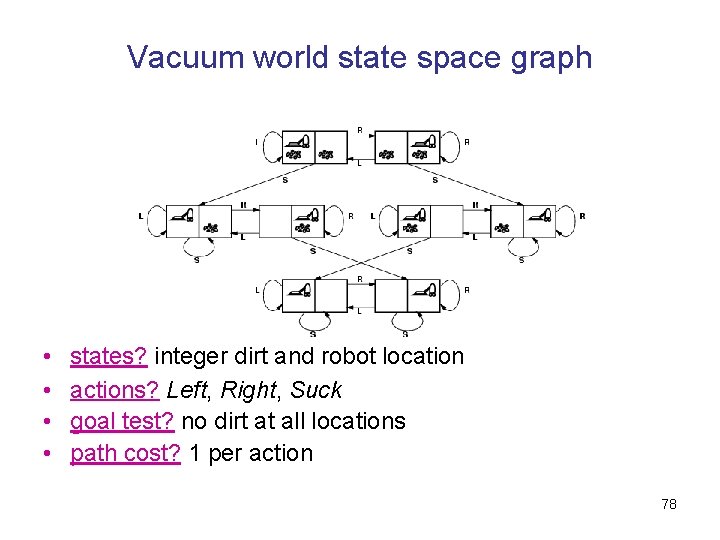

Vacuum world state space graph • • states? integer dirt and robot location actions? Left, Right, Suck goal test? no dirt at all locations path cost? 1 per action 78

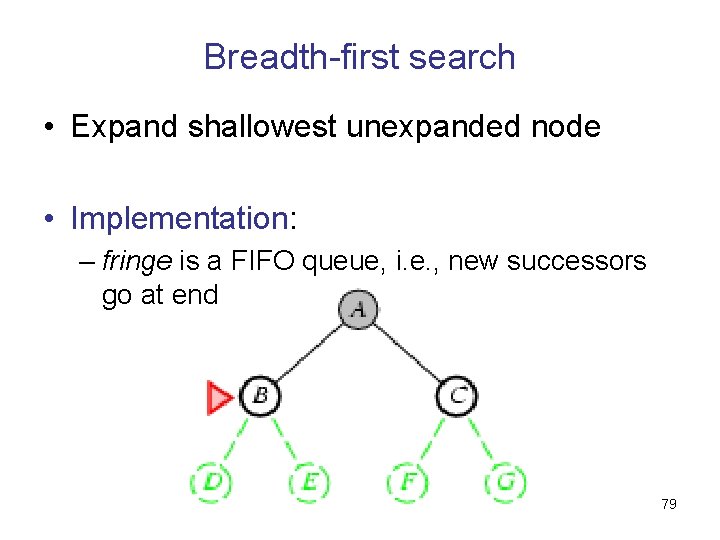

Breadth-first search • Expand shallowest unexpanded node • Implementation: – fringe is a FIFO queue, i. e. , new successors go at end 79

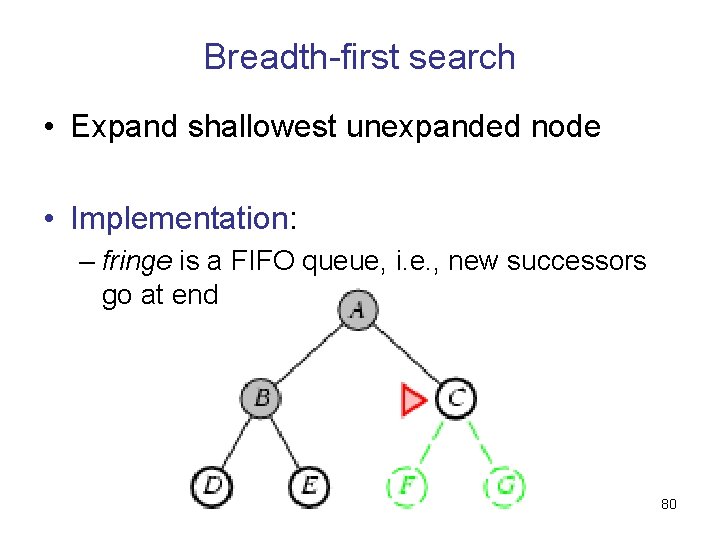

Breadth-first search • Expand shallowest unexpanded node • Implementation: – fringe is a FIFO queue, i. e. , new successors go at end 80

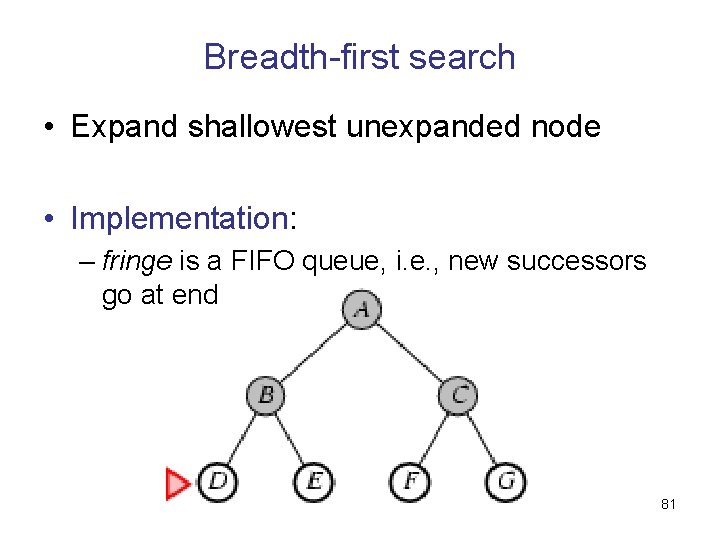

Breadth-first search • Expand shallowest unexpanded node • Implementation: – fringe is a FIFO queue, i. e. , new successors go at end 81

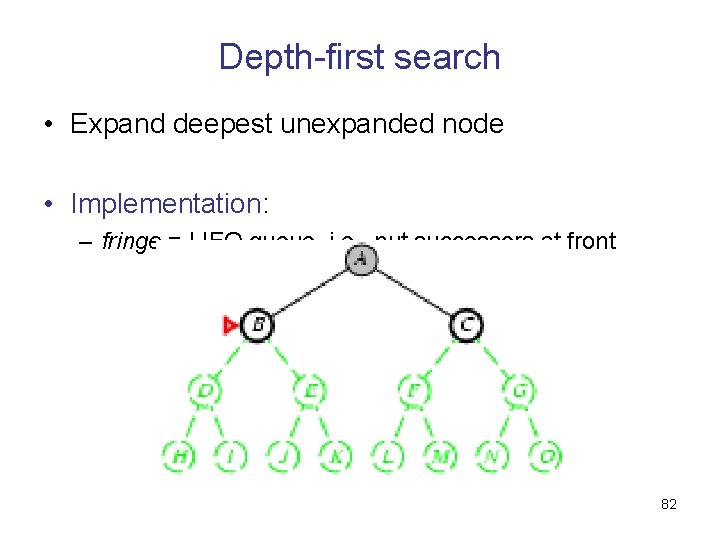

Depth-first search • Expand deepest unexpanded node • Implementation: – fringe = LIFO queue, i. e. , put successors at front 82

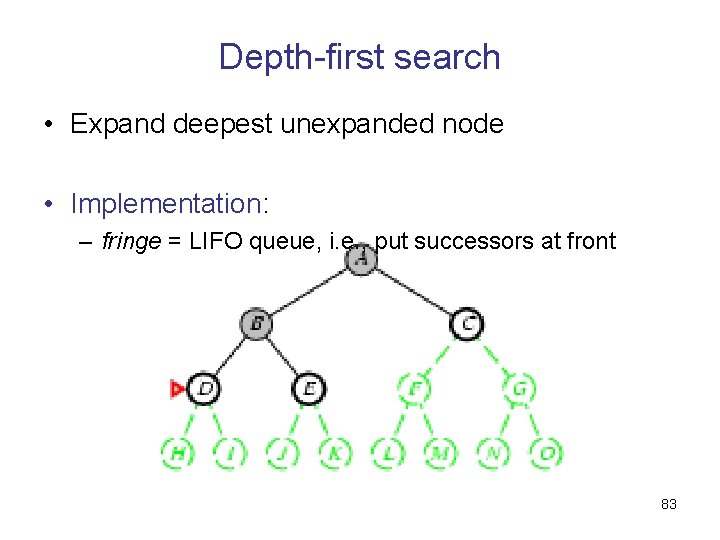

Depth-first search • Expand deepest unexpanded node • Implementation: – fringe = LIFO queue, i. e. , put successors at front 83

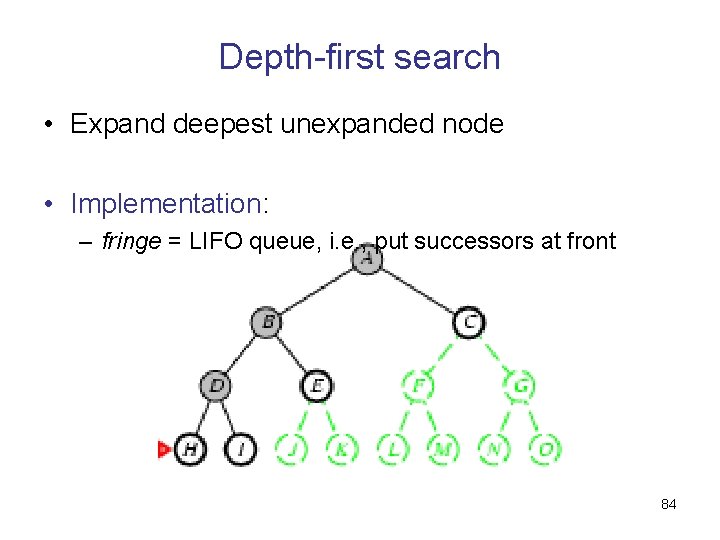

Depth-first search • Expand deepest unexpanded node • Implementation: – fringe = LIFO queue, i. e. , put successors at front 84

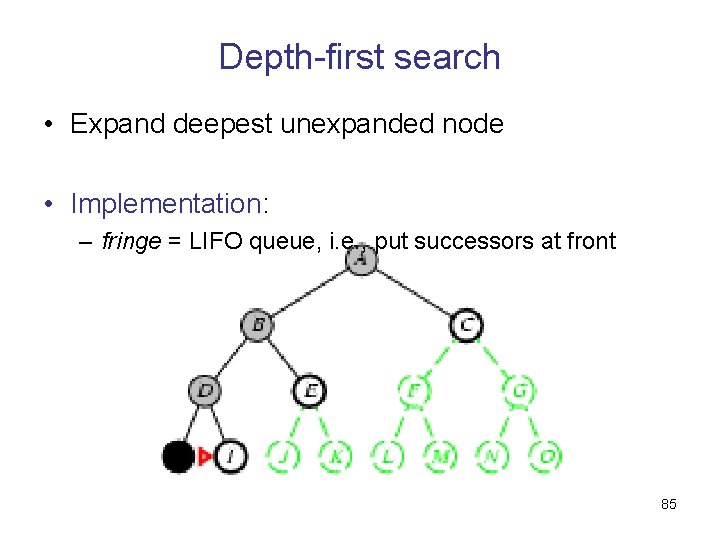

Depth-first search • Expand deepest unexpanded node • Implementation: – fringe = LIFO queue, i. e. , put successors at front 85

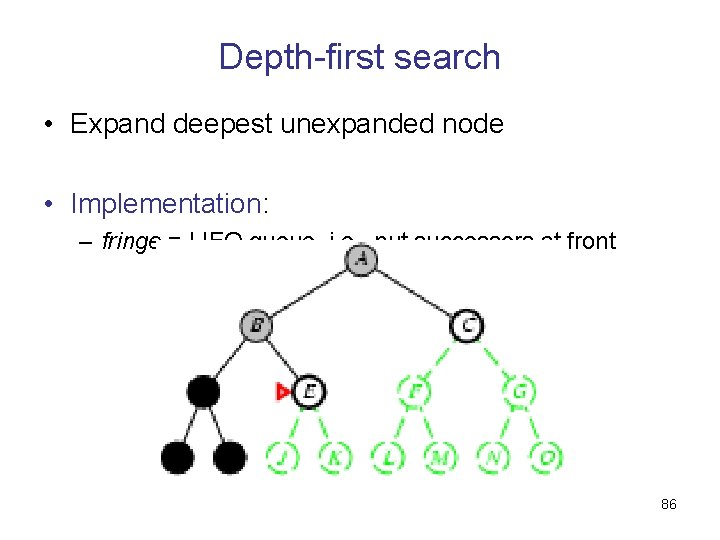

Depth-first search • Expand deepest unexpanded node • Implementation: – fringe = LIFO queue, i. e. , put successors at front 86

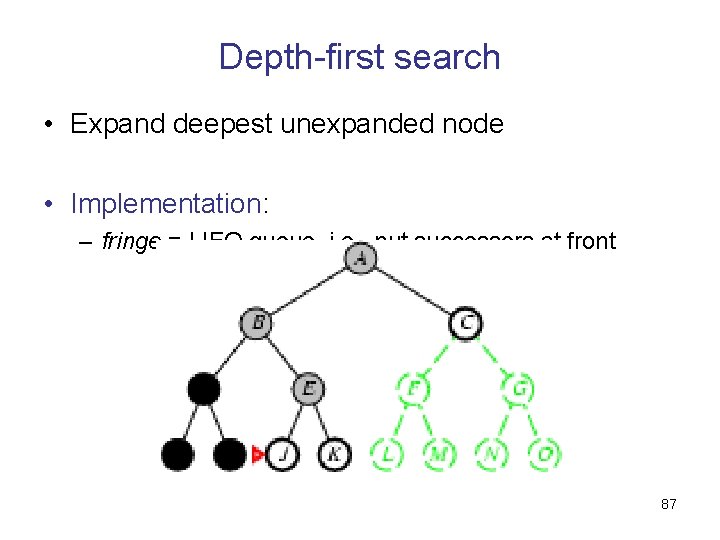

Depth-first search • Expand deepest unexpanded node • Implementation: – fringe = LIFO queue, i. e. , put successors at front 87

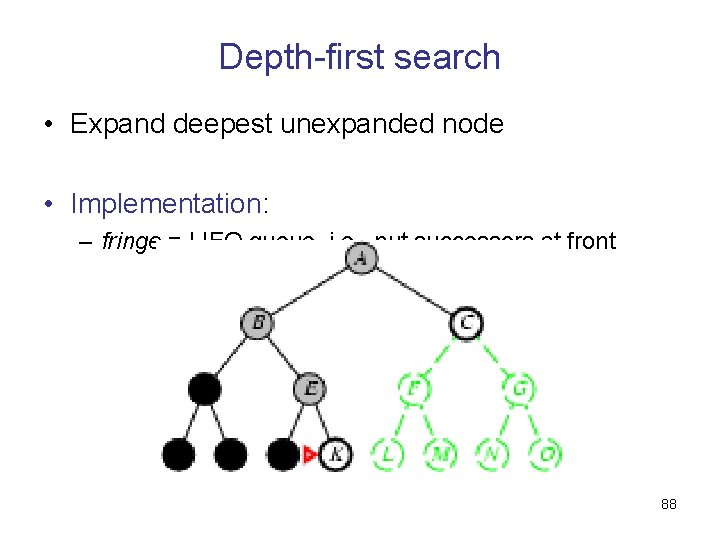

Depth-first search • Expand deepest unexpanded node • Implementation: – fringe = LIFO queue, i. e. , put successors at front 88

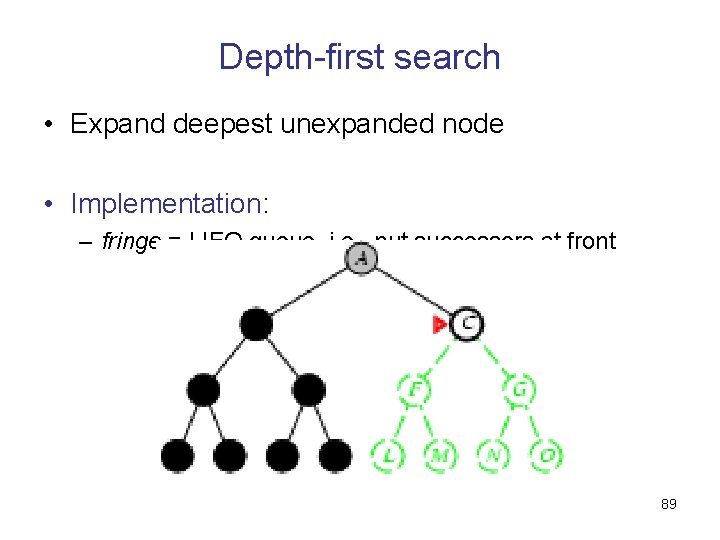

Depth-first search • Expand deepest unexpanded node • Implementation: – fringe = LIFO queue, i. e. , put successors at front 89

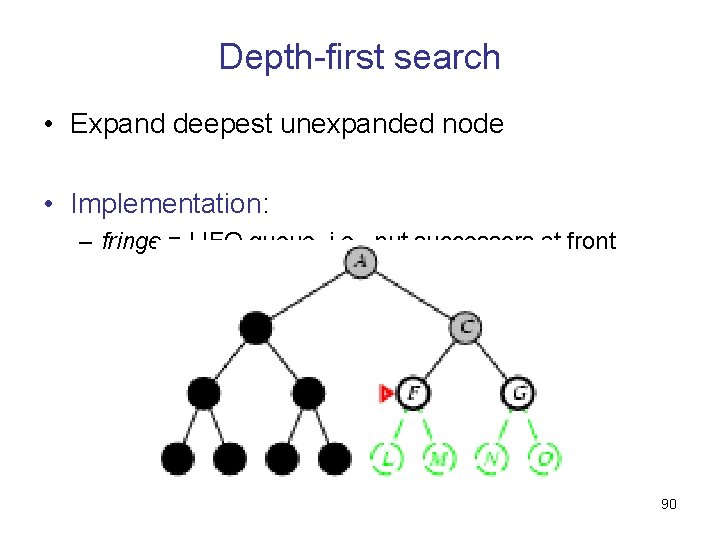

Depth-first search • Expand deepest unexpanded node • Implementation: – fringe = LIFO queue, i. e. , put successors at front 90

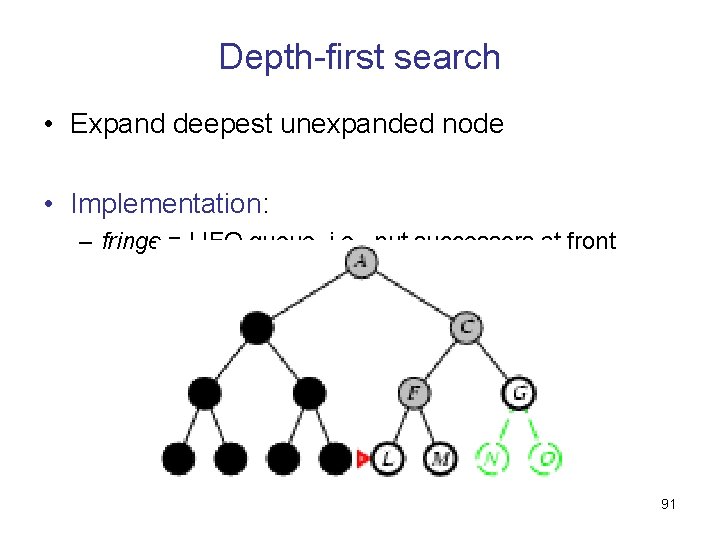

Depth-first search • Expand deepest unexpanded node • Implementation: – fringe = LIFO queue, i. e. , put successors at front 91

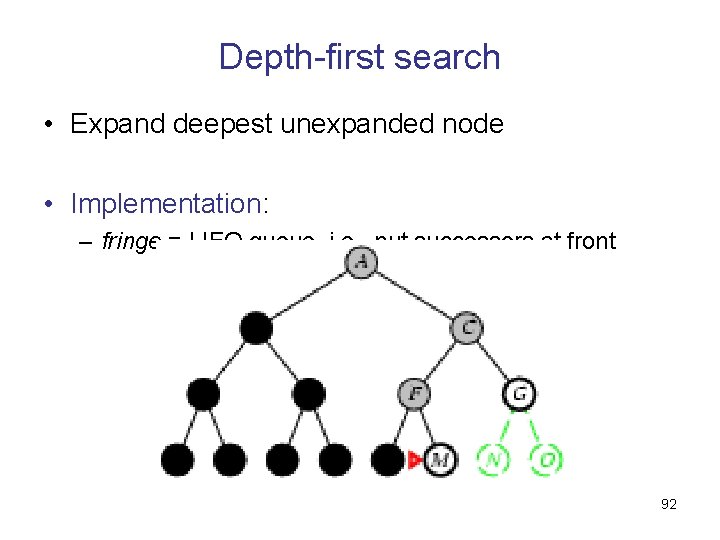

Depth-first search • Expand deepest unexpanded node • Implementation: – fringe = LIFO queue, i. e. , put successors at front 92

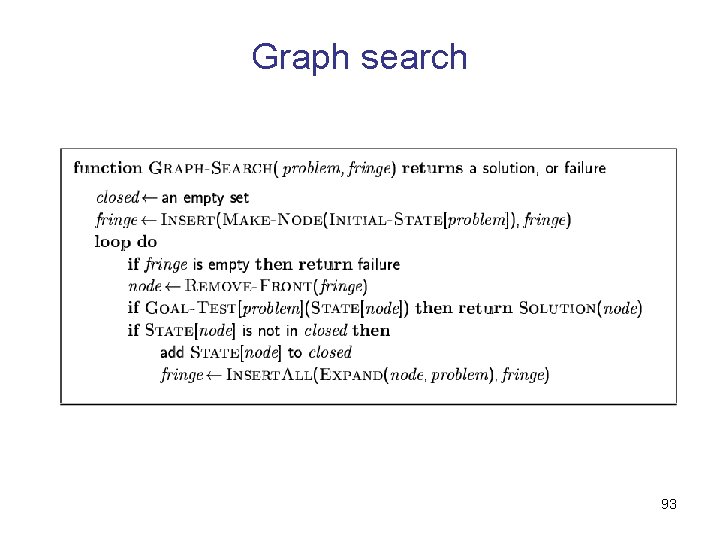

Graph search 93

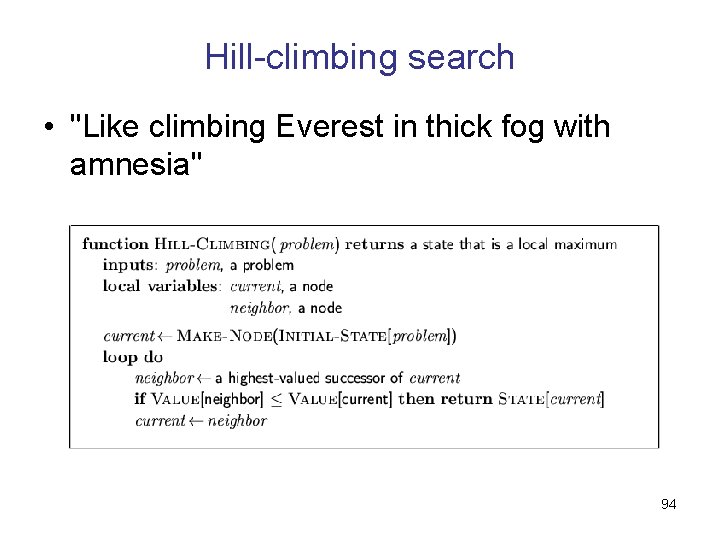

Hill-climbing search • "Like climbing Everest in thick fog with amnesia" 94

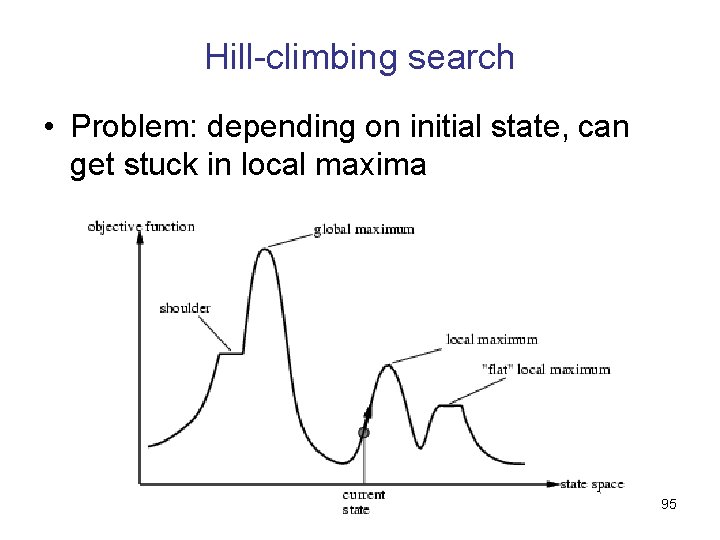

Hill-climbing search • Problem: depending on initial state, can get stuck in local maxima 95

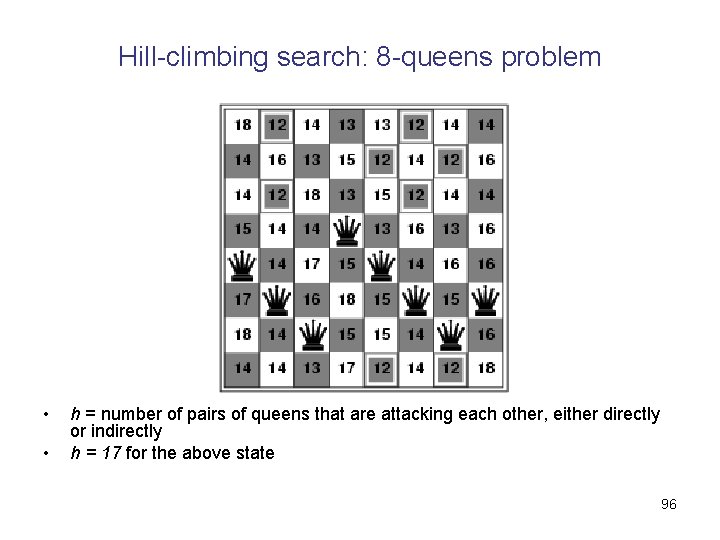

Hill-climbing search: 8 -queens problem • • h = number of pairs of queens that are attacking each other, either directly or indirectly h = 17 for the above state 96

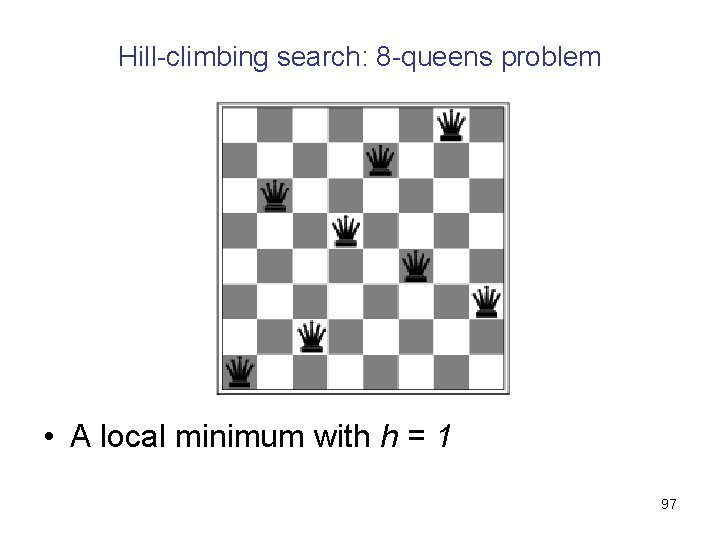

Hill-climbing search: 8 -queens problem • A local minimum with h = 1 97

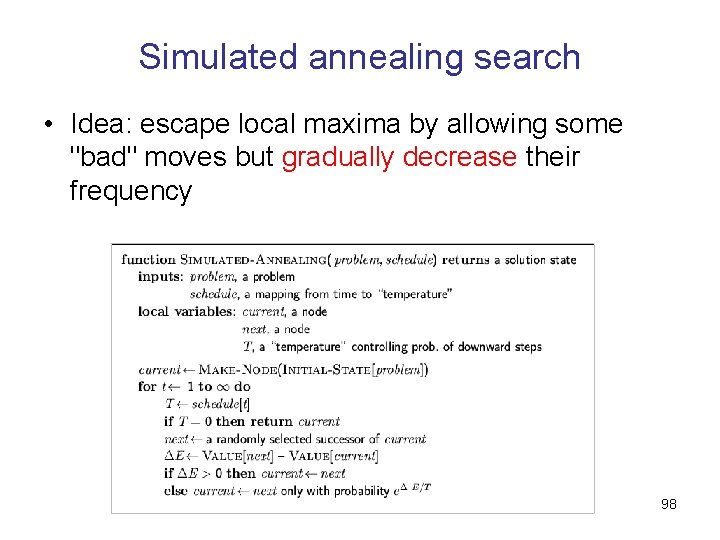

Simulated annealing search • Idea: escape local maxima by allowing some "bad" moves but gradually decrease their frequency 98

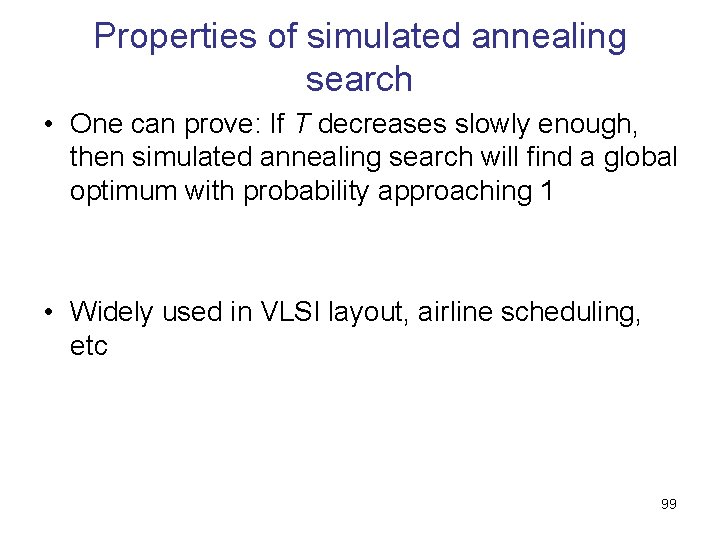

Properties of simulated annealing search • One can prove: If T decreases slowly enough, then simulated annealing search will find a global optimum with probability approaching 1 • Widely used in VLSI layout, airline scheduling, etc 99

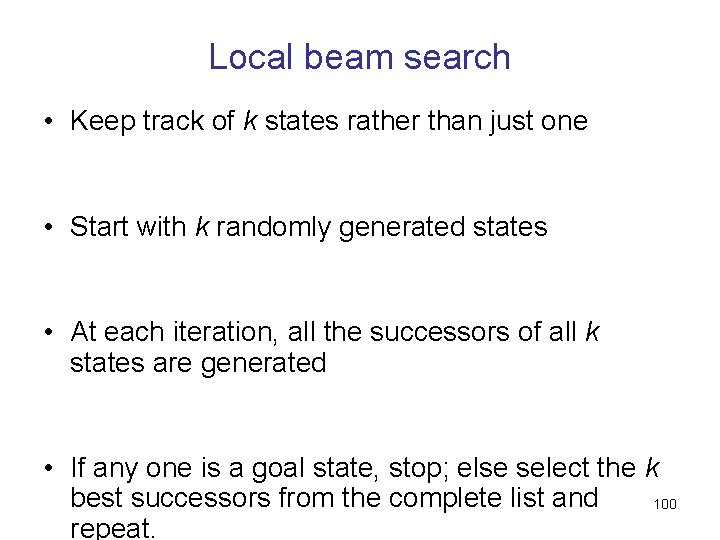

Local beam search • Keep track of k states rather than just one • Start with k randomly generated states • At each iteration, all the successors of all k states are generated • If any one is a goal state, stop; else select the k best successors from the complete list and 100 repeat.

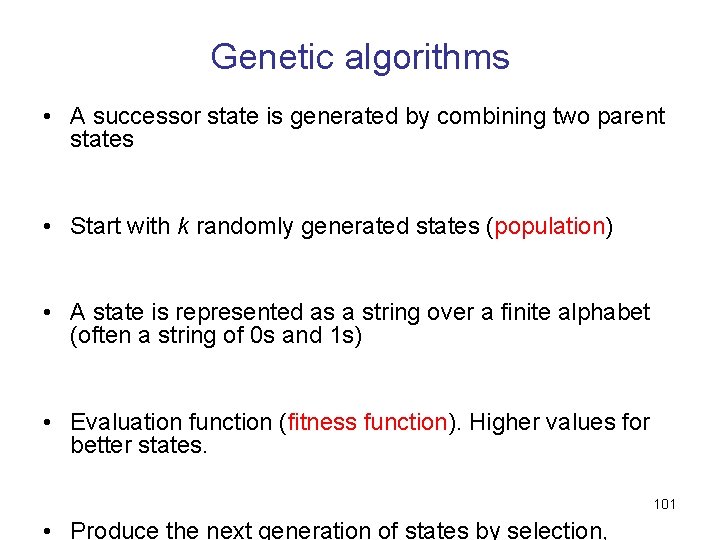

Genetic algorithms • A successor state is generated by combining two parent states • Start with k randomly generated states (population) • A state is represented as a string over a finite alphabet (often a string of 0 s and 1 s) • Evaluation function (fitness function). Higher values for better states. 101 • Produce the next generation of states by selection,

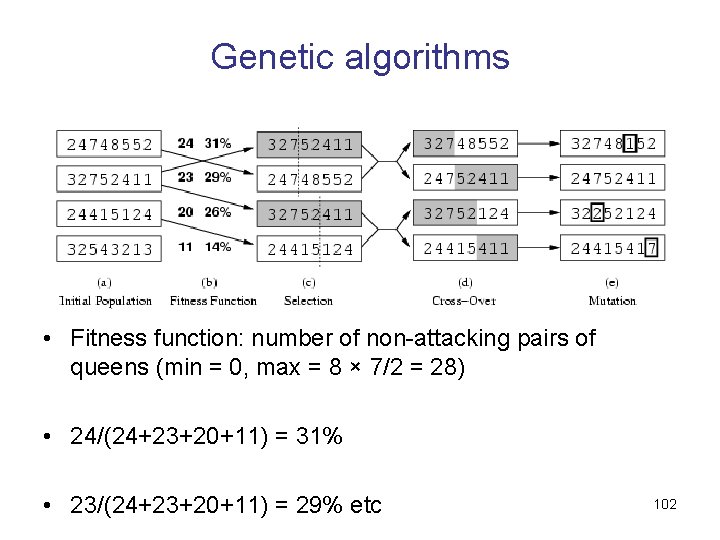

Genetic algorithms • Fitness function: number of non-attacking pairs of queens (min = 0, max = 8 × 7/2 = 28) • 24/(24+23+20+11) = 31% • 23/(24+23+20+11) = 29% etc 102

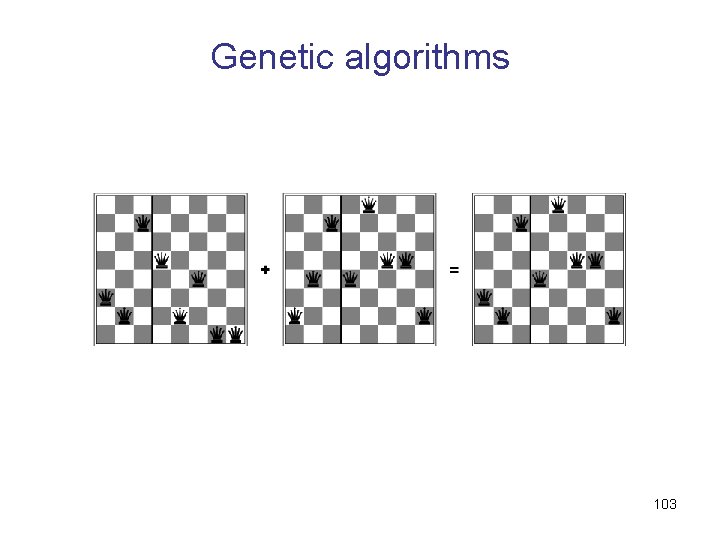

Genetic algorithms 103

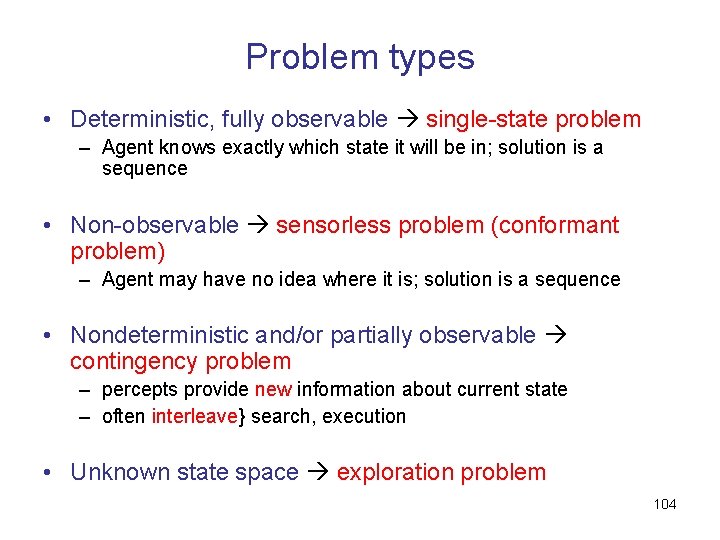

Problem types • Deterministic, fully observable single-state problem – Agent knows exactly which state it will be in; solution is a sequence • Non-observable sensorless problem (conformant problem) – Agent may have no idea where it is; solution is a sequence • Nondeterministic and/or partially observable contingency problem – percepts provide new information about current state – often interleave} search, execution • Unknown state space exploration problem 104

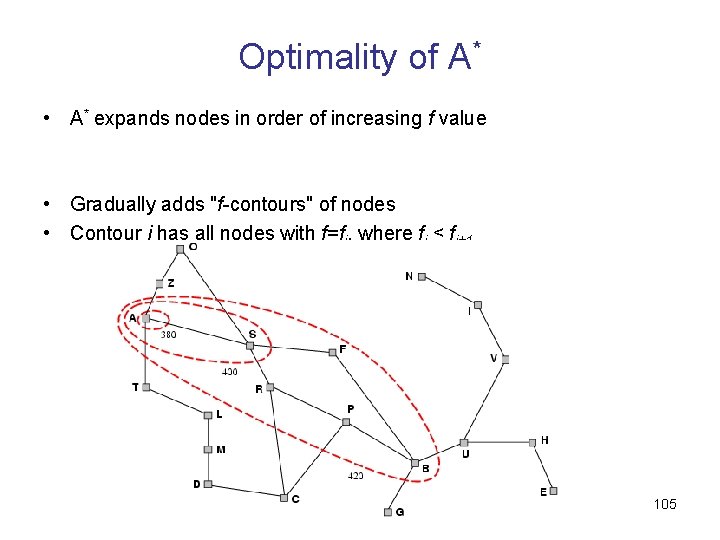

Optimality of A* • A* expands nodes in order of increasing f value • Gradually adds "f-contours" of nodes • Contour i has all nodes with f=fi, where fi < fi+1 105
