Solving Linear Inequalities Graphically A inequality is a

Solving Linear Inequalities Graphically • A inequality is a sentence using the symbols: It is assumed you already know how to solve linear inequalities algebraically. The method of solving linear inequalities graphically will be discussed here. While there are several methods available, only one method will be shown. In this authors opinion it is the best and easiest. Table of Contents

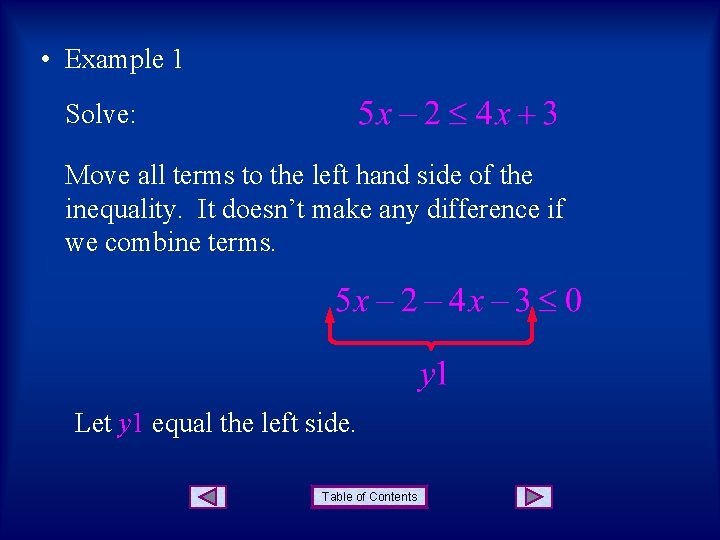

• Example 1 Solve: Move all terms to the left hand side of the inequality. It doesn’t make any difference if we combine terms. Let y 1 equal the left side. Table of Contents

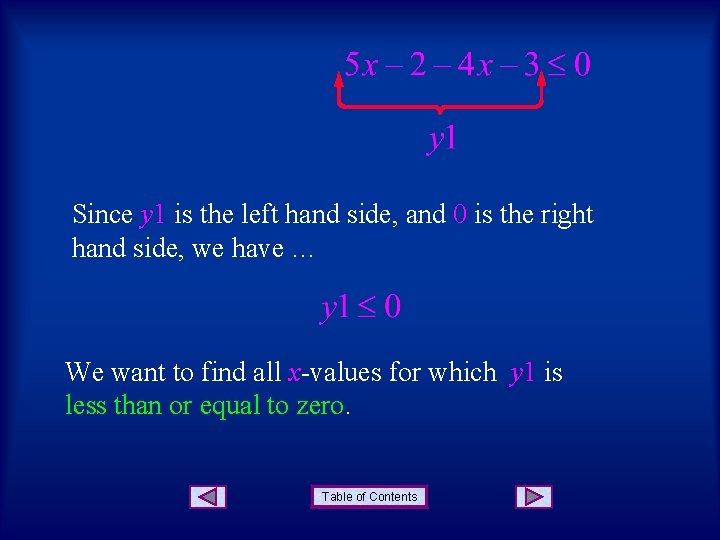

Since y 1 is the left hand side, and 0 is the right hand side, we have … We want to find all x-values for which y 1 is less than or equal to zero. Table of Contents

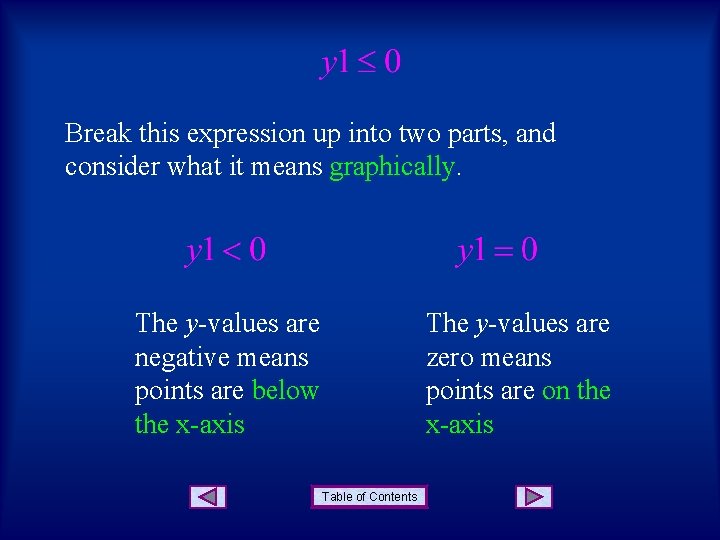

Break this expression up into two parts, and consider what it means graphically. The y-values are negative means points are below the x-axis The y-values are zero means points are on the x-axis Table of Contents

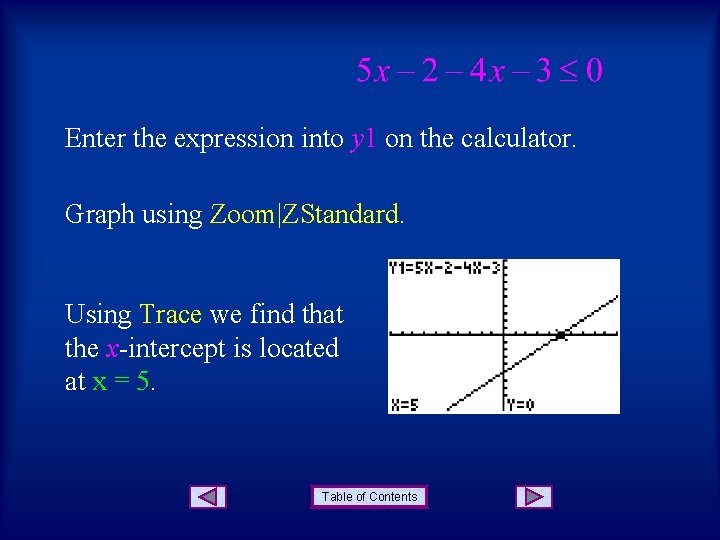

Enter the expression into y 1 on the calculator. Graph using Zoom|ZStandard. Using Trace we find that the x-intercept is located at x = 5. Table of Contents

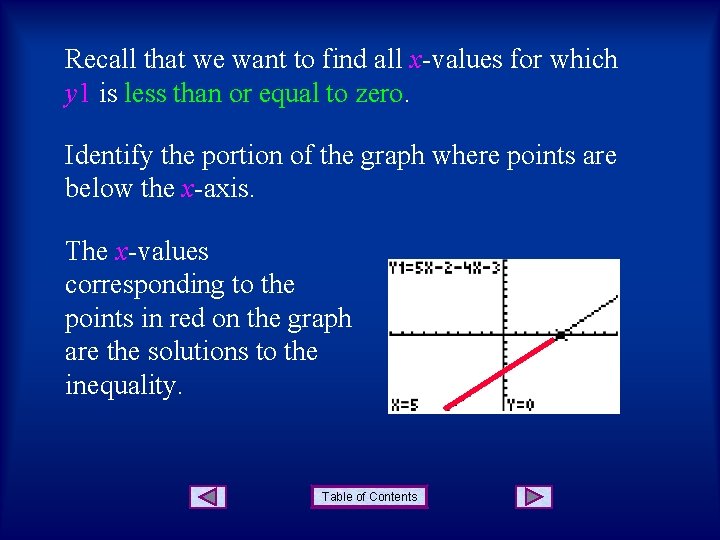

Recall that we want to find all x-values for which y 1 is less than or equal to zero. Identify the portion of the graph where points are below the x-axis. The x-values corresponding to the points in red on the graph are the solutions to the inequality. Table of Contents

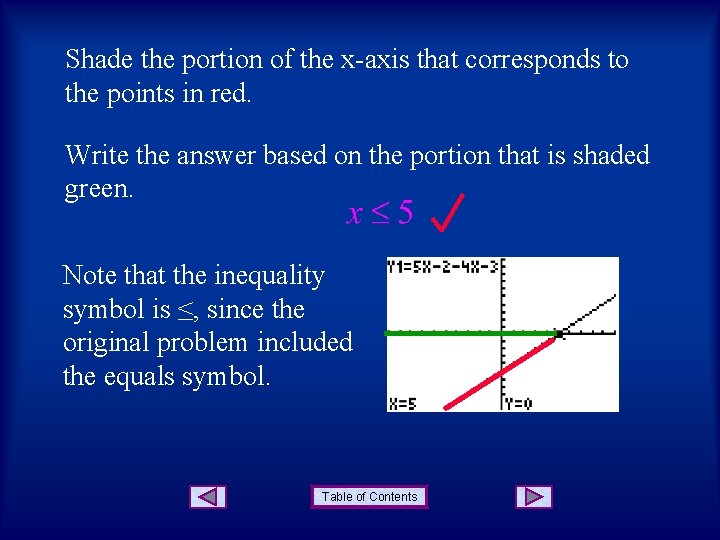

Shade the portion of the x-axis that corresponds to the points in red. Write the answer based on the portion that is shaded green. Note that the inequality symbol is ≤, since the original problem included the equals symbol. Table of Contents

• Example 2 Solve: Move all terms to the left hand side of the inequality. It doesn’t make any difference if we combine terms. Let y 1 equal the left side. Table of Contents

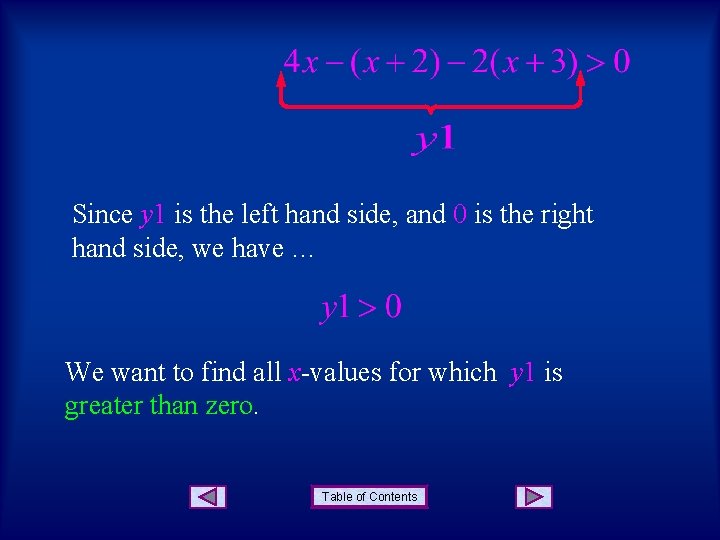

Since y 1 is the left hand side, and 0 is the right hand side, we have … We want to find all x-values for which y 1 is greater than zero. Table of Contents

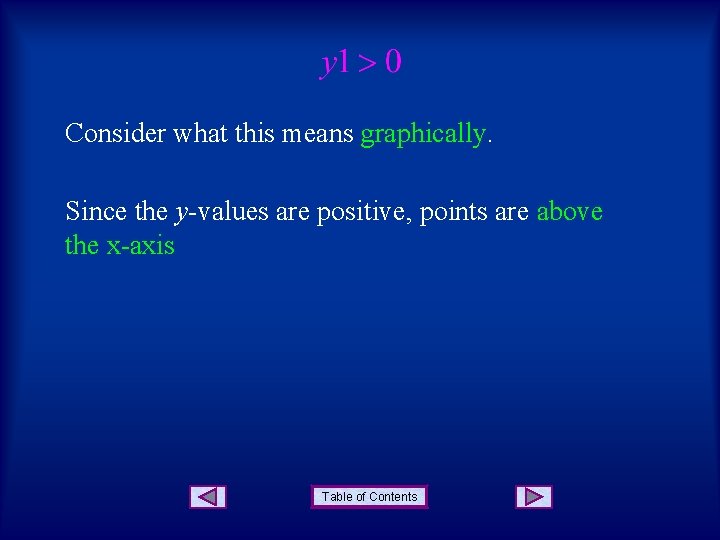

Consider what this means graphically. Since the y-values are positive, points are above the x-axis Table of Contents

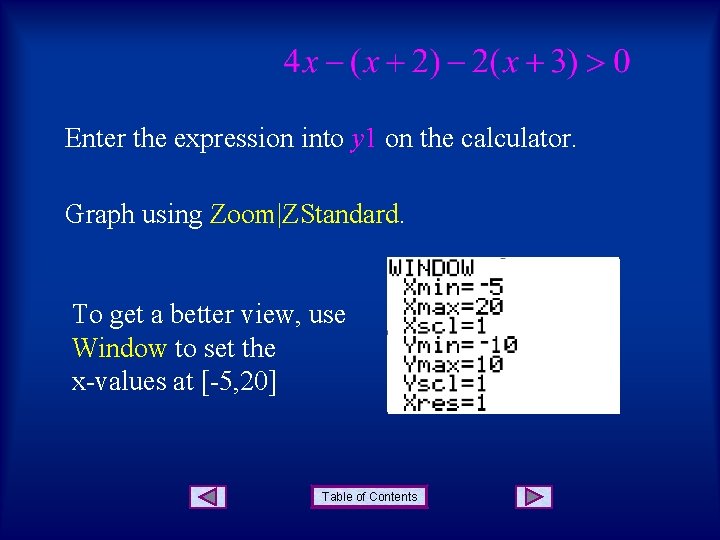

Enter the expression into y 1 on the calculator. Graph using Zoom|ZStandard. To get a better view, use Window to set the x-values at [-5, 20] Table of Contents

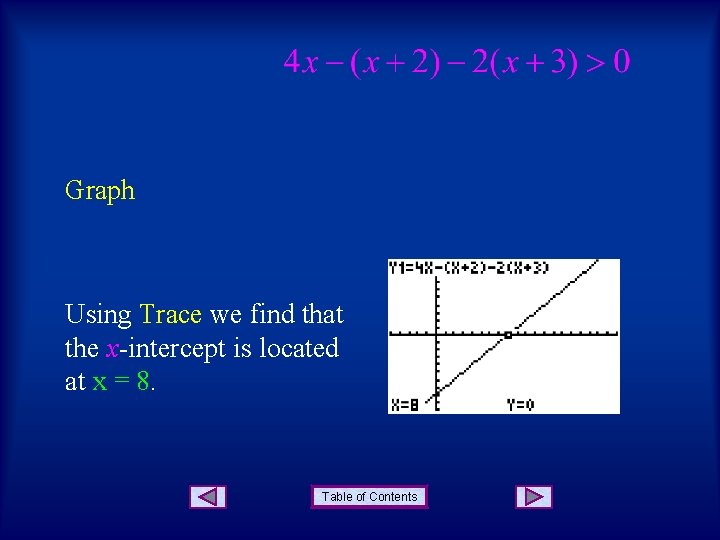

Graph Using Trace we find that the x-intercept is located at x = 8. Table of Contents

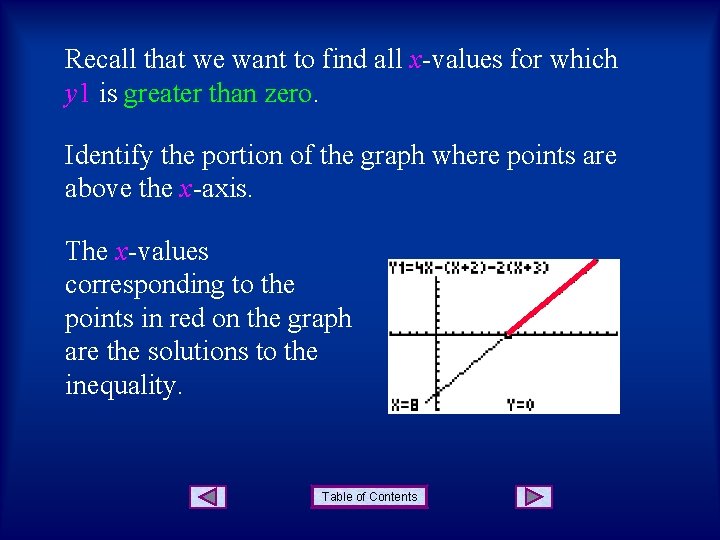

Recall that we want to find all x-values for which y 1 is greater than zero. Identify the portion of the graph where points are above the x-axis. The x-values corresponding to the points in red on the graph are the solutions to the inequality. Table of Contents

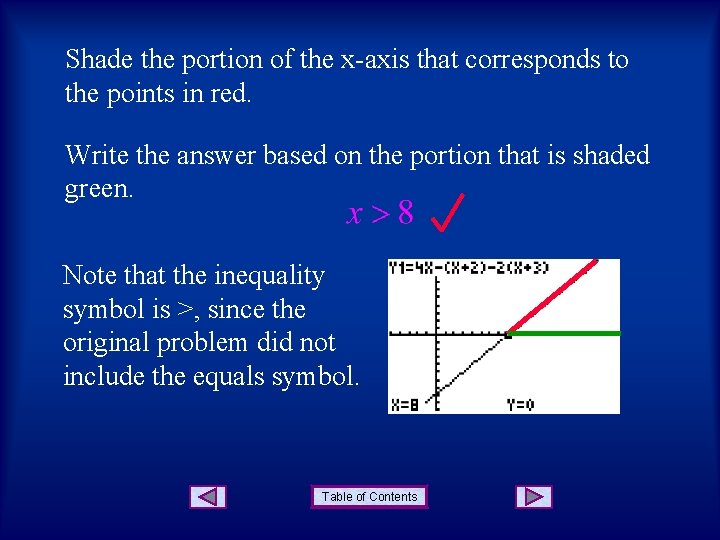

Shade the portion of the x-axis that corresponds to the points in red. Write the answer based on the portion that is shaded green. Note that the inequality symbol is >, since the original problem did not include the equals symbol. Table of Contents

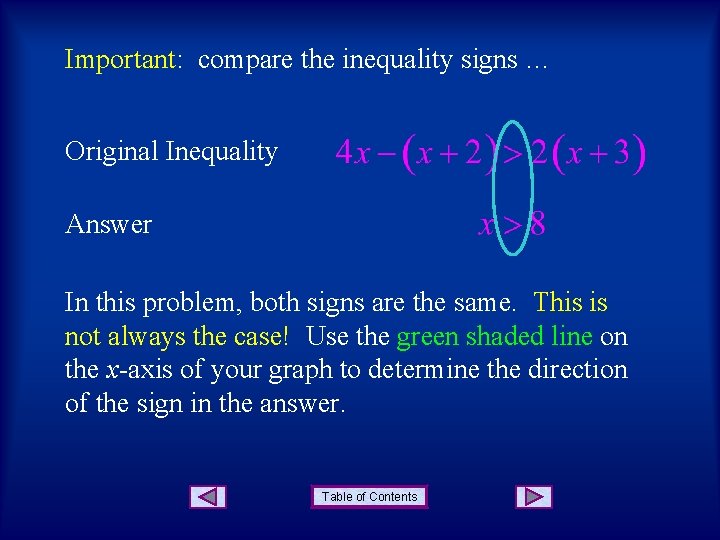

Important: compare the inequality signs … Original Inequality Answer In this problem, both signs are the same. This is not always the case! Use the green shaded line on the x-axis of your graph to determine the direction of the sign in the answer. Table of Contents
