Soluble Metal Recovery Improvement Using High Density Thickeners

Soluble Metal Recovery Improvement Using High Density Thickeners in a CCD Circuit ` Ruashi II a Case Study February 2009 M. Mulligan (Presenter) L. Bradford

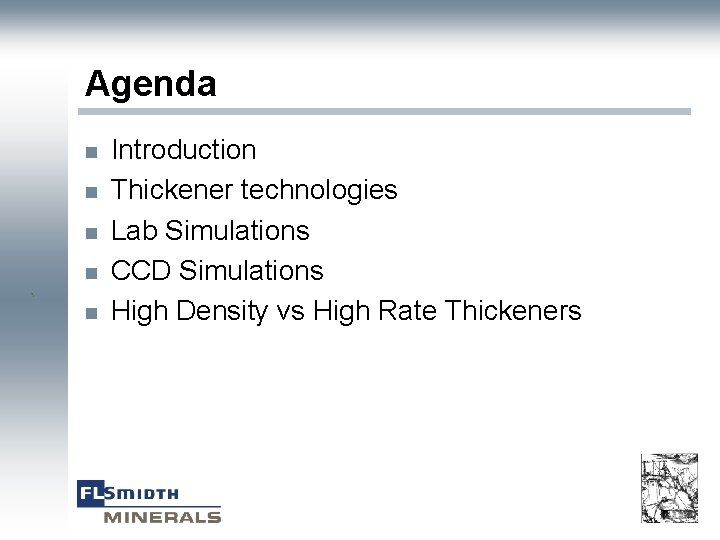

Agenda n n ` n Introduction Thickener technologies Lab Simulations CCD Simulations High Density vs High Rate Thickeners

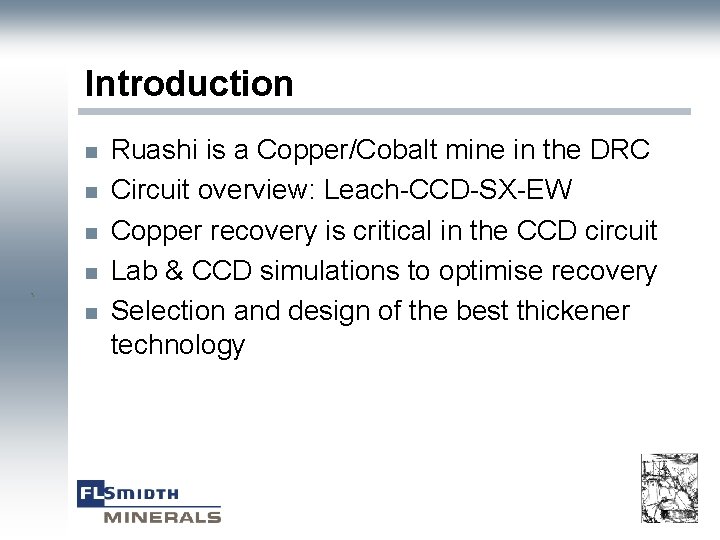

Introduction n n ` n Ruashi is a Copper/Cobalt mine in the DRC Circuit overview: Leach-CCD-SX-EW Copper recovery is critical in the CCD circuit Lab & CCD simulations to optimise recovery Selection and design of the best thickener technology

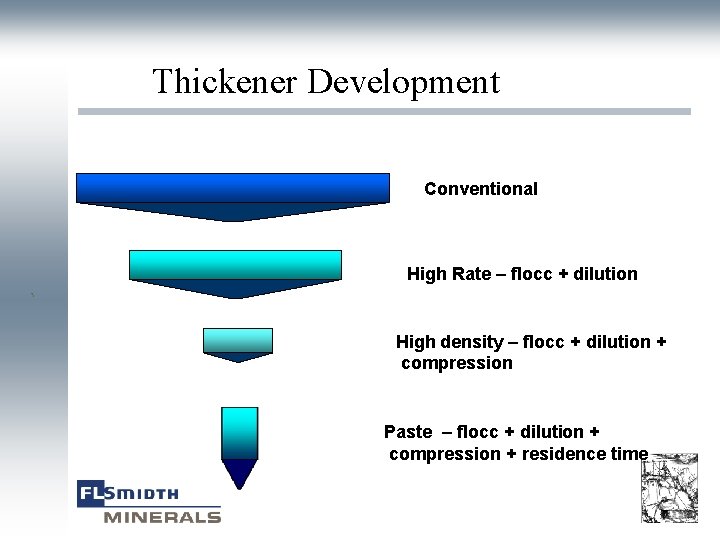

Thickener Development Conventional High Rate – flocc + dilution ` High density – flocc + dilution + compression Paste – flocc + dilution + compression + residence time

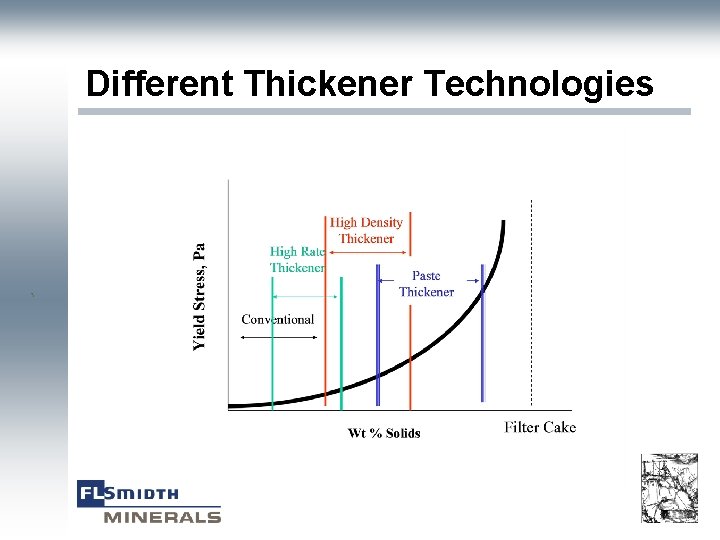

Different Thickener Technologies `

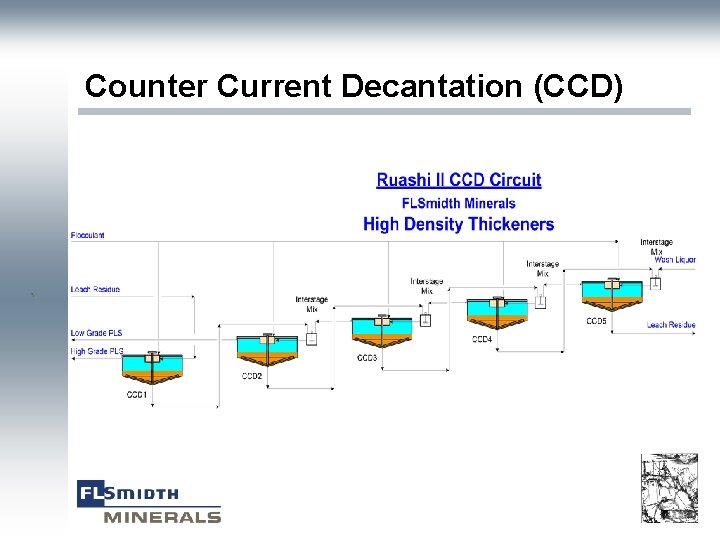

Counter Current Decantation (CCD) `

` Lab Simulations

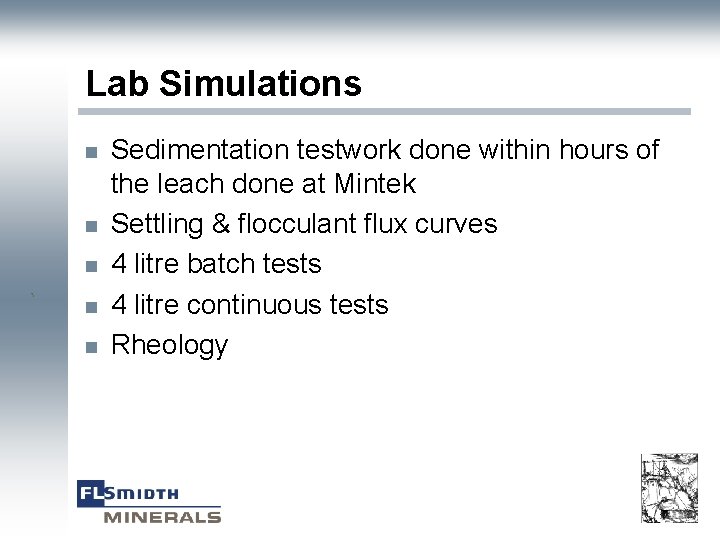

Lab Simulations n n n ` n n Sedimentation testwork done within hours of the leach done at Mintek Settling & flocculant flux curves 4 litre batch tests 4 litre continuous tests Rheology

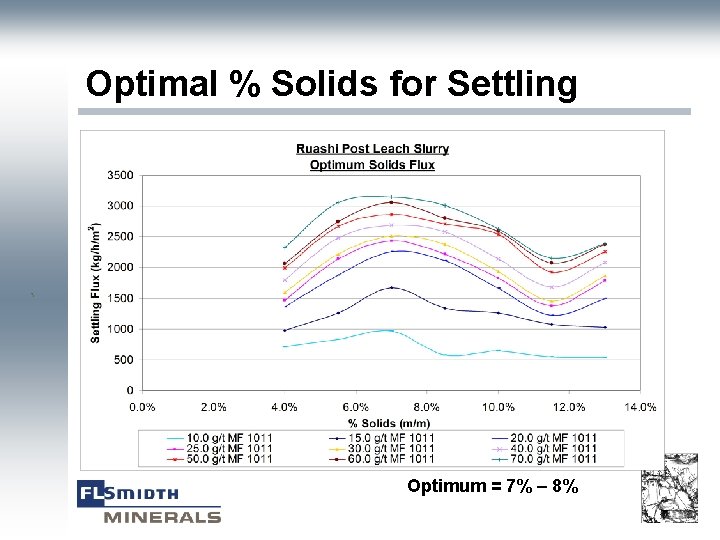

Optimal % Solids for Settling ` Optimum = 7% – 8%

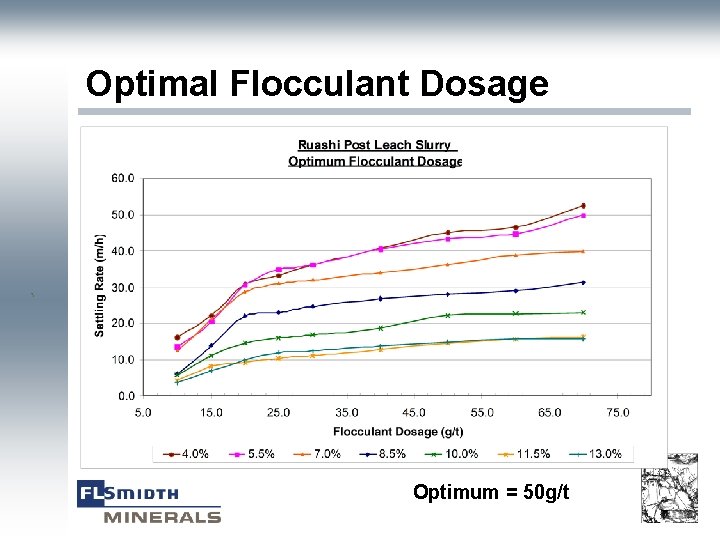

Optimal Flocculant Dosage ` Optimum = 50 g/t

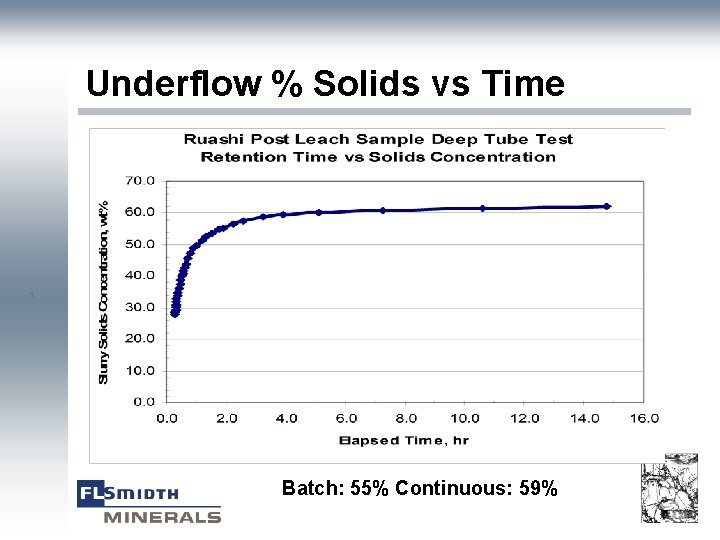

Underflow % Solids vs Time ` Batch: 55% Continuous: 59%

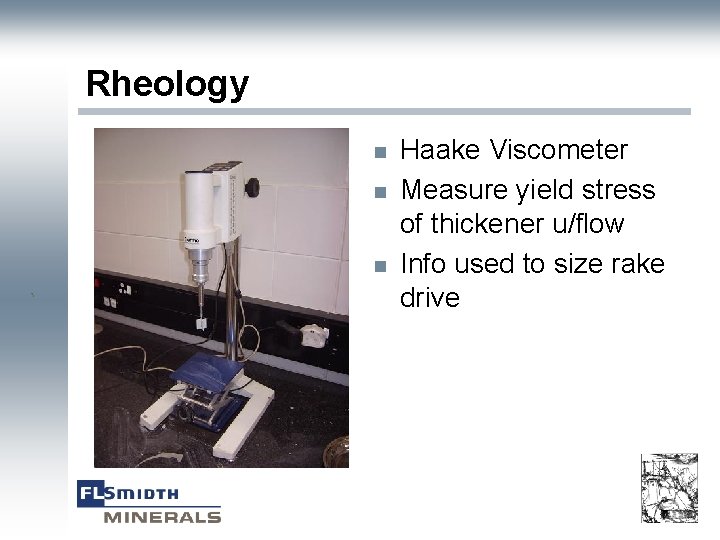

Rheology n n n ` Haake Viscometer Measure yield stress of thickener u/flow Info used to size rake drive

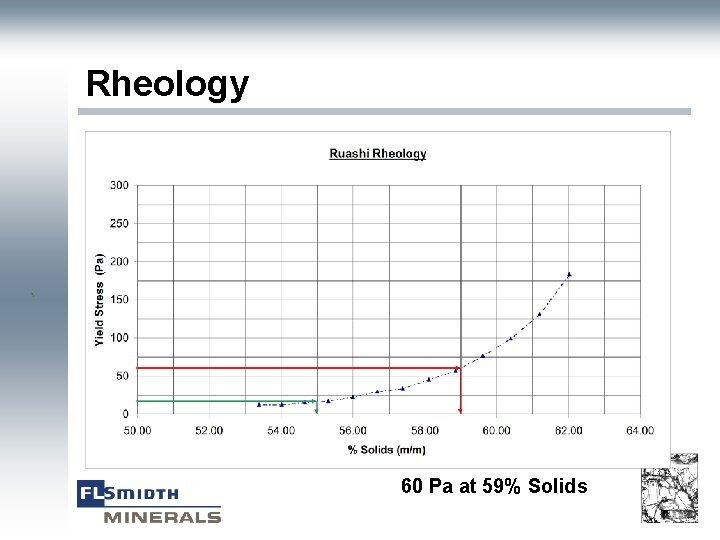

Rheology ` 60 Pa at 59% Solids

` CCD Simulations

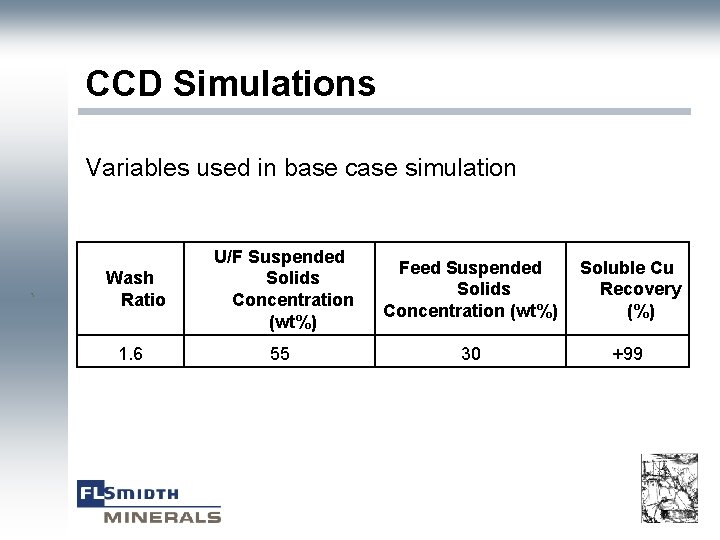

CCD Simulations Variables used in base case simulation ` Wash Ratio 1. 6 U/F Suspended Solids Concentration (wt%) Feed Suspended Solids Concentration (wt%) Soluble Cu Recovery (%) 55 30 +99

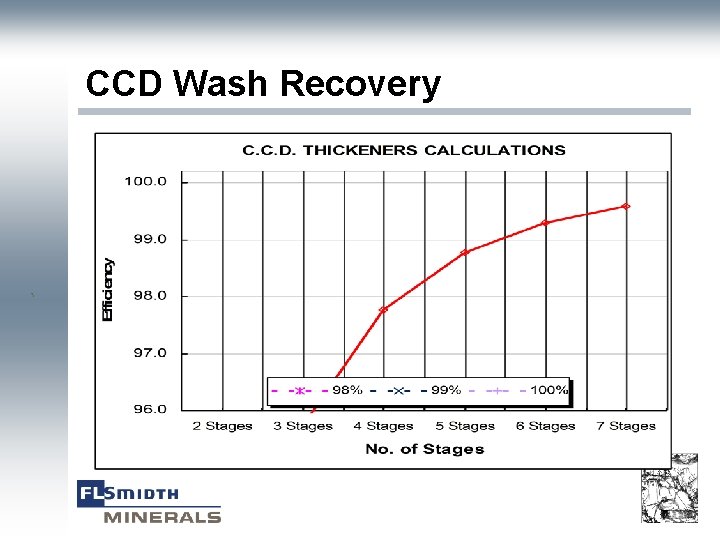

CCD Wash Recovery `

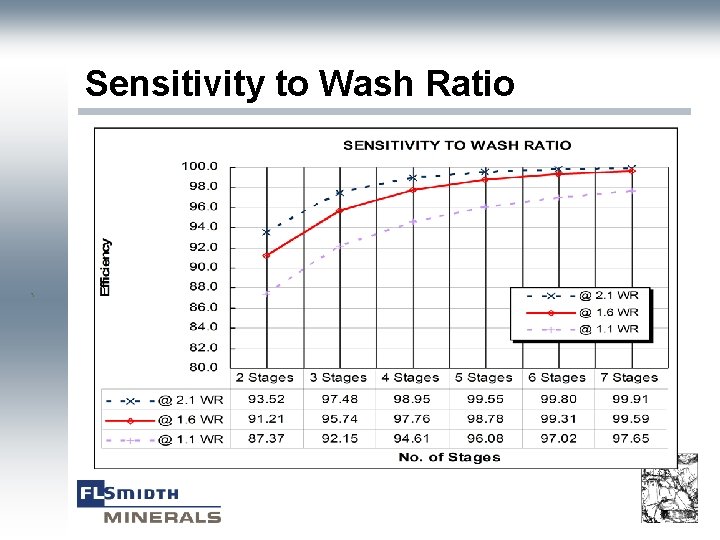

Sensitivity to Wash Ratio `

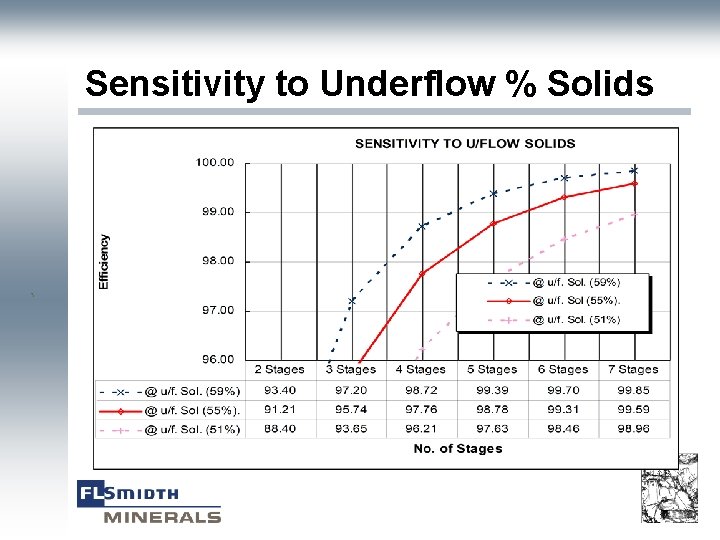

Sensitivity to Underflow % Solids `

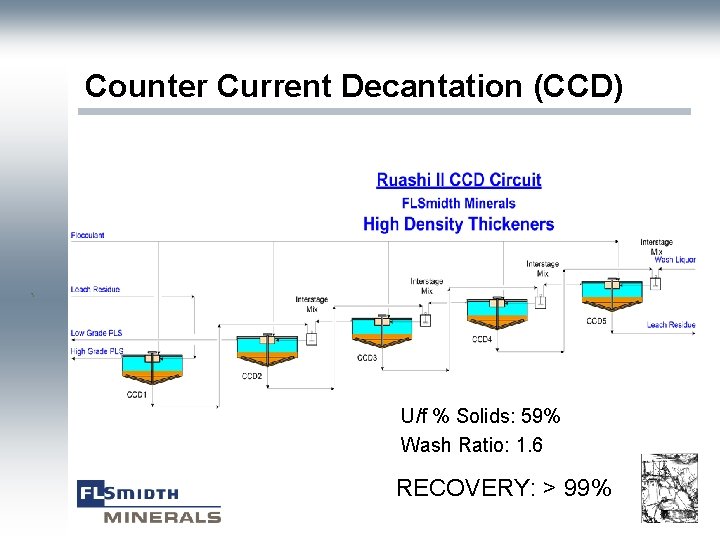

Counter Current Decantation (CCD) ` U/f % Solids: 59% Wash Ratio: 1. 6 RECOVERY: > 99%

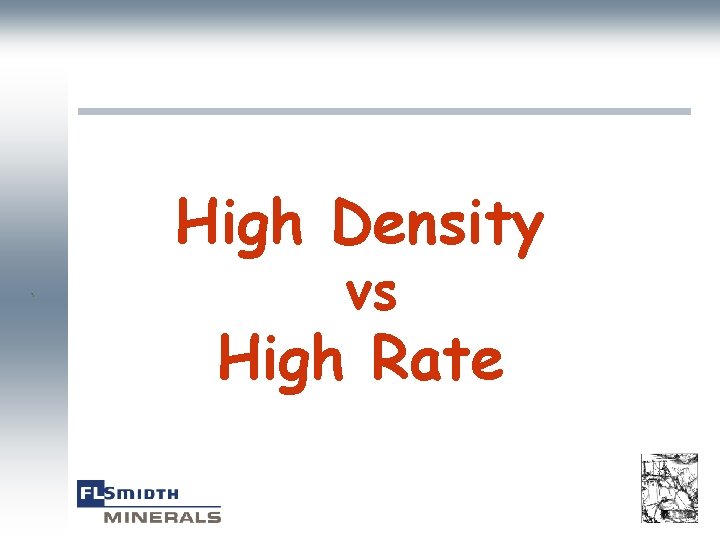

High Density ` vs High Rate

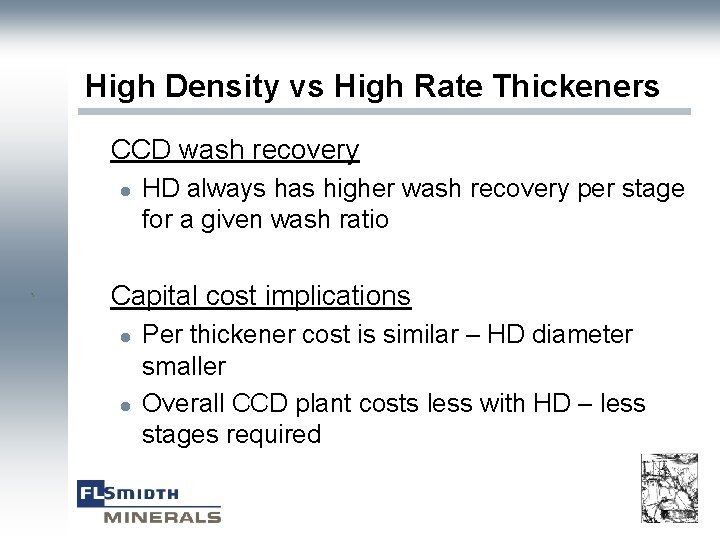

High Density vs High Rate Thickeners CCD wash recovery l ` HD always has higher wash recovery per stage for a given wash ratio Capital cost implications l l Per thickener cost is similar – HD diameter smaller Overall CCD plant costs less with HD – less stages required

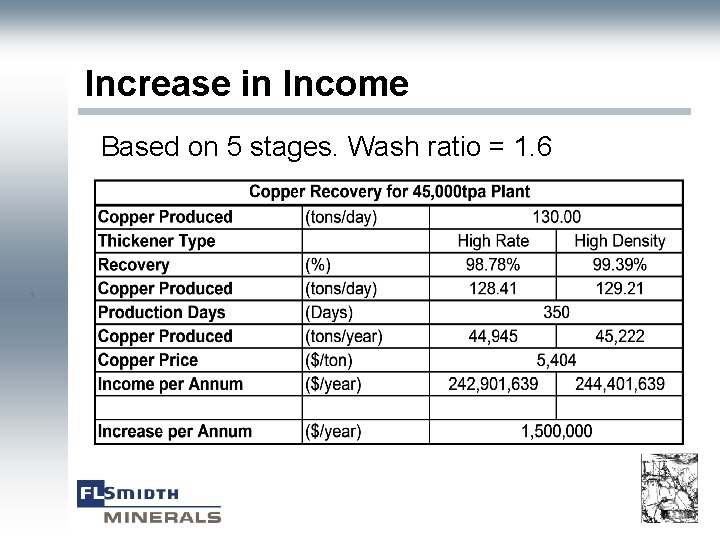

Increase in Income Based on 5 stages. Wash ratio = 1. 6 `

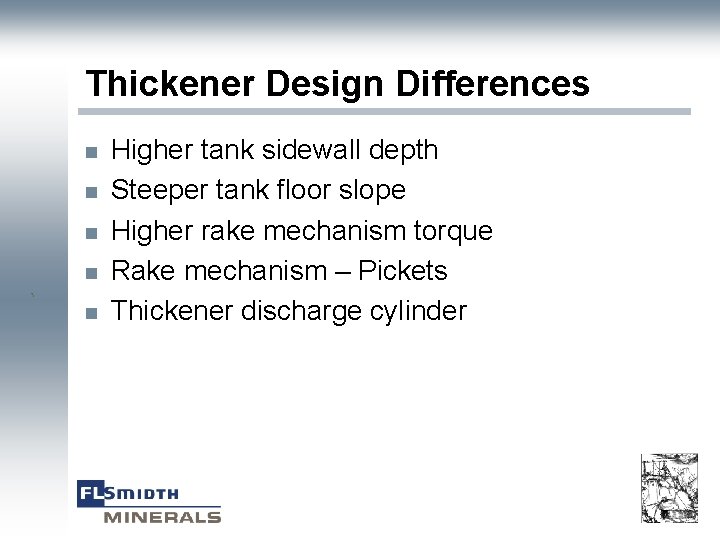

Thickener Design Differences n n ` n Higher tank sidewall depth Steeper tank floor slope Higher rake mechanism torque Rake mechanism – Pickets Thickener discharge cylinder

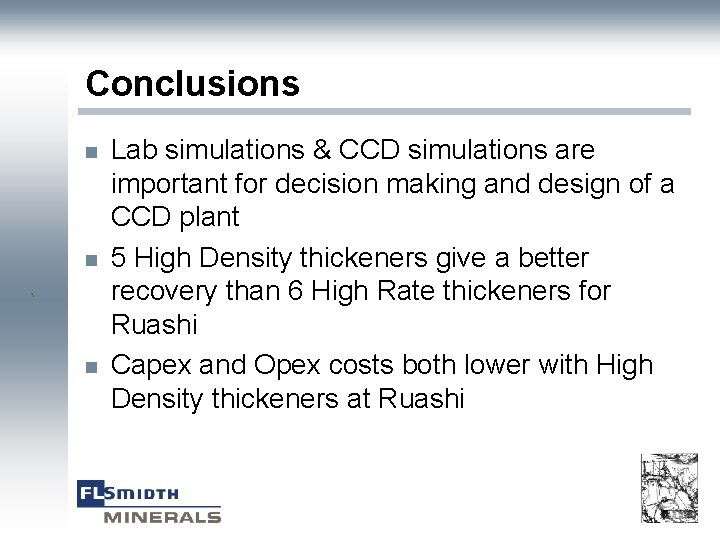

Conclusions n n ` n Lab simulations & CCD simulations are important for decision making and design of a CCD plant 5 High Density thickeners give a better recovery than 6 High Rate thickeners for Ruashi Capex and Opex costs both lower with High Density thickeners at Ruashi

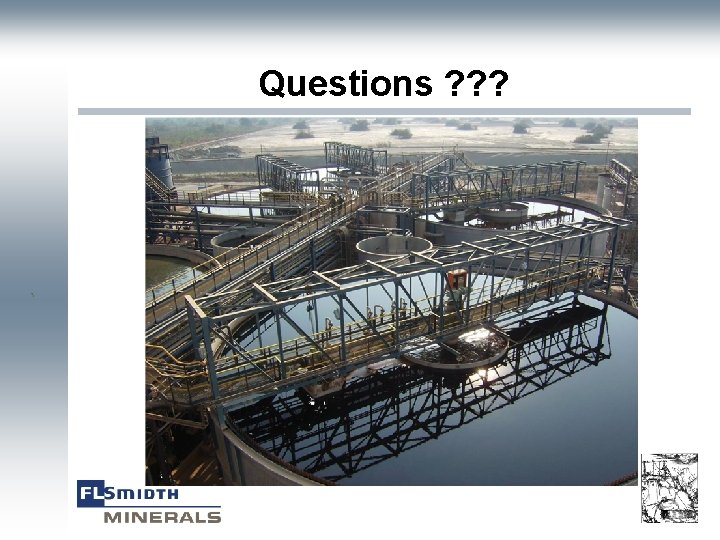

Questions ? ? ? `
