Soli Deo Gloria FEMORAL NERVE BLOCKS AND 3

Soli Deo Gloria FEMORAL NERVE BLOCKS AND 3 -IN-1 NERVE BLOCKS Developing Countries Regional Anesthesia Lecture Series Lecture 17 Daniel D. Moos CRNA, Ed. D. U. S. A. moosd@charter. net

Disclaimer Every effort was made to ensure that material and information contained in this presentation are correct and up-to-date. The author can not accept liability/responsibility from errors that may occur from the use of this information. It is up to each clinician to ensure that they provide safe anesthetic care to their patients.

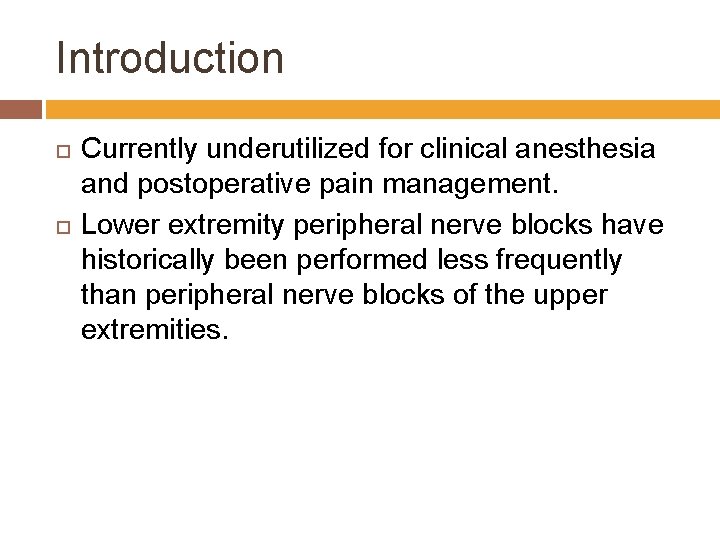

Introduction Currently underutilized for clinical anesthesia and postoperative pain management. Lower extremity peripheral nerve blocks have historically been performed less frequently than peripheral nerve blocks of the upper extremities.

3 -in-1 Block Suppose to block the femoral nerve, lateral femoral cutaneous nerve, and obturator.

Indications for FNB/3 -in-1 Block Operations of anterior thigh (lacerations, skin grafts, muscle biopsy) Pin or plate insertion at the upper femur Femur fractures Analgesia of hip (dislocations, femoral nerve fractures) Analgesia of the knee

Limitations- Knee Not complete analgesia of the knee. The knee is innervated by the femoral, obturator, and sciatic nerve. These blocks will create a motor block of the quadriceps.

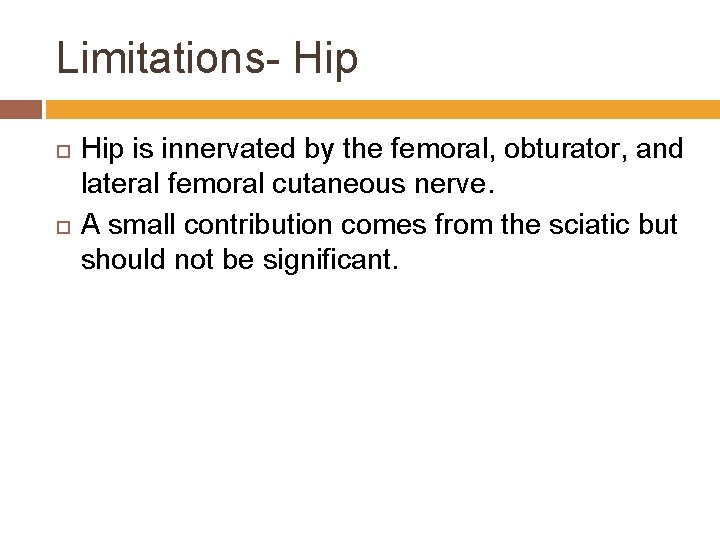

Limitations- Hip is innervated by the femoral, obturator, and lateral femoral cutaneous nerve. A small contribution comes from the sciatic but should not be significant.

Anatomy The femoral nerve is the largest branch of the lumbar plexus. Femoral nerve is created from contributions from L 2, L 3, and L 4. The femoral nerve enters into the thigh under the inguinal ligament, between the psoas and iliacus mucle.

Femoral Triangle

Anatomy Skin Femoral Artery Fascia lata Femoral Vein Femoral Nerve Fascia iliaca Iliopsoas muscle Pectineous muscle

Anatomy

Femoral Nerve “sheath” Contains the femoral nerve and artery It is located between the psoas and iliacus muscle. It is located below the fascia iliaca.

Lateral Femoral Cutaneous Nerve and Obturator Nerves Lateral femoral cutaneous nerve is formed by contributions from L 2 and L 3 Obturator nerve is formed by contributions from L 2, L 3, and L 4

Innervations Femoral Nerve: anterior and medial portion of the thigh (sartorious, pectineus, quadriceps); cutaneous portion of medial and lateral thigh; periosteum of the femur. The posterior division of the femoral nerve will become the saphenous nerve. LFCN: purely sensory to lateral buttock, thigh, and knee joint. Obturator Nerve: sensory to medial thigh, hip joint, and adductor muscles.

Anatomy

Contraindications Burn or infection at the injection site Coagulopathy Vascular graft Neurological disease (relative) Patient refusal Local anesthetic allergy

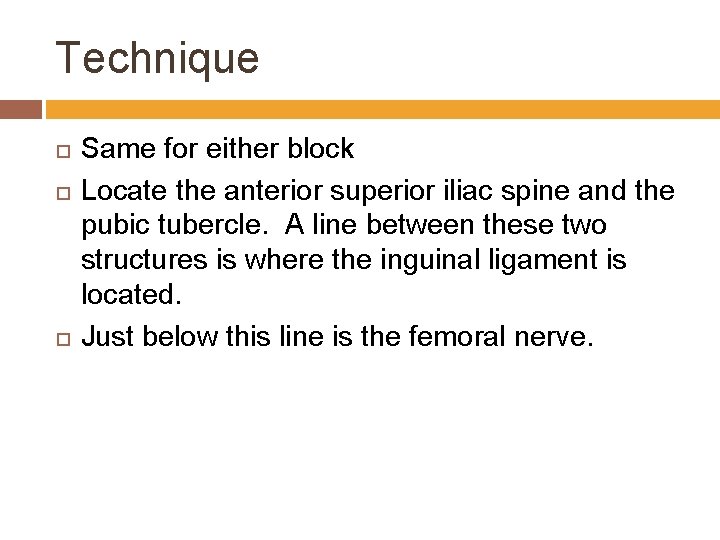

Technique Same for either block Locate the anterior superior iliac spine and the pubic tubercle. A line between these two structures is where the inguinal ligament is located. Just below this line is the femoral nerve.

Technique Palpate the femoral artery The femoral nerve should be located 1 cm lateral to the palpation. Medial to lateral the structures are femoral vein, artery, and nerve.

Technique For paresthesia technique a blunted needle should be used. Insert perpendicular while aspirating for blood Once paresthesia is elicited pull back slightly and inject. There should be no pain. If you are at a depth of 4 -5 cm pull back and start over. As with any peripheral nerve block frequent aspiration is mandatory.

Technique 2 pop technique Blunted needle A slight increase in resistance followed by a loss of resistance indicates that you have transversed the fascia lata. A second increase in resistance followed by a loss of resistance indicates that you have transversed fascia iliaca. Deposit local anesthetic. (aspirate, make sure no pain, etc. )

Technique Nerve Stimulator 2 inch, 22 gauge needle (insulated) 2 cm lateral to femoral pulse, 2 cm down from inguinal ligament. Identify quadriceps contraction Reduce stimulation to 0. 5 m. A and adjust needle for continued quad contraction. Injection of 1 ml of local anesthetic should see the contractions start to fade.

Local Anesthetics FNB = 15 -20 ml of local 3 -in-1 NB = 25 -30 ml of local Use 1: 200, 000 epi containing solutions or add yourself. 1 -2% lidocaine will have an onset of 10 -20 minutes and last 2 -5 hours for anesthesia; up to 8 hours for analgesia. Bupivacaine will have an onset of 15 -30 minutes and last up to 5 -15 hours for anesthesia and up to 30 hours for analgesia

Complications Intravascular injection Local anesthetic toxicity Nerve trauma Prolonged motor blockade of the muscles of the thigh Hematoma formation Block failure

Differences between FNB and 3 -in-1 Nerve Block Volume: 20 ml or less for FNB; 25 -30 ml of 3 -in -1 Nerve Block More volume = more spread Pressure applied distally to the injection site will help the spread of local anesthetic further up to the lateral femoral cutaneous nerve and LFCN.

Controversy Studies have found that the 3 -in-1 nerve block inconsistently blocks the obturator nerve (4%78%) depending on volume (up to 40 ml). Most likely the 3 -in-1 nerve block will consistently block the FN and LFCN

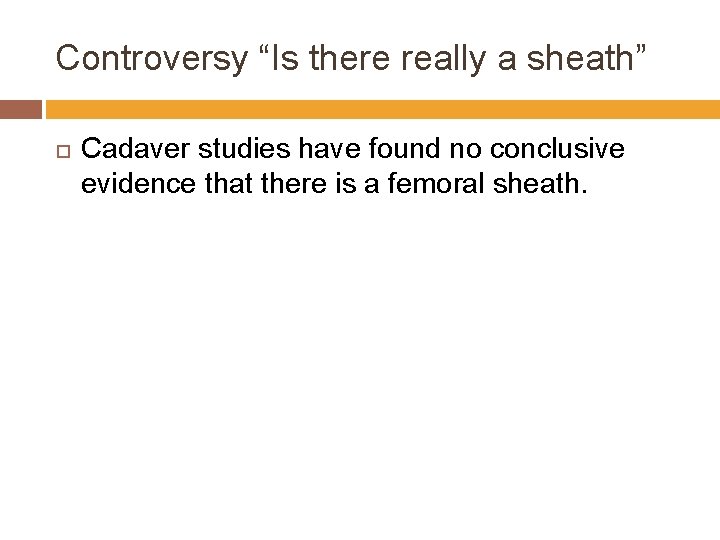

Controversy “Is there really a sheath” Cadaver studies have found no conclusive evidence that there is a femoral sheath.

References Burkard J, Lee Olson R. , Vacchiano CA. Regional Anesthesia. In Nurse Anesthesia 3 rd edition. Nagelhout, JJ & Zaglaniczny KL ed. Pages 977 -1030. Morgan, G. E. & Mikhail, M. (2006). Peripheral nerve blocks. In G. E. Morgan et al Clinical Anesthesiology, 4 th edition. New York: Lange Medical Books. Moos, D. D. & Cuddeford, J. D. (1998). AANA Journal Course for nurse anesthetists. Femoral nerve block and 3 -in-1 nerve block in anesthesia. AANA Journal volume 66; issue 4. Wedel, D. J. & Horlocker, T. T. Nerve blocks. In Miller’s Anesthesia 6 th edtion. Miller, RD ed. Pages 1685 -1715. Elsevier, Philadelphia, Penn. 2005. Wedel, D. J. & Horlocker, T. T. (2008). Peripheral nerve blocks. In D. E. Longnecker et al (eds) Anesthesiology. New York: Mc. Graw-Hill Medical.
