SOLE OF THE FOOT Dr Jyoti Chopra Professor

SOLE OF THE FOOT Dr. Jyoti Chopra Professor Department of Anatomy KGMU UP Lucknow

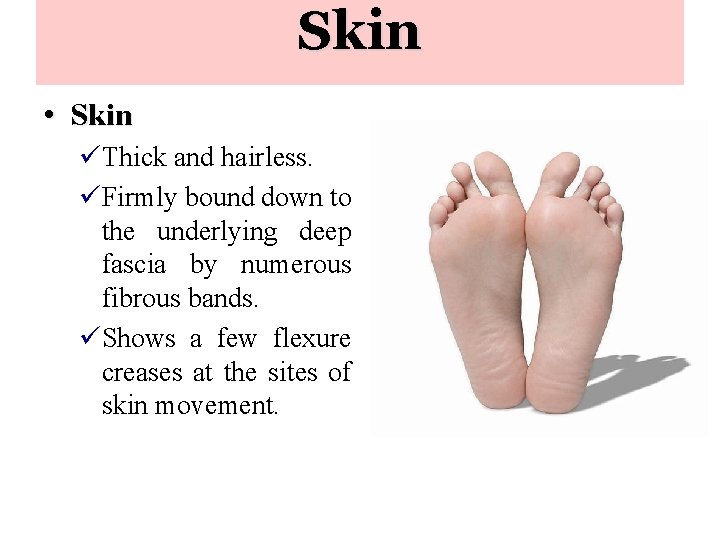

Skin • Skin üThick and hairless. üFirmly bound down to the underlying deep fascia by numerous fibrous bands. üShows a few flexure creases at the sites of skin movement.

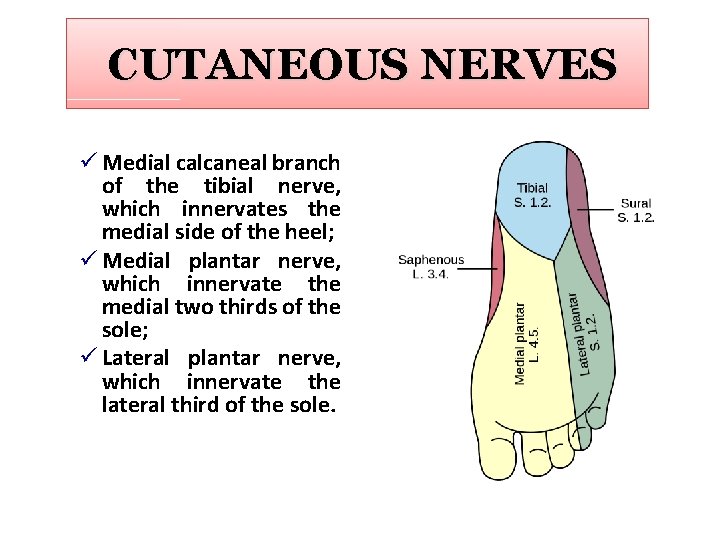

CUTANEOUS NERVES ü Medial calcaneal branch of the tibial nerve, which innervates the medial side of the heel; ü Medial plantar nerve, which innervate the medial two thirds of the sole; ü Lateral plantar nerve, which innervate the lateral third of the sole.

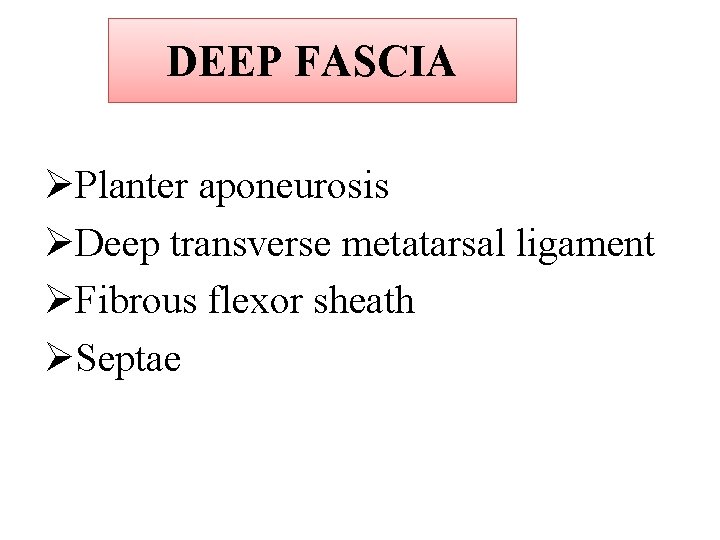

DEEP FASCIA ØPlanter aponeurosis ØDeep transverse metatarsal ligament ØFibrous flexor sheath ØSeptae

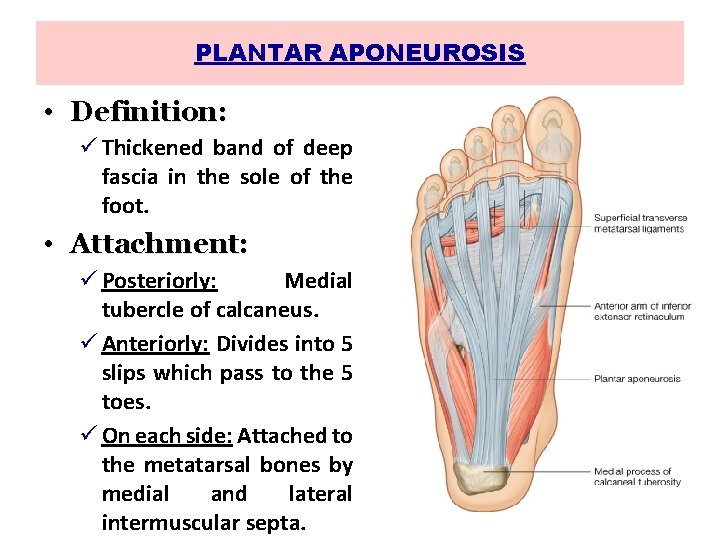

PLANTAR APONEUROSIS • Definition: ü Thickened band of deep fascia in the sole of the foot. • Attachment: ü Posteriorly: Medial tubercle of calcaneus. ü Anteriorly: Divides into 5 slips which pass to the 5 toes. ü On each side: Attached to the metatarsal bones by medial and lateral intermuscular septa.

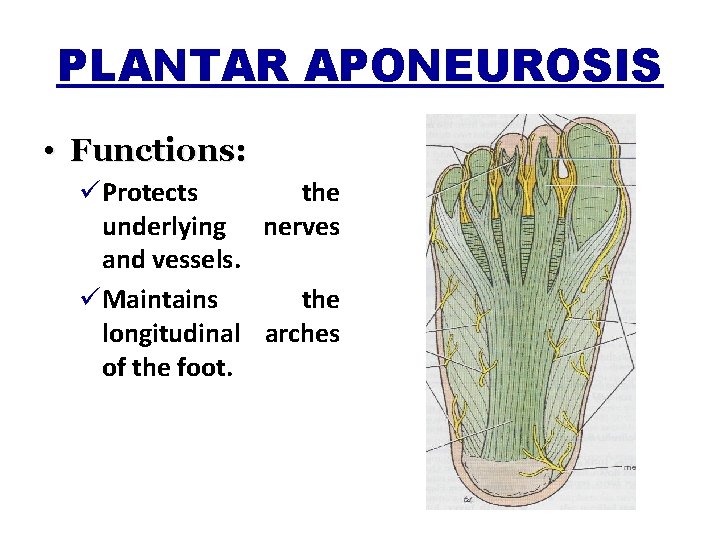

PLANTAR APONEUROSIS • Functions: üProtects the underlying nerves and vessels. üMaintains the longitudinal arches of the foot.

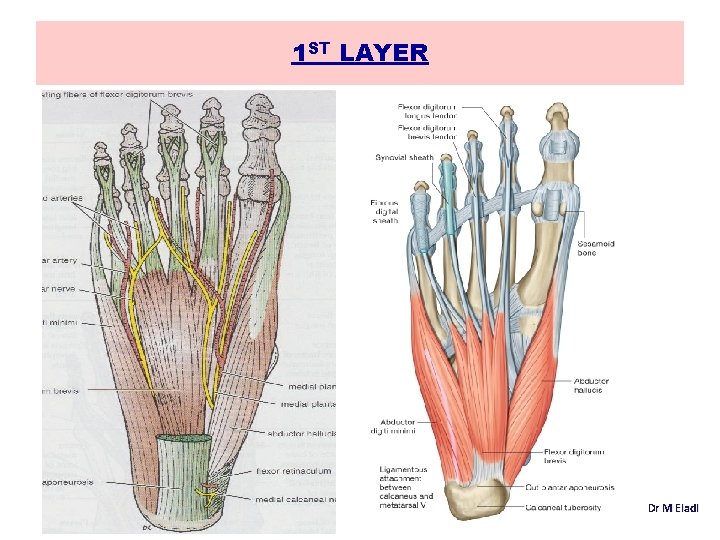

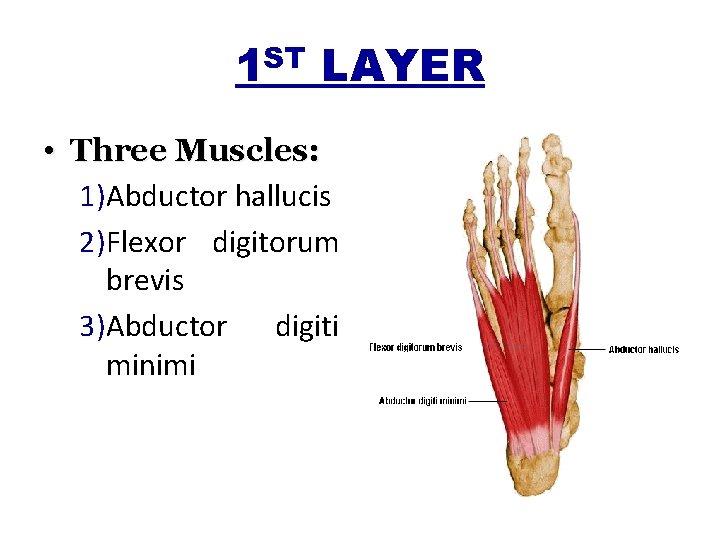

1 ST LAYER • Three Muscles: 1)Abductor hallucis 2)Flexor digitorum brevis 3)Abductor digiti minimi

1 ST LAYER Dr M Eladl

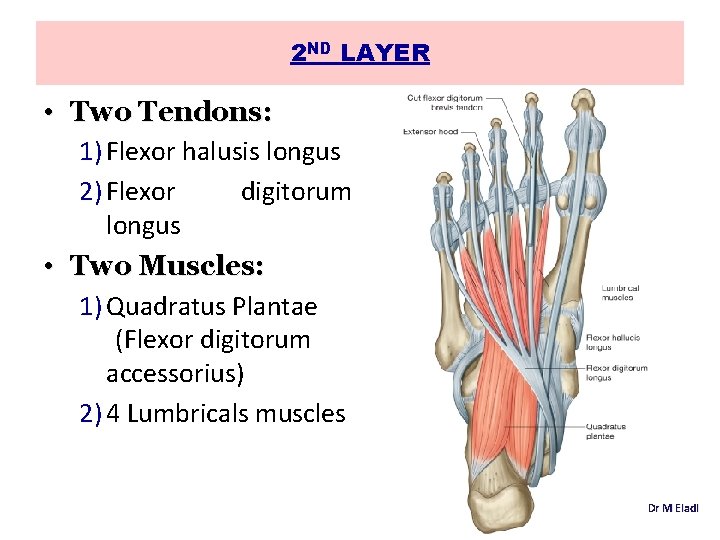

2 ND LAYER • Two Tendons: 1) Flexor halusis longus 2) Flexor digitorum longus • Two Muscles: 1) Quadratus Plantae (Flexor digitorum accessorius) 2) 4 Lumbricals muscles Dr M Eladl

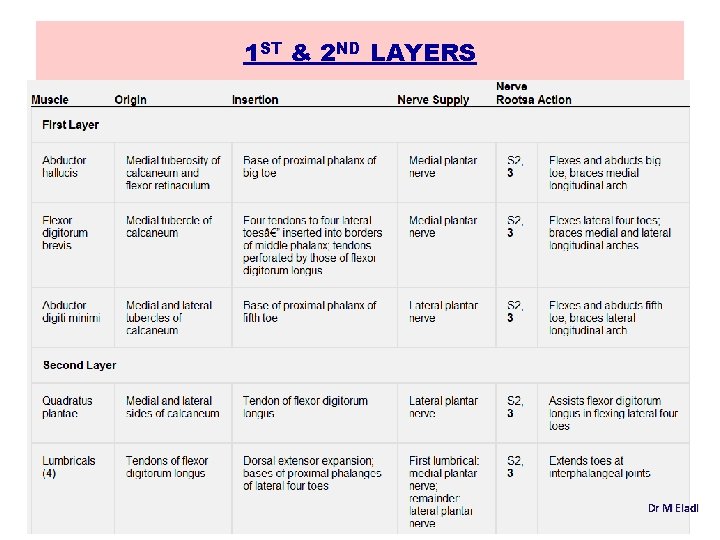

1 ST & 2 ND LAYERS Dr M Eladl

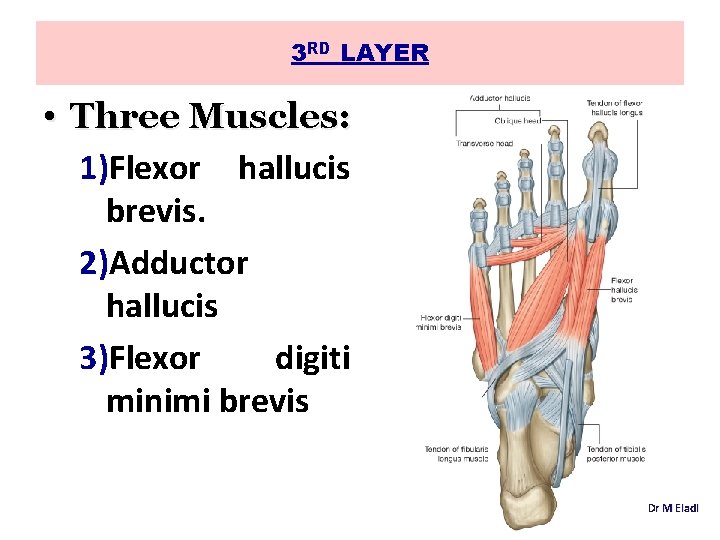

3 RD LAYER • Three Muscles: 1)Flexor hallucis brevis. 2)Adductor hallucis 3)Flexor digiti minimi brevis Dr M Eladl

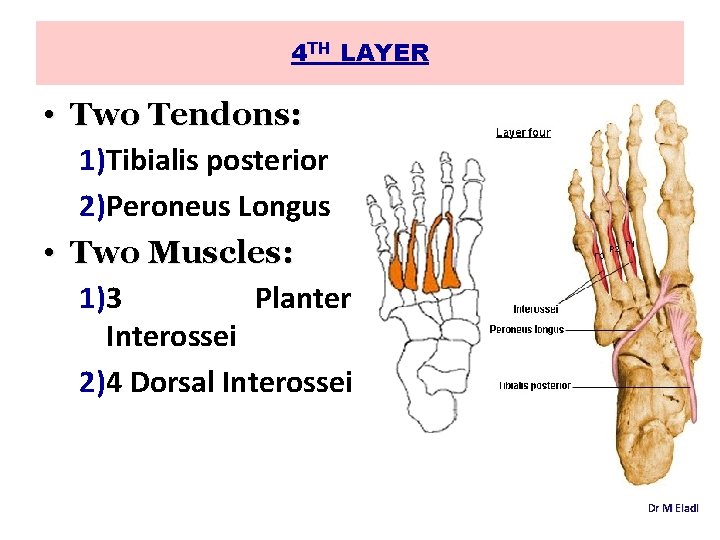

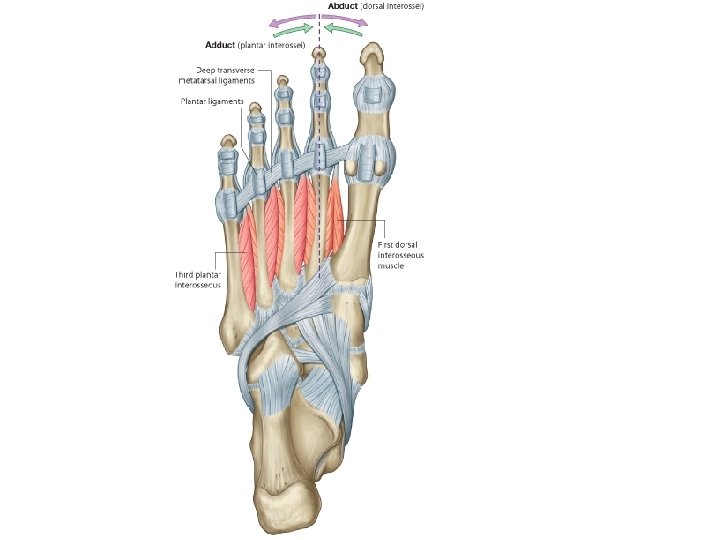

4 TH LAYER • Two Tendons: 1)Tibialis posterior 2)Peroneus Longus • Two Muscles: 1)3 Planter Interossei 2)4 Dorsal Interossei Dr M Eladl

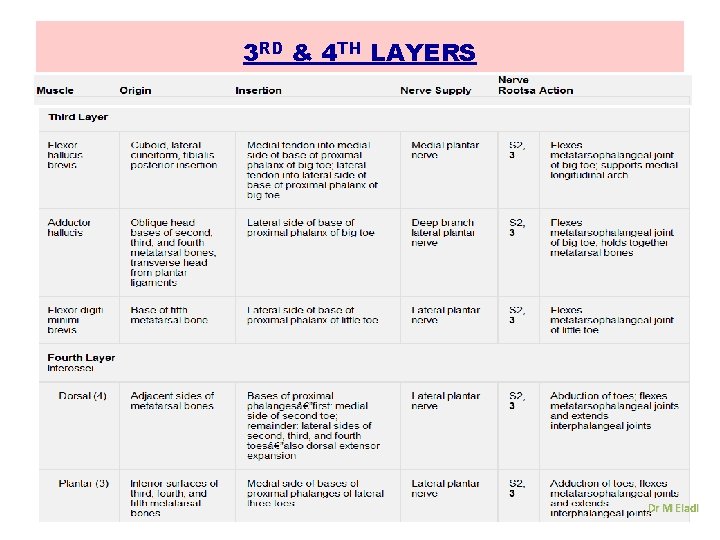

3 RD & 4 TH LAYERS Dr M Eladl

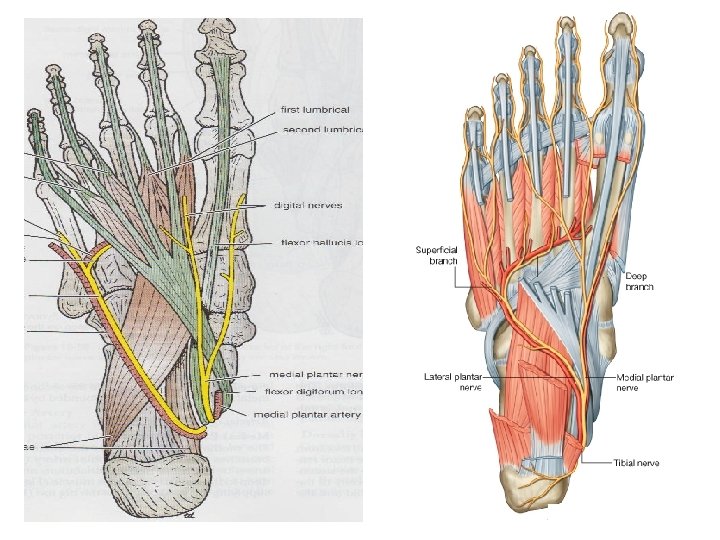

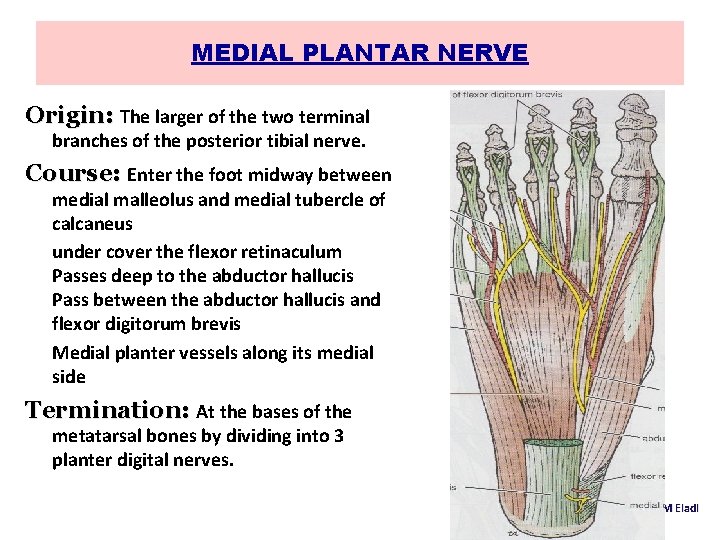

MEDIAL PLANTAR NERVE Origin: The larger of the two terminal branches of the posterior tibial nerve. Course: Enter the foot midway between medial malleolus and medial tubercle of calcaneus under cover the flexor retinaculum Passes deep to the abductor hallucis Pass between the abductor hallucis and flexor digitorum brevis Medial planter vessels along its medial side Termination: At the bases of the metatarsal bones by dividing into 3 planter digital nerves. Dr M Eladl

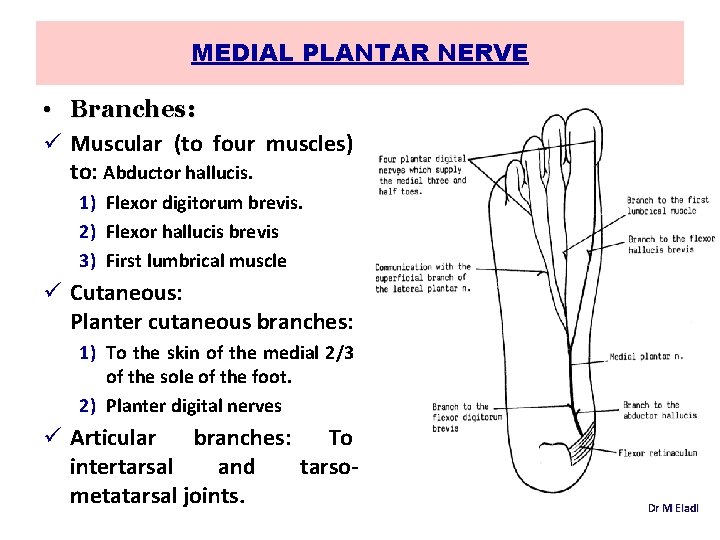

MEDIAL PLANTAR NERVE • Branches: ü Muscular (to four muscles) to: Abductor hallucis. 1) Flexor digitorum brevis. 2) Flexor hallucis brevis 3) First lumbrical muscle ü Cutaneous: Planter cutaneous branches: 1) To the skin of the medial 2/3 of the sole of the foot. 2) Planter digital nerves ü Articular branches: To intertarsal and tarsometatarsal joints. Dr M Eladl

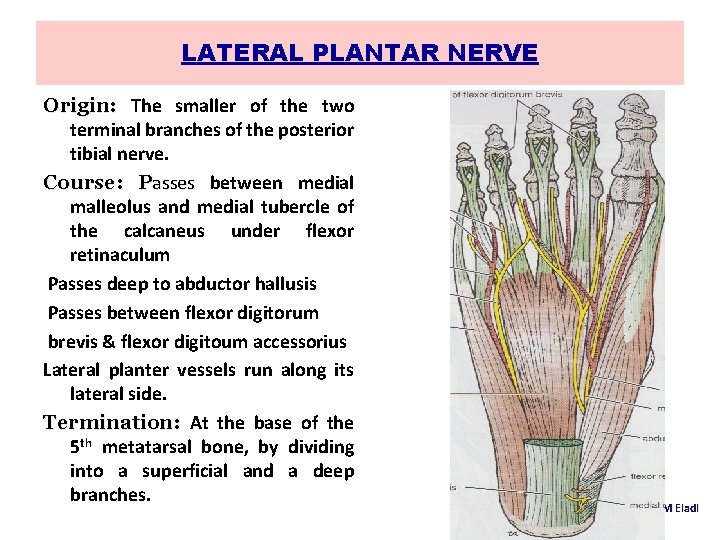

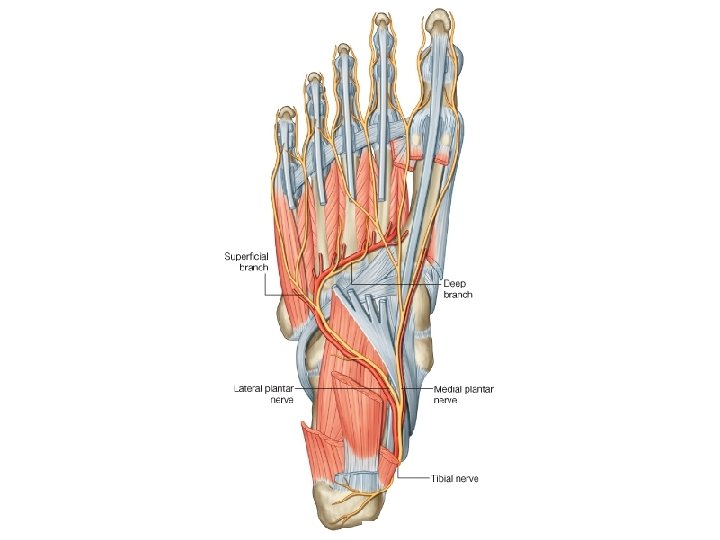

LATERAL PLANTAR NERVE Origin: The smaller of the two terminal branches of the posterior tibial nerve. Course: Passes between medial malleolus and medial tubercle of the calcaneus under flexor retinaculum Passes deep to abductor hallusis Passes between flexor digitorum brevis & flexor digitoum accessorius Lateral planter vessels run along its lateral side. Termination: At the base of the 5 th metatarsal bone, by dividing into a superficial and a deep branches. Dr M Eladl

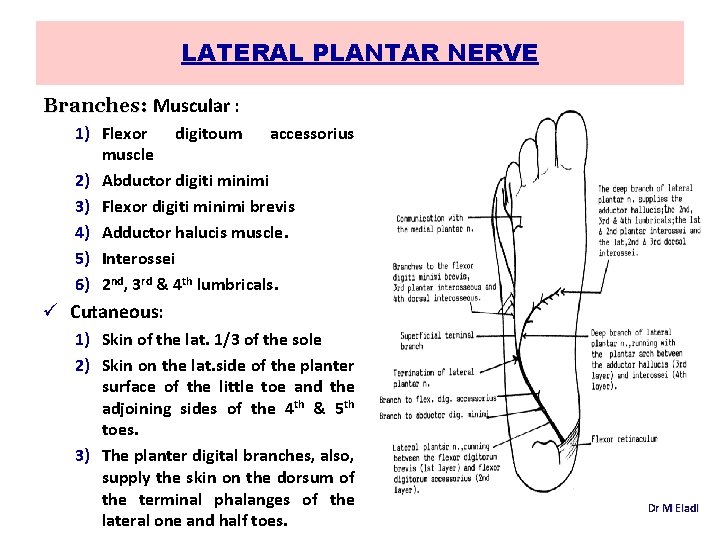

LATERAL PLANTAR NERVE Branches: Muscular : 1) Flexor digitoum accessorius muscle 2) Abductor digiti minimi 3) Flexor digiti minimi brevis 4) Adductor halucis muscle. 5) Interossei 6) 2 nd, 3 rd & 4 th lumbricals. ü Cutaneous: 1) Skin of the lat. 1/3 of the sole 2) Skin on the lat. side of the planter surface of the little toe and the adjoining sides of the 4 th & 5 th toes. 3) The planter digital branches, also, supply the skin on the dorsum of the terminal phalanges of the lateral one and half toes. Dr M Eladl

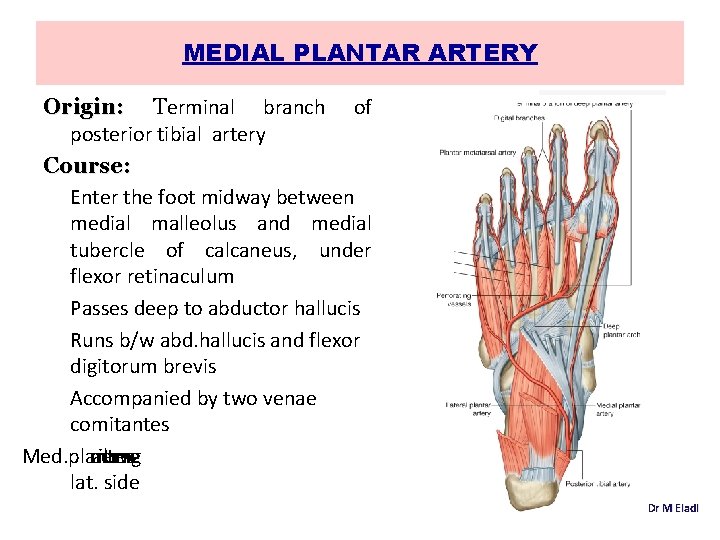

MEDIAL PLANTAR ARTERY Origin: Terminal branch of posterior tibial artery Course: Enter the foot midway between medial malleolus and medial tubercle of calcaneus, under flexor retinaculum Passes deep to abductor hallucis Runs b/w abd. hallucis and flexor digitorum brevis Accompanied by two venae comitantes Med. planter nerve along runs its lat. side Dr M Eladl

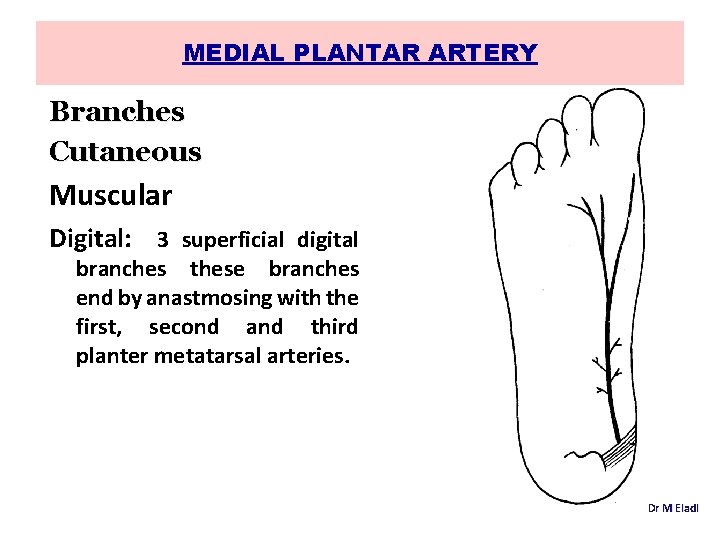

MEDIAL PLANTAR ARTERY Branches Cutaneous Muscular Digital: 3 superficial digital branches these branches end by anastmosing with the first, second and third planter metatarsal arteries. Dr M Eladl

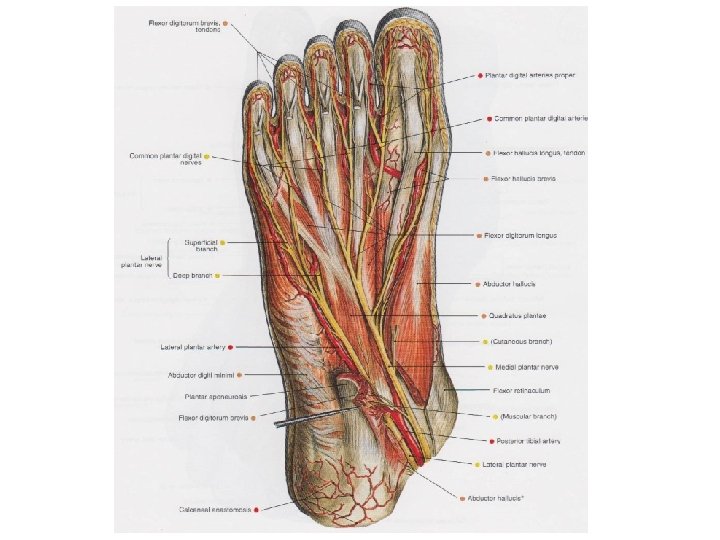

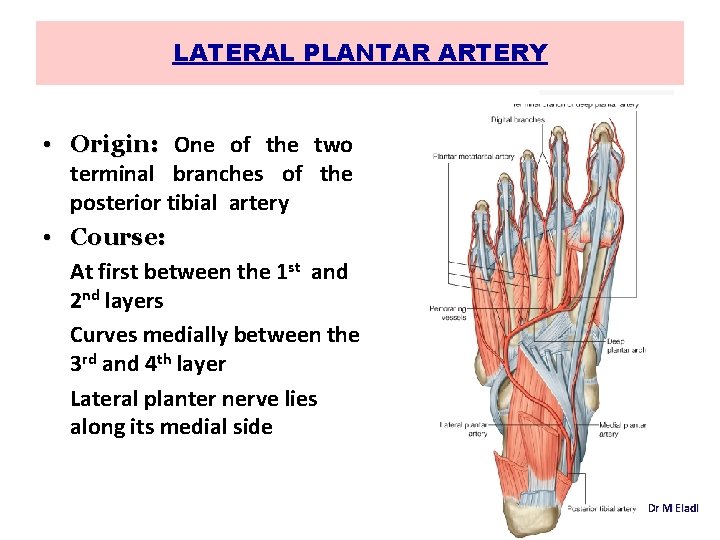

LATERAL PLANTAR ARTERY • Origin: One of the two terminal branches of the posterior tibial artery • Course: At first between the 1 st and 2 nd layers Curves medially between the 3 rd and 4 th layer Lateral planter nerve lies along its medial side Dr M Eladl

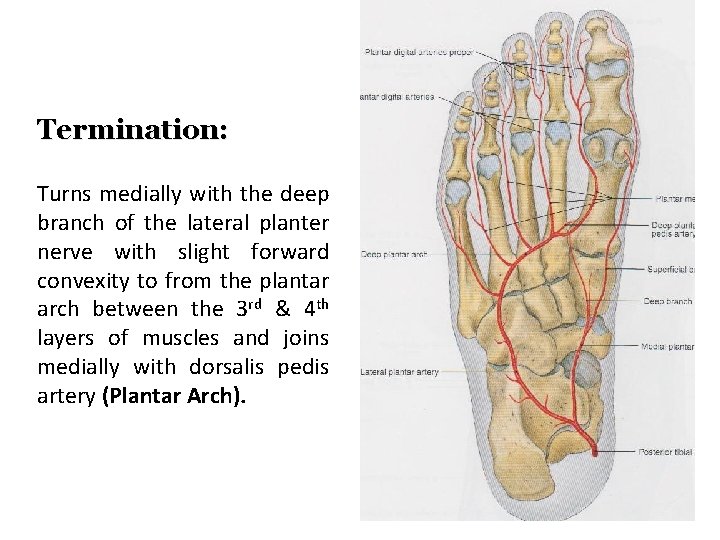

Termination: Turns medially with the deep branch of the lateral planter nerve with slight forward convexity to from the plantar arch between the 3 rd & 4 th layers of muscles and joins medially with dorsalis pedis artery (Plantar Arch).

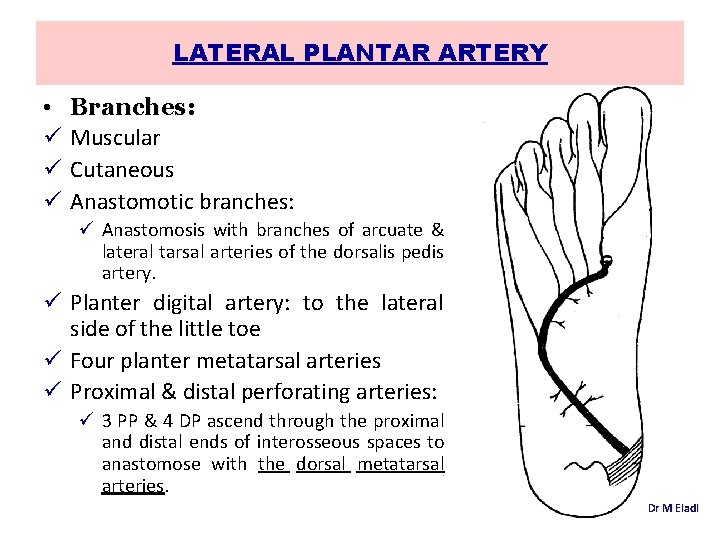

LATERAL PLANTAR ARTERY • ü ü ü Branches: Muscular Cutaneous Anastomotic branches: ü Anastomosis with branches of arcuate & lateral tarsal arteries of the dorsalis pedis artery. ü Planter digital artery: to the lateral side of the little toe ü Four planter metatarsal arteries ü Proximal & distal perforating arteries: ü 3 PP & 4 DP ascend through the proximal and distal ends of interosseous spaces to anastomose with the dorsal metatarsal arteries. Dr M Eladl

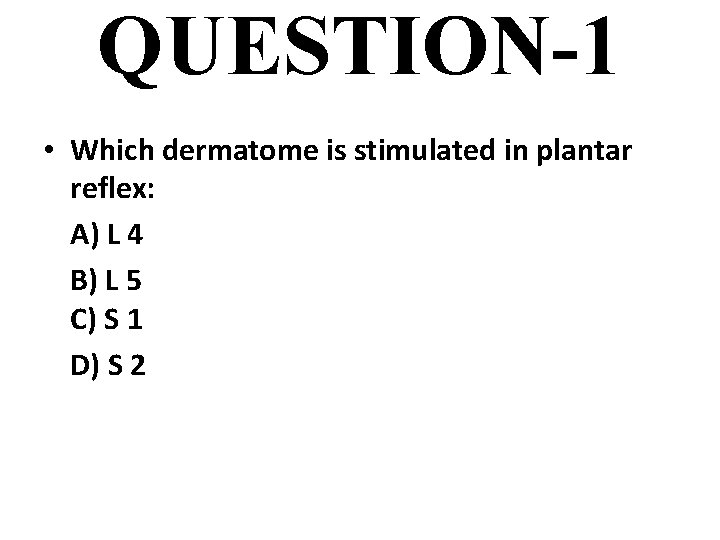

QUESTION-1 • Which dermatome is stimulated in plantar reflex: A) L 4 B) L 5 C) S 1 D) S 2

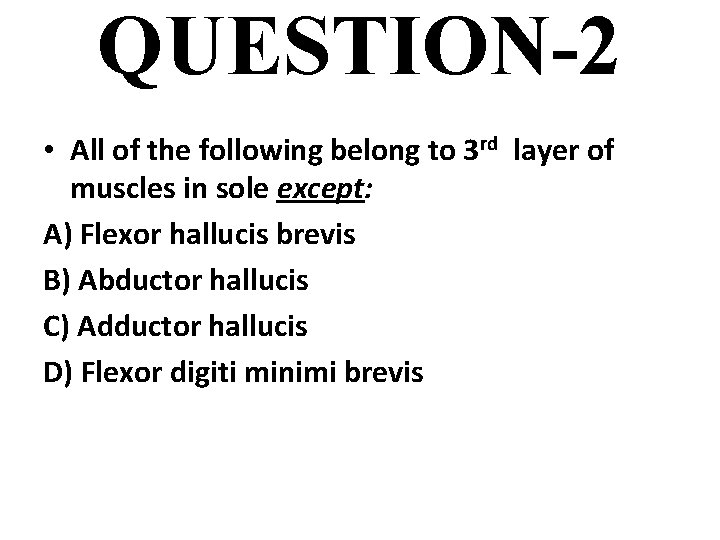

QUESTION-2 • All of the following belong to 3 rd layer of muscles in sole except: A) Flexor hallucis brevis B) Abductor hallucis C) Adductor hallucis D) Flexor digiti minimi brevis

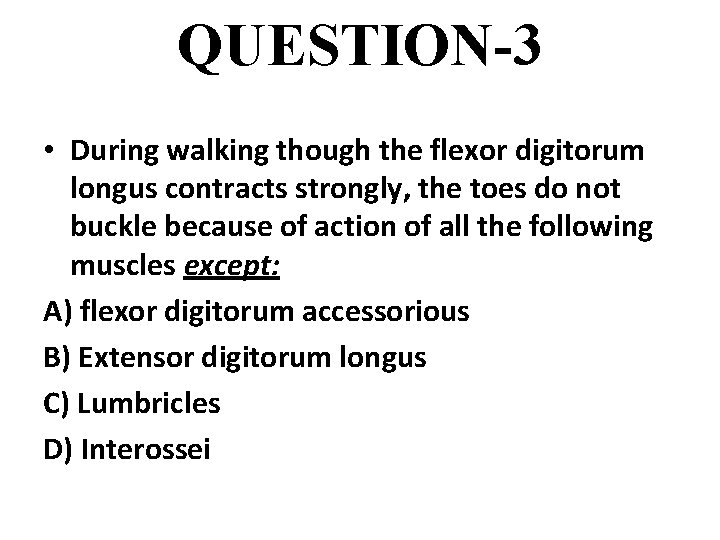

QUESTION-3 • During walking though the flexor digitorum longus contracts strongly, the toes do not buckle because of action of all the following muscles except: A) flexor digitorum accessorious B) Extensor digitorum longus C) Lumbricles D) Interossei

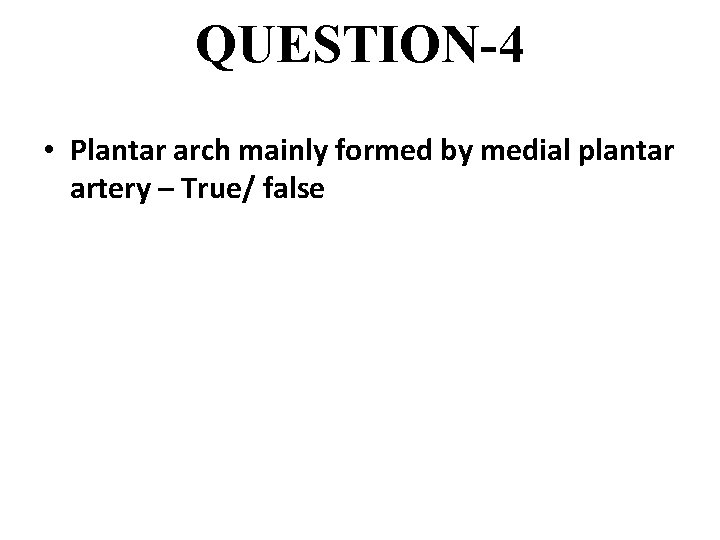

QUESTION-4 • Plantar arch mainly formed by medial plantar artery – True/ false

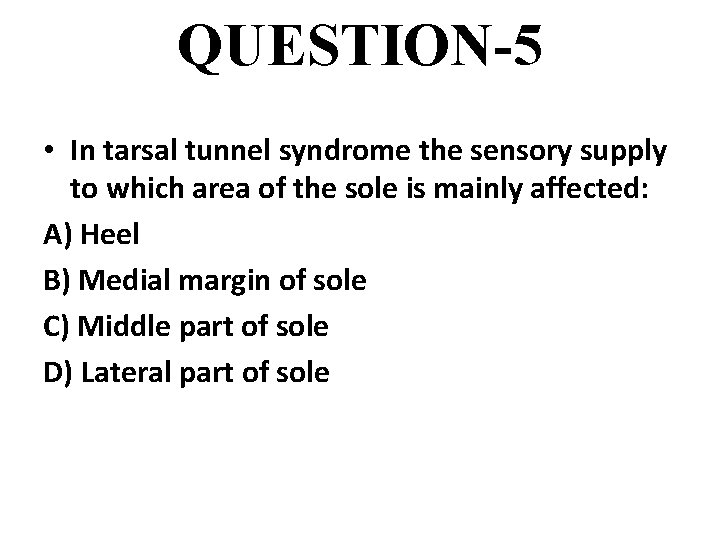

QUESTION-5 • In tarsal tunnel syndrome the sensory supply to which area of the sole is mainly affected: A) Heel B) Medial margin of sole C) Middle part of sole D) Lateral part of sole
