SolarCam NW Solar Powered Network Video Camera DH

Solar-Cam NW ™ Solar Powered Network Video Camera DH February 20178 v 0. 2 Page 1

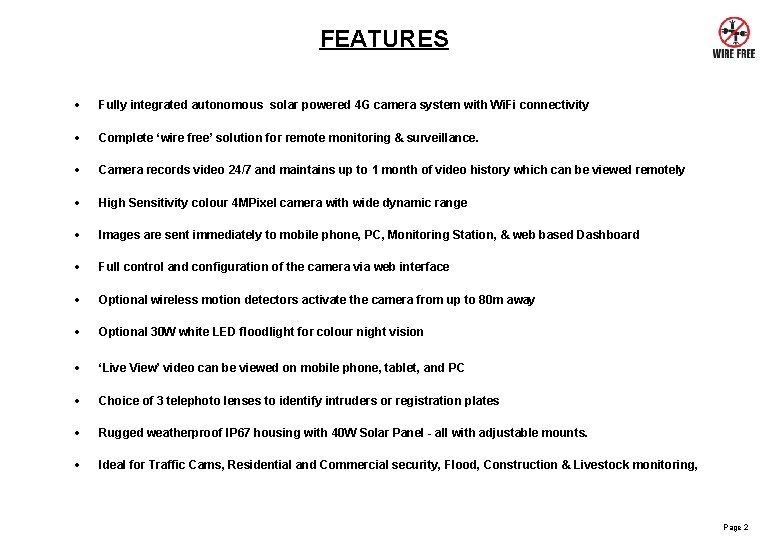

FEATURES Fully integrated autonomous solar powered 4 G camera system with Wi. Fi connectivity Complete ‘wire free’ solution for remote monitoring & surveillance. Camera records video 24/7 and maintains up to 1 month of video history which can be viewed remotely High Sensitivity colour 4 MPixel camera with wide dynamic range Images are sent immediately to mobile phone, PC, Monitoring Station, & web based Dashboard Full control and configuration of the camera via web interface Optional wireless motion detectors activate the camera from up to 80 m away Optional 30 W white LED floodlight for colour night vision ‘Live View’ video can be viewed on mobile phone, tablet, and PC Choice of 3 telephoto lenses to identify intruders or registration plates Rugged weatherproof IP 67 housing with 40 W Solar Panel - all with adjustable mounts. Ideal for Traffic Cams, Residential and Commercial security, Flood, Construction & Livestock monitoring, Page 2

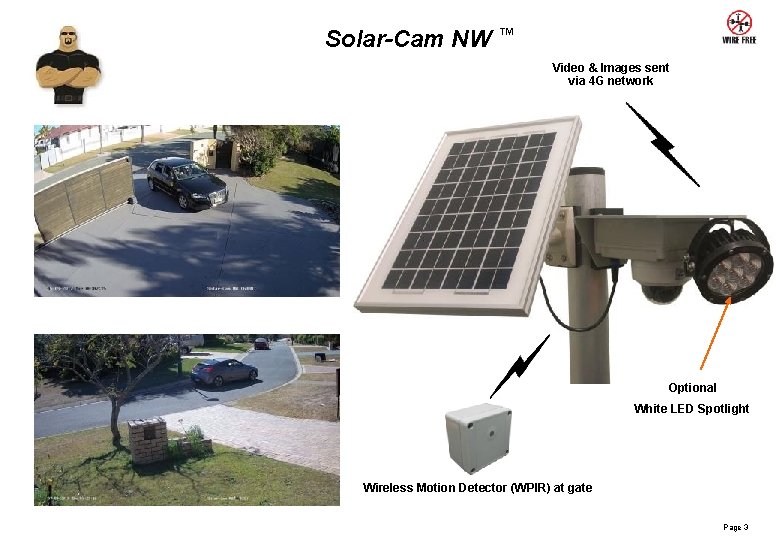

Solar-Cam NW ™ Video & Images sent via 4 G network Optional White LED Spotlight Wireless Motion Detector (WPIR) at gate Page 3

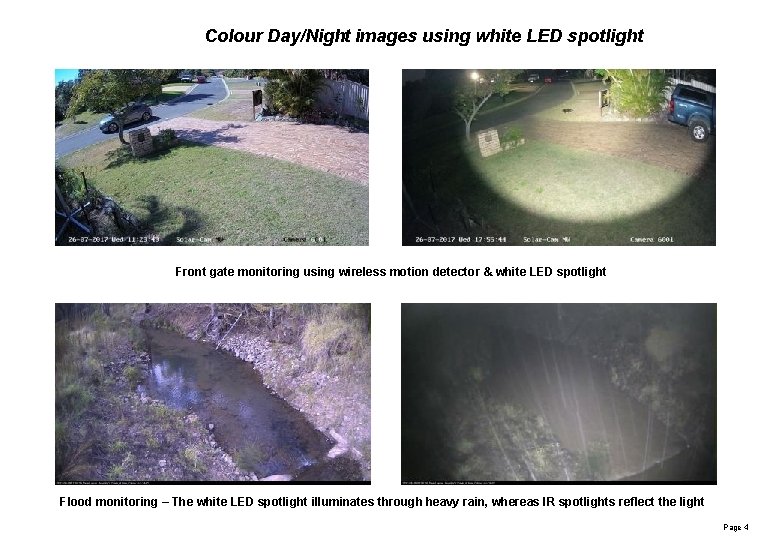

Colour Day/Night images using white LED spotlight Front gate monitoring using wireless motion detector & white LED spotlight Flood monitoring – The white LED spotlight illuminates through heavy rain, whereas IR spotlights reflect the light Page 4

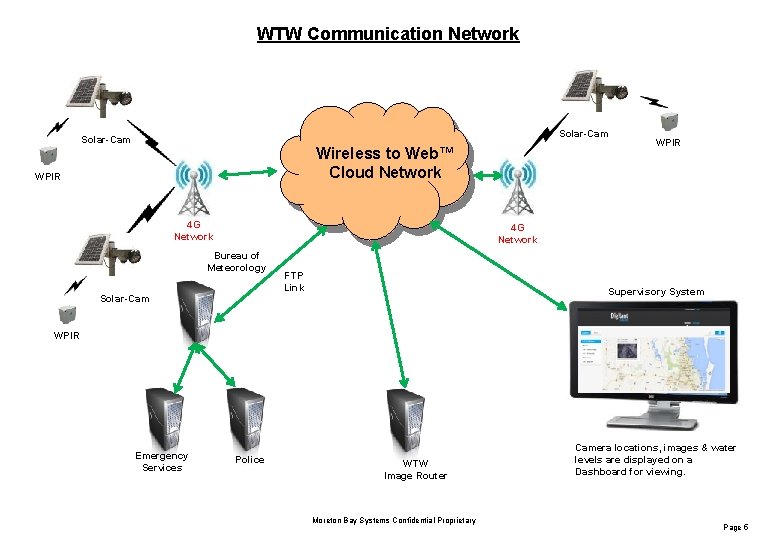

WTW Communication Network Solar-Cam Wireless to Web™ Cloud Network WPIR 4 G Network Bureau of Meteorology Solar-Cam FTP Link Supervisory System WPIR Emergency Services Police WTW Image Router Moreton Bay Systems Confidential Proprietary Camera locations, images & water levels are displayed on a Dashboard for viewing. Page 5

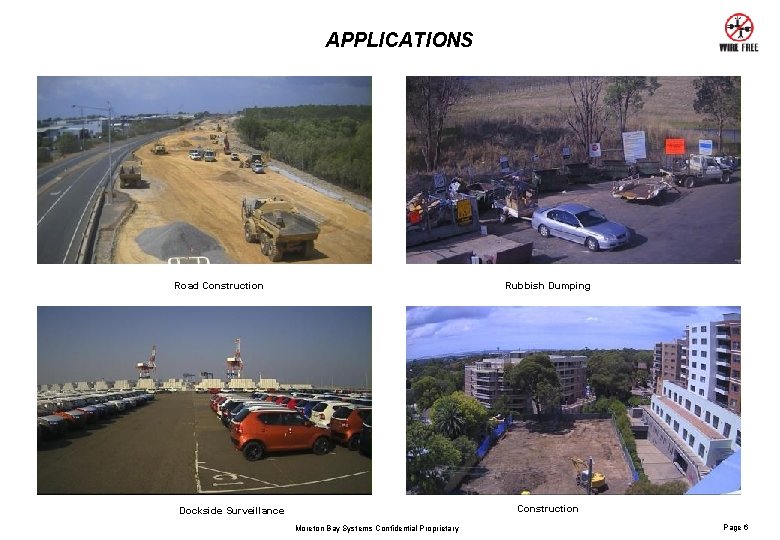

APPLICATIONS Road Construction Rubbish Dumping Construction Dockside Surveillance Moreton Bay Systems Confidential Proprietary Page 6

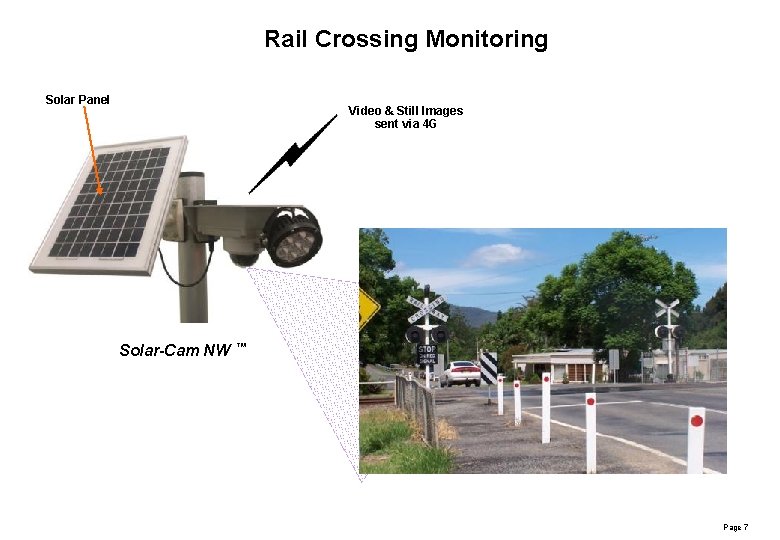

Rail Crossing Monitoring Solar Panel Video & Still Images sent via 4 G Solar-Cam NW ™ Page 7

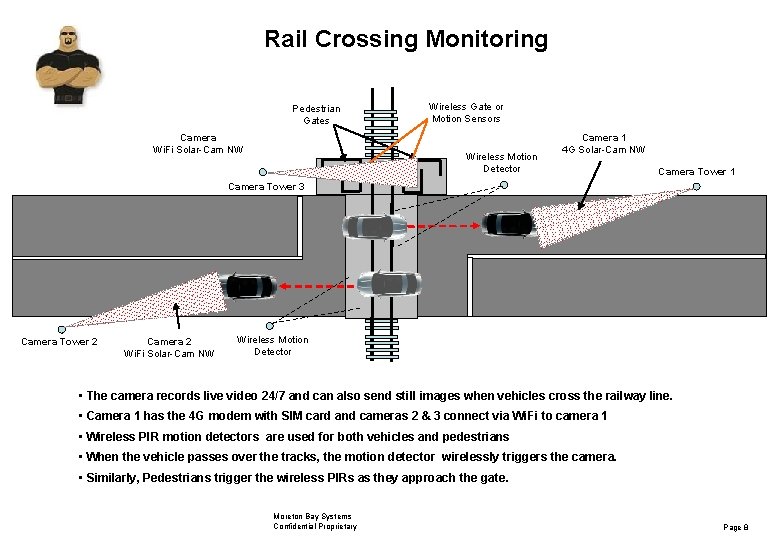

Rail Crossing Monitoring Pedestrian Gates Camera Wi. Fi Solar-Cam NW Wireless Gate or Motion Sensors Wireless Motion Detector Camera 1 4 G Solar-Cam NW Camera Tower 1 Camera Tower 3 Camera Tower 2 Camera 2 Wi. Fi Solar-Cam NW Wireless Motion Detector • The camera records live video 24/7 and can also send still images when vehicles cross the railway line. • Camera 1 has the 4 G modem with SIM card and cameras 2 & 3 connect via Wi. Fi to camera 1 • Wireless PIR motion detectors are used for both vehicles and pedestrians • When the vehicle passes over the tracks, the motion detector wirelessly triggers the camera. • Similarly, Pedestrians trigger the wireless PIRs as they approach the gate. Moreton Bay Systems Confidential Proprietary Page 8

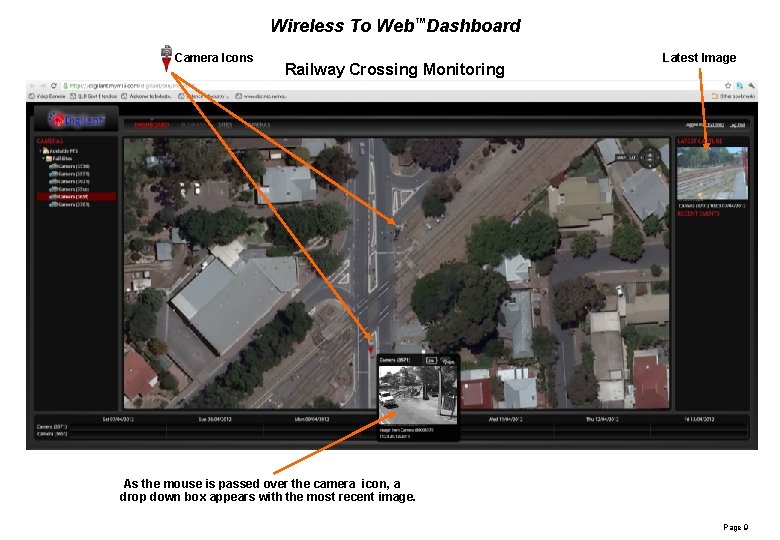

Wireless To Web™Dashboard Camera Icons Railway Crossing Monitoring Latest Image As the mouse is passed over the camera icon, a drop down box appears with the most recent image. Page 9

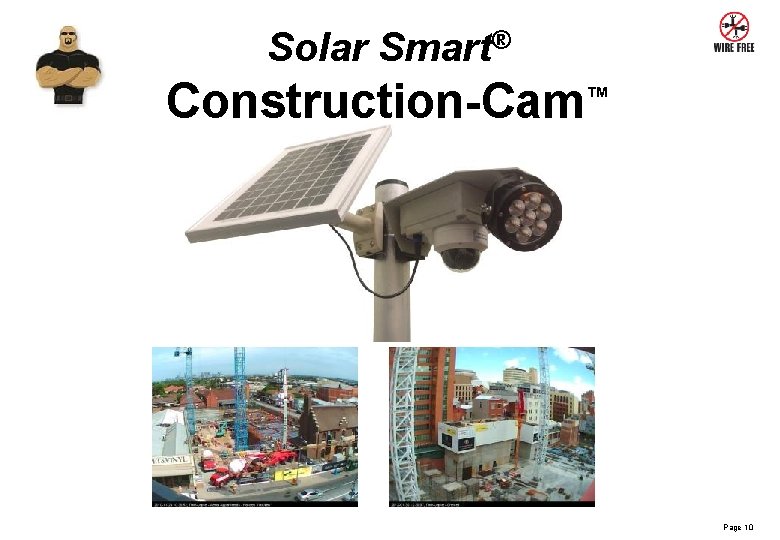

Solar Smart® Construction-Cam™ Page 10

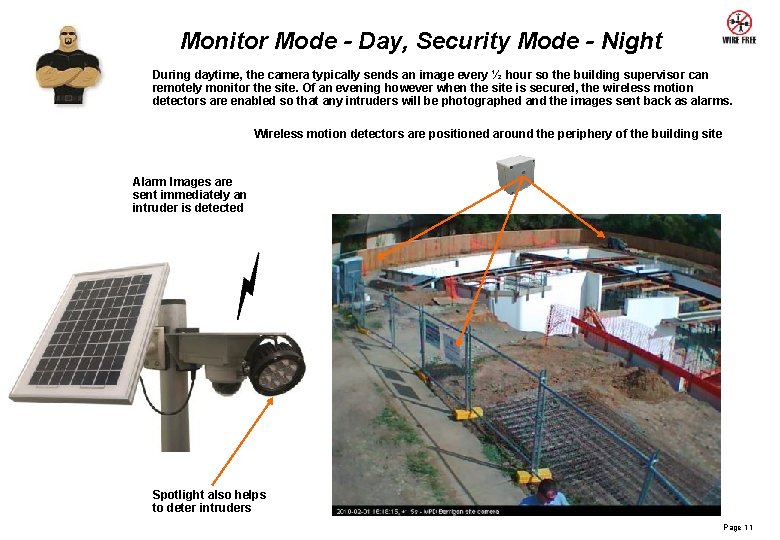

Monitor Mode - Day, Security Mode - Night During daytime, the camera typically sends an image every ½ hour so the building supervisor can remotely monitor the site. Of an evening however when the site is secured, the wireless motion detectors are enabled so that any intruders will be photographed and the images sent back as alarms. Wireless motion detectors are positioned around the periphery of the building site Alarm Images are sent immediately an intruder is detected Spotlight also helps to deter intruders Page 11

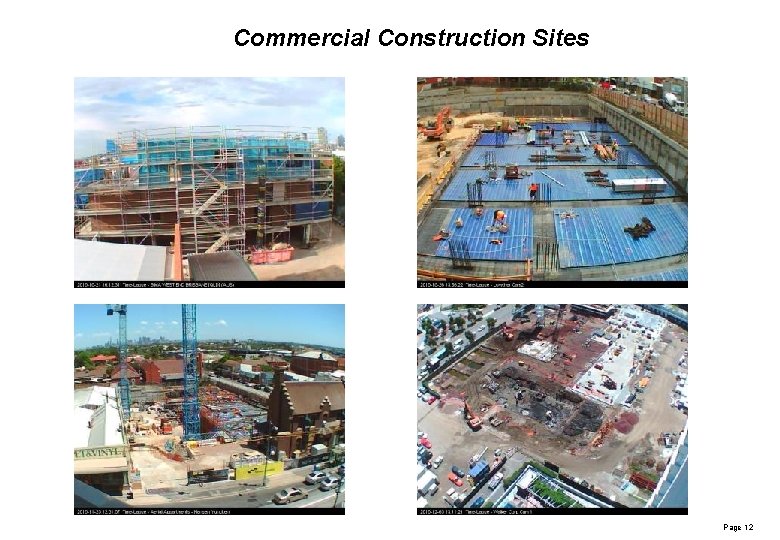

Commercial Construction Sites Page 12

Housing Construction Sites Page 13

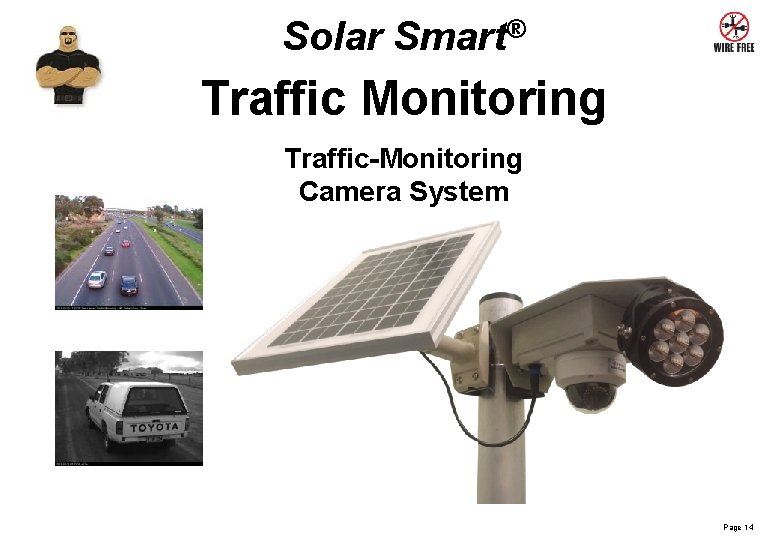

Solar Smart® Traffic Monitoring Traffic-Monitoring Camera System Page 14

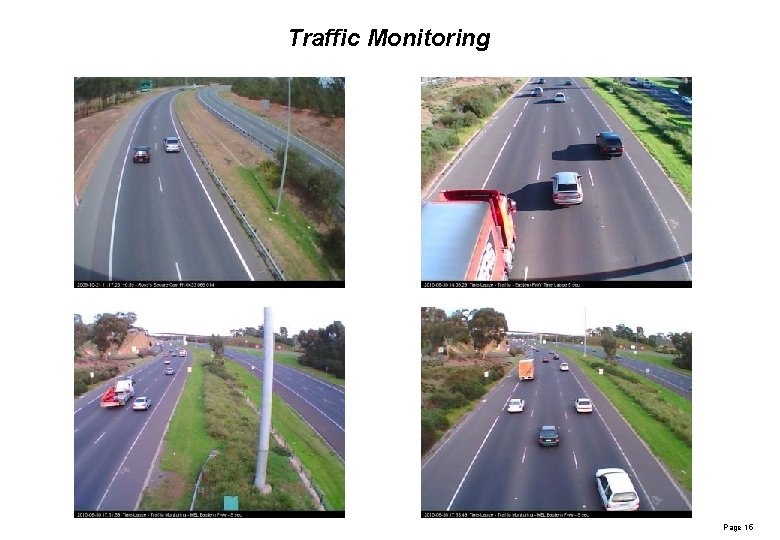

Traffic Monitoring Page 15

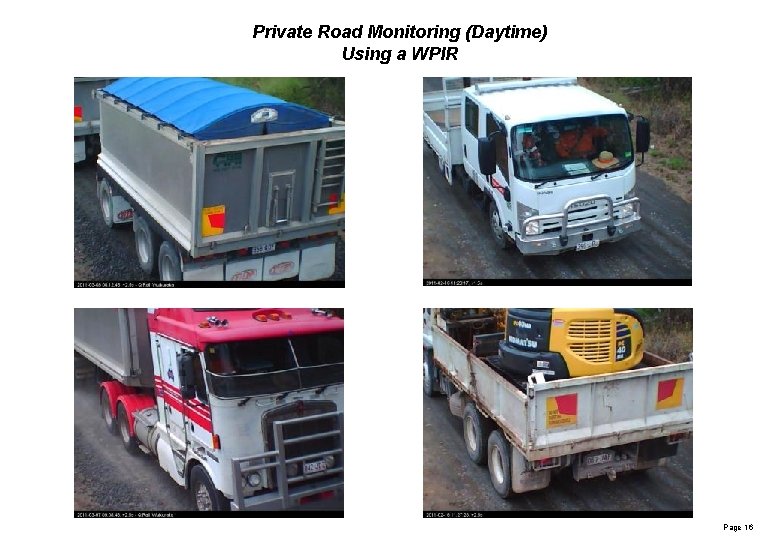

Private Road Monitoring (Daytime) Using a WPIR Page 16

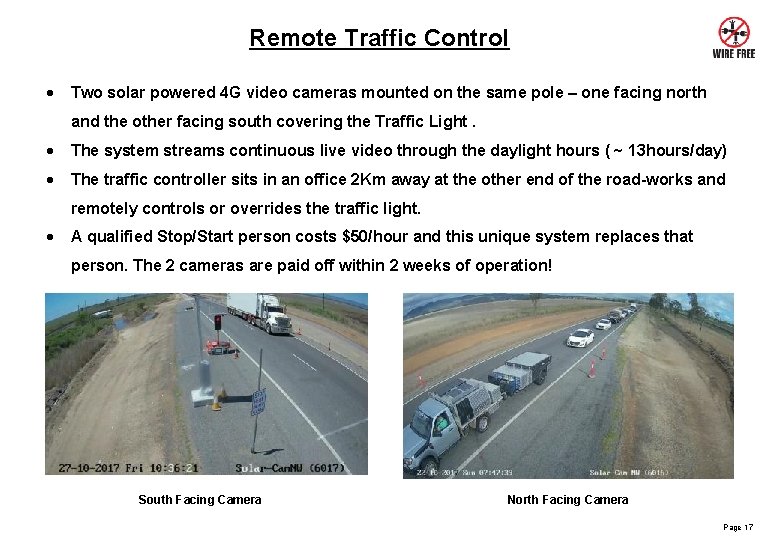

Remote Traffic Control Two solar powered 4 G video cameras mounted on the same pole – one facing north and the other facing south covering the Traffic Light. The system streams continuous live video through the daylight hours ( ~ 13 hours/day) The traffic controller sits in an office 2 Km away at the other end of the road-works and remotely controls or overrides the traffic light. A qualified Stop/Start person costs $50/hour and this unique system replaces that person. The 2 cameras are paid off within 2 weeks of operation! South Facing Camera North Facing Camera Page 17

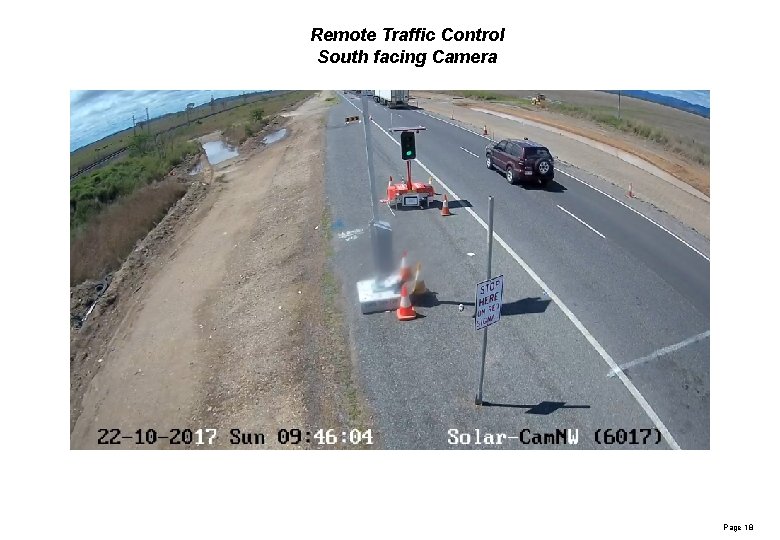

Remote Traffic Control South facing Camera Page 18

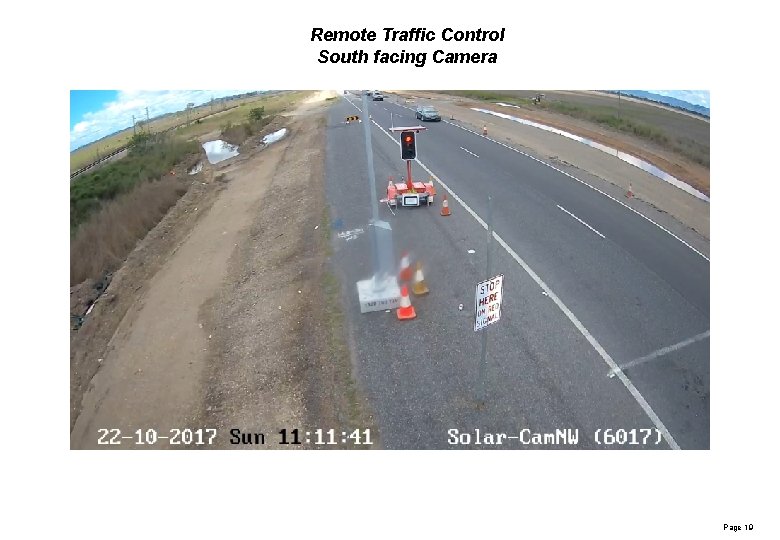

Remote Traffic Control South facing Camera Page 19

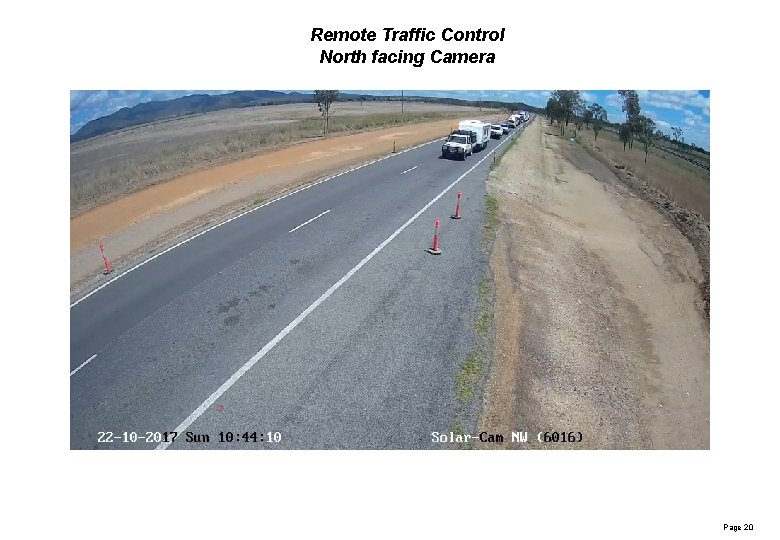

Remote Traffic Control North facing Camera Page 20
