Solar signal modulation by EEP and QBO Proposal

Solar signal modulation by EEP and QBO Proposal for the second phase of the ETH Polyproject “Variability of the Sun and Global Climate” Presented by E. Rozanov Poly-project meeting, Zurich, 26 October 2004

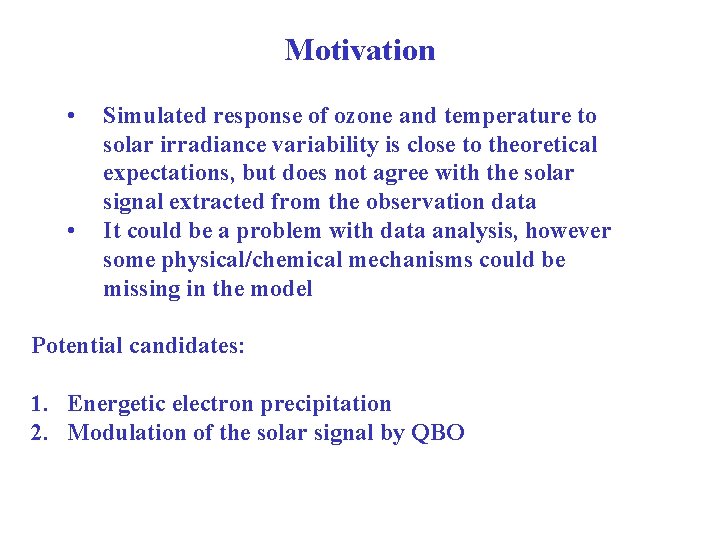

Motivation • • Simulated response of ozone and temperature to solar irradiance variability is close to theoretical expectations, but does not agree with the solar signal extracted from the observation data It could be a problem with data analysis, however some physical/chemical mechanisms could be missing in the model Potential candidates: 1. Energetic electron precipitation 2. Modulation of the solar signal by QBO

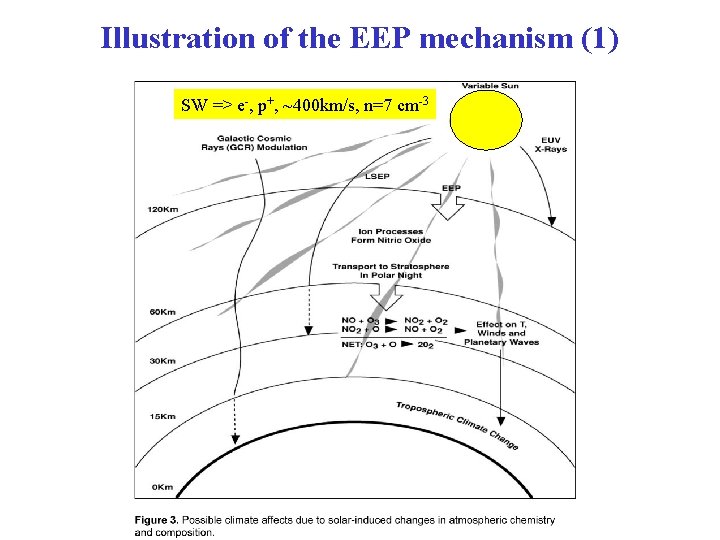

Illustration of the EEP mechanism (1) SW => e-, p+, ~400 km/s, n=7 cm-3

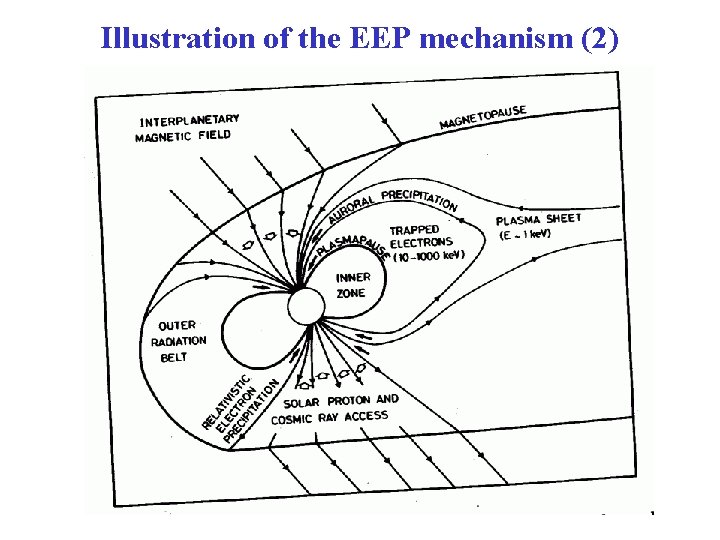

Illustration of the EEP mechanism (2)

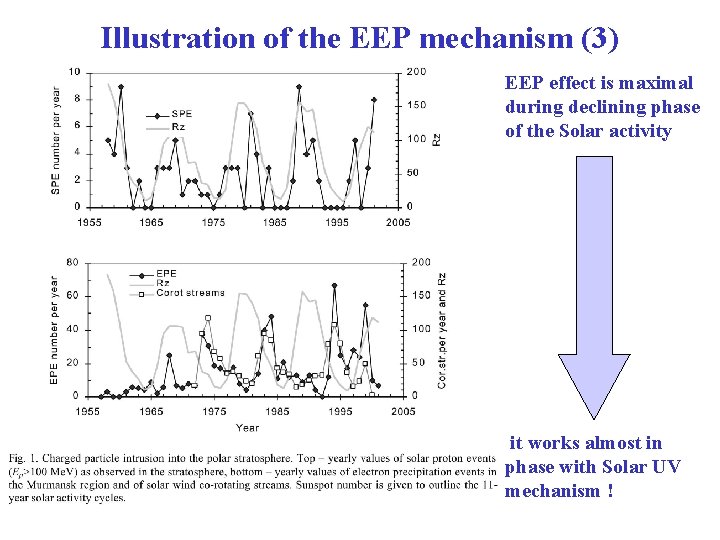

Illustration of the EEP mechanism (3) EEP effect is maximal during declining phase of the Solar activity it works almost in phase with Solar UV mechanism !

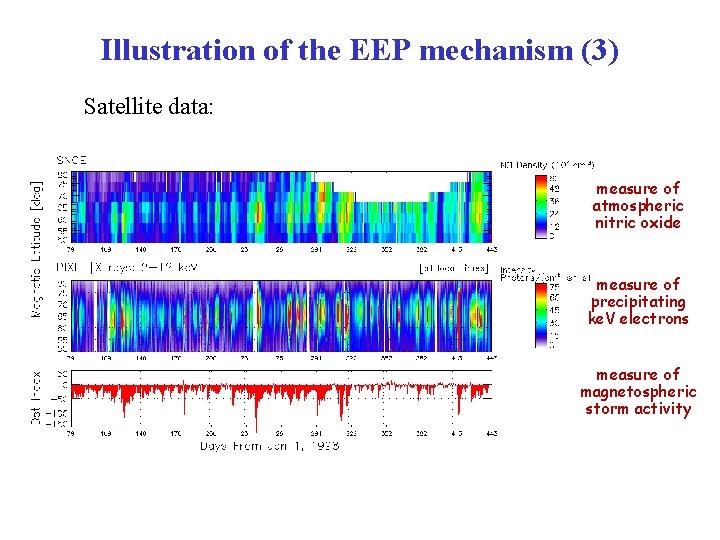

Illustration of the EEP mechanism (3) Satellite data: measure of atmospheric nitric oxide measure of precipitating ke. V electrons measure of magnetospheric storm activity

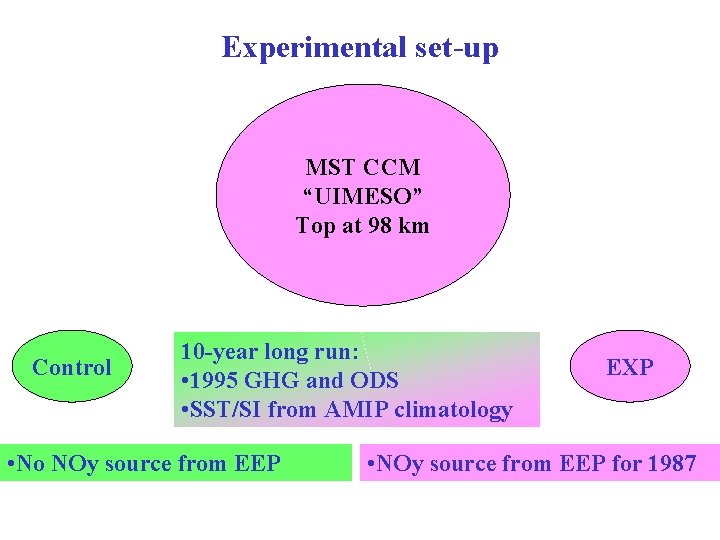

Experimental set-up MST CCM “UIMESO” Top at 98 km Control 10 -year long run: • 1995 GHG and ODS • SST/SI from AMIP climatology • No NOy source from EEP EXP • NOy source from EEP for 1987

NO source due to EEP

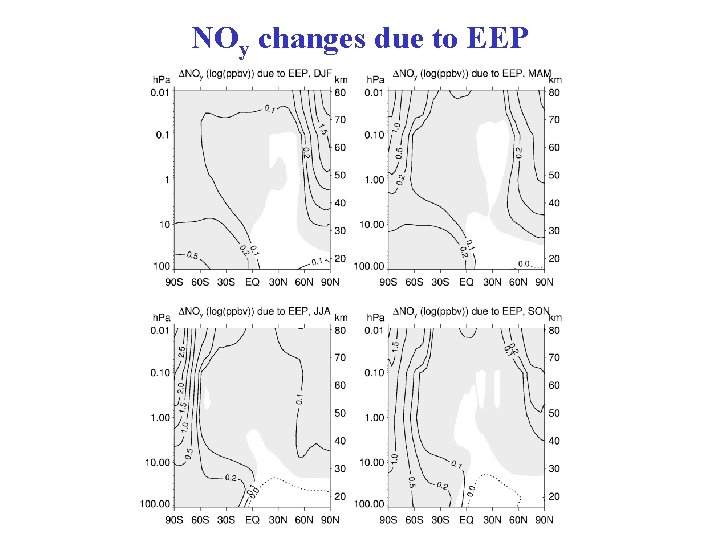

NOy changes due to EEP

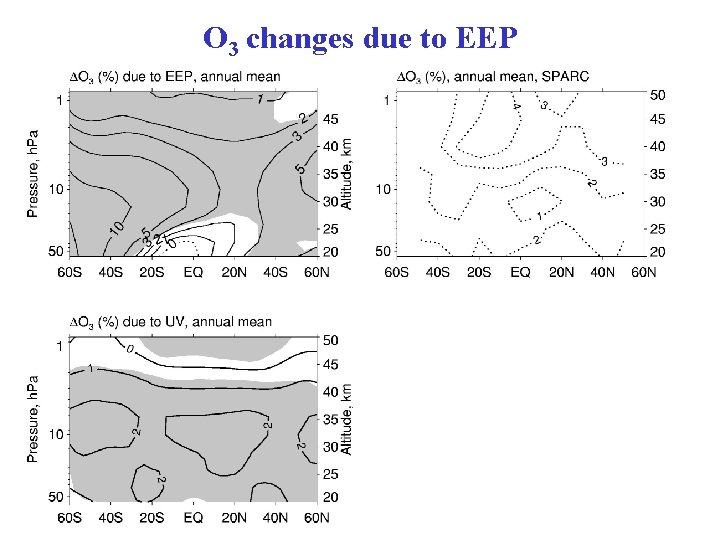

O 3 changes due to EEP

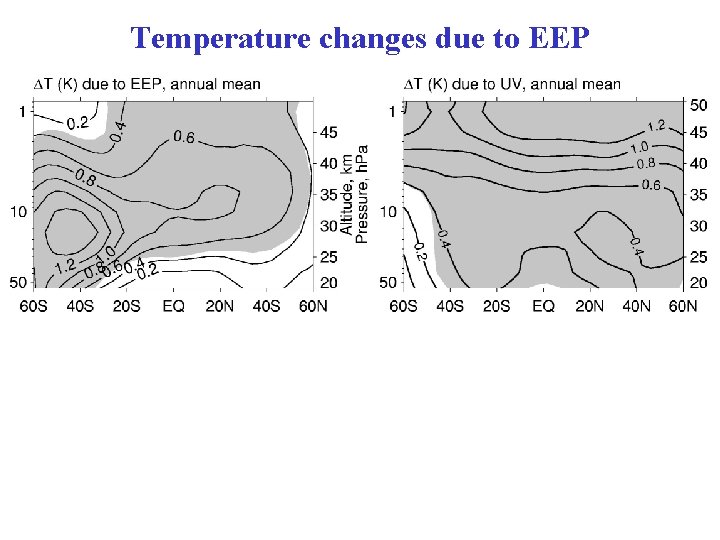

Temperature changes due to EEP

Total ozone changes (%) due to EEP

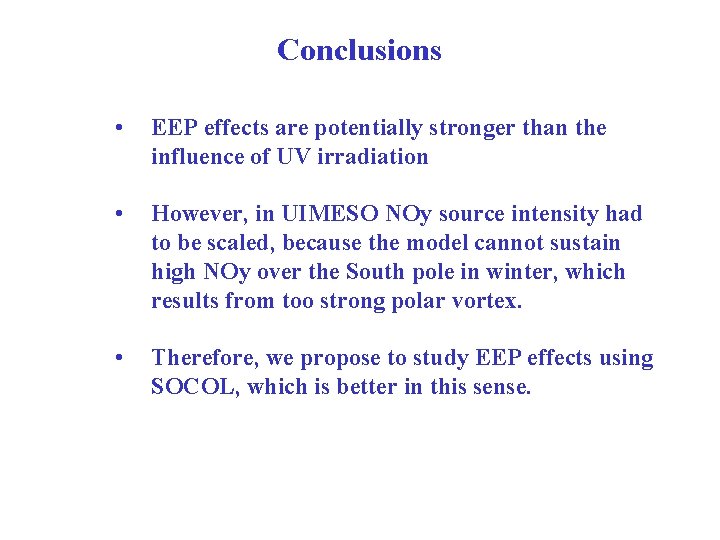

Conclusions • EEP effects are potentially stronger than the influence of UV irradiation • However, in UIMESO NOy source intensity had to be scaled, because the model cannot sustain high NOy over the South pole in winter, which results from too strong polar vortex. • Therefore, we propose to study EEP effects using SOCOL, which is better in this sense.

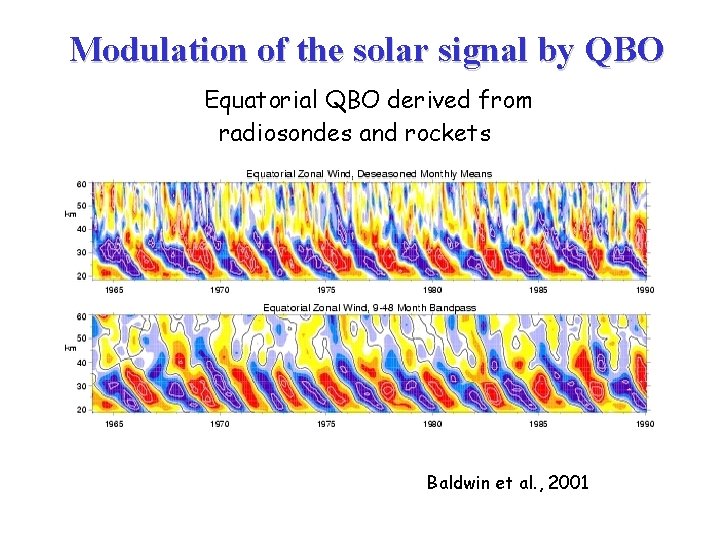

Modulation of the solar signal by QBO Equatorial QBO derived from radiosondes and rockets Baldwin et al. , 2001

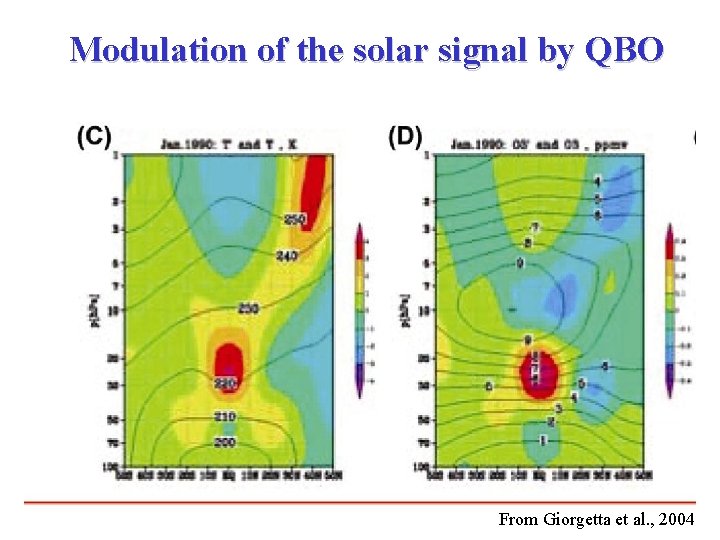

Modulation of the solar signal by QBO From Giorgetta et al. , 2004

Observed solar signal in 30 h. Pa GPH, January (from Labitzke, 2001) Easterly QBO phase Westerly QBO phase

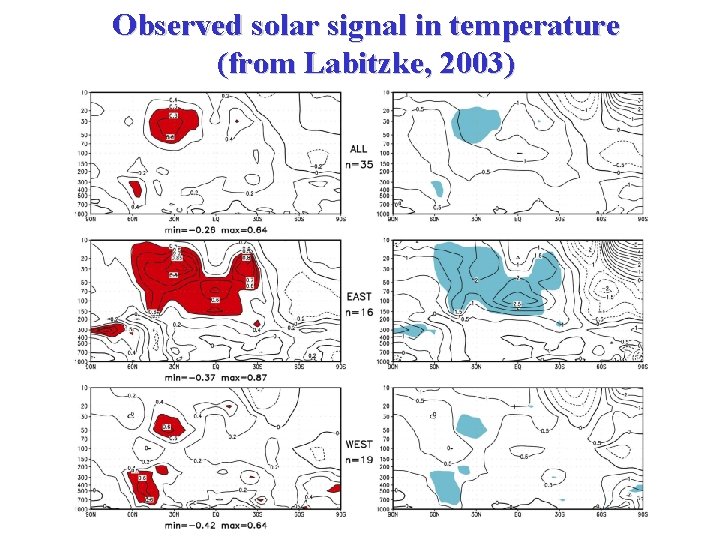

Observed solar signal in temperature (from Labitzke, 2003)

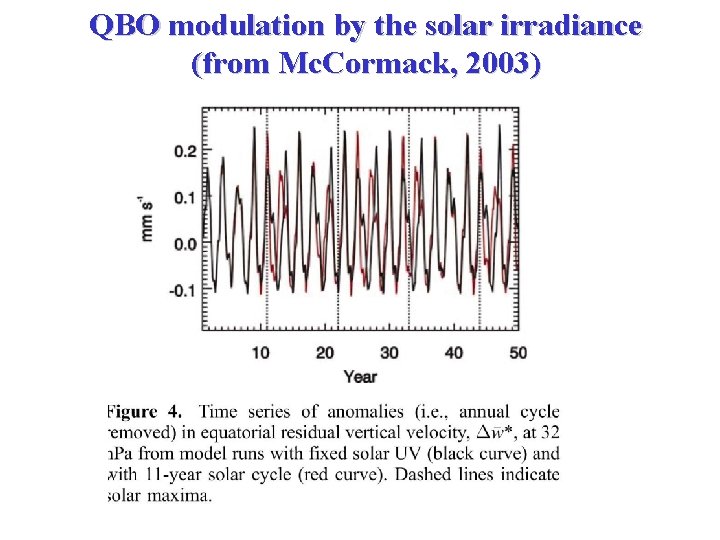

QBO modulation by the solar irradiance (from Mc. Cormack, 2003)

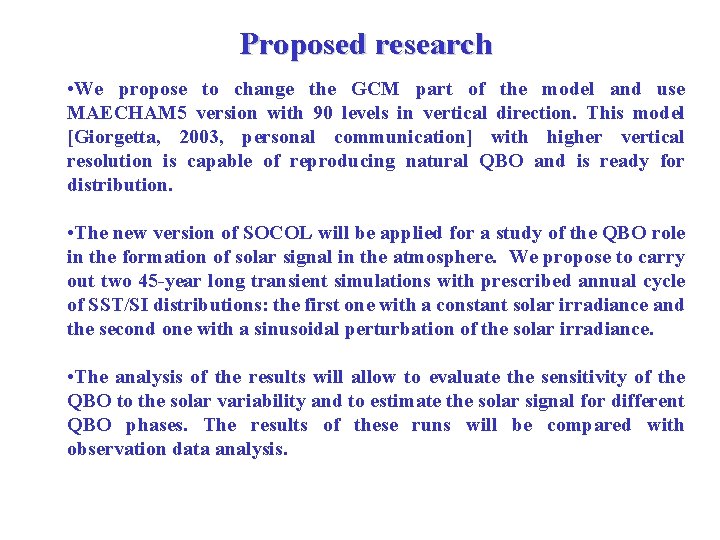

Proposed research • We propose to change the GCM part of the model and use MAECHAM 5 version with 90 levels in vertical direction. This model [Giorgetta, 2003, personal communication] with higher vertical resolution is capable of reproducing natural QBO and is ready for distribution. • The new version of SOCOL will be applied for a study of the QBO role in the formation of solar signal in the atmosphere. We propose to carry out two 45 -year long transient simulations with prescribed annual cycle of SST/SI distributions: the first one with a constant solar irradiance and the second one with a sinusoidal perturbation of the solar irradiance. • The analysis of the results will allow to evaluate the sensitivity of the QBO to the solar variability and to estimate the solar signal for different QBO phases. The results of these runs will be compared with observation data analysis.

End of the presentation

Simulation of Maunder minimum and 20 th century climate Proposal for the second phase of the ETH Polyproject “Variability of the Sun and Global Climate” Presented by E. Rozanov Poly-project meeting, Zurich, 26 October 2004

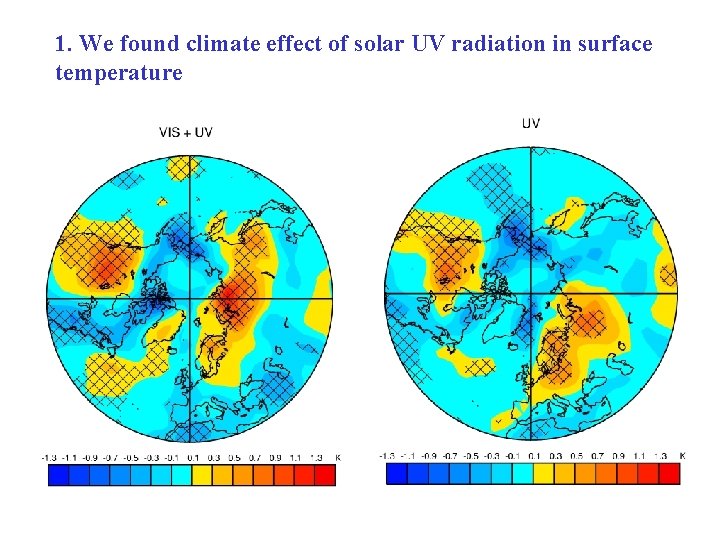

1. We found climate effect of solar UV radiation in surface temperature

2. This effect presumably reflects circulation changes in the stratosphere From Kodera and Kuroda, 2002

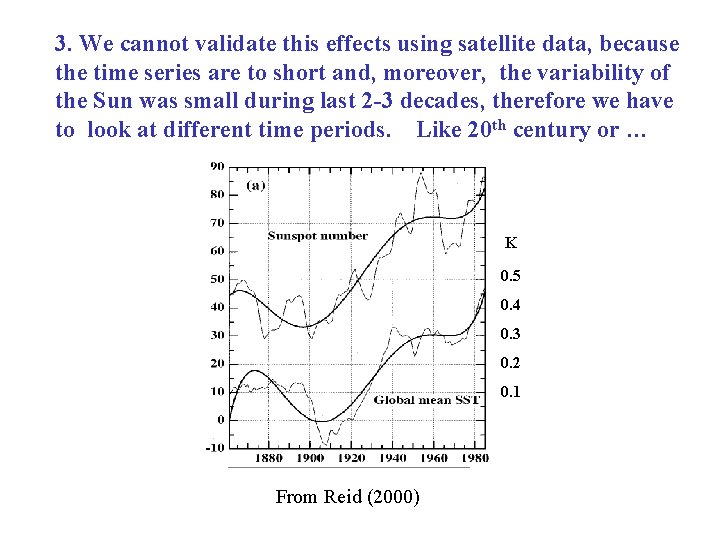

3. We cannot validate this effects using satellite data, because the time series are to short and, moreover, the variability of the Sun was small during last 2 -3 decades, therefore we have to look at different time periods. Like 20 th century or … K 0. 5 0. 4 0. 3 0. 2 0. 1 From Reid (2000)

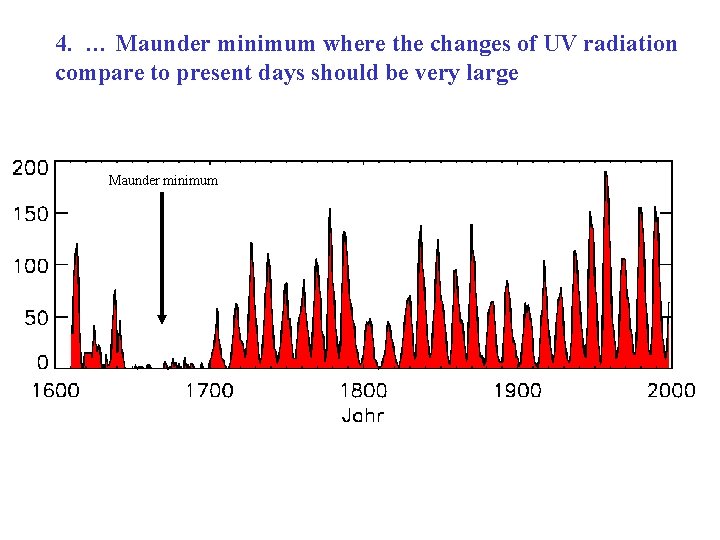

4. … Maunder minimum where the changes of UV radiation compare to present days should be very large Maunder minimum

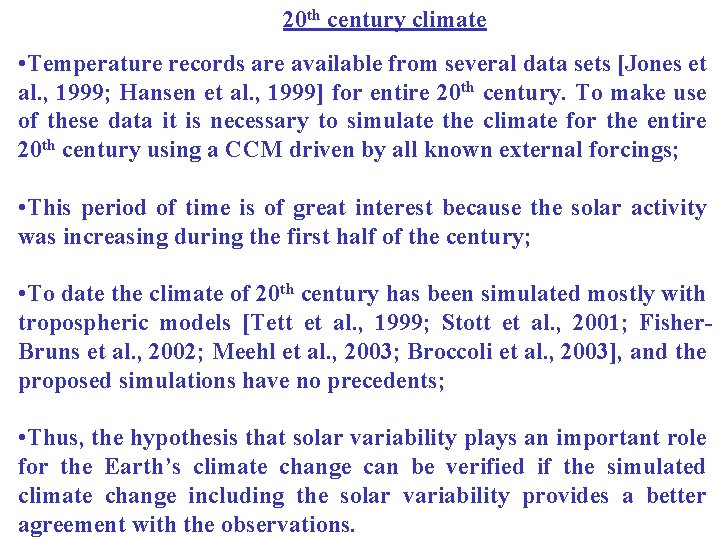

20 th century climate • Temperature records are available from several data sets [Jones et al. , 1999; Hansen et al. , 1999] for entire 20 th century. To make use of these data it is necessary to simulate the climate for the entire 20 th century using a CCM driven by all known external forcings; • This period of time is of great interest because the solar activity was increasing during the first half of the century; • To date the climate of 20 th century has been simulated mostly with tropospheric models [Tett et al. , 1999; Stott et al. , 2001; Fisher. Bruns et al. , 2002; Meehl et al. , 2003; Broccoli et al. , 2003], and the proposed simulations have no precedents; • Thus, the hypothesis that solar variability plays an important role for the Earth’s climate change can be verified if the simulated climate change including the solar variability provides a better agreement with the observations.

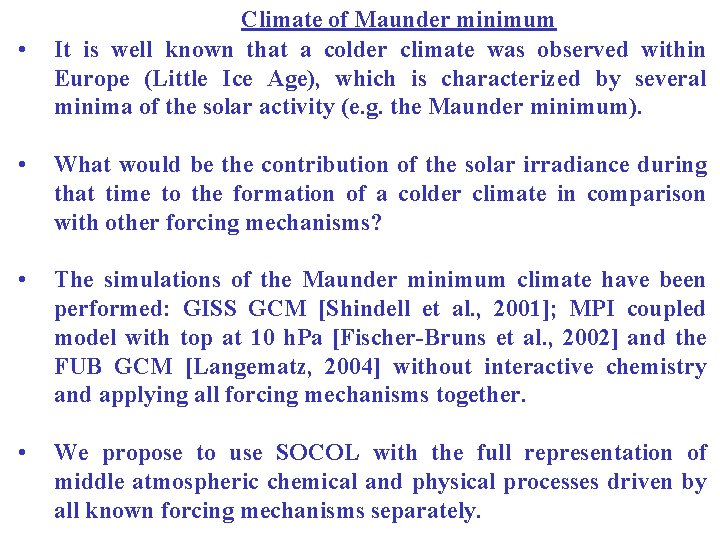

• Climate of Maunder minimum It is well known that a colder climate was observed within Europe (Little Ice Age), which is characterized by several minima of the solar activity (e. g. the Maunder minimum). • What would be the contribution of the solar irradiance during that time to the formation of a colder climate in comparison with other forcing mechanisms? • The simulations of the Maunder minimum climate have been performed: GISS GCM [Shindell et al. , 2001]; MPI coupled model with top at 10 h. Pa [Fischer-Bruns et al. , 2002] and the FUB GCM [Langematz, 2004] without interactive chemistry and applying all forcing mechanisms together. • We propose to use SOCOL with the full representation of middle atmospheric chemical and physical processes driven by all known forcing mechanisms separately.

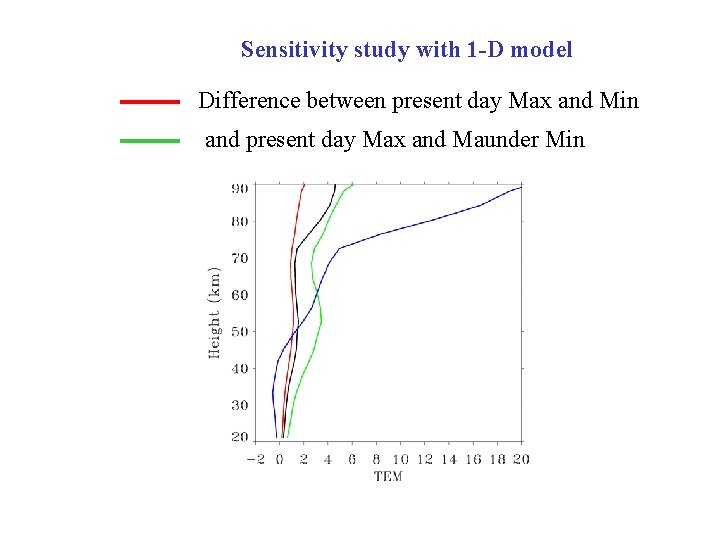

Sensitivity study with 1 -D model Difference between present day Max and Min and present day Max and Maunder Min

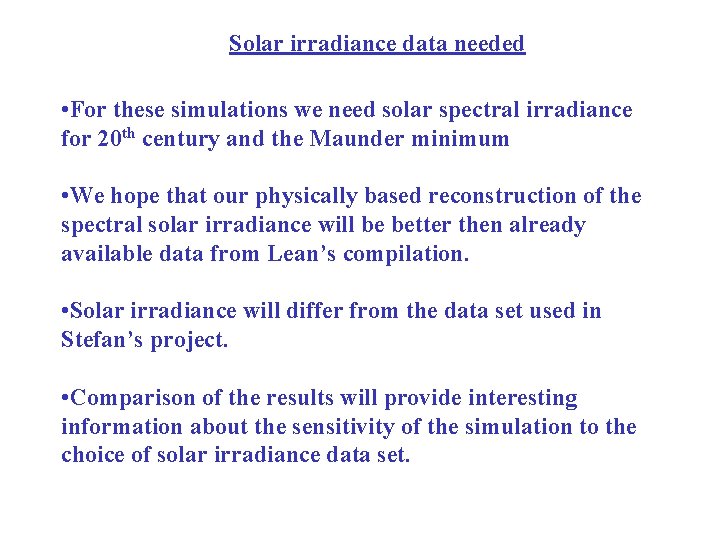

Solar irradiance data needed • For these simulations we need solar spectral irradiance for 20 th century and the Maunder minimum • We hope that our physically based reconstruction of the spectral solar irradiance will be better then already available data from Lean’s compilation. • Solar irradiance will differ from the data set used in Stefan’s project. • Comparison of the results will provide interesting information about the sensitivity of the simulation to the choice of solar irradiance data set.
