Product Description Solar Powered Roof Ventilation Fan A self-contained axial flow solar roof ventilator, taking advantage of natural solar power, making active ventilation efficiently and quietly by top grade brushless motor. As an energy-saving green ventilation solution for a healthy & comfortable environment! Wiring free and with no dependence on AC grid, SIPL solar roof fan comes to freshen air on attic roof space for various premises at no cost. It would pump out stale air and heat build-up at attics to improve attic ventilation and roof air circulation, reduce moisture & harmful mildews, extend roofing lifespan, reduce the load on airconditioner and HVAC system in summer, help balance indoor temperature and prevent ice-dam in winter… Free Solar Panel Power BLDC Motor Quiet Operation Strong Fan Case Durable In Use Utility Model Patent Design Easy Installation No Maintenance Battery backup for running 24 h $ No Electric Cost Save your Money Quality Assurance 5 Years Warranty

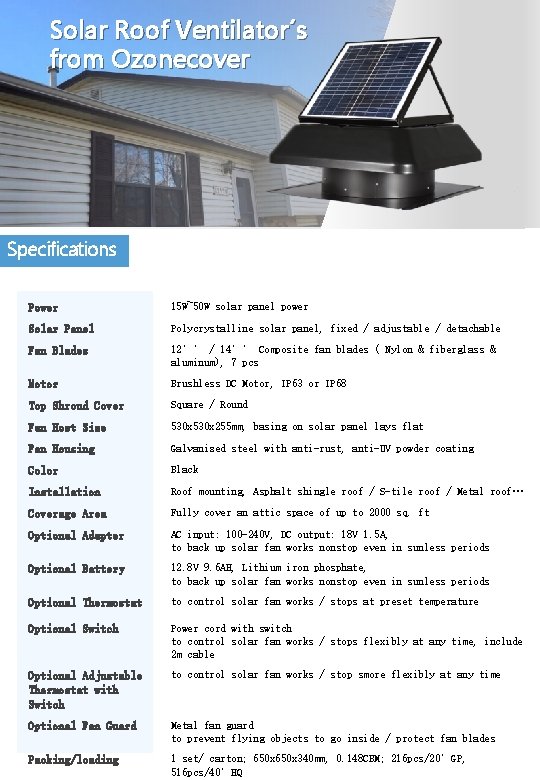

Solar Roof Ventilator´s from Ozonecover Specifications Power 15 W~50 W solar panel power Solar Panel Polycrystalline solar panel, fixed / adjustable / detachable Fan Blades 12’’ / 14’’ Composite fan blades ( Nylon & fiberglass & aluminum), 7 pcs Motor Brushless DC Motor, IP 63 or IP 68 Top Shroud Cover Square / Round Fan Host Size 530 x 255 mm, basing on solar panel lays flat Fan Housing Galvanized steel with anti-rust, anti-UV powder coating Color Black Installation Roof mounting, Asphalt shingle roof / S-tile roof / Metal roof… Coverage Area Fully cover an attic space of up to 2000 sq. ft Optional Adapter AC input: 100 -240 V, DC output: 18 V 1. 5 A, to back up solar fan works nonstop even in sunless periods Optional Battery 12. 8 V 9. 6 AH, Lithium iron phosphate, to back up solar fan works nonstop even in sunless periods Optional Thermostat to control solar fan works / stops at preset temperature Optional Switch Power cord with switch to control solar fan works / stops flexibly at any time, include 2 m cable Optional Adjustable Thermostat with Switch to control solar fan works / stop smore flexibly at any time Optional Fan Guard Metal fan guard to prevent flying objects to go inside / protect fan blades Packing/loading 1 set/ carton; 650 x 340 mm, 0. 148 CBM; 216 pcs/20’GP, 516 pcs/40’HQ

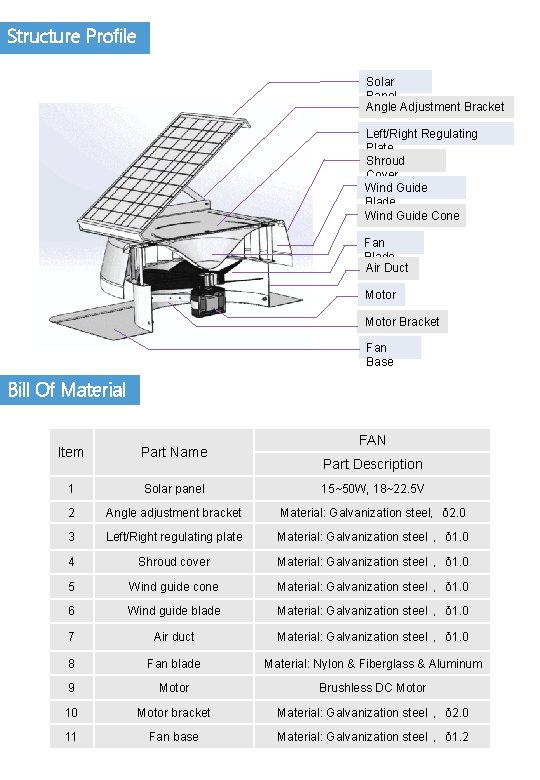

Structure Profile Solar Panel Angle Adjustment Bracket Left/Right Regulating Plate Shroud Cover Wind Guide Blade Wind Guide Cone Fan Blade Air Duct Motor Bracket Fan Base Bill Of Material FAN Item Part Name 1 Solar panel 15~50 W, 18~22. 5 V 2 Angle adjustment bracket Material: Galvanization steel，δ 2. 0 3 Left/Right regulating plate Material: Galvanization steel ，δ 1. 0 4 Shroud cover Material: Galvanization steel ，δ 1. 0 5 Wind guide cone Material: Galvanization steel ，δ 1. 0 6 Wind guide blade Material: Galvanization steel ，δ 1. 0 7 Air duct Material: Galvanization steel ，δ 1. 0 8 Fan blade Material: Nylon & Fiberglass & Aluminum 9 Motor Brushless DC Motor 10 Motor bracket Material: Galvanization steel ，δ 2. 0 11 Fan base Material: Galvanization steel ，δ 1. 2 Part Description

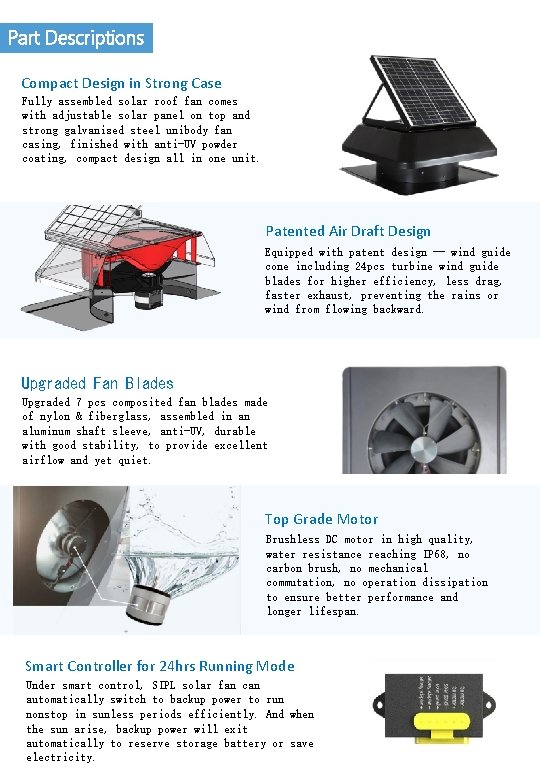

Part Descriptions Compact Design in Strong Case Fully assembled solar roof fan comes with adjustable solar panel on top and strong galvanized steel unibody fan casing, finished with anti-UV powder coating, compact design all in one unit. Patented Air Draft Design Equipped with patent design — wind guide cone including 24 pcs turbine wind guide blades for higher efficiency, less drag, faster exhaust, preventing the rains or wind from flowing backward. Upgraded Fan Blades Upgraded 7 pcs composited fan blades made of nylon & fiberglass, assembled in an aluminum shaft sleeve, anti-UV, durable with good stability, to provide excellent airflow and yet quiet. Top Grade Motor Brushless DC motor in high quality, water resistance reaching IP 68, no carbon brush, no mechanical commutation, no operation dissipation to ensure better performance and longer lifespan. Smart Controller for 24 hrs Running Mode Under smart control, SIPL solar fan can automatically switch to backup power to run nonstop in sunless periods efficiently. And when the sun arise, backup power will exit automatically to reserve storage battery or save electricity.

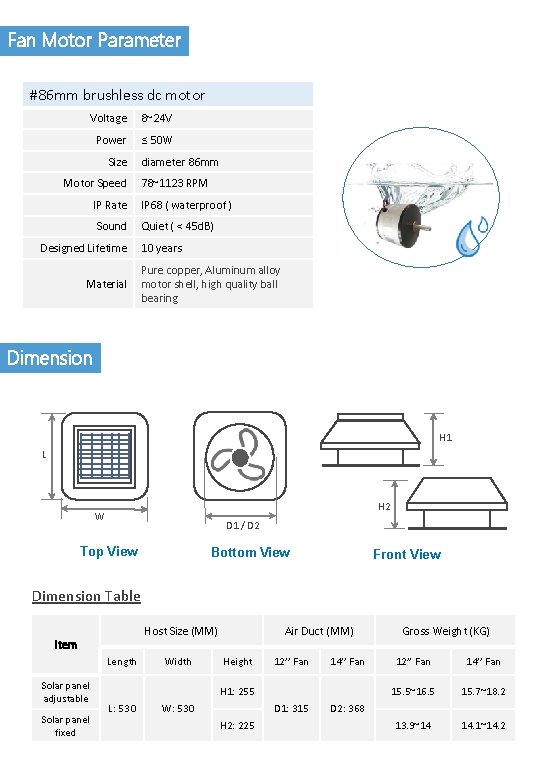

Fan Motor Parameter #86 mm brushless dc motor Voltage 8~24 V Power ≤ 50 W Size Motor Speed diameter 86 mm 78~1123 RPM IP Rate IP 68 ( waterproof ) Sound Quiet ( < 45 d. B) Designed Lifetime Material 10 years Pure copper, Aluminum alloy motor shell, high quality ball bearing Dimension H 1 L H 2 W D 1 / D 2 Top View Bottom View Front View Dimension Table Host Size (MM) Item Length Solar panel adjustable Solar panel fixed Width Air Duct (MM) Height 12’’ Fan 14’’ Fan H 1: 255 L: 530 W: 530 D 1: 315 H 2: 225 Gross Weight (KG) 12’’ Fan 14’’ Fan 15. 5~16. 5 15. 7~18. 2 13. 9~14 14. 1~14. 2 D 2: 368

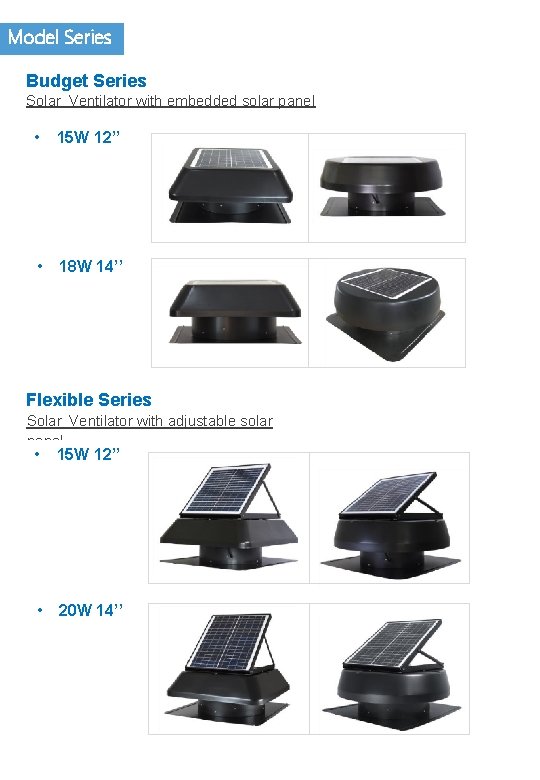

Model Series Budget Series Solar Ventilator with embedded solar panel • 15 W 12’’ • 18 W 14’’ Flexible Series Solar Ventilator with adjustable solar panel • 15 W 12’’ • 20 W 14’’

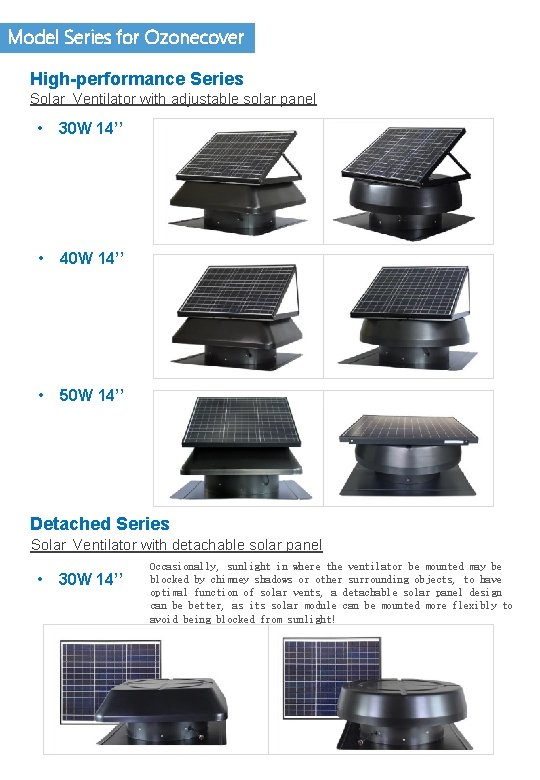

Model Series for Ozonecover High-performance Series Solar Ventilator with adjustable solar panel • 30 W 14’’ • 40 W 14’’ • 50 W 14’’ Detached Series Solar Ventilator with detachable solar panel • 30 W 14’’ Occasionally, sunlight in where the ventilator be mounted may be blocked by chimney shadows or other surrounding objects, to have optimal function of solar vents, a detachable solar panel design can be better, as its solar module can be mounted more flexibly to avoid being blocked from sunlight!

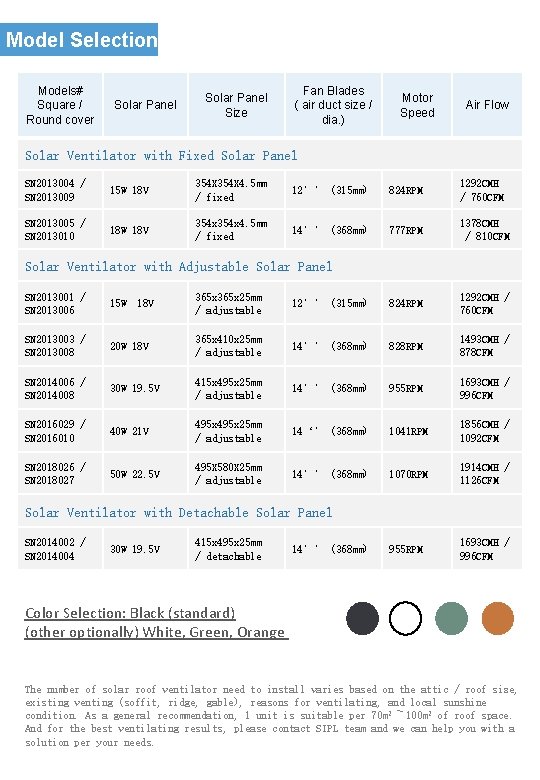

Model Selections Models# Square / Round cover Solar Panel Size Fan Blades ( air duct size / dia. ) Motor Speed Air Flow Solar Ventilator with Fixed Solar Panel SN 2013004 / SN 2013009 15 W 18 V 354 X 4. 5 mm / fixed 12’’ (315 mm) 824 RPM 1292 CMH / 760 CFM SN 2013005 / SN 2013010 18 W 18 V 354 x 4. 5 mm / fixed 14’’ (368 mm) 777 RPM 1378 CMH / 810 CFM Solar Ventilator with Adjustable Solar Panel SN 2013001 / SN 2013006 15 W 365 x 25 mm / adjustable 12’’ (315 mm) 824 RPM 1292 CMH / 760 CFM SN 2013003 / SN 2013008 20 W 18 V 365 x 410 x 25 mm / adjustable 14’’ (368 mm) 828 RPM 1493 CMH / 878 CFM SN 2014006 / SN 2014008 30 W 19. 5 V 415 x 495 x 25 mm / adjustable 14’’ (368 mm) 955 RPM 1693 CMH / 996 CFM SN 2016029 / SN 2016010 40 W 21 V 495 x 25 mm / adjustable 14‘’ (368 mm) 1041 RPM 1856 CMH / 1092 CFM SN 2018026 / SN 2018027 50 W 22. 5 V 495 X 580 X 25 mm / adjustable 14’’ (368 mm) 1070 RPM 1914 CMH / 1126 CFM 955 RPM 1693 CMH / 996 CFM 18 V Solar Ventilator with Detachable Solar Panel SN 2014002 / SN 2014004 30 W 19. 5 V 415 x 495 x 25 mm / detachable 14’’ (368 mm) Color Selection: Black (standard) (other optionally) White, Green, Orange The number of solar roof ventilator need to install varies based on the attic / roof size, existing venting (soffit, ridge, gable), reasons for ventilating, and local sunshine condition. As a general recommendation, 1 unit is suitable per 70 m 2 ~ 100 m 2 of roof space. And for the best ventilating results, please contact SIPL team and we can help you with a solution per your needs.

Application Ozonecover solar roof fans can be widely applied in Residential House, Industrial Workshop, Garage, Basement, Commercial Building, Warehouse, Greenhouse, Solar Dome Tent, Livestock Feeding Shed, Prefab House, …

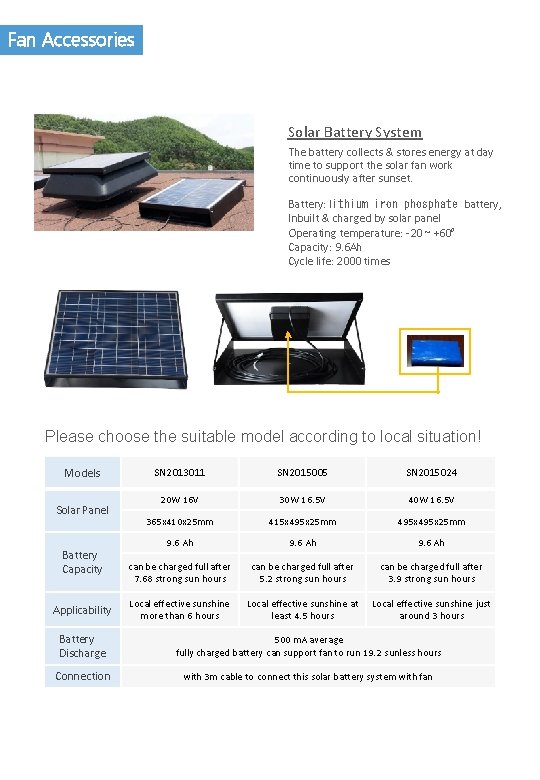

Fan Accessories Solar Battery System The battery collects & stores energy at day time to support the solar fan work continuously after sunset. Battery: lithium iron phosphate battery, Inbuilt & charged by solar panel Operating temperature: -20 ~ +60° Capacity: 9. 6 Ah Cycle life: 2000 times Please choose the suitable model according to local situation! Models Solar Panel Battery Capacity Applicability SN 2013011 SN 2015005 SN 2015024 20 W 16 V 30 W 16. 5 V 40 W 16. 5 V 365 x 410 x 25 mm 415 x 495 x 25 mm 9. 6 Ah can be charged full after 7. 68 strong sun hours can be charged full after 5. 2 strong sun hours can be charged full after 3. 9 strong sun hours Local effective sunshine more than 6 hours Local effective sunshine at least 4. 5 hours Local effective sunshine just around 3 hours Battery Discharge 500 m. A average fully charged battery can support fan to run 19. 2 sunless hours Connection with 3 m cable to connect this solar battery system with fan

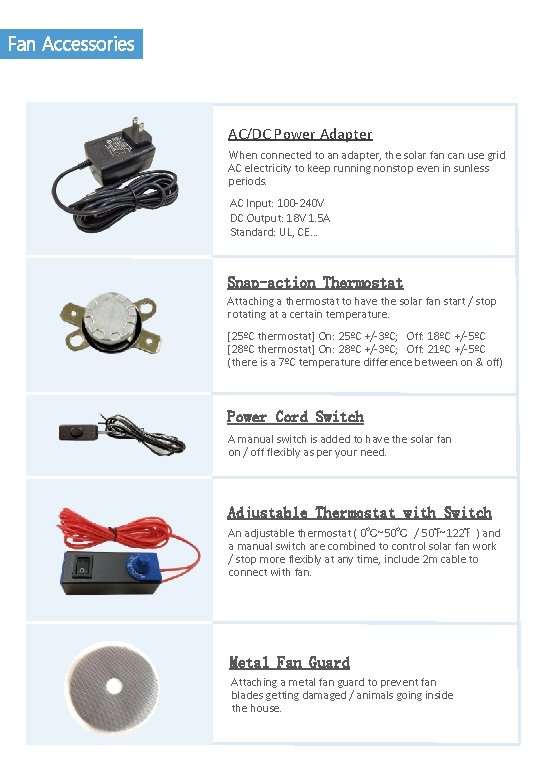

Fan Accessories AC/DC Power Adapter When connected to an adapter, the solar fan can use grid AC electricity to keep running nonstop even in sunless periods. AC Input: 100 -240 V DC Output: 18 V 1. 5 A Standard: UL, CE… Snap-action Thermostat Attaching a thermostat to have the solar fan start / stop rotating at a certain temperature. [25ºC thermostat] On: 25ºC +/-3ºC; Off: 18ºC +/-5ºC [28ºC thermostat] On: 28ºC +/-3ºC; Off: 21ºC +/-5ºC (there is a 7ºC temperature difference between on & off) Power Cord Switch A manual switch is added to have the solar fan on / off flexibly as per your need. Adjustable Thermostat with Switch An adjustable thermostat ( 0℃~50℃ / 50℉~122℉ ) and a manual switch are combined to control solar fan work / stop more flexibly at any time, include 2 m cable to connect with fan. Metal Fan Guard Attaching a metal fan guard to prevent fan blades getting damaged / animals going inside the house.

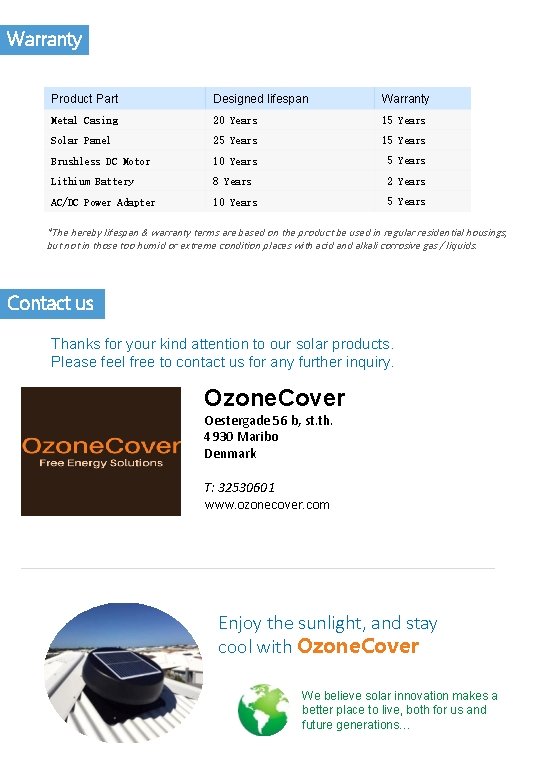

Warranty Product Part Designed lifespan Warranty Metal Casing 20 Years 15 Years Solar Panel 25 Years 15 Years Brushless DC Motor 10 Years 5 Years Lithium Battery 8 Years 2 Years AC/DC Power Adapter 10 Years 5 Years *The hereby lifespan & warranty terms are based on the product be used in regular residential housings, but not in those too humid or extreme condition places with acid and alkali corrosive gas / liquids. Contact us Thanks for your kind attention to our solar products. Please feel free to contact us for any further inquiry. Ozone. Cover Oestergade 56 b, st. th. 4930 Maribo Denmark T: 32530601 www. ozonecover. com Enjoy the sunlight, and stay cool with Ozone. Cover We believe solar innovation makes a better place to live, both for us and future generations…
