Solar Photovoltaic Renewable Energy Initiative – Phase II Joe Mouawad, P. E. Senior Director of Engineering Greg Kowalski, P. E. Senior Civil Engineer March 16, 2016 www. emwd. org 1
Background • Solar Photovoltaic renewable energy generating facilities at existing load serving facilities Moreno Valley RWRF o Regional Water Reclamation Facilities o Desalination Facilities • 1 Megawatt per site, 5 sites • Offset energy usage, average 30% reduction • Design/Build Delivery • Construction San Jacinto Valley RWRF Perris Valley RWRF Sun City RWRF and Desalter o Cost - $14. 6 M Ø Stronghold Engineering Ø Solar. City Corporation o Change Orders - $ 22 k net o Substantially complete • CSI Reservation – May 2016 o Total Incentives - $6 M Regional Water Reclamation Facility Location Map Temecula Valley RWRF www. emwd. org 2
California Solar Initiative (CSI) • CSI reserved at Step 9 of 10 Steps (all facilities) o Step 9 – 11. 4 cents per k. Wh • All steps currently exhausted • Estimated Incentives o Approximately $1. 2 M per year o Total all sites California Leads the Nation - 479, 507 solar projects - 3, 790 megawatts installed - $5. 32 avg cost/watt <10 k. W - $4. 29 avg cost/watt >10 k. W data sources: http: //www. gosolarcalifornia. ca. gov/ Ø $6 Million www. emwd. org 3
Cost/Benefit Analysis k. Wh Year 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 TOTALS Average Utility Estimated Operation CSI Incentives Production Rates w/4% Net Metering Maintenance @ Step 9 Annual Savings Cumulative Degradation per k. Wh Rate Annual Cost Savings and produced O&M Costs Included Savings Set at. 5% Annually Escalation Repair Costs for 5 years 10, 971, 607 $ 0. 1060 $ 1, 169, 480 $ - $ 1, 238, 694 $ 2, 408, 175 $ 2, 408, 175 10, 916, 749 $ 0. 1102 $ 1, 210, 178 $ 152, 829 $ 1, 232, 501 $ 2, 289, 850 $ 4, 698, 025 10, 862, 165 $ 0. 1146 $ 1, 252, 292 $ 153, 672 $ 1, 226, 338 $ 2, 324, 959 $ 7, 022, 984 10, 807, 855 $ 0. 1192 $ 1, 295, 872 $ 154, 539 $ 1, 220, 207 $ 2, 361, 540 $ 9, 384, 524 10, 753, 815 $ 0. 1240 $ 1, 340, 969 $ 155, 433 $ 1, 214, 106 $ 2, 399, 642 $ 11, 784, 166 10, 700, 046 $ 0. 1290 $ 1, 387, 634 $ 156, 353 $ - $ 1, 231, 281 $ 13, 015, 447 10, 646, 546 $ 0. 1341 $ 1, 435, 924 $ 157, 301 $ - $ 1, 278, 623 $ 14, 294, 070 10, 593, 313 $ 0. 1395 $ 1, 485, 894 $ 158, 277 $ - $ 1, 327, 617 $ 15, 621, 687 10, 540, 347 $ 0. 1451 $ 1, 537, 603 $ 159, 283 $ - $ 1, 378, 320 $ 17, 000, 007 10, 487, 645 $ 0. 1509 $ 1, 591, 112 $ 160, 319 $ - $ 1, 430, 793 $ 18, 430, 799 10, 435, 207 $ 0. 1569 $ 1, 646, 483 $ - $ 1, 646, 483 $ 20, 077, 282 10, 383, 031 $ 0. 1632 $ 1, 703, 780 $ - $ 1, 703, 780 $ 21, 781, 062 10, 331, 116 $ 0. 1697 $ 1, 763, 072 $ - $ 1, 763, 072 $ 23, 544, 134 10, 279, 460 $ 0. 1765 $ 1, 824, 427 $ - $ 1, 824, 427 $ 25, 368, 560 10, 228, 063 $ 0. 1836 $ 1, 887, 917 $ - $ 1, 887, 917 $ 27, 256, 477 10, 176, 922 $ 0. 1909 $ 1, 953, 616 $ - $ 1, 953, 616 $ 29, 210, 093 10, 126, 038 $ 0. 1985 $ 2, 021, 602 $ - $ 2, 021, 602 $ 31, 231, 695 10, 075, 408 $ 0. 2065 $ 2, 091, 954 $ - $ 2, 091, 954 $ 33, 323, 649 10, 025, 031 $ 0. 2147 $ 2, 164, 754 $ - $ 2, 164, 754 $ 35, 488, 403 9, 974, 905 $ 0. 2233 $ 2, 240, 087 $ - $ 2, 240, 087 $ 37, 728, 490 209, 315, 270 $ 33, 004, 650 $ 1, 408, 007 $ 6, 131, 846 $ 37, 728, 490 Summary Initial EPC Cost (Phase 2) $ 14, 603, 357 Program Capital Costs $ 21, 845, 813 CSI Incentives $ 6, 131, 846 Net Metering Savings $ 33, 004, 650 Simple Payback 12 • • • Estimated Average Annual Costs Savings = $1. 7 M Estimated 20 -yr Cumulative Savings = $ 37. 7 M Estimated Payback at 4% SCE Rate Escalation = 12 yrs www. emwd. org 4
Best Value Selection • Contractor prequalification process o Sunpower, Solar City, Chevron Energy, Borrego Solar, Stronghold/Sun Edison, Synergy Electric/Marathon Electric • Design/Build Delivery • Design/Build Proposals Evaluation Criteria for Best Value Selection • Simultaneous Negotiations for all sites o Solar. City and Stronghold Engineering • Technical Design and Construction Expertise • Design-Build Cost Proposal and O&M Service • Life Cycle Cost , System Performance, and Guarantee • Safety Record • SCE Expertise and Coordination • Construction Schedule • Performance Guarantee Terms • Design-Build Team Personnel & Organization • Proposed Work Plan and Schedule www. emwd. org 5
Design-Build Contracts 1 -Megawatt Solar Generation Facilities Design-Build Contractor MVRWRF PVRWRF SCRWRF SJVRWRF TVRWRF www. emwd. org 6
Implementation Process www. emwd. org 7

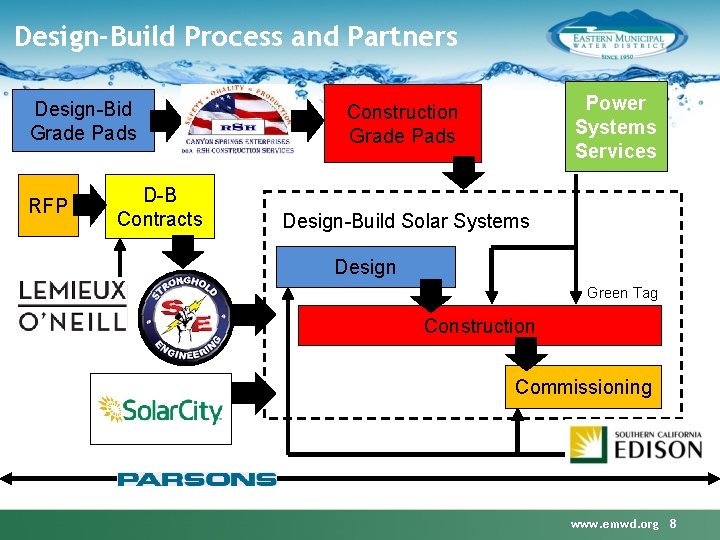

Design-Build Process and Partners Design-Bid Grade Pads RFP D-B Contracts Power Systems Services Construction Grade Pads Design-Build Solar Systems Design Green Tag Construction Commissioning www. emwd. org 8

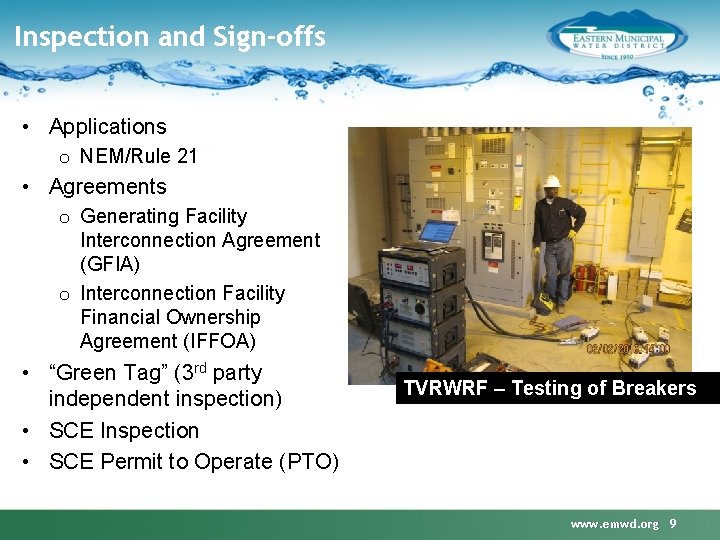

Inspection and Sign-offs • Applications o NEM/Rule 21 • Agreements o Generating Facility Interconnection Agreement (GFIA) o Interconnection Facility Financial Ownership Agreement (IFFOA) • “Green Tag” (3 rd party independent inspection) • SCE Inspection • SCE Permit to Operate (PTO) TVRWRF – Testing of Breakers www. emwd. org 9
SCE Coordination • Developed Partnership o Weekly coordination o Account Representative Interface • Challenges with SCE o Multiple Departments o No concurrent work allowed Ø Activities finish to start o Extended review and approval periods SCE and EMWD Partnership www. emwd. org 10
Project Status www. emwd. org 11
Improvements Required - All Sites • Electrical o Underground Electrical Ductbank and Manholes o Switchgear, Transformers and Switchboards o Existing Switchgear Modifications o Cable and Cable Tray o Inverters o Concrete Equipment Pads o Weather Station o Control Scheme Programming • Solar Array and System o o o Structural Driven Pier Foundation Structural Single Axis Tracker System Module Installation Communication and Control Integration Preliminary Functional Operation Startup, Testing and Pre-commissioning PVRWRF – String Inverter www. emwd. org 12
Perris Valley RWRF • Status o o Green Tag: February 29, 2016 Conditional PTO: March 1, 2016 System energized Remaining work Ø Install Net Generation Output Meter at Fuel Cells Ø Final SCE Permit to Operate Ø Punch list Items Ø As-built Drawings Ø CSI Incentive Claim PVRWRF – Equipment Pad www. emwd. org 13
San Jacinto Valley RWRF • Status o o Green Tag: January 22, 2016 PTO: February 11, 2016 System energized Remaining work Ø Punch list Items Ø As-built Drawings Ø CSI Incentive Claim SJVRWRF – Solar Array www. emwd. org 14
SJVRWRF – Solar Array Looking South • Single Axis Tracking • System Size – 1 MW • 3, 680 – 315 W Solar. World Panels • 31 String Inverters • 8. 3 Acres SJVRWRF – Solar Array www. emwd. org 15
Moreno Valley RWRF • Status o o Green Tag: March 3, 2016 Conditional PTO: March 11, 2016 System energized Remaining work Ø Install Net Generation Output Meter at Fuel Cells Ø Final SCE Permit to Operate Ø Punch list Items Ø As-built Drawings Ø CSI Incentive Claim MVRWRF – Solar Array Distribution Panel www. emwd. org 16
Sun City RWRF • Status o Arrays complete o Ductbanks complete o Remaining work Ø Install Electrical equipment » Switchgear, bud duct and switchboard Ø Install 12 k. V Cable Ø Modify existing 12 k. V Switchgear and Breakers Ø Control Programming/System Integration Ø Functional Operational Startup and Testing Ø Pre-commissioning Ø Green Tag Ø SCE Inspection Ø Install Net Generation Output Meters Ø SCE Permit to Operate SCRWRF Pier Ø Punch list Items Installation Ø As-built Drawings Ø CSI Incentive Claim www. emwd. org 17
Temecula Valley RWRF • Status o NETA Testing ongoing o Remaining Items Ø Control Programming/System Integration Ø Functional Operational Startup, and Testing Ø Pre-commissioning Ø Green Tag Ø SCE Inspection Ø Install Net Generation Output Meters Ø SCE Permit to Operate Ø Punch list Items Ø As-built Drawings Ø CSI Incentive Claim TVRWRF Chord and Bracket Installation www. emwd. org 18
TVRWRF Solar Array Lot A • Fixed Array • System Size – 1 MW • 3, 576 – 310 W Trina Solar Panels • 29 String Inverters • 25 -degree tilt (fixed) • 4 Acres www. emwd. org 19
TVRWRF Solar Array Lot E www. emwd. org 20
Design-Build Contract Summary • Stronghold Engineering o Original Contract Amount o Change Orders – to date (NET) o Total Contract Amount – to date $ 11, 857, 741 $ 76, 467 $ 11, 934, 208 • Solar. City o Original Contract Amount o Change Orders – to date (NET) o Total Contract Amount – to date $ 2, 745, 616 $ (54, 255) $ 2, 691, 361 • Combined Total o Total Original Contract Amounts o Net Change Orders o Total Contract Amounts $ $ 14, 603, 357 $ 22, 212 (0. 2%) 14, 625, 569 www. emwd. org 21
Completion Schedule Facility Green Tag SCE Permit to Operate -San Jacinto Facility Online – Feb. 11, 2016 January 22, 2016 February 11, 2016 -Perris Valley Facility Online – Mar. 1, 2016 - Conditional PTO February 29, 2016 March 11, 2016 Facility Online – Mar. 11, 2016 - Conditional PTO March 3, 2016 March 11, 2016 -Moreno Valley >Main Facility -Temecula Valley March 25, 2016 -Sun City/Desalter April 1, 2016 -CSI Deadline -Final Contract Completion April 8, 2016 April 15, 2016 May 25, 2016 May-16 Staff incorporated lessons learned from the Administrative Facility Solar Project and since has completed five concurrent sites with added complexity, twice the size, and under two headings www. emwd. org 22
Summary and Conclusions • Design/Build is an effective delivery method for this type of program. • Five concurrent construction sites delivered on schedule within the CSI timeline. • Greater latitude provided to design/build firms which allowed for innovation and efficiency. • Construction change order rate extremely low at 0. 2% or original contract amount. • Collaboration with all stakeholders was effective and resulted in excellent budget and schedule performance. www. emwd. org 23
EASTERN MUNICIPAL WATER DISTRICT Contact Information Joe Mouawad, P. E. Senior Director of Engineering (951) 928 -3777 Ext. 4463 mouawadj@emwd. org Greg Kowalski, P. E. Senior Civil Engineer (951) 928 -3777 Ext. 4466 kowalskg@emwd. org www. emwd. org 24
