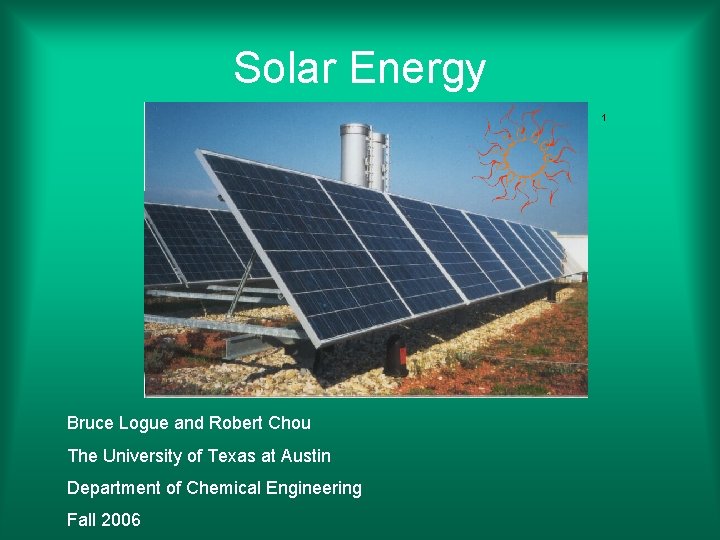

Solar Energy 1 Bruce Logue and Robert Chou

Solar Energy 1 Bruce Logue and Robert Chou The University of Texas at Austin Department of Chemical Engineering Fall 2006

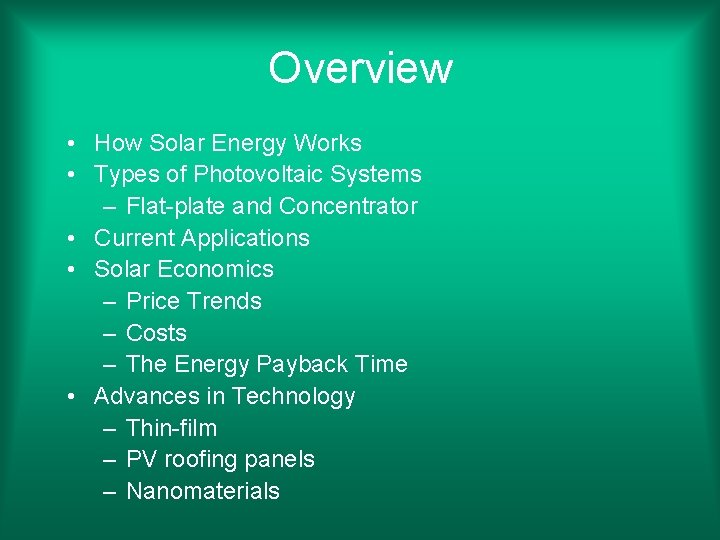

Overview • How Solar Energy Works • Types of Photovoltaic Systems – Flat-plate and Concentrator • Current Applications • Solar Economics – Price Trends – Costs – The Energy Payback Time • Advances in Technology – Thin-film – PV roofing panels – Nanomaterials

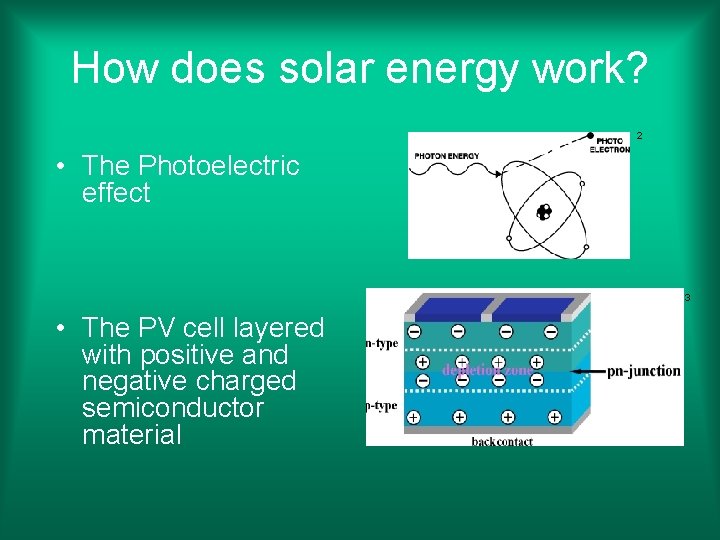

How does solar energy work? 2 • The Photoelectric effect 3 • The PV cell layered with positive and negative charged semiconductor material

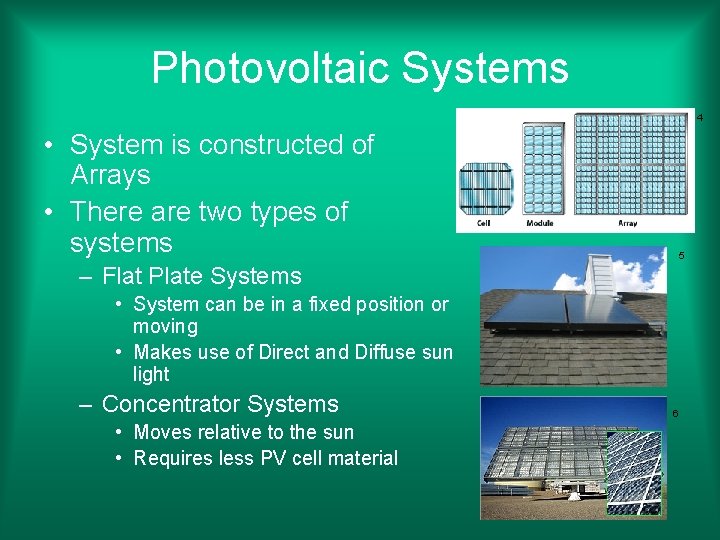

Photovoltaic Systems 4 • System is constructed of Arrays • There are two types of systems 5 – Flat Plate Systems • System can be in a fixed position or moving • Makes use of Direct and Diffuse sun light – Concentrator Systems • Moves relative to the sun • Requires less PV cell material 6

Current Applications 7 9 8 10 11 12

Solar Energy Economics • The cost of PV cells has been on decline since 70’s. • Decline due to advancements in efficiency and manufacturing techniques • Residential equipment costs can range from 10 K to 100 K 14 13

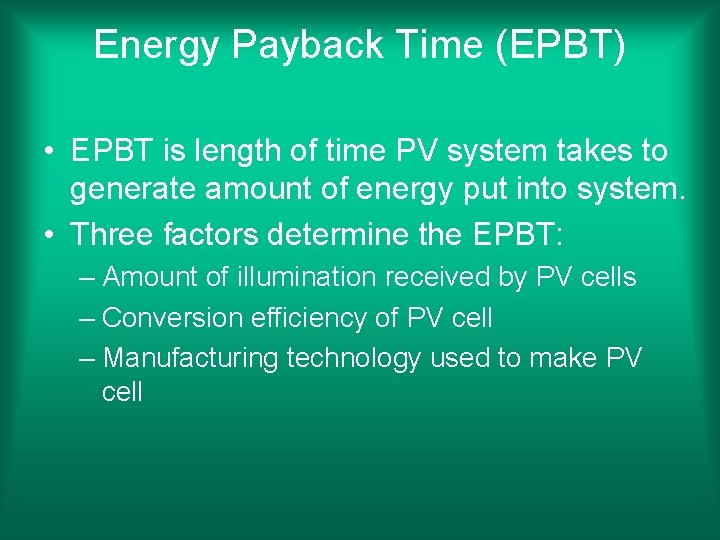

Energy Payback Time (EPBT) • EPBT is length of time PV system takes to generate amount of energy put into system. • Three factors determine the EPBT: – Amount of illumination received by PV cells – Conversion efficiency of PV cell – Manufacturing technology used to make PV cell

Manufacturing Methods • There are three methods to produce PV cells – Process cells on wafers sawed from silicon ingots • Ingots are either single or multicrystalline – Process cells on silicon wafers cut from multicrystalline ribbons – Deposition of non-crystalline silicon on inexpensive substrates EPBT (Years) 15 Singlecrystal silicon Non-ribbon multicrystalline Multicrystalline silicon Cheap Substrate (Cadmium Telluride) 2. 7 2. 2 1. 0 Ribbon 1. 7

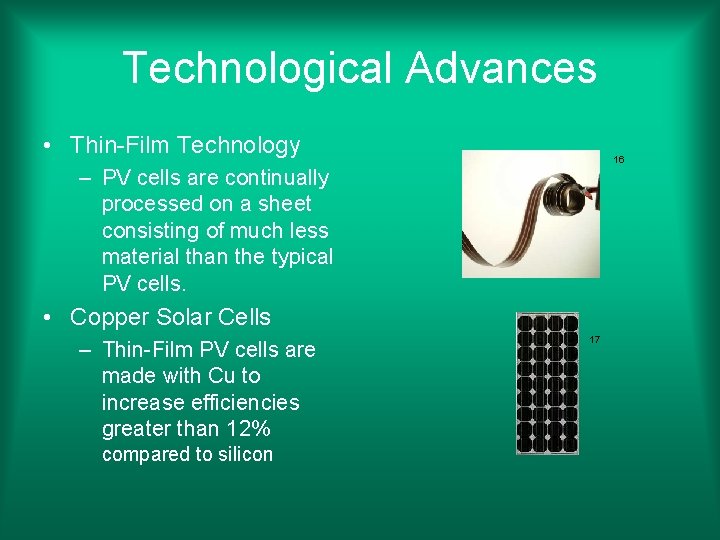

Technological Advances • Thin-Film Technology 16 – PV cells are continually processed on a sheet consisting of much less material than the typical PV cells. • Copper Solar Cells – Thin-Film PV cells are made with Cu to increase efficiencies greater than 12% compared to silicon 17

Technological Advances • Solar Roof Panels – Shingles are combined with PV cells creating insulation that generates electricity 18 • Nanomaterials – Solar cells incorporating nanomaterials are stronger, more flexible, and more efficient. 19
