Soil Structure Density and Porosity Laboratory 4 Objectives

Soil Structure, Density, and Porosity Laboratory #4

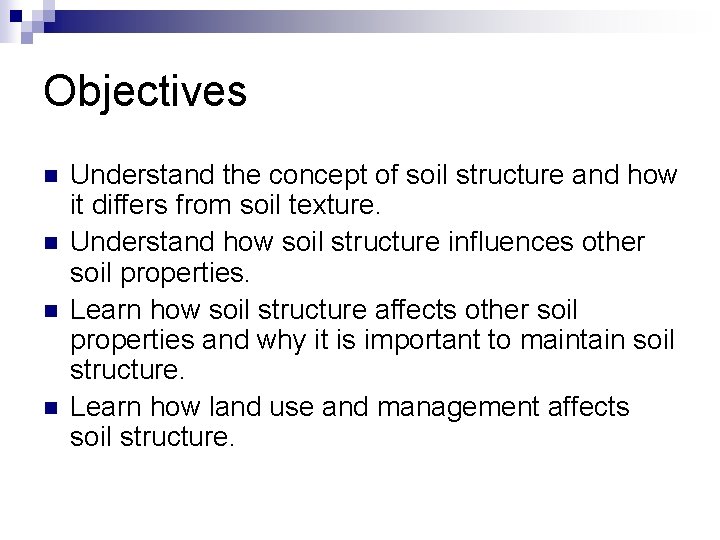

Objectives n n Understand the concept of soil structure and how it differs from soil texture. Understand how soil structure influences other soil properties. Learn how soil structure affects other soil properties and why it is important to maintain soil structure. Learn how land use and management affects soil structure.

Definition n Soil structure is the arrangement of the primary soil particles (sand, silt, and clay) and other soil materials into discrete aggregates.

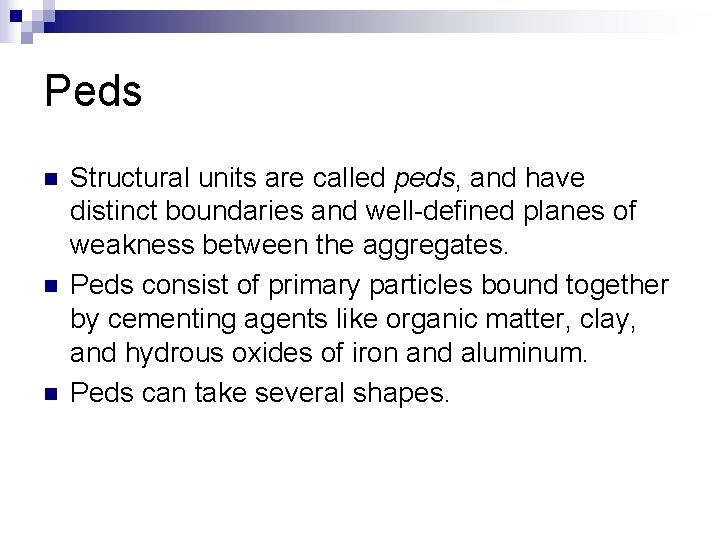

Peds n n n Structural units are called peds, and have distinct boundaries and well-defined planes of weakness between the aggregates. Peds consist of primary particles bound together by cementing agents like organic matter, clay, and hydrous oxides of iron and aluminum. Peds can take several shapes.

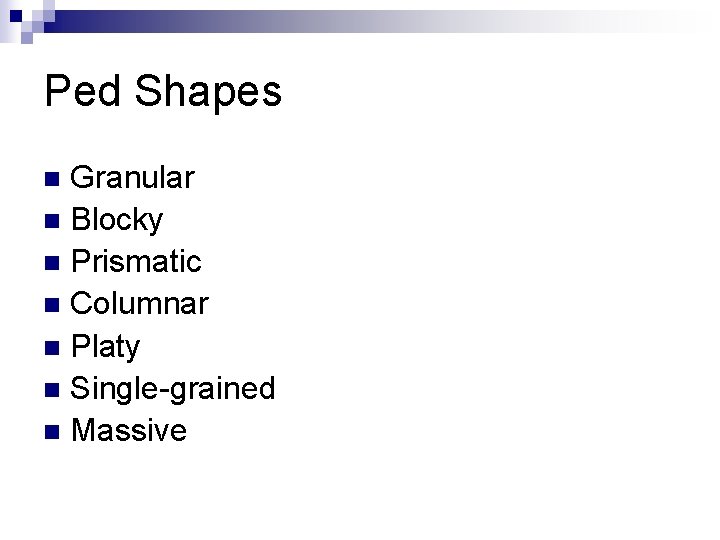

Ped Shapes Granular n Blocky n Prismatic n Columnar n Platy n Single-grained n Massive n

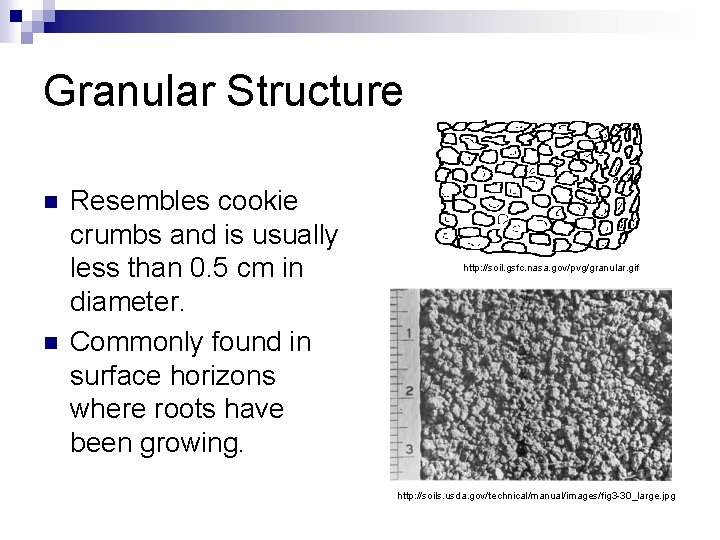

Granular Structure n n Resembles cookie crumbs and is usually less than 0. 5 cm in diameter. Commonly found in surface horizons where roots have been growing. http: //soil. gsfc. nasa. gov/pvg/granular. gif http: //soils. usda. gov/technical/manual/images/fig 3 -30_large. jpg

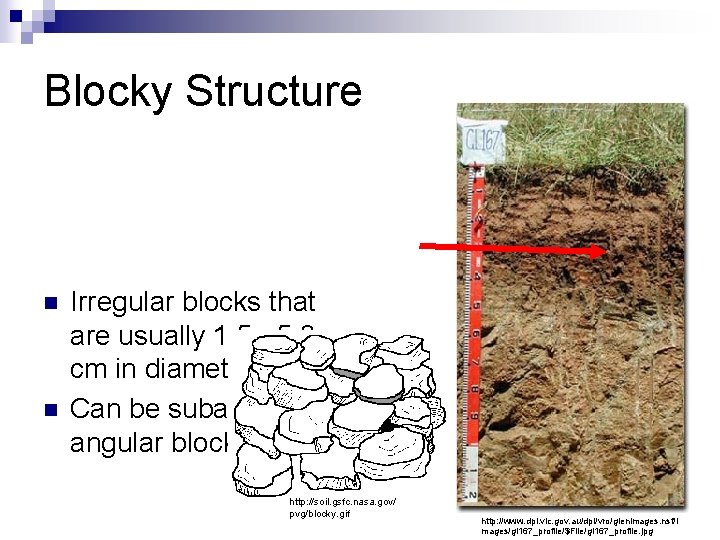

Blocky Structure n n Irregular blocks that are usually 1. 5 - 5. 0 cm in diameter. Can be subangular or angular blocky. http: //soil. gsfc. nasa. gov/ pvg/blocky. gif http: //www. dpi. vic. gov. au/dpi/vro/glenimages. nsf/I mages/gl 167_profile/$File/gl 167_profile. jpg

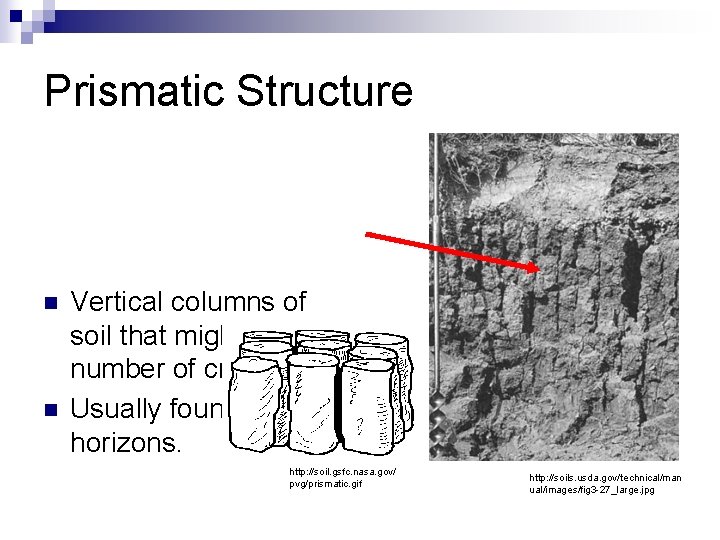

Prismatic Structure n n Vertical columns of soil that might be a number of cm long. Usually found in lower horizons. http: //soil. gsfc. nasa. gov/ pvg/prismatic. gif http: //soils. usda. gov/technical/man ual/images/fig 3 -27_large. jpg

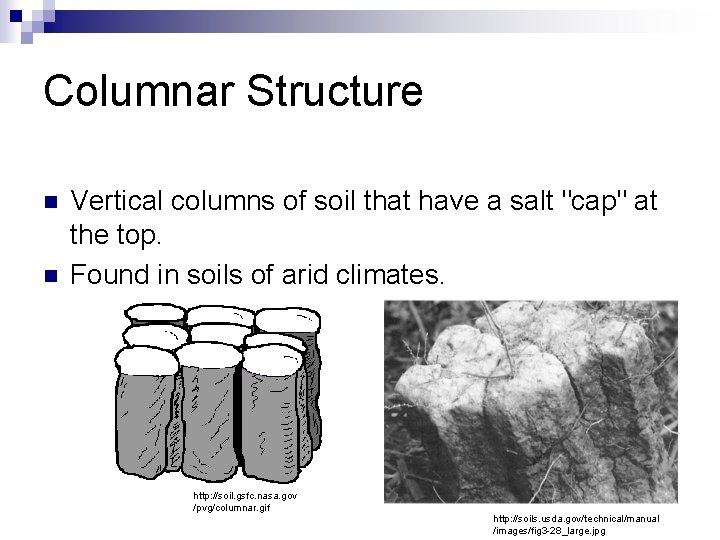

Columnar Structure n n Vertical columns of soil that have a salt "cap" at the top. Found in soils of arid climates. http: //soil. gsfc. nasa. gov /pvg/columnar. gif http: //soils. usda. gov/technical/manual /images/fig 3 -28_large. jpg

Platy Structure n n Thin, flat plates of soil that lie horizontally. Usually found in compacted soil. http: //soil. gsfc. nasa. gov/pvg/platy. gif http: //soils. ag. uidaho. edu/soilorders/i/Arid_03. jpg

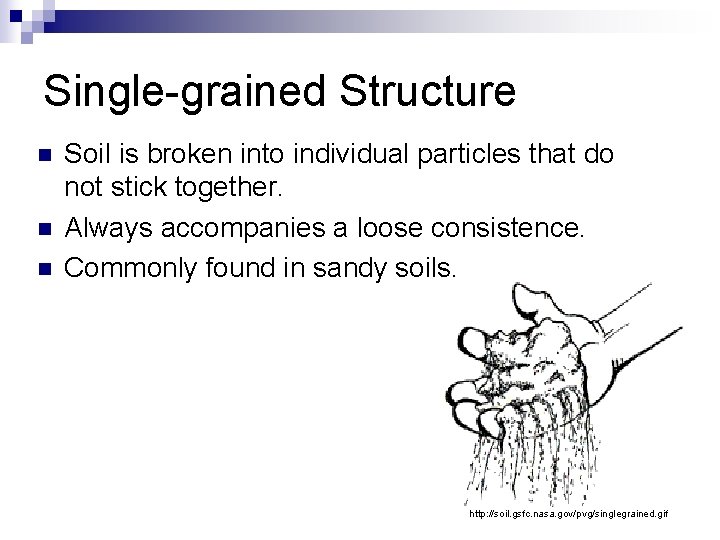

Single-grained Structure n n n Soil is broken into individual particles that do not stick together. Always accompanies a loose consistence. Commonly found in sandy soils. http: //soil. gsfc. nasa. gov/pvg/singlegrained. gif

Massive Structure n Soil has no visible structure, is hard to break apart and appears in very large clods. http: //soil. gsfc. nasa. gov/pvg/massive. gif http: //soils. usda. gov/technical/manual/images/fig 3 -31_large. jpg

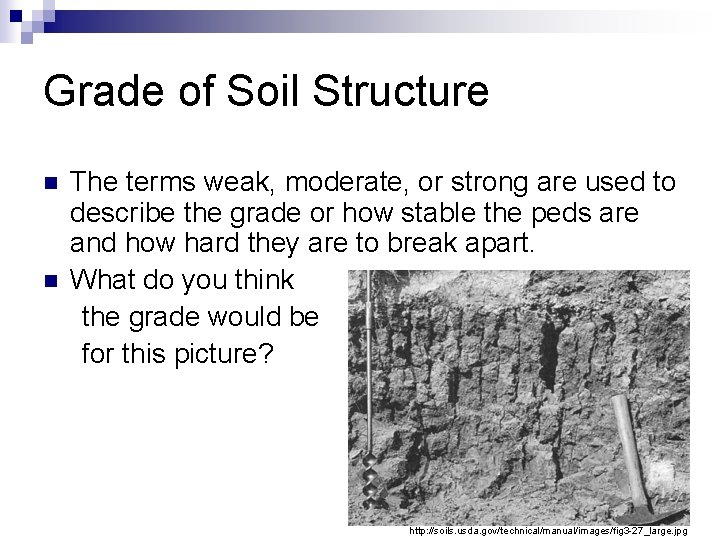

Grade of Soil Structure n n The terms weak, moderate, or strong are used to describe the grade or how stable the peds are and how hard they are to break apart. What do you think the grade would be for this picture? http: //soils. usda. gov/technical/manual/images/fig 3 -27_large. jpg

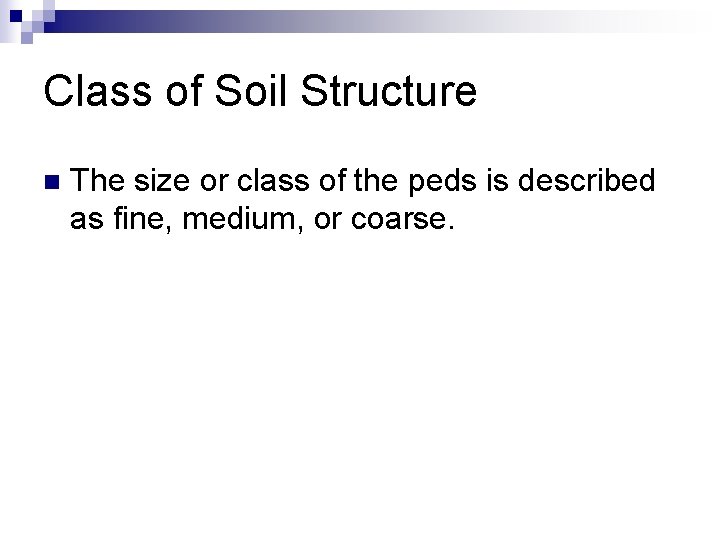

Class of Soil Structure n The size or class of the peds is described as fine, medium, or coarse.

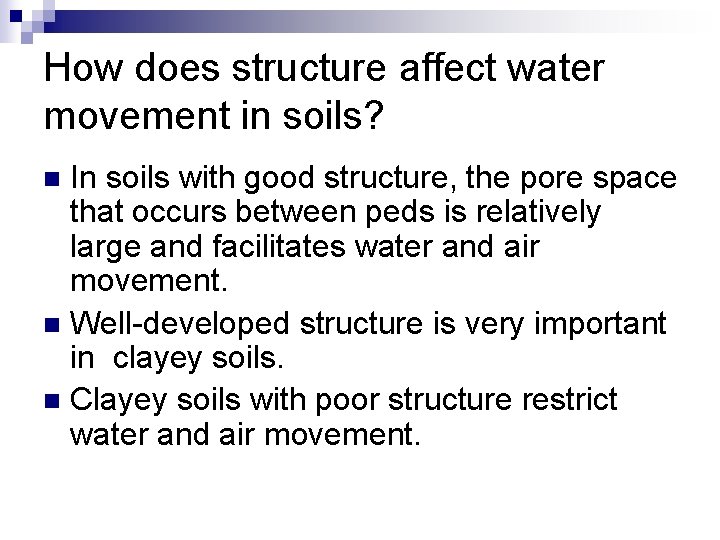

How does structure affect water movement in soils? In soils with good structure, the pore space that occurs between peds is relatively large and facilitates water and air movement. n Well-developed structure is very important in clayey soils. n Clayey soils with poor structure restrict water and air movement. n

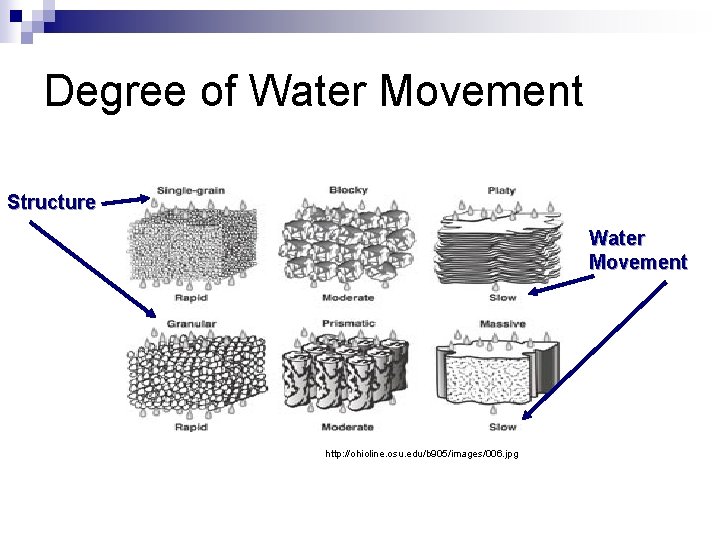

Degree of Water Movement Structure Water Movement http: //ohioline. osu. edu/b 905/images/006. jpg

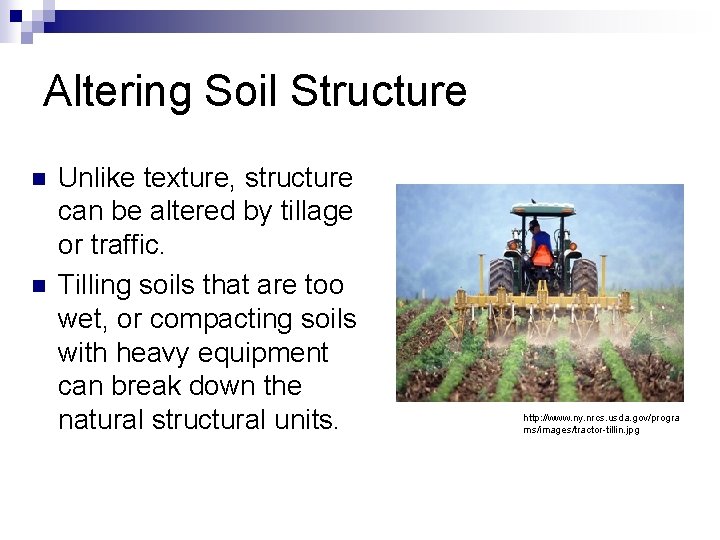

Altering Soil Structure n n Unlike texture, structure can be altered by tillage or traffic. Tilling soils that are too wet, or compacting soils with heavy equipment can break down the natural structural units. http: //www. ny. nrcs. usda. gov/progra ms/images/tractor-tillin. jpg

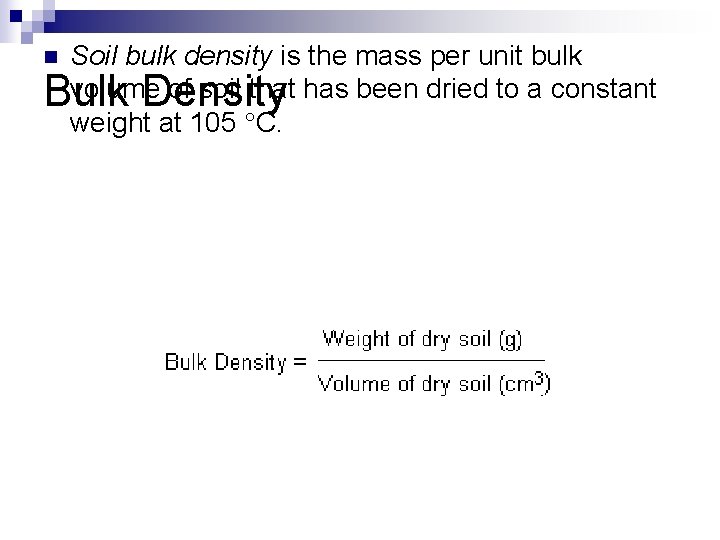

Soil bulk density is the mass per unit bulk volume of soil that has been dried to a constant Bulk Density weight at 105 °C. n

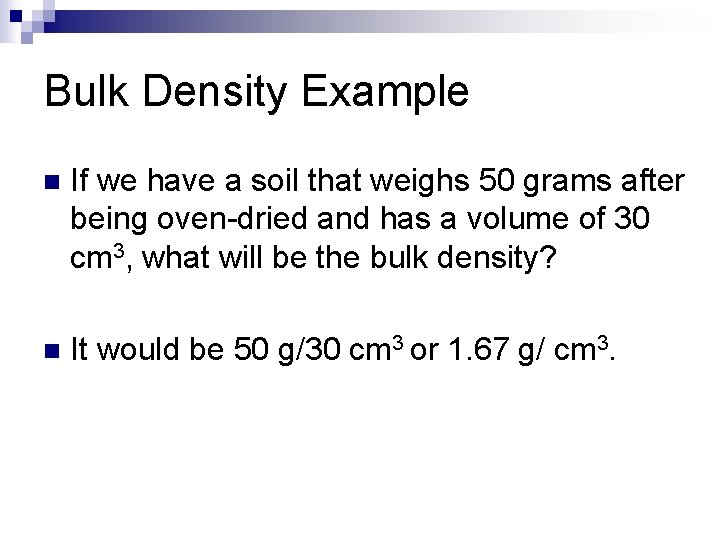

Bulk Density Example n If we have a soil that weighs 50 grams after being oven-dried and has a volume of 30 cm 3, what will be the bulk density? n It would be 50 g/30 cm 3 or 1. 67 g/ cm 3.

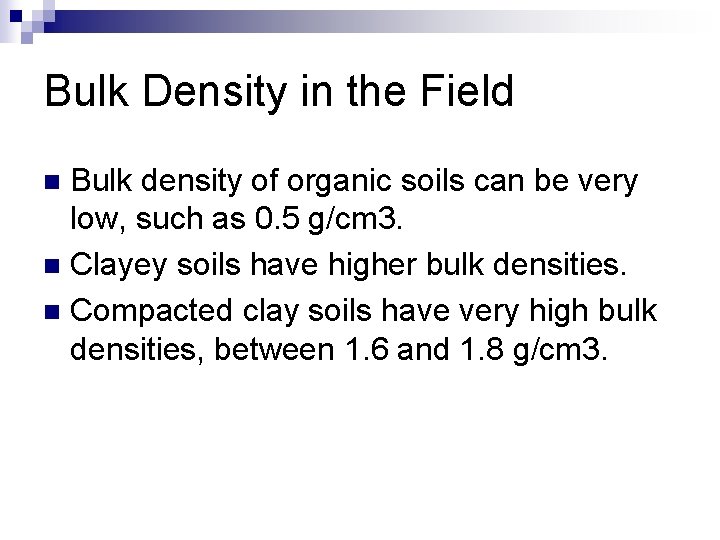

Bulk Density in the Field Bulk density of organic soils can be very low, such as 0. 5 g/cm 3. n Clayey soils have higher bulk densities. n Compacted clay soils have very high bulk densities, between 1. 6 and 1. 8 g/cm 3. n

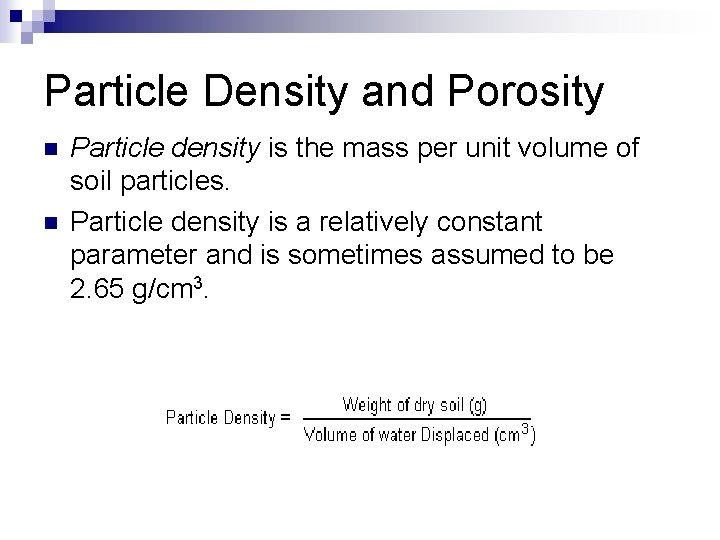

Particle Density and Porosity n n Particle density is the mass per unit volume of soil particles. Particle density is a relatively constant parameter and is sometimes assumed to be 2. 65 g/cm 3.

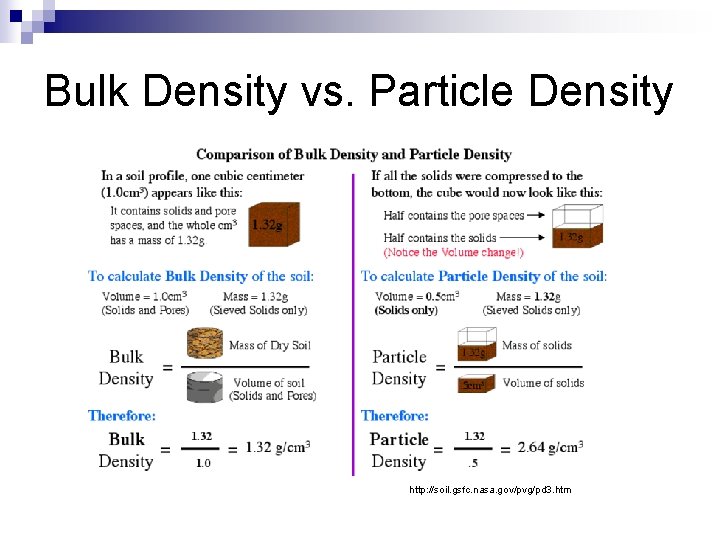

Bulk Density vs. Particle Density http: //soil. gsfc. nasa. gov/pvg/pd 3. htm

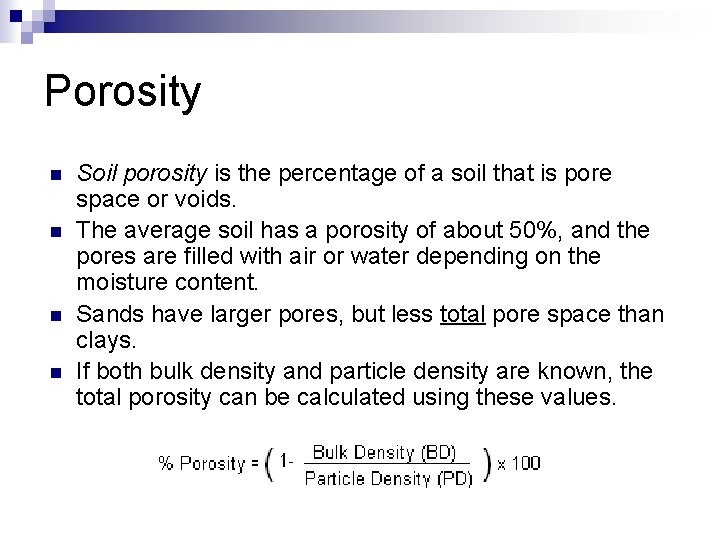

Porosity n n Soil porosity is the percentage of a soil that is pore space or voids. The average soil has a porosity of about 50%, and the pores are filled with air or water depending on the moisture content. Sands have larger pores, but less total pore space than clays. If both bulk density and particle density are known, the total porosity can be calculated using these values.

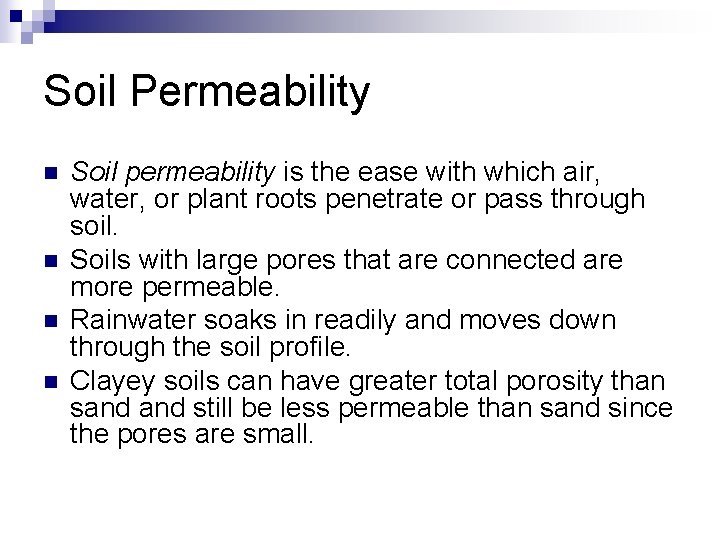

Soil Permeability n n Soil permeability is the ease with which air, water, or plant roots penetrate or pass through soil. Soils with large pores that are connected are more permeable. Rainwater soaks in readily and moves down through the soil profile. Clayey soils can have greater total porosity than sand still be less permeable than sand since the pores are small.

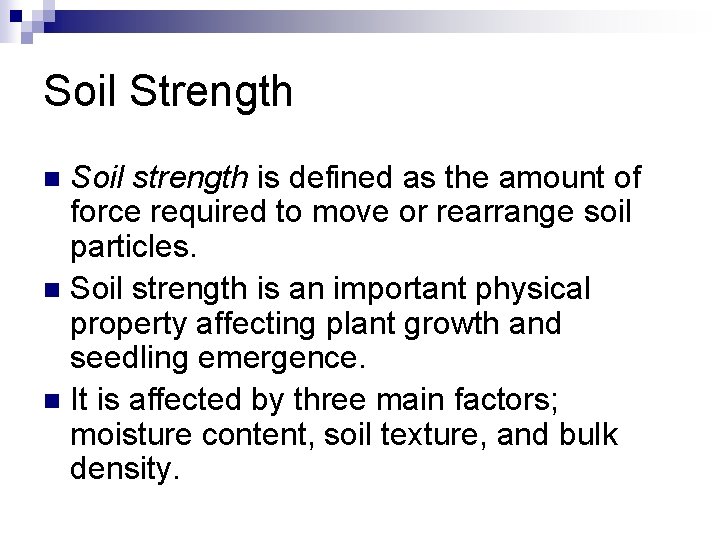

Soil Strength Soil strength is defined as the amount of force required to move or rearrange soil particles. n Soil strength is an important physical property affecting plant growth and seedling emergence. n It is affected by three main factors; moisture content, soil texture, and bulk density. n

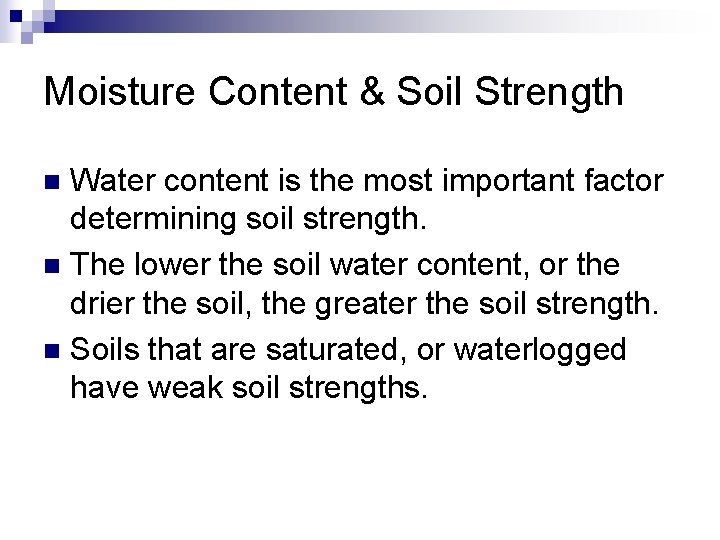

Moisture Content & Soil Strength Water content is the most important factor determining soil strength. n The lower the soil water content, or the drier the soil, the greater the soil strength. n Soils that are saturated, or waterlogged have weak soil strengths. n

Moisture Content n Which soil would have the greater soil strength? http: //www. wy. blm. gov/botany/pic s/cob-duckswamp-500 wfo. jpg http: //www. research. noaa. gov/spot lite/archive/images/drysoil. jpg

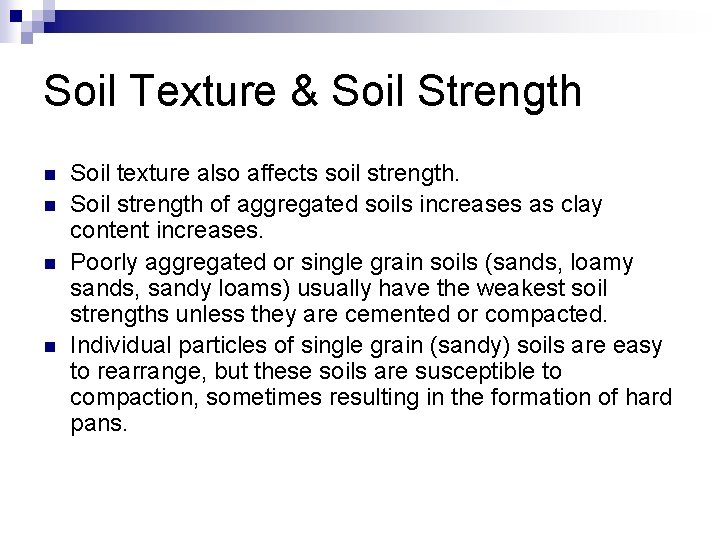

Soil Texture & Soil Strength n n Soil texture also affects soil strength. Soil strength of aggregated soils increases as clay content increases. Poorly aggregated or single grain soils (sands, loamy sands, sandy loams) usually have the weakest soil strengths unless they are cemented or compacted. Individual particles of single grain (sandy) soils are easy to rearrange, but these soils are susceptible to compaction, sometimes resulting in the formation of hard pans.

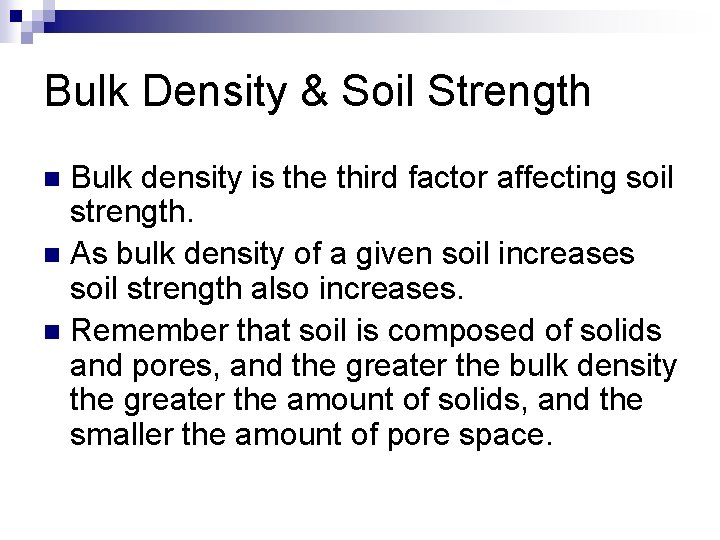

Bulk Density & Soil Strength Bulk density is the third factor affecting soil strength. n As bulk density of a given soil increases soil strength also increases. n Remember that soil is composed of solids and pores, and the greater the bulk density the greater the amount of solids, and the smaller the amount of pore space. n

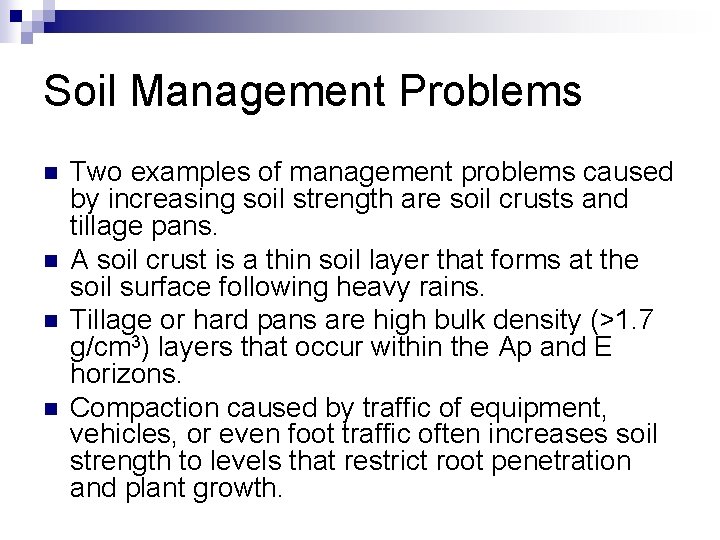

Soil Management Problems n n Two examples of management problems caused by increasing soil strength are soil crusts and tillage pans. A soil crust is a thin soil layer that forms at the soil surface following heavy rains. Tillage or hard pans are high bulk density (>1. 7 g/cm 3) layers that occur within the Ap and E horizons. Compaction caused by traffic of equipment, vehicles, or even foot traffic often increases soil strength to levels that restrict root penetration and plant growth.

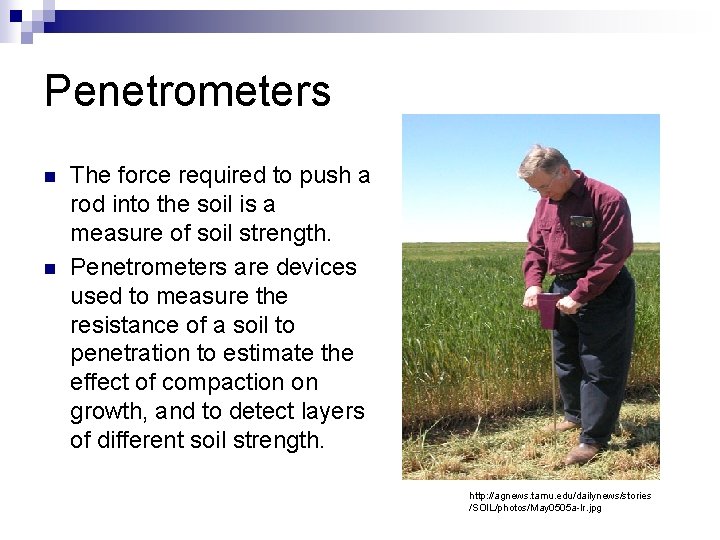

Penetrometers n n The force required to push a rod into the soil is a measure of soil strength. Penetrometers are devices used to measure the resistance of a soil to penetration to estimate the effect of compaction on growth, and to detect layers of different soil strength. http: //agnews. tamu. edu/dailynews/stories /SOIL/photos/May 0505 a-lr. jpg
