Soil Erosion 1 Bird City Kansas 2 3

Soil Erosion 1

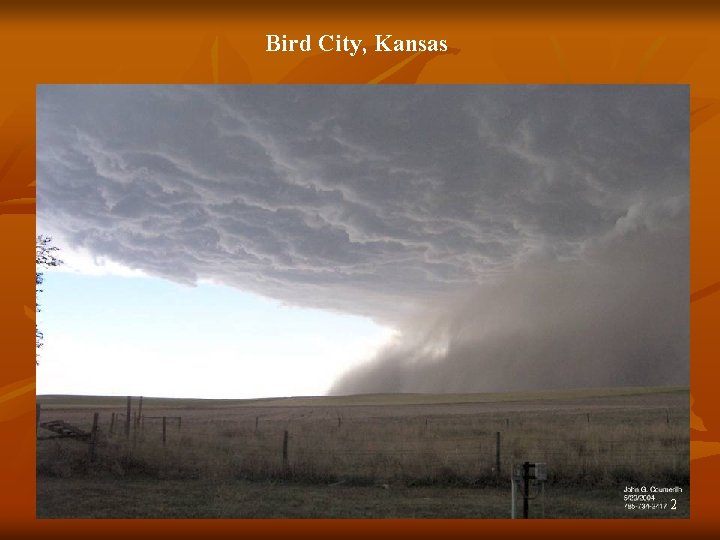

Bird City, Kansas 2

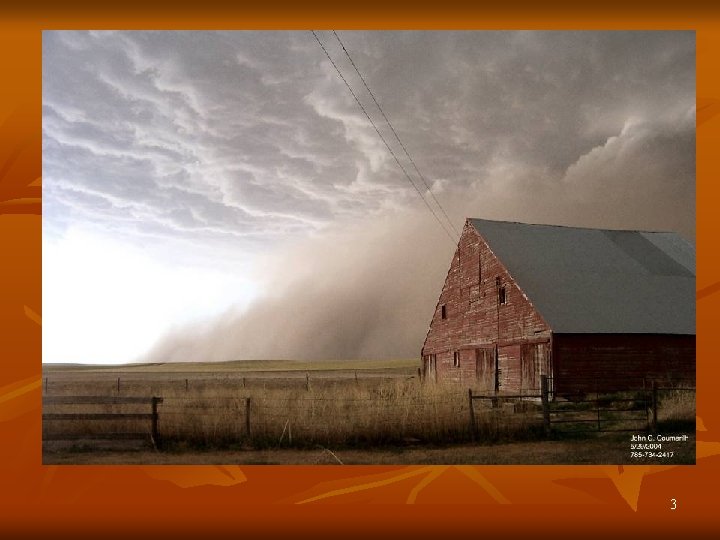

3

St. Francis, Kansas 4

5

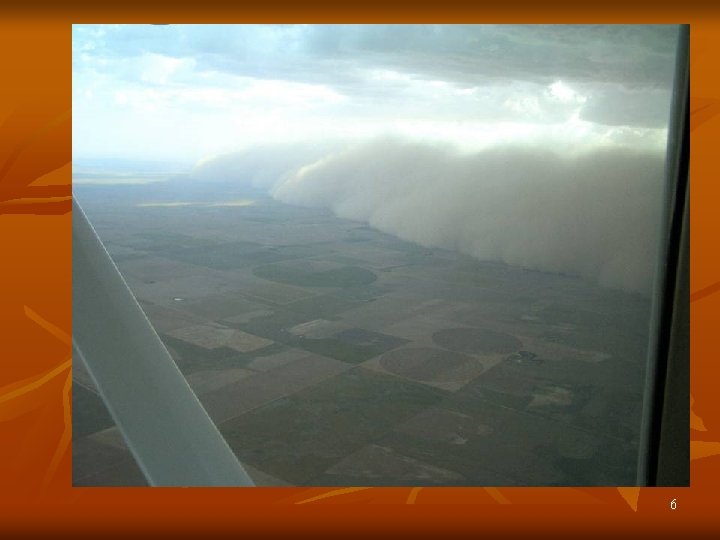

6

7

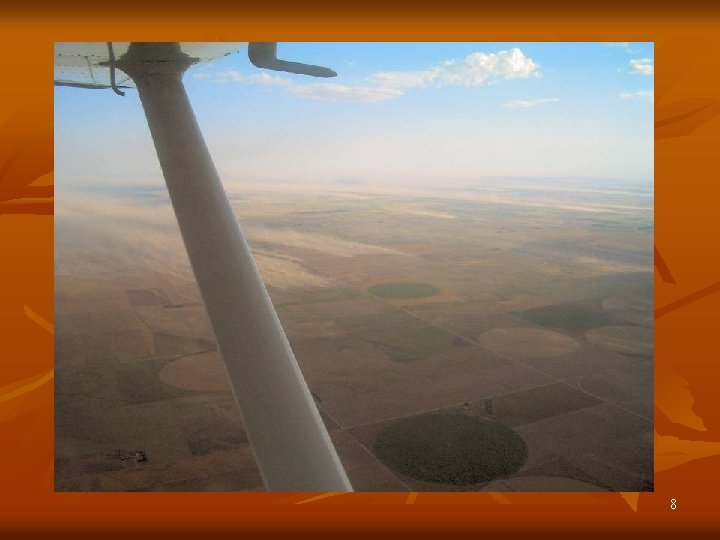

8

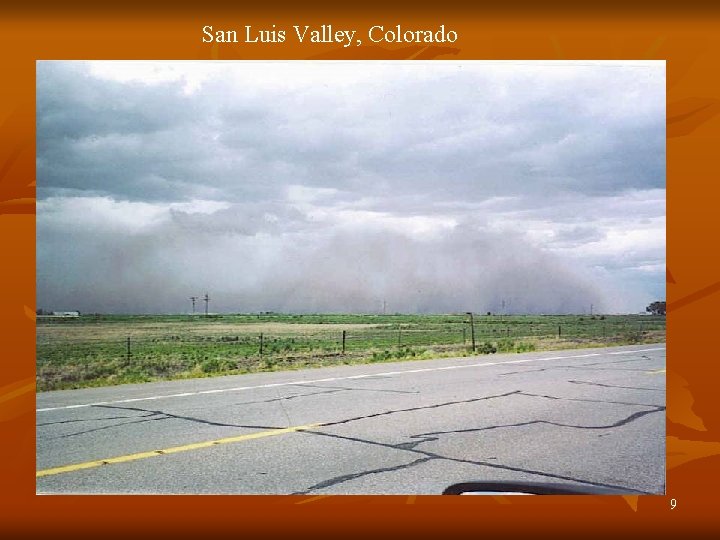

San Luis Valley, Colorado 9

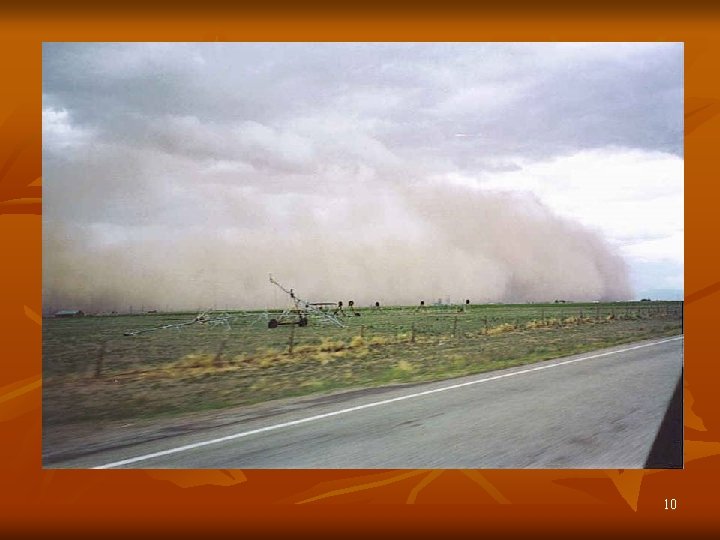

10

11

12

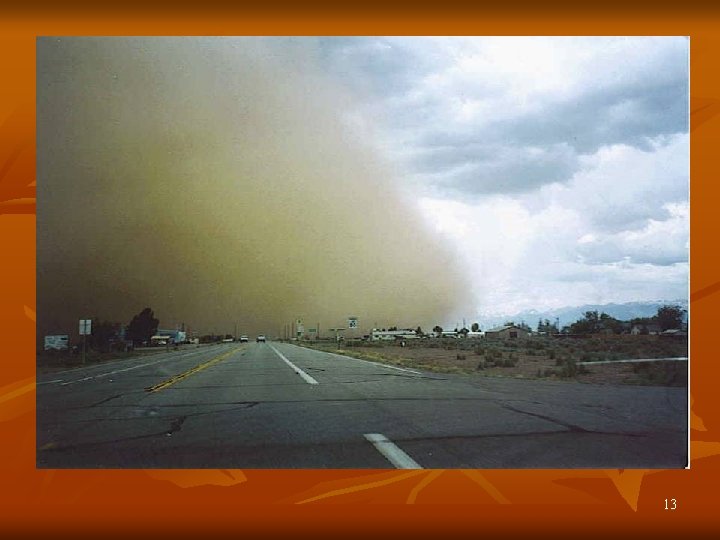

13

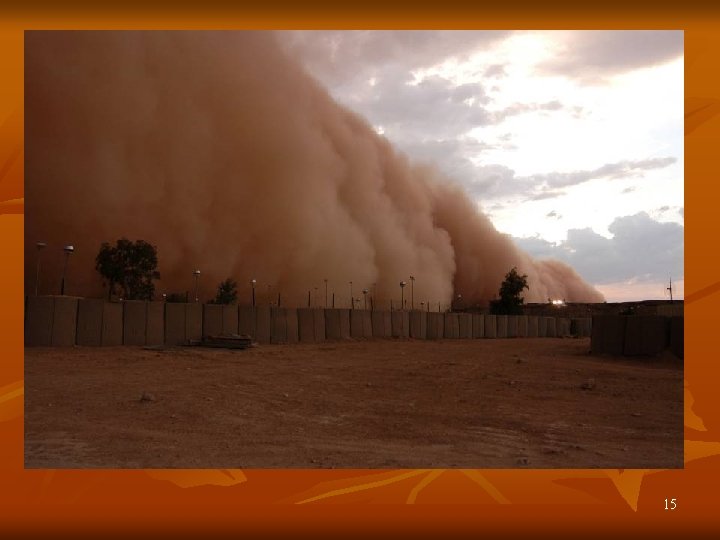

Al Asad, Iraq 14

15

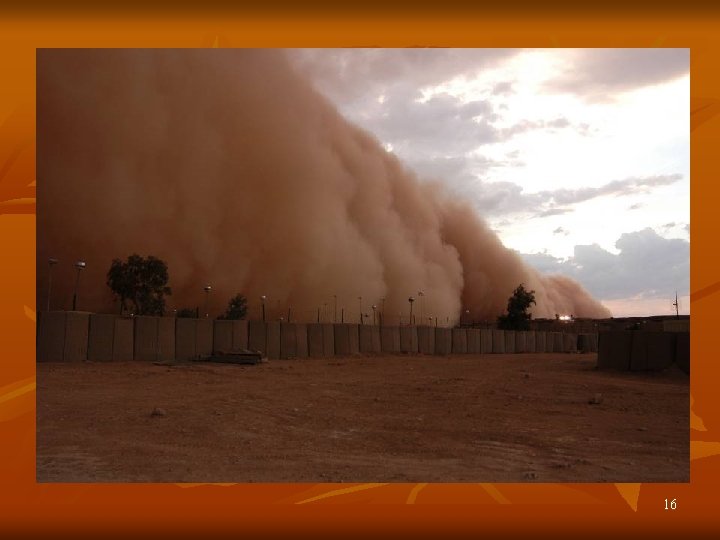

16

17

18

The Dustbowl 19

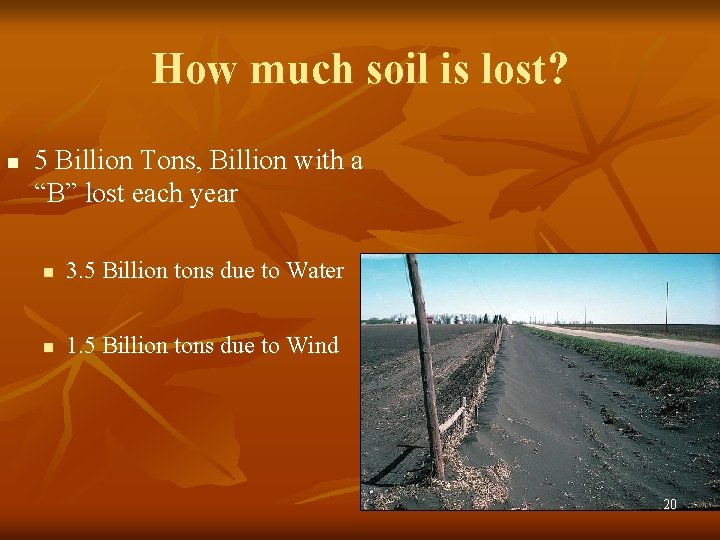

How much soil is lost? n 5 Billion Tons, Billion with a “B” lost each year n 3. 5 Billion tons due to Water n 1. 5 Billion tons due to Wind 20

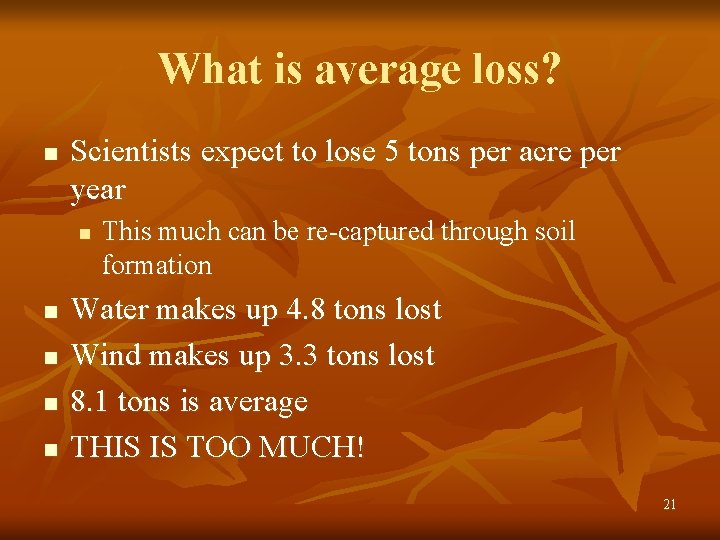

What is average loss? n Scientists expect to lose 5 tons per acre per year n n n This much can be re-captured through soil formation Water makes up 4. 8 tons lost Wind makes up 3. 3 tons lost 8. 1 tons is average THIS IS TOO MUCH! 21

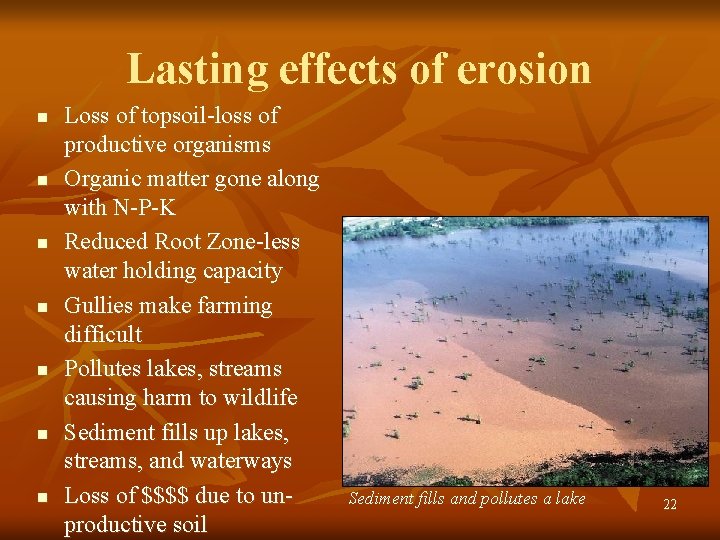

Lasting effects of erosion n n n Loss of topsoil-loss of productive organisms Organic matter gone along with N-P-K Reduced Root Zone-less water holding capacity Gullies make farming difficult Pollutes lakes, streams causing harm to wildlife Sediment fills up lakes, streams, and waterways Loss of $$$$ due to unproductive soil Sediment fills and pollutes a lake 22

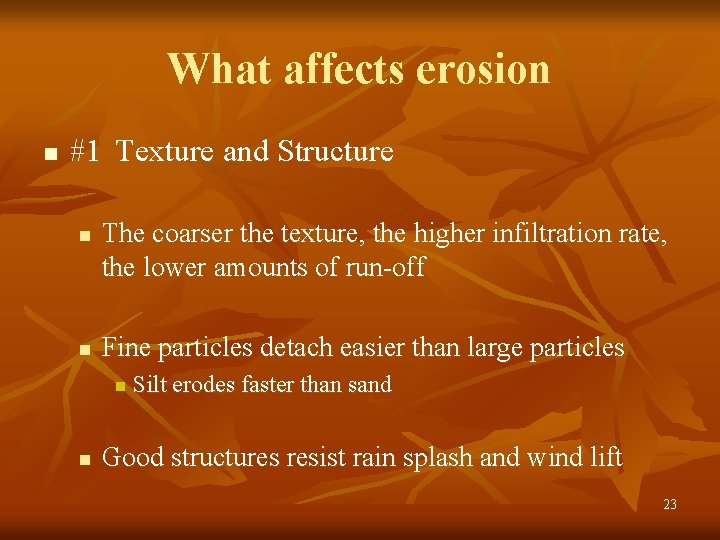

What affects erosion n #1 Texture and Structure n n The coarser the texture, the higher infiltration rate, the lower amounts of run-off Fine particles detach easier than large particles n n Silt erodes faster than sand Good structures resist rain splash and wind lift 23

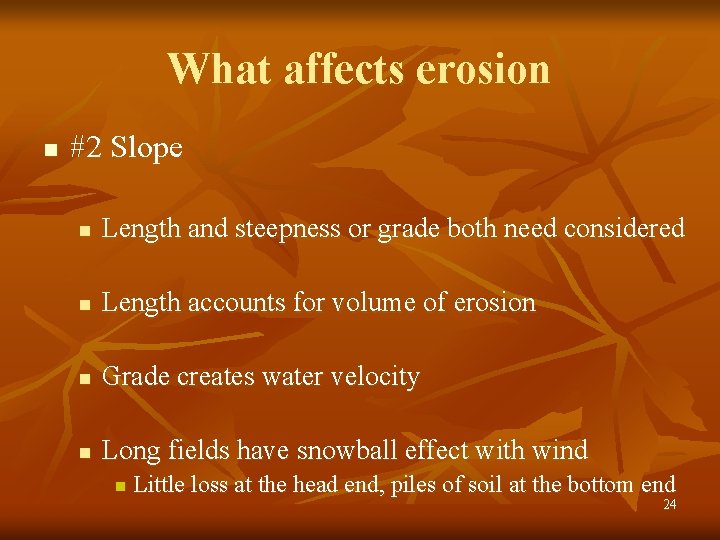

What affects erosion n #2 Slope n Length and steepness or grade both need considered n Length accounts for volume of erosion n Grade creates water velocity n Long fields have snowball effect with wind n Little loss at the head end, piles of soil at the bottom end 24

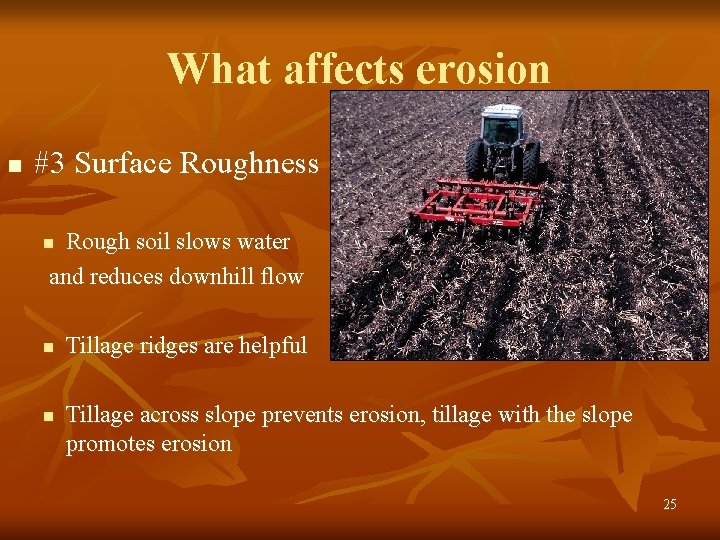

What affects erosion n #3 Surface Roughness Rough soil slows water and reduces downhill flow n n n Tillage ridges are helpful Tillage across slope prevents erosion, tillage with the slope promotes erosion 25

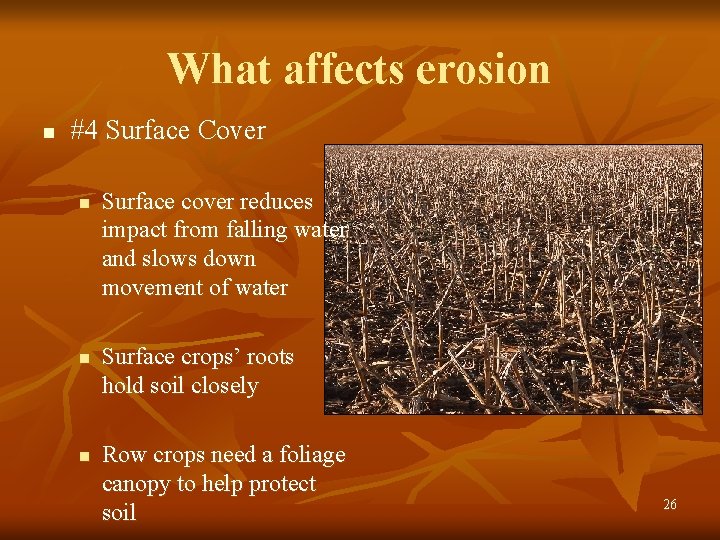

What affects erosion n #4 Surface Cover n n n Surface cover reduces impact from falling water and slows down movement of water Surface crops’ roots hold soil closely Row crops need a foliage canopy to help protect soil 26

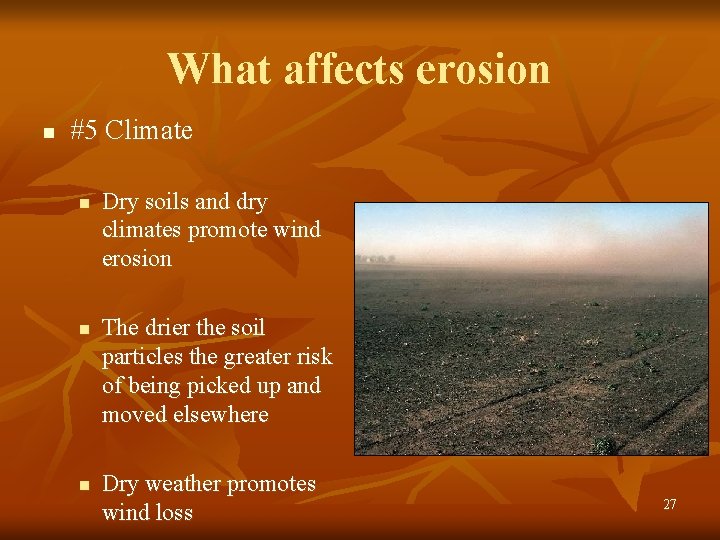

What affects erosion n #5 Climate n n n Dry soils and dry climates promote wind erosion The drier the soil particles the greater risk of being picked up and moved elsewhere Dry weather promotes wind loss 27

Types of erosion n #1 Splash Erosion n Water hits the soil and can move particles as much as 5 feet! 28

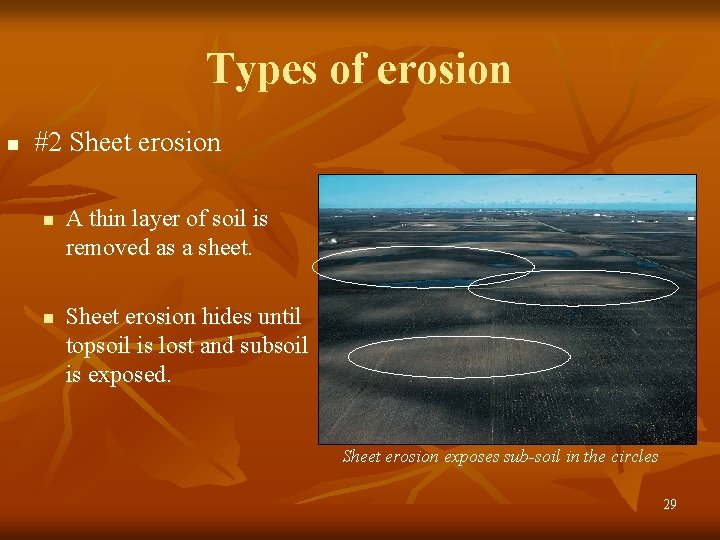

Types of erosion n #2 Sheet erosion n n A thin layer of soil is removed as a sheet. Sheet erosion hides until topsoil is lost and subsoil is exposed. Sheet erosion exposes sub-soil in the circles 29

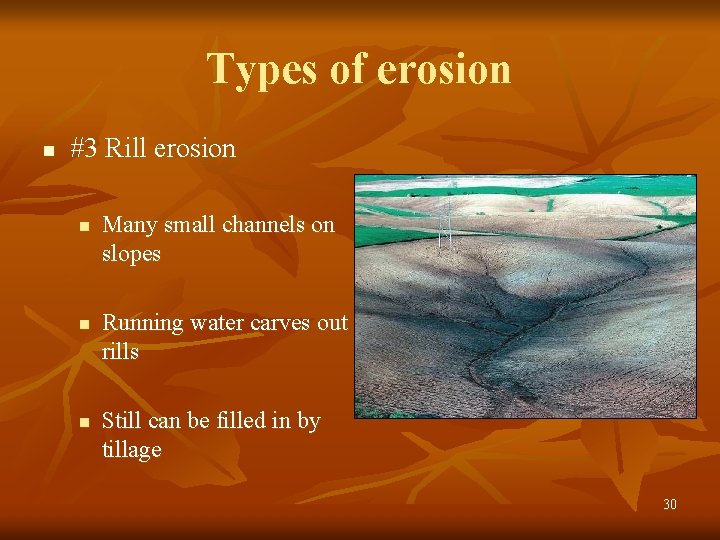

Types of erosion n #3 Rill erosion n Many small channels on slopes Running water carves out rills Still can be filled in by tillage 30

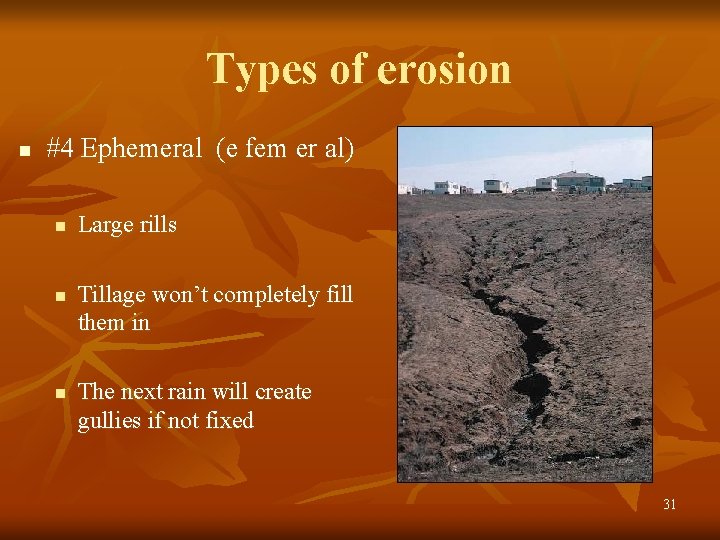

Types of erosion n #4 Ephemeral (e fem er al) n n n Large rills Tillage won’t completely fill them in The next rain will create gullies if not fixed 31

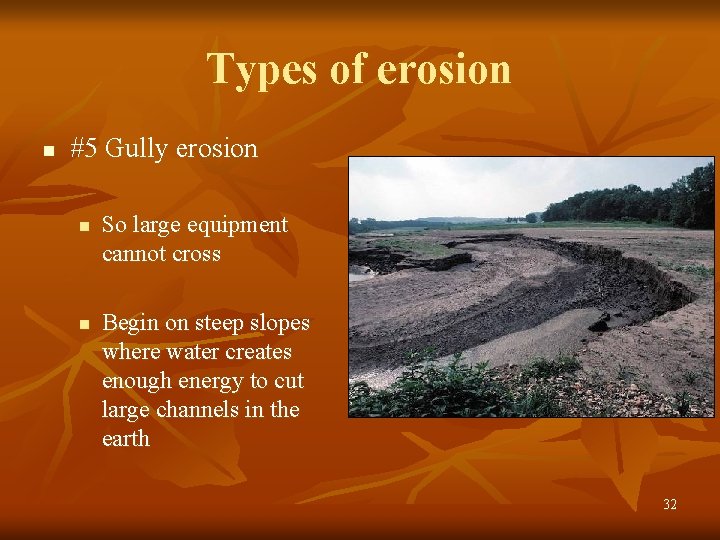

Types of erosion n #5 Gully erosion n n So large equipment cannot cross Begin on steep slopes where water creates enough energy to cut large channels in the earth 32
