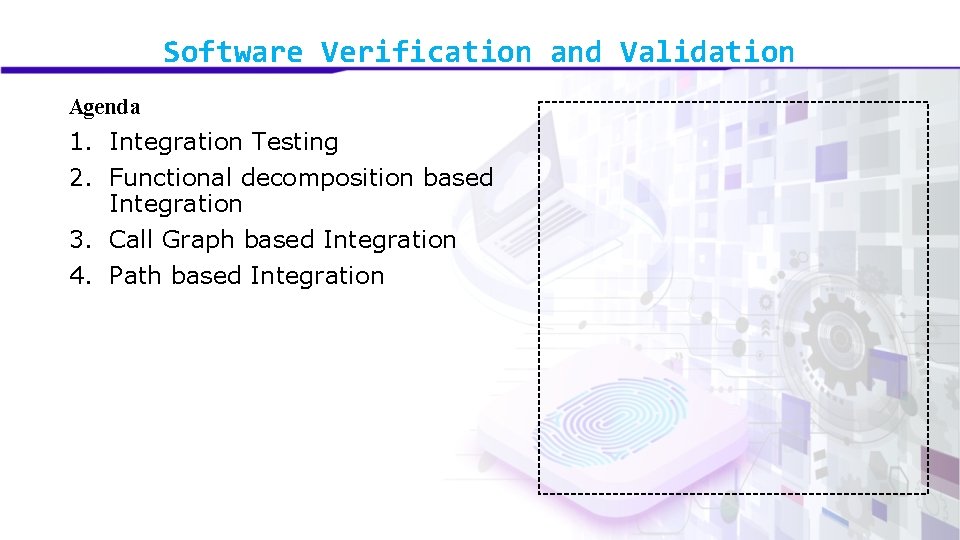

Software Verification and Validation Agenda 1. Integration Testing 2. Functional decomposition based Integration 3. Call Graph based Integration 4. Path based Integration

Module 47: Integration Testing

Integration Testing § While developing unit test strategy, we consider: § Test Requirement § Documentation requirement § Tools / Test utilities? § Individual units get combined into (sub-) modules § We need to assure if: § they are following design accurately § they are collaborating properly § We do integration testing

Integration Testing • Unit assumptions – All other units are correct – Compiles correctly • Integration assumptions – Unit testing complete • System assumptions – Integration testing complete – Tests occur at port boundary

Integration Testing • Unit goals – Correct unit function – Coverage metrics satisfied • Integration goals – Interfaces correct – Correct function across units – Fault isolation support • System goals – Correct system functions – Non-functional requirements tested – Customer satisfaction

Integration Testing § Imagine, developer X implemented and tested “Register” Class § Imagine, developer Y implemented and tested “Sales” Class

Integration Testing § Development manager wants to: § Test if individual units are working properly? § To verify if adequate testing at developer level was performed § NOT redoing the whole testing effort again § If units are collaborating as anticipated?

Integration Testing § At unit level, our test case was as Single Step or a Test Step § At integration level, it becomes a Test sequence

Integration Testing § Imagine, § We were to test Order class § We went step by step § We wrote a unit test case for dispatch() § We wrote a unit test case for close() § Single step test case § While writing integration test case, § We test if Order and Customer both are working together § We wrote a test cases which is a series of invocations.

Integration Testing § While integration testing, § We want to see collaborative behavior § Issue is that all classes are not ready at the same time § Even if they are ready, we don’t want to put them together in one go and run tests for the following reason: § Fault localization

Integration Testing § Integration testing techniques § Functional Decomposition § applies best to procedural code • Call Graph § applies to both procedural and objectoriented code • MM-Paths § apply to both procedural and object-oriented code

Module 48: Functional decomposition based Integration

Integration Testing § Top-down integration strategy § focuses on testing the top layer or the controlling subsystem first § i. e. the main, or the root of the call tree) § Sometimes, we have an early prototype ready § Sometimes required to build an understanding (both SE team and the client) § We then naturally follow topdown integration of system and test

Integration Testing § We gradually add more subsystems that are referenced/required by the already tested subsystems § Do this until all subsystems are incorporated into the test

Integration Testing

Functional decomposition based Integration Top-Down Integration

Functional decomposition based Integration § Issues: § Writing stubs can be difficult § when parameter passing is complex. § Stubs must allow all possible conditions to be tested § number of stubs required may become high, § In case lowest level of the system contains many functional units

Functional decomposition based Integration § Top level classes are ready § Yet the corporate customer and Personal customer classes are not ready § We use stubs § stubs are "called" programs § Fake classes just to test § Replaced with actual § Either when ready § Or when desired (we keep actual code out for fault localization)

Functional decomposition based Integration § Bottom-Up integration strategy § We do testing of units at the lowest levels first § Gradually include sub systems that reference / require previously tested subsystems § This is done repeatedly until all subsystems are included in the testing § Drivers required which is a “fake” routine that requires a subsystem and passes a test case to it

Functional decomposition based Integration Bottom Level Subtree (Sessions 13 -17) Bottom-up Integration Second Level Subtree (Sessions 25 -28) Top Subtree (Sessions 29 -32)

Functional decomposition based Integration § Issues: § Not optimal strategy for functionally decomposed systems: § Tests the most important subsystem (UI) last § More useful for integrating object-oriented systems § Drivers may be more complicated than stubs § Less drivers than stubs are typically required

Functional decomposition based Integration § Corporate customer and Personal customer classes are ready § Together with Customer class § Order Class in not ready § We use drivers § The driver (Control program) is used in the bottom-up integration to arrange test case input and output

Functional decomposition based Integration § Sandwich Integration § Combines top-down strategy with bottom-up strategy § Less stub and driver development effort § Added difficulty in fault isolation

Functional decomposition based Integration Sandwich Integration

Module 49: Call Graph based Integration

Call Graph Based Integration Testing § Call Graph of a program is a directed graph in which § nodes are units § edges correspond to actual program calls (or messages) § Can still use the notions of stubs and drivers. § The basic idea is to use the call graph instead of the decomposition tree § Two sub-types § Pair-wise Integration § Neighborhood Integration

Call Graph Based Integration Testing

Call Graph Based Integration Testing § By definition, and edge in the Call Graph refers to an interface between the units that are the endpoints of the edge. § Every edge represents a pair of units to test. § We want to test all edges are: § Essentially required § Meaningfully implemented

Call Graph Based Integration Testing § Pair-wise integration § we eliminate the need for developing stubs/drivers § The objective is to use actual code instead of stubs/drivers § In order not to deteriorate the process to a big-bang strategy, we restrict a testing session to just a pair of units in the call graph § The result is that we have one integration test session for each edge in the call graph

Call Graph Based Integration Testing § neighborhood integration § We define neighborhood of a node in a graph to be the set of nodes that are one edge away from the given node § In a directed graph means all the immediate predecessor nodes and all the immediate successor nodes of a given node § Neighborhood Integration Testing reduces the number of test sessions § Fault isolation is harder

Call Graph Based Integration Testing § The neighborhood (or radius 1) of a node in a graph is the set of nodes that are one edge away from the given node. § This can be extended to larger sets by choosing larger values for the radius. § Stub and driver effort is reduced.

Call Graph Based Integration Testing A A B C E B C D E D Total nodes = 5 Sink nodes = 3 Neighborhood = 5 – 3 = 2 A A Total nodes = 5 Sink nodes = 4 Neighborhood = 5 - 4 = 1 A B B E neighborhood(1) D C neighborhood (2) B C D E (1) neighborhood

Call Graph Based Integration Testing A B E I C F J G D H ( 10 nodes – 5 sink nodes) = 5 neighborhoods -1 ABCD -2 ABEF -3 BEIJ -4 ACG -5 ADH

Module 50: Path based Integration

Path Based Integration § The basic idea is to focus on interactions among system units rather than merely to test interfaces among separately developed and tested units § In this respect, interfacebased testing is structural while interaction-based is behavioral (why? ) § Overall we want to express integration testing in terms behavioral threads

Path Based Integration § Source node: § a program statement fragment at which program execution begins or resumes. § for example the first “begin” statement in a program. § also, immediately after nodes that transfer control to other units. § Sink node: § a statement fragment at which program execution terminates. § the final “end” in a program as well as statements that transfer control to other units.

Path Based Integration § Module execution path: § a sequence of statements that begins with a source node and ends with a sink node with no intervening sink nodes. § Message: § a programming language mechanism by which one unit transfers control to another unit.

Path Based Integration § Message: § can be interpreted as subroutine invocations, procedure calls and function references. § convention: the unit which receives the message always eventually returns control to the message source. § messages can pass data to other units.

Path Based Integration § MM-Path: § an interleaved sequence of module execution paths and messages. § we can describe sequences of module execution paths that include transfers of control among separate units. § MM-paths always represent feasible execution paths, and these paths cross unit boundaries.

Path Based Integration § There are three observable behavioral criteria that put endpoints on MM-Paths: § event quiescence: occurs when a system is nearly idle, waiting for a port input event to trigger further processing. § This is a system level property with an analog at the integration level: message quiescence.

Path Based Integration § message quiescence: occurs when a unit that sends no messages is reached (i. e. module C in Figure 1). § data quiescence: occurs when a sequence of processing culminates in the creation of stored data that is not immediately used.

Path Based Integration § Data quiescence occurs when a sequence of processing culminates in the creation of stored data that is not immediately used. § These criteria are “natural” endpoints for MM-Paths.

Path Based Integration § A second guideline for MMPaths serves to distinguish integration from system testing: § atomic system function (ASF): is an action that is observable at the system level in terms of port input and output events. § It begins with a port input event, § traverses one or more MM-Paths, § and terminates with a port output event.

Path Based Integration § When viewed from the system level, there is no compelling reason to decompose an ASF into lower levels of detail (hence the atomicity). § For example in the ATM case, § an example of an ASF is card entry, cash dispensing, or session closing. § While PIN entry would probably be too big since it might entail a molecular system function

Path Based Integration § ASFs are an upper limit for MM-Paths: § MM-Paths should not cross ASF boundaries. § ASFs represent the seam between integration and system testing: § they are the largest item to be tested during integration testing, § and the smallest item for system testing.

Path Based Integration A B C MM-path: Interleaved sequence of module exec path and messages Module exec path: entry-exit path in the same module Atomic System Function: port input, … {MM-paths}, … port output Test cases: exercise ASFs

Path Based Integration § : Register calls : Sales § We have event quiescence from § : Register to : Sales § We test this § Imaging there is another class : DB that stores data into database and the method is store() § We have a data quiescence involving these three classes
