Software Tool Chains for Quantum Computing Alan Geller

Software Tool Chains for Quantum Computing Alan Geller Software Architect Qu. Ar. C, Microsoft Research Microsoft Proprietary

Quantum Computing at Microsoft Research • Microsoft Proprietary

Overview Microsoft Proprietary

Why is this important now? • The first classical computers were invented in the 1940 s • Software for classical computers didn’t proliferate until modern IDEs were developed ~30 years later • We shouldn’t have to wait 30 years after we have a quantum computer to be able to easily write quantum software! Microsoft Proprietary

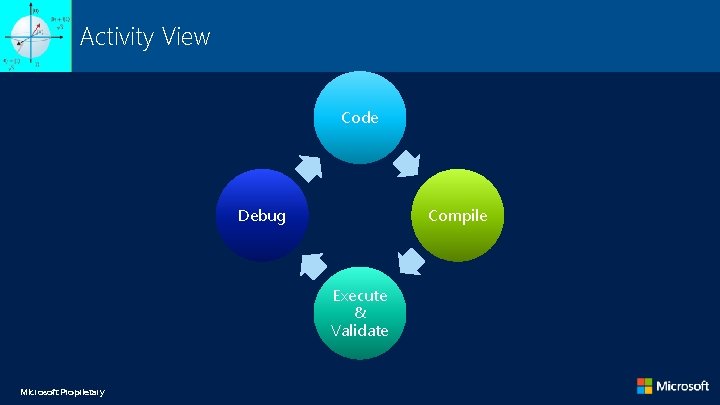

Activity View Code Debug Compile Execute & Validate Microsoft Proprietary

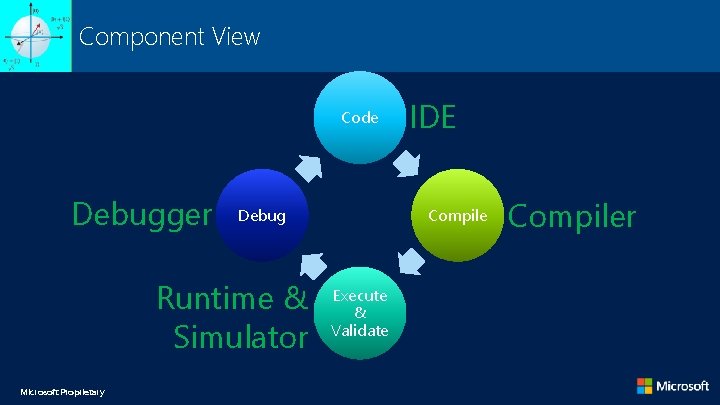

Component View Code Debugger Debug Runtime & Simulator Microsoft Proprietary IDE Compile Execute & Validate Compiler

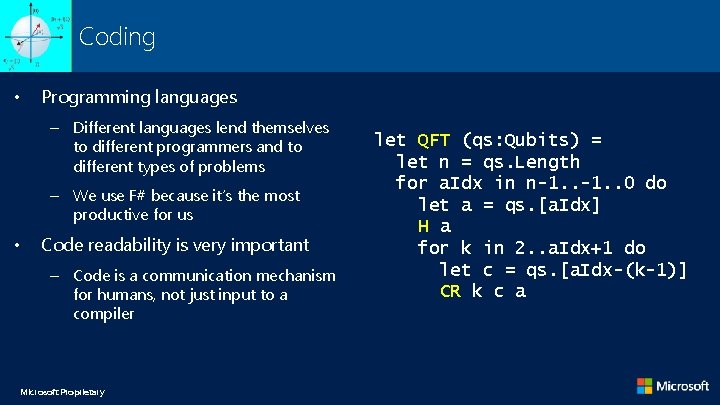

Coding • Programming languages – Different languages lend themselves to different programmers and to different types of problems – We use F# because it’s the most productive for us • Code readability is very important – Code is a communication mechanism for humans, not just input to a compiler Microsoft Proprietary let QFT (qs: Qubits) = let n = qs. Length for a. Idx in n-1. . 0 do let a = qs. [a. Idx] H a for k in 2. . a. Idx+1 do let c = qs. [a. Idx-(k-1)] CR k c a

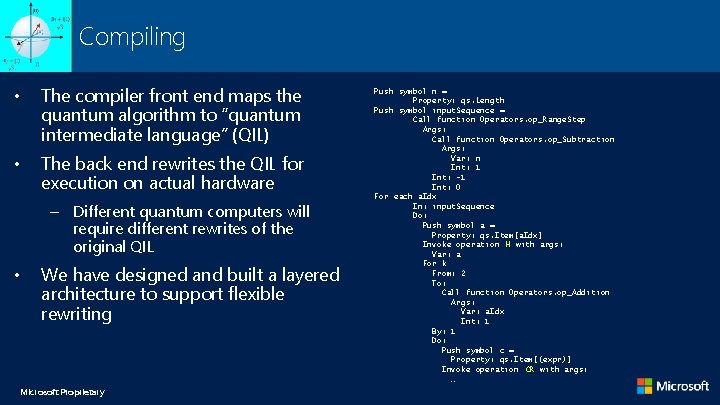

Compiling • The compiler front end maps the quantum algorithm to “quantum intermediate language” (QIL) • The back end rewrites the QIL for execution on actual hardware – Different quantum computers will require different rewrites of the original QIL • We have designed and built a layered architecture to support flexible rewriting Microsoft Proprietary Push symbol n = Property: qs. Length Push symbol input. Sequence = Call function Operators. op_Range. Step Args: Call function Operators. op_Subtraction Args: Var: n Int: 1 Int: -1 Int: 0 For each a. Idx In: input. Sequence Do: Push symbol a = Property: qs. Item[a. Idx] Invoke operation H with args: Var: a For k From: 2 To: Call function Operators. op_Addition Args: Var: a. Idx Int: 1 By: 1 Do: Push symbol c = Property: qs. Item[(expr)] Invoke operation CR with args: …

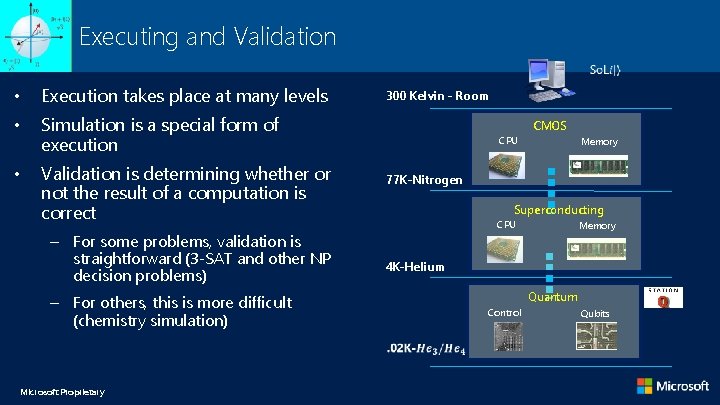

Executing and Validation • Execution takes place at many levels • Simulation is a special form of execution • Validation is determining whether or not the result of a computation is correct – For some problems, validation is straightforward (3 -SAT and other NP decision problems) 300 Kelvin - Room CMOS CPU 77 K-Nitrogen Superconducting CPU Memory 4 K-Helium Quantum – For others, this is more difficult (chemistry simulation) Control Microsoft Proprietary Memory Qubits

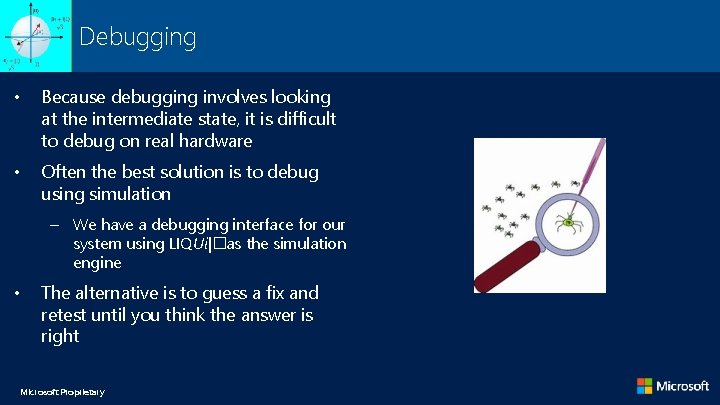

Debugging • Because debugging involves looking at the intermediate state, it is difficult to debug on real hardware • Often the best solution is to debug using simulation – We have a debugging interface for our system using LIQUi|�as the simulation engine • The alternative is to guess a fix and retest until you think the answer is right Microsoft Proprietary

Architecture Microsoft Proprietary

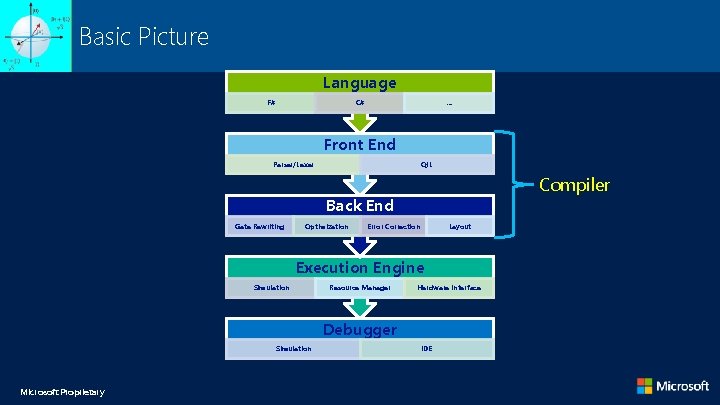

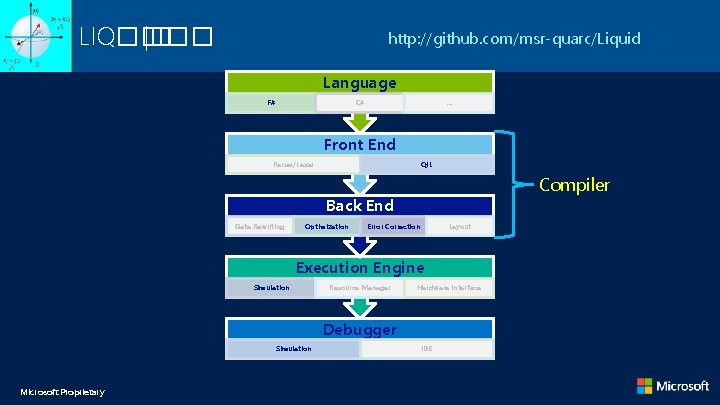

Basic Picture Language F# C# … Front End Parser/Lexer QIL Compiler Back End Gate Rewriting Optimization Error Correction Layout Execution Engine Simulation Resource Manager Hardware Interface Debugger Simulation Microsoft Proprietary IDE

LIQ���� |� http: //github. com/msr-quarc/Liquid Language F# C# … Front End Parser/Lexer QIL Compiler Back End Gate Rewriting Optimization Error Correction Layout Execution Engine Simulation Resource Manager Hardware Interface Debugger Simulation Microsoft Proprietary IDE

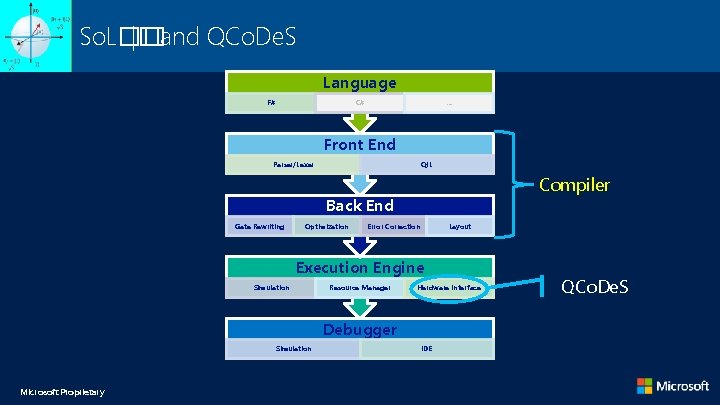

So. L�� |�and QCo. De. S Language F# C# … Front End Parser/Lexer QIL Compiler Back End Gate Rewriting Optimization Error Correction Layout Execution Engine Simulation Resource Manager Hardware Interface Debugger Simulation Microsoft Proprietary IDE QCo. De. S

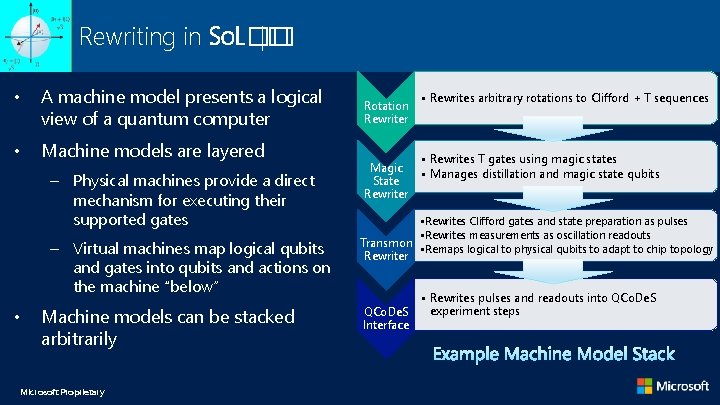

Rewriting in So. L�� |� • A machine model presents a logical view of a quantum computer • Machine models are layered – Physical machines provide a direct mechanism for executing their supported gates – Virtual machines map logical qubits and gates into qubits and actions on the machine “below” • Machine models can be stacked arbitrarily Microsoft Proprietary Rotation Rewriter Magic State Rewriter • Rewrites arbitrary rotations to Clifford + T sequences • Rewrites T gates using magic states • Manages distillation and magic state qubits • Rewrites Clifford gates and state preparation as pulses • Rewrites measurements as oscillation readouts Transmon • Remaps logical to physical qubits to adapt to chip topology Rewriter QCo. De. S Interface • Rewrites pulses and readouts into QCo. De. S experiment steps

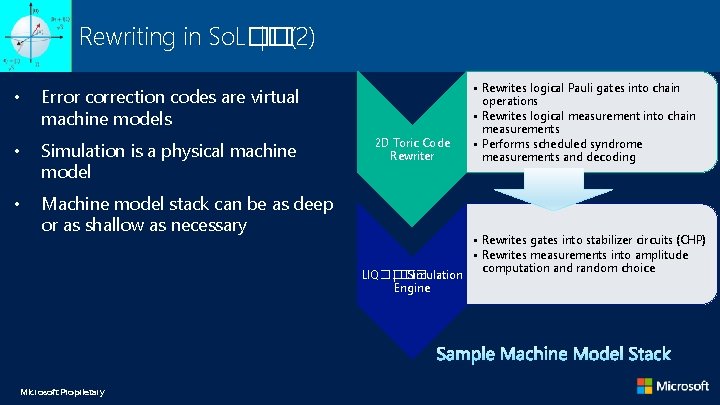

Rewriting in So. L�� |�(2) • Error correction codes are virtual machine models • Simulation is a physical machine model • Machine model stack can be as deep or as shallow as necessary 2 D Toric Code Rewriter LIQ���� |�Simulation Engine Microsoft Proprietary • Rewrites logical Pauli gates into chain operations • Rewrites logical measurement into chain measurements • Performs scheduled syndrome measurements and decoding • Rewrites gates into stabilizer circuits (CHP) • Rewrites measurements into amplitude computation and random choice

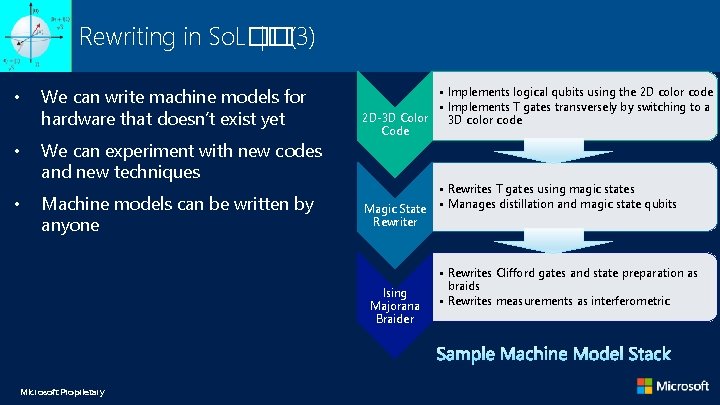

Rewriting in So. L�� |�(3) • We can write machine models for hardware that doesn’t exist yet • We can experiment with new codes and new techniques • Machine models can be written by anyone • Implements logical qubits using the 2 D color code • Implements T gates transversely by switching to a 2 D-3 D Color 3 D color code Code Magic State Rewriter Ising Majorana Braider Microsoft Proprietary • Rewrites T gates using magic states • Manages distillation and magic state qubits • Rewrites Clifford gates and state preparation as braids • Rewrites measurements as interferometric

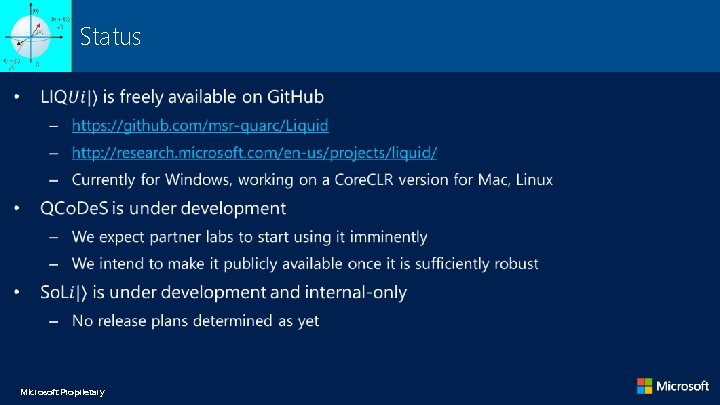

Status • Microsoft Proprietary
