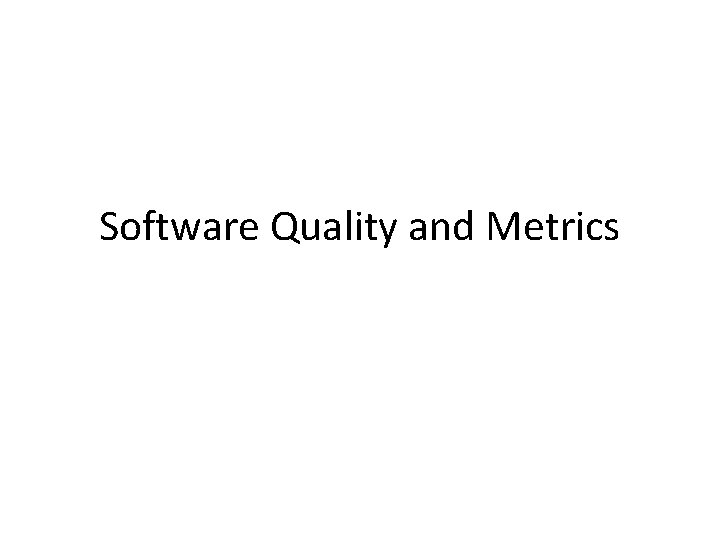

Software Quality and Metrics Software Quality What is

Software Quality and Metrics

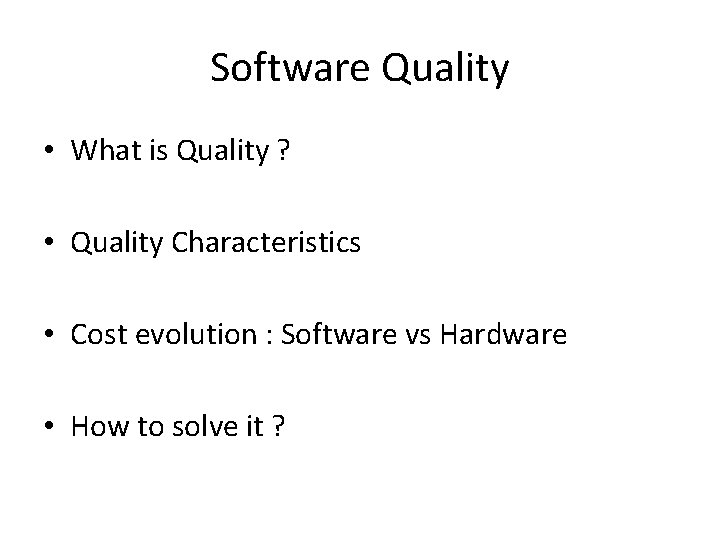

Software Quality • What is Quality ? • Quality Characteristics • Cost evolution : Software vs Hardware • How to solve it ?

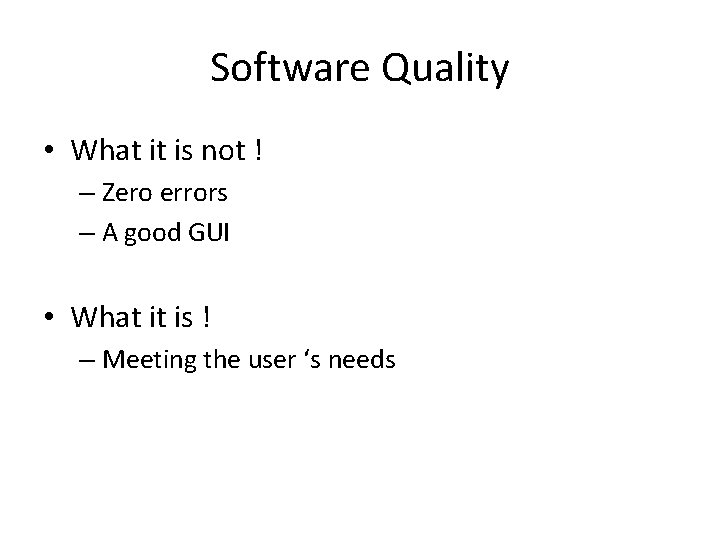

Software Quality • What it is not ! – Zero errors – A good GUI • What it is ! – Meeting the user ‘s needs

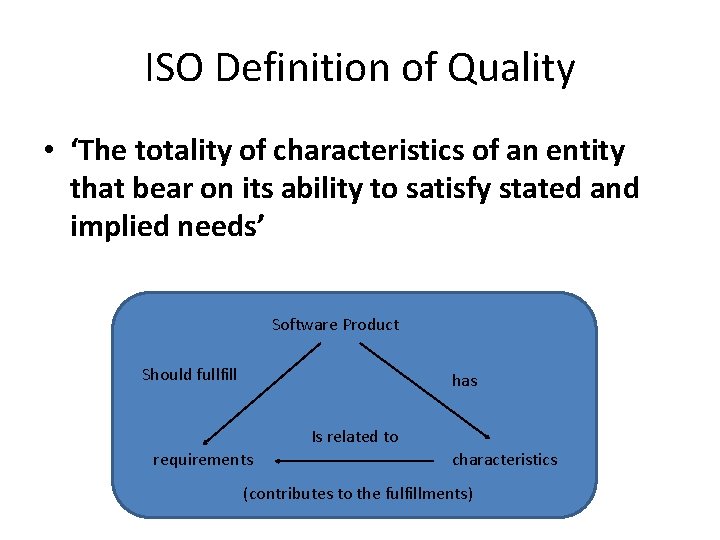

ISO Definition of Quality • ‘The totality of characteristics of an entity that bear on its ability to satisfy stated and implied needs’ Software Product Should fullfill has Is related to requirements characteristics (contributes to the fulfillments)

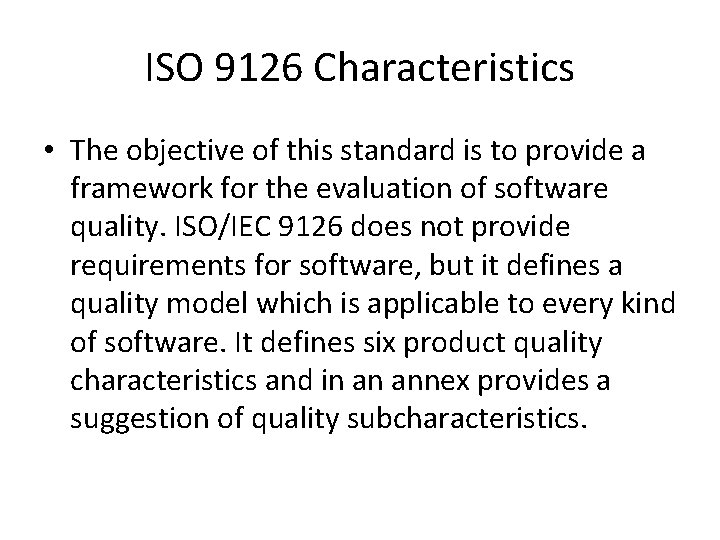

ISO 9126 Characteristics • The objective of this standard is to provide a framework for the evaluation of software quality. ISO/IEC 9126 does not provide requirements for software, but it defines a quality model which is applicable to every kind of software. It defines six product quality characteristics and in an annex provides a suggestion of quality subcharacteristics.

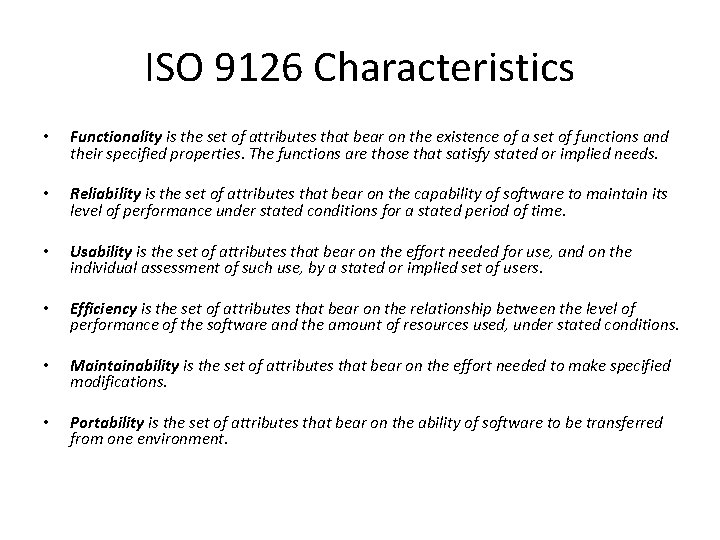

ISO 9126 Characteristics • • • Functionality is the set of attributes that bear on the existence of a set of functions and their specified properties. The functions are those that satisfy stated or implied needs. Reliability is the set of attributes that bear on the capability of software to maintain its level of performance under stated conditions for a stated period of time. Usability is the set of attributes that bear on the effort needed for use, and on the individual assessment of such use, by a stated or implied set of users. Efficiency is the set of attributes that bear on the relationship between the level of performance of the software and the amount of resources used, under stated conditions. Maintainability is the set of attributes that bear on the effort needed to make specified modifications. Portability is the set of attributes that bear on the ability of software to be transferred from one environment.

Sub Characteristics Subcharacteristics Suitability Accurateness Functionality Interoperability Compliance Security Definitions Attributes of software that bear on the presence and appropriateness of a set of functions for specified tasks. Attributes of software that bear on the provision of right or agreed results or effects. Attributes of software that bear on its ability to interact with specified systems. Attributes of software that make the software adhere to application related standards or conventions or regulations in laws and similar prescriptions. Attributes of software that bear on its ability to prevent unauthorized access, whether accidental or deliberate, to programs or data. Maturity Reliability Fault tolerance Recoverability Attributes of software that bear on the frequency of failure by faults in the software. Attributes of software that bear on its ability to maintain a specified level of performance in case of software faults or of infringement of its specified interface. Attributes of software that bear on the capability to re-establish its level of performance and recover the data directly affected in case of a failure and on the time and effort needed for it. Usability Understandability Attributes of software that bear on the users’ effort for recognizing the logical concept and its applicability. Learnability Attributes of software that bear on the users’effort for learning its application. Operability Attributes of software that bear on the users’effort for operation and operation control.

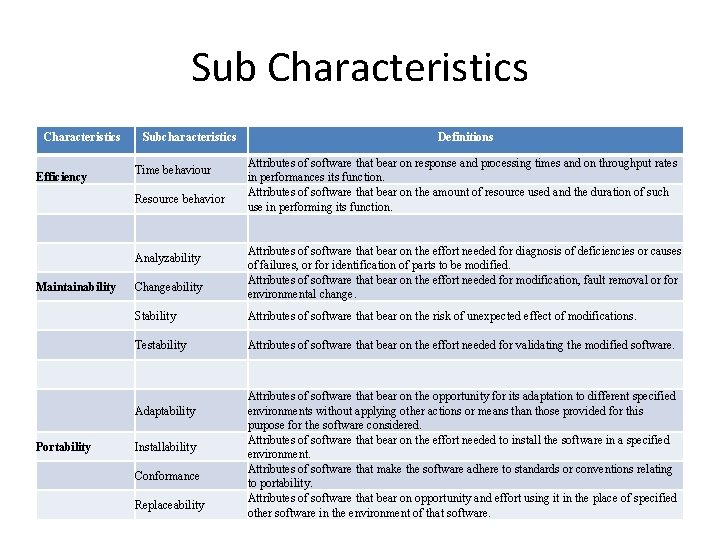

Sub Characteristics Efficiency Subcharacteristics Time behaviour Resource behavior Analyzability Maintainability Changeability Attributes of software that bear on response and processing times and on throughput rates in performances its function. Attributes of software that bear on the amount of resource used and the duration of such use in performing its function. Attributes of software that bear on the effort needed for diagnosis of deficiencies or causes of failures, or for identification of parts to be modified. Attributes of software that bear on the effort needed for modification, fault removal or for environmental change. Stability Attributes of software that bear on the risk of unexpected effect of modifications. Testability Attributes of software that bear on the effort needed for validating the modified software. Adaptability Portability Definitions Installability Conformance Replaceability Attributes of software that bear on the opportunity for its adaptation to different specified environments without applying other actions or means than those provided for this purpose for the software considered. Attributes of software that bear on the effort needed to install the software in a specified environment. Attributes of software that make the software adhere to standards or conventions relating to portability. Attributes of software that bear on opportunity and effort using it in the place of specified other software in the environment of that software.

Quality model • The relative weight of the characteristics depends on the type of software – Prototype – Critical (ex : nuclear power plant) – Long live (ex : Telecom switch) –…

Quality model • What should be the ranked list of Quality characteristics (most important first) for a software used in a space shuttle ? • Give them a weight.

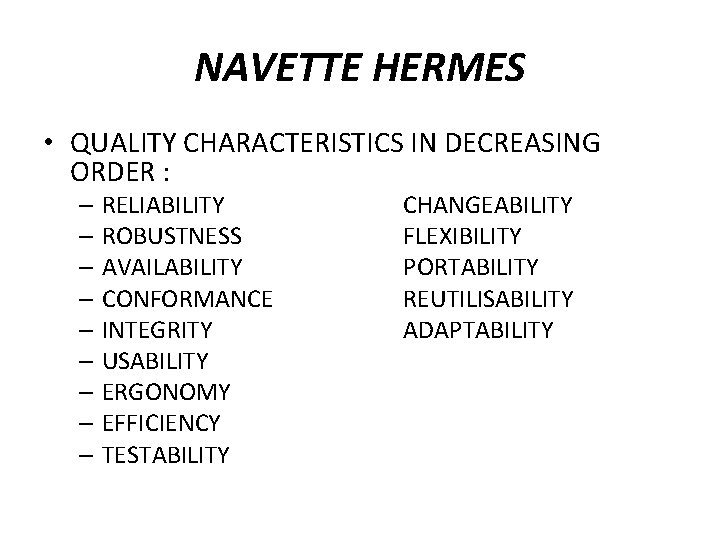

NAVETTE HERMES • QUALITY CHARACTERISTICS IN DECREASING ORDER : – RELIABILITY – ROBUSTNESS – AVAILABILITY – CONFORMANCE – INTEGRITY – USABILITY – ERGONOMY – EFFICIENCY – TESTABILITY CHANGEABILITY FLEXIBILITY PORTABILITY REUTILISABILITY ADAPTABILITY

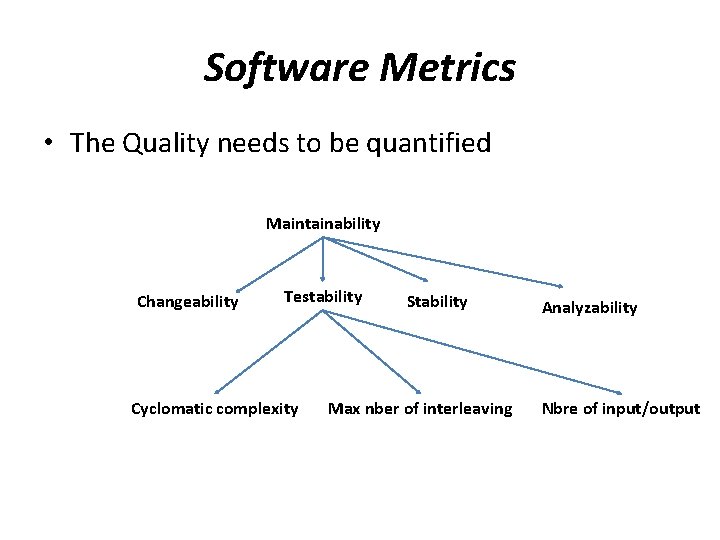

Software Metrics • The Quality needs to be quantified Maintainability Changeability Testability Cyclomatic complexity Stability Max nber of interleaving Analyzability Nbre of input/output

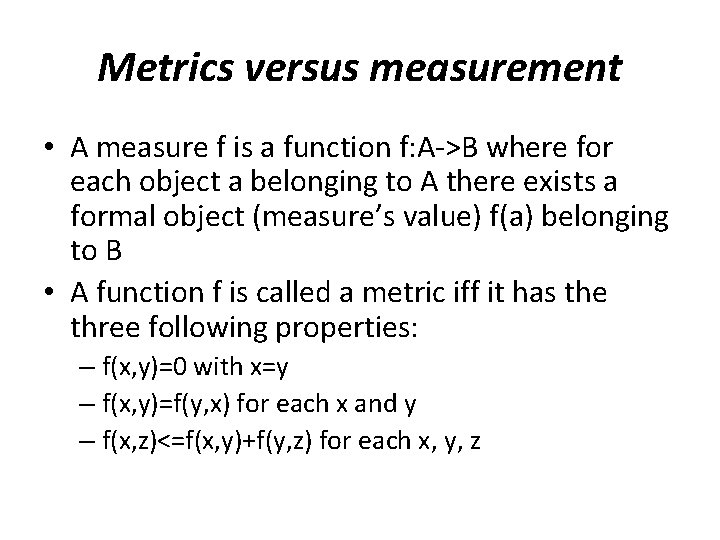

Metrics versus measurement • A measure f is a function f: A->B where for each object a belonging to A there exists a formal object (measure’s value) f(a) belonging to B • A function f is called a metric iff it has the three following properties: – f(x, y)=0 with x=y – f(x, y)=f(y, x) for each x and y – f(x, z)<=f(x, y)+f(y, z) for each x, y, z

Metrics versus measurement • A measure should satisfy 4 criteria – Being in relation with well understood and significant attributes – Being supported by formal models or abstractions that capture the attributes – Respecting the relations and the existing order between objects (determined by the attributes of the models – Being mapped to the numeric system in order to maintain the order relationship. • Remark: if it doesn’t respect the three first criteria, it is a metric

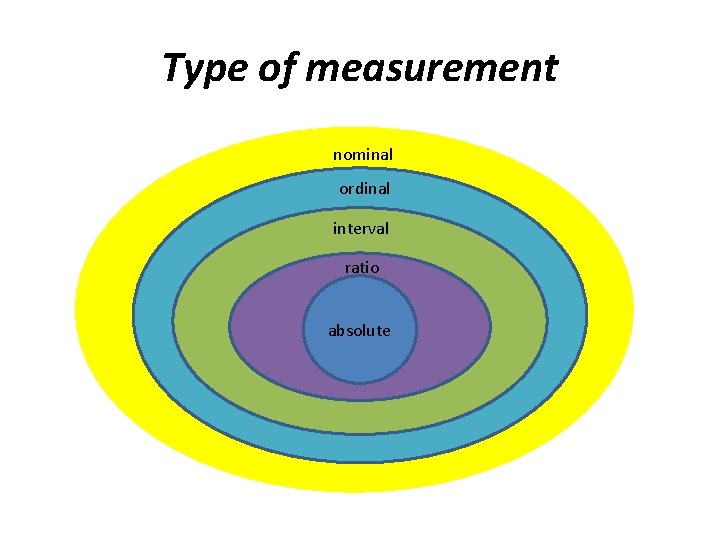

Type of measurement nominal ordinal interval ratio absolute

Type of measurement (examples) • Nominal: number on the back of a football player • Ordinal: Richter scale • Interval: f(x)=ax+b. Temperature is of interval type • Ratio: f(x)=ax. A length is a ratio • Absolute: f(x)=x. Number of people working in a company

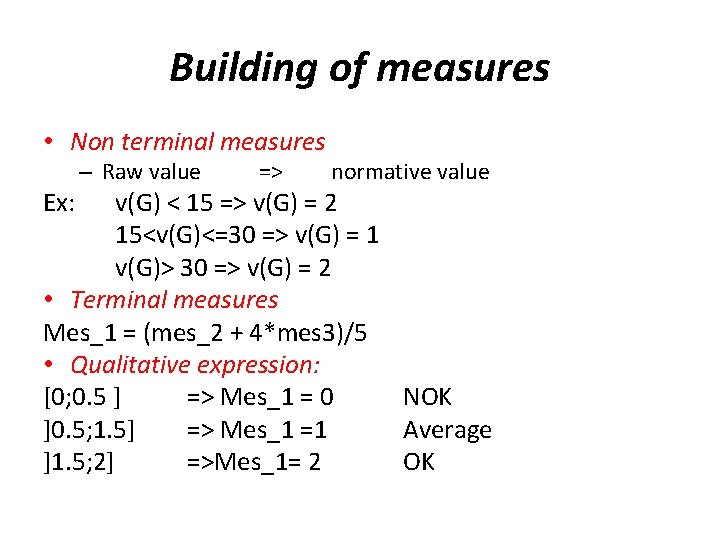

Building of measures • Non terminal measures – Raw value Ex: => normative value v(G) < 15 => v(G) = 2 15<v(G)<=30 => v(G) = 1 v(G)> 30 => v(G) = 2 • Terminal measures Mes_1 = (mes_2 + 4*mes 3)/5 • Qualitative expression: [0; 0. 5 ] => Mes_1 = 0 NOK ]0. 5; 1. 5] => Mes_1 =1 Average ]1. 5; 2] =>Mes_1= 2 OK

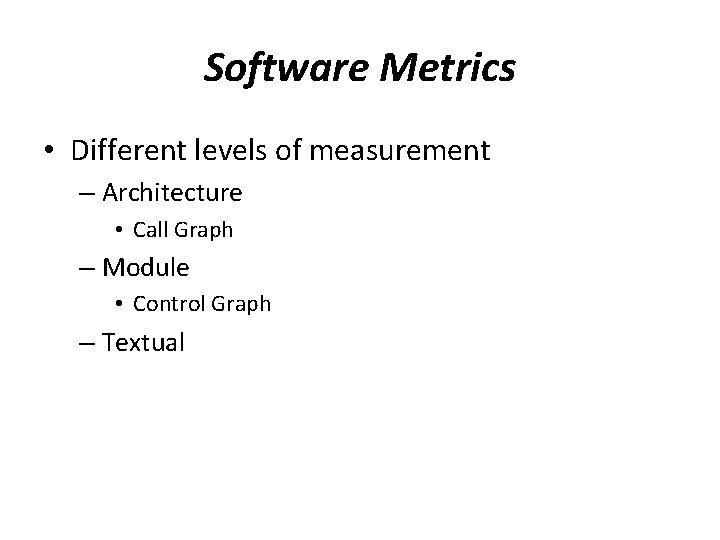

Software Metrics • Different levels of measurement – Architecture • Call Graph – Module • Control Graph – Textual

Software Metrics • Architecture – Number of paths – Hierarchical complexity – Structural complexity – Component assessibility – Path testability – System entropy

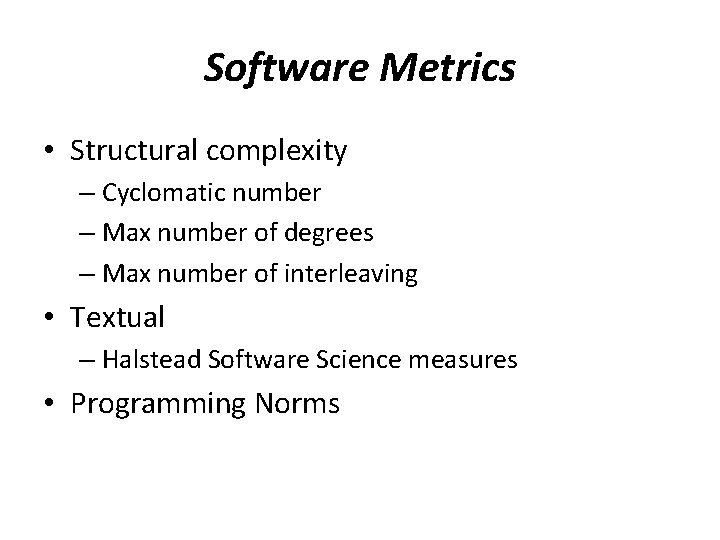

Software Metrics • Structural complexity – Cyclomatic number – Max number of degrees – Max number of interleaving • Textual – Halstead Software Science measures • Programming Norms

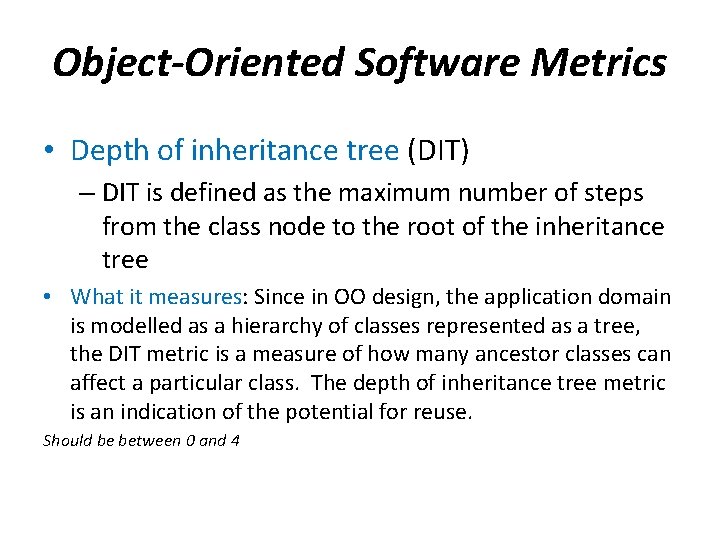

Object-Oriented Software Metrics • Depth of inheritance tree (DIT) – DIT is defined as the maximum number of steps from the class node to the root of the inheritance tree • What it measures: Since in OO design, the application domain is modelled as a hierarchy of classes represented as a tree, the DIT metric is a measure of how many ancestor classes can affect a particular class. The depth of inheritance tree metric is an indication of the potential for reuse. Should be between 0 and 4

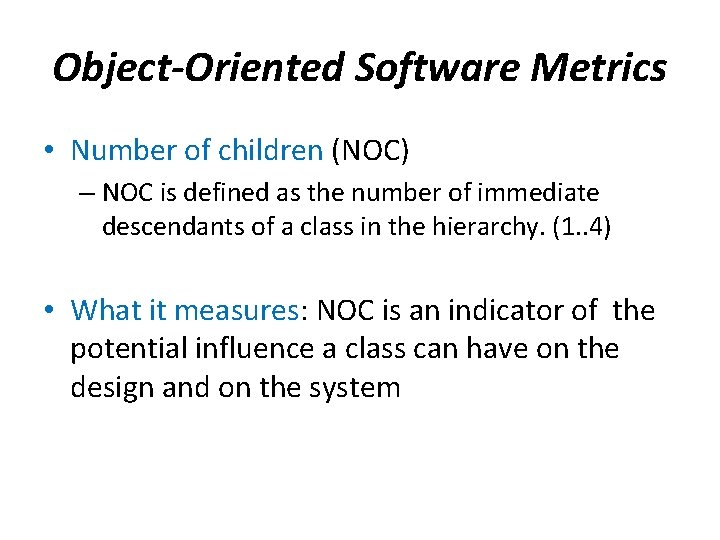

Object-Oriented Software Metrics • Number of children (NOC) – NOC is defined as the number of immediate descendants of a class in the hierarchy. (1. . 4) • What it measures: NOC is an indicator of the potential influence a class can have on the design and on the system

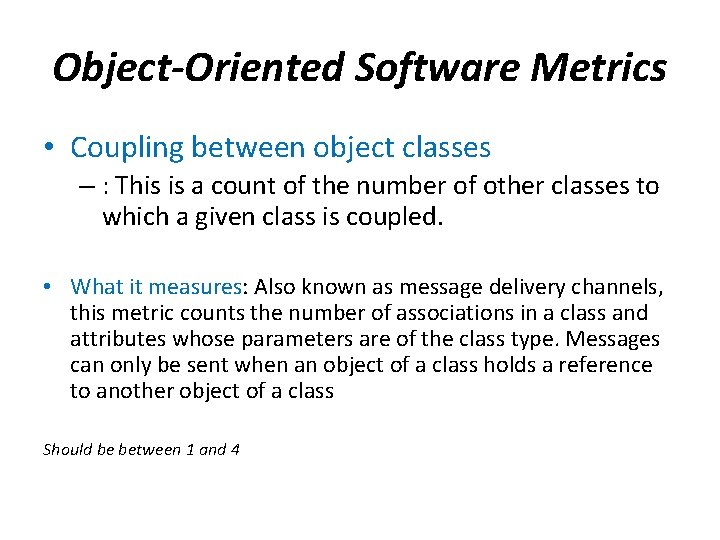

Object-Oriented Software Metrics • Coupling between object classes – : This is a count of the number of other classes to which a given class is coupled. • What it measures: Also known as message delivery channels, this metric counts the number of associations in a class and attributes whose parameters are of the class type. Messages can only be sent when an object of a class holds a reference to another object of a class Should be between 1 and 4

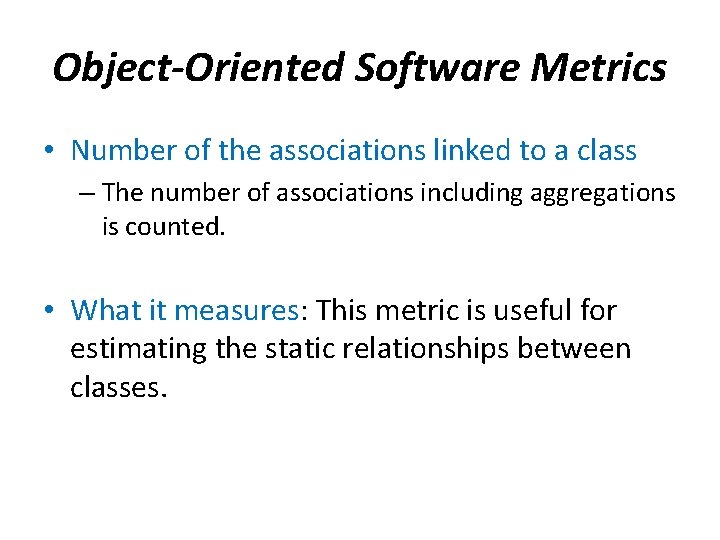

Object-Oriented Software Metrics • Number of the associations linked to a class – The number of associations including aggregations is counted. • What it measures: This metric is useful for estimating the static relationships between classes.

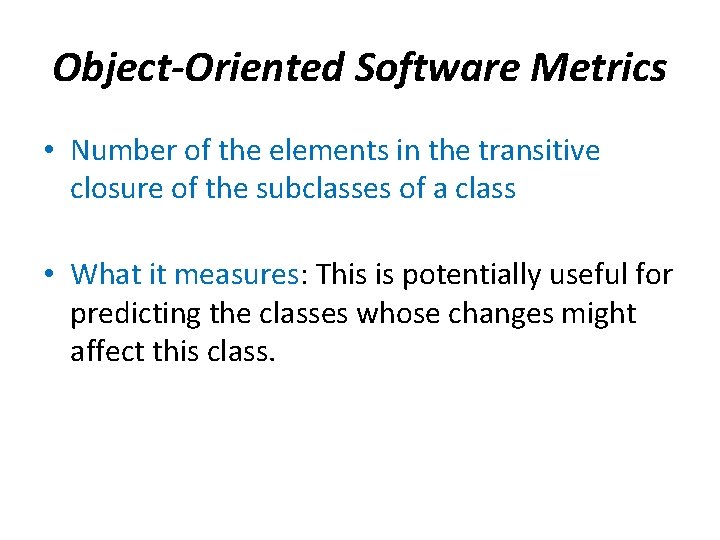

Object-Oriented Software Metrics • Number of the elements in the transitive closure of the subclasses of a class • What it measures: This is potentially useful for predicting the classes whose changes might affect this class.

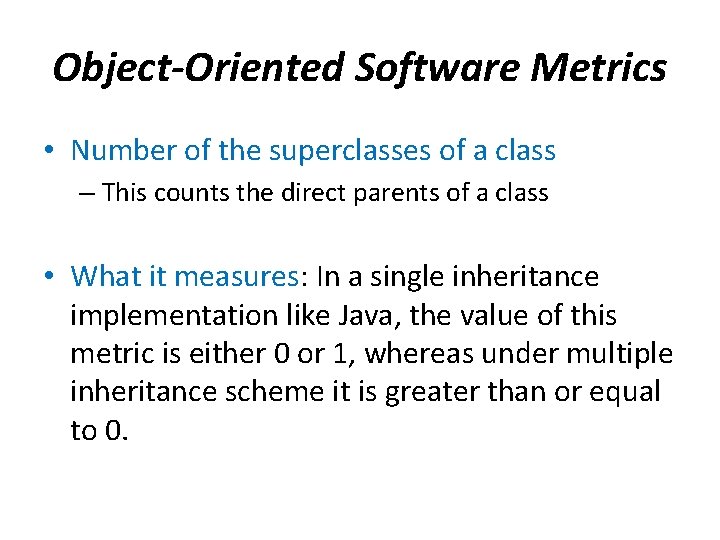

Object-Oriented Software Metrics • Number of the superclasses of a class – This counts the direct parents of a class • What it measures: In a single inheritance implementation like Java, the value of this metric is either 0 or 1, whereas under multiple inheritance scheme it is greater than or equal to 0.

Object-Oriented Software Metrics • Number of use cases in a model • What it measures: A use case represents a coherent unit of functionality provided by a system, a subsystem, or a class.

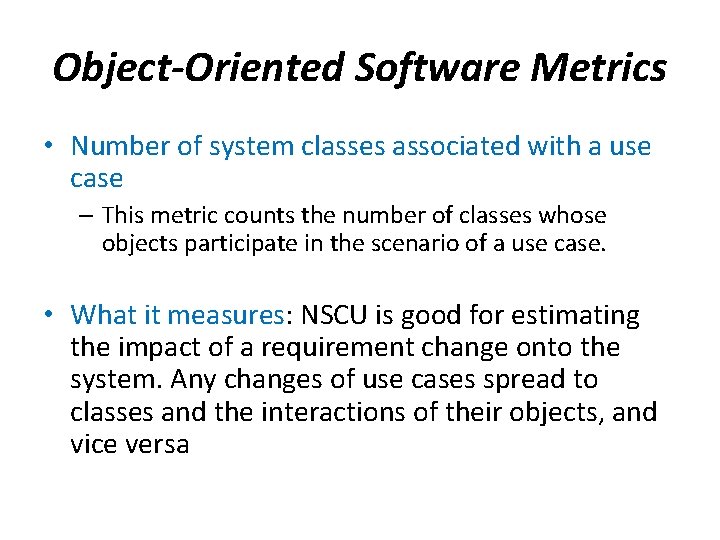

Object-Oriented Software Metrics • Number of system classes associated with a use case – This metric counts the number of classes whose objects participate in the scenario of a use case. • What it measures: NSCU is good for estimating the impact of a requirement change onto the system. Any changes of use cases spread to classes and the interactions of their objects, and vice versa

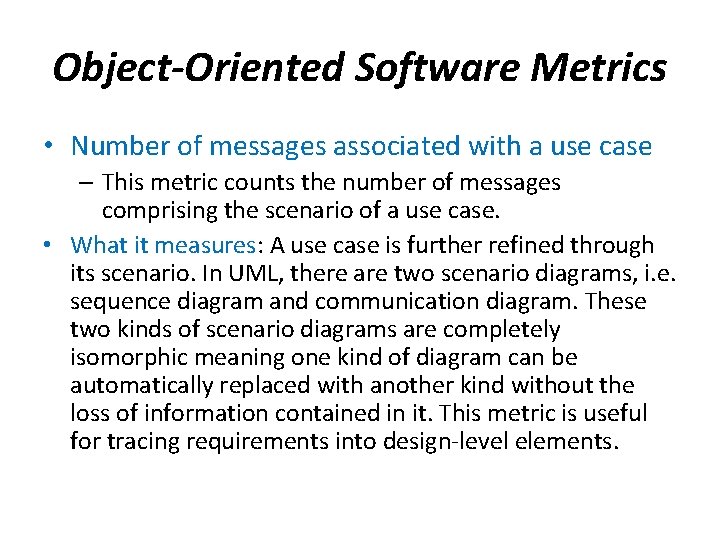

Object-Oriented Software Metrics • Number of messages associated with a use case – This metric counts the number of messages comprising the scenario of a use case. • What it measures: A use case is further refined through its scenario. In UML, there are two scenario diagrams, i. e. sequence diagram and communication diagram. These two kinds of scenario diagrams are completely isomorphic meaning one kind of diagram can be automatically replaced with another kind without the loss of information contained in it. This metric is useful for tracing requirements into design-level elements.

Object-Oriented Software Metrics • Number of actors in a model – This metric is the number of actors in a model, where an actor is a special class whose stereotype is “Actor”. • What it measures: This metric computes the number of actors in a model.

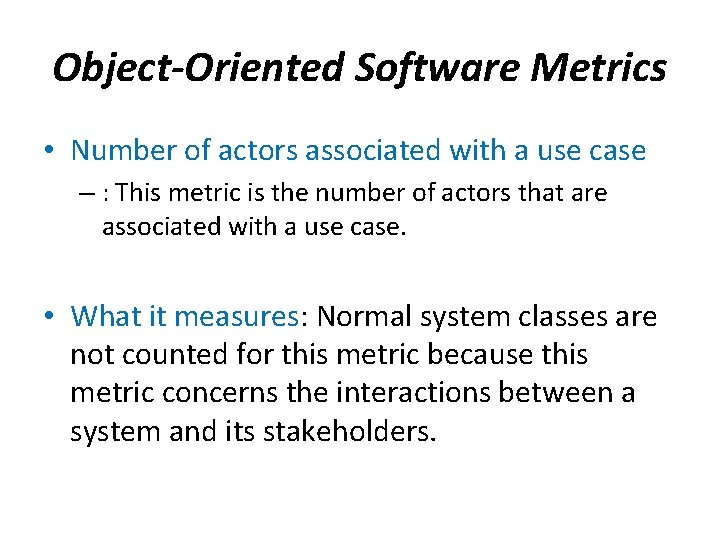

Object-Oriented Software Metrics • Number of actors associated with a use case – : This metric is the number of actors that are associated with a use case. • What it measures: Normal system classes are not counted for this metric because this metric concerns the interactions between a system and its stakeholders.

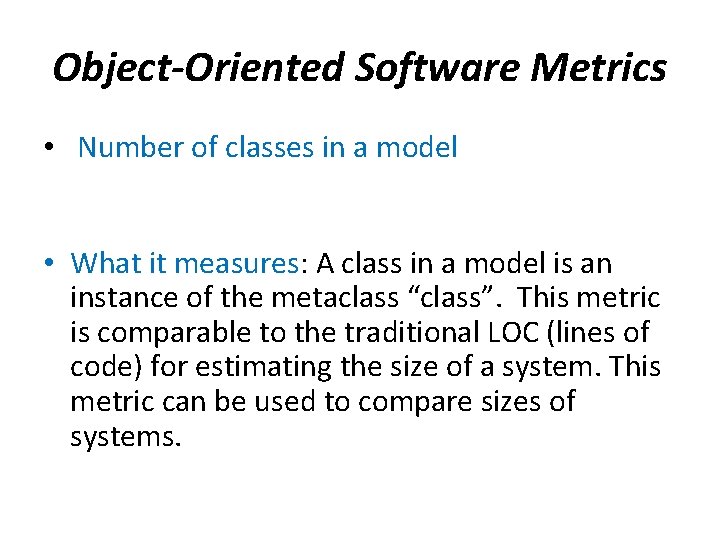

Object-Oriented Software Metrics • Number of classes in a model • What it measures: A class in a model is an instance of the metaclass “class”. This metric is comparable to the traditional LOC (lines of code) for estimating the size of a system. This metric can be used to compare sizes of systems.

Object-Oriented Software Metrics • Number of inheritance relations in a model • What it measures: This metric counts the number of generalisation relationships between classes existing in a model.

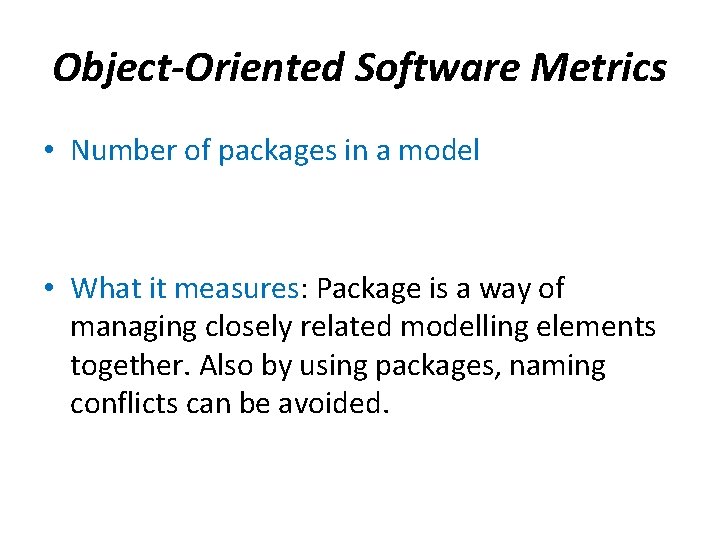

Object-Oriented Software Metrics • Number of packages in a model • What it measures: Package is a way of managing closely related modelling elements together. Also by using packages, naming conflicts can be avoided.

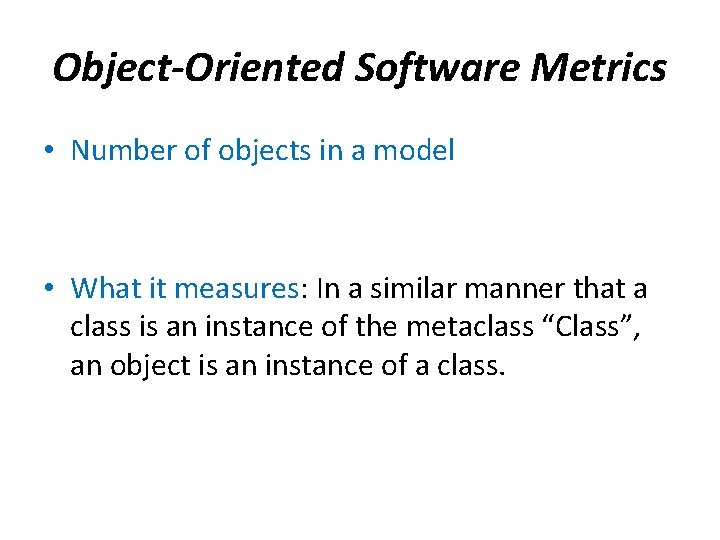

Object-Oriented Software Metrics • Number of objects in a model • What it measures: In a similar manner that a class is an instance of the metaclass “Class”, an object is an instance of a class.

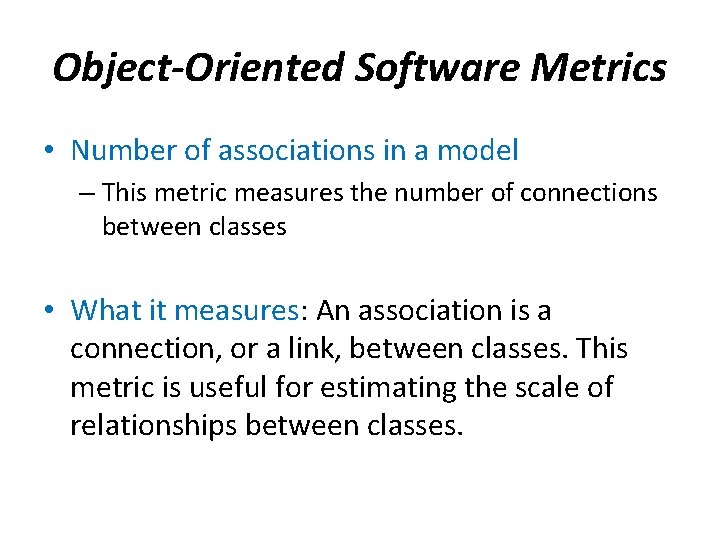

Object-Oriented Software Metrics • Number of associations in a model – This metric measures the number of connections between classes • What it measures: An association is a connection, or a link, between classes. This metric is useful for estimating the scale of relationships between classes.

Object-Oriented Software Metrics • Number of aggregations in a model • What it measures: An aggregation is a special form of association that specifies a whole-part relationship between the aggregate (whole) and a component part

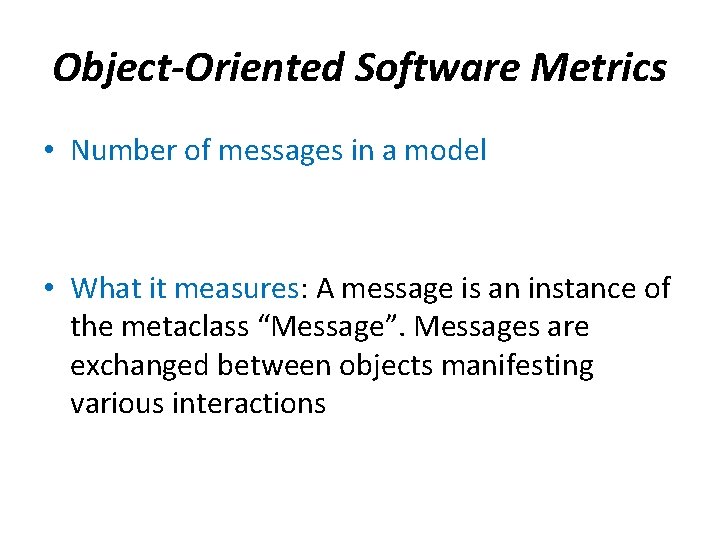

Object-Oriented Software Metrics • Number of messages in a model • What it measures: A message is an instance of the metaclass “Message”. Messages are exchanged between objects manifesting various interactions

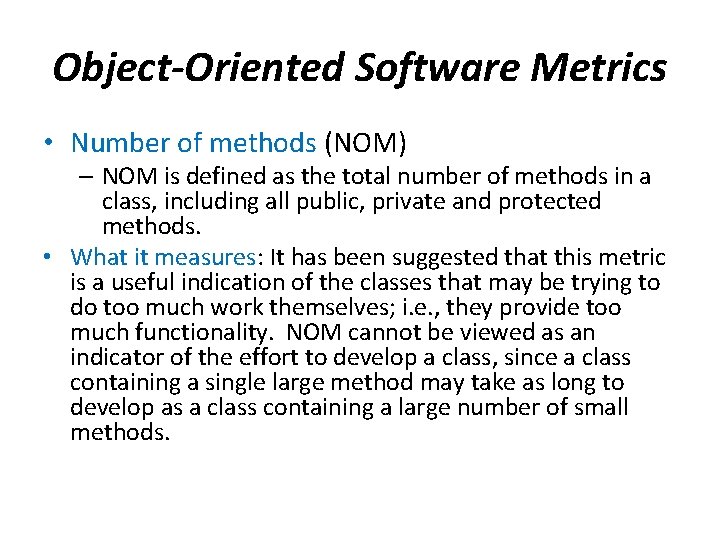

Object-Oriented Software Metrics • Number of methods (NOM) – NOM is defined as the total number of methods in a class, including all public, private and protected methods. • What it measures: It has been suggested that this metric is a useful indication of the classes that may be trying to do too much work themselves; i. e. , they provide too much functionality. NOM cannot be viewed as an indicator of the effort to develop a class, since a class containing a single large method may take as long to develop as a class containing a large number of small methods.

Object-Oriented Software Metrics • Number of methods added (NMA) • What it measures : The number of operations added plays a role in the specialization of the class and must be maintained in a proportion which continues to justify inheritance, otherwise known as generalization. Too many added operations signify too big a difference with the parent class. The inheritance would then make less sense. The more added operations there are, the more the class must be redeveloped, and the less the inheritance is justified.

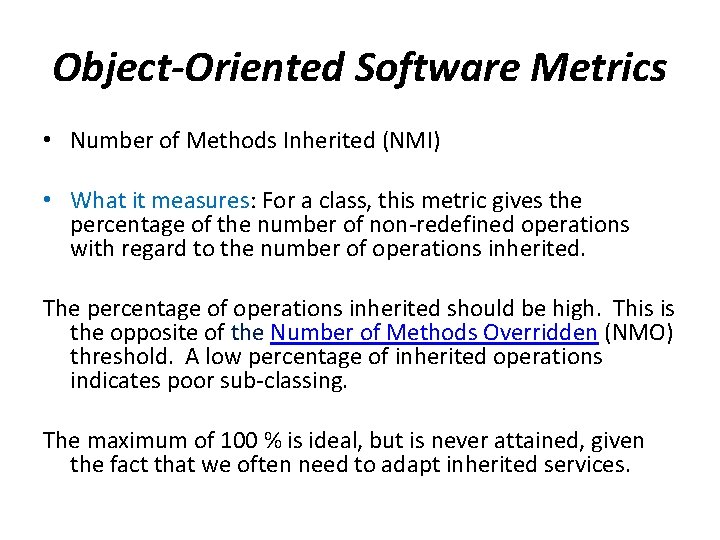

Object-Oriented Software Metrics • Number of Methods Inherited (NMI) • What it measures: For a class, this metric gives the percentage of the number of non-redefined operations with regard to the number of operations inherited. The percentage of operations inherited should be high. This is the opposite of the Number of Methods Overridden (NMO) threshold. A low percentage of inherited operations indicates poor sub-classing. The maximum of 100 % is ideal, but is never attained, given the fact that we often need to adapt inherited services.

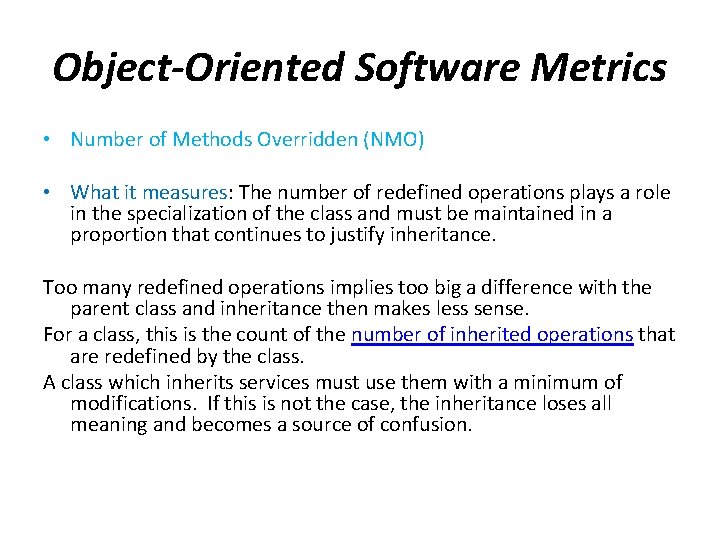

Object-Oriented Software Metrics • Number of Methods Overridden (NMO) • What it measures: The number of redefined operations plays a role in the specialization of the class and must be maintained in a proportion that continues to justify inheritance. Too many redefined operations implies too big a difference with the parent class and inheritance then makes less sense. For a class, this is the count of the number of inherited operations that are redefined by the class. A class which inherits services must use them with a minimum of modifications. If this is not the case, the inheritance loses all meaning and becomes a source of confusion.

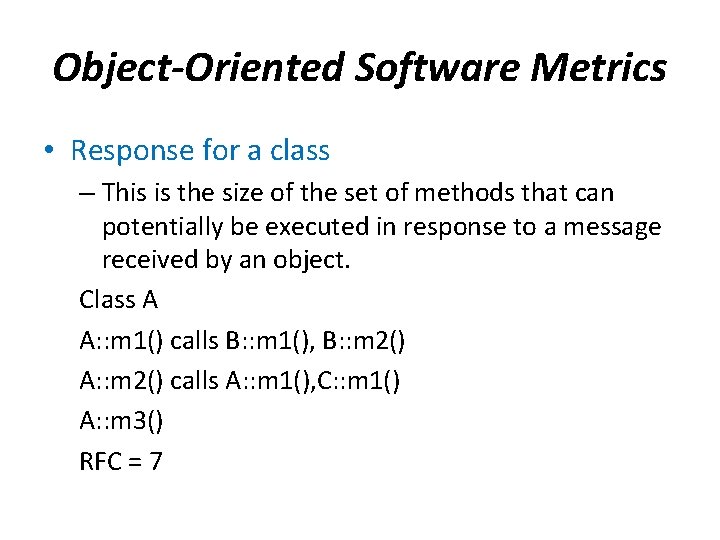

Object-Oriented Software Metrics • Response for a class – This is the size of the set of methods that can potentially be executed in response to a message received by an object. Class A A: : m 1() calls B: : m 1(), B: : m 2() A: : m 2() calls A: : m 1(), C: : m 1() A: : m 3() RFC = 7

Object-Oriented Software Metrics • Lack of cohesion in methods – This is a measure of the number of disjoint sets formed by the intersection of the sets of instances variables used by methods.

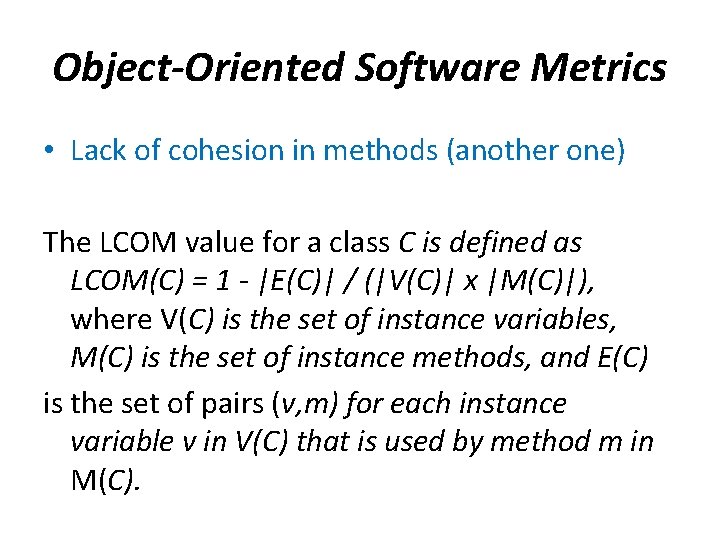

Object-Oriented Software Metrics • Lack of cohesion in methods (another one) The LCOM value for a class C is defined as LCOM(C) = 1 - |E(C)| / (|V(C)| x |M(C)|), where V(C) is the set of instance variables, M(C) is the set of instance methods, and E(C) is the set of pairs (v, m) for each instance variable v in V(C) that is used by method m in M(C).

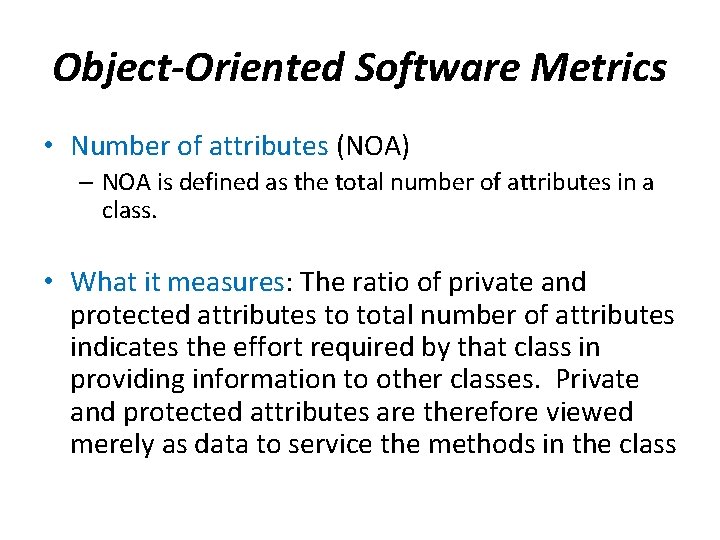

Object-Oriented Software Metrics • Number of attributes (NOA) – NOA is defined as the total number of attributes in a class. • What it measures: The ratio of private and protected attributes to total number of attributes indicates the effort required by that class in providing information to other classes. Private and protected attributes are therefore viewed merely as data to service the methods in the class

Object-Oriented Software Metrics • • Number of public attributes Number of protected attributes Number of private attributes Number of class attributes Number of public methods Number of protected methods Number of private methods Number of class methods

Software Analysis Process and Report • Architectural Level • Structural Level • Report

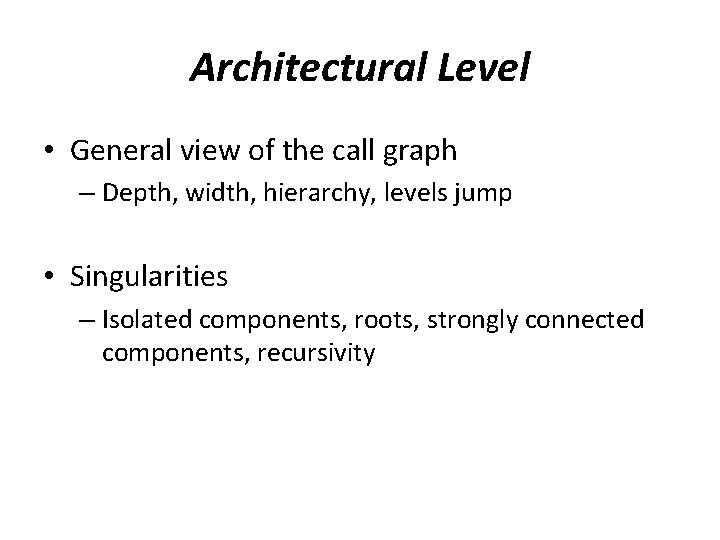

Architectural Level • General view of the call graph – Depth, width, hierarchy, levels jump • Singularities – Isolated components, roots, strongly connected components, recursivity

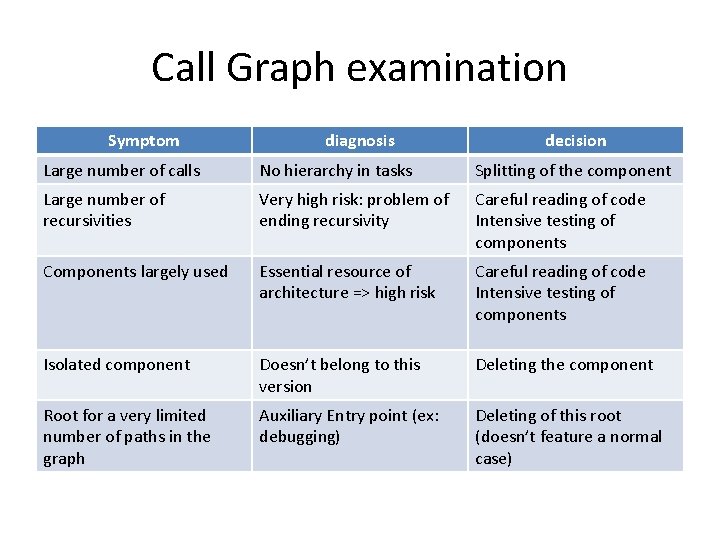

Call Graph examination Symptom diagnosis decision Large number of calls No hierarchy in tasks Splitting of the component Large number of recursivities Very high risk: problem of ending recursivity Careful reading of code Intensive testing of components Components largely used Essential resource of architecture => high risk Careful reading of code Intensive testing of components Isolated component Doesn’t belong to this version Deleting the component Root for a very limited number of paths in the graph Auxiliary Entry point (ex: debugging) Deleting of this root (doesn’t feature a normal case)

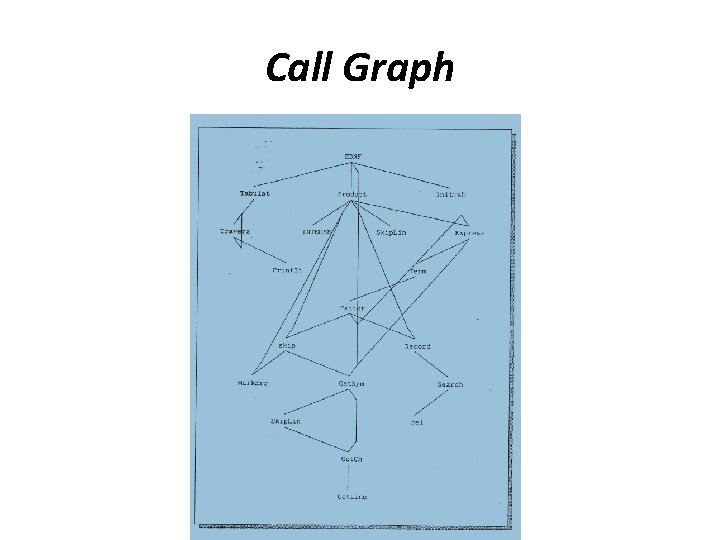

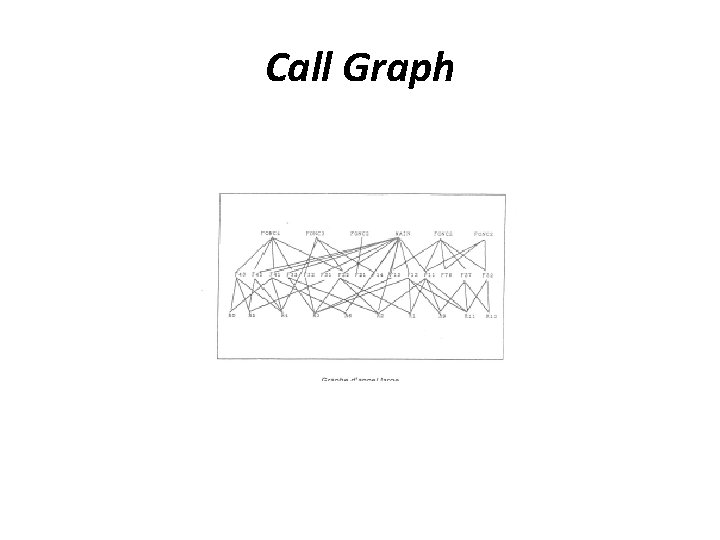

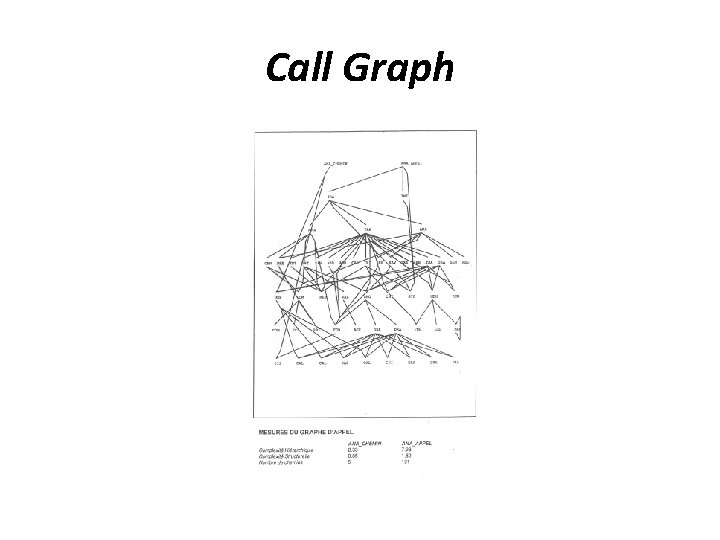

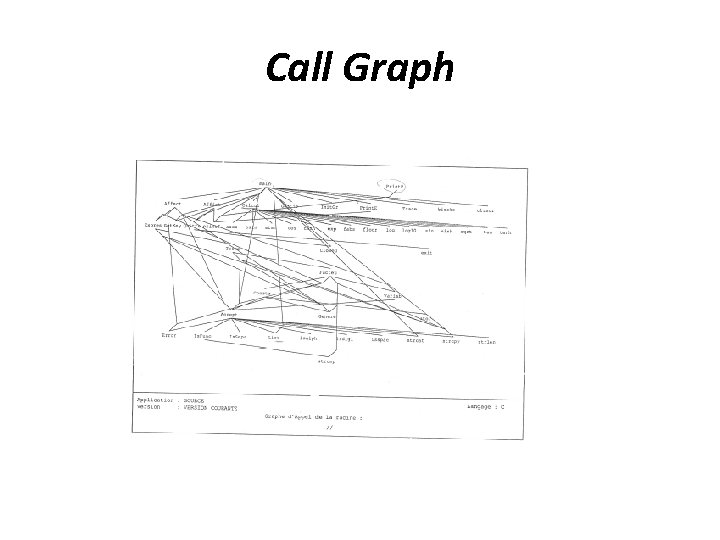

Call Graph

Call Graph

Call Graph

Call Graph

Call Graph

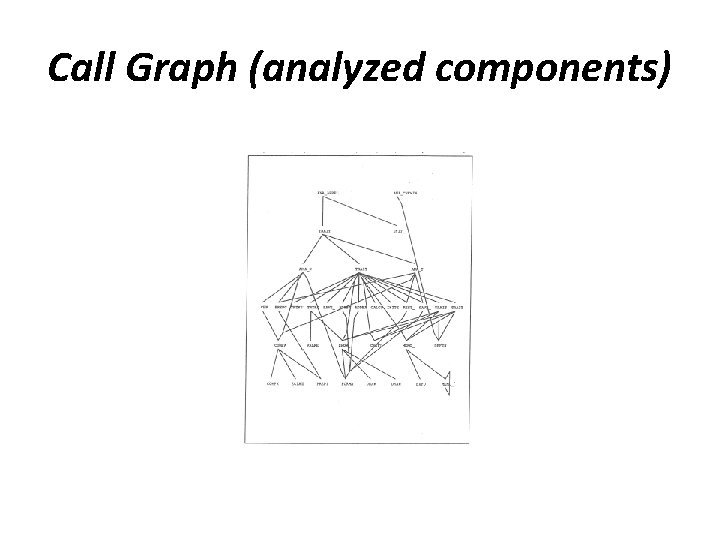

Call Graph (analyzed components)

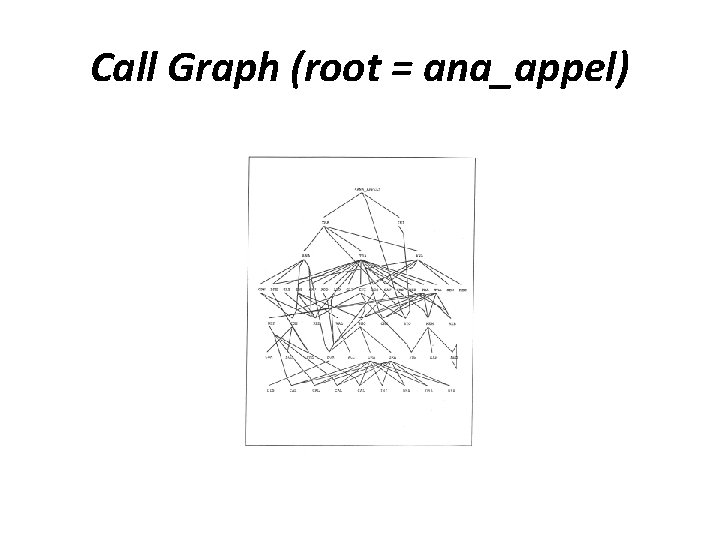

Call Graph (root = ana_appel)

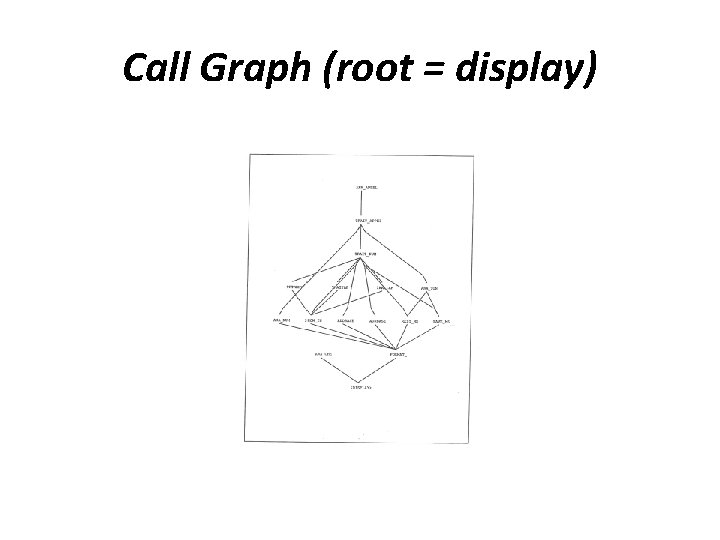

Call Graph (root = display)

Control Graph examination • General view of the control graph – Sequences, nesting, pending nodes • Singularities – Isolated code, graphical similarities, intern calls

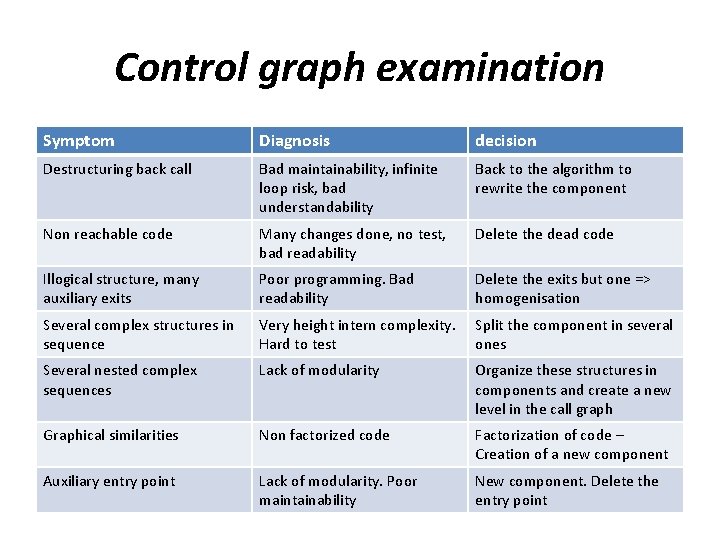

Control graph examination Symptom Diagnosis decision Destructuring back call Bad maintainability, infinite loop risk, bad understandability Back to the algorithm to rewrite the component Non reachable code Many changes done, no test, bad readability Delete the dead code Illogical structure, many auxiliary exits Poor programming. Bad readability Delete the exits but one => homogenisation Several complex structures in sequence Very height intern complexity. Split the component in several Hard to test ones Several nested complex sequences Lack of modularity Organize these structures in components and create a new level in the call graph Graphical similarities Non factorized code Factorization of code – Creation of a new component Auxiliary entry point Lack of modularity. Poor maintainability New component. Delete the entry point

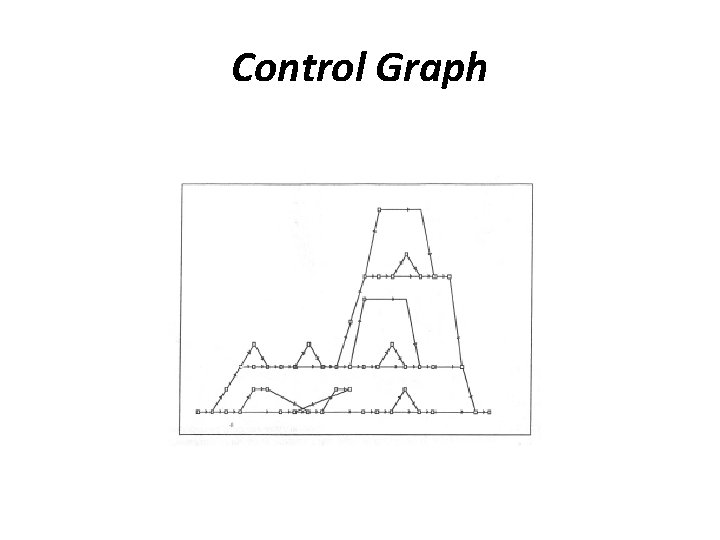

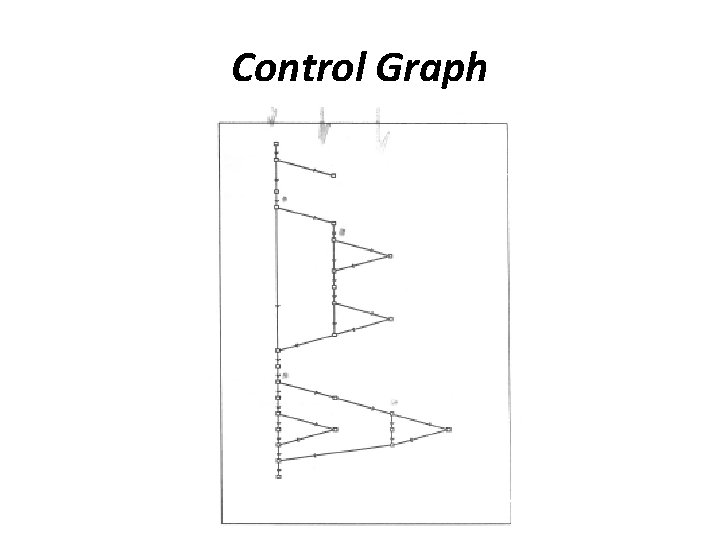

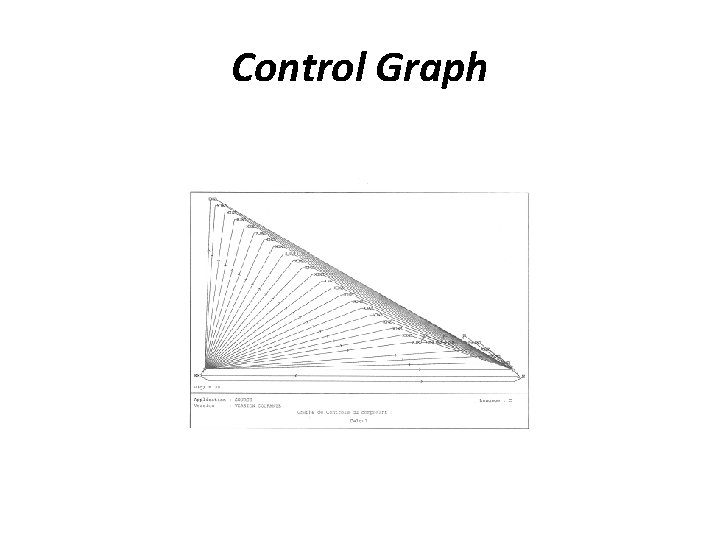

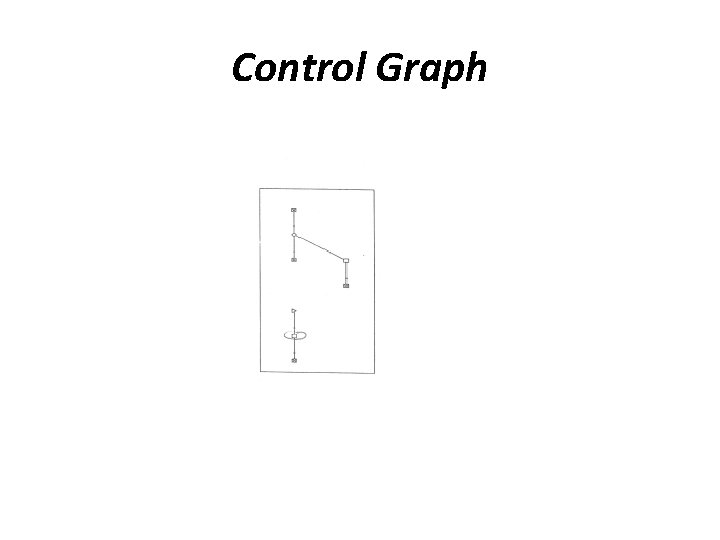

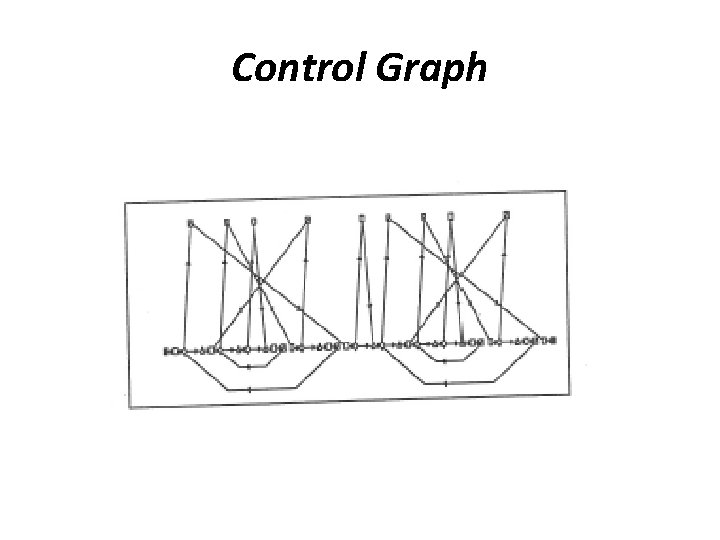

Control Graph

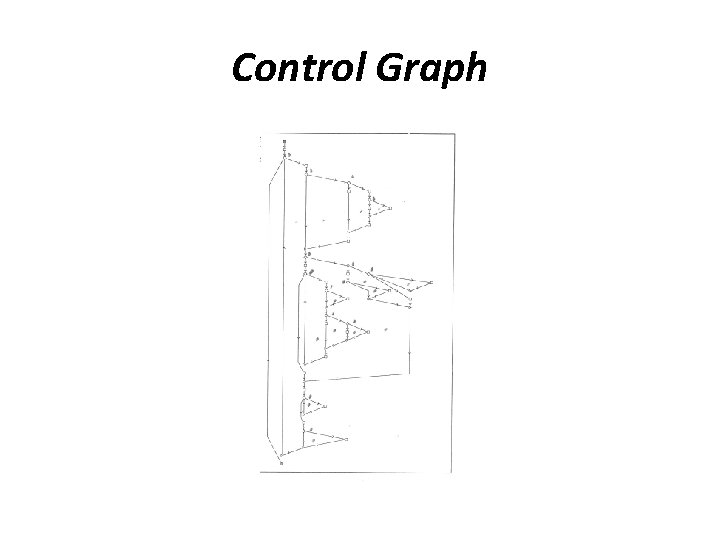

Control Graph

Control Graph

Control Graph

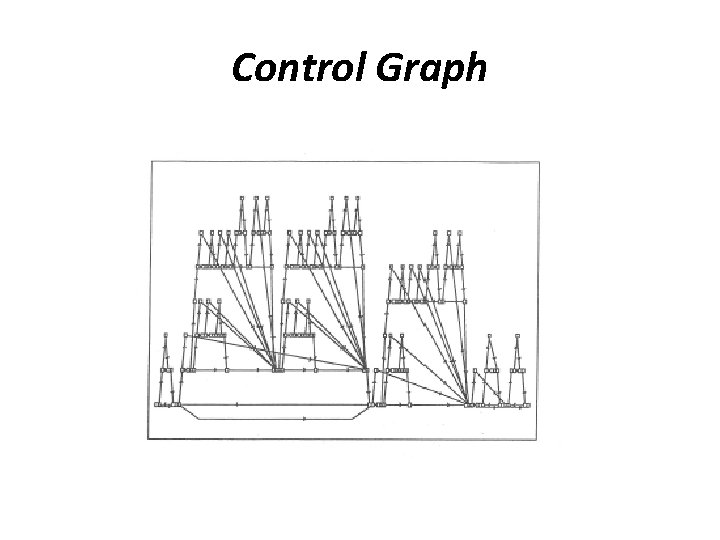

Control Graph

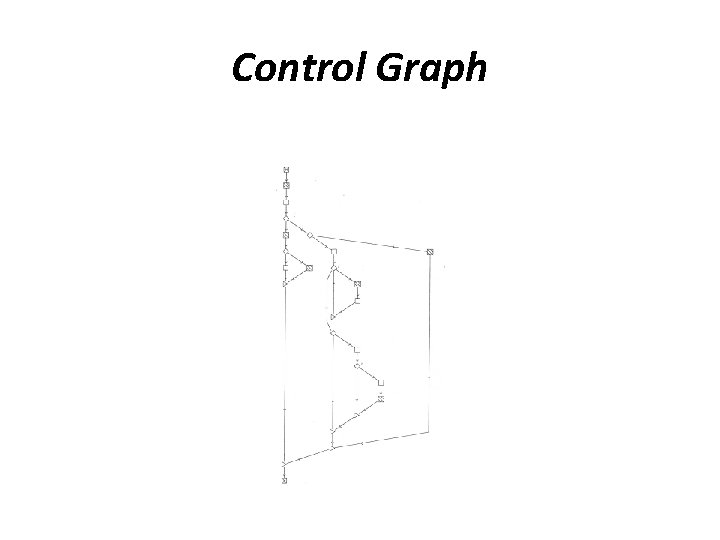

Control Graph

Control Graph

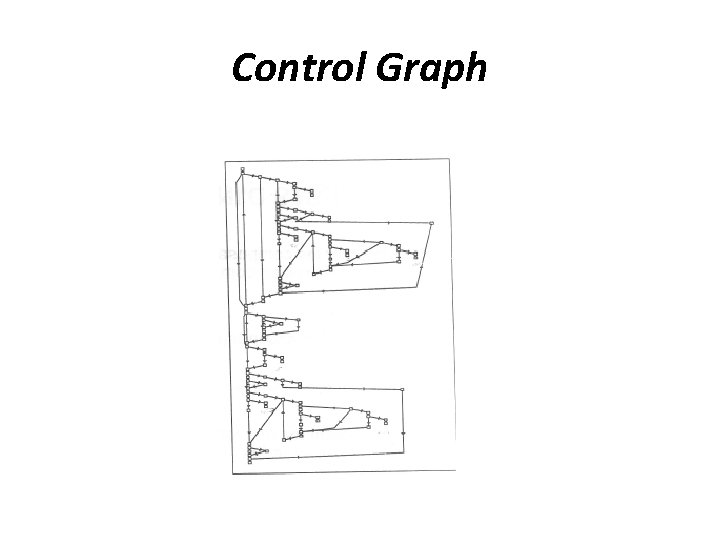

Control Graph

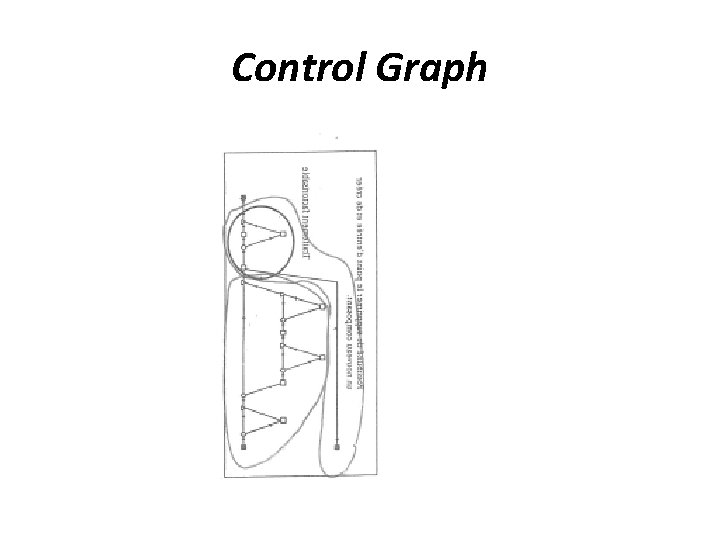

Control Graph

Control Graph

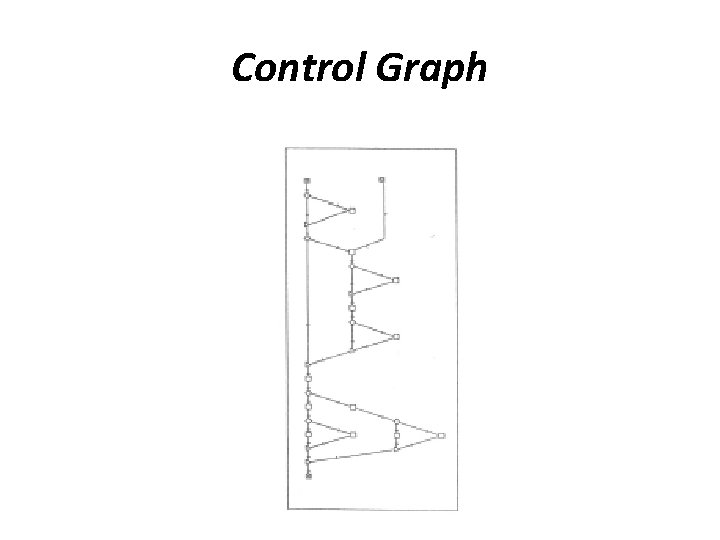

Control Graph

Control Graph

Control Graph

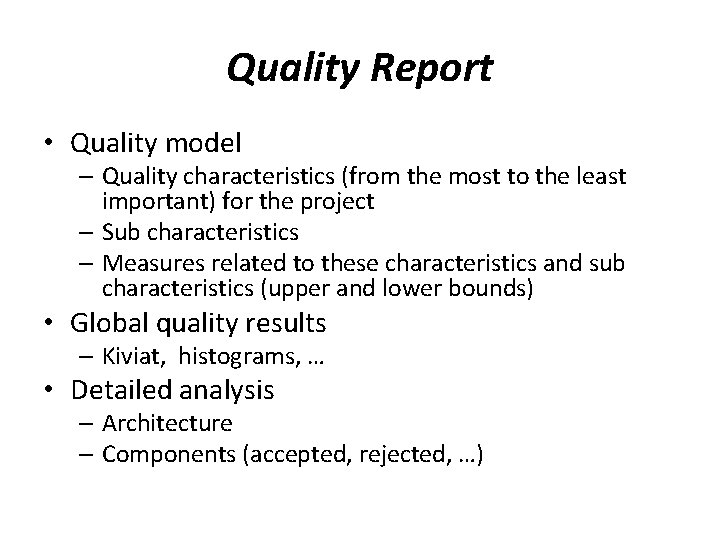

Quality Report • Quality model – Quality characteristics (from the most to the least important) for the project – Sub characteristics – Measures related to these characteristics and sub characteristics (upper and lower bounds) • Global quality results – Kiviat, histograms, … • Detailed analysis – Architecture – Components (accepted, rejected, …)

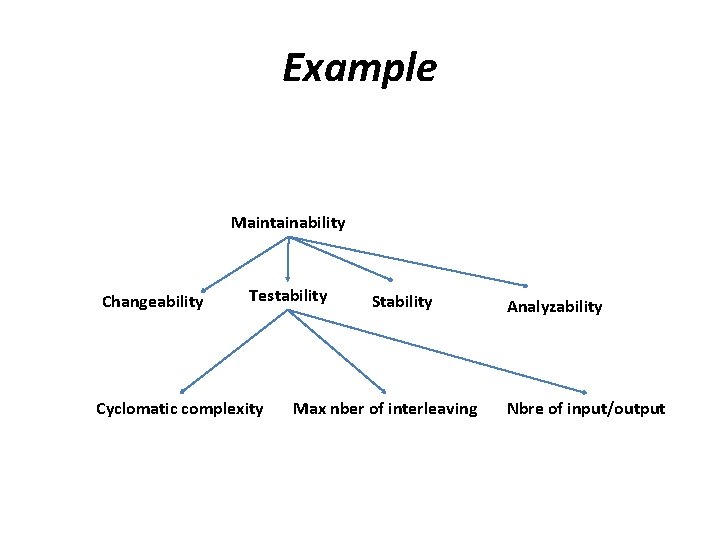

Example Maintainability Changeability Testability Cyclomatic complexity Stability Max nber of interleaving Analyzability Nbre of input/output

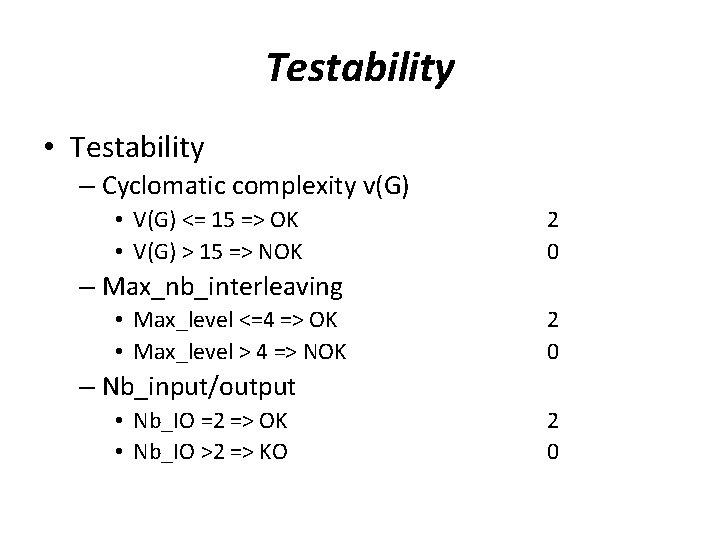

Testability • Testability – Cyclomatic complexity v(G) • V(G) <= 15 => OK • V(G) > 15 => NOK 2 0 – Max_nb_interleaving • Max_level <=4 => OK • Max_level > 4 => NOK 2 0 – Nb_input/output • Nb_IO =2 => OK • Nb_IO >2 => KO 2 0

Testability=(4*V(G)+4*Max_level+2*Max_IO)/10 V(G) Max_Level Max_IO OK OK OK Diagnosis 2 = Accepted 1. 6 = restructure OK OK 1. 2 = to split 0. 8 = to split OK 0. 4 = to rewrite 0 = to rewrite

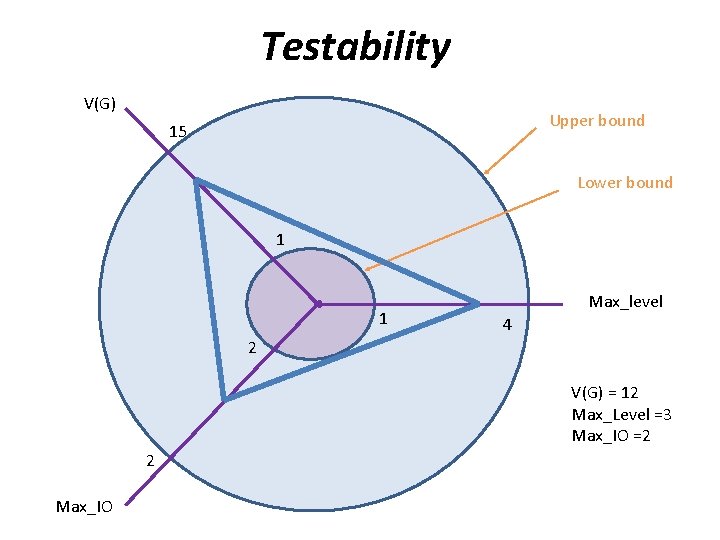

Testability V(G) Upper bound 15 Lower bound 1 1 Max_level 4 2 V(G) = 12 Max_Level =3 Max_IO =2 2 Max_IO

Testability V(G) 15 1 1 Max_level 4 2 V(G) = 17 Max_Level =5 Max_IO =2 2 Max_IO

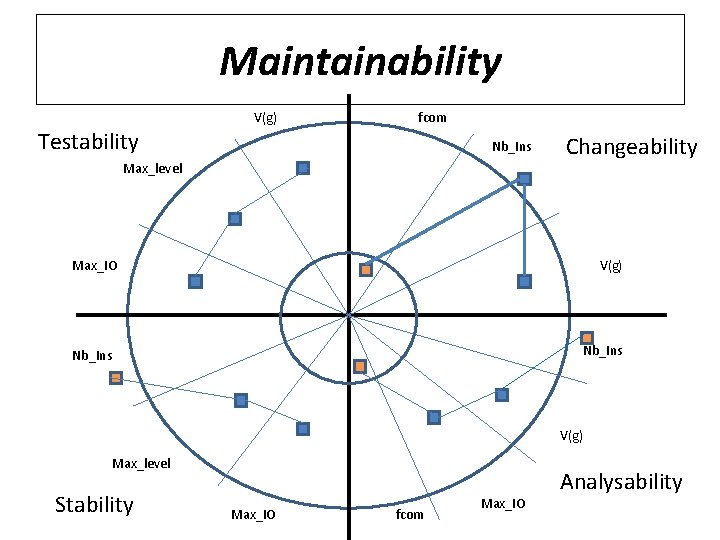

Maintainability Testability V(g) fcom Nb_Ins Max_level Changeability Max_IO V(g) Nb_Ins V(g) Max_level Stability Max_IO fcom Max_IO Analysability

Example in OO Programming • Quality Model • Measures and bounds

Quality Model • Reliability – WMPC – CBO – FD – RFC • Efficiency – CBO – AC – LCOM • Maintainability – ASC – DIT – AC – RFC - AR - Com. R • Portability – NMCI - DIT – AR - EH – ER - PR

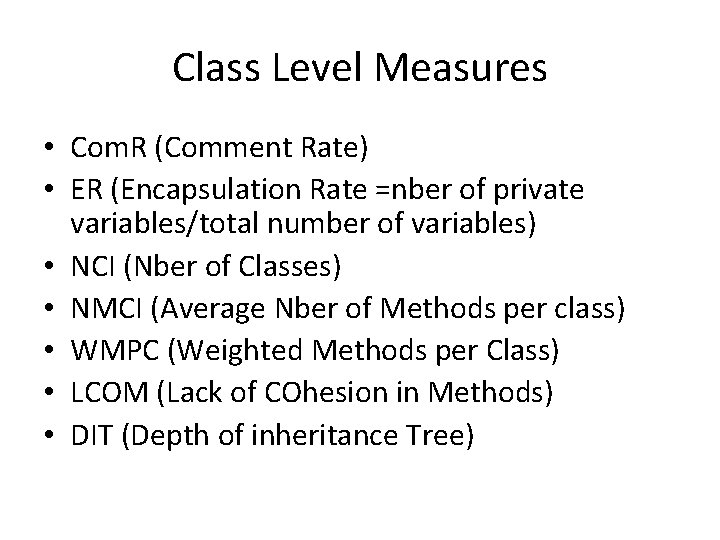

Class Level Measures • Com. R (Comment Rate) • ER (Encapsulation Rate =nber of private variables/total number of variables) • NCI (Nber of Classes) • NMCI (Average Nber of Methods per class) • WMPC (Weighted Methods per Class) • LCOM (Lack of COhesion in Methods) • DIT (Depth of inheritance Tree)

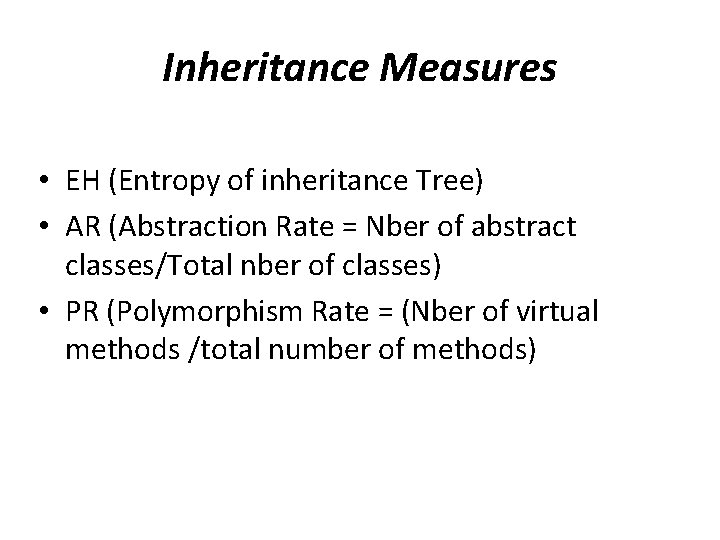

Inheritance Measures • EH (Entropy of inheritance Tree) • AR (Abstraction Rate = Nber of abstract classes/Total nber of classes) • PR (Polymorphism Rate = (Nber of virtual methods /total number of methods)

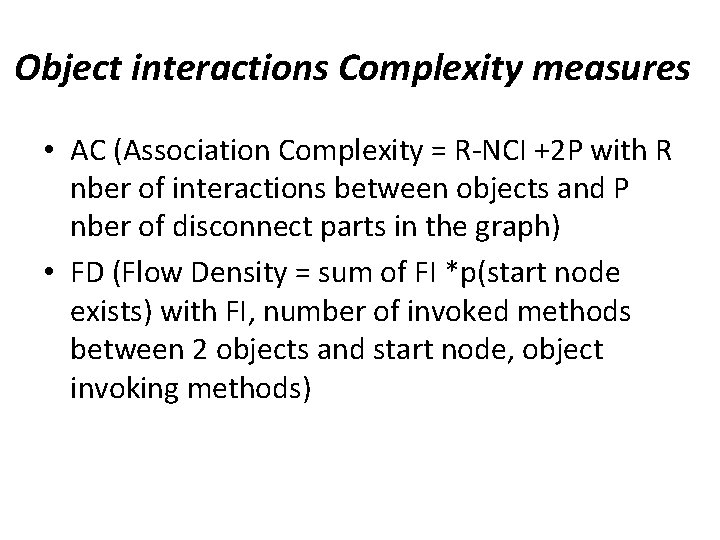

Object interactions Complexity measures • AC (Association Complexity = R-NCI +2 P with R nber of interactions between objects and P nber of disconnect parts in the graph) • FD (Flow Density = sum of FI *p(start node exists) with FI, number of invoked methods between 2 objects and start node, object invoking methods)

Object interactions Complexity measures • CBO (Coupling between Objects) • RFC (Response for a class)

Measures LCOM Lack of COhesion in Methods <3 CBO Coupling between objects <10 EH Entropy of inheritance tree <2 AR Abstraction Rate >0. 2 PR Polymorphism Rate >0. 2 AC Association Complexity <15 WMPC Weighted Methods Per Class <15 RFC Response for a Class <10 FD Flow Density <100 ASC Average Size per Class <24 DIT Depth of inheritance tree <5 Com. R Comment Rate >0. 2 NCI ER Number of classes Encapsulation Rate <20 >0. 9
