Software Narrative (Left to Right) Matt Finn Brian Crone Samuel Oshin Yonatan Feleke

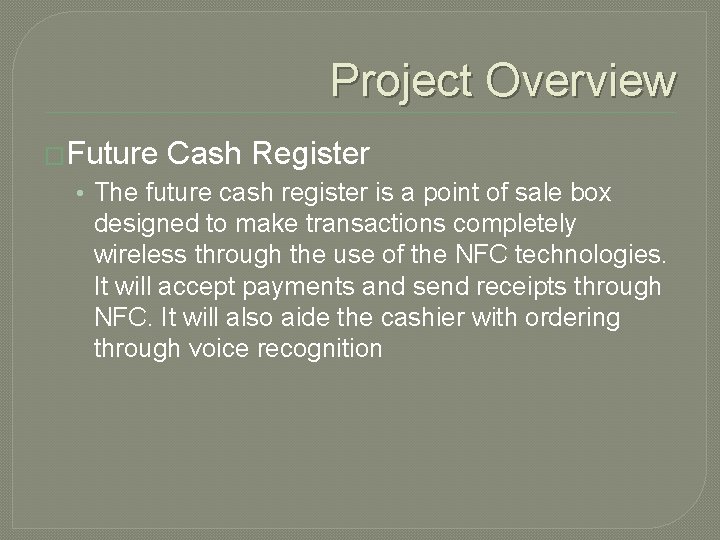

Project Overview �Future Cash Register • The future cash register is a point of sale box designed to make transactions completely wireless through the use of the NFC technologies. It will accept payments and send receipts through NFC. It will also aide the cashier with ordering through voice recognition

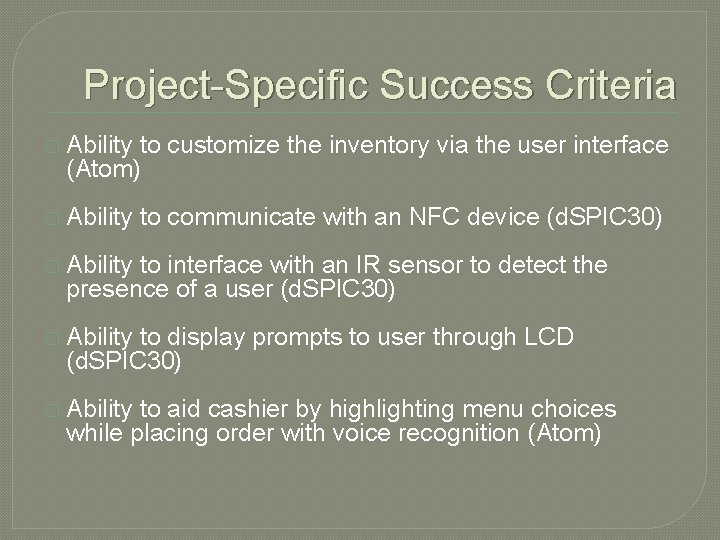

Project-Specific Success Criteria � Ability to customize the inventory via the user interface (Atom) � Ability to communicate with an NFC device (d. SPIC 30) � Ability to interface with an IR sensor to detect the presence of a user (d. SPIC 30) � Ability to display prompts to user through LCD (d. SPIC 30) � Ability to aid cashier by highlighting menu choices while placing order with voice recognition (Atom)

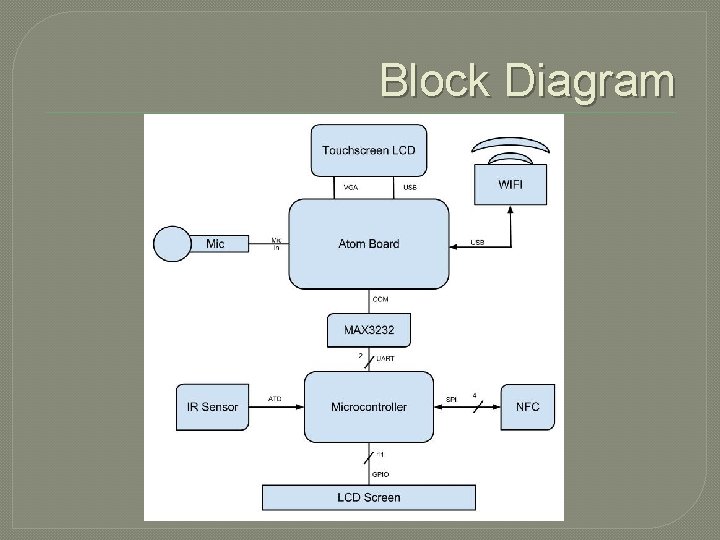

Block Diagram

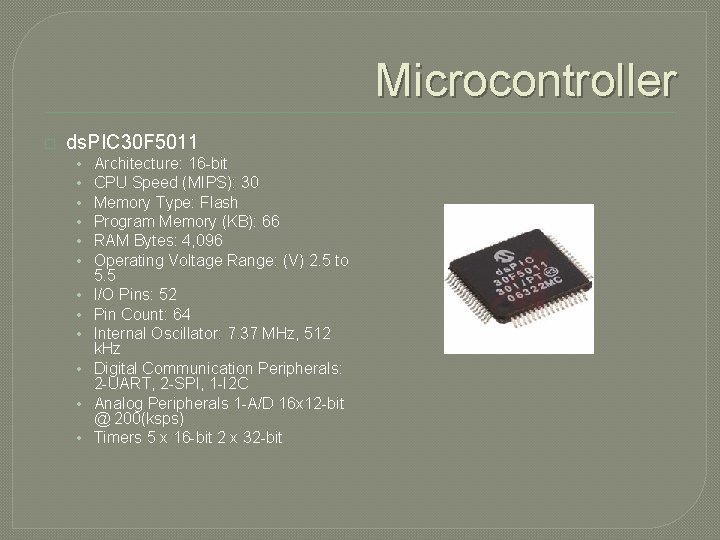

Microcontroller � ds. PIC 30 F 5011 • • • Architecture: 16 -bit CPU Speed (MIPS): 30 Memory Type: Flash Program Memory (KB): 66 RAM Bytes: 4, 096 Operating Voltage Range: (V) 2. 5 to 5. 5 I/O Pins: 52 Pin Count: 64 Internal Oscillator: 7. 37 MHz, 512 k. Hz Digital Communication Peripherals: 2 -UART, 2 -SPI, 1 -I 2 C Analog Peripherals 1 -A/D 16 x 12 -bit @ 200(ksps) Timers 5 x 16 -bit 2 x 32 -bit

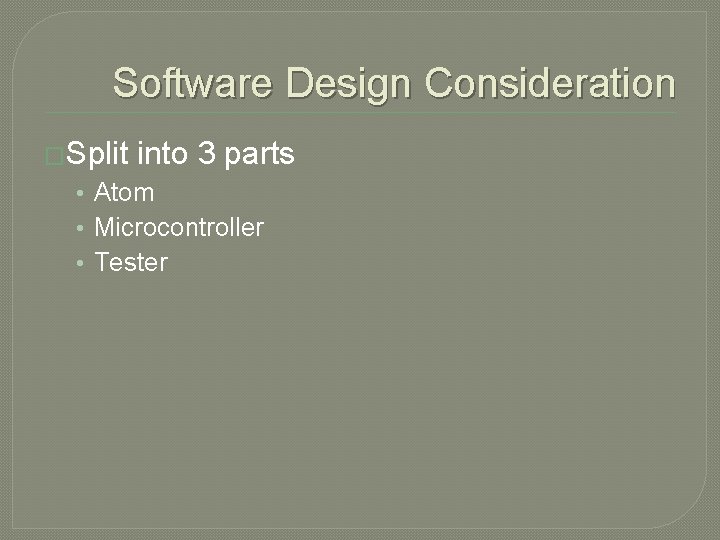

Software Design Consideration �Split into 3 parts • Atom • Microcontroller • Tester

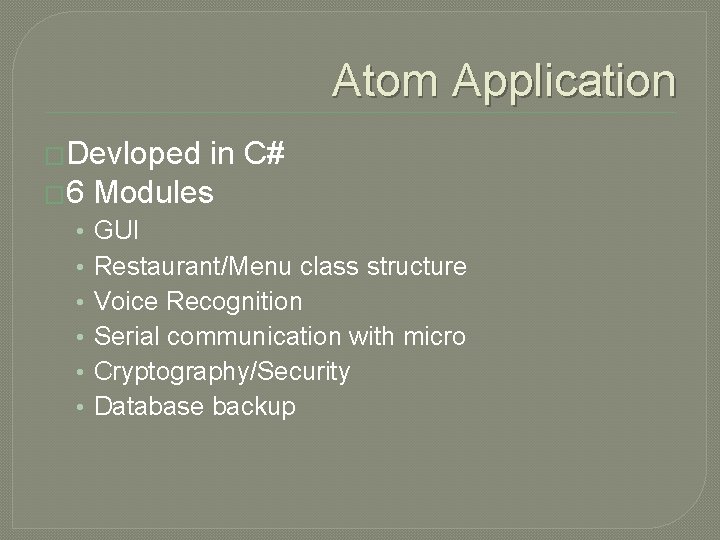

Atom Application �Devloped in C# � 6 Modules • • • GUI Restaurant/Menu class structure Voice Recognition Serial communication with micro Cryptography/Security Database backup

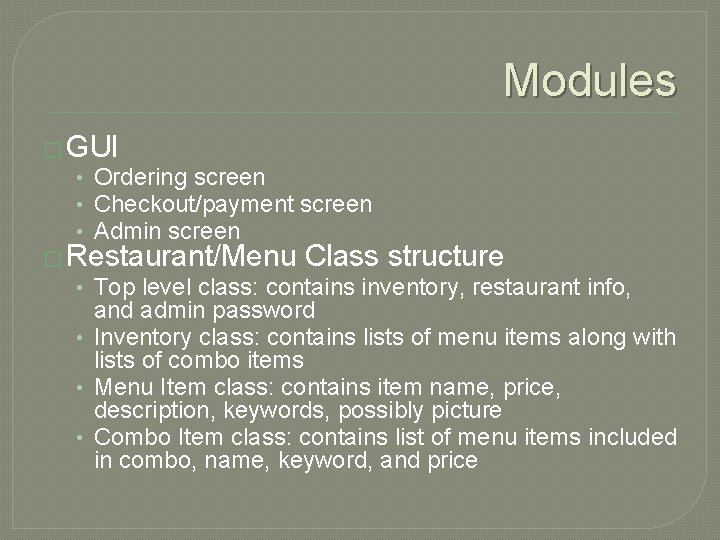

Modules � GUI • Ordering screen • Checkout/payment screen • Admin screen � Restaurant/Menu Class structure • Top level class: contains inventory, restaurant info, and admin password • Inventory class: contains lists of menu items along with lists of combo items • Menu Item class: contains item name, price, description, keywords, possibly picture • Combo Item class: contains list of menu items included in combo, name, keyword, and price

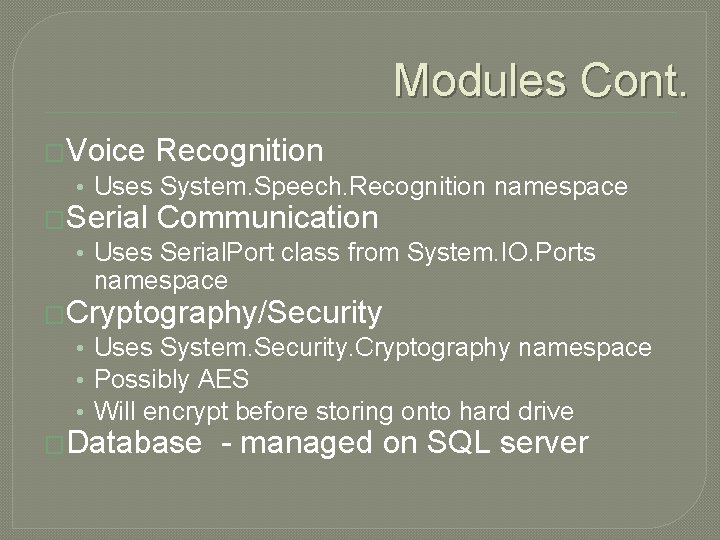

Modules Cont. �Voice Recognition • Uses System. Speech. Recognition namespace �Serial Communication • Uses Serial. Port class from System. IO. Ports namespace �Cryptography/Security • Uses System. Security. Cryptography namespace • Possibly AES • Will encrypt before storing onto hard drive �Database - managed on SQL server

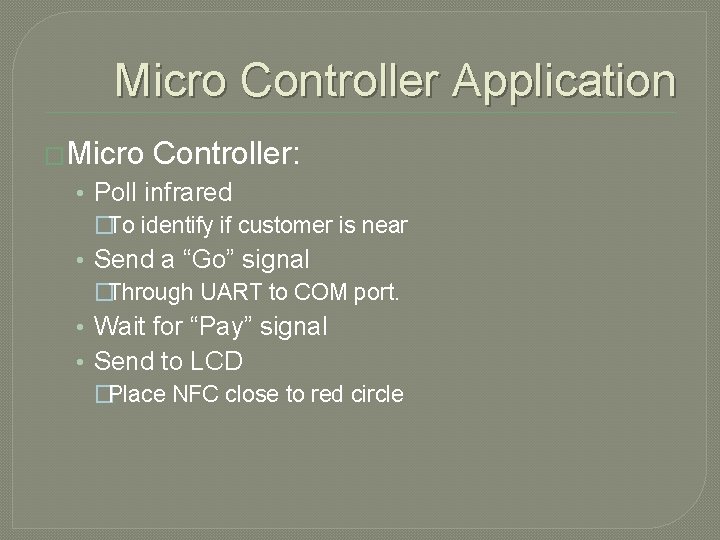

Micro Controller Application �Micro Controller: • Poll infrared �To identify if customer is near • Send a “Go” signal �Through UART to COM port. • Wait for “Pay” signal • Send to LCD �Place NFC close to red circle

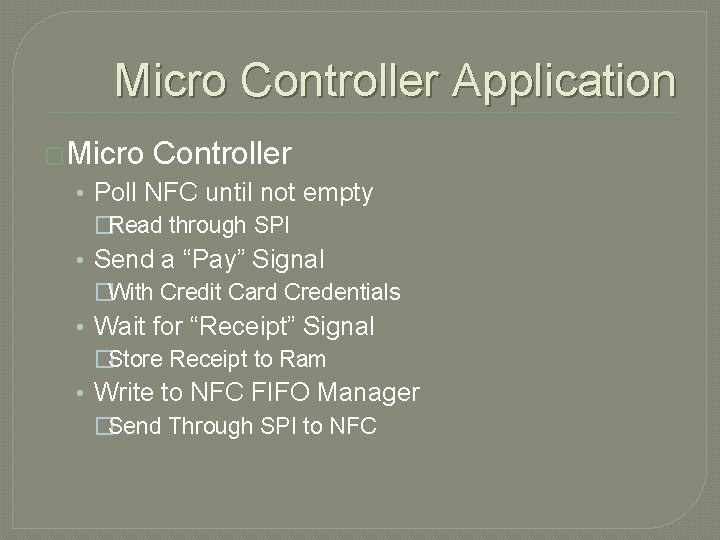

Micro Controller Application �Micro Controller • Poll NFC until not empty �Read through SPI • Send a “Pay” Signal �With Credit Card Credentials • Wait for “Receipt” Signal �Store Receipt to Ram • Write to NFC FIFO Manager �Send Through SPI to NFC

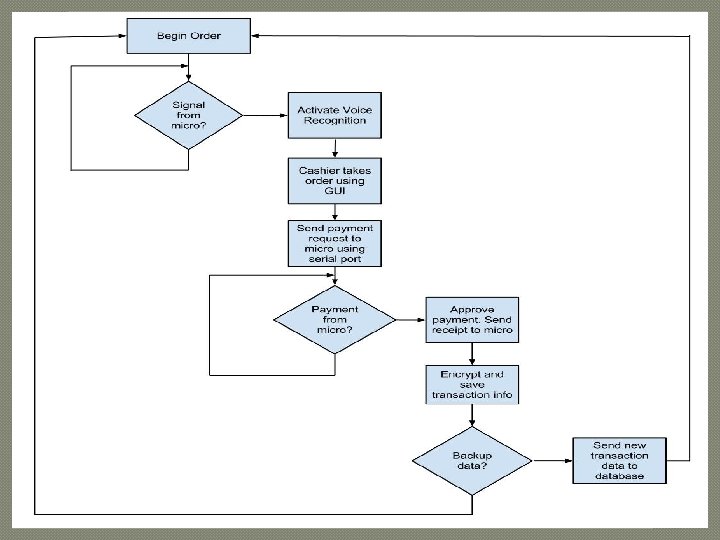

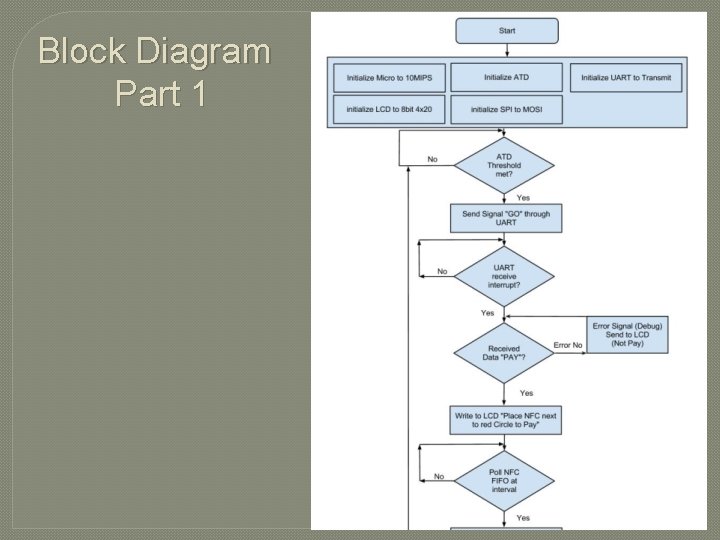

Block Diagram Part 1

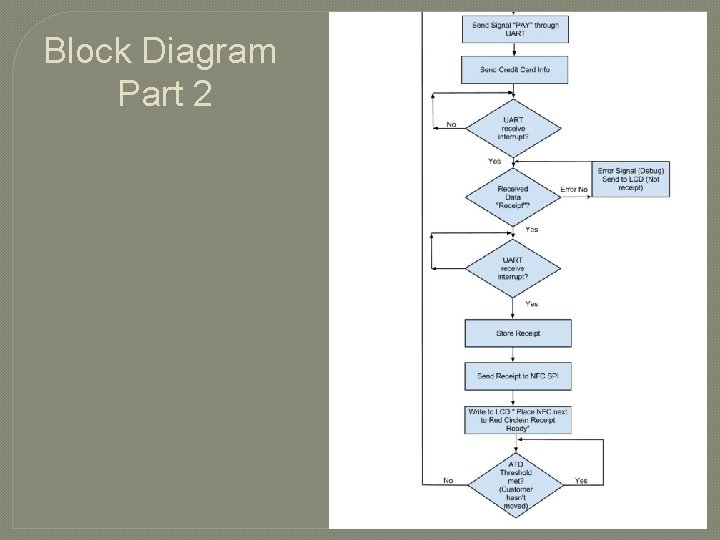

Block Diagram Part 2

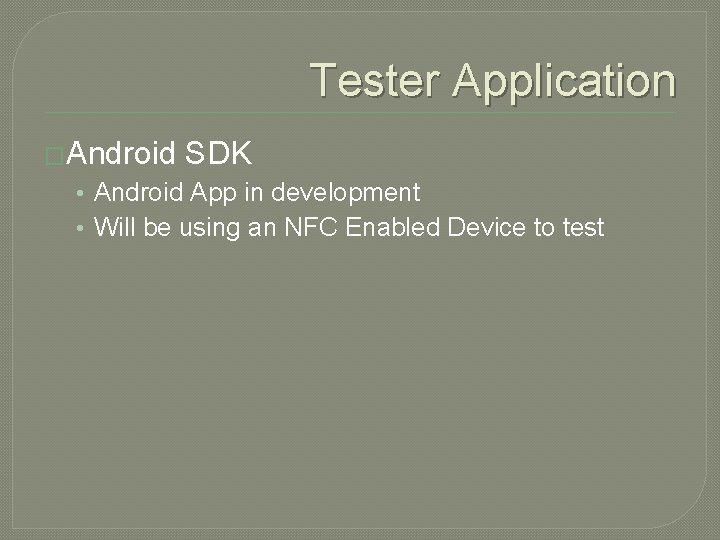

Tester Application �Android SDK • Android App in development • Will be using an NFC Enabled Device to test

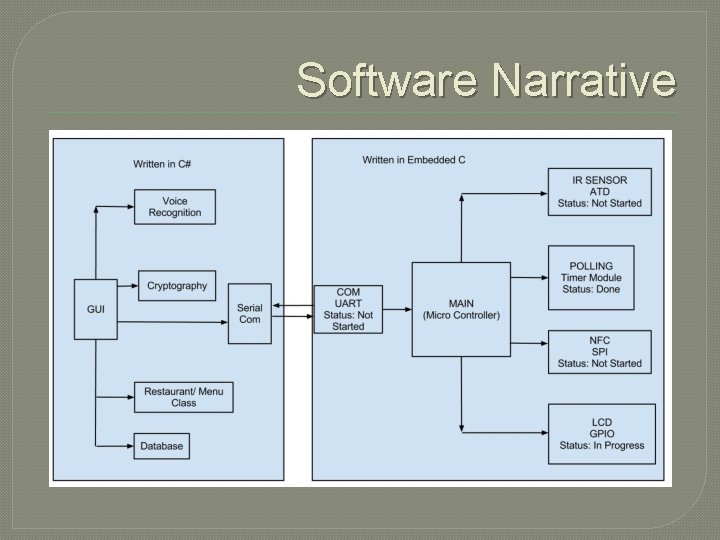

Software Narrative

Questions? Be Gentle
