Software Metrics n Static metrics Function point calculate

  • Slides: 51
Download presentation
Software Metrics n. Static metrics Function point & calculate function points、FP 與 S/W science、

Software Metrics n. Static metrics Function point & calculate function points、FP 與 S/W science、 Feature points、Cyclomatic complexity、Dataflow metric、 Structural metric、Relative metric、Complexity over time n. Dynamic metrics – Runtime complexity n如何使用 Metric (A Kind of Relative Complexity) n. Relative Metric for Reusability

 STATIC METRICS Data Organization metrics Span Between data reference, Eg. 抓取data之#of Comparison ,

STATIC METRICS Data Organization metrics Span Between data reference, Eg. 抓取data之#of Comparison , #of call, #of read. . . Slicing:E. g. external output有關之 Code length Data Biding:E. g. #of Common Block Var’s. Volume metrics Halstead S/W science #of Source line of code Cyclometric Complexity Knots Count : #of Control Intersection pts Scope metric : 每個 statement之影嚮範圍 Logical Complexity:E. g. #of Binary decision (Absolute logical complexity); #of Binary decision / #of statement (不含comment, Control metrics relative logical complexity) Average Nesting level MEBOW - 在 Flow Chart上,有branch的地方放上weight(1), 算 weight sum而得與knot差不多 還有 Call Statement之總數 Data flow metrics Syntatic Complexity Family Structure Metrics Hybrid metrics H. F. Li;W. K. Cheung Entropy - Based Metrics 兼有control與volume特性 2

 Halstead’s S/W Science *參數定義    ** n 1 : 不同operator之總數 - 基本算術及 logic 運算元

Halstead’s S/W Science *參數定義    ** n 1 : 不同operator之總數 - 基本算術及 logic 運算元 如 +,-,*,/,(),=,>,<,. OR. ,.... - Keyword (RESERVE Word) - Subroutine name, Procedure name, .... ** n 2 : 不同 operand之總數 - 所有 Variables - 所有 Constants - 所有. TRUE, . FALSE. ** N 1 : 用operator 之總次數 ** N 2 : 用operand 之總次數 ** n : #of Vocabulary (n 1 + n 2) ** N : Program Length (N 1 + N 2) ** V : Program Volume - #of total Bits required in memory 3

** L : Program Level ◎主要指 Language description power。(syntatic power). ** IC : Intelligence

** L : Program Level ◎主要指 Language description power。(syntatic power). ** IC : Intelligence Content ◎指Program由一種 Language 轉換成另一種 Language後不變的那一部份。 ** D : Program Difficulty ◎指implement 一個Algorithm之難易程度。通常與 L有關,L愈低D就愈高。 ** E : Program Effort ◎製作一個 Program 所需之 Effort 。 * Estimation formula ^ ** Estimation of Program Length (N) ^ N = n 1 lg(n 1) + n 2 lg(n 2) Assembly view ^ ◎N主要被拿來 estimate L. O. C ( Source Code ) ,不含Comments 。 ^ = 17 lg 17 + 15 lg 15 E. g. N = 128. 09 N = 113 <實驗> 255個 program 通常 N < 170 , ^ N>N N > 200, ^ N<N Correction 0. 94 4

LINE 1 2 3 4 5 6 7 8 9 10 11 12 13

LINE 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 LABEL 0 0 0 10 0 0 0 0 20 0 30 0 0 40 0 50 0 0 60 80 70 0 0 STMT 0 0 0 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 15 16 17 18 19 19 20 21 0 22 23 0 NOE 1 1 2 3 3 4 4 5 5 6 7 7 8 8 9 9 9 10 10 11 11 11 12 13 14 $JOB WATFOR C C PROGRAM TO FIND THE ROOT OF THE EQUATION X ** X = 10 C INTERATION C C CHAN CHI HUNG C EI C READ, X, E, O IF ( X. LT. 0 ) GOTO 20 I=1 10 Z = X ** X * (ALOG (X) + 1 ) IF ( ABS(Z). LT. D) GOTO 30 Y = X - ( X ** X - 10 ) / Z IF ( Y. LT. O) GOTO 40 I=I+1 IF ( ABS ( X - Y ). LT. E ) GOTO 60 IF ( I. GT. 30 ) GOTO 50 X=Y GOTO 10 20 PRINT, ‘Initial guess small than zero’ GOTO 70 30 PRINT, ‘Derivation of the function vanishes’ A, Newton - Raphson interation invalid’ GOTO 70 40 PRINT, ‘Invalid initial guess, next approx’ GOTO 70 50 PRINT, ‘Number of interations exceeds 30 A, guess’ GOTO 70 60 WRITE (6, 80) Y 80 FORMAT (11 X, ‘Root of equation = ‘, E 15. 6) 70 STOP END $DATA 5

n 1 = 17 OPERATORS --------------------READ 1 EOS 21 IF 5 ( ) 10.

n 1 = 17 OPERATORS --------------------READ 1 EOS 21 IF 5 ( ) 10. LT. 4 GOTO 10 = 5 ** 2 * 1 ALOG 1 + 2 ABS 2 3 / 1. GT. 1 PRINT 4 WRITE 1 --------------------TOTAL N 1=74 n 2 = 15 OPERAANDS ---------------------X 9 0 2 20 1 I 4 1 3 Z 3 D 1 30 2 Y 4 10 2 40 1 E 1 60 1 50 1 70 4 ---------------------TOTAL N 2 = 39 6

^ 如果以N來估計 L. O. C. Correlation約0. 8     E. g. LOC = 0. 273 N

^ 如果以N來估計 L. O. C. Correlation約0. 8     E. g. LOC = 0. 273 N = 0. 273*128 = 35 愈小的program愈不準,愈大的則較準,但均必需乘上一些調整因子。 *不要估算一個program,去估計整個S/W會好一些,但會碰到n 1與n 2不 好尋得之問題。Function pts試圖解決此一問題. . . *Program volume Estimation V = Nlgn 例子:V = 113 lg 32 = 565 V* 之lower bound - 最小可能之Volume Estimation (Potential Volume ) Executable Code Size V* = N* lgn* 假設Operator均為“Built-in”則n 2*幾乎 n* = n 1* + n 2* Dominate V* 因為n 1*只有Program name 與( )即 2 N 2* log 2 n 2* V* 可能的Volume 可用於早期(S/W (例子) V* life cycle)之Size估計. =(2+N 2) log 2(2+N 2) 所以所謂n*即表示SS or SRS中估 = 17(log 217) 算而來之I/O 與Process特性. ≈ 68 (bytes) 7

◎Program Level之估算 L= V* 最High Level之Language Built-in every thing to be operated V 所以

◎Program Level之估算 L= V* 最High Level之Language Built-in every thing to be operated V 所以 L = 1。Level愈低表示 language level愈低 - How to estimate L 2 n 2 L= 刻意迴避N 1, 因為它關係到detailed Program logic n 1 N 2 ^ ^ ** Halstead 認為 L 與 L 之 Correlation 約 0. 9 ** 有人用 FORTRAN 之 Program 去 estimate L 與 ^L 之 Correlation為 0. 531。 表示一個 Project中Engineer的功力亦將影嚮 ^L 之值。 ◎Program Difficulty 之估算 D 1 D= L 1 D= ^ = L ^ n 1 N 2 2 n 2 17*39 D= = 22. 1 2*15 ^ 當Program Size大時, n 1對 D 之影嚮不明顯, 主要之factor 是程式大時data將嚴 重影嚮程式之難易程度, N 2 (Operand之平均使用次數) ,所以OOD是一個自 n 2 然的反應與趨勢。 8

* Intelligence Context (IC) V* ×V = V* IC = LV = V *

* Intelligence Context (IC) V* ×V = V* IC = LV = V * Program Effort E V E= = DV L Halstead 認為當 language level很高時implement effort 則降低 ^= V 估計 E ^L n 1 N 2 Nlog 2 n* = 2 n 2 ^ n 1 N 2 Nlog 2 n 2 n 2 例子 17× 39× 128 log 232 = 14153. 9 2 × 15 S/W Science 可能忽略了人為之影嚮。 例如Effort 與人之能力與經驗,有很高的關係! 9

 Function Point * 什麼是 F. P. ? 把 SS or SRS中之Capability分類,分為 5種 Function

Function Point * 什麼是 F. P. ? 把 SS or SRS中之Capability分類,分為 5種 Function Types ,分別估計其 F. P. 依 Processing Complexity調整所有估計值 算出 Total F. P. * 五種Function Types 1. External Input Types 2. External Output Types 3. Logical Internal File Types 4. External Interface File Types 5. External Inquiry Types 10

* EXTERNAL INPUT TYPES (transactions input from users or other applications) ** Input data

* EXTERNAL INPUT TYPES (transactions input from users or other applications) ** Input data item → “G-value” from INS。 ** User key in → “ User’s name “。 ** Update logical internal file type 中之 data ( 一個 action) → “ Update Access right table” 。 Note : - 不同 format之同一input (content一樣),不論出現次數均 “ count 1” 。 - 有些 inputs format相同,只要 Processing logic不同就視為不同之inputs。 ** External Inputs可區分為三種 Complexity module。 - Simple:․沒有太多single data item。 ․沒有太多update logical internal file 之input。 ․沒有太多human factor request。 - Complex:Simple的相反。 - Average:搞不清楚 Simple或Complex。 Note : - 不要把額外之input加上, (如為Testing方便所設者) 。 - 別把 record file input算進去,因它屬於“external interface file”。 11

* EXTERNAL OUTPUT TYPES (transactions output to users or other applications) ** Single output

* EXTERNAL OUTPUT TYPES (transactions output to users or other applications) ** Single output data item or message report ** Control → “ Launch” Note : 同 External input Type ** 三個 complexity level - Simple : 一兩個field 之 data elements. - Complex : 此一output 將成為許多或複雜之檔案處理動作的reference - Average : 好幾個 field 之 data elements。 Note : **不要把 output file算進去,因它屬於External Interface file。 **不要把 External response (即針對External inquiry response 算進去,因 它屬於 External inquiry type,即data從database取得。) * Logical Internal file Type ** 對 User 而言,一組具有邏輯意義之 data file , 這些 file 可能由 system產生、 使用 or maintain。如 Access right table for DBMS。 ** 三個 Complexity level - Simple : record type 不多,data type不多,沒有特殊performance 需求及 recover之需求。 - Complex : Simple的相反。 - Average : 搞不清是 Simple or Complex 。 12

* EXTERNAL INTERFACE FILE TYPE ** 在Application 間 (不同 CSCI) ,互相傳送或 Shared之Data File,且分別 在各Application上都得

* EXTERNAL INTERFACE FILE TYPE ** 在Application 間 (不同 CSCI) ,互相傳送或 Shared之Data File,且分別 在各Application上都得 Count 進去!如 Access Right Table For MIS。 Complexity level定義與Logical internal file type完全一樣。 * EXTERNAL INQUIRY TYPE (Single key search) Input Query S/W Function 如 Search key Query Response Search response Note : **相同之 Query/response Format 不論出現幾次仍是 “一個” **不論 Format如何,Processing logic不同就不是同一個。 ** Complexity Level - Query Part : 用 External Input 之方法 - Output Response : 用 External Output之方法 Simple Average Simple Average Complex 13

 Calculate Function Points Albrecht 提出 : ( 以 IBM 經驗數據 ) (# of

Calculate Function Points Albrecht 提出 : ( 以 IBM 經驗數據 ) (# of Inputs × 4) + (#of Output × 5) + (# of Inquiries × 4) + (#of files × 10) + (#of Interfaces × 7) = Function Points (F. P. ) *為了取代S/W Science中之# of operands 或 operators,F. P. 需做適當調整。 Adjusted F. P. → AFP = PCA × F. P. Processing Complexity Adjustment ◎PCA的14個特徵 : ** Data Communication ( 如 LAN , WAN) 、** Multiple Site、** Performance ** Distributed functions (需透過 Synchronous or asynchronous mechanisms運作的func. 如 Handshaking)、** Heavily used configuration(S/W 在很Busy的HOST上跑) ** Transaction Rate、** Online data Entry、 ** Installation Easy ** End User Efficiency( turnaround time)、 ** Facilitate Change(指 C. M. 的CCB) ** Application Complex(如航空訂位系統)、 ** Online update ** Complex Processing(如Matrix Operation、Exception Handling等) ** Reusability (指使用許多運作中S/W的Components) 14

 FP 與 S/W Science 由於 FP 從 SS or SRS 中取得,調整後用以取代 S/W Science中之#

FP 與 S/W Science 由於 FP 從 SS or SRS 中取得,調整後用以取代 S/W Science中之# of operands & operators,因此只能算是 Potential Count。通常直接拿來 estimate SLOC 會差很多。所以用來estimate V*: V* = (AFP +2 ) log 2(AFP +2) 如 PL/1 SLOC 6. 3 (AFP +2) log 2(AFP +2) + 4370 則 Correlation 是 0. 997. *如把AFP直接拿來Estimate SLOC: 則 PL/1 → AFP 65 SLOC COBOL→ AFP 100 SLOC *AFP與Language及Application屬性也有關係。原來Function Point Concept, 偏重於Data intensive Applications之Estimation,對scientific App. s or embedded S/W則較無法使用。 Modify Feature Point 16

 Feature Points 旨在矯正Func. Pt 無法方便的估計 real-time. Embedded, Military , System S/W 之缺點。 *

Feature Points 旨在矯正Func. Pt 無法方便的估計 real-time. Embedded, Military , System S/W 之缺點。 * Feature Point組成之參數 # of Algorithm × 3 # of Input × 4 # of Output × 5 # of Inquiries × 4 # of Data files × 7 # of Interfaces × 7 + Feature pts. *它也有 PCA. Rang 是 0. 6 ~ 1. 4 Function Point與Feature Point之關係 S/W 種類 Feat Pt/Func. Pt. Non Procedural 0. 75 Batch 0. 9 Scientific/數學 1. 05 System S/W 1. 1 Telecommunication 1. 15 Process Control 1. 2 Embedded / Real-time 1. 25 Graphic / Image Processing 1. 3 Robtic / Automation 1. 35 A. I. 1. 4 17

 CYCLOMATIC COMPLEXITY (Mc. Cabe & Gilb) * 簡言之 #of different cond’ns * 算法:

CYCLOMATIC COMPLEXITY (Mc. Cabe & Gilb) * 簡言之 #of different cond’ns * 算法: 1. 把 Program Flow Chart畫出來 2. Cyclomatic complexity V(G) = #of edges - #of nodes + 2 當Program中沒有decision時, #of edges = #of nodes - 1 反應Control之複雜性 V(G) = -1 + 2 = 1 * 對一個Single entry - Single Exit之Program而言 V(G) = #of Single Binary decision +1, 假設有 k 個 decisions , 則 #of edges = (#of Nodes -1) + k, 所以 Nested IF V(G) = (#of nodes -1) + k - #of nodes + 2 = k+1 = #of decisions +1 有問題嗎? * Algorithmic approach 看到IF , CASE或其他 alternate execution Construct 就 +1 看到Iterative Construct 如 Do, Do - While 就 +1 對每個 k choice之CASE 就 +(k-2) ← 2 k edges-(k+2) nodes = k-2 對每個IF中如有 AND 或 OR 就 +1 18

 例子 1 Entry 2 8 3 4 5 6 7 9 10 12

例子 1 Entry 2 8 3 4 5 6 7 9 10 12 13 11 1, 3, 4, 5, 6 中各有一Cond’n V(G) = 5+1 = 6 V(G) = 18 - 14 + 2 =6 14 Exit ** Cyclomatic #可代表 unit test之測試需求。 KNOTS Metrics * 指 Control flow 之交叉點 所以 Branch 愈多 knots 愈多 Control Complexity 愈高 19

 例子 1 1 Entry 3 2 4 5 6 7 12 11 4

例子 1 1 Entry 3 2 4 5 6 7 12 11 4 8 3 2 5 Knots count = 23 這個Program “Go To”太多! 6 9 10 7 13 14 8 Exit 9 10 11 Exer. 12 10 IF (Cond’s) THEN GO TO 20 Node 1 State - 1 20 State - 2 State - 3 Go TO 10 Node 2 Node 3 Node 4 13 14 ** 與可讀性及可維護性有關。 如果 node上,不只有一個 Statement, 如 Node 3,有一個Backward branch 指進去,當然指到 1 st Statement of Node 3,因此會與其Out branch有 knots。 20

 SCOPE METRIC [Harrison , Magel , 1981] 以衡量一個 Program Node 在 Program Logic

SCOPE METRIC [Harrison , Magel , 1981] 以衡量一個 Program Node 在 Program Logic 中伴演之角色為基礎。 * Selection node - Program Graph中,那些out-degree超過 “ 1” 的node 稱為 “Selection node” 。 * Receiving Node - 不是 Selection node 稱之。 * Greatest Lower Bound Node (GLB node) 1 8 2 13 3 9 4 5 12 6 7 13 10 13 13 11 13 Node 1是Selection node 它的Lower Bound Nodes有 8 → Scope 1 ← Scope內沒別人 2 → Scope 1 ← Scope內沒別人 3 → Scope 2 , 1← 2 在Scope內 不是→ 4 → Scope 3 , 7 , 6 , 5 , 4(X) 9 → Scope 3 , 7 , 6 , 5 , 4 , 3 , 2 , 1 10 與 9 同 …. . 13 → Scope 9, 3, 7, 6, 5, 4, 3, 2, 1 10, 4, 3, …… 12, …… 它最大所以 Node 1 之GLB是 13 11, …… 8 21

Node 3 是Selection node 1 GLB → 9 => 3, 7, 6, 5, 4

Node 3 是Selection node 1 GLB → 9 => 3, 7, 6, 5, 4 2 不是 → 4 => 3, 7, 6, 5, 4(x), 3 (其實 9, 10, 12, …均可) 5 => 與 4 同 3 …. . 9 10 => 與 9 同 4 12 => 與 9 同 13 10 11 => 與 9 同 5 不是→ 13 => 9 , 7 , 6 , 5 , 4 , 3 13 12 10, 7 , 6 , 5 , 4 6 12, 7 , 6 , 5 , 4 因為 11, 7 , 6 , 5 , 4 13 7 11 out of scope 8, ~~~~~~~~~~~~~~~~~~~~~~~~~ 13 例子統計 Node Scope Metric GLB 1 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12 12 13 2 1 Receiving 3 4, 5, 6, 7, 3 6 9 4 4, 5, 6, 7, 3 6 10 5 4, 5, 6, 7, 3 6 12 6 4, 5, 6, 7, 3 6 11 7 1 Receiving …. . . 13 1 14 0 Terminal Scope Complexity 44 8 13 22

* SCOPE RATIO #of node (terminal node不算) 例子 : ( 1 - 13 /

* SCOPE RATIO #of node (terminal node不算) 例子 : ( 1 - 13 / 44 ) * 100% = 70. 45% Complexity愈高愈接近 100% - Scope Metric可矯正Cyclomatic # 對Node Complexity之忽略。 - Scope 會誤判情形, Scope 很高可能是 Program 很大,而不是 logical complexity 很複雜!因此 Scope ratio可平衡一下這種誤差。 23

 Syntatic Complexity Family 是一種 Hybrid metrics,把因應一套軟體系統中各種不同性質之程式,組合 不同之 metric。假設電腦Software S被程式 P 1,P 2,. .

Syntatic Complexity Family 是一種 Hybrid metrics,把因應一套軟體系統中各種不同性質之程式,組合 不同之 metric。假設電腦Software S被程式 P 1,P 2,. . . ,Pk 所組成,則 Software S的Syntatic Complexity C(S): k C(S) = b × [ C ( Pi ) ] 其中b是weight,可能與 nested level 有關。 i=1 *根據 Decomposition Criteria及程式性質,決定每次decompose的component是 proper或non-proper. V 1 if Pi Proper C(Pi) = V 2 if Pi Non-proper 範例: Executable Statement Count (STMT) k C(S) = b× [ C(Pi) ] i=1 令 b = 1 , C(Pi) = 1 if Pi is a executable statement 0 if otherwise k C(S) = C(P 1) + [ C(Pi) ] 假設P 1是executable statement則 i=2 k = 1 + [C(Pi)] = … = STMT i=2 24

 # of Call (CALL) b = 1, C(Pi) = C(S) 1 if Pi是個

# of Call (CALL) b = 1, C(Pi) = C(S) 1 if Pi是個 func. Call or proc. Call 0 if otherwise k = C(Pi) i=1 = CALL Cyclomatic Complexity (for single entry and single exit binary decision) b = 1, 1 if Pi是Segment 0 if otherwise 所謂 Segment 就是 Segment Entry statement Entry Statement … … Branch statement Terminal statement Generalized Form if P = S 1 ; S 2 ; …… Sk a sequence construct C(P) = b( C(S 1) + C(S 2) + …+C(Sk)) if P is Nested IF construct C( IF B 1 THEN S 1) = b(B 1) C(S 1) C(Pi) = = b(B 1) C(IF B 2 THEN S 2) = b(B 1) b(B 2) C(S 2) = b(B 1) b(B 2) … b(Bk) C(Sk) ,假 設Bi 均為W個cond’ns之Logic expression (即為 W-1 個 AND或 OR之 expression) 令b(Bi)與cond’n個數有關則C(Nested IF ) Wk C(Sk) Wk 25

 Data-Flow Metric Definition : Block (或Segment, Chunk ) 範例 … IF(. . .

Data-Flow Metric Definition : Block (或Segment, Chunk ) 範例 … IF(. . . )THEN GOTO 20 Statement S 1 Block S 2. . . Sk 20 Sk+1 The only statement get control from the other block. Sequentially (no branches). 可能是一個Branch,或是一個Common statement。 Control entry point 所以是另一個Block之開始點。 Def : Variable Definition of a statement single statement X=f function call ( X 在等號左邊) Assignment X 得到一個 definition Def : Variable Reference of a statement single statement = f(X) function call ( X 在等號右邊) Assignment Output X 被 reference 到 26

Def : Locally Available Variable of a Block X 如果在 Block B有一個 definition 則

Def : Locally Available Variable of a Block X 如果在 Block B有一個 definition 則 X locally Available in B Def : Locally Exposed Variable reference in a Block X 在 Block B 被 reference 到,但 X 的 definition 不是來自於 B ◎ Reach Block B X= … : X在過程中沒有redefine過,即X不locally available along the path。(Path可能empty 表示C是B的immediate successor) … Block C = f(x) : 表示B中X的definition Reach Block C 27

◎ Data - Flow metric ※ Reach Set Ri -所有從外面帶進來的值。(Values count) Let V be

◎ Data - Flow metric ※ Reach Set Ri -所有從外面帶進來的值。(Values count) Let V be the set of all variables in whole program. Ri = { Def set of v | variable v V which’s definition reach Block i } ※ Locally Exposed Set -所使用的變數中,其值是在block外被定義的。(Name count) Vi = { v | variable v V which is locally exposed in Block i} ※ # of definitions of Reach set Variables in Block i DEF (vj) = # of definitions of vj , vj Vi, 且其 Definitions Ri ◎討論 ※ Ri中某個 v 的 reach def. 可能有好多。因為 v 可能在不同的 Block 被 define, 而在不同的時間被送入 Block i 中使用。 ※ Vi中的 v 在 Block i 中均至少被exposed一次。 Block i 的 data flow complexity DFi ||Vi|| DFi = DEF (vj) j=1 28

◎圖示. . . 加起來 Block i 假如一個程式有 S 個 Blocks,則此程式之 data flow complexity 就是

◎圖示. . . 加起來 Block i 假如一個程式有 S 個 Blocks,則此程式之 data flow complexity 就是 S DF = DFi i=1 □如果考慮 concurrent program 則 data flow complexity 會變成?想想看。 ※ handshaking mechanism ※ mutual exclusion □ 這種定義只針對 Program 內部 data flow 之 Complexity,如果考慮 Program 間之data flow complexity?想想看。 29

 Information Flow Metric : * Def : (Global Flow) Process A 與 Process

Information Flow Metric : * Def : (Global Flow) Process A 與 Process B 間有個 global flow透過一個 global data structure D, 而 A 把 data 送入 D (或update D),而 B 經由 D 拿去用。 A → D → B * Def : (Local Flow) Value return Process A 與 Process B有一個 Local Flow if 滿足其中: A 假設 A call B (Direct local flow) B 假設 A call B,而 B return a value 給 A,return value flow為一Indirect local flow。 if C call A 又 call B,其目的只是為了從 A 中取得一個 value,C 自己不用 又送給B使用,則 A→ B 是個 indirect data flow 。 Value pass through C A B 30

Fan-in Process A 的 Fan-in 是 : (進入 A 之 local flows ) +

Fan-in Process A 的 Fan-in 是 : (進入 A 之 local flows ) + ( 從 global data structure 抓 data 之 flows ) Fan-Out Process A 之 Fan-out 是 : ( 從 A 出去的 local flows ) + (去 update global data structure 之 flows ) ◎一個 Process (Program) 與外界的關係就是 Fan-in 與 out。 Information Flow Complexity Length × ( Fan-in × Fan-out )2 (s/w size) ( Fan-in × Fan-out )2 Dominate Information Flow Complexity ◎為啥長成這樣? ※ 為了衡量 maintain program 可能發生修改的程度. ※ 與 data flow 有關。 ※ 與 programmer 有關。 31

※ ( Fan-in × Fan-out ) :表示 Process A 可能造成之 I/O Combination。 ※ 在

※ ( Fan-in × Fan-out ) :表示 Process A 可能造成之 I/O Combination。 ※ 在 Team Work 組織下,Programmer 間互相之 interaction。 ( Fan-in × Fan-out )( Fan-in × Fan-out) ( Fan-in × Fan-out )2 用 UNIX 中之 Procedure 做實驗,關係是 100 90. . % of changed 40 procedures 30 20 10 (104, 95) = 0. 0228 log(fan-in × fan-out) # of procedures changed. 10 10 Y 依圖想想 (Fan-in × Fan-out )2 到底出了啥問題,對 unix系統 而言。 0. 0057 × 4 95 -38 102 = 104 57 complexity = 0. 0057 X 104 - 10 9996. 8 y = 0. 0057 x x 所以 ( Fan-in × Fan-out )2 =10 2 x 2 log ( fan-in × fan-out ) = 2 發現修改次數的可 能關係為整合所構 成的tree之高度,因 此問題通常來自於 整合介面之問題。 4 log ( fan-in × fan-out ) = X 0. 0228 log ( fan-in × fan-out ) (Y軸坐標) 32

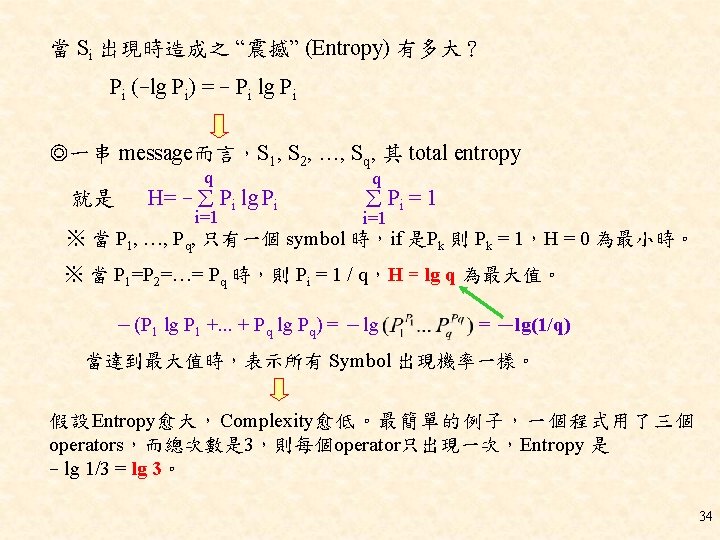

◎ 把 Entropy 用在 S/W上 fi 定義 Pi = N 1 fi fi -

◎ 把 Entropy 用在 S/W上 fi 定義 Pi = N 1 fi fi - lg N N 1 i =1 1 n 1 用以評估 Error Span N Error Span = # of errors fi :operator i 的使用次數 N 1 :所有 operator 使用總次數 愈大愈好,表示 error density 低 實驗發現 Entropy 愈大 → Error Span 愈大 35

 Entropy for S/W structure complexity [ Structural Entropy] 把 Program 分成 Block view

Entropy for S/W structure complexity [ Structural Entropy] 把 Program 分成 Block view (segment, chunk)。 Apply Entropy measure for a chunk. a ◎ Program flow graph a c b E. g. b c d e g d f <G> g e f < G’ > ◎ 1 st order entropy measure : 把 a, …. , g 7個 chunks 分成若干 equivalence class。 Def : 兩個 Chunk 同一class,if 該兩個 chunks (node) 之 in/out degree 一樣。 所以G 之 1 st order class 為 : {a}, {b, c, e, f}, {d}, {g} G’之1 st order class 為 : {a}, {b, d, e}, {c}, {f}, {g} ◎ G 之1 st order entropy - [(1/7)lg(1/7) + (4/7)lg(4/7) + (1/7)lg(1/7)] = 1. 664 ◎ G’ 則 1 st order Entropy = 1. 215 36

◎ 有啥意義呢 ? G 與 G’ 之 Cyclomatic Complexity 均為“ 3” (但Structure不同),而 1 st

◎ 有啥意義呢 ? G 與 G’ 之 Cyclomatic Complexity 均為“ 3” (但Structure不同),而 1 st order entropy 不同,G為 1. 664,G’較小是 1. 215。所以entropy可以反應structural different。G’有NESTED if or 類似之 statement,理論上,complexity要高些 !(logic)。 ◎ 2 nd order structured Entropy (emphasize I/O degree + source + destination) 兩個 Chunk 要 equivalent iff 它們的爸爸與兒子要一樣 所以 G 之 2 nd class為 {a} , {b, c}, {d}, {e, f}, {g} -[(1/7)lg(1/7) + (2/7)lg(2/7) + (1/7)lg(1/7) ] = -[ (3/7)lg(1/7) + (4/7)lg(2/7) ] = lg 7 - 4/7 G’: {a}, {b}, {c}, {d, e}, {f}, {g} -[(5/7)lg(1/7) + (2/7)lg(2/7)] = lg 7 - 2/7 ◎ G 之 2 nd order Entropy 小 → Complexity低 ◎ G’之 2 nd order Entropy 大 → Complexity高 a a b c c b d e g d f g e f 結論: Entropy的大小可以決定程式邏輯結構的複雜度 37

 Relative Metric Control Halstead S/W Science Size . Cyclomatic. RELATIVE Information Content COMPLEXITY

Relative Metric Control Halstead S/W Science Size . Cyclomatic. RELATIVE Information Content COMPLEXITY . Entropy. . Modularity Data structure A Hybrid Complexity Metric Factor Domain (Classification) 38

◎如何計算 S/W 之 relative Complexity : S/W m 1, m 2, …, mi ,

◎如何計算 S/W 之 relative Complexity : S/W m 1, m 2, …, mi , … 一個 S/W由許多 S/W module組成 定義 module i 之 relative complexity : i = 1 Si 1 + …+ j. Sij +… 【 j 】×【 Corij 】= 【 j 】 ※ Sij 為 Module i 在 factor domain fj 所得之量測值,所謂 factor domain 就如 「 Control, Size, …」。 ※ j 為 Module i 在factor domain fj 所得量測值 Sij 所佔之份量,稱「特徵值」。 與當初選定之metric domain與factor domain之correlation有關 i 就是 S/W 之relative complexity。 i 39

Table 1 Factor Pattern for Metric Analyzer (by correlations) Metric V(g) Statements N 1

Table 1 Factor Pattern for Metric Analyzer (by correlations) Metric V(g) Statements N 1 Out. Calls Max. Depth N 2 Size Max. Order Mean. Order BW Max. Level Outputs In. Calls Inputs Eigenvalues Control Size Information content Modularity 0. 951 0. 114 0. 181 -0. 041 0. 949 0. 164 0. 219 -0. 058 0. 944 0. 141 0. 200 -0. 092 Out. Calls: 0. 141 The number 0. 021 0. 933 0. . 036 of outputs by calling of -0. 027 Max. Depth: 0. 971 The length -0. 020 -0. 040 longest in 0. 065 the tree 0. 244 the. Max. Order: 0. 946 branch -0. 058 The count of generated by the parser. 0. 371 the 0. 908 -0. 034 largest number 0. 034 of edges a single node in thebased on Mc. Cabe's 0. 062 from 0. 084 0. 132 Band. Width: A 0. 919 value tree. complexity, 0. 058 parse 0. 085 0. 918 cyclomatic adjusted for 0. 133 the 0. 248 -0. 048 complexity 0. 857 -0. 101 of added of nested Ifs instead Max. Level: The just the number of max. Ifs in the code. 0. 764 0. 089 -0. 029 -0. 161 number of nested level -0. 195 -0. 118 In. Calls: The 0. 168 0. 741 number of 0. 001 0. 024 inputs by -0. 182 0. 163 calling -0. 112 -0. 106 0. 247 0. 244 3. 964 3. 733 3. 162 1. 370 Data structure -0. 039 -0. 036 -0. 072 -0. 004 -0. 042 -0. 020 -0. 034 -0. 040 -0. 036 0. 084 -0. 112 0. 162 0. 791 0. 743 1. 240 40

 Complexity Over Time m ij 表示 module mj 第 i 個 version。 如系統有

Complexity Over Time m ij 表示 module mj 第 i 個 version。 如系統有 m 1, m 2, . . . , mn, modules 組成 第一次系統整合後 , 可改為 < m’ 1 , m’ 2, …, m’n > 隨著時間 System update Version 1 V 1 = < m’ 1, m’ 2, ………, m’n > = < 1, …, 1> V 2 = < 2, 2, 1, ……, 1 > 2 V 3 = < 2, 3, 1, ……, 1 > V 3 = 1 V 4 = < 3, 3, 2, ……, 2 > …. . . * Version i 之 Relative Complexity i n Vji = j j 41

 Dynamic Metric ( run time complexity) 假設 Pt 1, Pt 2, ……. ,

Dynamic Metric ( run time complexity) 假設 Pt 1, Pt 2, ……. , Ptn, 代表 S/W 中 modules m 1, . . . , mn在某一特定時間 t 裏 (一段 execution time),可能出現之機率 很類似 Working Set 的精神 ! ◎ Dynamic Complexity n t = Ptj j j=1 n 考慮 Configuration 不見得要 relative complexity i 任何 metric 加上 Pj 均可視同 dynamic! Vj t = Ptj j j=1 但為何 relative 比較好呢? ㊣ 考慮 dynamic 時,在一段時間裏被使用之 module 是變化不定的,而每 個 module在各個factor domain 量測值不同,然而每個 module會因功能不 同而偏向某個 factor domain 的特性,因此 relative complexity 比較能顯現 這種差異性。 42

 如何使用 Metric (A Kind of Relative Complexity) ◎ Metric Classification Tree for Type

如何使用 Metric (A Kind of Relative Complexity) ◎ Metric Classification Tree for Type X errors Data Bindings 0 -3 - 4 -5 Revisions 0 -12 >12 - + >10 6 -10 System Type Cyclomatic Complexity 0 -18 - >18 + Real-time Non-real-time Source Lines - 0 -150 >150 - + Figure 1. Example hypothetical metric-classification tree. There is one metric at each diamond-shaped decision node. Each decision outcome corresponds to a range of possible metric values. Leaf nodes indicate if a module is likely to have some property, such as being error-prone or containing errors in a certain class (in the figure, “+” means likely to have errors of Type X and “-” means unlikely to have errors of Type X). 43

◎如何建造 Metric Classification Tree (MCT- for interface error) 1、把要分析的對象找定,並收集經驗資料,據此把分類原則確定。 Interface errors Class A 3

◎如何建造 Metric Classification Tree (MCT- for interface error) 1、把要分析的對象找定,並收集經驗資料,據此把分類原則確定。 Interface errors Class A 3 - B 2 - Table 1. Interface-error data Module C D E F G H I 10 1 2 9 1 3 6 + - - + J 2 - K L 3 0 - - ※ 根據經驗可以得到區分的標準,如 Module之 interface error 數 超過 5 個以上才叫 “高危險群” (或陽性反應)。 2、選定基準 metrics,利用這些 metrics 對各選定之 module 計算初值 (由歷史資料 中取得),如此可以取得資料如下表:File management (F) User interface (I) Process control (P) Table 2. Raw training-set data Metric Module A B C D E F G H I J K L Module function I I F I P P P I F F Data bindings 2 9 6 13 10 15 6 15 20 4 17 16 Design revisions 11 9 11 0 5 4 2 10 5 7 1 0 Class - - + - - - 44

3、依據影嚮程度將各metrics之評估值分成若干值區,以便分類。 Metric Module function Data bindings Design revisions Class Module function Data bindings Design

3、依據影嚮程度將各metrics之評估值分成若干值區,以便分類。 Metric Module function Data bindings Design revisions Class Module function Data bindings Design revisions Table 3. Recoded training-set data Module A B C D E F G H I J K L + + + = File management(F); = User interface(I); = Process control(P) = 0 x 7; = 8 x 14; = x 15 = 0 x 3; = 4 x 8 ; = x 9 4、將選定之metric加以評估,決定那些metric應該擺在MCT上的那個node,原 則是從root開始選,因此每次均需選一個對「分析對象」區分能力最強的 metric擺上去。 ※為了評估metric之分類能力,定義 “Metric-selection Function”. ※當metric選定後,它會根據Step 3中之值區(i. e. , 、 、 )將樣本modules (i. e. A、B、C、…) 分成若干 subsets。 45

**根據討論 E(C, M)之值愈小表示該metric的區分能力愈強。 Table 3. Recoded training-set data Metric Module function Data bindings Module

**根據討論 E(C, M)之值愈小表示該metric的區分能力愈強。 Table 3. Recoded training-set data Metric Module function Data bindings Module E F A B C D G H I J K L Module function A, C, C, E, Data bindings. A, B, G, H, I F, K, H, L I, B, D, E G, J K, L D, F, J Design revisions Figure 3. A partial tree using- module Class - function + - Figure + 4. -A partial - tree + using - data-bindings - as candidate metric. The metric-selection as the candidate metric. The Module function = metric-selection File management(F); =the. User interface(I); = Process control(P) function E ({A, B, . . , L} , Data Bindings) return function E ({A, B, . . , L} , Module Function) Data bindings = 0 x 7; =0. 675. 8 x. Positive 14; target class = x instances 15 are return 0. 801. Positive target class instances Design revisions = 0 x 3; = 4 x 8 ; = x 9 underlined. are underlined. Design revisions D, G, K, L E, F, I, J 圖 5 E值最小,因此 metric Design revisions 之區分能力最強 ! A, B, C, H p n total weight Child 1 Figure 5. A partial tree using design revision as Child 2 the candidate metric. The metric-selection function E ({A, B, . . , L} , Design Revisions) return Child 3 0. 603. Positive target class instances are underlined. This metric is selected and its leftmost Sum child becomes a leaf node labeled “-”. F(p, n) w×F(p, n) 0 4 12 . 333 0. 0 2 2 12 . 333 1. 0 . 333 1 3 12 . 333 . 811 . 270 pi pi+ni lg pi pi+ni ni lg ni pi+ni . 603 47

Design revisions - Modules function I J Figure 6. A partial tree using module

Design revisions - Modules function I J Figure 6. A partial tree using module function as the candidate metric. The metric-selection function E ({E, F, I, J}, Module Function) return 0. 500. Positive target class instances are underlined. A, B, C, H Data bindings F, J E - A, B, C, H E F, I Figure 7. A partial tree using data bindings as the candidate metric. The metric-selection function E ({E, F, I, J}, Data Bindings) return 0. Positive target class instances are underlined. This metric is selected, yielding three leaf nodes labeled , from left to right, “-” and “+”. Design revisions - Data bindings Modules function - - + C A, B H Figure 8. A partial tree using module function as the candidate metric. The metric-selection function E ({A, B, C, H} , Module Function) return 0. Positive target class instances are underlined. 48

Design revisions 0~3 Design revisions >9 4~8 - Data bindings - - + A,

Design revisions 0~3 Design revisions >9 4~8 - Data bindings - - + A, C 0~7 B H Figure 9. A partial tree using data bindings as the candidate metric. The metric-selection function E ({A, B, C, H}, Data Bindings) return 0. 500 Positive target class instances are underlined. For this example, the metric module function is selected (see Figure 8), and it produces three children labeled “+” and “-”. 0~3 Design revisions >9 4~8 Data bindings - 0~7 - 8~14 - Module function >15 + F I + - Data bindings - P - Figure 11. Applying the classification tree on module N. - >15 8~14 - Module function + F I + - P - Figure 10. The completed classification tree. 例子: Raw test-set data. Metric Module Design revisions Module function Data bindings M 0 P 3 N 7 I 16 O 12 I 9 Recoded test-set data. Metric Module M Design revisions Module function Data bindings N O 49

*本圖整理了 MCT 建造流程 ! ist Overview of the classification-tree methodology. 50

*本圖整理了 MCT 建造流程 ! ist Overview of the classification-tree methodology. 50

 REUSABILITY The basic reusability attributes model. 51

REUSABILITY The basic reusability attributes model. 51
