Software Engineering Requirements Engineering

Software Engineering Requirements Engineering

Requirements engineering ²The process to gather the software requirements from client, analyze and document

Requirements engineering ²The process to gather the software requirements from client, analyze and document them is known as requirement engineering. ²The process of establishing the services that the customer requires from a system and the constraints under which it operates and is developed.

Why so difficult? Software designer Users/stakeholders Interaction…. match – Different “worlds” – using vs

Why so difficult? Software designer Users/stakeholders Interaction…. match – Different “worlds” – using vs designing something – knowing what should be done vs knowing to let a computer do that – Users/stakeholders are not an uniform group – conflict between cost and usability / performance / features – conflicting demands from different departments – Getting the good (ideal) system vs possibility building it 3 good

Requirements Example ²A user shall be able to search the appointments lists for all

Requirements Example ²A user shall be able to search the appointments lists for all clinics. ²The system shall generate each day, for each clinic, a list of patients who are expected to attend appointments that day. ²Each staff member using the system shall be uniquely identified by his / her 8 -digit employee number.

Requirements imprecision ²Ambiguous requirements may be interpreted in different ways by developers and users.

Requirements imprecision ²Ambiguous requirements may be interpreted in different ways by developers and users. ²Consider the term ‘search’ in requirement § User intention – search for a patient name across all appointments in all clinics; § Developer interpretation – search for a patient name in an individual clinic. User chooses clinic then search.

Requirements completeness and consistency ²Complete § They should include descriptions of all facilities required.

Requirements completeness and consistency ²Complete § They should include descriptions of all facilities required. ²Consistent § There should be no conflicts or contradictions in the descriptions of the system facilities. ²In practice, it is impossible to produce a complete and consistent requirements document.

RE Process and Related Activities Why? Identify Business Needs and Goals What? Derive User

RE Process and Related Activities Why? Identify Business Needs and Goals What? Derive User & Functional Requirements How? Time Design Solutions TIME Who? When? Project Management Process Risk Management Process If-Then Quality Management Process Does It? Component & Configuration Management Process Where? 7

Users of a requirements document

Users of a requirements document

Requirement Elicitation Techniques ² Interviews § § Structured (closed) interviews Non-structured (open) interviews One-to-one

Requirement Elicitation Techniques ² Interviews § § Structured (closed) interviews Non-structured (open) interviews One-to-one interviews Group interviews ² Surveys ² Questionnaires

Requirements categorized logically ² Must Have : Software cannot be said operational without them.

Requirements categorized logically ² Must Have : Software cannot be said operational without them. ² Should have : Enhancing the functionality of software. ² Could have : Software can still properly function with these requirements. ² Wish list : These requirements do not map to any objectives of software.

Requirement Engineering Process ²Feasibility Study ²Requirement Gathering ²Requirement Specification ²Requirement Validation

Requirement Engineering Process ²Feasibility Study ²Requirement Gathering ²Requirement Specification ²Requirement Validation

Feasibility study ²When the client approaches the organization for getting the desired product developed,

Feasibility study ²When the client approaches the organization for getting the desired product developed, it comes up with rough idea about what all functions the software must perform and which all features are expected from the software.

Types of requirement ²Business Requirements: § the scope of the project and identify stakeholders

Types of requirement ²Business Requirements: § the scope of the project and identify stakeholders ²User requirements § concern the user goals of the system § Statements in natural language plus diagrams of the services the system provides and its operational constraints. Written for customers.

Types of requirement ²System requirements § define functional and non-functional (or quality) requirements. §

Types of requirement ²System requirements § define functional and non-functional (or quality) requirements. § A structured document setting out detailed descriptions of the system’s functions, services and operational constraints. Defines what should be implemented so may be part of a contract between client and contractor.

Example ²you are designing a website for teachers to post homework assignments online §

Example ²you are designing a website for teachers to post homework assignments online § Allow teachers to upload documents. § Provide a login for teachers. § Be accessible from schools and teachers' homes.

System requirements Types ² Functional requirements § Statements of services the system should provide,

System requirements Types ² Functional requirements § Statements of services the system should provide, how the system should react to particular inputs and how the system should behave in particular situations. ² Non-functional requirements § Constraints on the services or functions offered by the system such as timing constraints, constraints on the development process, standards, etc. ² Domain requirements § Constraints on the system from the domain of operation

Functional requirements ²Describe functionality or system services. ²Depend on the type of software, expected

Functional requirements ²Describe functionality or system services. ²Depend on the type of software, expected users and the type of system where the software is used. ²Functional system requirements should describe the system services in detail.

Functional requirements Example ²A user shall be able to search the appointments lists for

Functional requirements Example ²A user shall be able to search the appointments lists for all clinics. ²The system shall generate each day, for each clinic, a list of patients who are expected to attend appointments that day. ²Each staff member using the system shall be uniquely identified by his / her 8 -digit employee number.

Non-functional requirements ²These define system properties and constraints e. g. reliability, response time and

Non-functional requirements ²These define system properties and constraints e. g. reliability, response time and storage requirements. Constraints are I/O device capability, system representations, etc. ²Process requirements may also be specified mandating in programming language or development method.

Non-functional requirements implementation ²Non-functional requirements may affect the overall architecture of a system rather

Non-functional requirements implementation ²Non-functional requirements may affect the overall architecture of a system rather than the individual components. ²A single non-functional requirement, such as a security requirement, may generate a number of related functional requirements that define system services that are required. § It may also generate requirements that restrict existing requirements.

Types of nonfunctional requirement

Types of nonfunctional requirement

Non-functional classifications ² Product requirements § Requirements which specify that the delivered product must

Non-functional classifications ² Product requirements § Requirements which specify that the delivered product must behave in a particular way e. g. execution speed, reliability, etc. ² Organisational requirements § Requirements which are a consequence of organisational policies and procedures e. g. process standards used, implementation requirements, etc. ² External requirements § Requirements which arise from factors which are external to the system and its development process e. g. interoperability requirements, legislative requirements, etc.

Examples of nonfunctional requirements Product requirement The system shall be available to all clinics

Examples of nonfunctional requirements Product requirement The system shall be available to all clinics during normal working hours (Mon–Fri, 0830– 17. 30). Downtime within normal working hours shall not exceed five seconds in any one day. Organizational requirement Users of the system shall authenticate themselves using their health authority identity card. External requirement The system shall implement patient privacy provisions as set out in HStan-03 -2006 -priv.

Usability requirements Example ²The system should be easy to use by medical staff and

Usability requirements Example ²The system should be easy to use by medical staff and should be organized in such a way that user errors are minimized. ²Medical staff shall be able to use all the system functions after four hours of training. ²After this training, the average number of errors made by experienced users shall not exceed two per hour of system use. (Testable non-functional requirement)

Metrics for specifying nonfunctional requirements Property Measure Speed Processed transactions/second User/event response time Screen

Metrics for specifying nonfunctional requirements Property Measure Speed Processed transactions/second User/event response time Screen refresh time Size Mbytes Number of ROM chips Ease of use Training time Number of help frames Reliability Mean time to failure Probability of unavailability Rate of failure occurrence Availability Robustness Time to restart after failure Percentage of events causing failure Probability of data corruption on failure Portability Percentage of target dependent statements Number of target systems

Domain requirements ² The system’s operational domain imposes requirements on the system. § For

Domain requirements ² The system’s operational domain imposes requirements on the system. § For example, a train control system has to take into account the braking characteristics in different weather conditions. ² Domain requirements be new functional requirements, constraints on existing requirements or define specific computations. ² If domain requirements are not satisfied, the system may be unworkable.

Train protection system Example ² This is a domain requirement for a train protection

Train protection system Example ² This is a domain requirement for a train protection system: ² The deceleration of the train shall be computed as: § Dtrain = Dcontrol + Dgradient § where Dgradient is 9. 81 ms 2 * compensated gradient/alpha and where the values of 9. 81 ms 2 /alpha are known for different types of train. ² It is difficult for a non-specialist to understand the implications of this and how it interacts with other requirements.

Domain requirements problems ²Understandability § Requirements are expressed in the language of the application

Domain requirements problems ²Understandability § Requirements are expressed in the language of the application domain; § This is often not understood by software engineers developing the system. ²Implicitness § Domain specialists understand the area so well that they do not think of making the domain requirements explicit.

The software requirements document ² The software requirements document is the official statement of

The software requirements document ² The software requirements document is the official statement of what is required of the system developers. ² Should include both a definition of user requirements and a specification of the system requirements. ² It is NOT a design document. As far as possible, it should set of WHAT the system should do rather than HOW it should do it.

Problem Identification & Requirements Specification ² Answering question: § What problem is being solved?

Problem Identification & Requirements Specification ² Answering question: § What problem is being solved? ² 10 -25% of life cycle should be spent here § E. g. , Expected software or application life is 10 years • 1 to 2. 5 years in this phase ² Techniques § Partitioning: Divide and conquer • Parts & relationships § Abstraction: Defining in general terms • Leaving out details § Projection: Viewing problem from different perspectives • User perspective, programmer perspective, maintainer perspective § Many other techniques • E. g. , data flow diagrams

Banking ATM system Example ² The example used here is an auto-teller system which

Banking ATM system Example ² The example used here is an auto-teller system which provides some automated banking services ² I use a very simplified system which offers some services to customers of the bank who own the system and a narrower range of services to other customers ² Services include cash withdrawal, message passing (send a message to request a service), ordering a statement and transferring funds

Requirements document variability ²Information in requirements document depends on type of system and the

Requirements document variability ²Information in requirements document depends on type of system and the approach to development used. ²Requirements documents standards have been designed e. g. IEEE standard. These are mostly applicable to the requirements for large systems engineering projects.

The structure of a requirements document Chapter Description Preface This should define the expected

The structure of a requirements document Chapter Description Preface This should define the expected readership of the document and describe its version history, including a rationale for the creation of a new version and a summary of the changes made in each version. Introduction This should describe the need for the system. It should briefly describe the system’s functions and explain how it will work with other systems. It should also describe how the system fits into the overall business or strategic objectives of the organization commissioning the software. Glossary This should define the technical terms used in the document. You should not make assumptions about the experience or expertise of the reader. User requirements Here, you describe the services provided for the user. The definition nonfunctional system requirements should also be described in this section. This description may use natural language, diagrams, or other notations that are understandable to customers. Product and process standards that must be followed should be specified. System architecture This chapter should present a high-level overview of the anticipated system architecture, showing the distribution of functions across system modules. Architectural components that are reused should be highlighted.

The structure of a requirements document Chapter Description System requirements specification This should describe

The structure of a requirements document Chapter Description System requirements specification This should describe the functional and nonfunctional requirements in more detail. If necessary, further detail may also be added to the nonfunctional requirements. Interfaces to other systems may be defined. System models This might include graphical system models showing the relationships between the system components and the system and its environment. Examples of possible models are object models, data-flow models, or semantic data models. System evolution This should describe the fundamental assumptions on which the system is based, and any anticipated changes due to hardware evolution, changing user needs, and so on. This section is useful for system designers as it may help them avoid design decisions that would constrain likely future changes to the system. Appendices These should provide detailed, specific information that is related to the application being developed; for example, hardware and database descriptions. Hardware requirements define the minimal and optimal configurations for the system. Database requirements define the logical organization of the data used by the system and the relationships between data. Index Several indexes to the document may be included. As well as a normal alphabetic index, there may be an index of diagrams, an index of functions, and so on.

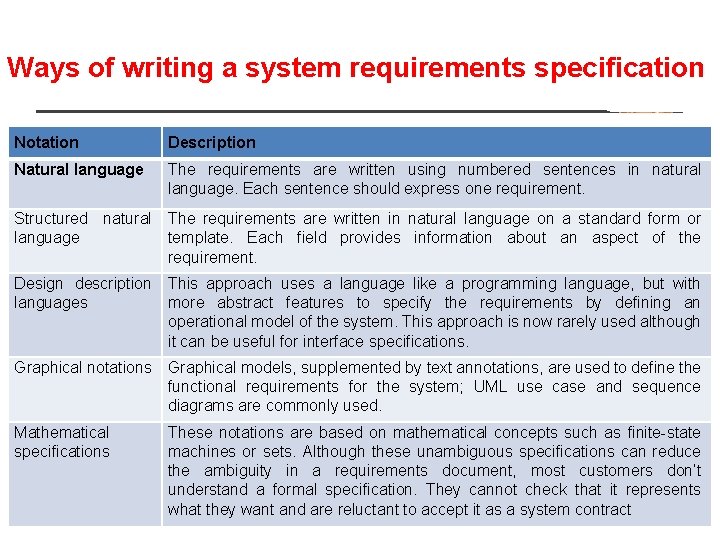

Ways of writing a system requirements specification Notation Description Natural language The requirements are

Ways of writing a system requirements specification Notation Description Natural language The requirements are written using numbered sentences in natural language. Each sentence should express one requirement. Structured natural The requirements are written in natural language on a standard form or language template. Each field provides information about an aspect of the requirement. Design description This approach uses a language like a programming language, but with languages more abstract features to specify the requirements by defining an operational model of the system. This approach is now rarely used although it can be useful for interface specifications. Graphical notations Graphical models, supplemented by text annotations, are used to define the functional requirements for the system; UML use case and sequence diagrams are commonly used. Mathematical specifications These notations are based on mathematical concepts such as finite-state machines or sets. Although these unambiguous specifications can reduce the ambiguity in a requirements document, most customers don’t understand a formal specification. They cannot check that it represents what they want and are reluctant to accept it as a system contract

Example requirements for the insulin pump software system 3. 2 The system shall measure

Example requirements for the insulin pump software system 3. 2 The system shall measure the blood sugar and deliver insulin, if required, every 10 minutes. (Changes in blood sugar are relatively slow so more frequent measurement is unnecessary; less frequent measurement could lead to unnecessarily high sugar levels. ) 3. 6 The system shall run a self-test routine every minute with the conditions to be tested and the associated actions defined in Table 1. (A self-test routine can discover hardware and software problems and alert the user to the fact the normal operation may be impossible. )

A structured specification of a requirement for an insulin pump

A structured specification of a requirement for an insulin pump

A structured specification of a requirement for an insulin pump

A structured specification of a requirement for an insulin pump

Tabular specification of computation for an insulin pump Condition Action Sugar level falling (r

Tabular specification of computation for an insulin pump Condition Action Sugar level falling (r 2 < r 1) Comp. Dose = 0 Sugar level stable (r 2 = r 1) Comp. Dose = 0 Sugar level increasing and rate of increase Comp. Dose = 0 decreasing ((r 2 – r 1) < (r 1 – r 0)) Sugar level increasing and rate of increase stable or Comp. Dose increasing round ((r 2 – r 1)/4) ((r 2 – r 1) ≥ (r 1 – r 0)) If rounded result = 0 then Comp. Dose = Minimum. Dose =

Stakeholders in the MHC-PMS ² Patients whose information is recorded in the system. ²

Stakeholders in the MHC-PMS ² Patients whose information is recorded in the system. ² Doctors who are responsible for assessing and treating patients. ² Nurses who coordinate the consultations with doctors and administer some treatments. ² Medical receptionists who manage patients’ appointments. ² IT staff who are responsible for installing and maintaining the system.

Scenarios ²Scenarios are real-life examples of how a system can be used. ²They should

Scenarios ²Scenarios are real-life examples of how a system can be used. ²They should include § § § A description of the starting situation; A description of the normal flow of events; A description of what can go wrong; Information about other concurrent activities; A description of the state when the scenario finishes.

Example ² Scenario 1: User logs in using a valid username and password ²

Example ² Scenario 1: User logs in using a valid username and password ² Scenario 2: User performs search using item description ² Requirement 1: only authorized user can use the system ² Requirement 2: search result page should only return the first 50 records

Scenario: customer withdrawing money from ATM ² It’s Friday afternoon and Hassan is flying

Scenario: customer withdrawing money from ATM ² It’s Friday afternoon and Hassan is flying to Aswan. ² He doesn’t have enough money for a taxi to the airport, and he’s running late. ² He goes to the local ATM and identifies himself. ² He specifies that he wants 100 from his savings account. ² He’d like the money in 20 notes so that he can give the taxi driver the correct change. ² He doesn’t want a printed receipt, as he doesn’t bother keeping track of transactions in this account.

In details ² Mohamed Hassan presses the "Withdraw Funds" button in ATM ² The

In details ² Mohamed Hassan presses the "Withdraw Funds" button in ATM ² The ATM displays the preset withdrawal amounts (20, 100, and so on) ² Mohamed chooses the option to specify the amount of the withdrawal ² The ATM displays an input field for the withdrawal amount ² Mohamed indicates that he wishes to withdraw 500 ² The ATM displays a list of Mohamed's accounts, a checking and two savings accounts ² Mohamed chooses his checking account ² The ATM verifies that the amount may be withdrawn from his account ² The ATM verifies that there is at least 500 available to be disbursed from the machine

² The ATM debits Mohamed's account by 500 ² The ATM disburses 500 in

² The ATM debits Mohamed's account by 500 ² The ATM disburses 500 in cash ² The ATM displays the "Do you wish to print a receipt" options ² Mohamed indicates "Yes" ² The ATM prints the receipt

Event scenario - start transaction

Event scenario - start transaction

Scenario for collecting medical history in MHCPMS

Scenario for collecting medical history in MHCPMS

Scenario for collecting medical history in MHCPMS

Scenario for collecting medical history in MHCPMS

Requirements validation ²Concerned with demonstrating that the requirements define the system that the customer

Requirements validation ²Concerned with demonstrating that the requirements define the system that the customer really wants. ²Requirements error costs are high so validation is very important § Fixing a requirements error after delivery may cost up to 100 times the cost of fixing an implementation error.

Requirements checking ² Validity. Does the system provide the functions which best support the

Requirements checking ² Validity. Does the system provide the functions which best support the customer’s needs? ² Consistency. Are there any requirements conflicts? ² Completeness. Are all functions required by the customer included? ² Realism. Can the requirements be implemented given available budget and technology ² Verifiability. Can the requirements be checked?

Requirements validation techniques ²Requirements reviews § Systematic manual analysis of the requirements. ²Prototyping §

Requirements validation techniques ²Requirements reviews § Systematic manual analysis of the requirements. ²Prototyping § Using an executable model of the system to check requirements. Covered in Chapter 2. ²Test-case generation § Developing tests for requirements to check testability.

Requirements management ² Requirements management is the process of managing changing requirements during the

Requirements management ² Requirements management is the process of managing changing requirements during the requirements engineering process and system development. ² New requirements emerge as a system is being developed and after it has gone into use. ² You need to keep track of individual requirements and maintain links between dependent requirements so that you can assess the impact of requirements changes. You need to establish a formal process for making change proposals and linking these to system requirements.

Changing requirements Requirements will change! § inadequately captured or expressed in the first place

Changing requirements Requirements will change! § inadequately captured or expressed in the first place § user and business needs may change during the project Validation is needed throughout the software lifecycle, not only when the “final system” is delivered! § build constant feedback into your project plan § plan for change § early prototyping [e. g. , UI] can help clarify requirements

Changing requirements ² The business and technical environment of the system always changes after

Changing requirements ² The business and technical environment of the system always changes after installation. § New hardware may be introduced, it may be necessary to interface the system with other systems, business priorities may change (with consequent changes in the system support required), and new legislation and regulations may be introduced that the system must necessarily abide by. ² The people who pay for a system and the users of that system are rarely the same people. § System customers impose requirements because of organizational and budgetary constraints. These may conflict with end-user requirements and, after delivery, new features may have to be added for user support if the system is to meet its goals.

Requirements evolution

Requirements evolution

Requirements change management ² Deciding if a requirements change should be accepted § Problem

Requirements change management ² Deciding if a requirements change should be accepted § Problem analysis and change specification • During this stage, the problem or the change proposal is analyzed to check that it is valid. This analysis is fed back to the change requestor who may respond with a more specific requirements change proposal, or decide to withdraw the request. § Change analysis and costing • The effect of the proposed change is assessed using traceability information and general knowledge of the system requirements. Once this analysis is completed, a decision is made whether or not to proceed with the requirements change. § Change implementation • The requirements document and, where necessary, the system design and implementation, are modified. Ideally, the document should be organized so that changes can be easily implemented.
