履歴情報を用いた同一ユースケース 実装クラス群抽出法の提案 楠田泰三, 川口真司, 松下誠, 井上克郎 大阪大学大学院情報科学研究科 井上研究室 Software Engineering Laboratory, Department of Computer Science, Graduate School of Information Science and Technology, Osaka University 1
ソフトウェアの可視化 ソフトウェア可視化技術 ソフトウェアの構造や振る舞いを、図やグラフを用いて表現することで、 ソフトウェア理解を支援 例) UMLのクラス図 オブジェクト指向ソフトウェアの構造理解を支援 クラスの継承、依存などの関係を記述できる State. Setter set. State() State print. Msg() Msg. Printer state : State. A State. B set. State() print. Msg() Software Engineering Laboratory, Department of Computer Science, Graduate School of Information Science and Technology, Osaka University 2

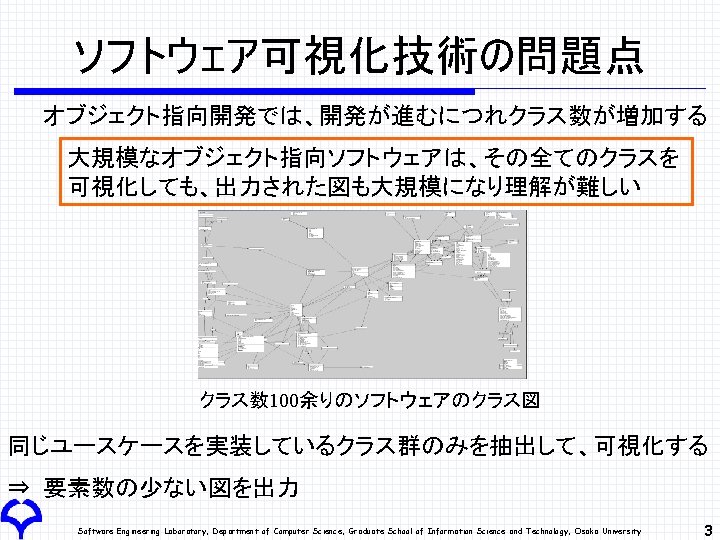

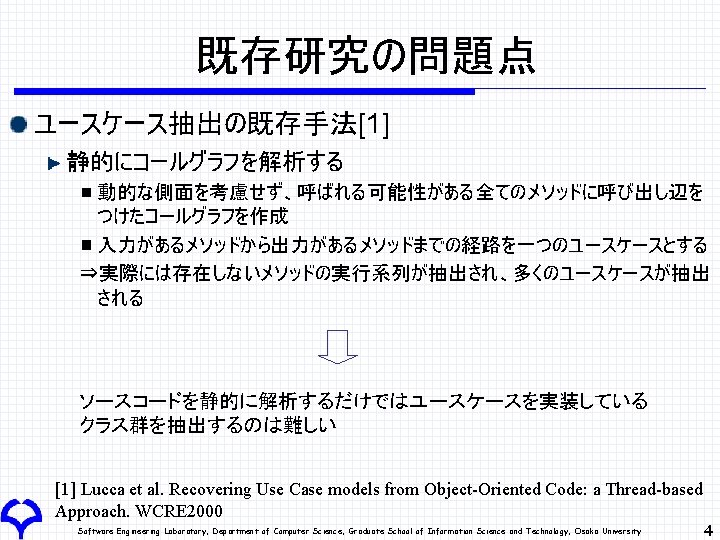

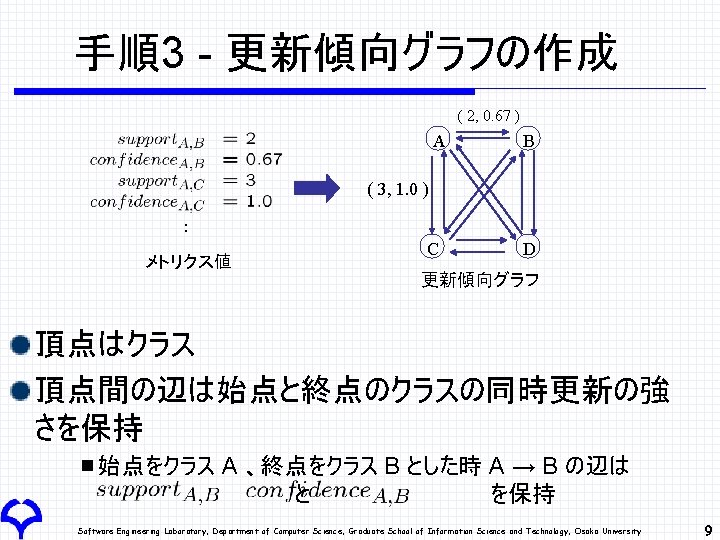

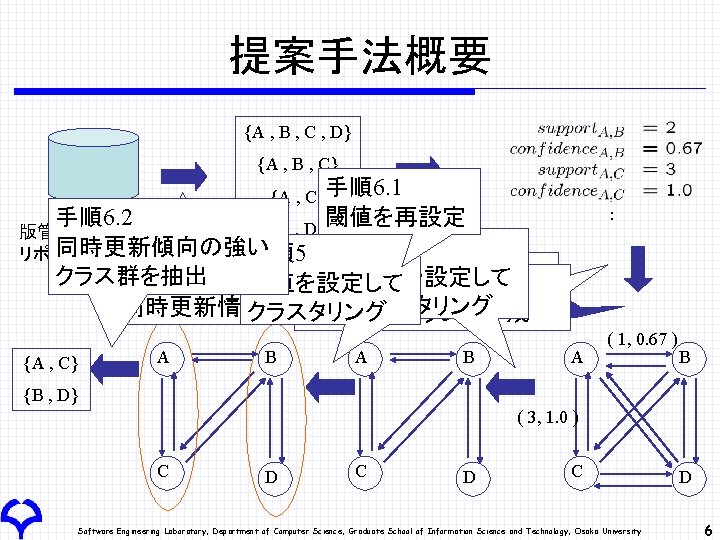

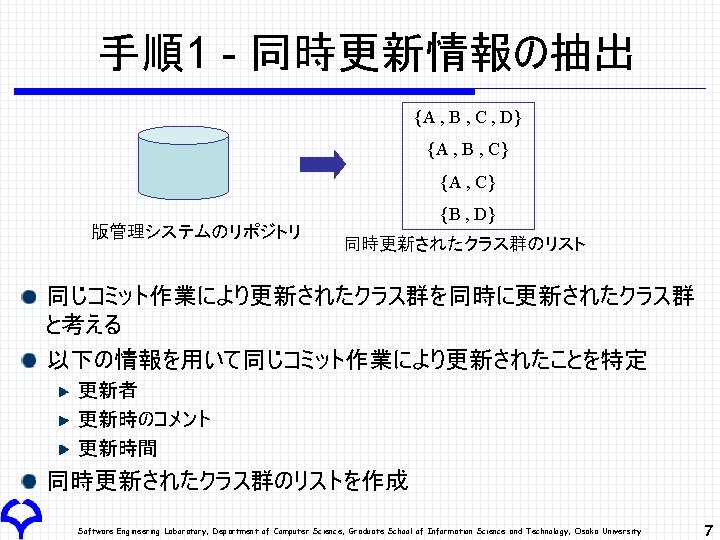

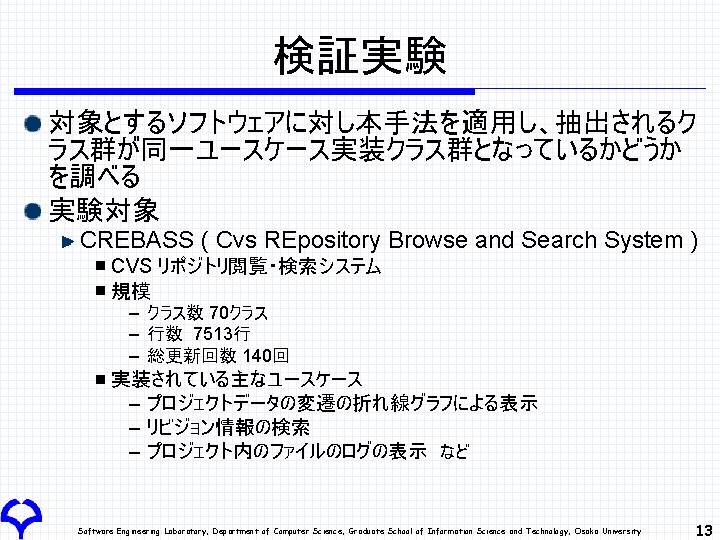

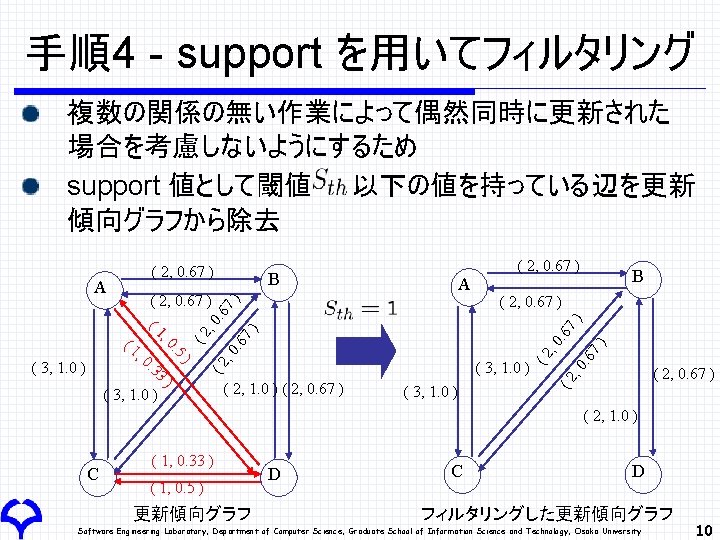

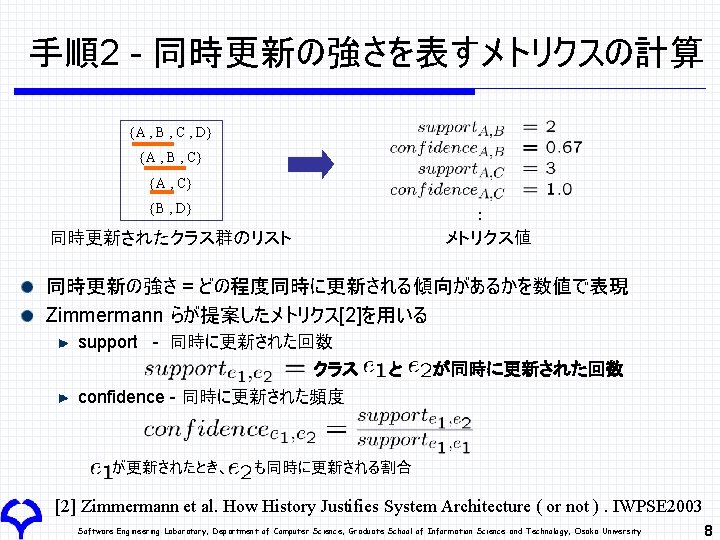

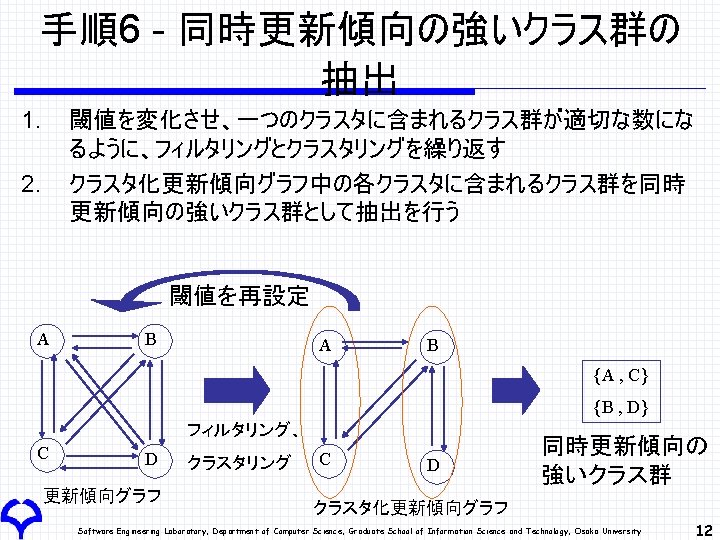

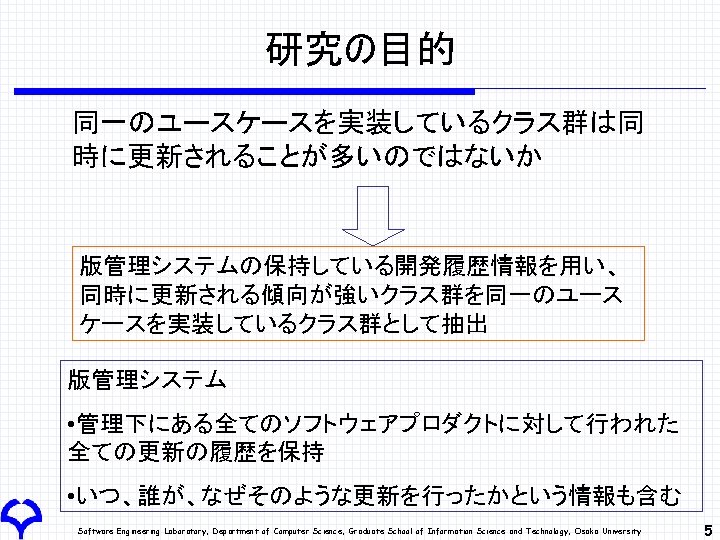

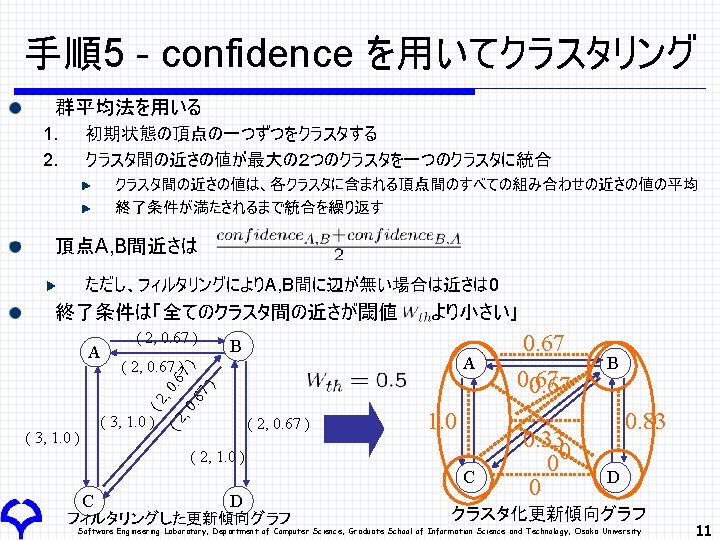

実験結果 の時のクラスタ化更新傾向グラフ ユースケース 実装クラス 抽出クラス 適合クラス 折れ線グラフによる表示 4 4 4 20 4 リビジョン検索 7 0 0 7 7 ファイルのログの表示 4 4 4 3 3 Software Engineering Laboratory, Department of Computer Science, Graduate School of Information Science and Technology, Osaka University 14
