SOFTWARE DEFINED NETWORKING: PYTHON PROGRAMMABILITY AND EVENT MANAGER December, 2015 COPYRIGHT © 2014 ALCATEL-LUCENT. ALL RIGHTS RESERVED. ALCATEL-LUCENT — INTERNAL PROPRIETARY — USE PURSUANT TO COMPANY INSTRUCTION
AGENDA 1. Python Programmability and Event Manager Intro 2. Scenario and Demo 3. Key Takeaways 3 COPYRIGHT © 2012 ALCATEL-LUCENT ENTERPRISE. ALL RIGHTS RESERVED.

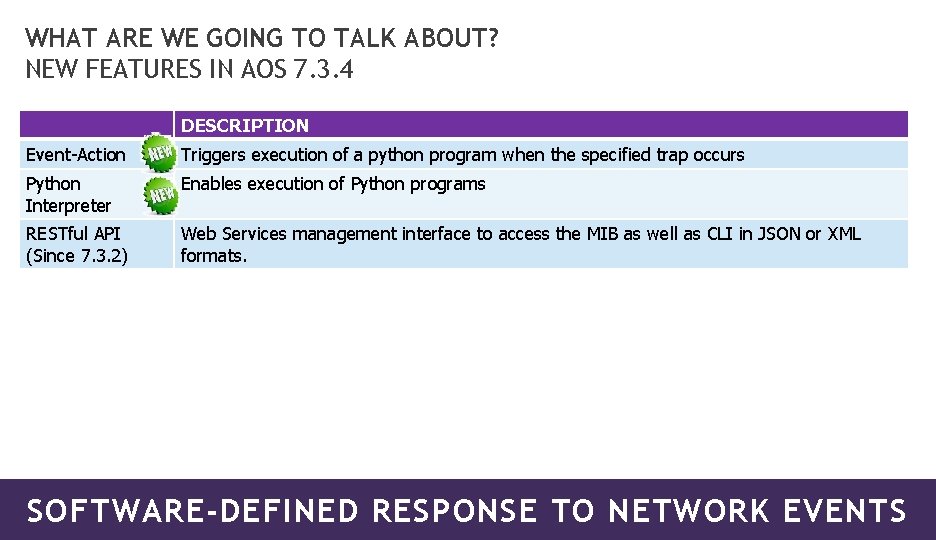

WHAT ARE WE GOING TO TALK ABOUT? NEW FEATURES IN AOS 7. 3. 4 DESCRIPTION Event-Action Triggers execution of a python program when the specified trap occurs Python Interpreter Enables execution of Python programs RESTful API (Since 7. 3. 2) Web Services management interface to access the MIB as well as CLI in JSON or XML formats. SOFTWARE-DEFINED RESPONSE TO NETWORK EVENTS 4 COPYRIGHT © 2014 ALCATEL-LUCENT. ALL RIGHTS RESERVED. ALCATEL-LUCENT — INTERNAL PROPRIETARY — USE PURSUANT TO COMPANY INSTRUCTION

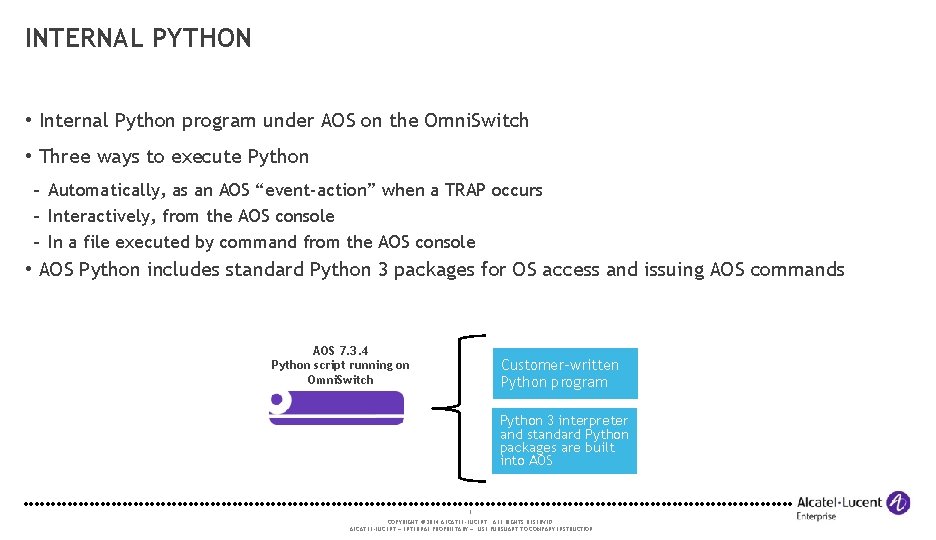

INTERNAL PYTHON • Internal Python program under AOS on the Omni. Switch • Three ways to execute Python Automatically, as an AOS “event-action” when a TRAP occurs Interactively, from the AOS console In a file executed by command from the AOS console • AOS Python includes standard Python 3 packages for OS access and issuing AOS commands AOS 7. 3. 4 Python script running on Omni. Switch Customer-written Python program Python 3 interpreter and standard Python packages are built into AOS 5 COPYRIGHT © 2014 ALCATEL-LUCENT. ALL RIGHTS RESERVED. ALCATEL-LUCENT — INTERNAL PROPRIETARY — USE PURSUANT TO COMPANY INSTRUCTION

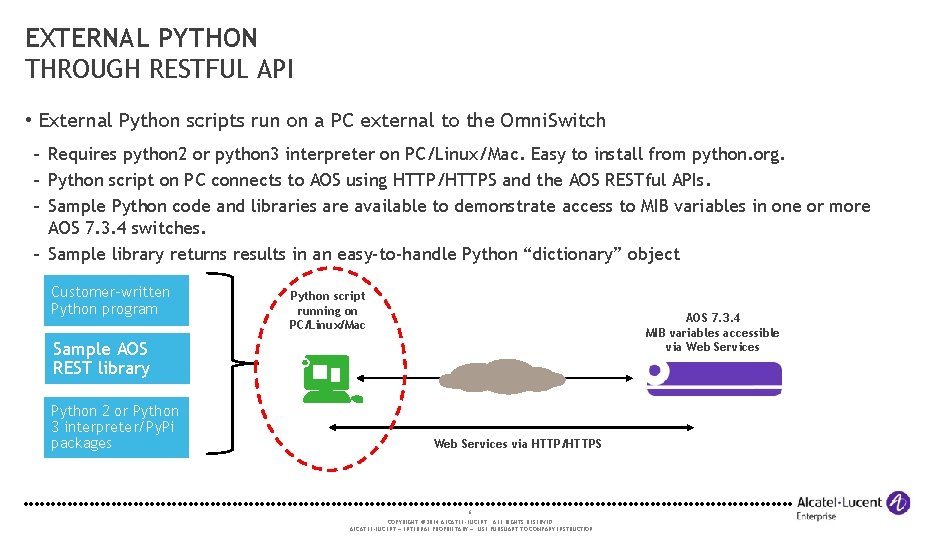

EXTERNAL PYTHON THROUGH RESTFUL API • External Python scripts run on a PC external to the Omni. Switch Requires python 2 or python 3 interpreter on PC/Linux/Mac. Easy to install from python. org. Python script on PC connects to AOS using HTTP/HTTPS and the AOS RESTful APIs. Sample Python code and libraries are available to demonstrate access to MIB variables in one or more AOS 7. 3. 4 switches. Sample library returns results in an easy-to-handle Python “dictionary” object Customer-written Python program Python script running on PC/Linux/Mac AOS 7. 3. 4 MIB variables accessible via Web Services Sample AOS REST library Python 2 or Python 3 interpreter/Py. Pi packages Web Services via HTTP/HTTPS 6 COPYRIGHT © 2014 ALCATEL-LUCENT. ALL RIGHTS RESERVED. ALCATEL-LUCENT — INTERNAL PROPRIETARY — USE PURSUANT TO COMPANY INSTRUCTION

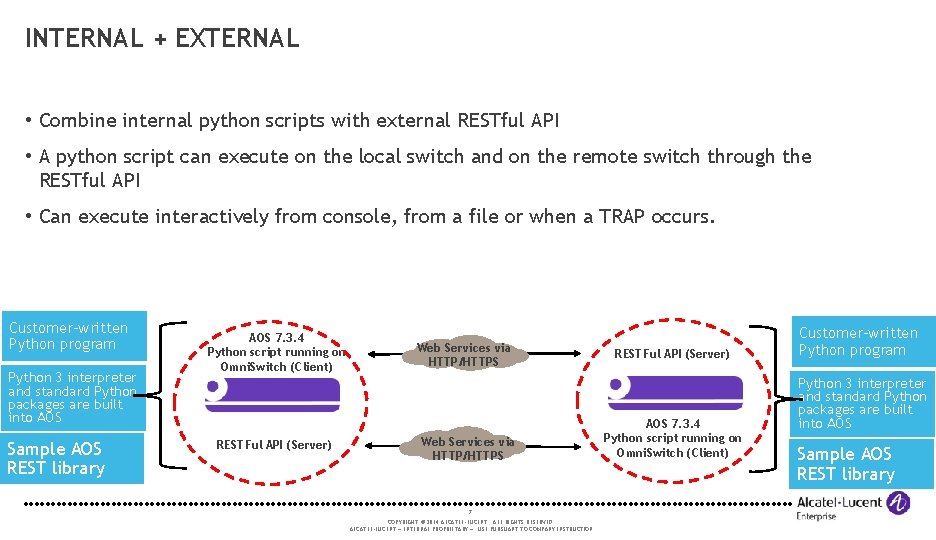

INTERNAL + EXTERNAL • Combine internal python scripts with external RESTful API • A python script can execute on the local switch and on the remote switch through the RESTful API • Can execute interactively from console, from a file or when a TRAP occurs. Customer-written Python program Python 3 interpreter and standard Python packages are built into AOS Sample AOS REST library AOS 7. 3. 4 Python script running on Omni. Switch (Client) RESTFul API (Server) Web Services via HTTP/HTTPS 7 COPYRIGHT © 2014 ALCATEL-LUCENT. ALL RIGHTS RESERVED. ALCATEL-LUCENT — INTERNAL PROPRIETARY — USE PURSUANT TO COMPANY INSTRUCTION RESTFul API (Server) AOS 7. 3. 4 Python script running on Omni. Switch (Client) Customer-written Python program Python 3 interpreter and standard Python packages are built into AOS Sample AOS REST library
SCENARIO AND DEMO

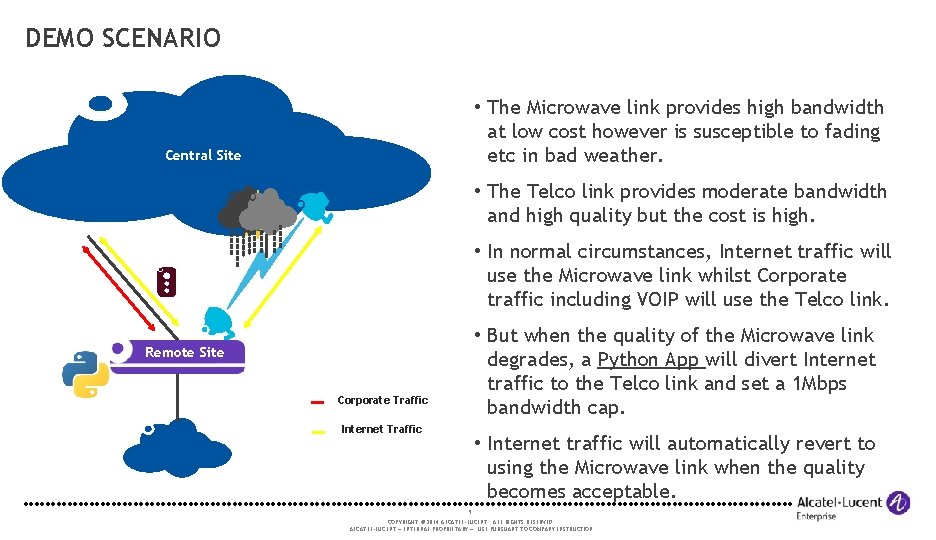

DEMO SCENARIO • The Microwave link provides high bandwidth at low cost however is susceptible to fading etc in bad weather. Central Site • The Telco link provides moderate bandwidth and high quality but the cost is high. • In normal circumstances, Internet traffic will use the Microwave link whilst Corporate traffic including VOIP will use the Telco link. • But when the quality of the Microwave link degrades, a Python App will divert Internet traffic to the Telco link and set a 1 Mbps bandwidth cap. Remote Site Corporate Traffic Internet Traffic • Internet traffic will automatically revert to using the Microwave link when the quality becomes acceptable. 9 COPYRIGHT © 2014 ALCATEL-LUCENT. ALL RIGHTS RESERVED. ALCATEL-LUCENT — INTERNAL PROPRIETARY — USE PURSUANT TO COMPANY INSTRUCTION

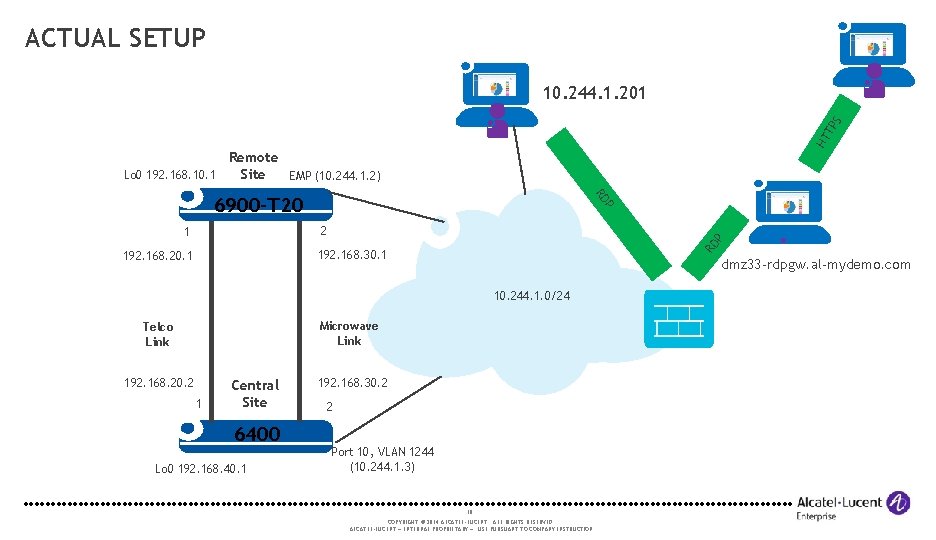

ACTUAL SETUP HT TP S 10. 244. 1. 201 Remote Lo 0 192. 168. 10. 1 Site EMP (10. 244. 1. 2) P RD 6900 -T 20 RD P 2 1 192. 168. 30. 1 192. 168. 20. 1 dmz 33 -rdpgw. al-mydemo. com 10. 244. 1. 0/24 Microwave Link Telco Link 192. 168. 20. 2 1 Central Site 6400 Lo 0 192. 168. 40. 1 192. 168. 30. 2 2 Port 10, VLAN 1244 (10. 244. 1. 3) 10 COPYRIGHT © 2014 ALCATEL-LUCENT. ALL RIGHTS RESERVED. ALCATEL-LUCENT — INTERNAL PROPRIETARY — USE PURSUANT TO COMPANY INSTRUCTION

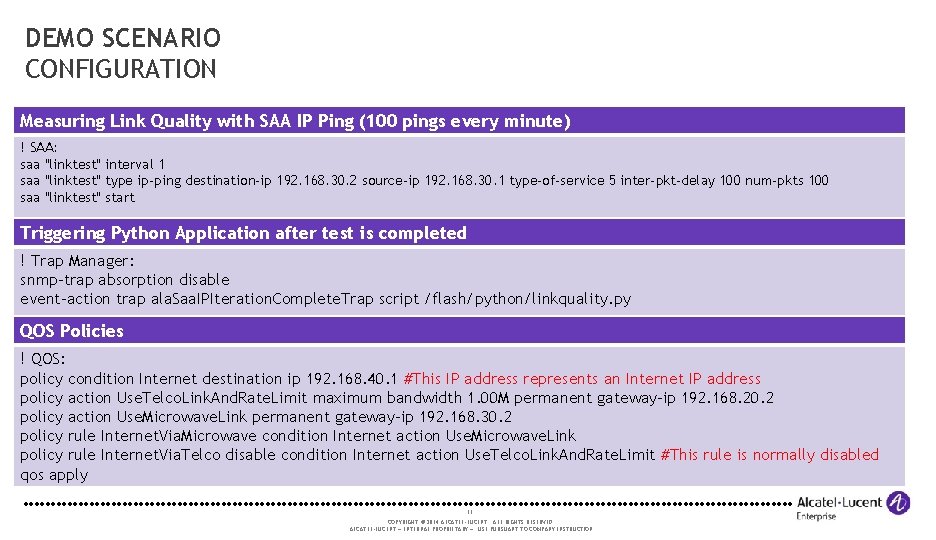

DEMO SCENARIO CONFIGURATION Measuring Link Quality with SAA IP Ping (100 pings every minute) ! SAA: saa "linktest" interval 1 saa "linktest" type ip-ping destination-ip 192. 168. 30. 2 source-ip 192. 168. 30. 1 type-of-service 5 inter-pkt-delay 100 num-pkts 100 saa "linktest" start Triggering Python Application after test is completed ! Trap Manager: snmp-trap absorption disable event-action trap ala. Saa. IPIteration. Complete. Trap script /flash/python/linkquality. py QOS Policies ! QOS: policy condition Internet destination ip 192. 168. 40. 1 #This IP address represents an Internet IP address policy action Use. Telco. Link. And. Rate. Limit maximum bandwidth 1. 00 M permanent gateway-ip 192. 168. 20. 2 policy action Use. Microwave. Link permanent gateway-ip 192. 168. 30. 2 policy rule Internet. Via. Microwave condition Internet action Use. Microwave. Link policy rule Internet. Via. Telco disable condition Internet action Use. Telco. Link. And. Rate. Limit #This rule is normally disabled qos apply 11 COPYRIGHT © 2014 ALCATEL-LUCENT. ALL RIGHTS RESERVED. ALCATEL-LUCENT — INTERNAL PROPRIETARY — USE PURSUANT TO COMPANY INSTRUCTION
DEMO SCENARIO PYTHON LOGIC > 10 % Microwave Link in Use? Yes Disable Internet. Via. Microwave rule Enable Internet. Via. Telco rule No Packet Loss 5 % to 10 % (hysteresis to avoid toggling) Do nothing and exit Yes <5% No Microwave Link in Use? Disable Internet. Via. Telco rule Enable Internet. Via. Microwave rule 12 COPYRIGHT © 2014 ALCATEL-LUCENT. ALL RIGHTS RESERVED. ALCATEL-LUCENT — INTERNAL PROPRIETARY — USE PURSUANT TO COMPANY INSTRUCTION
KEY TAKEAWAYS
PYTHON PROGRAMMABILITY AND EVENT MANAGER KEY TAKEAWAYS Ø Embedded software-defined response to network events Ø Minimize disruption with nearly real-time reaction Ø No dependence on NMS or SDN controller availability or reachability Ø Infinite possibilities 14 COPYRIGHT © 2014 ALCATEL-LUCENT. ALL RIGHTS RESERVED. ALCATEL-LUCENT — INTERNAL PROPRIETARY — USE PURSUANT TO COMPANY INSTRUCTION
v 15 COPYRIGHT © 2014 ALCATEL-LUCENT. ALL RIGHTS RESERVED. ALCATEL-LUCENT — INTERNAL PROPRIETARY — USE PURSUANT TO COMPANY INSTRUCTION
