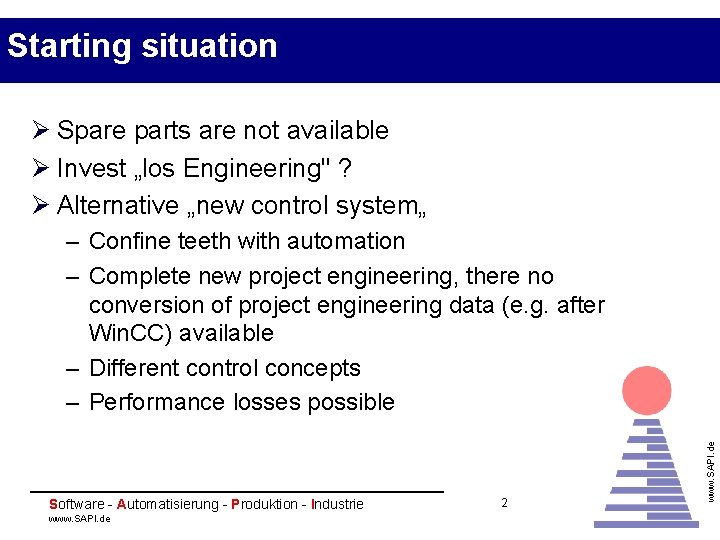

Starting situation Ø Spare parts are not available Ø Invest „los Engineering" ? Ø Alternative „new control system„ Software - Automatisierung - Produktion - Industrie www. SAPI. de 2 www. SAPI. de – Confine teeth with automation – Complete new project engineering, there no conversion of project engineering data (e. g. after Win. CC) available – Different control concepts – Performance losses possible

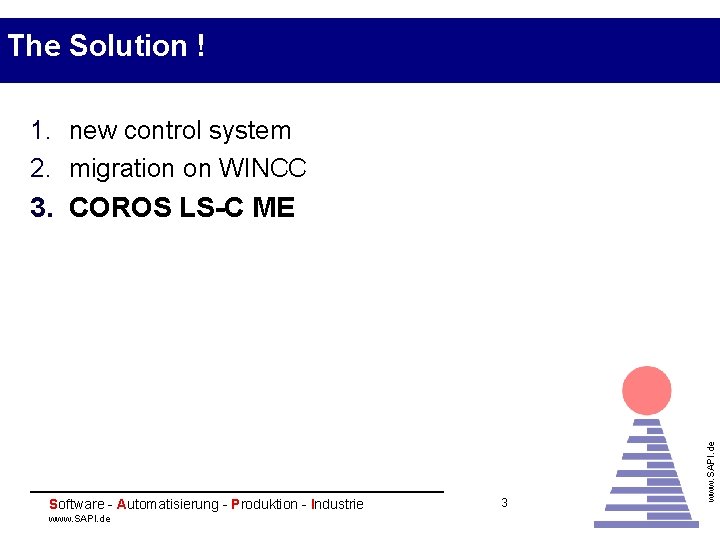

The Solution ! 1. new control system 2. migration on WINCC Software - Automatisierung - Produktion - Industrie www. SAPI. de 3. COROS LS-C ME

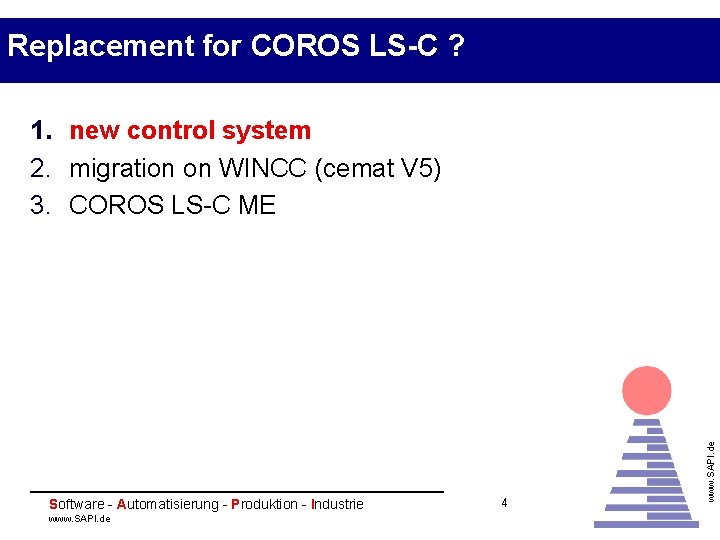

Replacement for COROS LS-C ? Software - Automatisierung - Produktion - Industrie www. SAPI. de 4 www. SAPI. de 1. new control system 2. migration on WINCC (cemat V 5) 3. COROS LS-C ME

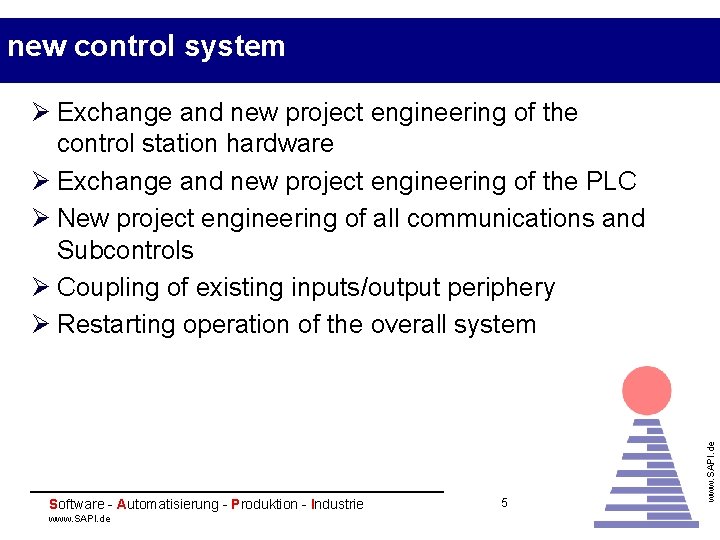

new control system Software - Automatisierung - Produktion - Industrie www. SAPI. de 5 www. SAPI. de Ø Exchange and new project engineering of the control station hardware Ø Exchange and new project engineering of the PLC Ø New project engineering of all communications and Subcontrols Ø Coupling of existing inputs/output periphery Ø Restarting operation of the overall system

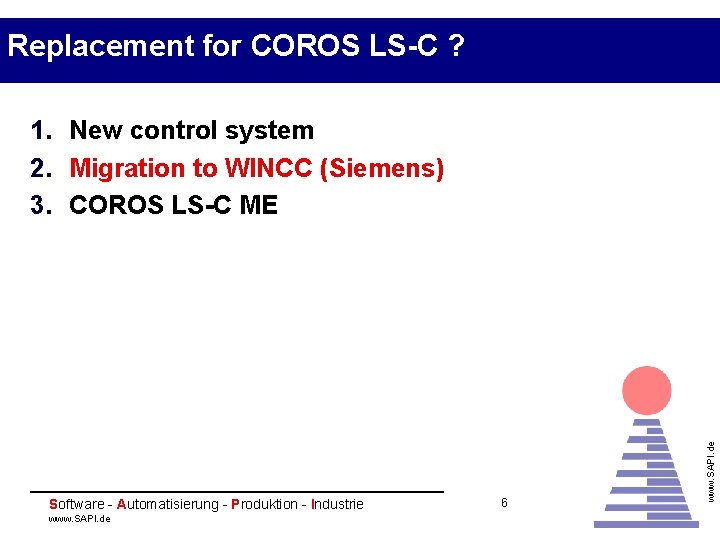

Replacement for COROS LS-C ? Software - Automatisierung - Produktion - Industrie www. SAPI. de 6 www. SAPI. de 1. New control system 2. Migration to WINCC (Siemens) 3. COROS LS-C ME

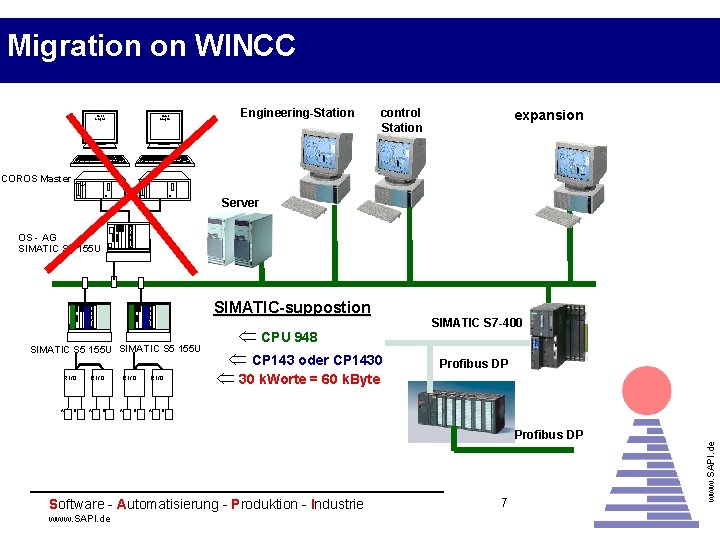

Migration on WINCC Color Graphic Engineering-Station control Station expansion COROS Master Server OS - AG SIMATIC S 5 155 U SIMATIC-suppostion SIMATIC S 5 155 U R I/O A D R I/O A Ü CPU 948 Ü CP 143 oder CP 1430 Ü 30 k. Worte = 60 k. Byte SIMATIC S 7 -400 Profibus DP D Software - Automatisierung - Produktion - Industrie www. SAPI. de 7 www. SAPI. de Profibus DP

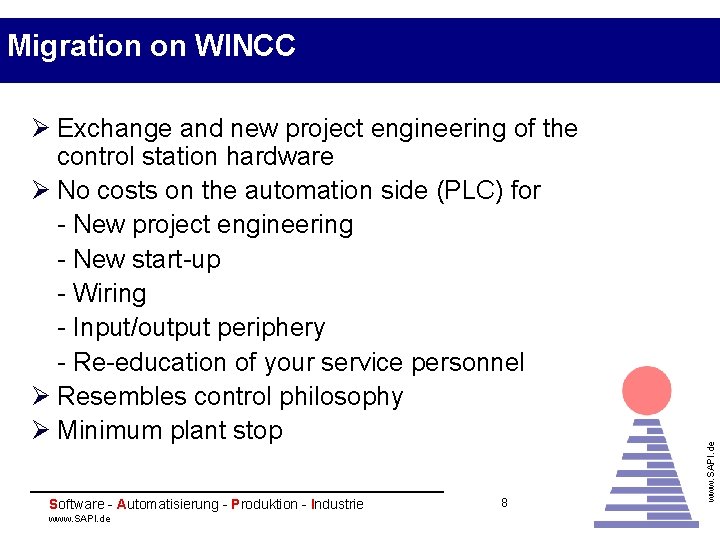

Ø Exchange and new project engineering of the control station hardware Ø No costs on the automation side (PLC) for - New project engineering - New start-up - Wiring - Input/output periphery - Re-education of your service personnel Ø Resembles control philosophy Ø Minimum plant stop Software - Automatisierung - Produktion - Industrie www. SAPI. de 8 www. SAPI. de Migration on WINCC

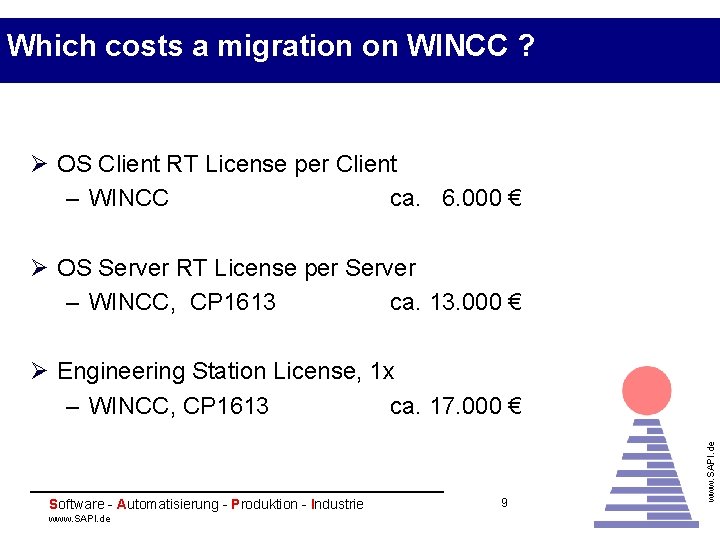

Which costs a migration on WINCC ? Ø OS Client RT License per Client – WINCC ca. 6. 000 € Ø OS Server RT License per Server – WINCC, CP 1613 ca. 13. 000 € Software - Automatisierung - Produktion - Industrie www. SAPI. de 9 www. SAPI. de Ø Engineering Station License, 1 x – WINCC, CP 1613 ca. 17. 000 €

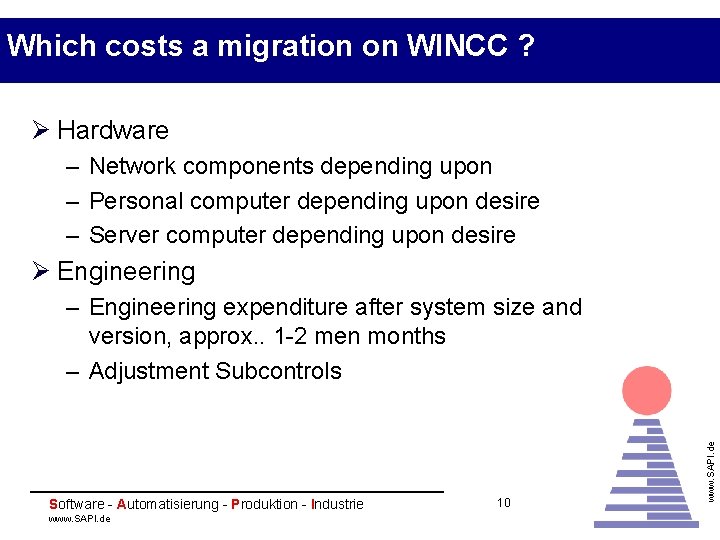

Which costs a migration on WINCC ? Ø Hardware – Network components depending upon – Personal computer depending upon desire – Server computer depending upon desire Ø Engineering Software - Automatisierung - Produktion - Industrie www. SAPI. de 10 www. SAPI. de – Engineering expenditure after system size and version, approx. . 1 -2 men months – Adjustment Subcontrols

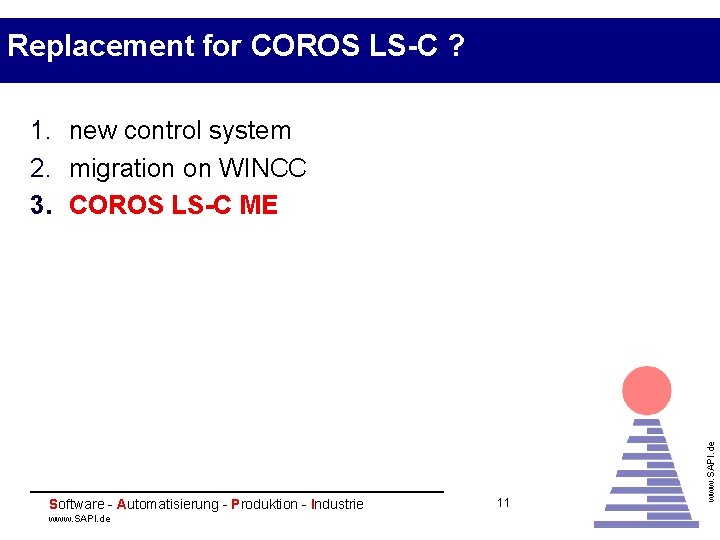

Replacement for COROS LS-C ? Software - Automatisierung - Produktion - Industrie www. SAPI. de 11 www. SAPI. de 1. new control system 2. migration on WINCC 3. COROS LS-C ME

Software - Automatisierung - Produktion - Industrie www. SAPI. de 12 www. SAPI. de Example of a configuration COROS LS-C

Software - Automatisierung - Produktion - Industrie www. SAPI. de 13 www. SAPI. de Example of a configuration COROS LS-C ME

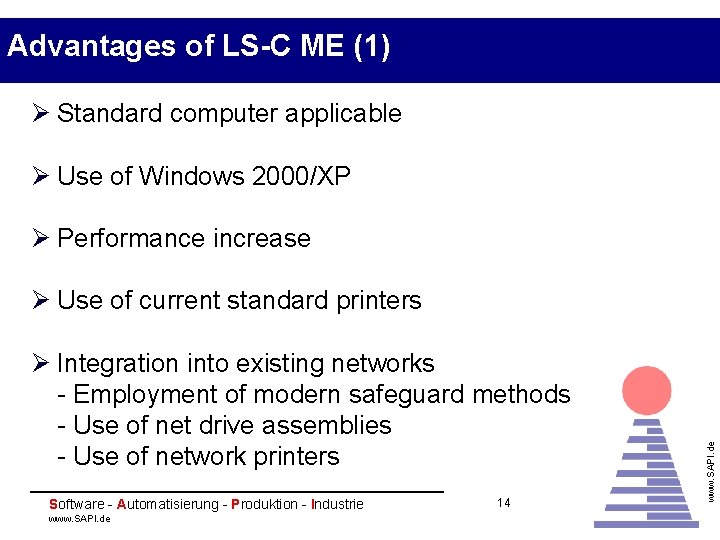

Advantages of LS-C ME (1) Ø Standard computer applicable Ø Use of Windows 2000/XP Ø Performance increase Ø Integration into existing networks - Employment of modern safeguard methods - Use of net drive assemblies - Use of network printers Software - Automatisierung - Produktion - Industrie www. SAPI. de 14 www. SAPI. de Ø Use of current standard printers

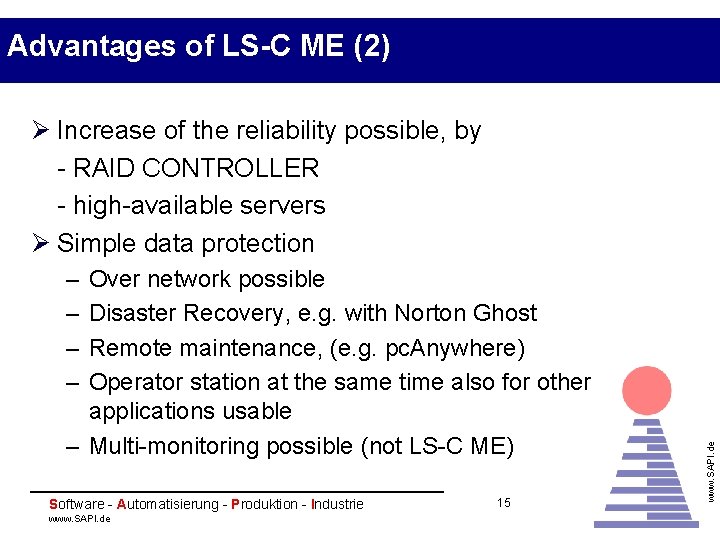

Advantages of LS-C ME (2) Ø Increase of the reliability possible, by - RAID CONTROLLER - high-available servers Ø Simple data protection Over network possible Disaster Recovery, e. g. with Norton Ghost Remote maintenance, (e. g. pc. Anywhere) Operator station at the same time also for other applications usable – Multi-monitoring possible (not LS-C ME) Software - Automatisierung - Produktion - Industrie www. SAPI. de 15 www. SAPI. de – –

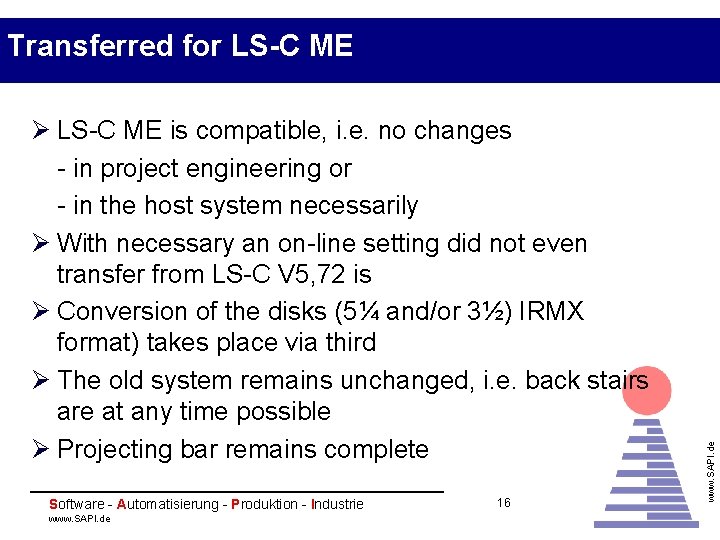

Ø LS-C ME is compatible, i. e. no changes - in project engineering or - in the host system necessarily Ø With necessary an on-line setting did not even transfer from LS-C V 5, 72 is Ø Conversion of the disks (5¼ and/or 3½) IRMX format) takes place via third Ø The old system remains unchanged, i. e. back stairs are at any time possible Ø Projecting bar remains complete Software - Automatisierung - Produktion - Industrie www. SAPI. de 16 www. SAPI. de Transferred for LS-C ME

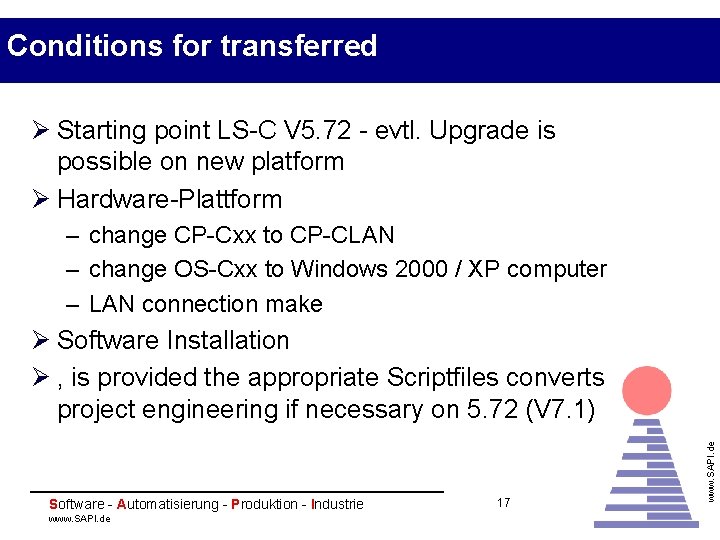

Conditions for transferred Ø Starting point LS-C V 5. 72 - evtl. Upgrade is possible on new platform Ø Hardware-Plattform – change CP-Cxx to CP-CLAN – change OS-Cxx to Windows 2000 / XP computer – LAN connection make Software - Automatisierung - Produktion - Industrie www. SAPI. de 17 www. SAPI. de Ø Software Installation Ø , is provided the appropriate Scriptfiles converts project engineering if necessary on 5. 72 (V 7. 1)

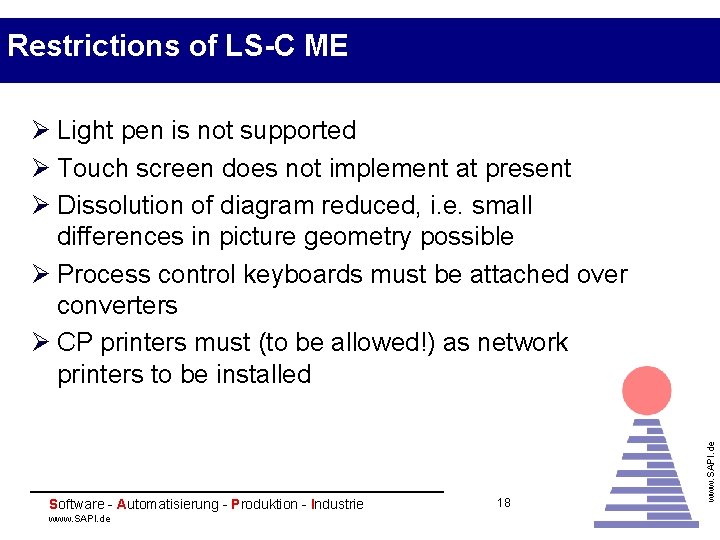

Restrictions of LS-C ME Software - Automatisierung - Produktion - Industrie www. SAPI. de 18 www. SAPI. de Ø Light pen is not supported Ø Touch screen does not implement at present Ø Dissolution of diagram reduced, i. e. small differences in picture geometry possible Ø Process control keyboards must be attached over converters Ø CP printers must (to be allowed!) as network printers to be installed

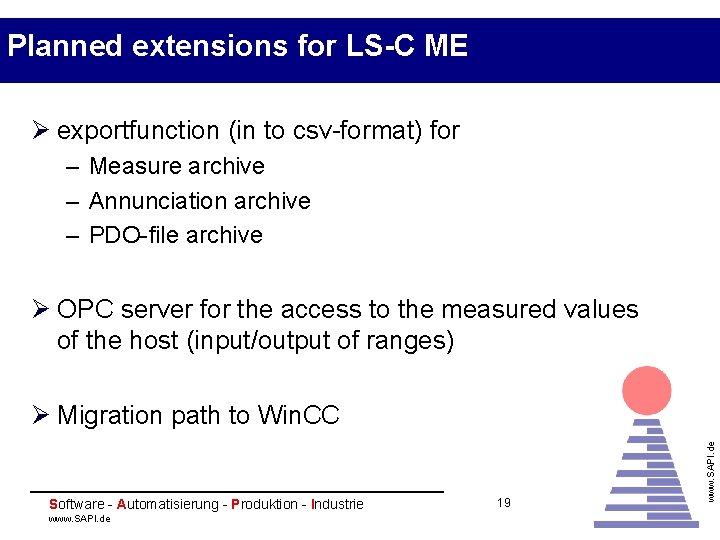

Planned extensions for LS-C ME Ø exportfunction (in to csv-format) for – Measure archive – Annunciation archive – PDO-file archive Ø OPC server for the access to the measured values of the host (input/output of ranges) Software - Automatisierung - Produktion - Industrie www. SAPI. de 19 www. SAPI. de Ø Migration path to Win. CC

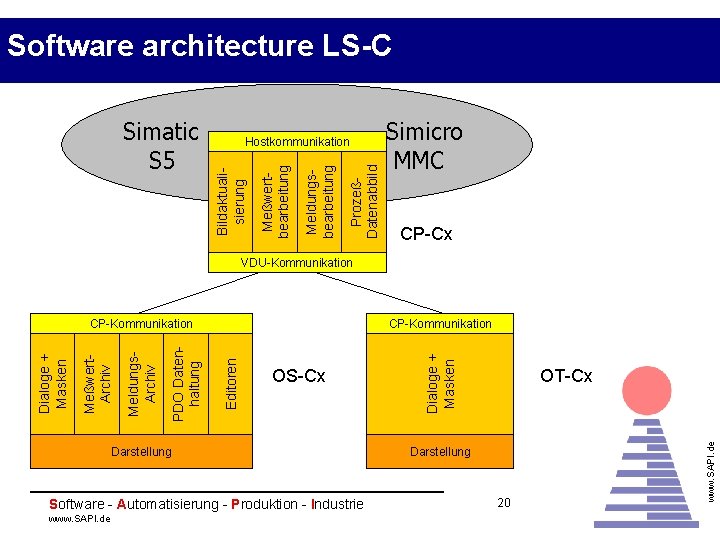

Software architecture LS-C ProzeßDatenabbild Meldungsbearbeitung Meßwertbearbeitung Hostkommunikation Bildaktualisierung Simatic S 5 Simicro MMC CP-Cx VDU-Kommunikation Darstellung Software - Automatisierung - Produktion - Industrie www. SAPI. de OT-Cx Darstellung 20 www. SAPI. de OS-Cx Dialoge + Masken CP-Kommunikation Editoren PDO Datenhaltung Meldungs. Archiv Meßwert. Archiv Dialoge + Masken CP-Kommunikation

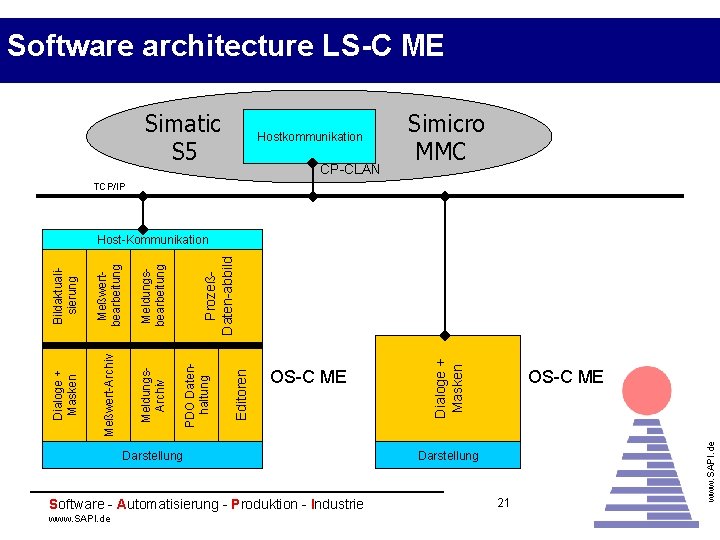

Software architecture LS-C ME Simatic S 5 Hostkommunikation CP-CLAN Simicro MMC TCP/IP Darstellung Software - Automatisierung - Produktion - Industrie www. SAPI. de OS-C ME Darstellung 21 www. SAPI. de OS-C ME Dialoge + Masken Editoren ProzeßDaten-abbild PDO Datenhaltung Meldungsbearbeitung Meßwert-Archiv Meldungs. Archiv Bildaktualisierung Dialoge + Masken Host-Kommunikation

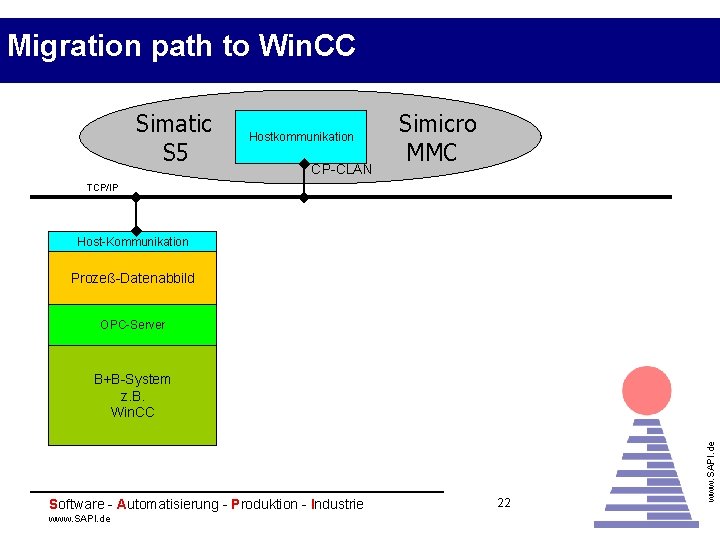

Migration path to Win. CC Simatic S 5 Hostkommunikation CP-CLAN Simicro MMC TCP/IP Host-Kommunikation Prozeß-Datenabbild OPC-Server Software - Automatisierung - Produktion - Industrie www. SAPI. de 22 www. SAPI. de B+B-System z. B. Win. CC

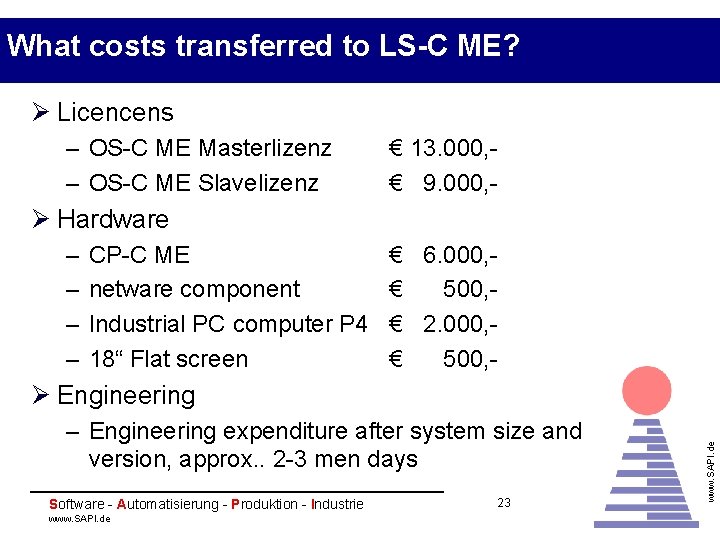

What costs transferred to LS-C ME? Ø Licencens – OS-C ME Masterlizenz – OS-C ME Slavelizenz € 13. 000, € 9. 000, - Ø Hardware – – CP-C ME netware component Industrial PC computer P 4 18“ Flat screen € 6. 000, € 500, € 2. 000, € 500, - – Engineering expenditure after system size and version, approx. . 2 -3 men days Software - Automatisierung - Produktion - Industrie www. SAPI. de 23 www. SAPI. de Ø Engineering

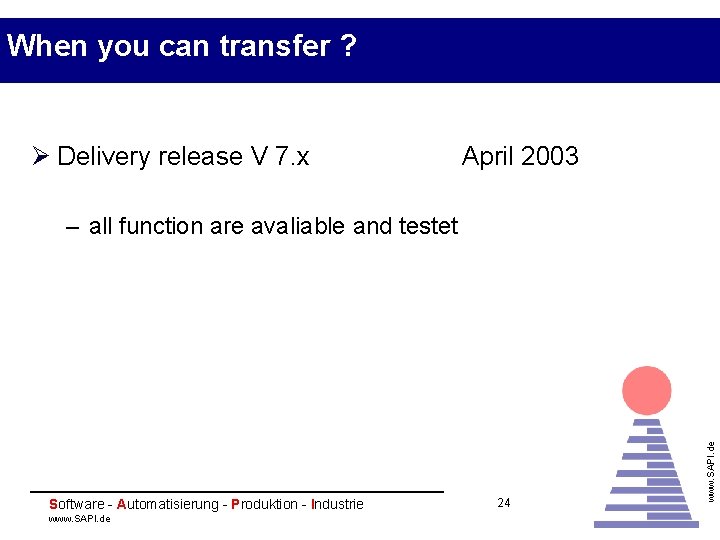

When you can transfer ? Ø Delivery release V 7. x April 2003 Software - Automatisierung - Produktion - Industrie www. SAPI. de 24 www. SAPI. de – all function are avaliable and testet

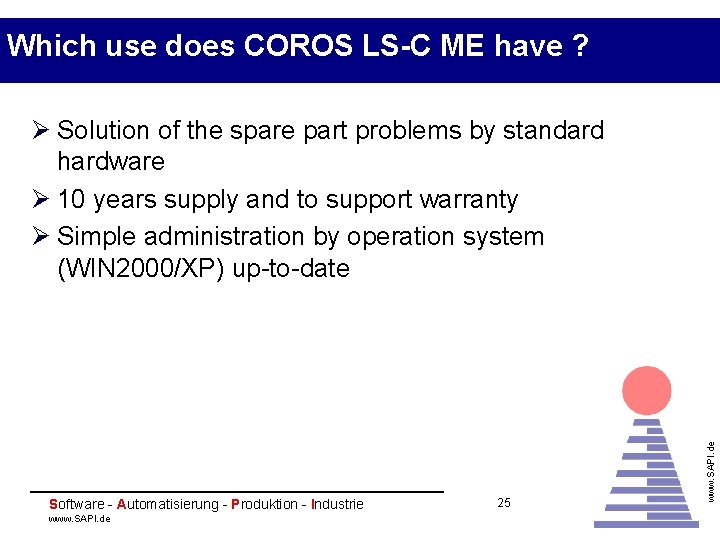

Which use does COROS LS-C ME have ? Software - Automatisierung - Produktion - Industrie www. SAPI. de 25 www. SAPI. de Ø Solution of the spare part problems by standard hardware Ø 10 years supply and to support warranty Ø Simple administration by operation system (WIN 2000/XP) up-to-date
