Soft Constraints: Exponential Models Factor graphs (undirected graphical models) and their connection to constraint programming 600. 325/425 Declarative Methods - J. Eisner 1

Soft constraint problems (e. g, MAXSAT) n Given q q n n variables m constraints, over various subsets of variables Find q Assignment to the n variables that maximizes the number of satisfied constraints. 600. 325/425 Declarative Methods - J. Eisner 2

Soft constraint problems (e. g, MAXSAT) n Given q q q n n variables m constraints, over various subsets of variables m weights, one per constraint Find q Assignment to the n variables that maximizes the total weight of the satisfied constraints. n Equivalently, minimizes total weight of violated constraints. 600. 325/425 Declarative Methods - J. Eisner 3

Draw problem structure as a “factor graph” unary constraint ternary constraint Each constraint (“factor”) is a function of the values of its variables. variable n variable binary constraint weight w if satisfied, factor=exp(w) if violated, factor=1 Measure goodness of an assignment by the product of all the factors (>= 0). q How can we reduce previous slide to this? n n There, each constraint was either satisfied or not (simple case). There, good score meant large total weight for satisfied constraints. 600. 325/425 Declarative Methods - J. Eisner figure thanks to Brian Potetz 4

Draw problem structure as a “factor graph” unary constraint ternary constraint Each constraint (“factor”) is a function of the values of its variables. variable n variable binary constraint weight w if satisfied, factor=1 if violated, factor=exp(-w) Measure goodness of an assignment by the product of all the factors (>= 0). q How can we reduce previous slide to this? n n There, each constraint was either satisfied or not (simple case). There, good score meant small total weight for violated constraints. 600. 325/425 Declarative Methods - J. Eisner figure thanks to Brian Potetz 5

Draw problem structure as a “factor graph” unary constraint ternary constraint Each constraint (“factor”) is a function of the values of its variables. variable binary constraint variable n Measure goodness of an assignment by the product of all the factors (>= 0). n Models like this show up all the time. 600. 325/425 Declarative Methods - J. Eisner figure thanks to Brian Potetz 6

Example: Ising Model (soft version of graph coloring, on a grid graph) Model Physics figure thanks to ? ? ? Boolean vars Magnetic polarity at points on the plane Binary equality constraints ? Unary constraints ? MAX-SAT ? 600. 325/425 Declarative Methods - J. Eisner 7

Example: Parts of speech (or other sequence labeling problems) Determiner this Noun Aux Adverb Verb Noun can really can tuna Or, if the input words are given, you can customize the factors to them: Determiner Noun Aux Adverb 600. 325/425 Declarative Methods - J. Eisner Verb Noun 8

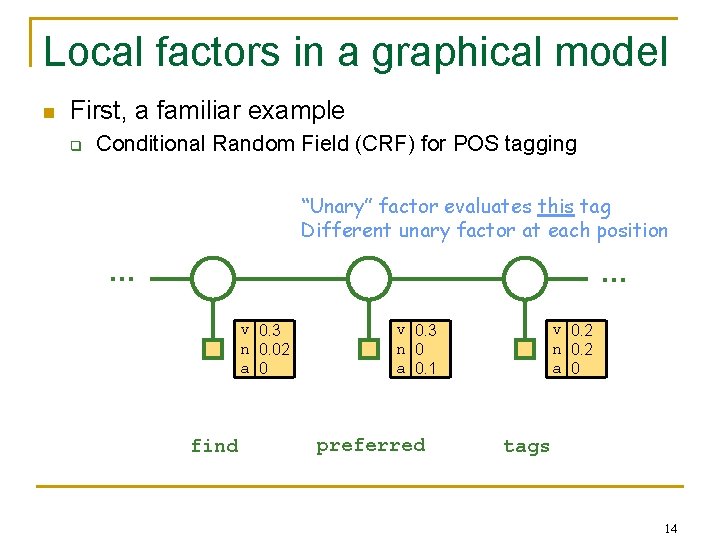

Local factors in a graphical model n First, a familiar example q Conditional Random Field (CRF) for POS tagging Possible tagging (i. e. , assignment to remaining variables) … v v v … preferred find tags Observed input sentence (shaded) 9

Local factors in a graphical model n First, a familiar example q Conditional Random Field (CRF) for POS tagging Possible tagging (i. e. , assignment to remaining variables) Another possible tagging … v a n … preferred find tags Observed input sentence (shaded) 10

Local factors in a graphical model n First, a familiar example q Conditional Random Field (CRF) for POS tagging ”Binary” factor that measures compatibility of 2 adjacent tags v v 0 n 2 a 0 n 2 1 3 a 1 0 1 Model reuses same parameters at this position … find … preferred tags 11

Local factors in a graphical model n First, a familiar example q Conditional Random Field (CRF) for POS tagging “Unary” factor evaluates this tag Its values depend on corresponding word … … v 0. 2 n 0. 2 a 0 find preferred tags can’t be adj 12

Local factors in a graphical model n First, a familiar example q Conditional Random Field (CRF) for POS tagging “Unary” factor evaluates this tag Different unary factor at each position … … v 0. 3 n 0. 02 a 0 find v 0. 3 n 0 a 0. 1 preferred v 0. 2 n 0. 2 a 0 tags 14

Local factors in a graphical model n First, a familiar example q Conditional Random Field (CRF) for POS tagging p(v a n) is proportional to the product of all factors’ values on v a n … v v 0 n 2 a 0 v a 1 0 1 v v 0 n 2 a 0 a v 0. 3 n 0. 02 a 0 find n 2 1 3 a 1 0 1 … n v 0. 3 n 0 a 0. 1 preferred v 0. 2 n 0. 2 a 0 tags 15

Example: Medical diagnosis (QMRDT) n Patient is sneezing with a fever; no coughing Diseases (about 600) Cold? 1 Symptoms (about 4000) Sneezing? Flu? 1 Possessed? 600. 325/425 Declarative Methods - J. Eisner … 0 Fever? Coughing? … Fits? 16

Example: Medical diagnosis n Patient is sneezing with a fever; no coughing q Possible diagnosis: Flu (without coughing) n But maybe it’s not flu season … Diseases Cold? 0 1 Symptoms Sneezing? Flu? 1 1 Possessed? 0 … 0 Fever? Coughing? 600. 325/425 Declarative Methods - J. Eisner Fits? 17

Example: Medical diagnosis n Patient is sneezing with a fever; no coughing q Possible diagnosis: Cold (without coughing), and possessed (better ask about fits …) Diseases Cold? 1 1 Symptoms Sneezing? Flu? 0 1 Possessed? 1 … 0 Fever? Coughing? 600. 325/425 Declarative Methods - J. Eisner Fits? 18

Example: Medical diagnosis n Patient is sneezing with a fever; no coughing q Possible diagnosis: Spontaneous sneezing, and possessed (better ask about fits …) Diseases Human? Cold? 0 1 1 Symptoms Sneezing? Flu? 0 1 Possessed? 1 … 0 Fever? Coughing? Fits? Note: Here symptoms & diseases are boolean. We could use real #s to denote degree. 600. 325/425 Declarative Methods - J. Eisner 19

Example: Medical diagnosis n n What are the factors, exactly? Factors that are w or 1 (weighted MAX-SAT): ~Flu According to whether some boolean constraint is true Human? Cold? Flu? Possessed? … Sneezing Human v Cold v Flu … Sneezing? n n Fever? Coughing? Conjunction of these is hard Fits? If observe sneezing, get a disjunctive clause (Human v Cold v Flu) If observe non-sneezing, get unit clauses (~Human) ^ (~Cold) ^ (~Flu) 600. 325/425 Declarative Methods - J. Eisner 20

Example: Medical diagnosis n n What are the factors, exactly? Factors that are probabilities: p(Flu) Human? Cold? Flu? Possessed? p(Sneezing | Human, Cold, Flu) Sneezing? … … Fever? Coughing? Fits? Use a little “noisy OR” model here: x = (Human, Cold, Flu), e. g. , (1, 1, 0). More 1’s should increase p(sneezing). p(~sneezing | x) = exp(- w x) e. g. , w = (0. 05, 2, 5) Declarative Methods - J. exp by sigmoid, i. e. , exp/(1+exp) Would get logistic regression 600. 325/425 model if we replaced Eisner 21

Example: Medical diagnosis n n What are the factors, exactly? Factors that are probabilities: p(Flu) Human? Cold? Flu? Possessed? p(Sneezing | Human, Cold, Flu) Sneezing? n n … … Fever? Coughing? If observe sneezing, get a factor (1 – exp(- w x)) If observe non-sneezing, get a factor exp(- w x) Product of these is hard Fits? (1 - 0. 95 Human 0. 14 Cold 0. 007 Flu) 0. 95 Human 0. 14 Cold 0. 007 Flu As w ∞, approach Boolean 600. 325/425 case (product of all- J. factors 1 if SAT, 0 if UNSAT) Declarative Methods Eisner 22

Technique #1: Branch and bound n Exact backtracking technique we’ve already studied. q n n And used via ECLi. PSe’s “minimize” routine. Propagation can help prune branches of the search tree (add a hard constraint that we must do better than best solution so far). (*, *, *) Worst-case exponential. (1, *, *) (2, *, *) (1, 1, *) (1, 2, *) (1, 3, *) (2, 1, *) (2, 2, *) (2, 3, *) (1, 2, 3) (1, 3, 2) (2, 1, 3) (2, 3, 1) 600. 325/425 Declarative Methods - J. Eisner (3, *, *) (3, 1, *) (3, 2, *) (3, 3, *) (3, 1, 2) (3, 2, 1) 23

Technique #2: Variable n Exact technique we’ve studied; worst-case exponential. Elimination = ¹ = Bucket E: E ¹ D, E ¹ C Bucket D: D ¹ A Bucket C: C ¹ B Bucket B: B ¹ A Bucket A: n join all constraints in E’s bucket yielding a new constraint on D (and C) now join all constraints in D’s bucket … D=C A ¹ C B=A contradiction But how do we do it for soft constraints? q How do we join soft constraints? figure thanks to Rina Dechter 600. 325/425 Declarative Methods - J. Eisner 24

Technique #2: Variable Elimination n Easiest to explain via Dyna. = n n goal max= f 1(A, B)*f 2(A, C)*f 3(A, D)*f 4(C, E)*f 5(D, E). temp. E(C, D) max= f 4(C, E)*f 5(D, E). 600. 325/425 Declarative Methods - J. Eisner to eliminate E, join constraints mentioning E, and project E out 25

Technique #2: Variable Elimination n Easiest to explain via Dyna. = ¹ n goal max= f 1(A, B)*f 2(A, C)*f 3(A, D)*temp. E(C, D). temp. D(A, C) n temp. D(A, C) max= f 3(A, D)*temp. E(C, D). to eliminate D, join constraints mentioning D, temp. E(C, D) max= f 4(C, E)*f 5(D, E). and project D out n 600. 325/425 Declarative Methods - J. Eisner 26

Technique #2: Variable Elimination n Easiest to explain via Dyna. = ¹ = n n goal max= f 1(A, B)*f 2(A, C)*temp. D(A, C). temp. C(A) max= f 2(A, C)*temp. D(A, C) max= f 3(A, D)*temp. E(C, D) max= f 4(C, E)*f 5(D, E). 600. 325/425 Declarative Methods - J. Eisner 27

Technique #2: Variable Elimination n Easiest to explain via Dyna. = ¹ = n n n goal max= temp. C(A)*f 1(A, B). temp. B(A) max= f 1(A, B). temp. C(A) max= f 2(A, C)*temp. D(A, C) max= f 3(A, D)*temp. E(C, D) max= f 4(C, E)*f 5(D, E). 600. 325/425 Declarative Methods - J. Eisner 28

Technique #2: Variable Elimination n Easiest to explain via Dyna. = ¹ = n n n goal max= temp. C(A)*temp. B(A) max= f 1(A, B). temp. C(A) max= f 2(A, C)*temp. D(A, C) max= f 3(A, D)*temp. E(C, D) max= f 4(C, E)*f 5(D, E). 600. 325/425 Declarative Methods - J. Eisner 29

Probabilistic interpretation of factor graph (“undirected graphical model”) Each factor is a function >= 0 of the values of its variables. n n Measure goodness of an assignment by the product of all the factors. For any assignment x = (x 1, …, x 5), define u(x) = product of all factors, e. g. , u(x) = f 1(x)*f 2(x)*f 3(x)*f 4(x)*f 5(x). We’d like to interpret u(x) as a probability distribution over all 25 assignments. q q Do we have u(x) >= 0? Yes. Do we have u(x) = 1? No. u(x) = Z for some Z. So u(x) is not a probability distribution. But p(x) = u(x)/Z is! 600. 325/425 Declarative Methods - J. Eisner 30

Z is hard to find … (the “partition function”) n Exponential time with this Dyna program. n goal max= f 1(A, B)*f 2(A, C)*f 3(A, D)*f 4(C, E)*f 5(D, E). += This explicitly sums over all 25 assignments. We can do better by variable elimination … (although still exponential time in worst case). Same algorithm as before: just replace max= with +=. 600. 325/425 Declarative Methods - J. Eisner 31

Z is hard to find … (the “partition function”) n Faster version of Dyna program, after var elim. = ¹ = n n n goal += temp. C(A)*temp. B(A) += f 1(A, B). temp. C(A) += f 2(A, C)*temp. D(A, C) += f 3(A, D)*temp. E(C, D) += f 4(C, E)*f 5(D, E). 600. 325/425 Declarative Methods - J. Eisner 32

Why a probabilistic interpretation? 1. Allows us to make predictions. q q 2. Important in learning the factor functions. q 3. You’re sneezing with a fever & no cough. Then what is the probability that you have a cold? Maximize the probability of training data. Central to deriving fast approximation algorithms. q q “Message passing” algorithms where nodes in the factor graph are repeatedly updated based on adjacent nodes. Many such algorithms. E. g. , survey propagation is the current best method for random 3 -SAT problems. Hot area of research! 600. 325/425 Declarative Methods - J. Eisner 33

Probabilistic interpretation Predictions You’re sneezing with a fever & no cough. Then what is the probability that you have a cold? q q q Randomly sample 10000 assignments from p(x). In 200 of them (2%), patient is sneezing with a fever and no cough. In 140 (1. 4%) of those, the patient also has a cold. all samples sneezing, fever, etc. n=200 also a cold n=140 n=10000 answer: 70% (140/200) 600. 325/425 Declarative Methods - J. Eisner 34

Probabilistic interpretation Predictions You’re sneezing with a fever & no cough. Then what is the probability that you have a cold? q q q Randomly sample 10000 assignments from p(x). In 200 of them (2%), patient is sneezing with a fever and no cough. In 140 (1. 4%) of those, the patient also has a cold. all samples sneezing, fever, etc. p=0. 02 also a cold p=0. 014 p=1 answer: 70% (0. 014/0. 02) 600. 325/425 Declarative Methods - J. Eisner 35

Probabilistic interpretation Predictions You’re sneezing with a fever & no cough. Then what is the probability that you have a cold? q q q Randomly sample 10000 assignments from p(x). In 200 of them (2%), patient is sneezing with a fever and no cough. In 140 (1. 4%) of those, the patient also has a cold. all samples sneezing, fever, etc. u=0. 02 Z also a cold u=0. 014 Z u=Z answer: 70% (0. 014 Z / 0. 02 Z) 600. 325/425 Declarative Methods - J. Eisner 36

Probabilistic interpretation Predictions You’re sneezing with a fever & no cough. Then what is the probability that you have a cold? q Randomly sample 10000 assignments from p(x). Could we compute exactly instead? Remember, we can find this by variable elimination unnecessary This too: just add unary constraints Sneezing=1, Fever=1, Cough=0 This too: one more unary constraint Cold=1 all samples sneezing, fever, etc. u=0. 02 Z also a cold u=0. 014 Z u=Z answer: 70% (0. 014 Z / 0. 02 Z) 600. 325/425 Declarative Methods - J. Eisner 37

Probabilistic interpretation Learning n n n How likely is it for (X 1, X 2, X 3) = (1, 0, 1) (according to real data)? 90% of the time How likely is it for (X 1, X 2, X 3) = (1, 0, 1) (according to the full model)? 55% of the time q I. e. , if you randomly sample many assignments from p(x), 55% of assignments have (1, 0, 1). q E. g. , 55% have (Cold, ~Cough, Sneeze): too few. To learn a better p(x), we adjust the factor functions to bring the second ratio from 55% up to 90%. 600. 325/425 Declarative Methods - J. Eisner 38

Probabilistic interpretation How likely is it for (X 1, X 2, X 3) = (1, 0, 1) Learning (according to real data)? 90% of the time n n n n f 1 How likely is it for (X 1, X 2, X 3) = (1, 0, 1) (according to the full model)? 55% of the time To learn a better p(x), we adjust the factor functions to bring the second ratio from 55% up to 90%. By increasing f 1(1, 0, 1), we can increase the model’s probability that (X 1, X 2, X 3) = (1, 0, 1). Unwanted ripple effect: This will also increase the model’s probability that X 3=1, and hence will change the probability that X 5=1, and … So we have to change all the factor functions at once to make all of them match real data. Theorem: This is always possible. (gradient descent or other algorithms) q Theorem: The resulting learned function p(x) maximizes p(real data). 600. 325/425 Declarative Methods - J. Eisner 39

Probabilistic interpretation Approximate constraint satisfaction Central to deriving fast approximation algorithms. 3. q n n “Message passing” algorithms where nodes in the factor graph are repeatedly updated based on adjacent nodes. Gibbs sampling / simulated annealing Mean-field approximation and other variational methods Belief propagation Survey propagation 600. 325/425 Declarative Methods - J. Eisner 41

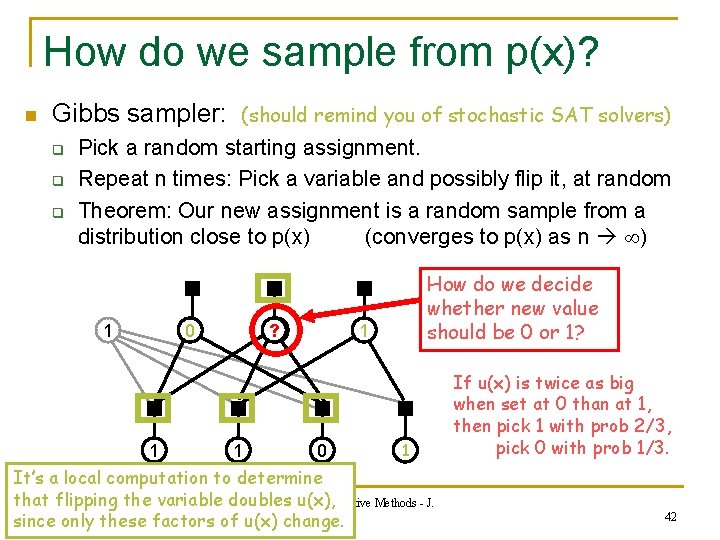

How do we sample from p(x)? n Gibbs sampler: q q q (should remind you of stochastic SAT solvers) Pick a random starting assignment. Repeat n times: Pick a variable and possibly flip it, at random Theorem: Our new assignment is a random sample from a distribution close to p(x) (converges to p(x) as n ) 1 0 1 ? 1 1 How do we decide whether new value should be 0 or 1? 1 0 1 It’s a local computation to determine that flipping the variable doubles u(x), 600. 325/425 Declarative Methods - J. Eisnerchange. since only these factors of u(x) If u(x) is twice as big when set at 0 than at 1, then pick 1 with prob 2/3, pick 0 with prob 1/3. 42

Technique #3: Simulated annealing Gibbs sampler can sample from p(x). n n Replace each factor f(x) with f(x)β. Now p(x) is proportional to u(x)β, with p(x) = 1. What happens as β ? n Sampler turns into a maximizer! q Let x* be the value of x that maximizes p(x). q For very large β, a single sample is almost always equal to x*. n Why doesn’t this mean P=NP? q As β , need to let n too to preserve quality of approx. n q q Sampler rarely goes down steep hills, so stays in local maxima for ages. Hence, simulated annealing: gradually increase β as we flip variables. Early on, we’re flipping quite freely 600. 325/425 Declarative Methods - J. Eisner 43

Technique #4: Variational methods To work exactly with p(x), we’d need to compute quantities like n Z, which is NP-hard. q n n (e. g. , to predict whether you have a cold, or to learn the factor functions) We saw that Gibbs sampling was a good (but slow) approximation that didn’t require Z. The mean-field approximation is sort of like a deterministic “averaged” version of Gibbs sampling. q q q In Gibbs sampling, nodes flutter on and off – you can ask how often x 3 was 1. In mean-field approximation, every node maintains a belief about how often it’s 1. This belief is updated based on the beliefs at adjacent nodes. No randomness. [details beyond the scope of this course, but within reach] 600. 325/425 Declarative Methods - J. Eisner 44

Technique #4: Variational methods The mean-field approximation is sort of like a deterministic n “averaged” version of Gibbs sampling. q q In Gibbs sampling, nodes flutter on and off – you can ask how often x 3 was 1. In mean-field approximation, every node maintains a belief about how often it’s 1. This belief is repeatedly updated based on the beliefs at adjacent nodes. No randomness. 1 0. 5 1 ? 0. 3 1 0 Set this now to 0. 6 0. 7 600. 325/425 Declarative Methods - J. Eisner 45

Technique #4: Variational methods The mean-field approximation is sort of like a deterministic n “averaged” version of Gibbs sampling. q Can frame this as seeking an optimal approximation of this p(x) … 1 … by a p(x) defined as a product of simpler factors (easy to work with): 1 1 1 0 600. 325/425 Declarative Methods - J. Eisner 1 1 0 46

n Technique #4: Variational More sophisticated version: Belief Propagation methods The soft version of arc consistency q n n Arc consistency: some of my values become impossible so do some of yours Belief propagation: some of my values become unlikely so do some of yours q n Note: Belief propagation has to be more careful than arc consistency about not having X’s influence on Y feed back and influence X as if it were separate evidence. Consider constraint X=Y. q q Therefore, your other values become more likely But there will be feedback when there are cycles in the factor graph – which hopefully are long enough that the influence is not great. If no cycles (a tree), then the beliefs are exactly correct. In this case, BP boils down to a dynamic programming algorithm on the tree. Can also regard it as Gibbs sampling without the randomness n That’s what we said about mean-field, too, but this is an even better approx. n Gibbs sampling lets you see: q q n n how often x 1 takes each of its 2 values, 0 and 1. how often (x 1, x 2, x 3) takes each of its 8 values such as (1, 0, 1). (This is needed in learning if (x 1, x 2, x 3) is a factor. ) Belief propagation estimates these probabilities by “message passing. ” Let’s see how it works! 600. 325/425 Declarative Methods - J. Eisner 47

Technique #4: Variational Mean-field approximation methods Belief propagation q q q Survey propagation: n q q q Like belief propagation, but also assess the belief that the value of this variable doesn’t matter! Useful for solving hard random 3 -SAT problems. Generalized belief propagation: Joins constraints, roughly speaking. Expectation propagation: More approximation when belief propagation runs too slowly. Tree-reweighted belief propagation: … 600. 325/425 Declarative Methods - J. Eisner 48

Great Ideas in ML: Message Count the soldiers Passing there’s 1 of me 1 before you 2 before you 3 before you 4 before you 5 behind you 4 behind you 3 behind you 2 behind you adapted from Mac. Kay (2003) textbook 5 before you 1 behind you 49

Great Ideas in ML: Message Count the soldiers Passing there’s Belief: 1 of me 2 before you Must be 22 +11 +33 = 6 of us 3 only see my incoming behind you messages adapted from Mac. Kay (2003) textbook 50

Great Ideas in ML: Message Count the soldiers Passing there’s Belief: 1 of me 1 before you Must be 11 + 4 = 6 22 +11 +33 = of us 6 of us 4 only see my incoming behind you messages adapted from Mac. Kay (2003) textbook 51

Great Ideas in ML: Message Each soldier receives reports from all branches of tree Passing 3 here 7 here 1 of me 11 here (= 7+3+1) adapted from Mac. Kay (2003) textbook 52

Great Ideas in ML: Message Each soldier receives reports from all branches of tree Passing 3 here 7 here (= 3+3+1) 3 here adapted from Mac. Kay (2003) textbook 53

Great Ideas in ML: Message Each soldier receives reports from all branches of tree Passing 11 here (= 7+3+1) 7 here 3 here adapted from Mac. Kay (2003) textbook 54

Great Ideas in ML: Message Each soldier receives reports from all branches of tree Passing 3 here 7 here 3 here adapted from Mac. Kay (2003) textbook Belief: Must be 14 of us 55

Great Ideas in ML: Message Each soldier receives reports from all branches of tree Passing 3 here 7 here 3 here Belief: Must be 14 of us tly wouldn’t work correc ) graph with a “loopy” (cyclic adapted from Mac. Kay (2003) textbook 56

Great ideas in ML: Belief Propagation n In the CRF, message passing = forward-backward belief message α … v v 0 n 2 a 0 v 7 n 2 a 1 n 2 1 3 α v 1. 8 n 0 a 4. 2 av 3 1 n 1 0 a 6 1 β message v 2 v n v 1 0 a n 7 2 a 0 n 2 1 3 β a 1 0 1 v 3 n 6 a 1 … v 0. 3 n 0 a 0. 1 find preferred tags 57

Great ideas in ML: Loopy Belief Propagation n Extend CRF to “skip chain” to capture non-local factor q More influences on belief α v 5. 4 n 0 a 25. 2 β v 3 n 1 a 6 … v 3 n 1 a 6 find v 2 n 1 a 7 … v 0. 3 n 0 a 0. 1 preferred tags 58

Great ideas in ML: Loopy Belief Propagation n Extend CRF to “skip chain” to capture non-local factor q q More influences on belief Red messages not independent? v 5. 4` Graph becomes loopy n Pretend they are! α 0 a 25. 2` β v 3 n 1 a 6 … v 3 n 1 a 6 find v 2 n 1 a 7 … v 0. 3 n 0 a 0. 1 preferred tags 59
