Background

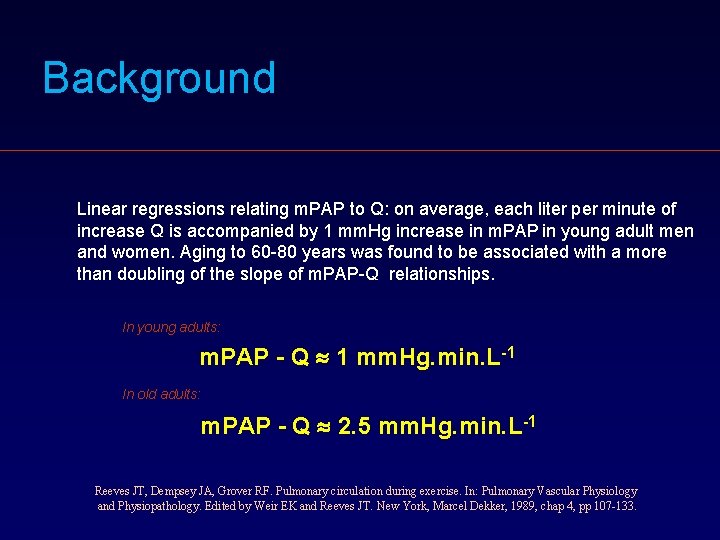

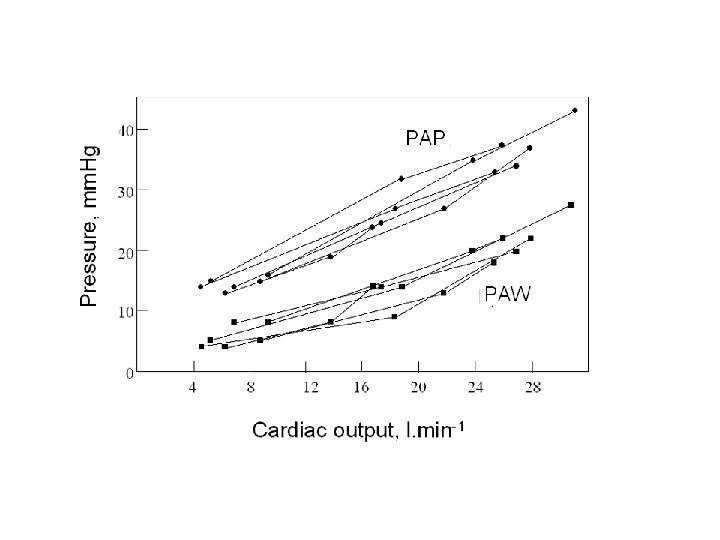

Background Linear regressions relating m. PAP to Q: on average, each liter per minute of increase Q is accompanied by 1 mm. Hg increase in m. PAP in young adult men and women. Aging to 60 -80 years was found to be associated with a more than doubling of the slope of m. PAP-Q relationships. In young adults: m. PAP - Q 1 mm. Hg. min. L-1 In old adults: m. PAP - Q 2. 5 mm. Hg. min. L-1 Reeves JT, Dempsey JA, Grover RF. Pulmonary circulation during exercise. In: Pulmonary Vascular Physiology and Physiopathology. Edited by Weir EK and Reeves JT. New York, Marcel Dekker, 1989, chap 4, pp 107 -133.

Hemodynamic Values for Normal Adult Males at Rest and Moderate Exercise REST Cardiac output (liters/min) 6 Heart rate (beats/min) 80 Right atrial pressure (mm. Hg) 4 -6 Pulmonary artery pressure (mm. Hg) Systolic 20 -25 Diastolic 10 -12 Mean 14 -18 Pulmonary wedge pressure (mm. Hg) 6 -9 Systemic arterial pressure (mm. Hg) 20/180 Mean 90/100 Pulmonary vascular resistance (units) 0. 70 -0. 95 EXERCISE 16 130 6 -8 30 -35 11 -14 20 -25 10 -12 150/95 110/120 0. 60 -0. 90

Relation between Pulmonary Artery Systolic Pressure and Age and BMI The upper limit of PASP is dependent on Age, Sex, and BMI and may include 40 mm. Hg in some older or obese subjects. Mc. Quillan BM. et al. Circulation 2001; 104: 2797 -2802.

Reference Ranges for Normal Systolic Pressure Gradients Assessed with Doppler between RV and RA (TIPG) 95% CI for TIPG (mm. Hg) Age (yrs) n Women (n = 2, 065) Men (n = 1, 147) <20 865 8. 6 -24. 2 8. 2 -26. 2 20 -29 669 9. 2 -24. 4 9. 9 -26. 3 30 -39 650 9. 3 -25. 7 8. 7 -27. 5 40 -49 494 9. 9 -27. 5 9. 1 -28. 3 50 -59 344 10. 2 -29. 4 11. 0 -30. 6 >60 199 10. 5 -32. 1 11. 2 -33. 6 Mc. Quillan BM. et al. Circulation 2001; 104: 2797 -2802

ENDURANCE ATHLETES STRENGTH ATHLETES r = 0. 59; p<0. 0001 TRV (m/sec) r = 0. 64; Also age (p<0, 01), duration of training (p<0, 01) and resistance training (p<0, 01) were independent predictors of TRV at the multivariate analysis. D’Andrea A, Naeije R, D’Alto M, and Bossone E. Chest 2010.

*p < 0. 01: endurance vs. strength and controls Pulmonary Artery Systolic Pressure in Highly-Trained Athletes * Variable TRV (m/sec) PASP (mm. Hg) Stroke Volume (ml) Cardiac Index (ml/min/m 2) Peak E / Ea ratio TRV/RVOTTVI (m/s/cm) Controls (n=230) Strength (n= 245) Endurance (n=370) 1. 8 0. 7 (1. 3 -2. 4) 1. 9 0. 5 (1. 5 -2. 6) 2. 3 0. 5* (1. 9 -2. 9) 17. 6 4. 6 (14 – 33) 19. 4 8. 1 (14 – 36) 26. 1 6. 6* (19 – 39) 63. 4 5. 9 69. 4 3. 3 98. 4 6. 2* 2. 3 0. 6 2. 4 0. 3 2. 8 0. 7* 5. 5 1. 5 5. 3 1. 3 0. 12 0. 04 (0. 07 – 0. 16) 0. 13 0. 05 (0. 09 – 0. 18) 4. 9 1. 4 0. 13 0. 04 (0. 07 – 0. 15) *p < 0. 01: endurance vs. strength and controls. D’Andrea A, Naeije R, D’Alto M, and Bossone E. Chest 2010

Pulmonary Artery Systolic Pressure Response to Exercise: The Physiologic Range Physiology: Pulmonary resistance LV filling pressure Cardiac Output Bossone E. et al. J Am Coll Cardiol. 1999; 33: 1662 -6.

Left Ventricular Filling Pressure during Exercise A Cardiological Blind Spot John B West, Chest 1998 Intense exercise Increased cardiac output Decreased pulmonary vascular resistance Increased left ventricular filling pressure Increased pulmonary artery pressure Stress failure of pulmonary capillaries Exercise - induced pulmonary hemorrhage

Pulmonary Artery Systolic Pressure Response to Exercise: The Physiologic Range Bossone E. et al. J Am Coll Cardiol. 1999; 33: 1662 -6.

Pressure-Fow (P-Q) Relationship The best adjustment for the individual m. PAP-Q relationships was slightly curvilinear with a distensibility alpha of α = 1. 7 1. 8 %/mm. Hg This result is in perfect agreement with previous in vitro and invasive in vivo measurements Reeves JT et al. Am J Physiol Lung Cell Mol Physiol. 2005; 288: L 419 -25. Argiento P. et al. Eur Respir J. 2009; 35: 1273 -8.

Plots of increase in right ventricular systolic pressure from rest to peak exercise on room air in 11 normal control subjects (top graph), 9 pts (COPD) with normal (≤ 30 mm. Hg) resting values for RVSP (middle graph), and 23 pts with pulmonary hypertension at rest (bottom graph). The extent of increase in RVSP with exercise is similar in group A and B pts and is significantly graeter than control pts. Himelman RB. et al. Circulation 1989; 79: 863 -871.

Pulmonary Pressure Response to Ex-Doppler Echocardiography in Patients with High Risk of PAH

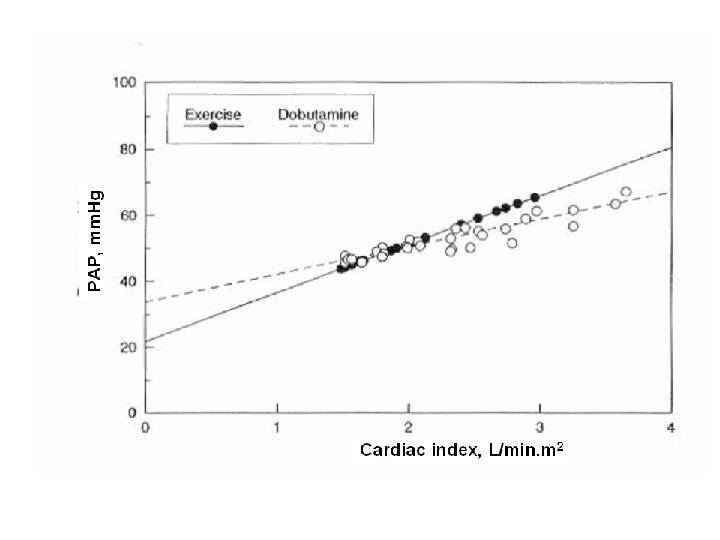

Pulmonary Arterial Pressure Responses to Exercise. Lewis GD. Advances in Pulmonary Hypertension. Summer 2010; Vol 9, N° 2.

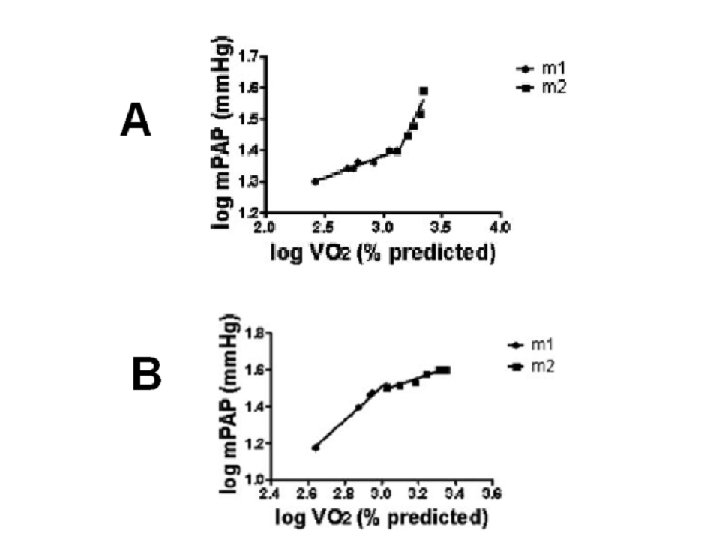

PAP-Flow Relationships based on serial measurements of m. PAP and CO during incremental exercise Lewis GD. Advances in Pulmonary Hypertension. Summer 2010; Vol 9, N° 2.

Clinical Assessment - ECG - Chest X- ray Suspect PHtn TTE – Doppler Six month follow-up - Exercise TTE- Doppler + + RIGHT HEART CATHETIRIZATION ACUTE VASOREACTIVITY TESTING Bossone E. et al. Echocardiography in pulmonary arterial hypertension: An essential tool. Chest 2007; 131: 339 -41.

Who to screen for Ex-PHtn • • • Chronic obstructive pulmonary disease; Heart transplantation; Susceptibility to high altitude pulmonary edema; Congenital heart disease; Trombo-embolic pulmonary hypertension; Scleroderma and relatives of patients with PAH.

Conclusions and Future Directions • Exercise stress tests of the pulmonary circulation show promise for the detection of early or latent pulmonary vascular disease, and may help to understand the clinical evolution and effects of treatments in patients with established disease. • While the exercise stress test based solely on systolic PAP and workload measurements may show interest in screening programs, the approach is unsatisfactory because PAP is a flow-dependent variable, and the cardiac output achieved at a give workload varies from one subject to another.

Conclusions and Future Directions • Furthermore, the maximum velocity of TR is markedly dependent on stroke volume, so that a systolic PAP higher than 40 mm. Hg is easily achieved by exercising athletes in whom this cut-off value is very close to the upper limit of normal at rest. Systolic PAP increases in the elderly, with an increased in BMI, , and in relation to decreased left ventricular diastolic compliance and associated increase in LAP. • Knowledge of the limits of normal and further validation of non invasive approaches in various patient populations are needed.

Amate il Paese ove la Natura Vi ha fatto Nascere e seconderete le Leggi dell’ Universo Socrate agli Ateniesi Atrani, Amalfi Coast, Italy

Arrivederci!!! Arrivederci

Clinical Studies using Ex-Echo in the Setting of PAH Author Population Ex. protocol Baseline PAPs (mm. Hg) Peak PAPs (mm. Hg) Himelman et al. COPD (n=36) Supine bicycle 10/25 W 46 ± 20 (COPD) 22± 4 (CRTL) 83 ± 30 (COPD) 31 ± 7(CRTL) Oelberg et al. ASD (n=10) Upright bicycle 31 ± 8 (ASD) 17 ± 8 (CRTL) 51 ± 10 (ASD) 19 ± 8(CRTL) Grunig et al. HAPE-S (n=9) Supine bicycle 25 W 28 ± 4 (HAPE-S) 27 ± 4 (CRTL) 55 ± 11 (HAPE-S) 36 ± 3 (CRTL) Alkotob et al. Scleroderma (n=65) Treadmill 25 ± 8 39 ± 8 Collins et al. Scleroderma (n=51) Treadmill 24 ± 8 38 ± 12 Grunig et al. Relatives of i. PAH (n=52) Supine bicycle 25 W 24 ± 4 (NR) 23 ± 3 (AR) 37 ± 3 (NR) 56 ± 11 (AR) Modify from Vachiéry JL. and Pavelescu A. Eur Heart J. H 28 -H 53, 2007.

Abnormal Pulmonary Artery Pressure Response in Asymptomatic Carriers of Primary Pulmonary. Hypertension Gene Grünig E. et al. , Circulation 2000; 102: 1145 -1150.

Società Italiana di Ecografia Cardiovascolare XV Congresso Nazionale Ecocardiografia – Napoli, Aprile 2011 Ecostress ed Ipertensione Arteriosa Polmonare Utilità e Limiti e limiti Pulmonary Arterial Hypertension “ A Call to Arms” Eduardo Bossone, MD, Ph. D, FCCP, FESC, FACC Cardiology Division Cava de’ Tirreni and Amalfi Coast Hospital University of Salerno, Italy

Arrivederci!!! Arrivederci "Luna di Capri" The Caprese Moon rising behind the island

PAH Progression Pre-symptomatic/ Compensated Symptomatic/ Decompensating Declining/ Decompensated CO Symptom Threshold PAP PVR ms o t p Sym Right Heart Dysfunction TIME Rich et al. In: Harrison’s Principles of Internal Medicine. 15 th ed. 2001: 1506 -1507.

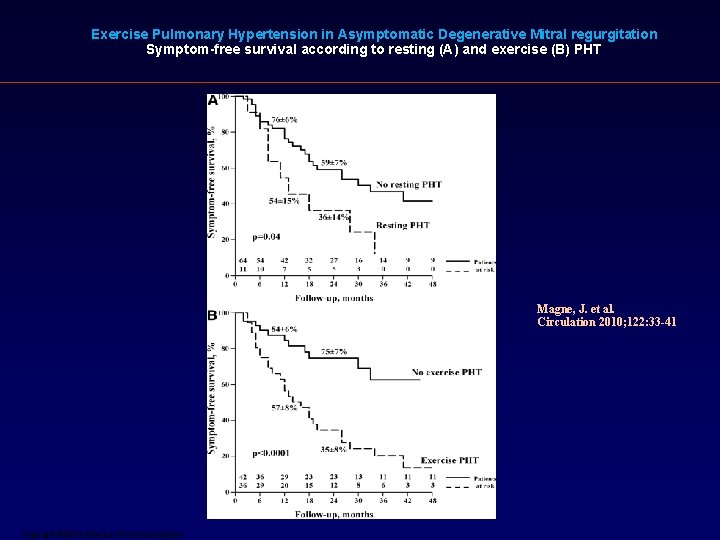

Exercise Pulmonary Hypertension in Asymptomatic Degenerative Mitral regurgitation Symptom-free survival according to resting (A) and exercise (B) PHT Magne, J. et al. Circulation 2010; 122: 33 -41 Copyright © 2010 American Heart Association
