Social Login Service 02 1 Facebook WiFi Device

Social Login Service 02 1

Facebook Wi-Fi • Device registration is required Redirect to Facebook page 1 Access network via HTTP 2 Check in to continue browsing

Facebook Wi-Fi Configuration (1/3) • Configuration > Web Authentication > Facebook Wi-Fi • Facebook Wi-Fi page Click to enable Facebook Wi-Fi Click to bind your Facebook page Reset Facebook page binding

Facebook Wi-Fi Configuration (2/3) • Facebook Wi-Fi Configuration page k aceboo F n i g Lo Select the Facebook Page associated with your business's location The customer will be able to access your Wi-Fi by clicking on “Skip check-in” link or entering a code Length of time your customer will have Wi-Fi for after they checked in Your own Terms of Service

Facebook Page • Facebook Wi-Fi support local business or place pages

Bypass Mode • You can choose whether customers can use a Wi-Fi code that you give to them or click on a link to skip checking in Click to skip check-in Facebook check-in page Click to use Wi-Fi code

Terms of Service • You have the option to add your own Terms of Service content. Your own Terms of Service Facebook check-in page

Facebook Wi-Fi Configuration (3/3) • Configuration > Web Authentication > General > Web Authentication Policy Summary • Edit authentication policy

Logs of Facebook Wi-Fi • Monitor > Log > View Log

Facebook Wi-Fi Notices (1/3) • Device registration is required to enable Facebook Wi-Fi

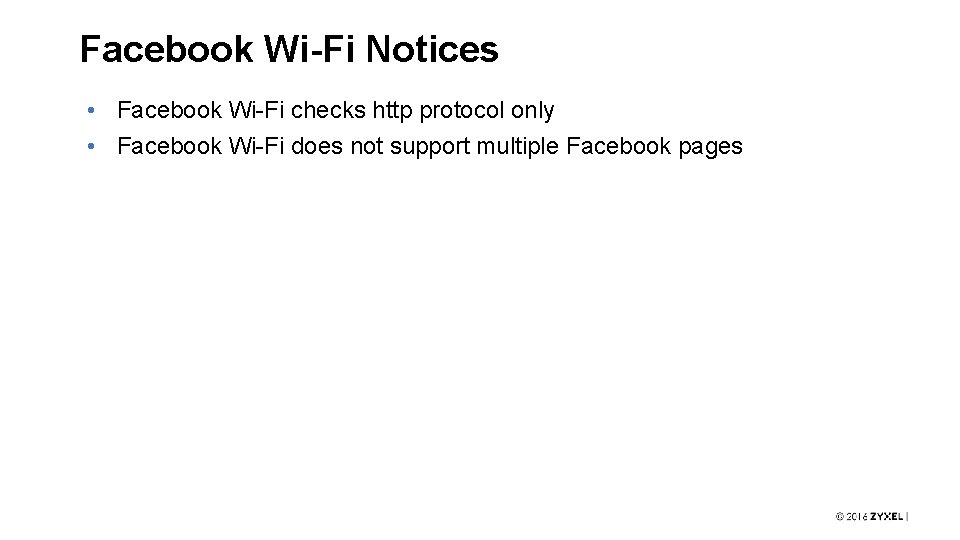

Facebook Wi-Fi Notices • Facebook Wi-Fi checks http protocol only • Facebook Wi-Fi does not support multiple Facebook pages

CLI of Facebook Wi-Fi (1/2) • Show service registration status • Router# show fbwifi service-register status Router> show fbwifi service-register status Device registered: yes • Show Facebook Wi-Fi status • Router# show fbwifi status Router> show fbwifi status Activate: yes Configure link: https: //www. facebook. com/wifiauth/config? gw_id=696620800519579 Paired: yes Idle detection: yes Idle timeout: 10

CLI of Facebook Wi-Fi (2/2) • Enable/Disable the function • Router(config)# [no] fbwifi activate • Reset Facebook page • Router(config)# fbwifi reset-fbpage • Enable/Disable user idle detection • Router(config)# [no] fbwifi idle-detection • User idle detection setting • Router(config)# fbwifi idle-detection timeout <1. . 60>

Hands-on • Goal • Using Facebook Wi-Fi to advertise your Facebook page • Device • UAG 4100 x 1, Laptop x 1 • Firmware • ZLD 4. 18 Redirect to Facebook page Access network via HTTP

Configuration Steps (1/4) • Step 1 : Create your own Facebook page

Configuration Steps (2/4) • Step 2 : Configure Facebook Wi-Fi on UAG 4100 • Configuration > Web Authentication > Facebook Wi-Fi

Configuration Steps (3/4) • Step 3 : Configure SSID Profile on UAG 4100 • Configuration > Object > AP Profile > SSID List

Configuration Steps (4/4) • Step 4 : Configure Authentication Policy on UAG 4100 • Configuration > Web Authentication > General > Web Authentication Policy Summary

Results • Join Zyxel_Free_Wifi and access www. zyxel. com website 1 Access Zyxel. com website 2 Click to Check-in 3 Click to Continue Browsing
