Outline • SNO+ physics overview – – – double beta decay pep solar neutrinos geo-neutrinos reactor neutrino oscillation confirmation supernova neutrino detection • technical progress • cost and schedule • collaboration resources
Double Beta Decay: SNO++ • SNO plus liquid scintillator plus double beta isotopes: SNO++ • add bb isotopes to liquid scintillator – dissolved Xe gas (2%) – organometallic chemical loading (Nd, Se, Te) – dispersion of nanoparticles (Nd 2 O 3, Te. O 2) • enormous quantities (high statistics) and low backgrounds help compensate for the poor energy resolution of liquid scintillator • possibly source in–source out capability
Candidate Selection
150 Nd table from F. Avignone Neutrino 2004 • 3. 37 Me. V endpoint • (9. 7 ± 0. 7 ± 1. 0) × 1018 yr 2 nbb half-life measured by NEMO-III • isotopic abundance 5. 6% 1% natural Nd-loaded liquid scintillator in SNO++ has 560 kg of 150 Nd compared to 37 g in NEMO-III • cost: $1/g for metallic Nd; cheaper as Nd salt…on the web Nd. Cl 3 sold in lot sizes of 100 kg, 1 ton, 10 tons

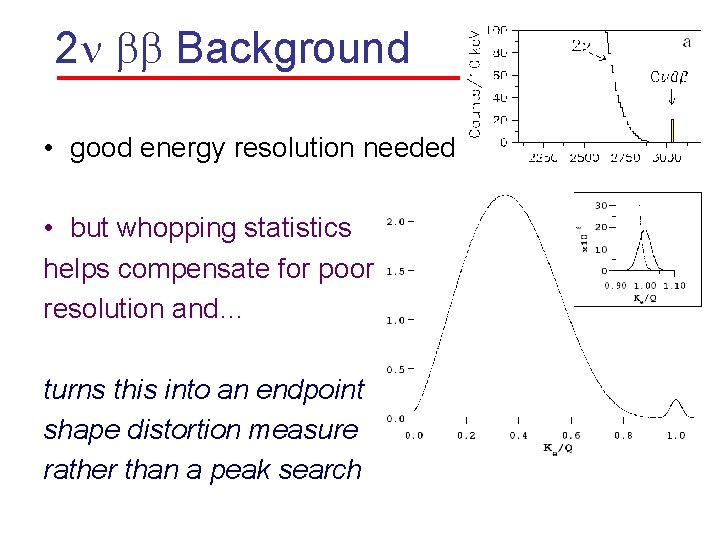

2 n bb Background • good energy resolution needed • but whopping statistics helps compensate for poor resolution and… turns this into an endpoint shape distortion measure rather than a peak search
Test <mn> = 0. 150 e. V 0 n: 1000 events per year with 1% natural Nd-loaded liquid scintillator in SNO++ Klapdor-Kleingrothaus et al. , Phys. Lett. B 586, 198, (2004) simulation: one year of data maximum likelihood statistical test of the shape to extract 0 n and 2 n components…~240 units of Dc 2 significance after only 1 year!
made by Yeh, Garnov, Hahn at BNL Nd-carboxylate in Pseudocumene window with >6 m light attenuation length {
Enriched Nd Scintillator • at 1% loading (natural Nd), there is too much light absorption by Nd – 47± 6 pe/Me. V (from Monte Carlo) • at 0. 1% loading (isotopically enriched to 56%) our Monte Carlo predicts – 400± 21 pe/Me. V (from Monte Carlo) – good enough to do the experiment

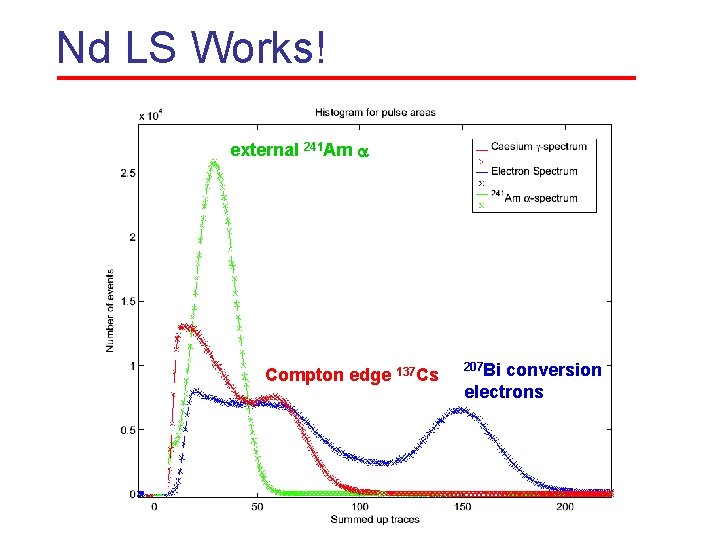

Nd LS Works! external 241 Am a Compton edge 137 Cs 207 Bi conversion electrons
SNO++ Double Beta Sensitivity • insensitive to internal radon backgrounds • insensitive to external backgrounds (2. 6 Me. V gamma) • internal Th is the main concern – and 2 n background, of course • homogeneous, well defined background model • for mn = 50 me. V, 0 n signal is ~60 events/yr in the upperhalf of the peak, with S: B about 1: 1 – based upon Kam. LAND Th levels in scintillator and known 2 n double beta decay backgrounds – gives a 5 s exclusion of 50 me. V after one year • …shows the advantage of huge amounts of isotope, thus high statistics
Nd-150 Consortium • Super. NEMO and SNO+, MOON and DCBA have joined together to try to maintain an existing French AVLIS facility that is capable of making 100’s of kg of enriched Nd – a facility that enriched 204 kg of U (to 2. 5% from 0. 7%) in several hundred hours (i. e. about 1 week)
2000– 2003 Program : Menphis facility Evaporator Dye laser chain Yag laser Copper vapor laser Design : 2001 Building : 2002 1 st test : early 2003 1 st full scale exp. : june 2003
Reactor Antineutrinos • SNO+ can confirm reactor neutrino oscillations • an interesting test! – move Kam. LAND’s spectral distortion to higher energies by going to a slightly longer baseline
SNO+ Spectral Distortion T. Araki et al. , hep-ex/0406035 (2004) oscillated rate: 180 events (per 1032 proton-years) unoscillated expectation: 320 events 1 kiloton CH 2 scintillator: 0. 86 × 1032 protons
Baselines: 240 and 340 km Bruce Pickering Darlington
SNO+ Technical Progress • liquid scintillator identified – linear alkylbenzene • • compatible with acrylic, undiluted high light yield pure (light attenuation length in excess of 20 m at 420 nm) low cost high flash point low toxicity smallest scattering of all scintillating solvents investigated density r = 0. 86 g/cm 3 – SNO+ light output (photoelectrons/Me. V) will be approximately 4× that of Kam. LAND
SNO+ Monte Carlo • light yield simulations Kam. LAND scintillator in SNO+ 629 ± 25 pe/Me. V above no acrylic 711 ± 27 pe/Me. V Kam. LAND scintillator and 50 mg/L bis. MSB 826 ± 24 pe/Me. V above no acrylic 878 ± 29 pe/Me. V Kam. LAND (20% PC in ~300 pe/Me. V for 22% dodecane, 1. 52 g/L PPO) photocathode coverage SNO+ has 54% PMT coverage; acrylic vessel only diminishes light ouput by ~10%
LAB Scintillator Optimization “safe” scintillators LAB has 75% greater light yield than Kam. LAND scintillator
Light Attenuation Length Petresa LAB as received attenuation length exceeds 10 m preliminary measurement ~10 m
Scintillator Purification • optical – at BNL and at Queen’s • improves light attenuation length, removing impurities that absorb light, especially at lower wavelengths – alumina column and vacuum distillation both work • radioactivity (e. g. 210 Pb) – at Queen’s • alumina: 98 -99% extraction efficiency • distillation: >99. 9% extraction efficiency, single pass
Scintillator-Acrylic Compatibility • ASTM D 543 “Standard Practices for Evaluating the Resistance of Plastics to Chemical Reagents”
Acrylic Vessel Hold-down • “rope net” being designed to hold down 15% density difference • alternative: machine reverse rope grooves in existing belly plates SNO+
Cost ($ CAD) incremental cost to convert SNO to SNO+ liquid scintillator $2. 0 M AV conversion $1. 5 M scintillator purification $7. 0 M (includes fluid handling logistics, safety) cover gas, glove box $0. 3 M DAQ upgrade $0. 5 M total: $11. 3 M incremental cost for 500 kg enriched Nd (rough estimate) feasibility study $0. 4 M (international total: 1 -3 M€) running facility $1. 5 M purchase Nd $1. 0 M (the intent is to sell back depleted Nd)
Schedule 01/2007 to 04/2007 temporary construction during SNO decommissioning (inspect AV, radon-free cover gas) 05/2007 to 10/2007 design of AV conversion 05/2007 to 12/2007 engineering of scintillator fluid process 01/2008 to 11/2008 AV conversion construction 03/2008 to 05/2008 scintillator procurement logistics and contracts 05/2008 to 04/2009 scintillator purification construction 05/2009 to start SNO+ filling
SNOLAB infrastructure requirements • Integration with SNO decommissioning • Need approval for LAB scintillator from Inco • Distillation of LAB is being planned u/g and will require 100 k. W-1 MW of power and cooling
SNOLAB R&D needs • Support for investigations into novel purification techniques (nanofiltration) • Radon-reduced (radon-free) air
Cash Flow Table 2007/08 2008/09 SNO+ $2. 0 M $9. 3 M Nd initiative $0. 4 M $1. 7 M + $0. 8 M
