SNMP Update Interval Test 118 Postech DPNM Lab

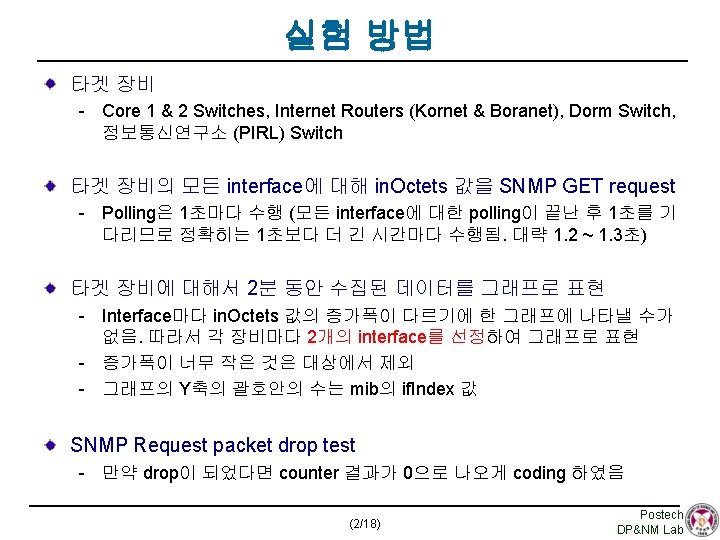

SNMP Update Interval Test (1/18) Postech DP&NM Lab

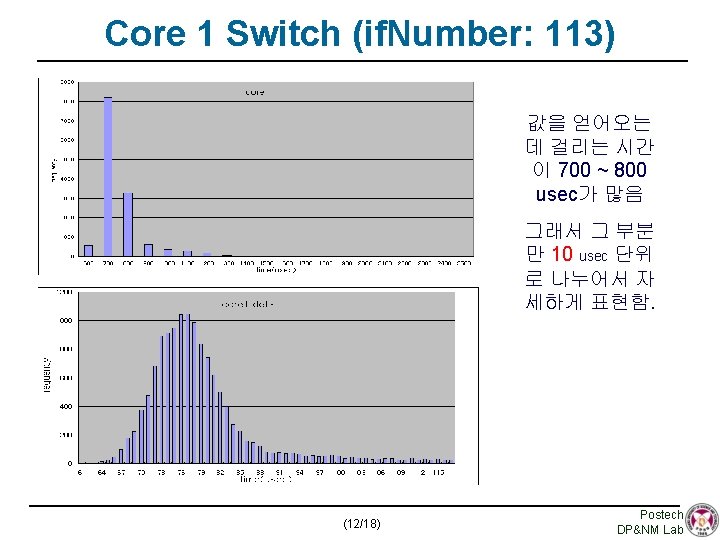

Core 1 Switch (if. Number: 113) if. In. Octets counter가 update 되는데 4 -5초씩 걸렸음. (3/18) Postech DP&NM Lab

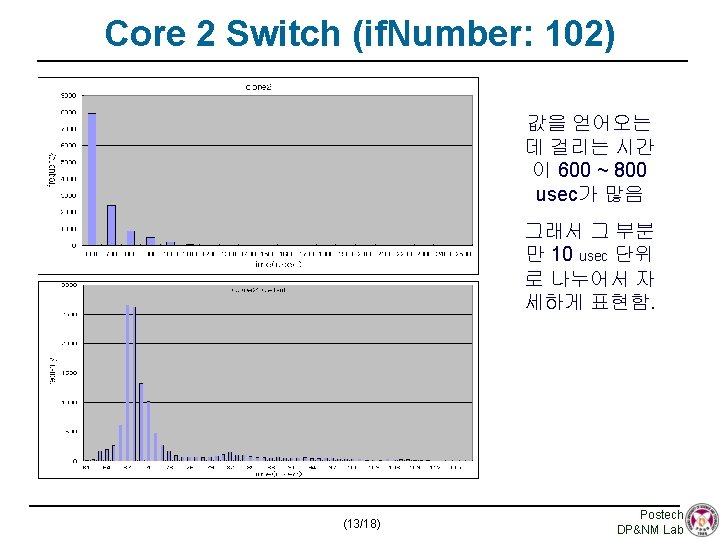

Core 2 Switch (if. Number: 102) if. In. Octets counter가 update 되는데 4 -5초씩 걸렸음. (4/18) Postech DP&NM Lab

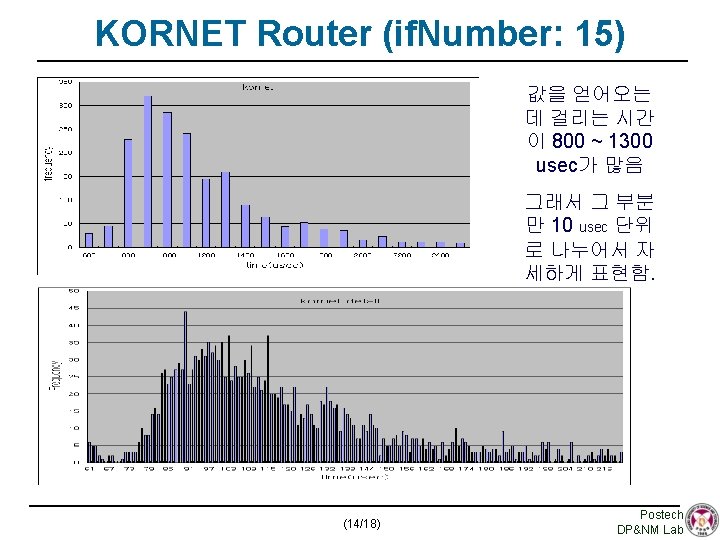

KORNET Router (if. Number: 15) if. In. Octets counter가 update가 매초 되었음. (5/18) Postech DP&NM Lab

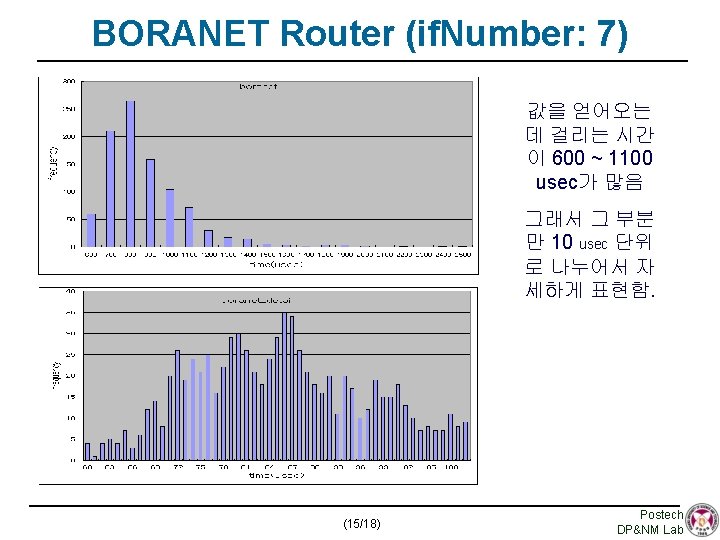

BORANET Router (if. Number: 7) if. In. Octets counter가 update가 매초 되었음. (6/18) Postech DP&NM Lab

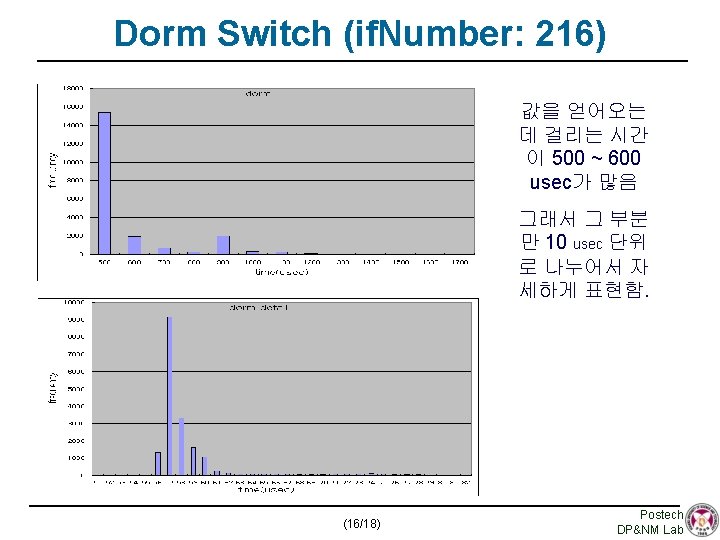

Dorm Switch (if. Number: 216) if. In. Octets counter가 update 되는데 8 -9초씩 걸렸음. (7/18) Postech DP&NM Lab

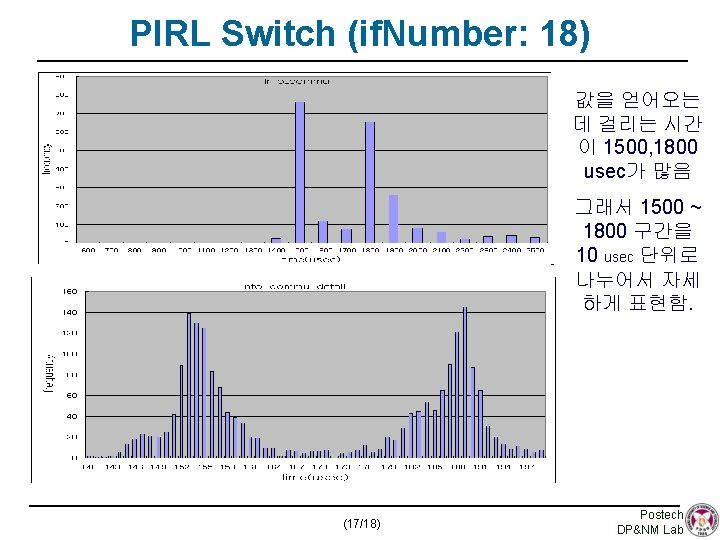

PIRL Switch (if. Number: 18) if. In. Octets counter가 update 되는데 interface별로 차이가 있음. (8/18) Postech DP&NM Lab

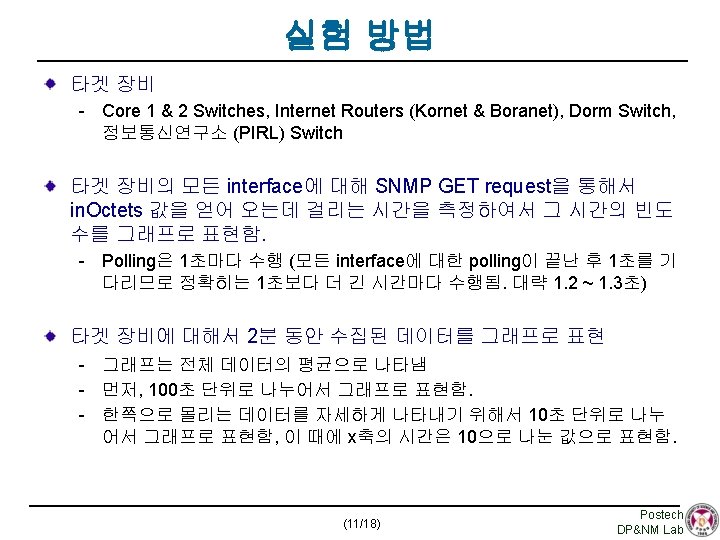

SNMP Response Time Test (10/18) Postech DP&NM Lab
결과 분석 모든 Interface를 polling하는데 걸리는 시간 - Core 1: 대략 80~90 ms Core 2: 대략 60~80 ms KORNET: 대략 12~20 ms BORANET: 대략 5~8 ms Dorm: 110~130 ms PIRL: 27~33 ms SNMPv 1을 이용한 모든 interface에 대한 polling이 부담 이 될 수 있음 - SNMPv 2의 Get. Bulk 활용 - POSTECH내의 모든 building switch는 v 2를 지원하지만, 그 아래 의 일부 switch들은 v 2를 지원하지 않음 (18/18) Postech DP&NM Lab
