Snap Circuits Lab 6 Series Lab ContentObjective Connect

Snap Circuits Lab 6 Series Lab Content-Objective: Connect and Test basic series electronics circuitry. Language-Objective: Utilize Snap Circuit kits to connect simple series circuits and then measure resistance and voltage throughout the circuit. Utah Electronics 1 Strands 2 (Test Equipment) 3 (Components) 4 (Basic Theory)

Snap Circuits Lab STARTER 1. Canvas: Starter About me TODAY’S AGENDA 1. STARTER assignment. 2. Snap Circuits Demo 3. Snap Circuits Lab 4. Canvas: Snap Circuits discussion. Content Objective Language Objective Learn simple electronic part connection and operation principles for electrical circuitry. Use Snap Circuits to learn how to connect and operate, measure basic electronic components.

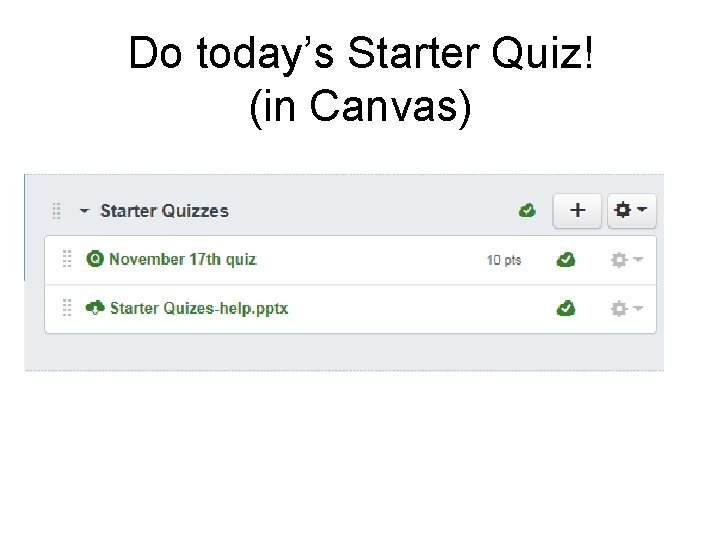

Do today’s Starter Quiz! (in Canvas)

State Strand Standard Snap Circuits Lab are used for

Step 1: Get Lab Partner and a Snap Circuits Kit

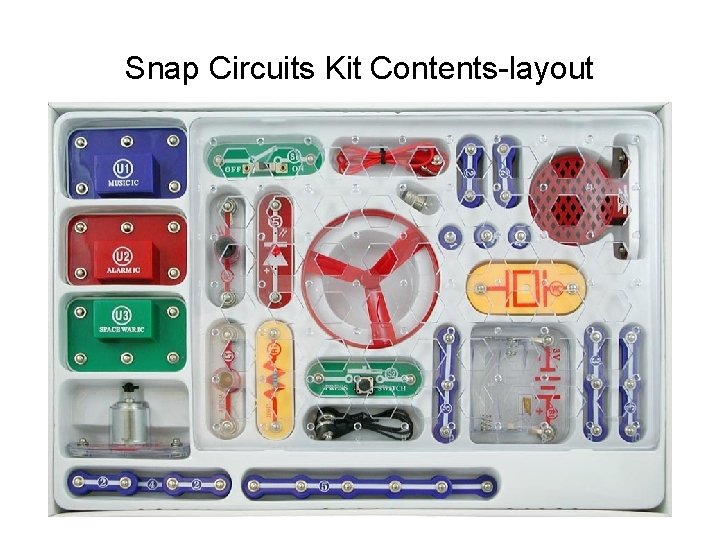

Snap Circuits Kit Contents-layout

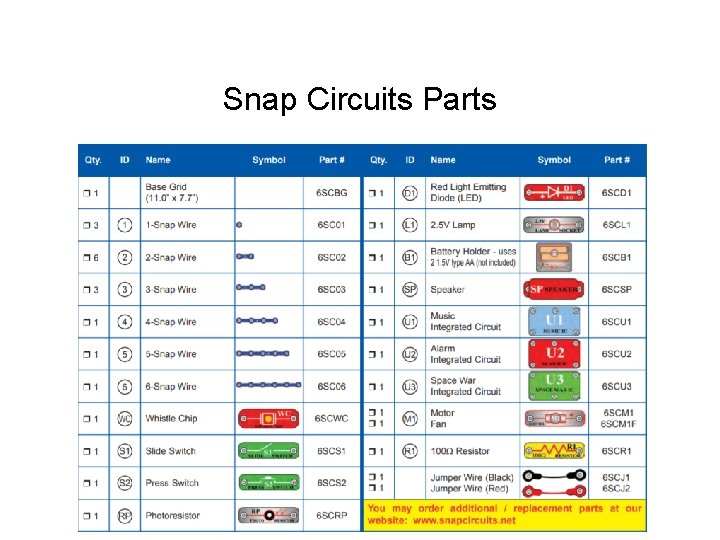

Snap Circuits Parts

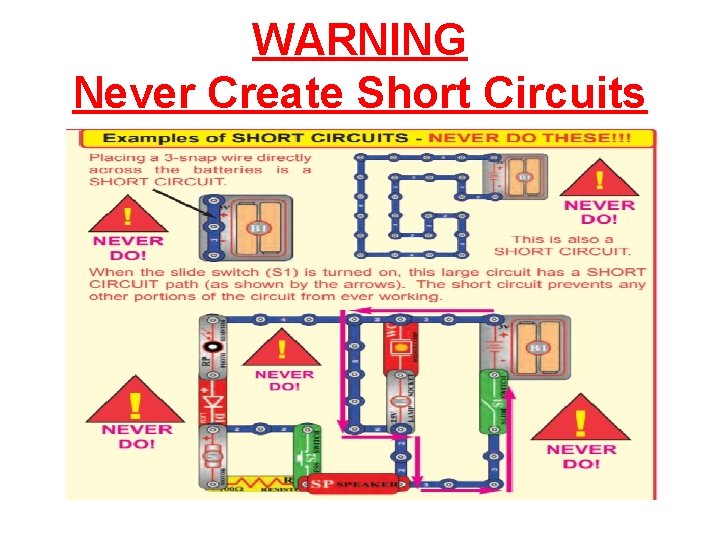

WARNING Never Create Short Circuits

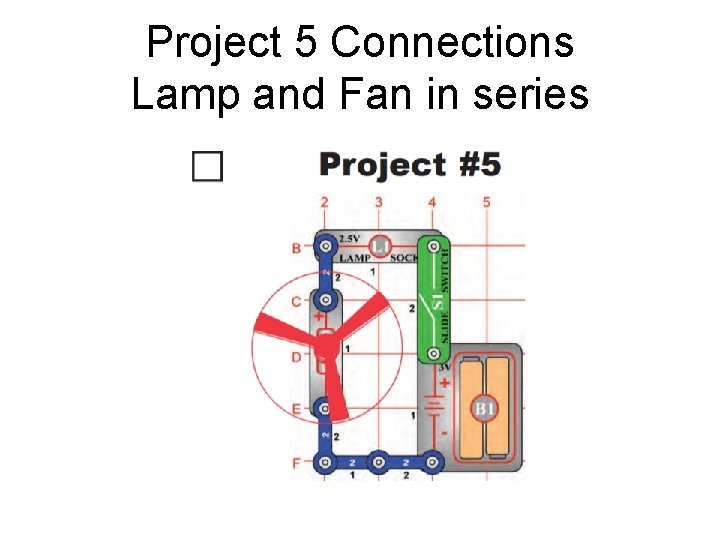

Project 5 Connections Lamp and Fan in series

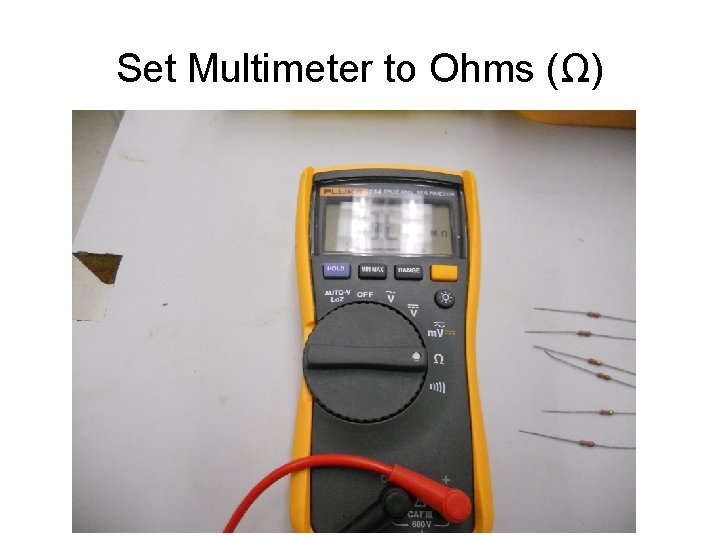

Set Multimeter to Ohms (Ω)

Measure Resistance across L 1 (points 2 and 4) and M 1 (points C and E) with S 1 OFF

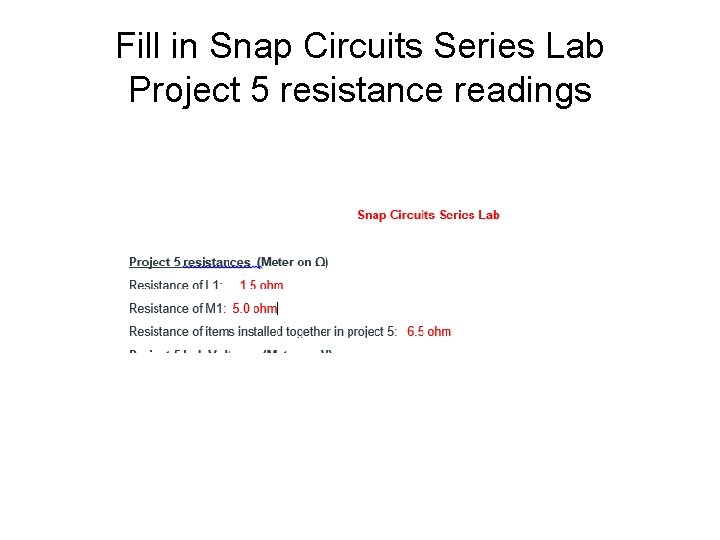

Fill in Snap Circuits Series Lab Project 5 resistance readings

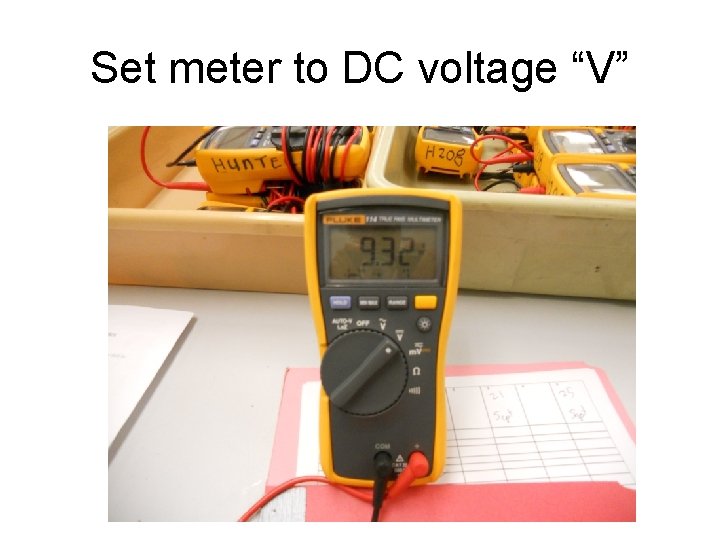

Set meter to DC voltage “V”

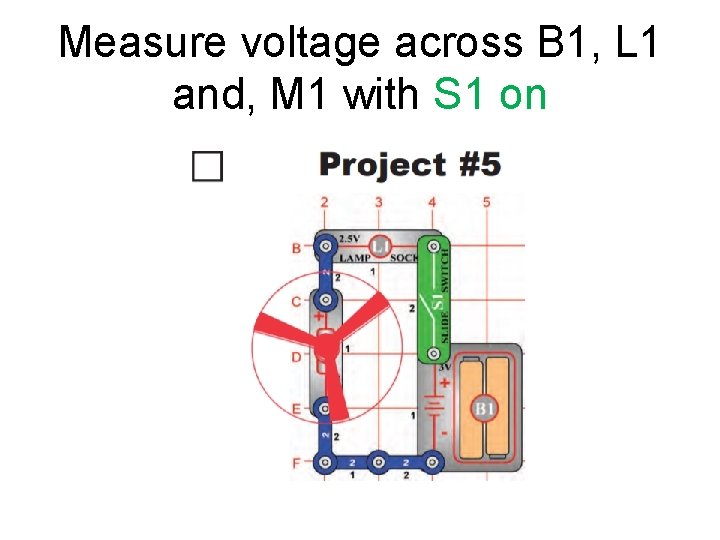

Measure voltage across B 1, L 1 and, M 1 with S 1 on

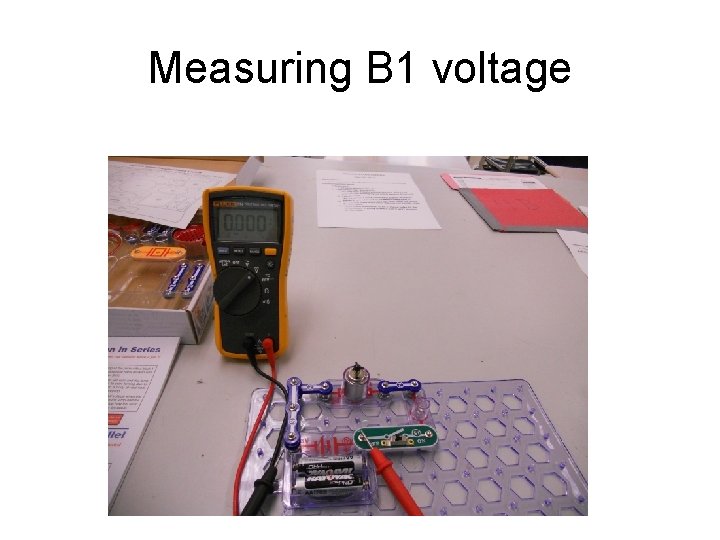

Measuring B 1 voltage

Measuring L 1 voltage

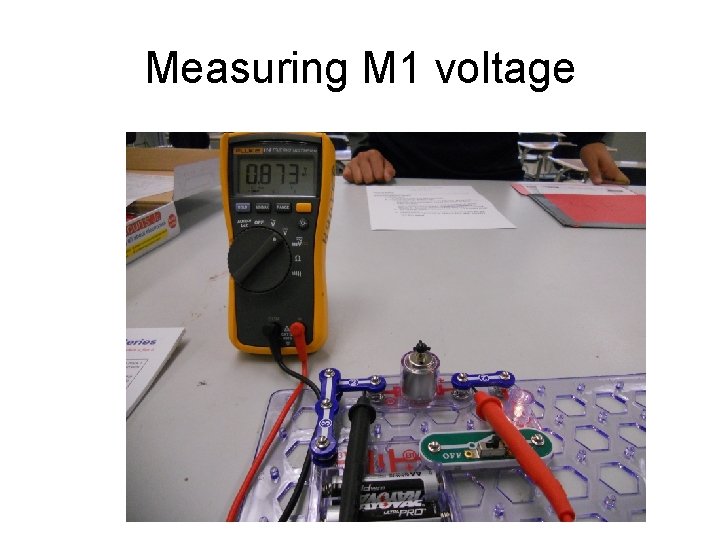

Measuring M 1 voltage

Fill in Snap Circuits Series Lab Project 5 Lab Voltages section.

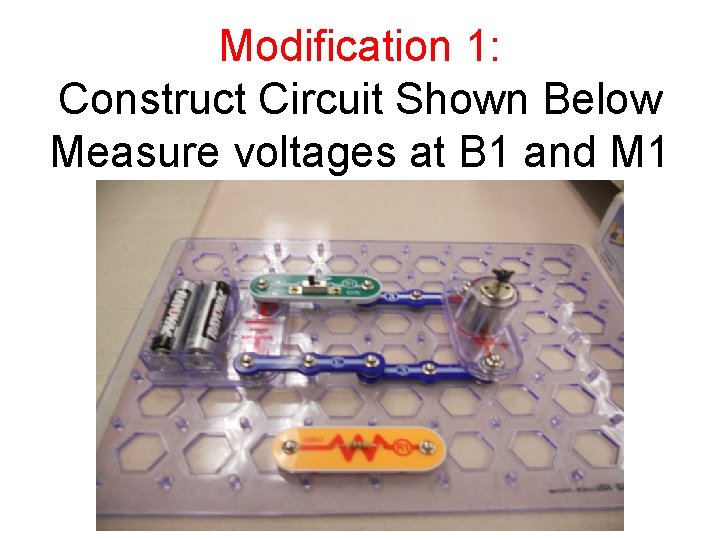

Modification 1: Construct Circuit Shown Below Measure voltages at B 1 and M 1

Measuring B 1 voltage

Fill in Snap Circuits Series Lab Modification 1 (without R 1) Lab Voltages section.

Measuring M 1 voltage

Modification 2: (Remove 3 snap strip - replace with R 1) Measure voltage across B 1, R 1 and, M 1

Measuring B 1 voltage

Measuring M 1 voltage

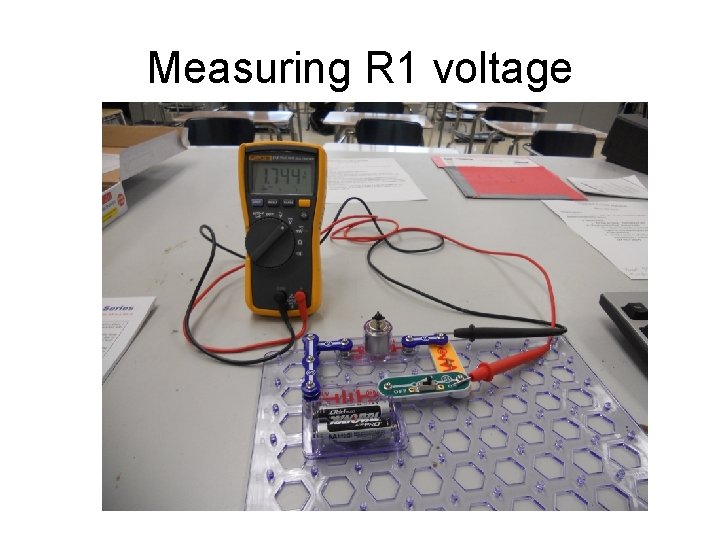

Measuring R 1 voltage

Fill in Snap Circuits Series Lab Modification 1 (with R 1) Lab Voltages section.

Basic Theory – Series Circuits Snap Circuits Series Lab

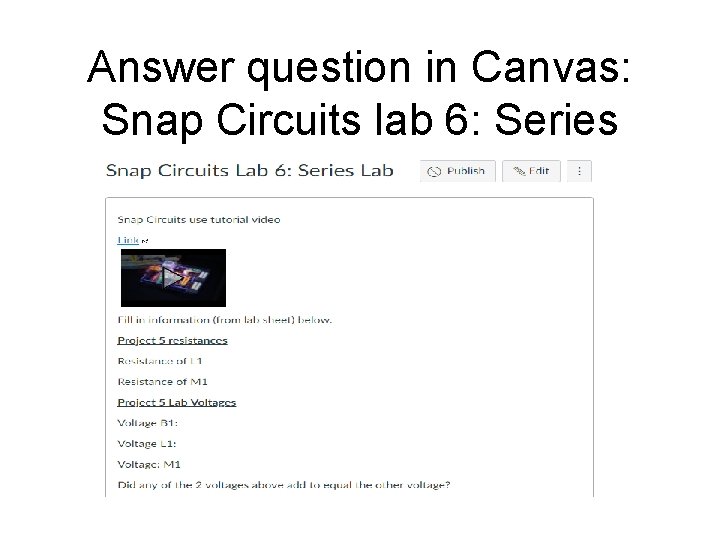

Answer question in Canvas: Snap Circuits lab 6: Series

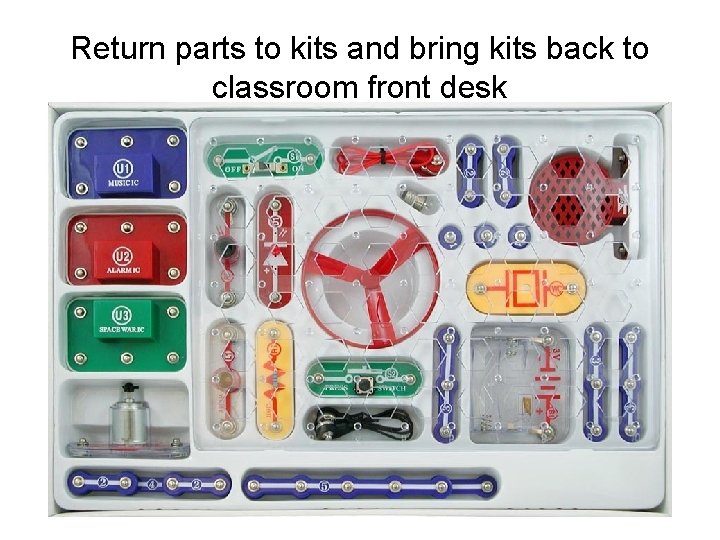

Return parts to kits and bring kits back to classroom front desk
