SMPS BASED TELECOM INTEGRATED POWER SUPPY SYSTEM PUNCOM

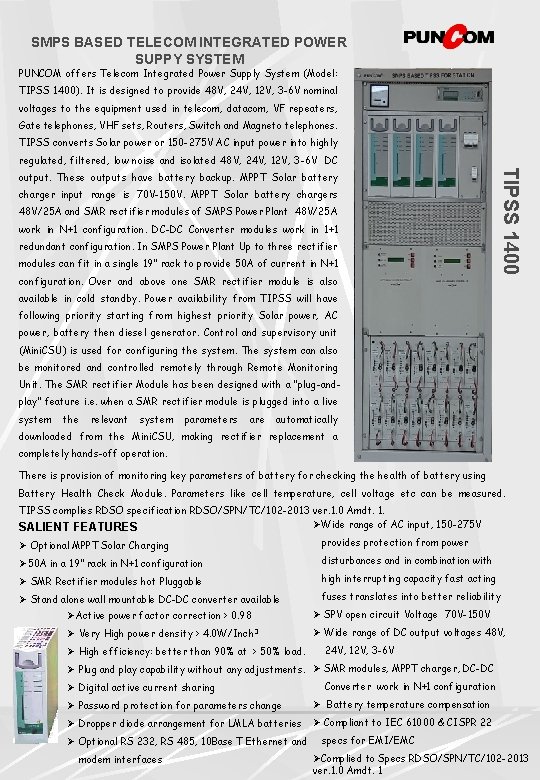

SMPS BASED TELECOM INTEGRATED POWER SUPPY SYSTEM PUNCOM offers Telecom Integrated Power Supply System (Model: TIPSS 1400). It is designed to provide 48 V, 24 V, 12 V, 3 -6 V nominal voltages to the equipment used in telecom, datacom, VF repeaters, Gate telephones, VHF sets, Routers, Switch and Magneto telephones. TIPSS converts Solar power or 150 -275 V AC input power into highly regulated, filtered, low noise and isolated 48 V, 24 V, 12 V, 3 -6 V DC charger input range is 70 V-150 V. MPPT Solar battery chargers 48 V/25 A and SMR rectifier modules of SMPS Power Plant 48 V/25 A work in N+1 configuration. DC-DC Converter modules work in 1+1 redundant configuration. In SMPS Power Plant Up to three rectifier modules can fit in a single 19” rack to provide 50 A of current in N+1 configuration. Over and above one SMR rectifier module is also TIPSS 1400 output. These outputs have battery backup. MPPT Solar battery available in cold standby. Power availability from TIPSS will have following priority starting from highest priority Solar power, AC power, battery then diesel generator. Control and supervisory unit (Mini. CSU) is used for configuring the system. The system can also be monitored and controlled remotely through Remote Monitoring Unit. The SMR rectifier Module has been designed with a “plug-andplay” feature i. e. when a SMR rectifier module is plugged into a live system the relevant system parameters are automatically downloaded from the Mini. CSU, making rectifier replacement a completely hands-off operation. There is provision of monitoring key parameters of battery for checking the health of battery using Battery Health Check Module. Parameters like cell temperature, cell voltage etc can be measured. TIPSS complies RDSO specification RDSO/SPN/TC/102 -2013 ver. 1. 0 Amdt. 1. ØWide range of AC input, 150 -275 V SALIENT FEATURES Ø Optional MPPT Solar Charging provides protection from power Ø 50 A in a 19” rack in N+1 configuration disturbances and in combination with Ø SMR Rectifier modules hot Pluggable high interrupting capacity fast acting Ø Stand alone wall mountable DC-DC converter available ØActive power factor correction > 0. 98 fuses translates into better reliability Ø Very High power density > 4. 0 W/Inch 3 Ø High efficiency: better than 90% at > 50% load. Ø SPV open circuit Voltage 70 V-150 V Ø Wide range of DC output voltages 48 V, 24 V, 12 V, 3 -6 V Ø Plug and play capability without any adjustments. Ø SMR modules, MPPT charger, DC-DC Ø Digital active current sharing Converter work in N+1 configuration Ø Password protection for parameters change Ø Battery temperature compensation Ø Dropper diode arrangement for LMLA batteries Ø Compliant to IEC 61000 & CISPR 22 Ø Optional RS 232, RS 485, 10 Base T Ethernet and modem interfaces specs for EMI/EMC ØComplied to Specs RDSO/SPN/TC/102 -2013 ver. 1. 0 Amdt. 1

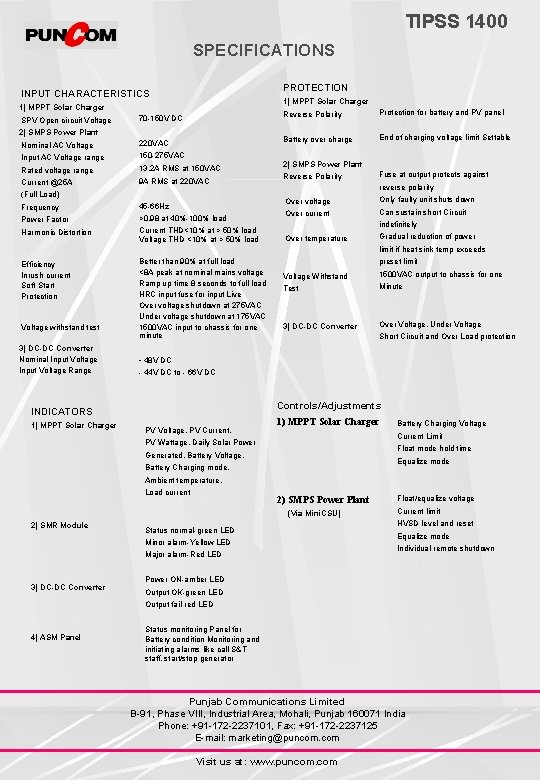

TIPSS 1400 SPECIFICATIONS PROTECTION INPUT CHARACTERISTICS 1) MPPT Solar Charger SPV Open circuit Voltage 70 -150 V DC 2) SMPS Power Plant Nominal AC Voltage 220 VAC Input AC Voltage range 150 -275 VAC Rated voltage range 13. 2 A RMS at 150 VAC Current @25 A 9 A RMS at 220 VAC (Full Load) Frequency 45 -66 Hz Power Factor >0. 98 at 40%-100% load Current THD<10% at > 50% load Voltage THD <10% at > 50% load Harmonic Distortion Reverse Polarity Protection for battery and PV panel Battery over charge End of charging voltage limit Settable 2) SMPS Power Plant Reverse Polarity Fuse at output protects against reverse polarity Over voltage Only faulty unit shuts down Over current Can sustain short Circuit indefinitely Over temperature Gradual reduction of power limit if heat sink temp exceeds Efficiency Inrush current Soft Start Protection Voltage withstand test 3) DC-DC Converter Nominal Input Voltage Range Better than 90% at full load <8 A peak at nominal mains voltage Ramp up time 8 seconds to full load HRC input fuse for input Live Over voltage shutdown at 275 VAC Under voltage shutdown at 175 VAC 1500 VAC input to chassis for one minute 1500 VAC output to chassis for one Test Minute 3) DC-DC Converter Over Voltage, Under Voltage Short Circuit and Over Load protection - 48 V DC - 44 V DC to - 66 V DC Controls/Adjustments INDICATORS 1) MPPT Solar Charger preset limit Voltage Withstand PV Voltage, PV Current, 1) MPPT Solar Charger Battery Charging Voltage Current Limit PV Wattage, Daily Solar Power Float mode hold time Generated, Battery Voltage, Equalize mode Battery Charging mode, Ambient temperature, Load current 2) SMPS Power Plant (Via Mini. CSU) 2) SMR Module Status normal-green LED Minor alarm-Yellow LED Major alarm-Red LED 3) DC-DC Converter Float/equalize voltage Current limit HVSD level and reset Equalize mode Individual remote shutdown Power ON-amber LED Output OK-green LED Output fail-red LED 4) ASM Panel Status monitoring Panel for Battery condition Monitoring and initiating alarms like call S&T staff, start/stop generator Punjab Communications Limited B-91, Phase VIII, Industrial Area, Mohali, Punjab 160071 India Phone: +91 -172 -2237101, Fax: +91 -172 -2237125 E-mail: marketing@puncom. com Visit us at: www. puncom. com

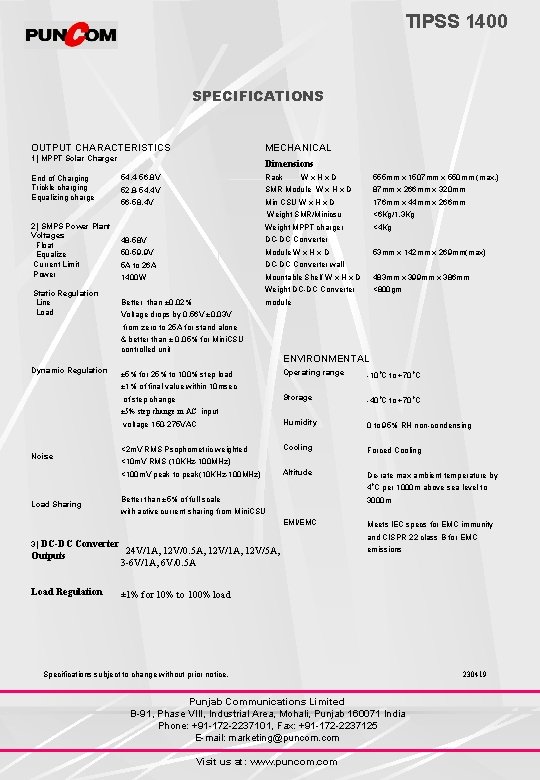

TIPSS 1400 SPECIFICATIONS OUTPUT CHARACTERISTICS MECHANICAL 1) MPPT Solar Charger Dimensions End of Charging Trickle charging Equalizing charge 2) SMPS Power Plant Voltages Float Equalize Current Limit Power Static Regulation Line Load 54. 4 -56. 8 V Rack Wx. Hx. D 555 mm x 1507 mm x 550 mm (max. ) 52. 8 -54. 4 V SMR Module W x H x D 87 mm x 266 mm x 320 mm 56 -58. 4 V Min CSU W x H x D 176 mm x 44 mm x 266 mm Weight SMR/Minicsu <6 Kg/1. 3 Kg Weight MPPT charger <4 Kg 48 -58 V DC-DC Converter 50 -59. 9 V Module W x H x D 5 A to 26 A DC-DC Converter wall 1400 W Mountable Shelf W x H x D 483 mm x 399 mm x 386 mm Weight DC-DC Converter <800 gm 53 mm x 142 mm x 269 mm(max) module Better than ± 0. 02% Voltage drops by 0. 56 V ± 0. 03 V from zero to 25 A for stand alone & better than ± 0. 05% for Mini. CSU controlled unit Dynamic Regulation ENVIRONMENTAL Operating range -10 o. C to +70 o. C Storage -40 o. C to +70 o. C voltage 150 -275 VAC Humidity 0 to 95% RH non-condensing <2 m. V RMS Psophometric weighted Cooling Forced Cooling Altitude De-rate max ambient temperature by ± 5% for 25% to 100% step load ± 1% of final value within 10 msec of step change ± 5% step change in AC input Noise <10 m. V RMS (10 KHz-100 MHz) <100 m. V peak to peak(10 KHz-100 MHz) 4 o. C per 1000 m above sea level to Load Sharing Better than ± 5% of full scale 3000 m with active current sharing from Mini. CSU EMI/EMC 3) DC-DC Converter Meets IEC specs for EMC immunity and CISPR 22 class B for EMC Outputs 24 V/1 A, 12 V/0. 5 A, 12 V/1 A, 12 V/5 A, 3 -6 V/1 A, 6 V/0. 5 A Load Regulation ± 1% for 10% to 100% load emissions Specifications subject to change without prior notice. Punjab Communications Limited B-91, Phase VIII, Industrial Area, Mohali, Punjab 160071 India Phone: +91 -172 -2237101, Fax: +91 -172 -2237125 E-mail: marketing@puncom. com Visit us at: www. puncom. com 230419
