AGENDA Network Solutions 2016 Network On Demand Mobile Campus Data Center SMB Networks Hardened Networks 2 COPYRIGHT © 2012 ALCATEL-LUCENT ENTERPRISE. ALL RIGHTS RESERVED.
AGENDA 1. Identify SMB Markets 2. Clarify the typical SMBs Needs 3. Business Partner Answer to SMBs Markets 4. LAN Products for SMB 5. WLAN Products for SMB 6. Zero Touch Provisioning 7. Licenses aspect 8. Use case Branch Office 9. Use case Remote Worker 10. Use case Road Warrior 3 COPYRIGHT © 2012 ALCATEL-LUCENT ENTERPRISE. ALL RIGHTS RESERVED.
Network Solution for SMB Which network is right for SMB ? 4 COPYRIGHT © 2012 ALCATEL-LUCENT ENTERPRISE. ALL RIGHTS RESERVED.
IDENTIFY SMB MARKETS Public Sector Hospitality and restaurants Health & Care (School and local gov’t) (travel agency, hotel, restaurant) (lab, practice, retirement) Industry and construction (Food processing, auto repair, construction) Consulting and Legal Commercial services (Law office, consultancy) (Insurance, real estate, car dealership, bank branch) 5 COPYRIGHT © 2012 ALCATEL-LUCENT ENTERPRISE. ALL RIGHTS RESERVED.
MAIN TECHNOLOGIES AND PROPOSITIONS • Main Technologies • Gigabit Ethernet LAN • WLAN 802. 11 n and 802. 11 ac • IP Telephony • Value proposition • For the BP, Offering an integrated and lab tested, end to end solution • to SMB end-customers for IP Voice, networking and Wi-Fi, • while increasing BP revenue thanks to cross selling • For the customer, Stay connected anywhere, anytime, in a wired • or wireless mode, in a secured mode (access or Internet) • while reducing communication costs and benefiting • all-in-one sales and support via local accredited Resellers 6 COPYRIGHT © 2012 ALCATEL-LUCENT ENTERPRISE. ALL RIGHTS RESERVED.
Needs today are challenging IT infratructures for SMB New Devices : support of lastest devices such Gig. E AP and PTZ camera New usages : Open. Touch, PIMPhony, Cloud, Social medias, Virtualization Applications Mobility 7 COPYRIGHT © 2012 ALCATEL-LUCENT ENTERPRISE. ALL RIGHTS RESERVED. Cloud Virtualization Social medias
Clarify typical SMB needs today The Opportunity Is There But The SMB Market Is Tough SMB market is price sensitive as most solutions will do the job You will always find a competitor that is offering cheaper LAN or WLAN When selling on price, your margins are low while customers need Installation and Support You need to convince your costumer about the solution benefits. Here you create customer stickiness, protect your installed base and open the opportunity for additional sales. Different types of equipment in use, offered by different Vendors To lower CAPEX, some SMBs are buying up to 3 different vendors for the Unified Communications, LAN, and Wi-Fi portions of their network, which was OK when you had One user = 1 phone = 1 PC = 1 port = 1 VLAN What happens when a user is not experiencing seamless Where the fault ? experiencing seamless mobility across the network or is their Internet mobility across the network or their Internet connectivity is slow? Is it the ISP ? Is it the LAN ? connectivity is slow? What is the impact of an inconsistent security policy? 8 COPYRIGHT © 2012 ALCATEL-LUCENT ENTERPRISE. ALL RIGHTS RESERVED. Is it the WLAN ? Is it the PBX ?
Network Solution for SMB Business Partner Answer to SMB Market 9 COPYRIGHT © 2012 ALCATEL-LUCENT ENTERPRISE. ALL RIGHTS RESERVED.
BUSINESS PARTNER ANSWER TO SMB MARKETS Which network is right for your SMB customer ? User Mobility VLAN 10 INTERNET ONLY Manager HIGH BWIDTH HIGH PRIORITY u. N P Ease of deployment § Automated deployment § Dynamic association of a user with a network § No IT actions required § 802. 1 p, rate limit, portbased and 802. 1 Q tagbased VLANs, guest VLAN, auto voice § Less support needed § Easy Maintenance § User/device authentication § Zero. Touch provisioning Switch needs… Energy-Savings Security § Fan-less § 802. 1 x authentication § § Low power consumption with dynamic Po. E allocation ACL filtering to permit or deny traffic § Defense against common viruses and attacks § Energy efficient Ethernet IEEE 802. 3 az 10 COPYRIGHT © 2012 ALCATEL-LUCENT ENTERPRISE. ALL RIGHTS RESERVED.

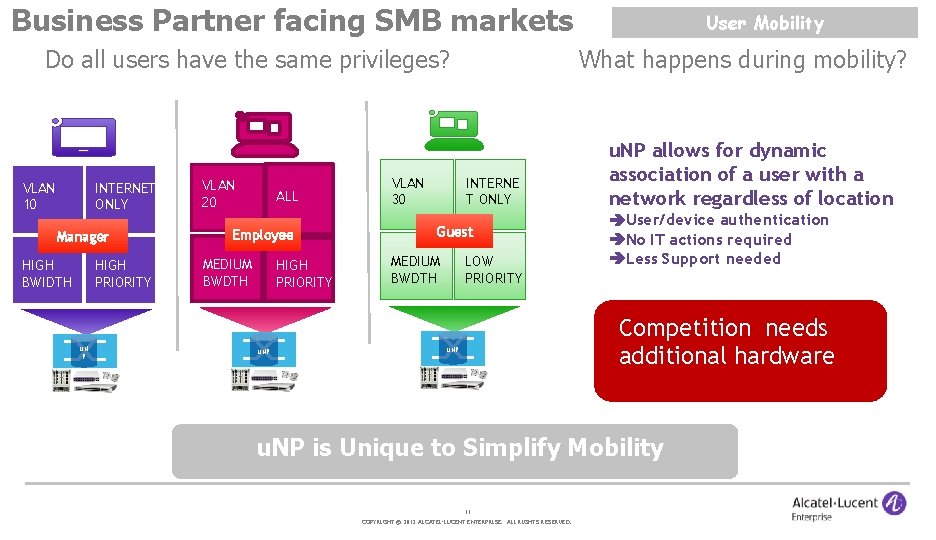

Business Partner facing SMB markets Do all users have the same privileges? What happens during mobility? VLAN 10 INTERNET ONLY Manager HIGH BWIDTH HIGH PRIORITY u. N P VLAN 20 ALL Employee MEDIUM BWDTH HIGH PRIORITY u. NP VLAN 30 INTERNE T ONLY Guest MEDIUM BWDTH User Mobility LOW PRIORITY u. NP allows for dynamic association of a user with a network regardless of location User/device authentication No IT actions required Less Support needed Competition needs additional hardware u. NP is Unique to Simplify Mobility 11 COPYRIGHT © 2012 ALCATEL-LUCENT ENTERPRISE. ALL RIGHTS RESERVED.
Business Partner answer to SMB markets Security requirements are Access Authorization and Resources Utilization • Consistent policies across the LAN and WLAN network to prevent and monitor unauthorized access, misuse, modifications • Resources utilisation, access utilisation with advanced ACL and device denial Security consists of authenticating and authorizing devices attached to the LAN or the WLAN • IP protocols protections and containments from the Internet world Access Guardian 802. 1 x/MAC authentication with comprehensive policy management Advanced IP protection (ARP protection, Do. S attacks, DHCP snooping, STP root guard) 12 COPYRIGHT © 2012 ALCATEL-LUCENT ENTERPRISE. ALL RIGHTS RESERVED.
Business partner answer to SMB markets Ease of deployment For applications: which application needs more bandwidth? • • • “My applications are sometimes slow. ” “My video stream is jerky and the voice is out of sync. ” “My voice calls sound bad at times. ” Your applications get the bandwidth they need whether it’s in the cloud, Internet or on-site. Voice applications get flexible Qo. S management For deployments and extensions Plug and play for Voice, Data and Wifi and deployment extension with a Zero. Touch provisioning Automated guest VLAN Auto Qo. S for IP Phones Bandwidth management Zero. Touch provisioning with 6350 auto-configuration combined with OXO RCE 13 COPYRIGHT © 2012 ALCATEL-LUCENT ENTERPRISE. ALL RIGHTS RESERVED.

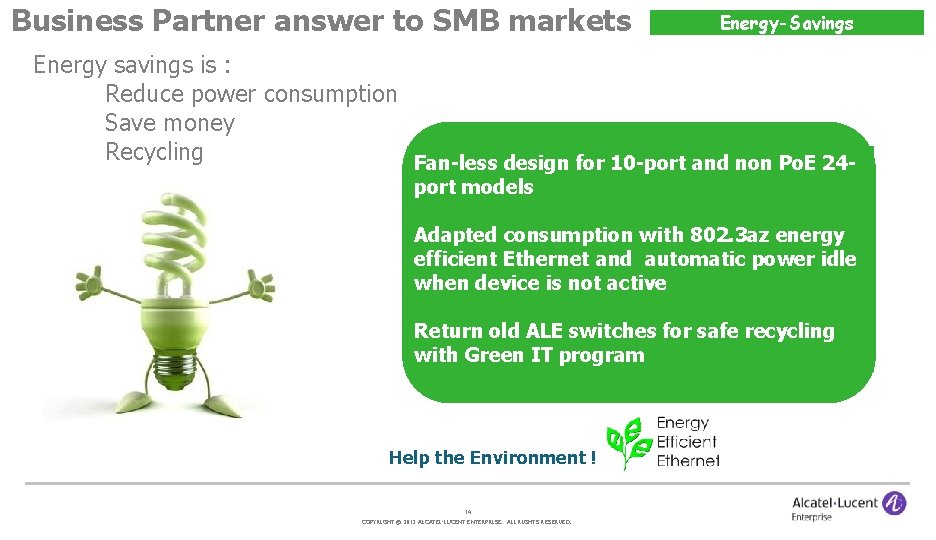

Business Partner answer to SMB markets Energy-Savings Energy savings is : Reduce power consumption Save money Recycling Fan-less design for 10 -port and non Po. E 24 port models Adapted consumption with 802. 3 az energy efficient Ethernet and automatic power idle when device is not active Return old ALE switches for safe recycling with Green IT program Help the Environment ! 14 COPYRIGHT © 2012 ALCATEL-LUCENT ENTERPRISE. ALL RIGHTS RESERVED.
Business Partner answer to SMB markets Wi. Fi Client Optimization and RF Management - Wi. Fi client optimization eliminates sticky client behavior while users roam. Client. Match automatically steers the device to a better AP. - Adaptive Radio Management™ (ARM) technology manages the 2. 4 -GHz and 5 -GHz radio bands to optimize the Wi-Fi client performance and ensures that APs stay clear of RF interferences. - Advanced Cellular Coexistence (ACC) permits WLANs to perform at peak efficiency by minimizing interference from 3 G/4 G LTE networks, distributed antenna systems (DAS) and commercial small cell/femtocell equipments. AP 1101 IAP serie 1 xx - 2 xx RDA ARM Support 802. 11 k and 802. 11 r Client. Match NA ACC - End to End 802. 11 e Qo. S Certified Voice applications and IP Phones. 15 COPYRIGHT © 2012 ALCATEL-LUCENT ENTERPRISE. ALL RIGHTS RESERVED.
Network Solution for SMB LAN & WLAN Products for SMB 16 COPYRIGHT © 2012 ALCATEL-LUCENT ENTERPRISE. ALL RIGHTS RESERVED.
LAN & WLAN PRODUCTS OVERVIEW Omniswitch 6350 1. Omni. Switch 6350 Gigabit Ethernet LAN Switches are L 2+ level switches which provides advanced services for small-to medium size business (SMB) IP infrastructure deployments. It supports advanced quality of service (Qo. S) and security for triple play applications (outstanding data, voice and video quality) in a secure environment with advanced user and traffic classification capabilities. When combined with Omni. PCX Office RCE, OS 6350 provides integrated Voice/Data/Wifi solutions for SMB. 2. OS 6350 and OS 6450 products are available with 10, 24 or 48 -ports, with or without Power over Ethernet (Po. E). Po. E models are IEEE 802. 3 af (Po. E)/802. 3 at (Po. E+) and IEEE 802. 3 az (Energy Efficient Ethernet) compliant on every port in order to deliver only the amount of power needed by the powered devices for efficient power consumption. 3. The 24 -port and 48 -port models provide a one rack width by one rack unit (1 RU) height, all-in-one stackable design, and a comprehensive set of operating system software features inherent in the Alcatel-Lucent Enterprise Operating System (AOS), make the Omni. Switch 6350 family perfect for: 4. Stacking is supported on the OS 6350 24 and 48 ports models (up to 4 switches) 5. The AOS software supports native IPv 4/IPv 6 static routing. This makes it ideal for an SMB environment. The AOS also offers a wide breadth of features and capabilities Small-medium business Perfect for Workgroup connectivity 17 COPYRIGHT © 2012 ALCATEL-LUCENT ENTERPRISE. ALL RIGHTS RESERVED. Branch Offices
OMNISWITCH 6350 – 10 port model Gigabit Ethernet LAN Switches for SMB MAIN CHARACTERISTICS OMNISWITCH 6350 -10 and P 10 8 x 10/1000 RJ-45 ports 4 x SFP/RJ-45 gigabit combo ports ~120 W of available Po. E power for Po. E /Po. E+ on P 10 model Supports up to 30 W per port Po. E power Fanless native IPv 4/IPv 6 static routing Auto-sensing IEEE 802. 1 X multi-client, multi-VLAN MAC-based authentication User Network Profiles on Policy bases IP containment, monitoring and quarantine Switch auto-configuration when combined with Omni. PCX Office 18 COPYRIGHT © 2012 ALCATEL-LUCENT ENTERPRISE. ALL RIGHTS RESERVED.
OMNISWITCH 6350 – 24 and 48 port model Gigabit Ethernet LAN Switches for SMB MAIN CHARACTERISTICS OMNISWITCH 6350 -24 and -48 24 x or 48 x 10/1000 RJ-45 ports 4 x SFP/RJ-45 gigabit combo ports ~380 W of available Po. E /Po. E+ on P 24 model, ~780 W on P 48 model Supports up to 30 W per port Po. E power Fanless on 24 model Stackable (up to 4 switches) OS 6350 -24 /OS 6350 -P 24 OS 6350 -48 /OS 6350 -P 48 native IPv 4/IPv 6 static routing Auto-sensing IEEE 802. 1 X multi-client, multi-VLAN MAC-based authentication User Network Profiles on Policy bases IP containment, monitoring and quarantine Switch auto-configuration when combined with Omni. PCX Office 19 COPYRIGHT © 2012 ALCATEL-LUCENT ENTERPRISE. ALL RIGHTS RESERVED. Switch

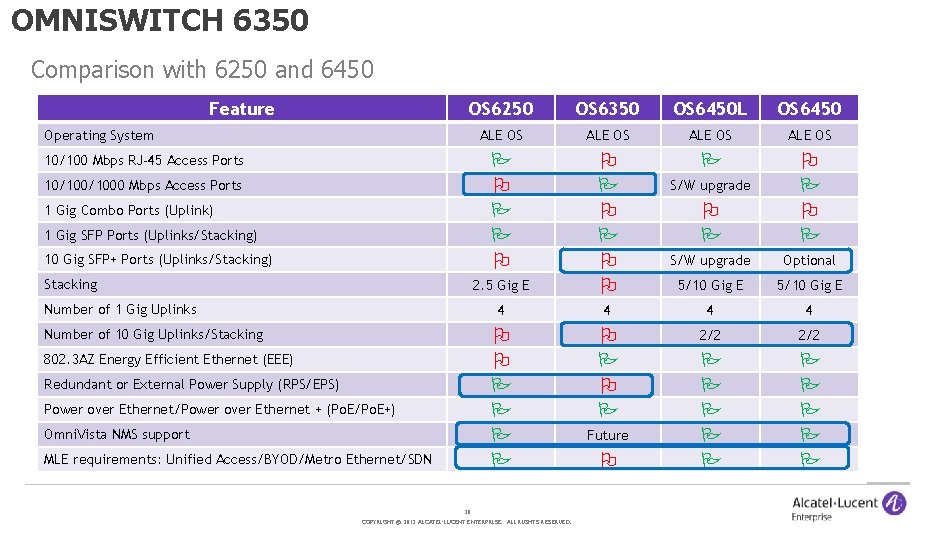

OMNISWITCH 6350 Comparison with 6250 and 6450 Feature OS 6250 OS 6350 OS 6450 L OS 6450 ALE OS P O P O P O P S/W upgrade Optional 2. 5 Gig E O P O O 5/10 Gig E 4 4 O O P P O P 2/2 P P P P P Operating System 10/100 Mbps RJ-45 Access Ports 10/1000 Mbps Access Ports 1 Gig Combo Ports (Uplink) 1 Gig SFP Ports (Uplinks/Stacking) 10 Gig SFP+ Ports (Uplinks/Stacking) Stacking Number of 1 Gig Uplinks Number of 10 Gig Uplinks/Stacking 802. 3 AZ Energy Efficient Ethernet (EEE) Redundant or External Power Supply (RPS/EPS) Power over Ethernet/Power over Ethernet + (Po. E/Po. E+) Omni. Vista NMS support MLE requirements: Unified Access/BYOD/Metro Ethernet/SDN 20 COPYRIGHT © 2012 ALCATEL-LUCENT ENTERPRISE. ALL RIGHTS RESERVED. Future O S/W upgrade
OMNISWITCH 6350 AOS 6. 7. 1 R 01 for OS 6250, OS 6350 and OS 6450 21 COPYRIGHT © 2012 ALCATEL-LUCENT ENTERPRISE. ALL RIGHTS RESERVED.

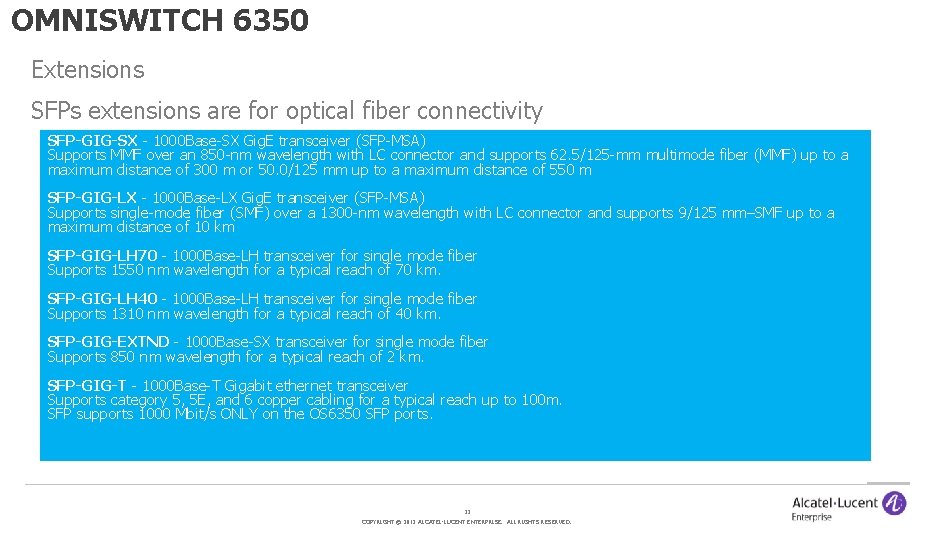

OMNISWITCH 6350 Extensions SFPs extensions are for optical fiber connectivity SFP-GIG-SX - 1000 Base-SX Gig. E transceiver (SFP-MSA) Supports MMF over an 850 -nm wavelength with LC connector and supports 62. 5/125 -mm multimode fiber (MMF) up to a maximum distance of 300 m or 50. 0/125 mm up to a maximum distance of 550 m SFP-GIG-LX - 1000 Base-LX Gig. E transceiver (SFP-MSA) Supports single-mode fiber (SMF) over a 1300 -nm wavelength with LC connector and supports 9/125 mm–SMF up to a maximum distance of 10 km SFP-GIG-LH 70 - 1000 Base-LH transceiver for single mode fiber Supports 1550 nm wavelength for a typical reach of 70 km. SFP-GIG-LH 40 - 1000 Base-LH transceiver for single mode fiber Supports 1310 nm wavelength for a typical reach of 40 km. SFP-GIG-EXTND - 1000 Base-SX transceiver for single mode fiber Supports 850 nm wavelength for a typical reach of 2 km. SFP-GIG-T - 1000 Base-T Gigabit ethernet transceiver Supports category 5, 5 E, and 6 copper cabling for a typical reach up to 100 m. SFP supports 1000 Mbit/s ONLY on the OS 6350 SFP ports. 22 COPYRIGHT © 2012 ALCATEL-LUCENT ENTERPRISE. ALL RIGHTS RESERVED.
LAN & WLAN PRODUCTS OVERVIEW Omni. Access Wireless LAN 1. Alcatel-Lucent Enterprise Wireless LAN mobility provides a complete set of equipments with the latest 802. 11 ac Wi-Fi standard based WLAN. Omni. Access Wireless Access Points family can be deployed with or without wireless controllers and delivers a high performance wireless mobility solution for SMB enterprises. This wireless infrastructure complements Office Communication solutions with certified 802. 11 e voice and combined data. 2. The new Omni. Access AP 1101 controller-less access point is added to the portfolio offering an affordable 802. 11 ac wave 1, high performance AP option for small and medium density SMBs deployment, and providing a gigabit wireless user experience and a simple guest access management. 3. Within a comprehensive line of small, lightweight APs the Omni. Access APs can be securely installed in a variety I of locations such as on walls, cubicles, desktops and ceilings. 23 COPYRIGHT © 2012 ALCATEL-LUCENT ENTERPRISE. ALL RIGHTS RESERVED.

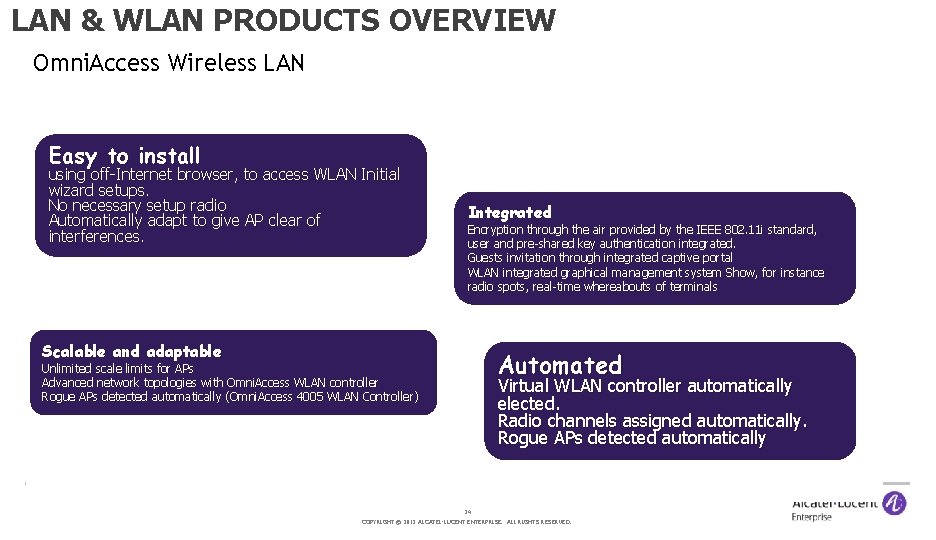

LAN & WLAN PRODUCTS OVERVIEW Omni. Access Wireless LAN Easy to install using off-Internet browser, to access WLAN Initial wizard setups. No necessary setup radio Automatically adapt to give AP clear of interferences. Integrated Encryption through the air provided by the IEEE 802. 11 i standard, user and pre-shared key authentication integrated. Guests invitation through integrated captive portal WLAN integrated graphical management system Show, for instance radio spots, real-time whereabouts of terminals Scalable and adaptable Automated Unlimited scale limits for APs Advanced network topologies with Omni. Access WLAN controller Rogue APs detected automatically (Omni. Access 4005 WLAN Controller) Virtual WLAN controller automatically elected. Radio channels assigned automatically. Rogue APs detected automatically 24 COPYRIGHT © 2012 ALCATEL-LUCENT ENTERPRISE. ALL RIGHTS RESERVED.

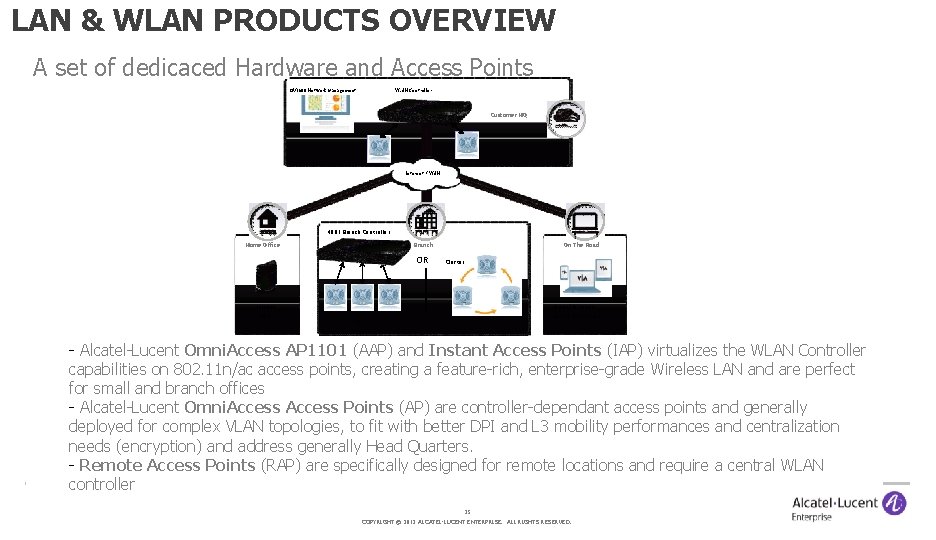

LAN & WLAN PRODUCTS OVERVIEW A set of dedicaced Hardware and Access Points OV 3600 Network Management WLAN Controller Customer HQ Internet / WAN 4005 Branch Controller Home Office Branch OR On The Road Cluster Instant /RAP Virtual Intranet IAPs Access (VIA) Client - Alcatel-Lucent Omni. Access AP 1101 (AAP) and Instant Access Points (IAP) virtualizes the WLAN Controller capabilities on 802. 11 n/ac access points, creating a feature-rich, enterprise-grade Wireless LAN and are perfect for small and branch offices - Alcatel-Lucent Omni. Access Points (AP) are controller-dependant access points and generally deployed for complex VLAN topologies, to fit with better DPI and L 3 mobility performances and centralization needs (encryption) and address generally Head Quarters. - Remote Access Points (RAP) are specifically designed for remote locations and require a central WLAN controller 25 COPYRIGHT © 2012 ALCATEL-LUCENT ENTERPRISE. ALL RIGHTS RESERVED.
OMNIACCESS WLAN Instant Access Points for SMB MAIN CHARACTERISTICS OMNIACCESS WLAN Instant AP Controller-less Access Point IEEE 802. 11 n, IEEE 802. 11 ac wave 1, dual radio models 2 x 2: 2 SS MIMO 1. 2 Gbps throughput capable AP-1101 Switch One powered 1 Gig. Ethernet port 8 SSID/radio Up to 16 APs in a AP-Group Adaptive Radio Management Role and Policy based access This is only a subset of the complete Alcatel-Lucent Enterprise Wireless LAN networking offer, specifically selected for small and medium businesses 26 COPYRIGHT © 2012 ALCATEL-LUCENT ENTERPRISE. ALL RIGHTS RESERVED.

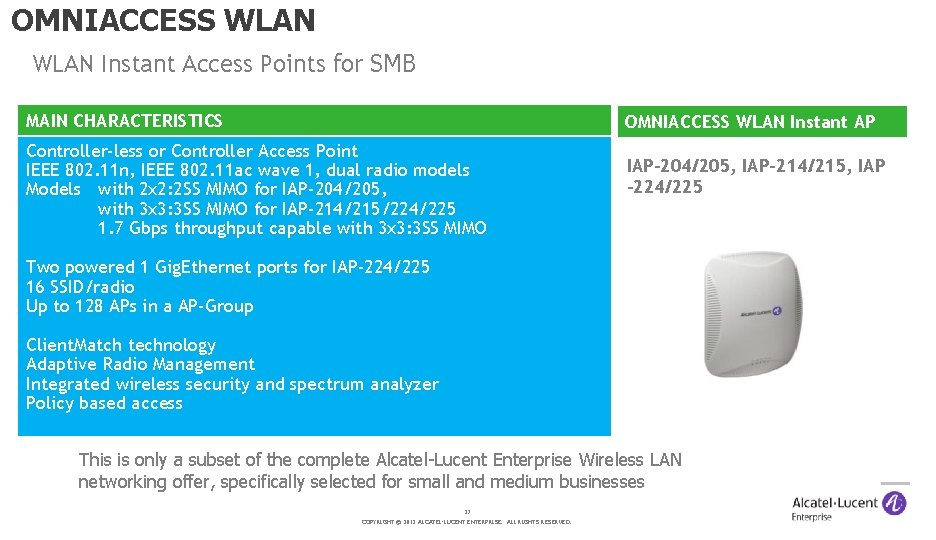

OMNIACCESS WLAN Instant Access Points for SMB MAIN CHARACTERISTICS OMNIACCESS WLAN Instant AP Controller-less or Controller Access Point IEEE 802. 11 n, IEEE 802. 11 ac wave 1, dual radio models Models with 2 x 2: 2 SS MIMO for IAP-204/205, with 3 x 3: 3 SS MIMO for IAP-214/215/224/225 1. 7 Gbps throughput capable with 3 x 3: 3 SS MIMO IAP-204/205, IAP-214/215, IAP -224/225 Switch Two powered 1 Gig. Ethernet ports for IAP-224/225 16 SSID/radio Up to 128 APs in a AP-Group Client. Match technology Adaptive Radio Management Integrated wireless security and spectrum analyzer Policy based access This is only a subset of the complete Alcatel-Lucent Enterprise Wireless LAN networking offer, specifically selected for small and medium businesses 27 COPYRIGHT © 2012 ALCATEL-LUCENT ENTERPRISE. ALL RIGHTS RESERVED.
OMNIACCESS WLAN Remote Access Points for SMB MAIN CHARACTERISTICS OMNIACCESS WLAN Remote AP Omni. Access RAP-3 WN/3 WNP IEEE 802. 11 bgn single radio, with 2 x 2: 2 SS MIMO One Ethernet port for uplink Two Ethernet port for local link, WNP version provides Po. E on one port One USB 2. 0 port for 3 G/4 G support RAP-3 WN/3 WNP, RAP-155, RAP-108/109 Switch Omni. Access RAP-108/109 IEEE 802. 11 an dual radio, with 2 x 2: 2 SS MIMO One Gig. Ethernet port for uplink One Ethernet port for local link One USB 2. 0 port for 3 G/4 G support Omni. Access RAP-155 IEEE 802. 11 an dual radio, with 3 x 3: 3 SS MIMO One Gig. Ethernet port for uplink Four Ethernet ports for local link with Po. E on two ports One USB 2. 0 port for 3 G/4 G support This is only a subset of the complete Alcatel-Lucent Enterprise Wireless LAN networking offer, specifically selected for small and medium businesses 28 COPYRIGHT © 2012 ALCATEL-LUCENT ENTERPRISE. ALL RIGHTS RESERVED.
OMNIACCESS WLAN Controller for SMB MAIN CHARACTERISTICS OMNIACCESS WLAN Controller 4 x 10/1000 RJ-45 ports Po. E option on port 1, external AC adapter ~17 watts consumption OAW-4005 Capacity Up to 16 APs; 16 RAPs (AP licenses required) Up to 1024 Users VPN and Firewall Maximum VLANs: 4094 16, 384 active firewall sessions Concurrent GRE tunnels (system BSSIDS): 512 Concurrent IP sec sessions: 512 Concurrent SSL fallback sessions: 512 Dimensions Height: 1. 6 in (41 mm) Width: 7. 9 in (200 mm) Depth: 7. 9 in (200 mm) Firewall throughput: 2 Gbps Encrypted throughput (3 DES , AES -CBC): 1. 2 Gbps Encrypted throughput (AES-CCM): 2. 2 Gbps This is only a subset of the complete Alcatel-Lucent Enterprise Wireless LAN networking offer, specifically selected for small and medium businesses 29 COPYRIGHT © 2012 ALCATEL-LUCENT ENTERPRISE. ALL RIGHTS RESERVED.

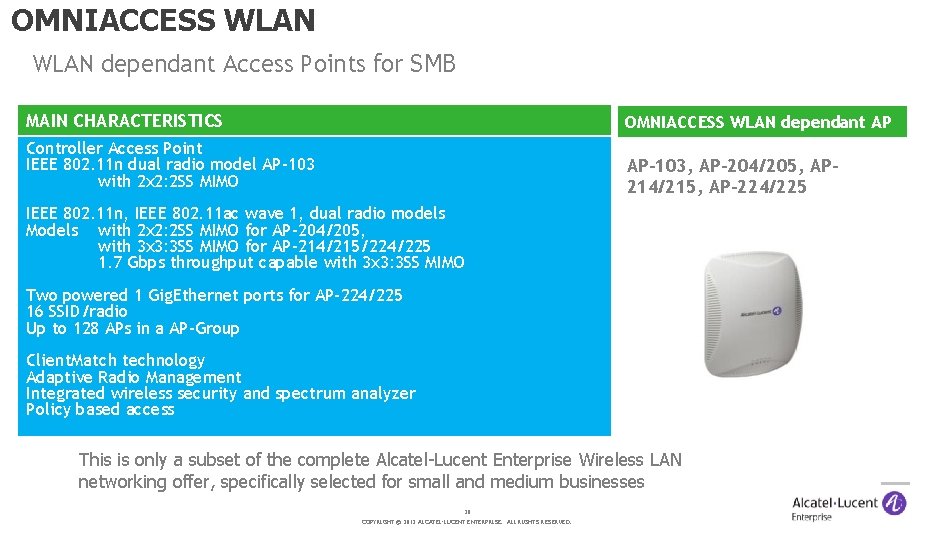

OMNIACCESS WLAN dependant Access Points for SMB MAIN CHARACTERISTICS OMNIACCESS WLAN dependant AP Controller Access Point IEEE 802. 11 n dual radio model AP-103 with 2 x 2: 2 SS MIMO AP-103, AP-204/205, AP 214/215, AP-224/225 IEEE 802. 11 n, IEEE 802. 11 ac wave 1, dual radio models Models with 2 x 2: 2 SS MIMO for AP-204/205, with 3 x 3: 3 SS MIMO for AP-214/215/224/225 1. 7 Gbps throughput capable with 3 x 3: 3 SS MIMO Switch Two powered 1 Gig. Ethernet ports for AP-224/225 16 SSID/radio Up to 128 APs in a AP-Group Client. Match technology Adaptive Radio Management Integrated wireless security and spectrum analyzer Policy based access This is only a subset of the complete Alcatel-Lucent Enterprise Wireless LAN networking offer, specifically selected for small and medium businesses 30 COPYRIGHT © 2012 ALCATEL-LUCENT ENTERPRISE. ALL RIGHTS RESERVED.
OMNIACCESS WLAN Wi. Fi Client Optimization and RF Management - Wi. Fi client optimization eliminates sticky client behavior while users roam. Client. Match™ automatically steers the device to a better AP. - Adaptive Radio Management™ (ARM) technology manages the 2. 4 -GHz and 5 -GHz radio bands to optimize the Wi-Fi client performance and ensures that APs stay clear of RF interferences. - Advanced Cellular Coexistence (ACC) permits WLANs to perform at peak efficiency by minimizing interference from 3 G/4 G LTE networks, distributed antenna systems (DAS) and commercial small cell/femtocell equipments. AP 1101 IAP serie 2 xx RDA ARM Support 802. 11 k and 802. 11 r Client. Match NA ACC - End to End 802. 11 e Qo. S Certified Voice applications and IP Phones. 31 COPYRIGHT © 2012 ALCATEL-LUCENT ENTERPRISE. ALL RIGHTS RESERVED.
Network Solution for SMB Zero Touch Provisioning 32 COPYRIGHT © 2012 ALCATEL-LUCENT ENTERPRISE. ALL RIGHTS RESERVED.

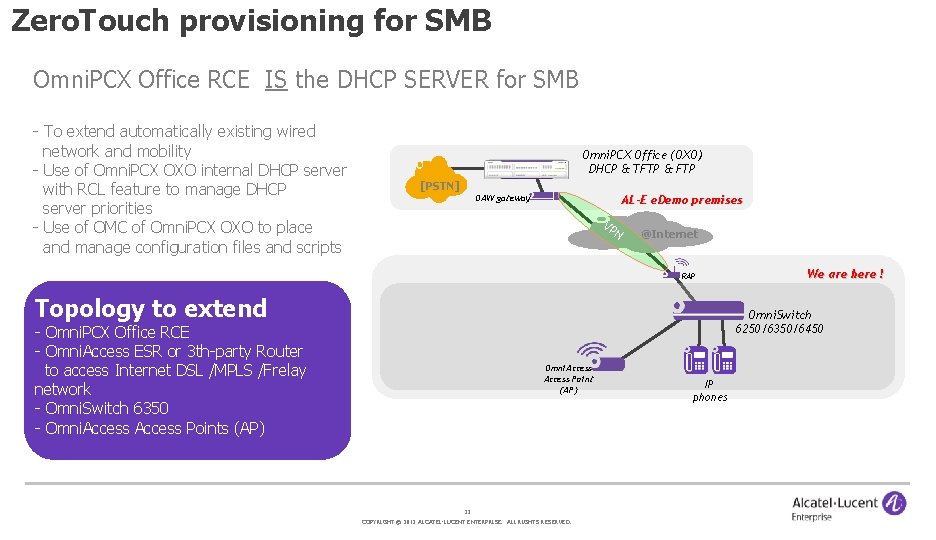

Zero. Touch provisioning for SMB Omni. PCX Office RCE IS the DHCP SERVER for SMB - To extend automatically existing wired network and mobility - Use of Omni. PCX OXO internal DHCP server with RCL feature to manage DHCP server priorities - Use of OMC of Omni. PCX OXO to place and manage configuration files and scripts Omni. PCX Office (OXO) DHCP & TFTP & FTP [PSTN] AL-E e. Demo premises OAW gateway VP N @Internet RAP Topology to extend We are here ! Omni. Switch 6250/6350/6450 - Omni. PCX Office RCE - Omni. Access ESR or 3 th-party Router to access Internet DSL /MPLS /Frelay network - Omni. Switch 6350 - Omni. Access Points (AP) Omni. Access Point (AP) 33 COPYRIGHT © 2012 ALCATEL-LUCENT ENTERPRISE. ALL RIGHTS RESERVED. IP phones
Zero. Touch provisioning for SMB SECURITY (who is allowed) + VLAN virtualization needs = + 20 minutes vs. several hours and eliminating the possibility of human errors Qo. S 5 Minutes (which application needs priority) OXO boot-up process and OMC access 6 -8 Minutes + u. NP Once boot-up, starting automatically download the configuration Ø Network built Ø IP Phones operational Binding users profile to VLAN in radius 6 Minutes For the first IAP to initialize once connected to the Omni. Switch 6350 AUTOMATED TUNING 34 COPYRIGHT © 2012 ALCATEL-LUCENT ENTERPRISE. ALL RIGHTS RESERVED.
Network Solution for SMB Licenses aspect 35 COPYRIGHT © 2012 ALCATEL-LUCENT ENTERPRISE. ALL RIGHTS RESERVED.
Licenses aspect for SMB Instant AP and AP 1101 No licenses on AP features, whatever LAP basic features, advanced features like Qo. S, ARM, Protection or RFP planning OAW controllers Omni. Access LAP, RFP and PEFNG are unnumbered licenses No more quantity limitation for licenses OAW-AP-LAPxxxx, OAW-AP-RFPxxxx, OAW-APPEFNGxxxx, the predefined quantity licenses can be replaced by the equivalents in table below Replacement Model Numbers OAW-AP-LAP OAW-AP-PEFNG OAW-AP-RFP 36 COPYRIGHT © 2012 ALCATEL-LUCENT ENTERPRISE. ALL RIGHTS RESERVED.
Network Solution for SMB Use cases 37 COPYRIGHT © 2012 ALCATEL-LUCENT ENTERPRISE. ALL RIGHTS RESERVED.
Use cases SMB Office and Branch Wireless overlays SMB OFFICE BRANCH OFFICE Omni. PCX Office RCE AP 1101 2 VPN INTERNET DSL/MPLS/FRelay Omniswitch Branch router Firewall Omni. Access WLAN switch Omniswitch 6350 Omni. Touch 8118/8128 IP Touch Office laptop IP Touch 3 Omni. Access Point Omni. Touch 8118/8128 3 SSID OFFICE MAC CONTROL WPA 2, The Alcatel Lucent Omni. Access WLAN Instant AP and AP 1101 are capable of fulfilling many of the roles that traditionally were handled by dependant-controlled APs. They are acting as Overlay wireless network for Branch-Office, can be managed in different clusters and avoid IT/Wireless expertise at Branch SMB For small company, 4005 OAW controller is compact, cost effective WLAN controller and supports all the advanced wireless services that the larger Omni. Access WLAN controllers provide. Instant APs or AP 1101 can be alternative; the IT will have to manage each AP separately. 38 COPYRIGHT © 2012 ALCATEL-LUCENT ENTERPRISE. ALL RIGHTS RESERVED.
Use cases Remote worker (part-time home /office or fulltime home) Omni. Access Remote Access Points are enterprise-class indoor remote APs, capable of supporting multiple functions including wired and wireless access, air monitoring/wireless intrusion detection and prevention across the 2. 4 GHz spectrum. For small company, 4005 OAW controller is compact, cost effective WLAN controller and supports all the advanced wireless services that the larger Omni. Access WLAN controllers provide. Instant APs or AP 1101 can be alternative; the IT will have to manage each AP separately. 39 Centrally managed from 4005 OAW controller, RAP supports authenticated wired and wireless access, and policy-based forwarding mechanisms to allow access to centralized and local resources. They are the ideal complement of IP Touch phones for building an easy to set up, easy to manage and secure remote worker or branch office environment. COPYRIGHT © 2012 ALCATEL-LUCENT ENTERPRISE. ALL RIGHTS RESERVED.
Use cases Road Warrior : a Virtual Intranet Access The Virtual Intranet Access (VIA) is an advanced remote access client that includes traditional IPSec capabilities and then extends them with automatic network detection and connection, SSL fallback and wireless configuration. VIA extends an Alcatel-Lucent Enterprise offering for remote access technologies: Connecting the road warriors to the corporate network without the need to carry hardware with them The ability to provide consistent connectivity to users when they are away from their office network 40 COPYRIGHT © 2012 ALCATEL-LUCENT ENTERPRISE. ALL RIGHTS RESERVED.
