Smart. STACK ELS 100 -24 TXM and ELS 100 -24 TXG Overview C A

Smart. STACK ELS 100 -24 TXM and ELS 100 -24 TXG Overview C A B L E T R O N S Y Copyright 1998 Cabletron Systems Version 1. 0 S T E M S

Smart. STACK Family ELS 100 -24 TXM/TXG • 24 port 10/100 Fast Ethernet desktop

Smart. STACK Family ELS 100 -24 TXM/TXG • 24 port 10/100 Fast Ethernet desktop switches with uplinks • Expanding the Smart. STACK family • Designed for ease of use while providing unparalleled performance and features • Based on industry and IEEE standards for interoperability • Interoperable with Cabletron’s Smart. SWITCH family • Smart. Trunking across Smart. STACK, 2000, 6000 and SSR families C A B L E T R O N S Y Copyright 1998 Cabletron Systems Version 1. 0 S T E M S

Smart. STACK ELS 10024 TXM/TXG features • Performance Features: – 24 port 10/100 autosensing

Smart. STACK ELS 10024 TXM/TXG features • Performance Features: – 24 port 10/100 autosensing fast Ethernet switch –Wire speed switching on all ports in half & full duplex modes (3. 6 Mpps). –Switch fabric bandwidth 4. 2 Gbps –Plug and play installation – 12, 288 address MAC table for TXM and 16, 384 for TXG –Flow control • Back pressure (Half Duplex) 802. 3 x (Full Duplex) –Broadcast control (Throttling) C A B L E T R O N S Y Copyright 1998 Cabletron Systems Version 1. 0 S T E M S

Management Features • Can be managed by any SNMP based network management station by

Management Features • Can be managed by any SNMP based network management station by importing MIB’s • Supported by Spectrum Enterprise Manager • Supported by Spectrum Element Manager • WEB based management – Built in WEB server provides management and configuration capabilities from any WEB browser application (Net. Scape, Internet Explorer) • • 802. 1 Q standards based VLAN’s (4095 VLAN’s per Switch) 802. 1 P Priority Queuing 4 groups of RMON Supported on all ports Port Mirroring for fault isolation via Network analyzer C A B L E T R O N S Y Copyright 1998 Cabletron Systems Version 1. 0 S T E M S

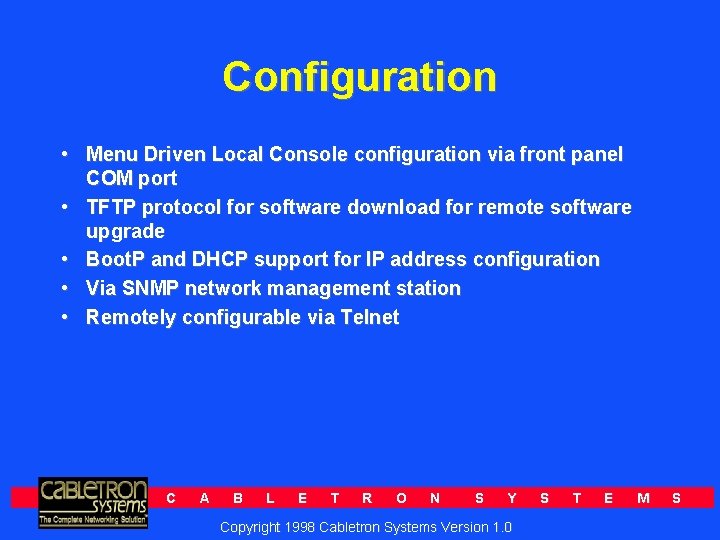

Configuration • Menu Driven Local Console configuration via front panel COM port • TFTP

Configuration • Menu Driven Local Console configuration via front panel COM port • TFTP protocol for software download for remote software upgrade • Boot. P and DHCP support for IP address configuration • Via SNMP network management station • Remotely configurable via Telnet C A B L E T R O N S Y Copyright 1998 Cabletron Systems Version 1. 0 S T E M S

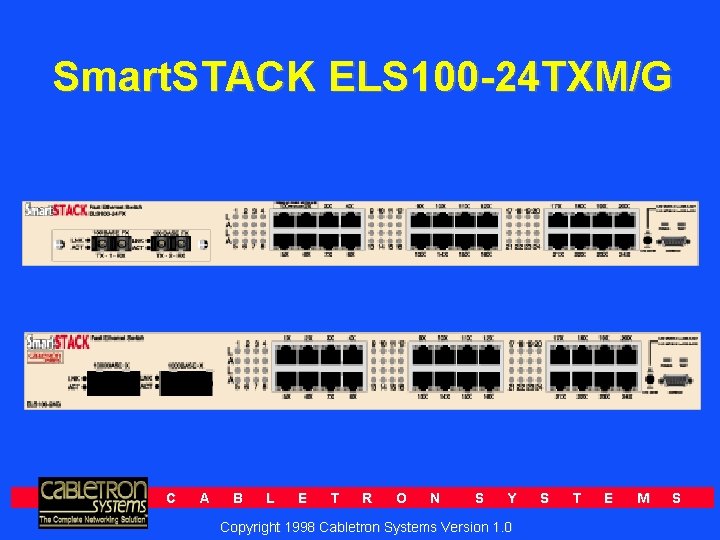

Smart. STACK ELS 100 -24 TXM/G C A B L E T R O

Smart. STACK ELS 100 -24 TXM/G C A B L E T R O N S Y Copyright 1998 Cabletron Systems Version 1. 0 S T E M S

Target Applications • Large Corporate customers requiring low cost switching at the edge of

Target Applications • Large Corporate customers requiring low cost switching at the edge of the enterprise network. • Existing Cabletron customers with a requirement for Ethernet switching to the desktop. – Shuts the door on 3 Com, Bay & Cisco • Small to medium size companies. – That may not require the premium features of Smart. SWITCH’s. • Small office & Remote office applications. – Provide high speed 10 Mbps to the Desktop and 100 Mbps for File Server Connection. C A B L E T R O N S Y Copyright 1998 Cabletron Systems Version 1. 0 S T E M S

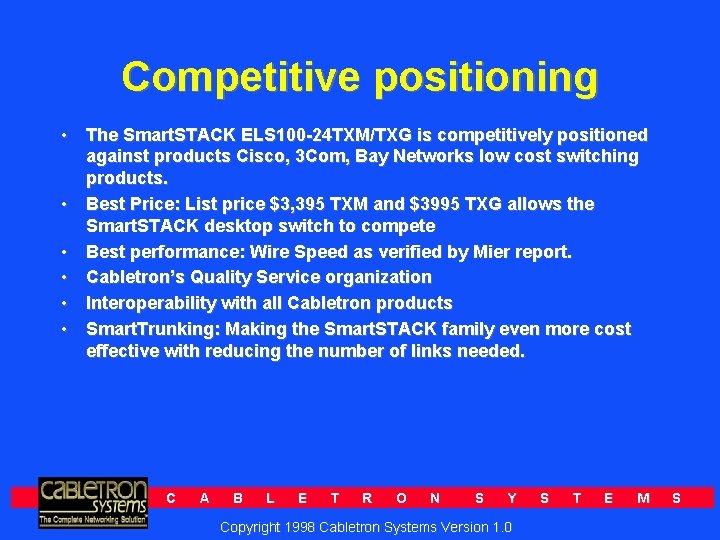

Competitive positioning • The Smart. STACK ELS 100 -24 TXM/TXG is competitively positioned against

Competitive positioning • The Smart. STACK ELS 100 -24 TXM/TXG is competitively positioned against products Cisco, 3 Com, Bay Networks low cost switching products. • Best Price: List price $3, 395 TXM and $3995 TXG allows the Smart. STACK desktop switch to compete • Best performance: Wire Speed as verified by Mier report. • Cabletron’s Quality Service organization • Interoperability with all Cabletron products • Smart. Trunking: Making the Smart. STACK family even more cost effective with reducing the number of links needed. C A B L E T R O N S Y Copyright 1998 Cabletron Systems Version 1. 0 S T E M S

Smart. STACK Roadmap • ELS 10 -27 TX: Smart. Stack 10 full duplex ethernet

Smart. STACK Roadmap • ELS 10 -27 TX: Smart. Stack 10 full duplex ethernet switch. 24 port Ethernet switch with 3 10/100 RJ 45 and 2 EPIM-100 slots • ELS 100 -24 TX(M/G): Smart. Stack 100 24 port 10/100 Base. TX switch with two slots for Fast Ethernet/Gigabit modular uplink • ELH 100 -12/24 TX: 24 port 10/100 hub, base unit with option slots * And coming soon … • ELS 100 -8 TXUF 2: Smart. Stack 8 port 10/100 switch, unmanaged, with one 100 Base. FX port • ELS 1000 -8 SX 1 M: 8 1000 Base-SX ports with 1 modular expansion slot • EPIMSTK-2 TX: 2 port stacking module w/management • ELS 1000 -12 SX 2 M: C A B 12 1000 Base-SX ports with 2 modular expansion slots L E T R O N S Y Copyright 1998 Cabletron Systems Version 1. 0 S T E M S

Summary • • • Competitively Priced Industry standard feature set Standards Compliant Plug and

Summary • • • Competitively Priced Industry standard feature set Standards Compliant Plug and Play installation Interoperable with existing Smart. SWITCH products Cabletron quality - low cost switching C A B L E T R O N S Y Copyright 1998 Cabletron Systems Version 1. 0 S T E M S
