Smart Production Monitoring System PRESENTATION BY INTERFACECOM CO

Smart Production Monitoring System PRESENTATION BY INTERFACECOM CO. , LTD.

SYSTEM OVERVIEW

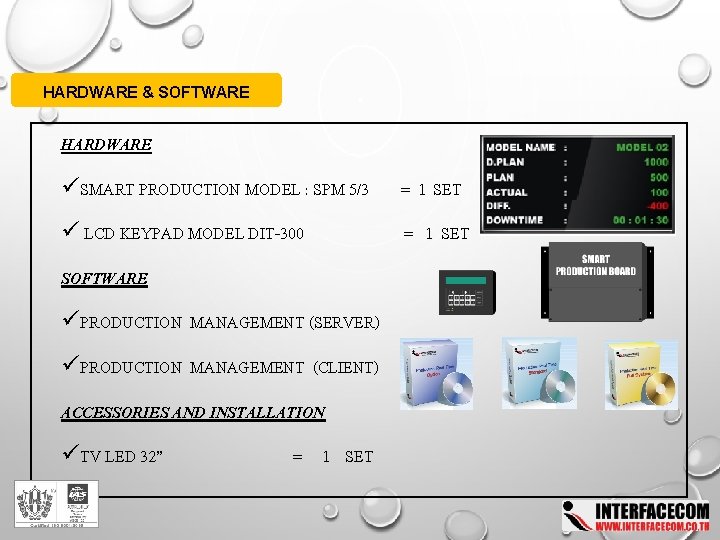

HARDWARE & SOFTWARE HARDWARE üSMART PRODUCTION MODEL : SPM 5/3 = 1 SET ü LCD KEYPAD MODEL DIT-300 = 1 SET SOFTWARE üPRODUCTION MANAGEMENT (SERVER) üPRODUCTION MANAGEMENT (CLIENT) ACCESSORIES AND INSTALLATION üTV LED 32” = 1 SET

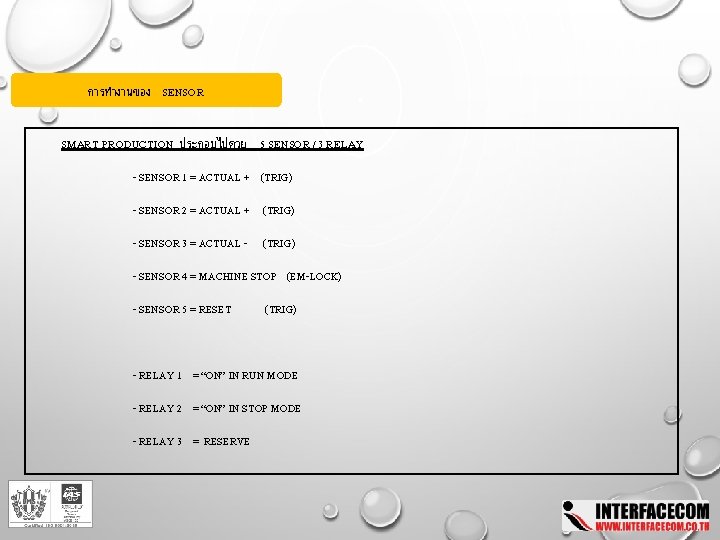

การทำงานของ SENSOR SMART PRODUCTION ประกอบไปดวย 5 SENSOR / 3 RELAY - SENSOR 1 = ACTUAL + (TRIG) - SENSOR 2 = ACTUAL + (TRIG) - SENSOR 3 = ACTUAL - (TRIG) - SENSOR 4 = MACHINE STOP (EM-LOCK) - SENSOR 5 = RESET (TRIG) - RELAY 1 = “ON” IN RUN MODE - RELAY 2 = “ON” IN STOP MODE - RELAY 3 = RESERVE

REFERENCE CUSTOMER
