Smart Prepayment Solutions for PVSSEG Dave Tarr LandisGyr

Smart Prepayment Solutions for PV/SSEG Dave Tarr © Landis+Gyr | March 29, 2019 | PUBLIC

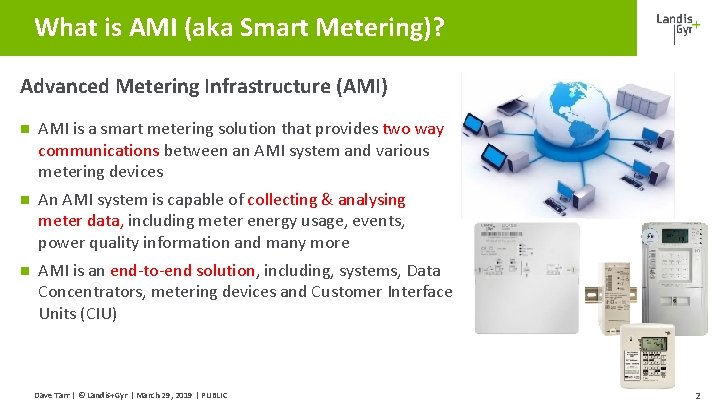

What is AMI (aka Smart Metering)? Advanced Metering Infrastructure (AMI) AMI is a smart metering solution that provides two way communications between an AMI system and various metering devices An AMI system is capable of collecting & analysing meter data, including meter energy usage, events, power quality information and many more AMI is an end-to-end solution, including, systems, Data Concentrators, metering devices and Customer Interface Units (CIU) Dave Tarr | © Landis+Gyr | March 29, 2019 | PUBLIC 2

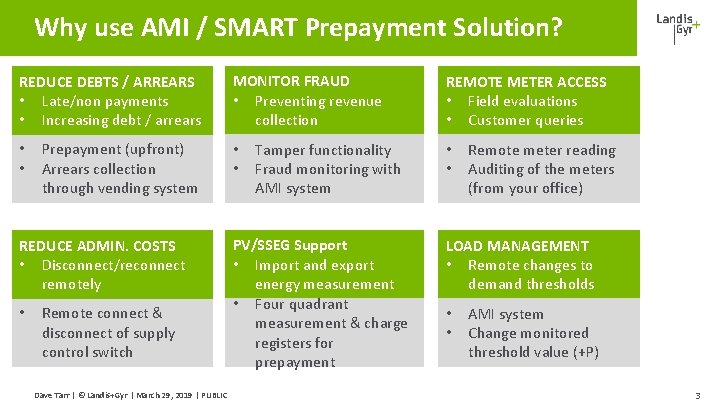

Why use AMI / SMART Prepayment Solution? REDUCE DEBTS / ARREARS • Late/non payments • Increasing debt / arrears • • Prepayment (upfront) Arrears collection through vending system REDUCE ADMIN. COSTS • Disconnect/reconnect remotely • Remote connect & disconnect of supply control switch Dave Tarr | © Landis+Gyr | March 29, 2019 | PUBLIC MONITOR FRAUD • Preventing revenue collection • • Tamper functionality Fraud monitoring with AMI system PV/SSEG Support • Import and export energy measurement • Four quadrant measurement & charge registers for prepayment REMOTE METER ACCESS • Field evaluations • Customer queries • • Remote meter reading Auditing of the meters (from your office) LOAD MANAGEMENT • Remote changes to demand thresholds • • AMI system Change monitored threshold value (+P) 3

Smart Prepayment Functionality Dave Tarr | © Landis+Gyr | March 29, 2019 | PUBLIC 4

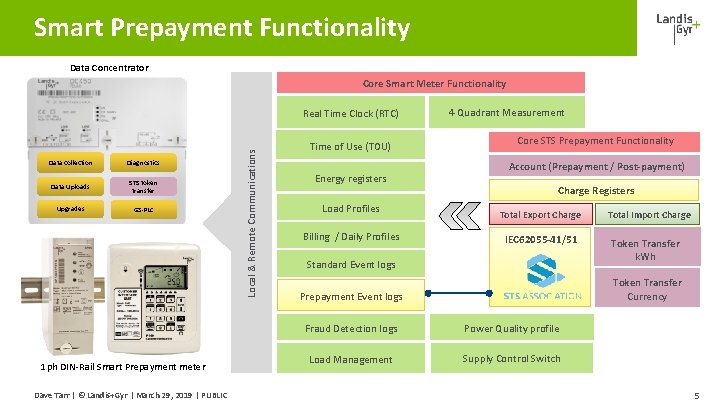

Smart Prepayment Functionality Data Concentrator Core Smart Meter Functionality Data collection Diagnostics Data Uploads STS token transfer Upgrades G 3 -PLC 1 ph DIN-Rail Smart Prepayment meter Dave Tarr | © Landis+Gyr | March 29, 2019 | PUBLIC Local & Remote Communications Real Time Clock (RTC) Time of Use (TOU) Energy registers Load Profiles Billing / Daily Profiles 4 Quadrant Measurement Core STS Prepayment Functionality Account (Prepayment / Post-payment) Charge Registers Total Export Charge IEC 62055 -41/51 Standard Event logs Total Import Charge Token Transfer k. Wh Token Transfer Currency Prepayment Event logs Fraud Detection logs Power Quality profile Load Management Supply Control Switch 5

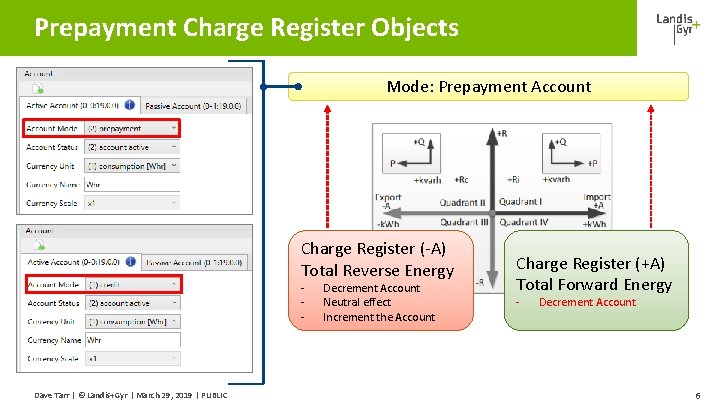

Prepayment Charge Register Objects Mode: Prepayment Account Charge Register (-A) Total Reverse Energy - Dave Tarr | © Landis+Gyr | March 29, 2019 | PUBLIC Decrement Account Neutral effect Increment the Account Charge Register (+A) Total Forward Energy - Decrement Account 6

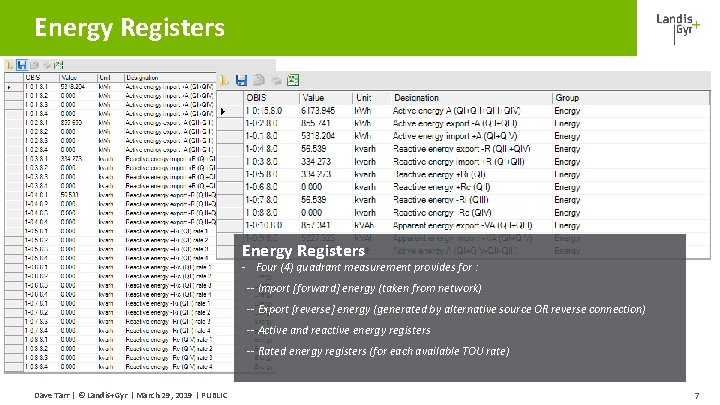

Energy Registers - Four (4) quadrant measurement provides for : -- Import [forward] energy (taken from network) -- Export [reverse] energy (generated by alternative source OR reverse connection) -- Active and reactive energy registers -- Rated energy registers (for each available TOU rate) Dave Tarr | © Landis+Gyr | March 29, 2019 | PUBLIC 7

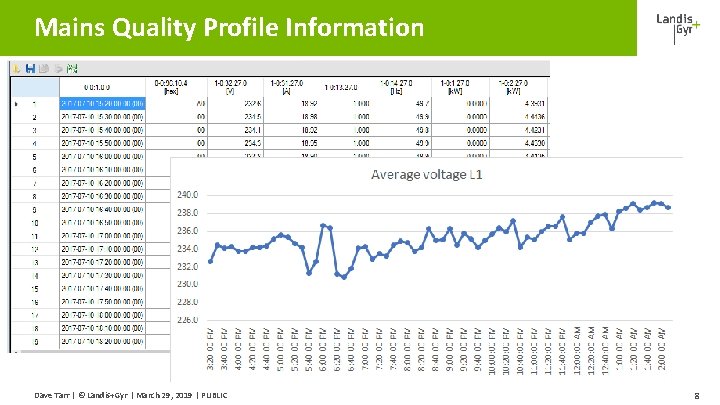

Mains Quality Profile Information Dave Tarr | © Landis+Gyr | March 29, 2019 | PUBLIC 8

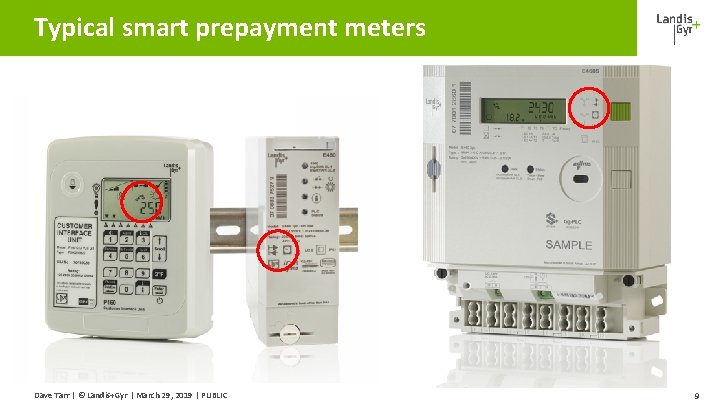

Typical smart prepayment meters Dave Tarr | © Landis+Gyr | March 29, 2019 | PUBLIC 9

Solution Overview Dave Tarr | © Landis+Gyr | March 29, 2019 | PUBLIC 10

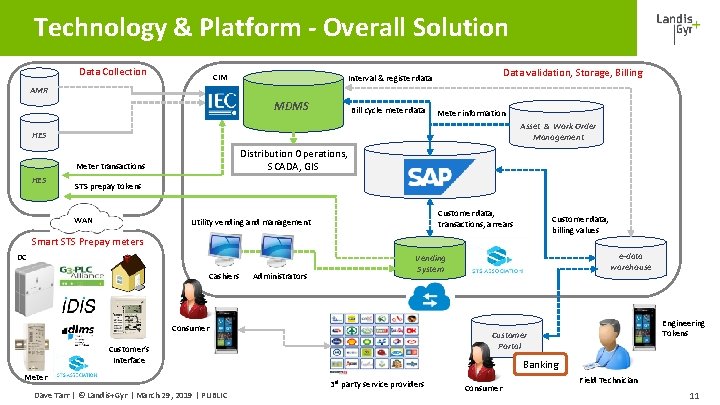

Technology & Platform - Overall Solution Data Collection CIM Data validation, Storage, Billing Interval & register data AMR MDMS Bill cycle meter data Meter information Asset & Work Order Management HES Distribution Operations, SCADA, GIS Meter transactions HES STS prepay tokens WAN SAP Customer data, transactions, arrears Utility vending and management Customer data, billing values Smart STS Prepay meters DC Cashiers Administrators Consumer Dave Tarr | © Landis+Gyr | March 29, 2019 | PUBLIC Engineering Tokens Customer Portal Customer’s Interface Meter e-data warehouse Vending System Banking 3 rd party service providers Consumer Field Technician 11

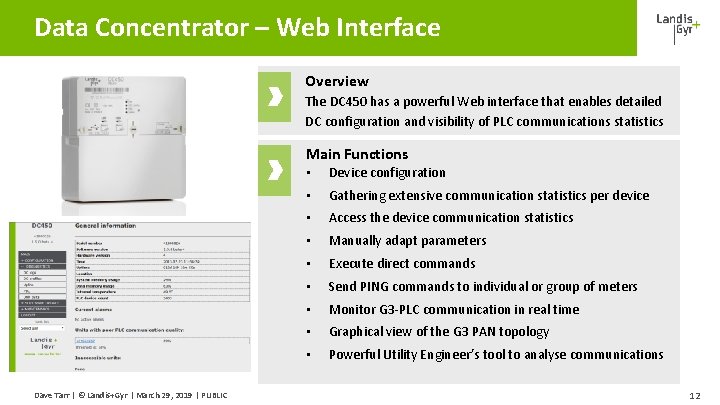

Data Concentrator – Web Interface Overview The DC 450 has a powerful Web interface that enables detailed DC configuration and visibility of PLC communications statistics Main Functions Dave Tarr | © Landis+Gyr | March 29, 2019 | PUBLIC • Device configuration • Gathering extensive communication statistics per device • Access the device communication statistics • Manually adapt parameters • Execute direct commands • Send PING commands to individual or group of meters • Monitor G 3 -PLC communication in real time • Graphical view of the G 3 PAN topology • Powerful Utility Engineer’s tool to analyse communications 12

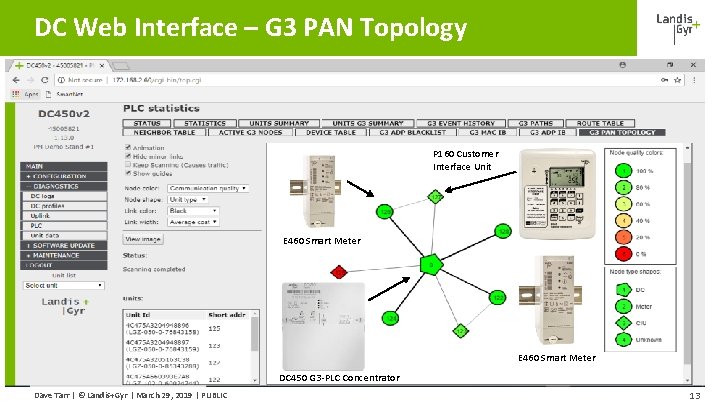

DC Web Interface – G 3 PAN Topology P 160 Customer Interface Unit E 460 Smart Meter DC 450 G 3 -PLC Concentrator Dave Tarr | © Landis+Gyr | March 29, 2019 | PUBLIC 13

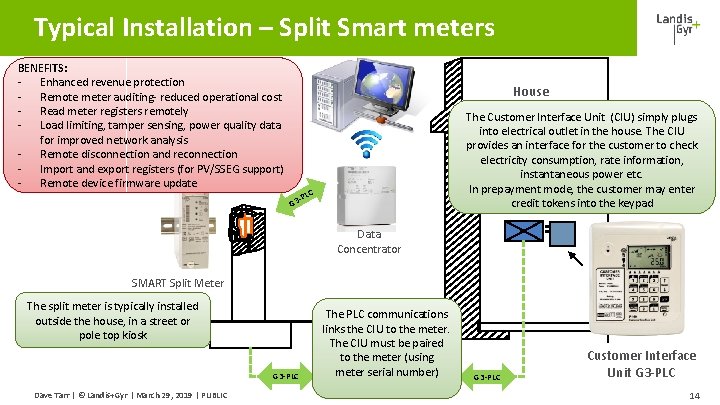

Typical Installation – Split Smart meters BENEFITS: - Enhanced revenue protection - Remote meter auditing- reduced operational cost - Read meter registers remotely - Load limiting, tamper sensing, power quality data for improved network analysis - Remote disconnection and reconnection - Import and export registers (for PV/SSEG support) - Remote device firmware update House The Customer Interface Unit (CIU) simply plugs into electrical outlet in the house. The CIU provides an interface for the customer to check electricity consumption, rate information, instantaneous power etc. In prepayment mode, the customer may enter credit tokens into the keypad C -PL G 3 Data Concentrator SMART Split Meter The split meter is typically installed outside the house, in a street or pole top kiosk G 3 -PLC Dave Tarr | © Landis+Gyr | March 29, 2019 | PUBLIC The PLC communications links the CIU to the meter. The CIU must be paired to the meter (using meter serial number) G 3 -PLC Customer Interface Unit G 3 -PLC 14

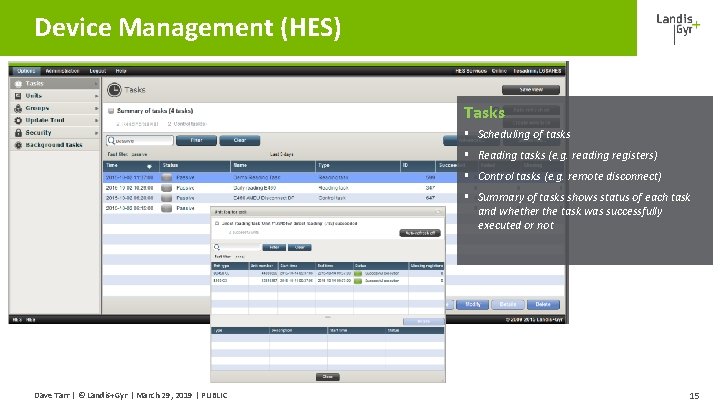

Device Management (HES) Tasks § Scheduling of tasks § Reading tasks (e. g. reading registers) § Control tasks (e. g. remote disconnect) § Summary of tasks shows status of each task and whether the task was successfully executed or not Dave Tarr | © Landis+Gyr | March 29, 2019 | PUBLIC 15

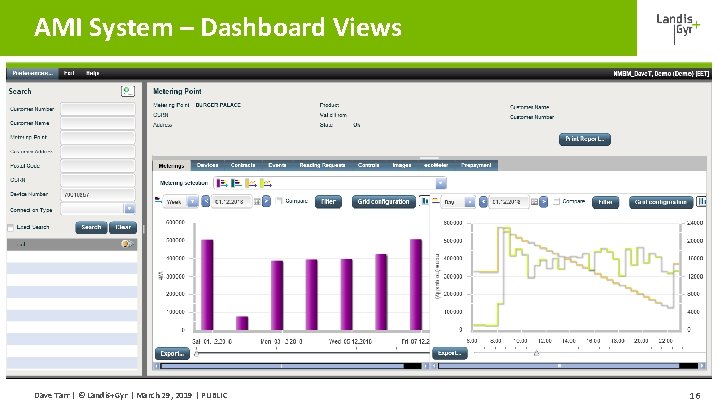

AMI System – Dashboard Views Dave Tarr | © Landis+Gyr | March 29, 2019 | PUBLIC 16

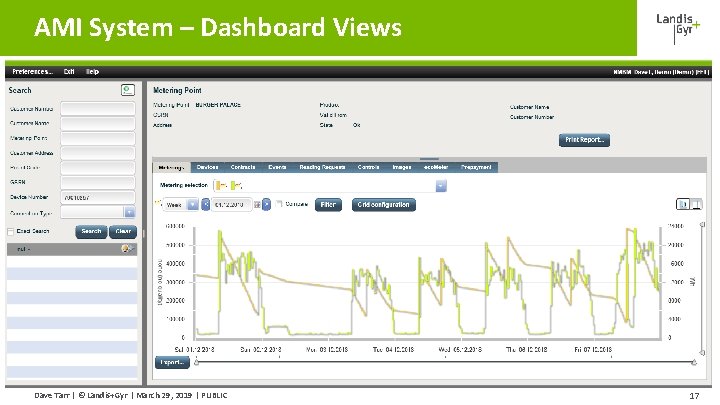

AMI System – Dashboard Views Dave Tarr | © Landis+Gyr | March 29, 2019 | PUBLIC 17

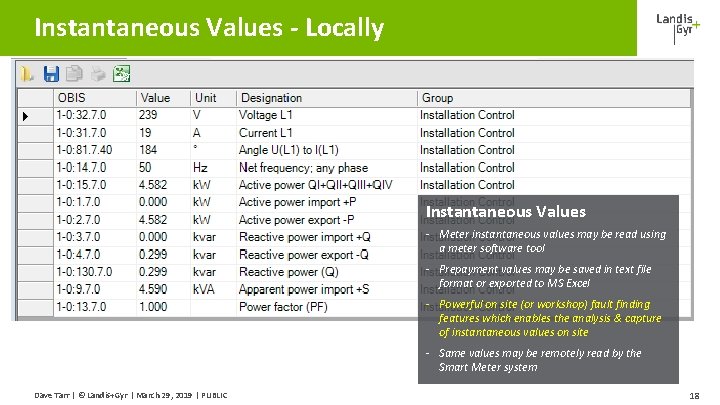

Instantaneous Values - Locally Instantaneous Values - Meter instantaneous values may be read using a meter software tool - Prepayment values may be saved in text file format or exported to MS Excel - Powerful on site (or workshop) fault finding features which enables the analysis & capture of instantaneous values on site - Same values may be remotely read by the Smart Meter system Dave Tarr | © Landis+Gyr | March 29, 2019 | PUBLIC 18

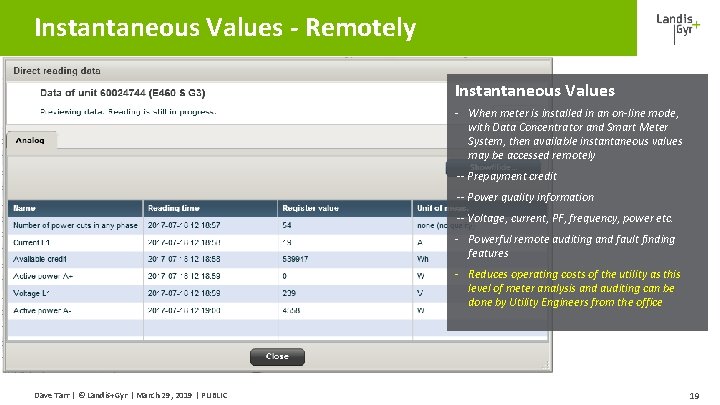

Instantaneous Values - Remotely Instantaneous Values - When meter is installed in an on-line mode, with Data Concentrator and Smart Meter System, then available instantaneous values may be accessed remotely -- Prepayment credit -- Power quality information -- Voltage, current, PF, frequency, power etc. - Powerful remote auditing and fault finding features - Reduces operating costs of the utility as this level of meter analysis and auditing can be done by Utility Engineers from the office Dave Tarr | © Landis+Gyr | March 29, 2019 | PUBLIC 19

Standards & Specifications Dave Tarr | © Landis+Gyr | March 29, 2019 | PUBLIC 20

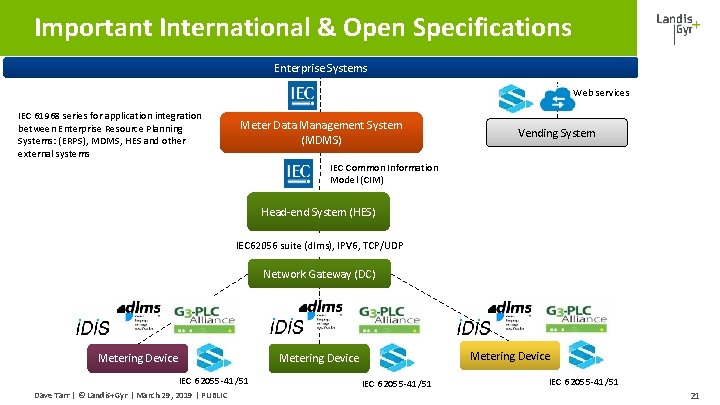

Important International & Open Specifications Enterprise Systems Web services IEC 61968 series for application integration between Enterprise Resource Planning Systems: (ERPS), MDMS, HES and other external systems Meter Data Management System (MDMS) Vending System IEC Common Information Model (CIM) Head-end System (HES) IEC 62056 suite (dlms), IPV 6, TCP/UDP Network Gateway (DC) Metering Device IEC 62055 -41/51 Dave Tarr | © Landis+Gyr | March 29, 2019 | PUBLIC IEC 62055 -41/51 21

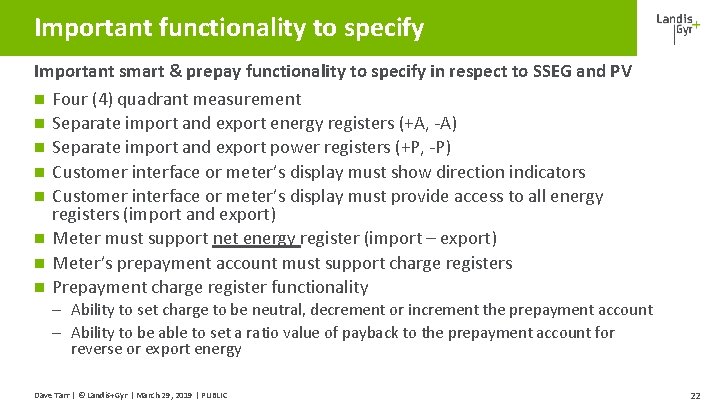

Important functionality to specify Important smart & prepay functionality to specify in respect to SSEG and PV Four (4) quadrant measurement Separate import and export energy registers (+A, -A) Separate import and export power registers (+P, -P) Customer interface or meter’s display must show direction indicators Customer interface or meter’s display must provide access to all energy registers (import and export) Meter must support net energy register (import – export) Meter’s prepayment account must support charge registers Prepayment charge register functionality – Ability to set charge to be neutral, decrement or increment the prepayment account – Ability to be able to set a ratio value of payback to the prepayment account for reverse or export energy Dave Tarr | © Landis+Gyr | March 29, 2019 | PUBLIC 22

Thank you for your attention Dave Tarr Product & Marketing Manager Dave. Tarr@landisgyr. com Phone +27 12 645 3194 Landis+Gyr (Pty) Ltd www. landisgyr. com/za Dave Tarr | © Landis+Gyr | March 29, 2019 | PUBLIC
