Smart PM 2000 EMS Energy Management System Feature

Smart. PM 2000 EMS Energy Management System Feature l Redundant configuration: Assure data safety l Standard Port: It can be used for integrate meter, PLC, UPS device l Open: It can connect other system through OPC l Web: Support local, web remote visiting l Analysis report: Optimize energy efficient through data Branch Circuit Power Meter collecting and analysis and generate report Major Function l System Monitor and Control Display wire diagram, on line display all kind of parameters and status l Power Quality Analysis Monitor harmonic, unbalance variant, find the potential power quality problem l Energy Consumption and Analysis Statistic each way incoming energy consumption and demand print daily, monthly, yearly report, trend chart l Alarm Information and Event Management Record alarm information when data over limit, record device running status, power quality abnormal and inform operator l Data Statistic and Report Provide customized data statistic, system can store data based on setting time and generate different report Zhuhai Pilot Technology Co. , Ltd. Add: No. 15, Keji 6 Road, Chuangxin Haian, Tangjia Hi-tech Zone, Zhuhai, Guangdong, China Post Code: 519085 Tel: +86 756 3629687/ 3629673 Fax: +86 756 3629600/ 3629700 Email: overseamarket@pmac. com. cn http: //www. pmac. com. cn Your Representative PILOT reserves the right to modify features without prior notice in view of continued improvement ZHUHAI PILOT TECHNOLOGY CO. , LTD.

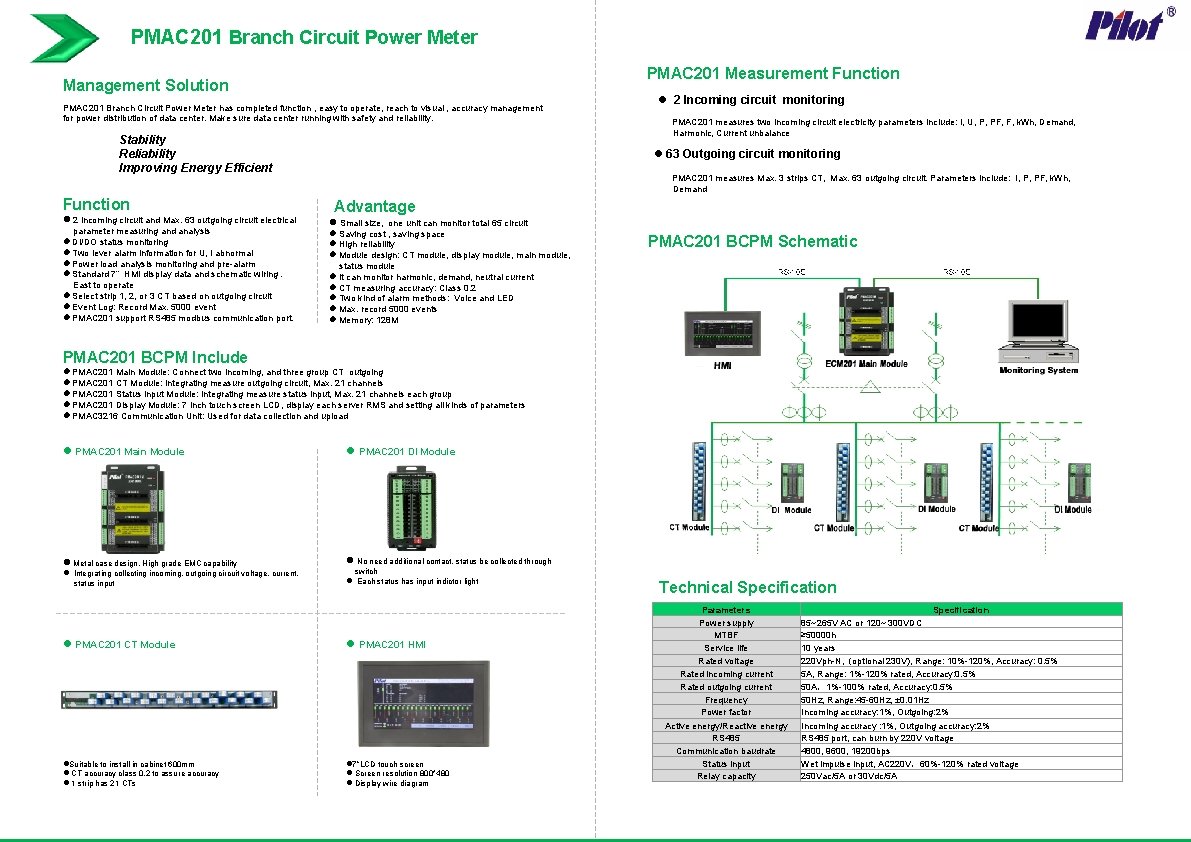

PMAC 201 Branch Circuit Power Meter PMAC 201 Measurement Function Management Solution PMAC 201 Branch Circuit Power Meter has completed function , easy to operate, reach to visual , accuracy management for power distribution of data center. Make sure data center running with safety and reliability. Stability Reliability Improving Energy Efficient Function l 2 incoming circuit and Max. 63 outgoing circuit electrical parameter measuring and analysis l DI/DO status monitoring l Two lever alarm information for U, I abnormal l Power load analysis monitoring and pre-alarm l Standard 7” HMI display data and schematic wiring. East to operate l Select strip 1, 2, or 3 CT based on outgoing circuit l Event Log: Record Max. 5000 event l PMAC 201 support RS 485 modbus communication port. l 2 Incoming circuit monitoring PMAC 201 measures two incoming circuit electricity parameters include: I, U, P, PF, F, k. Wh, Demand, Harmonic, Current unbalance l 63 Outgoing circuit monitoring PMAC 201 measures Max. 3 strips CT, Max. 63 outgoing circuit. Parameters include: I, P, PF, k. Wh, Demand Advantage l Small size, one unit can monitor total 65 circuit l Saving cost , saving space l High reliability l Module design: CT module, display module, main module, PMAC 201 BCPM Schematic status module l It can monitor harmonic, demand, neutral current l CT measuring accuracy: Class 0. 2 l Two kind of alarm methods: Voice and LED l Max. record 5000 events l Memory: 128 M PMAC 201 BCPM Include l PMAC 201 Main Module: Connect two incoming, and three group CT outgoing l PMAC 201 CT Module: Integrating measure outgoing circuit, Max. 21 channels l PMAC 201 Status Input Module: Integrating measure status input, Max. 21 channels each group l PMAC 201 Display Module: 7 inch touch screen LCD, display each server RMS and setting all kinds of parameters l PMAC 3216 Communication Unit: Used for data collection and upload l PMAC 201 Main Module l PMAC 201 DI Module l Metal case design, High grade EMC capability l No need additional contact, status be collected through l Integrating collecting incoming, outgoing circuit voltage, current, status input switch l Each status has input indictor light l PMAC 201 CT Module l PMAC 201 HMI l. Suitable to install in cabinet 600 mm l CT accuracy class 0. 2 to assure accuracy l 1 strip has 21 CTs l 7”LCD touch screen l Screen resolution 800*480 l Display wire diagram Technical Specification Parameters Power supply MTBF Service life Rated voltage Rated incoming current Rated outgoing current Frequency Power factor Active energy/Reactive energy RS 485 Communication baudrate Status input Relay capacity Specification 85~265 V AC or 120~ 300 VDC ≥ 50000 h 10 years 220 Vph-N, (optional 230 V), Range: 10%-120%, Accuracy: 0. 5% 5 A, Range: 1%-120% rated, Accuracy: 0. 5% 50 A，1%-100% rated, Accuracy: 0. 5% 50 Hz, Range: 45 -60 Hz, ± 0. 01 Hz Incoming accuracy: 1%, Outgoing: 2% Incoming accuracy : 1%, Outgoing accuracy: 2% RS 485 port, can burn by 220 V voltage 4800, 9600, 19200 bps Wet impulse input, AC 220 V，60%-120% rated voltage 250 Vac/5 A or 30 Vdc/5 A
