Smart Materials

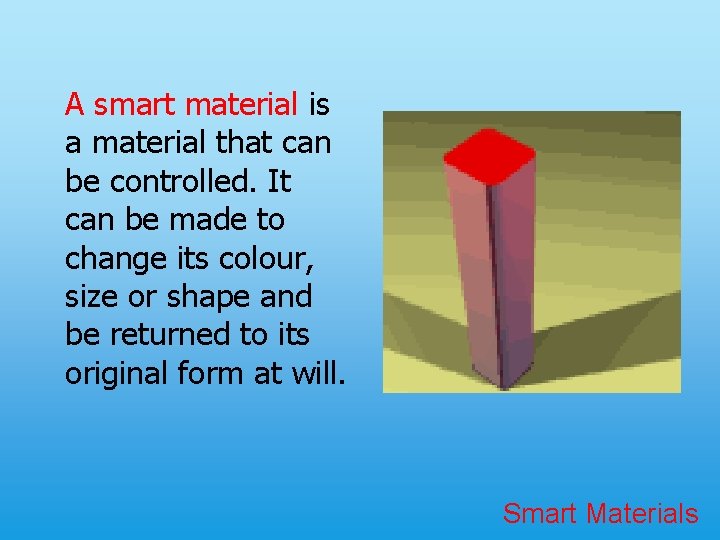

A smart material is a material that can be controlled. It can be made to change its colour, size or shape and be returned to its original form at will. Smart Materials

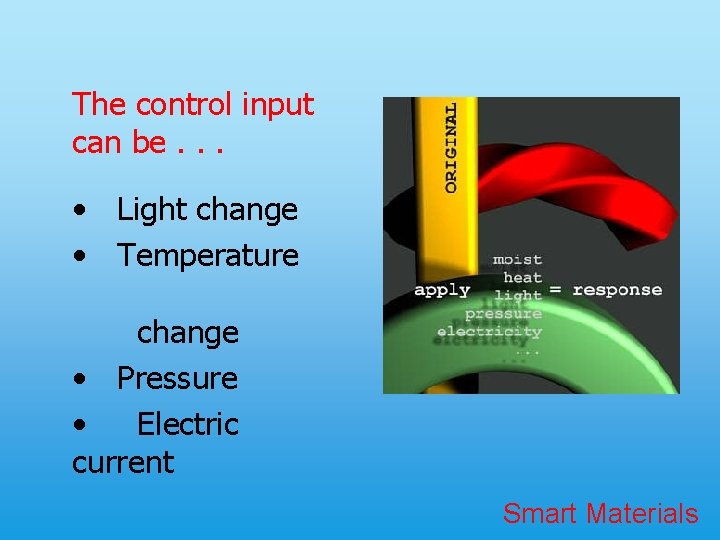

The control input can be. . . • Light change • Temperature change • Pressure • Electric current Smart Materials

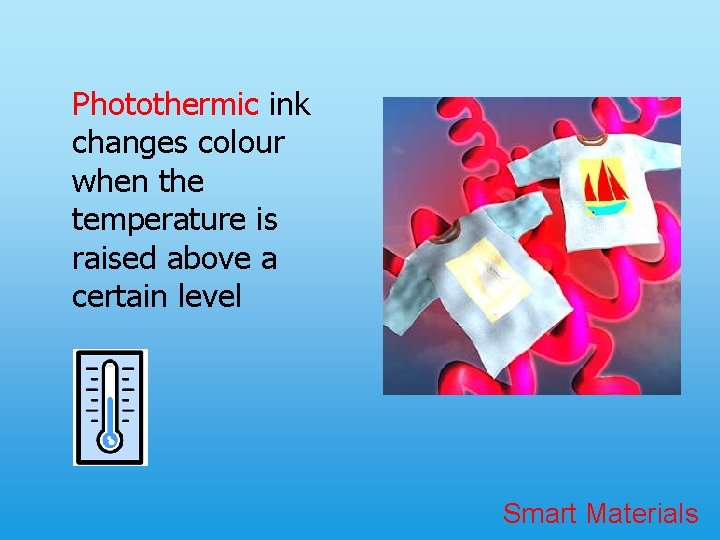

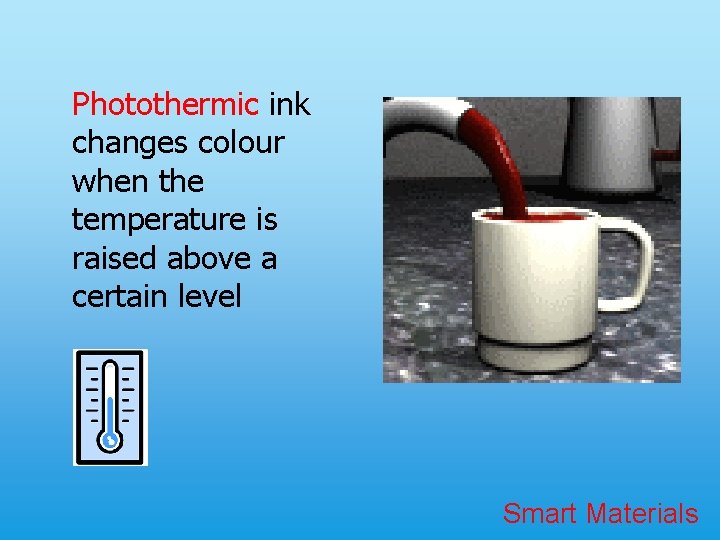

Photothermic ink changes colour when the temperature is raised above a certain level Smart Materials

Photothermic ink changes colour when the temperature is raised above a certain level Smart Materials

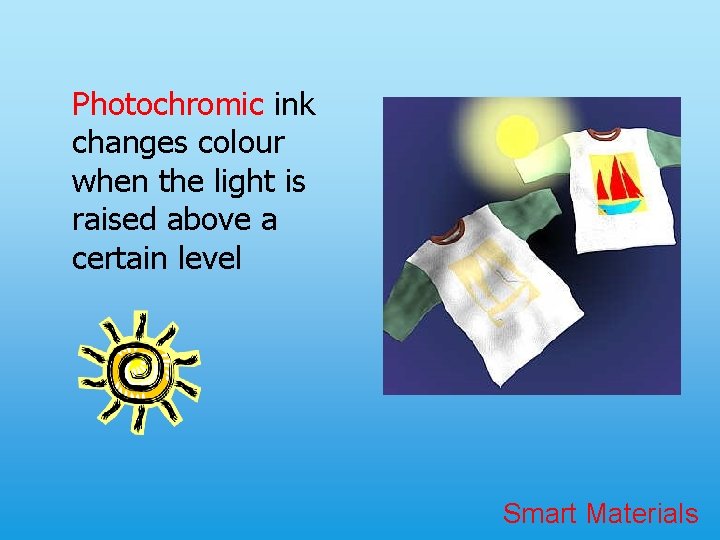

Photochromic ink changes colour when the light is raised above a certain level Smart Materials

Photochromic ink changes colour when the light is raised above a certain level Smart Materials

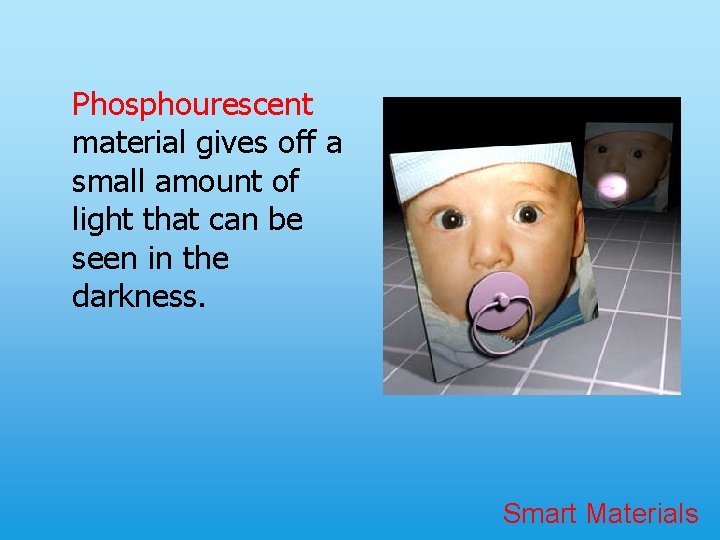

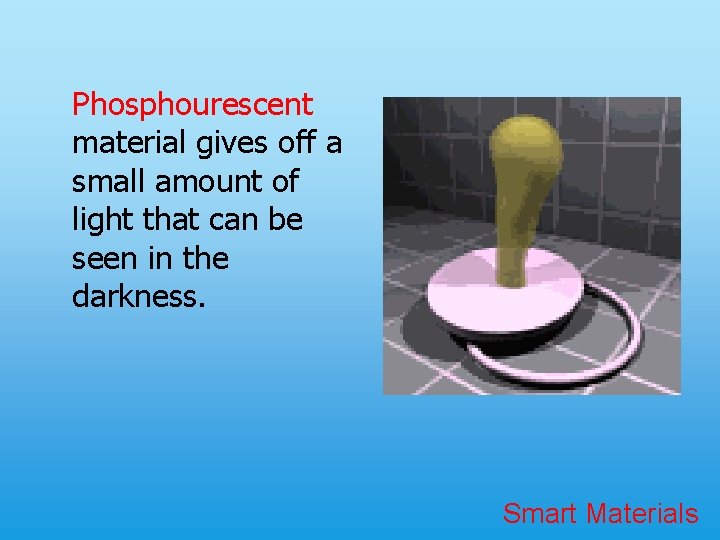

Phosphourescent material gives off a small amount of light that can be seen in the darkness. Smart Materials

Phosphourescent material gives off a small amount of light that can be seen in the darkness. Smart Materials

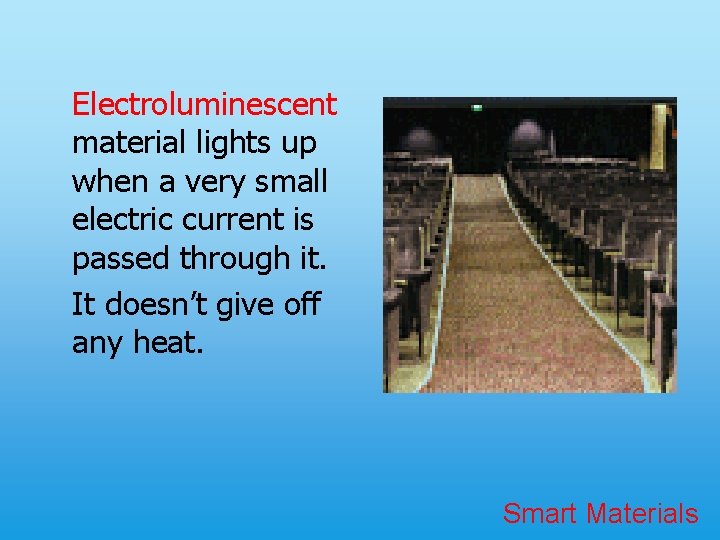

Electroluminescent material lights up when a very small electric current is passed through it. It doesn’t give off any heat. Smart Materials

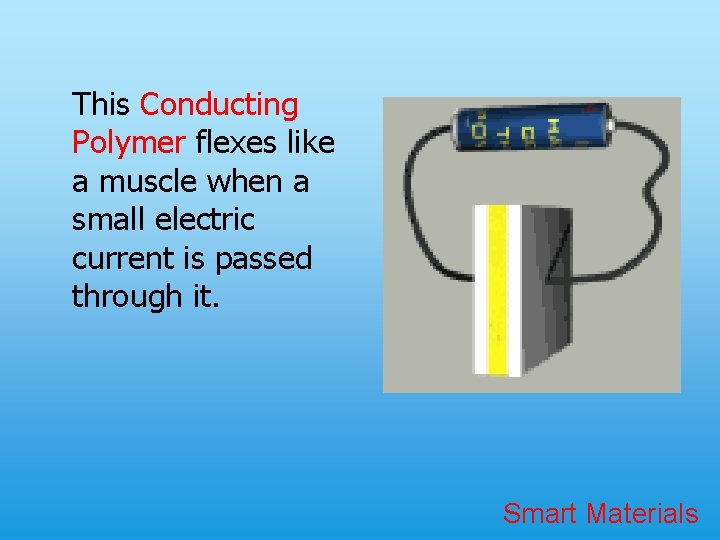

This Conducting Polymer flexes like a muscle when a small electric current is passed through it. Smart Materials

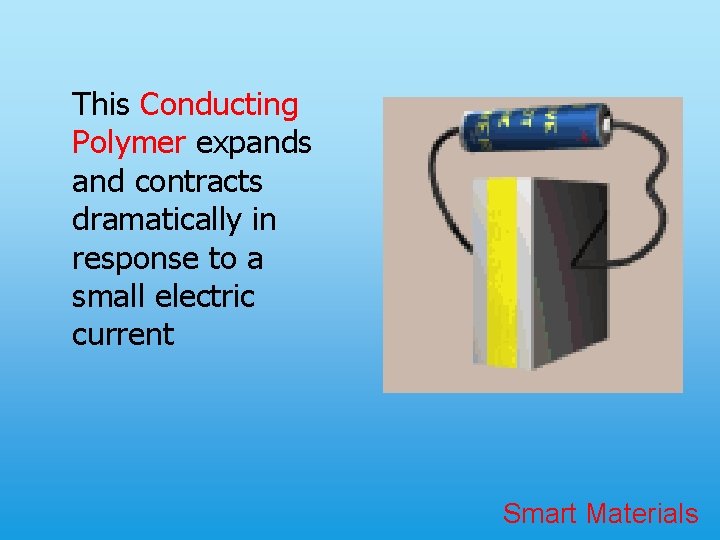

This Conducting Polymer expands and contracts dramatically in response to a small electric current Smart Materials

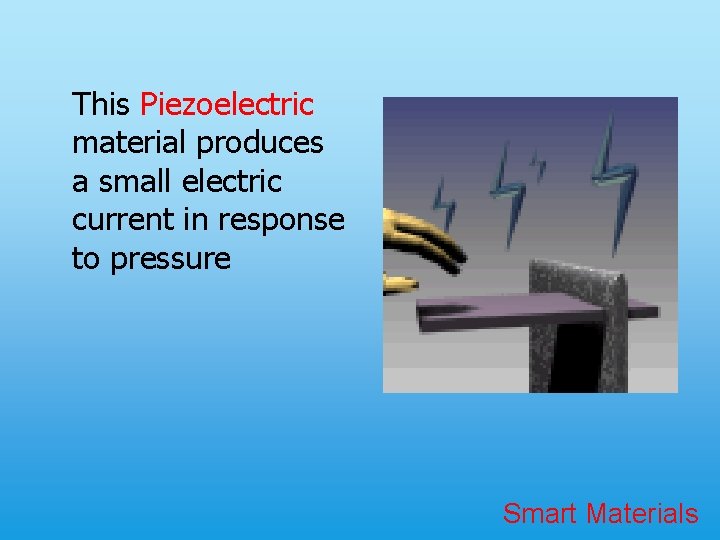

This Piezoelectric material produces a small electric current in response to pressure Smart Materials

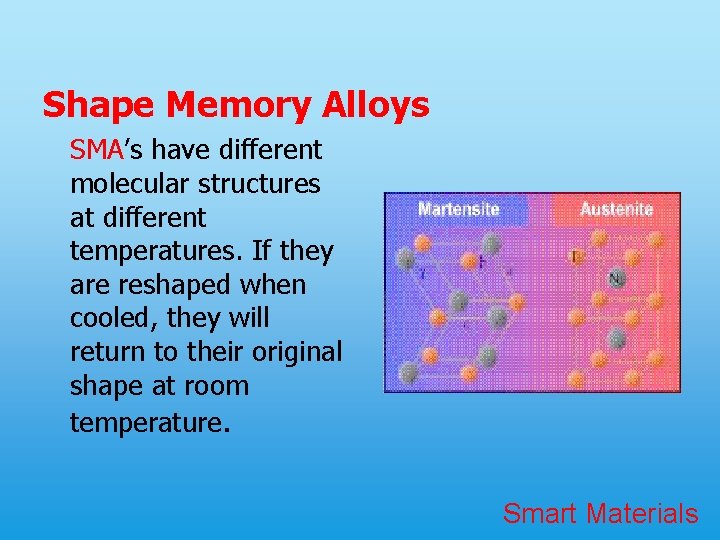

Shape Memory Alloys SMA’s have different molecular structures at different temperatures. If they are reshaped when cooled, they will return to their original shape at room temperature. Smart Materials

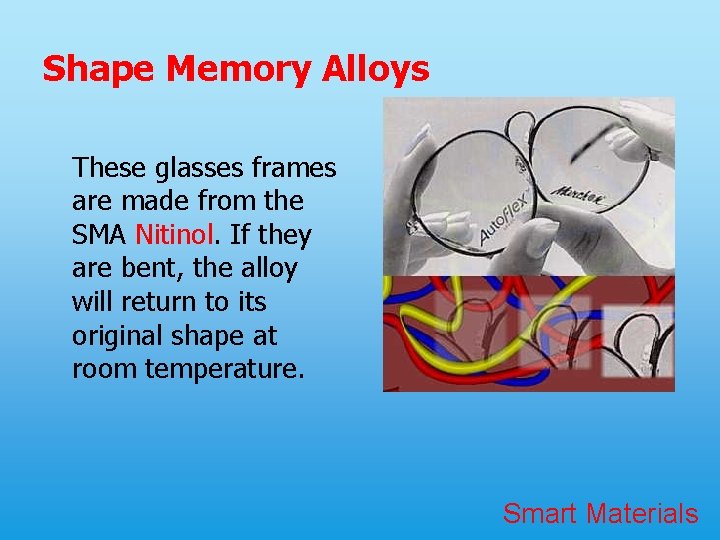

Shape Memory Alloys These glasses frames are made from the SMA Nitinol. If they are bent, the alloy will return to its original shape at room temperature. Smart Materials

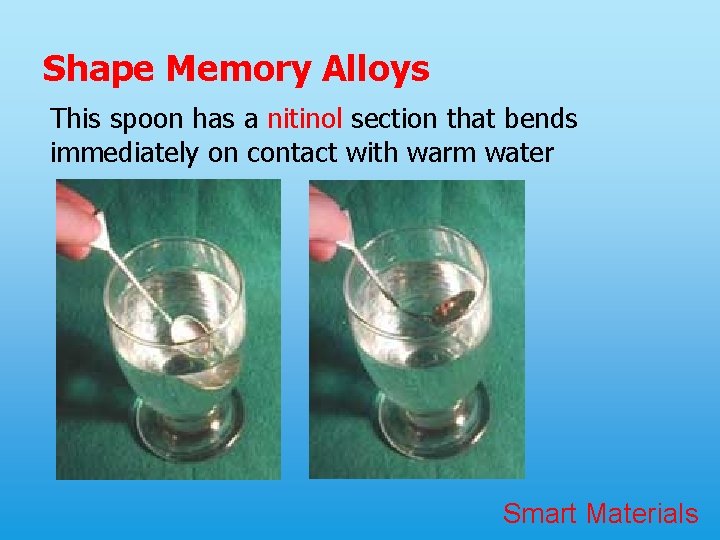

Shape Memory Alloys This spoon has a nitinol section that bends immediately on contact with warm water Smart Materials

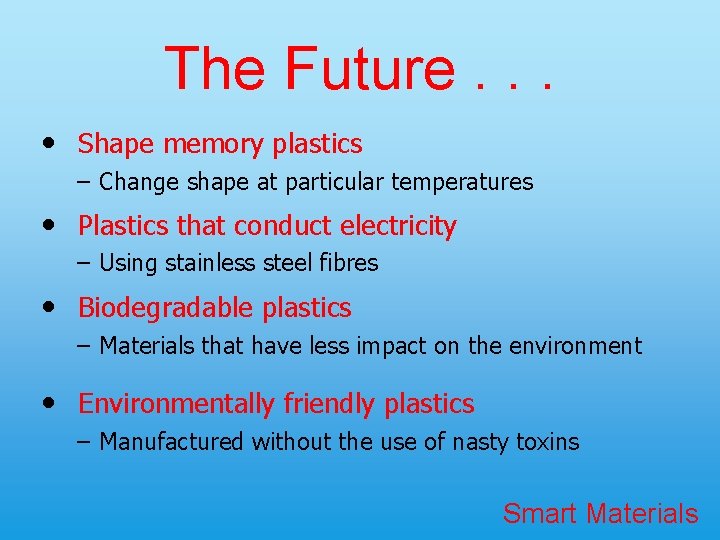

The Future. . . • Shape memory plastics – Change shape at particular temperatures • Plastics that conduct electricity – Using stainless steel fibres • Biodegradable plastics – Materials that have less impact on the environment • Environmentally friendly plastics – Manufactured without the use of nasty toxins Smart Materials

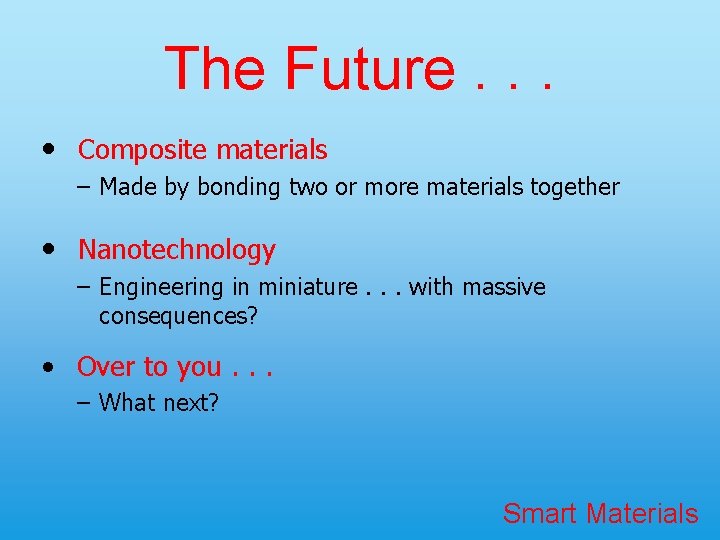

The Future. . . • Composite materials – Made by bonding two or more materials together • Nanotechnology – Engineering in miniature. . . with massive consequences? • Over to you. . . – What next? Smart Materials
