Smart Line Startup Initial wirings Smart Line Initial
- Slides: 32
Smart. Line Startup
Initial wirings Smart. Line Initial Wirings
Initial wirings Smart. Line Balance Zones with a 3. 9 kΩ resistance

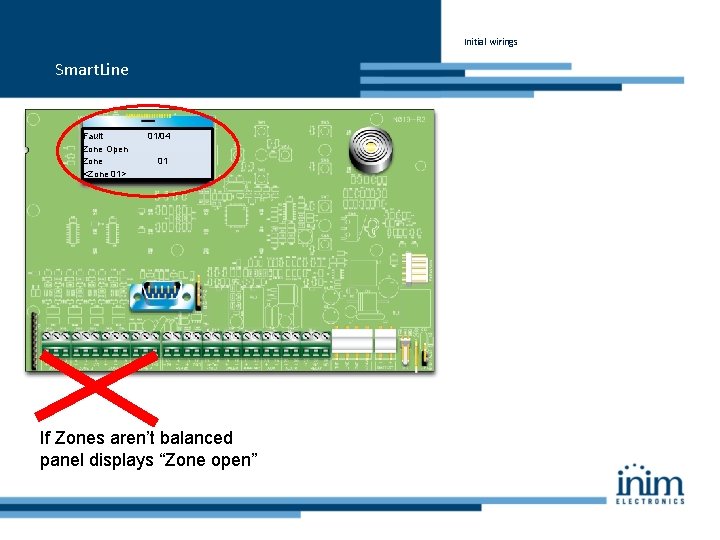

Initial wirings Smart. Line Fault Zone Open Zone <Zone 01> 01/04 01 If Zones aren’t balanced panel displays “Zone open”

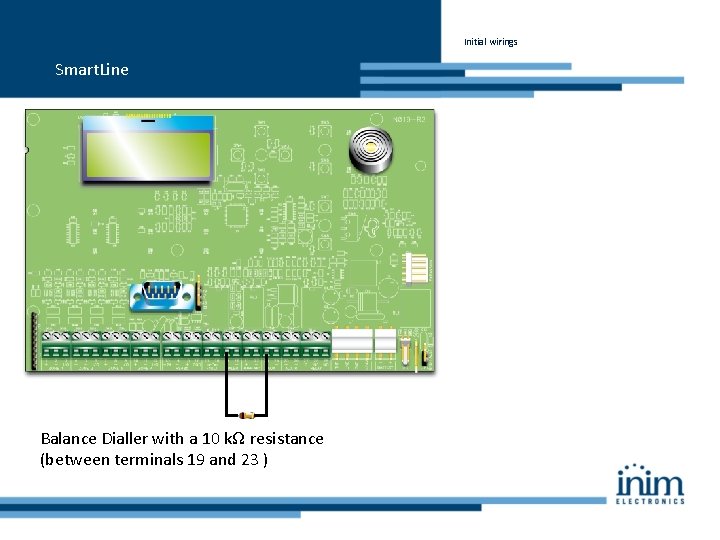

Initial wirings Smart. Line Balance Dialler with a 10 kΩ resistance (between terminals 19 and 23 )

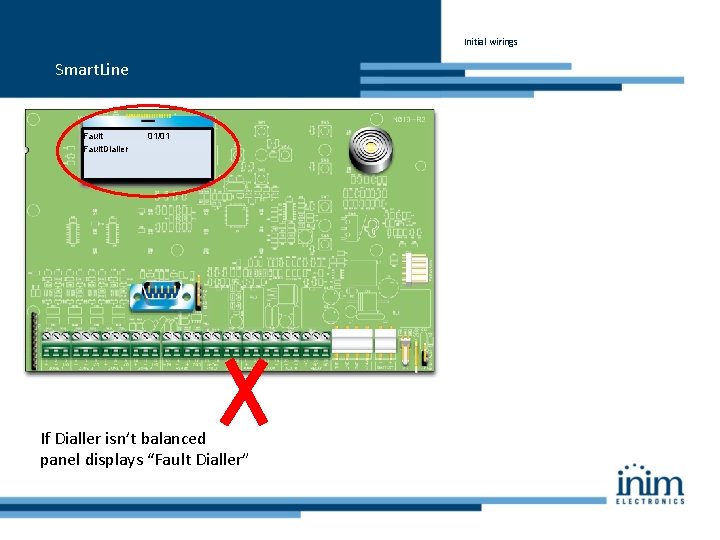

Initial wirings Smart. Line Fault. Dialler 01/01 If Dialler isn’t balanced panel displays “Fault Dialler”

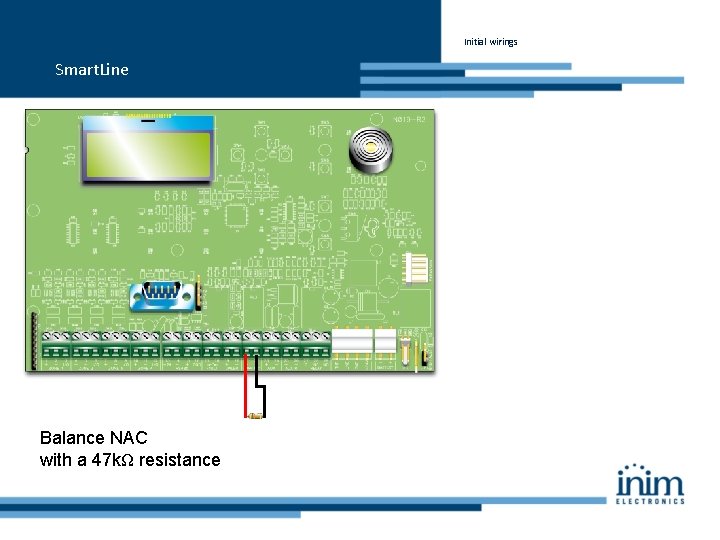

Initial wirings Smart. Line Balance NAC with a 47 kΩ resistance
Initial wirings Smart. Line Fault Open I/O Panel NAC 01/01 If NAC isn’t balanced panel displays “Open I/O Panel NAC”
Detectors wiring Smart. Line Detectors Wiring Balance other zones with a 3. 9 kΩ resistance 3. 9 kΩ End of Line resistance on the last detector

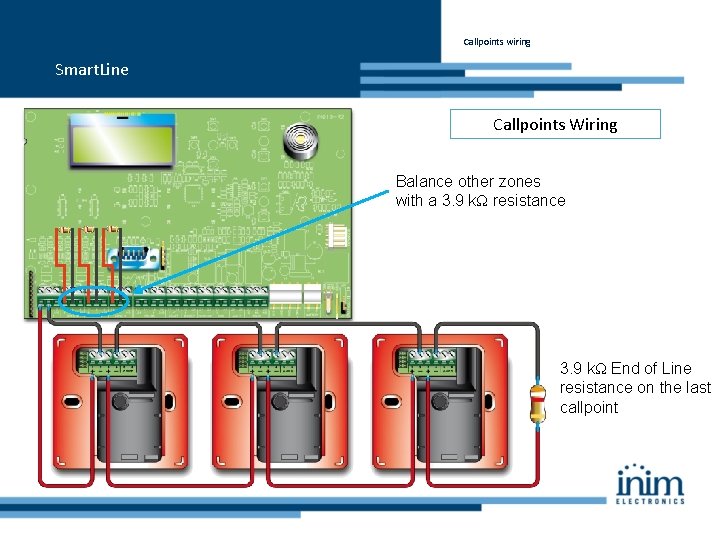

Callpoints wiring Smart. Line Callpoints Wiring Balance other zones with a 3. 9 kΩ resistance 3. 9 kΩ End of Line resistance on the last callpoint
NAC Smart. Line NAC Wiring NAC output activates on Alarm: it can activate alarm devices 47 kΩ End of Line resistance on the last device

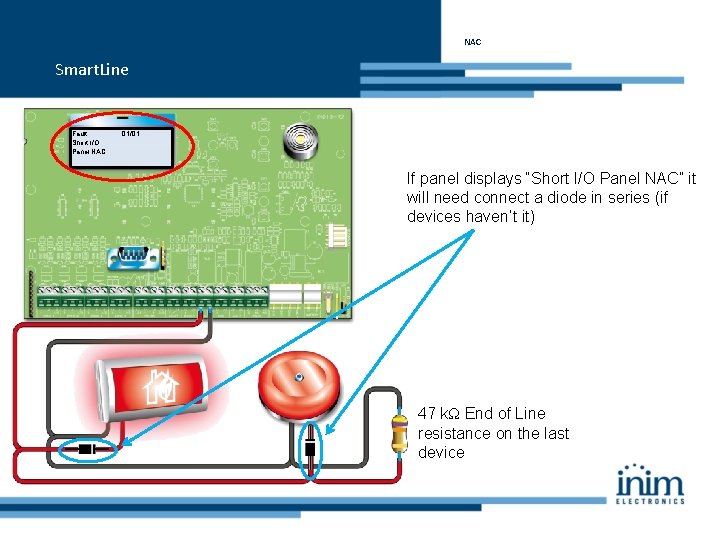

NAC Smart. Line Fault Short I/O Panel NAC 01/01 If panel displays “Short I/O Panel NAC” it will need connect a diode in series (if devices haven’t it) 47 kΩ End of Line resistance on the last device
Other wirings Smart. Line Other wirings 17 -18 FAULT Terminals activated on Fault output can activate some devices
Dialer Smart. Line 19 -20 DIALER Terminals activated on Alarm. DIALER Output can activate an external dialler.
AUX R Smart. Line 25 -26 AUX R Terminals turn off 24 V on Reset They can reset latching linear beam smoke detector
Relay Smart. Line 27 -28 -29 RELAY Terminals activated on Alarm (at default) They can activate some devices
Generic contact Smart. Line Generic Contact Wiring Alarm contact only 680Ω resistance NO Alarm Contact 3. 9 kΩ resistance
Generic contact Smart. Line Alarm Contact and Fault Contact 680Ω resistance NO Alarm Contact NC Fault Contact 3. 9 kΩ resistance
Gas Detector Wiring Smart. Line Gas Detector Wiring Detection-Line Zone Wiring INE 55/ING 55 Detector 3. 9 kΩ resistance It have to program the Zone as “Gas (Relay Output)
Gas Detector Wiring Smart. Line I/O 4 -20 m. A Input Wiring It have to program I/O Line as “Gas 4 -20 m. A Input” 150Ω resistance 3. 9 kΩ zone balancing resistance INA 55 -101 board INE 55/ING 55 Detector

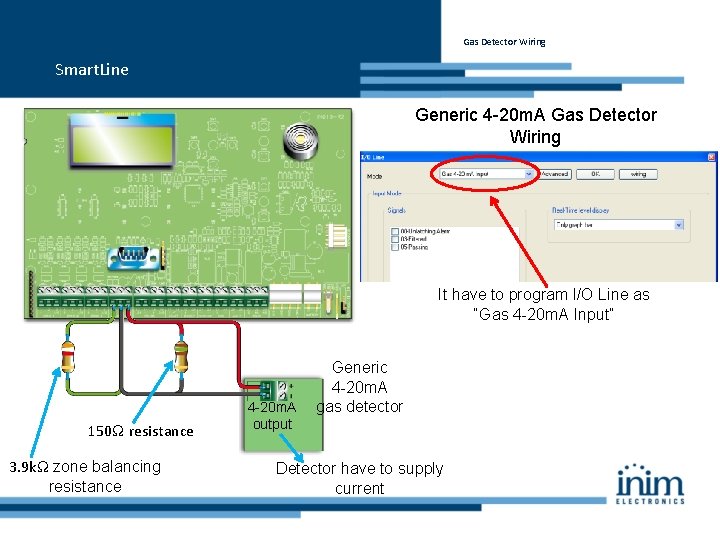

Gas Detector Wiring Smart. Line Generic 4 -20 m. A Gas Detector Wiring It have to program I/O Line as “Gas 4 -20 m. A Input” 150Ω resistance 3. 9 kΩ zone balancing resistance 4 -20 m. A output Generic 4 -20 m. A gas detector Detector have to supply current
Expansion boards Smart. Line Expansion Boards Wiring To next expansion board
Expansion boards Smart. Line Expansion Zones are similar to panel ones Balance Zones with a 3. 9 kΩ resistance

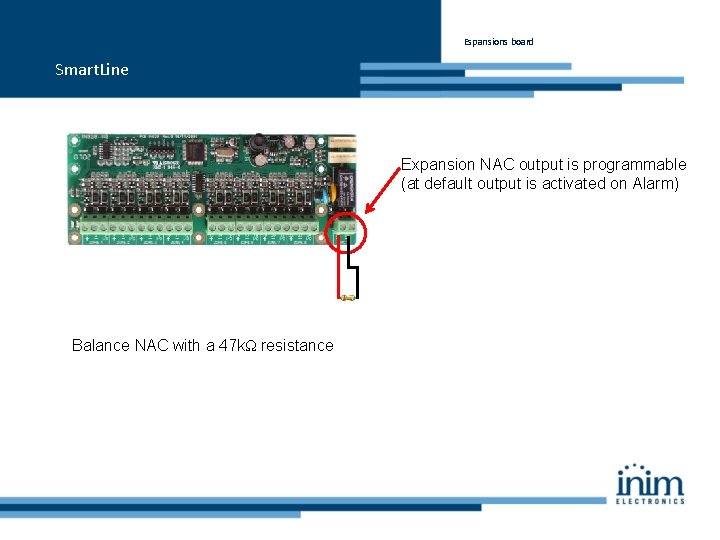

Espansions board Smart. Line Expansion NAC output is programmable (at default output is activated on Alarm) Balance NAC with a 47 kΩ resistance
Expansion boards Smart. Line Control Panel IN PROGRAMMi. ING Ver: 2. 03 01/01/12 17: 45 It have to configure expansion boards Enable panel programming phase
Expansion boards Smart. Line Control Panel IN PROGRAMMING Ver: 2. 03 01/01/12 17: 45 Settings Disablement Maintenance Programming Configuration Progr. Zone Progr. Output Progr. Timer Acquire int. bus Acquire ext. bus Current Devices Extin. module Expansion Ok to execute O O Current Devices Extin. module Expansion Ok to execute O 1
RS 485 Bus Smart. Line RS 485 Bus Wiring Up to 4 Repeater 2 Power Station Smart. Level Power Station Smart. Let. USee/LCD-Lite Repeater
RS 485 Bus Smart. Line It have to address RS 485 Bus devices Address DIP Switch Position Smart. Level Power Station Smart. Let. USee/LCD-Lite Repeater
RS 485 Bus Smart. Line It have to address RS 485 Bus devices Enable Smart. Level programming phase View log LED Test Reset Maintenance LED test Reset Maintenance Programming Prog Booster Options Address RS 485 Default Data Smart. Level Power Station Smart. Let. USee/LCD-Lite Repeater Address: 01 Address: 02

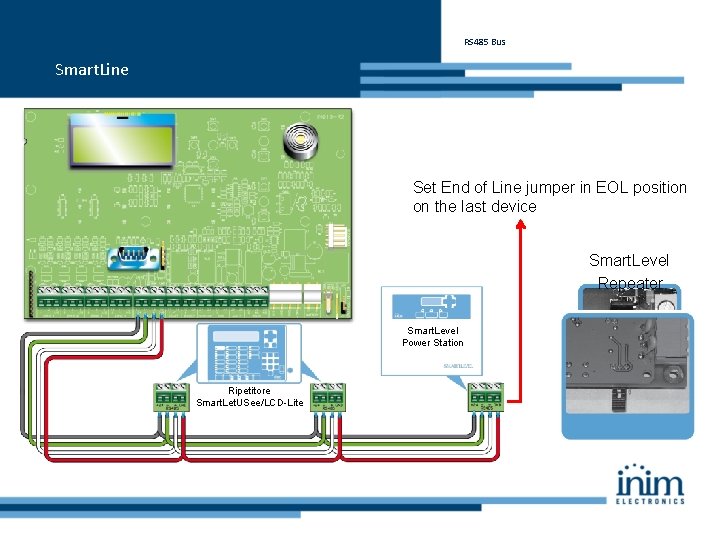

RS 485 Bus Smart. Line Set End of Line jumper in EOL position on the last device Smart. Level Repeater Smart. Level Power Station Ripetitore Smart. Let. USee/LCD-Lite
RS 485 Bus Smart. Line It have to address RS 485 Bus devices Control Panel IN PROGRAMMING Ver: 2. 03 01/01/12 17: 45 Enable panel programming phase Smart. Level Power Station Smart. Let. USee/LCD-Lite Repeater
RS 485 Bus Smart. Line Control Centrale Panel IN IN PROGRAMMAZ. !! PROGRAMMING Ver: 2. 03 01/01/12 17: 45 Control Panel IN PROGRAMMING Ver: 2. 03 01/01/12 17: 45 Settings Disablement Maintenance Programming Configuration Progr. Zone Progr. Output Progr. Timer Acquire int. bus Acquire ext. bus Smart. Level Power Station Smart. Let. USee/LCD-Lite Repeater Current Devices Repeater Power Station Ok to execute O O Current Devices Repeater Power Station Ok to execute 2 1
