Smart Grid Interoperability Panel SGIP Priority Action Plan

Smart Grid Interoperability Panel (SGIP) Priority Action Plan (PAP) 21: Harmonized Weather Information Susan Hoyler, Director, Technical Operations, SGIP shoyler@sgip. org Marty Burns, Technical Champion, PAP-21 marty@hypertek. us Open Geospatial Consortium Energy and Domain Working Group March 27, 2014 Accelerating Grid Modernization More information available on SGIP. org p: 781 -876 -8857 | e: info @SGIP. org

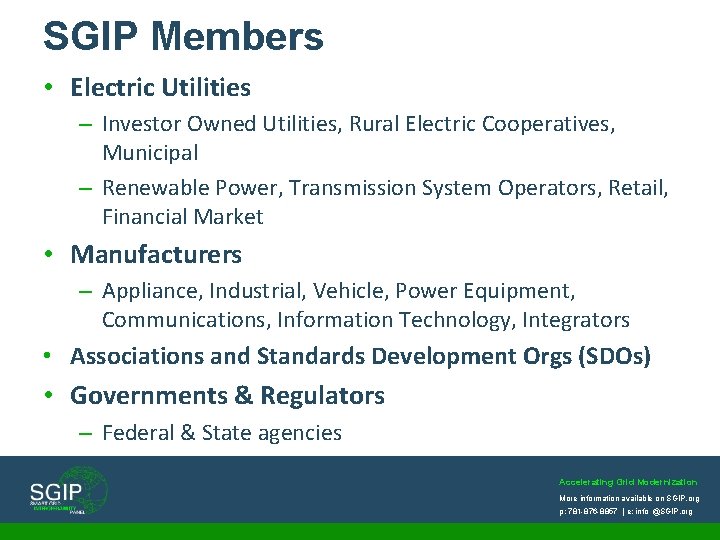

SGIP Members • Electric Utilities – Investor Owned Utilities, Rural Electric Cooperatives, Municipal – Renewable Power, Transmission System Operators, Retail, Financial Market • Manufacturers – Appliance, Industrial, Vehicle, Power Equipment, Communications, Information Technology, Integrators • Associations and Standards Development Orgs (SDOs) • Governments & Regulators – Federal & State agencies Accelerating Grid Modernization More information available on SGIP. org p: 781 -876 -8857 | e: info @SGIP. org

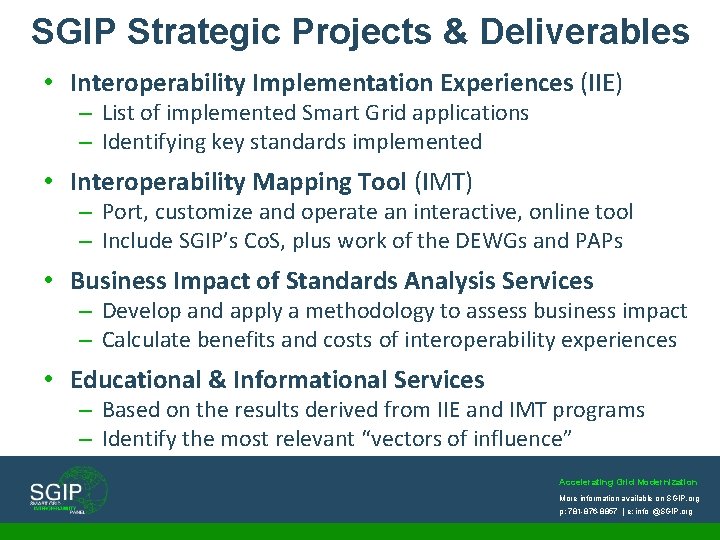

SGIP Strategic Projects & Deliverables • Interoperability Implementation Experiences (IIE) – List of implemented Smart Grid applications – Identifying key standards implemented • Interoperability Mapping Tool (IMT) – Port, customize and operate an interactive, online tool – Include SGIP’s Co. S, plus work of the DEWGs and PAPs • Business Impact of Standards Analysis Services – Develop and apply a methodology to assess business impact – Calculate benefits and costs of interoperability experiences • Educational & Informational Services – Based on the results derived from IIE and IMT programs – Identify the most relevant “vectors of influence” Accelerating Grid Modernization More information available on SGIP. org p: 781 -876 -8857 | e: info @SGIP. org

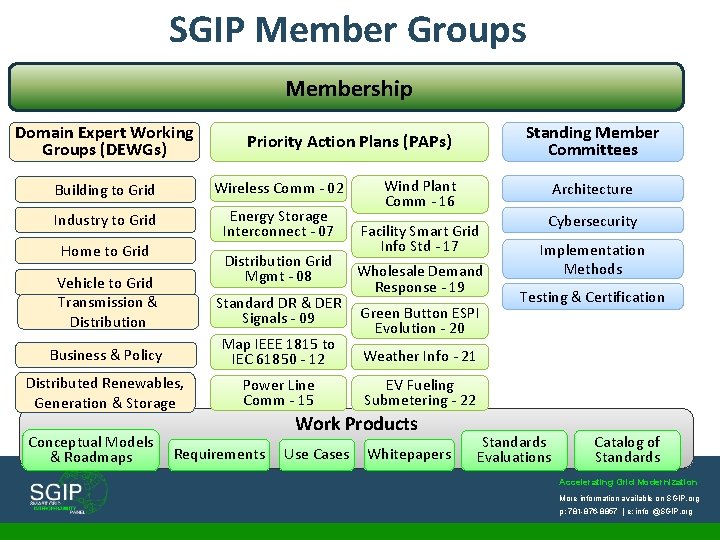

SGIP Member Groups Membership Domain Expert Working Groups (DEWGs) Building to Grid Wireless Comm - 02 Industry to Grid Energy Storage Interconnect - 07 Home to Grid Distribution Grid Mgmt - 08 Vehicle to Grid Transmission & Distribution Standard DR & DER Signals - 09 Business & Policy Map IEEE 1815 to IEC 61850 - 12 Distributed Renewables, Generation & Storage Power Line Comm - 15 Conceptual Models & Roadmaps Standing Member Committees Priority Action Plans (PAPs) Requirements Wind Plant Comm - 16 Facility Smart Grid Info Std - 17 Wholesale Demand Response - 19 Green Button ESPI Evolution - 20 Cybersecurity Implementation Methods Testing & Certification Weather Info - 21 EV Fueling Submetering - 22 Work Products Use Cases Architecture Whitepapers Standards Evaluations Catalog of Standards Accelerating Grid Modernization More information available on SGIP. org p: 781 -876 -8857 | e: info @SGIP. org

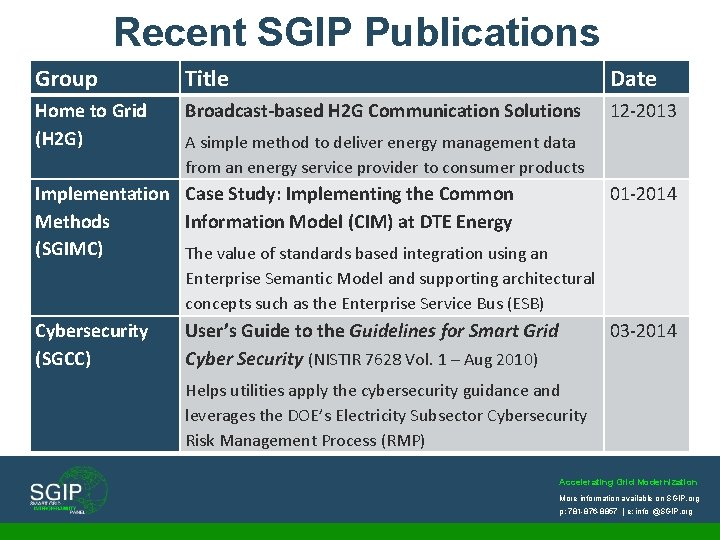

Recent SGIP Publications Group Title Date Home to Grid (H 2 G) Broadcast-based H 2 G Communication Solutions 12 -2013 A simple method to deliver energy management data from an energy service provider to consumer products Implementation Case Study: Implementing the Common Methods Information Model (CIM) at DTE Energy (SGIMC) The value of standards based integration using an 01 -2014 Enterprise Semantic Model and supporting architectural concepts such as the Enterprise Service Bus (ESB) Cybersecurity (SGCC) User’s Guide to the Guidelines for Smart Grid Cyber Security (NISTIR 7628 Vol. 1 – Aug 2010) 03 -2014 Helps utilities apply the cybersecurity guidance and leverages the DOE’s Electricity Subsector Cybersecurity Risk Management Process (RMP) Accelerating Grid Modernization More information available on SGIP. org p: 781 -876 -8857 | e: info @SGIP. org

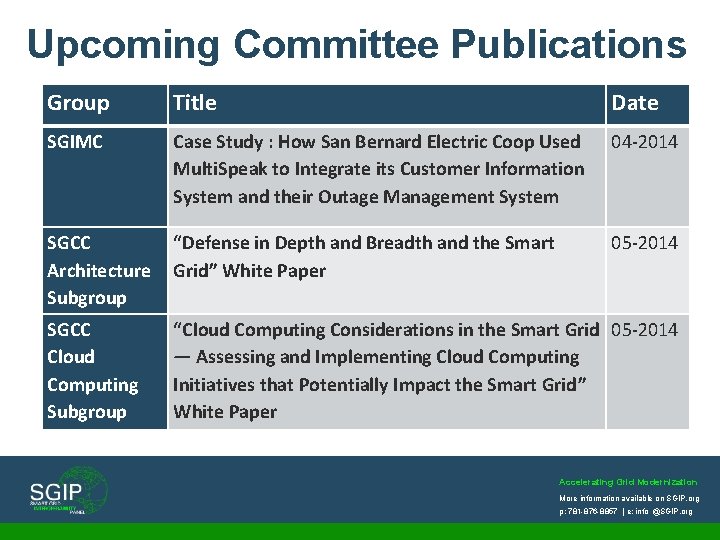

Upcoming Committee Publications Group Title Date SGIMC Case Study : How San Bernard Electric Coop Used Multi. Speak to Integrate its Customer Information System and their Outage Management System 04 -2014 SGCC Architecture Subgroup “Defense in Depth and Breadth and the Smart Grid” White Paper 05 -2014 SGCC Cloud Computing Subgroup “Cloud Computing Considerations in the Smart Grid 05 -2014 — Assessing and Implementing Cloud Computing Initiatives that Potentially Impact the Smart Grid” White Paper Accelerating Grid Modernization More information available on SGIP. org p: 781 -876 -8857 | e: info @SGIP. org

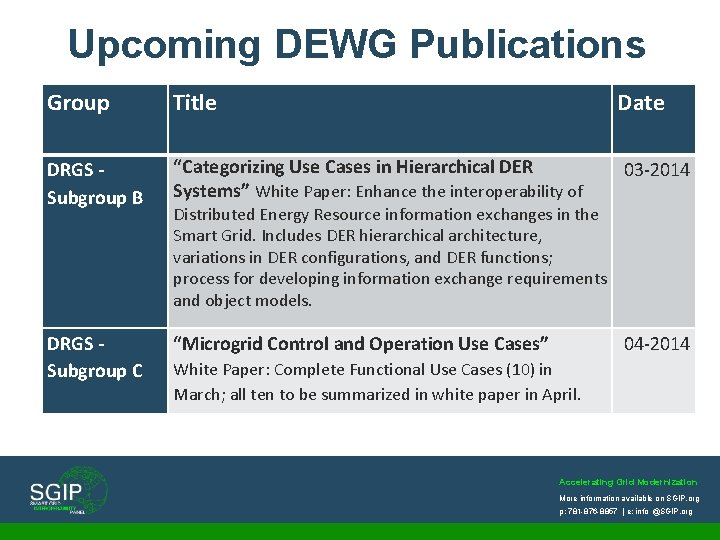

Upcoming DEWG Publications Group Title Date DRGS Subgroup B “Categorizing Use Cases in Hierarchical DER Systems” White Paper: Enhance the interoperability of 03 -2014 DRGS Subgroup C “Microgrid Control and Operation Use Cases” 04 -2014 Distributed Energy Resource information exchanges in the Smart Grid. Includes DER hierarchical architecture, variations in DER configurations, and DER functions; process for developing information exchange requirements and object models. White Paper: Complete Functional Use Cases (10) in March; all ten to be summarized in white paper in April. Accelerating Grid Modernization More information available on SGIP. org p: 781 -876 -8857 | e: info @SGIP. org

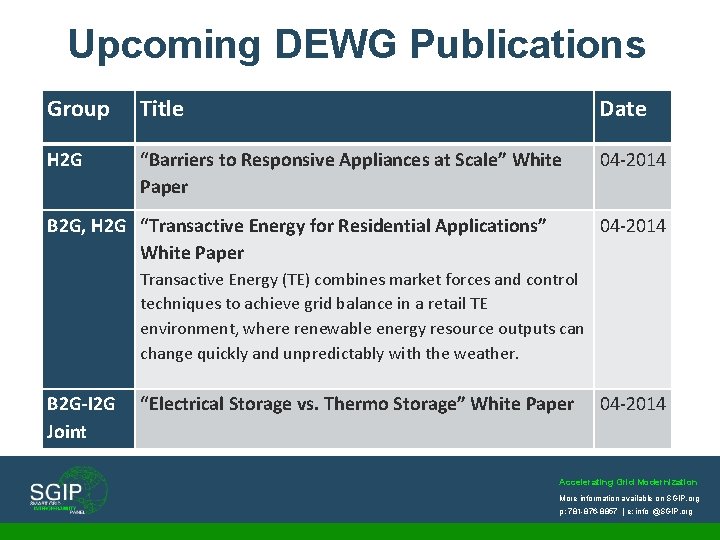

Upcoming DEWG Publications Group Title Date H 2 G “Barriers to Responsive Appliances at Scale” White Paper 04 -2014 B 2 G, H 2 G “Transactive Energy for Residential Applications” White Paper 04 -2014 Transactive Energy (TE) combines market forces and control techniques to achieve grid balance in a retail TE environment, where renewable energy resource outputs can change quickly and unpredictably with the weather. B 2 G-I 2 G Joint “Electrical Storage vs. Thermo Storage” White Paper 04 -2014 Accelerating Grid Modernization More information available on SGIP. org p: 781 -876 -8857 | e: info @SGIP. org

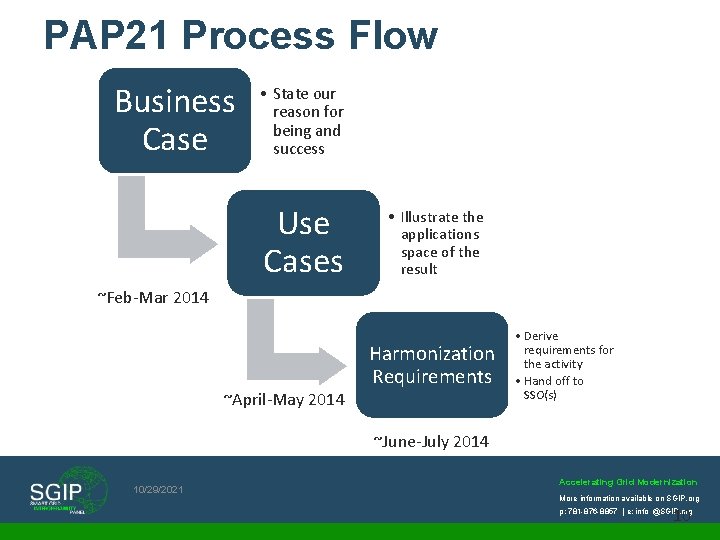

PAP 21 Process Flow Business Case • State our reason for being and success Use Cases • Illustrate the applications space of the result ~Feb-Mar 2014 Harmonization Requirements ~April-May 2014 • Derive requirements for the activity • Hand off to SSO(s) ~June-July 2014 10/29/2021 Accelerating Grid Modernization More information available on SGIP. org 10 p: 781 -876 -8857 | e: info @SGIP. org

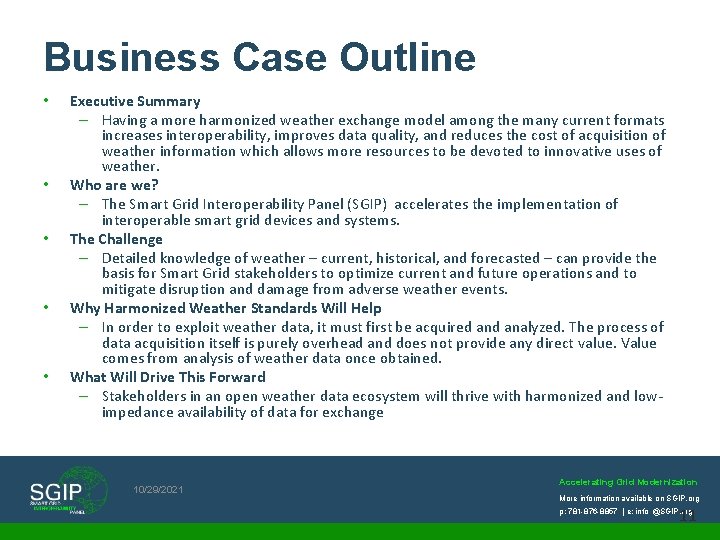

Business Case Outline • • • Executive Summary – Having a more harmonized weather exchange model among the many current formats increases interoperability, improves data quality, and reduces the cost of acquisition of weather information which allows more resources to be devoted to innovative uses of weather. Who are we? – The Smart Grid Interoperability Panel (SGIP) accelerates the implementation of interoperable smart grid devices and systems. The Challenge – Detailed knowledge of weather – current, historical, and forecasted – can provide the basis for Smart Grid stakeholders to optimize current and future operations and to mitigate disruption and damage from adverse weather events. Why Harmonized Weather Standards Will Help – In order to exploit weather data, it must first be acquired analyzed. The process of data acquisition itself is purely overhead and does not provide any direct value. Value comes from analysis of weather data once obtained. What Will Drive This Forward – Stakeholders in an open weather data ecosystem will thrive with harmonized and lowimpedance availability of data for exchange 10/29/2021 Accelerating Grid Modernization More information available on SGIP. org 11 p: 781 -876 -8857 | e: info @SGIP. org

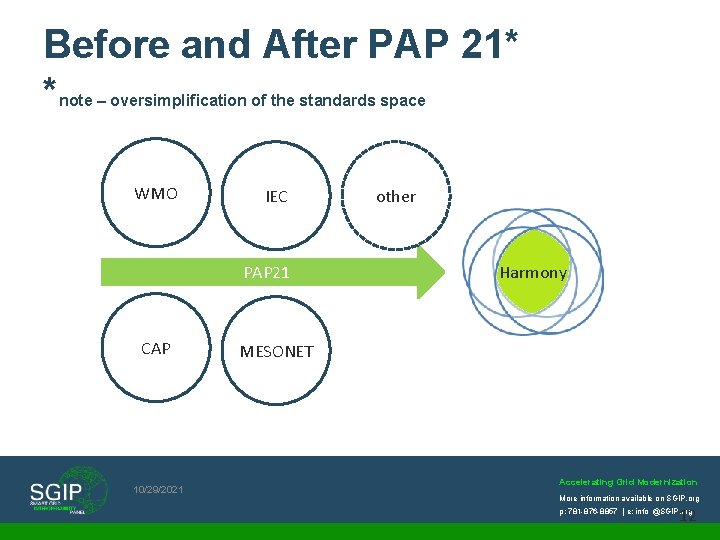

Before and After PAP 21* * note – oversimplification of the standards space WMO IEC PAP 21 CAP 10/29/2021 other Harmony MESONET Accelerating Grid Modernization More information available on SGIP. org 12 p: 781 -876 -8857 | e: info @SGIP. org

High Level Data Organization of Weather* Current Weather Data standards can be described this way Observations Phenomenon Analogs 10/29/2021 Forecasts Value. Sets Phenomenon Coded. Values Analogs Alerts Value. Sets Coded. Values Accelerating Grid Modernization More information available on SGIP. org 13 p: 781 -876 -8857 | e: info @SGIP. org *Courtesy EPRI 2014

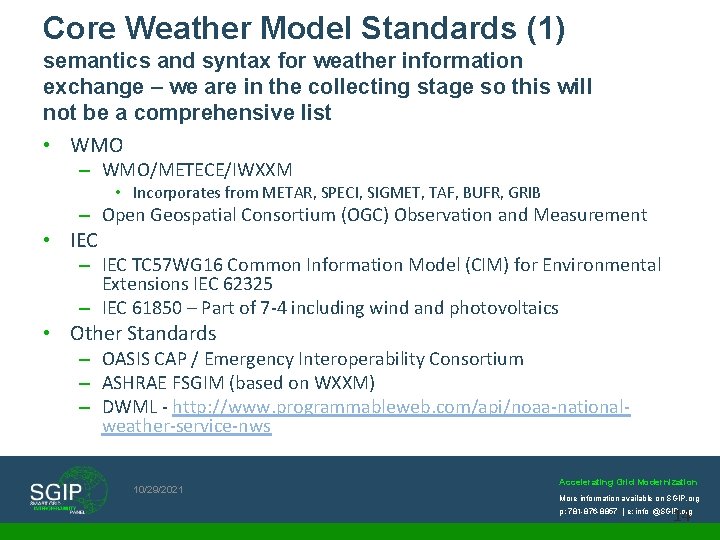

Core Weather Model Standards (1) semantics and syntax for weather information exchange – we are in the collecting stage so this will not be a comprehensive list • WMO – WMO/METECE/IWXXM • Incorporates from METAR, SPECI, SIGMET, TAF, BUFR, GRIB – Open Geospatial Consortium (OGC) Observation and Measurement • IEC – IEC TC 57 WG 16 Common Information Model (CIM) for Environmental Extensions IEC 62325 – IEC 61850 – Part of 7 -4 including wind and photovoltaics • Other Standards – OASIS CAP / Emergency Interoperability Consortium – ASHRAE FSGIM (based on WXXM) – DWML - http: //www. programmableweb. com/api/noaa-nationalweather-service-nws 10/29/2021 Accelerating Grid Modernization More information available on SGIP. org 14 p: 781 -876 -8857 | e: info @SGIP. org

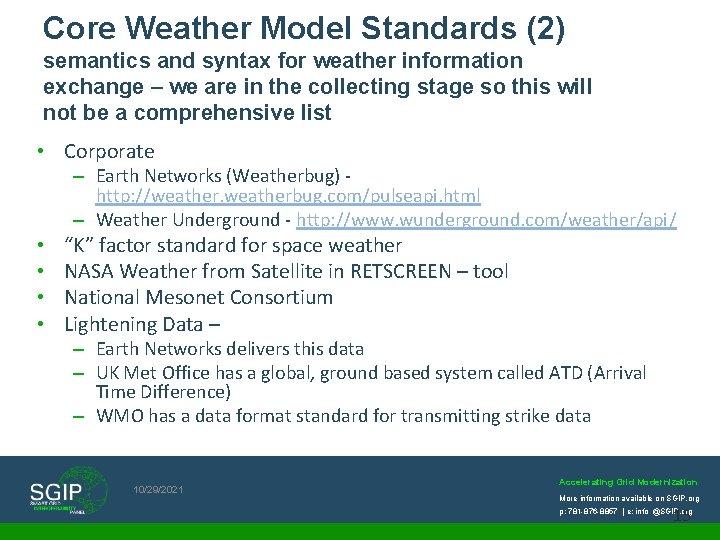

Core Weather Model Standards (2) semantics and syntax for weather information exchange – we are in the collecting stage so this will not be a comprehensive list • Corporate – Earth Networks (Weatherbug) http: //weatherbug. com/pulseapi. html – Weather Underground - http: //www. wunderground. com/weather/api/ • • “K” factor standard for space weather NASA Weather from Satellite in RETSCREEN – tool National Mesonet Consortium Lightening Data – – Earth Networks delivers this data – UK Met Office has a global, ground based system called ATD (Arrival Time Difference) – WMO has a data format standard for transmitting strike data 10/29/2021 Accelerating Grid Modernization More information available on SGIP. org 15 p: 781 -876 -8857 | e: info @SGIP. org

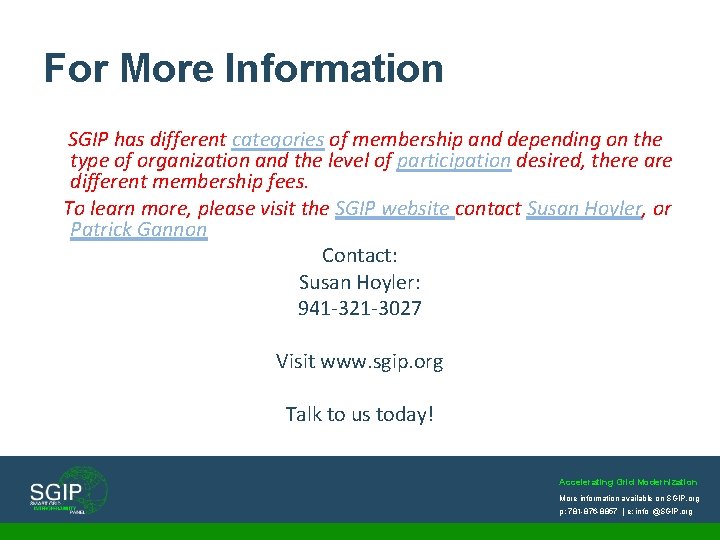

For More Information SGIP has different categories of membership and depending on the type of organization and the level of participation desired, there are different membership fees. To learn more, please visit the SGIP website contact Susan Hoyler, or Patrick Gannon Contact: Susan Hoyler: 941 -321 -3027 Visit www. sgip. org Talk to us today! Accelerating Grid Modernization More information available on SGIP. org p: 781 -876 -8857 | e: info @SGIP. org

ADDITIONAL BACKGROUND Accelerating Grid Modernization More information available on SGIP. org p: 781 -876 -8857 | e: info @SGIP. org

SGIP Member Groups Activities Accelerating Grid Modernization More information available on SGIP. org p: 781 -876 -8857 | e: info @SGIP. org

Business & Policy (Bn. P) DEWG Accelerating Grid Modernization More information available on SGIP. org p: 781 -876 -8857 | e: info @SGIP. org

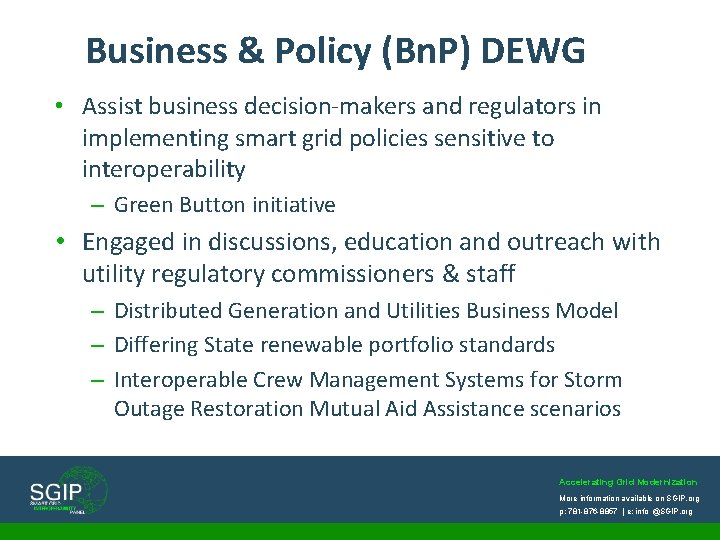

Business & Policy (Bn. P) DEWG • Assist business decision-makers and regulators in implementing smart grid policies sensitive to interoperability – Green Button initiative • Engaged in discussions, education and outreach with utility regulatory commissioners & staff – Distributed Generation and Utilities Business Model – Differing State renewable portfolio standards – Interoperable Crew Management Systems for Storm Outage Restoration Mutual Aid Assistance scenarios Accelerating Grid Modernization More information available on SGIP. org p: 781 -876 -8857 | e: info @SGIP. org

WORKING GROUPS Accelerating Grid Modernization More information available on SGIP. org p: 781 -876 -8857 | e: info @SGIP. org

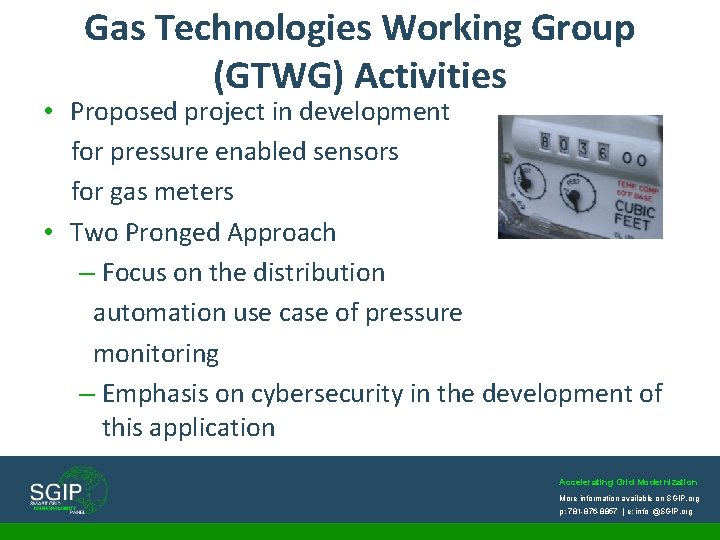

Gas Technologies Working Group (GTWG) Activities • Proposed project in development for pressure enabled sensors for gas meters • Two Pronged Approach – Focus on the distribution automation use case of pressure monitoring – Emphasis on cybersecurity in the development of this application Accelerating Grid Modernization More information available on SGIP. org p: 781 -876 -8857 | e: info @SGIP. org

PRIORITY ACTION PLANS Accelerating Grid Modernization More information available on SGIP. org p: 781 -876 -8857 | e: info @SGIP. org

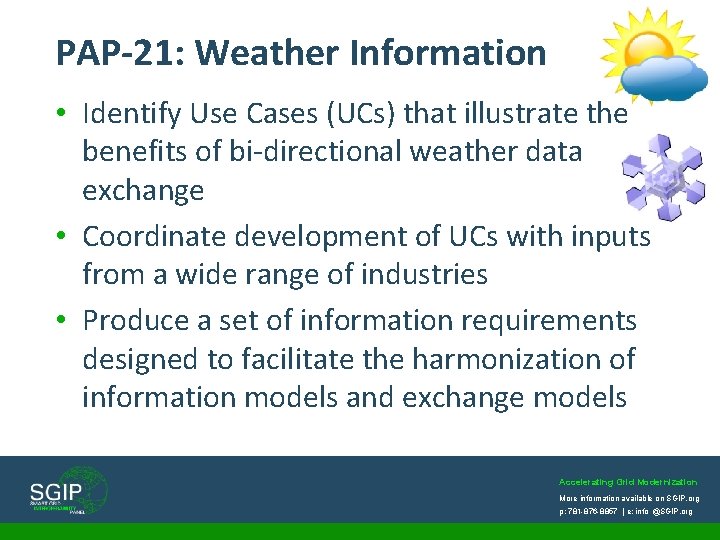

PAP-21: Weather Information • Identify Use Cases (UCs) that illustrate the benefits of bi-directional weather data exchange • Coordinate development of UCs with inputs from a wide range of industries • Produce a set of information requirements designed to facilitate the harmonization of information models and exchange models Accelerating Grid Modernization More information available on SGIP. org p: 781 -876 -8857 | e: info @SGIP. org

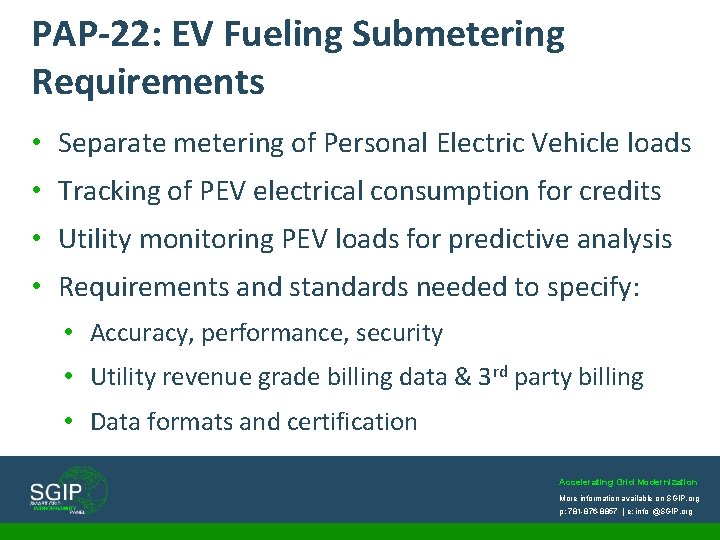

PAP-22: EV Fueling Submetering Requirements • Separate metering of Personal Electric Vehicle loads • Tracking of PEV electrical consumption for credits • Utility monitoring PEV loads for predictive analysis • Requirements and standards needed to specify: • Accuracy, performance, security • Utility revenue grade billing data & 3 rd party billing • Data formats and certification Accelerating Grid Modernization More information available on SGIP. org p: 781 -876 -8857 | e: info @SGIP. org

Many Utility Functions Benefit from SGIP Membership Regulato ry Relations Procurem ent Planning & Managem ent Engineeri ng Operatio ns C-Level Executive s Marketin g Customer Service ICT Program Managem ent Accelerating Grid Modernization More information available on SGIP. org p: 781 -876 -8857 | e: info @SGIP. org

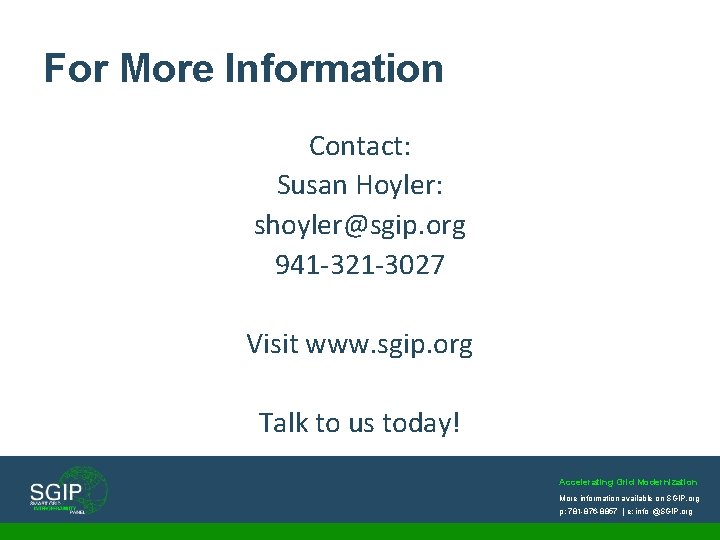

For More Information Contact: Susan Hoyler: shoyler@sgip. org 941 -321 -3027 Visit www. sgip. org Talk to us today! Accelerating Grid Modernization More information available on SGIP. org p: 781 -876 -8857 | e: info @SGIP. org
